Standards Content (Sample)

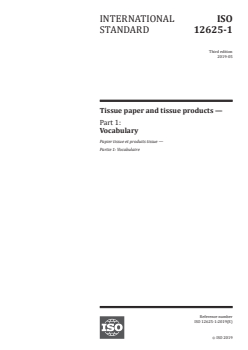

INTERNATIONAL ISO
STANDARD 12625-1
Third edition
2019-05
Tissue paper and tissue products —
Part 1:
Vocabulary

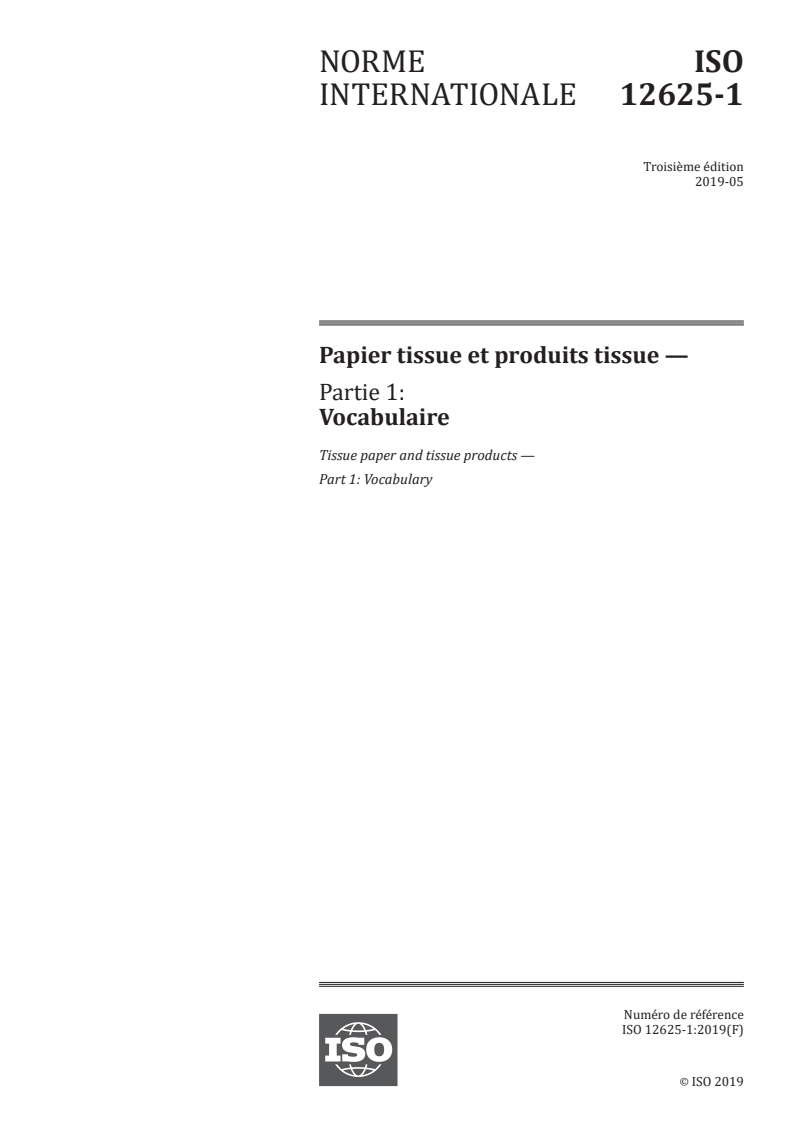

Papier tissue et produits tissue —
Partie 1: Vocabulaire
Reference number
ISO 12625-1:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 12625-1:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 12625-1:2019(E)

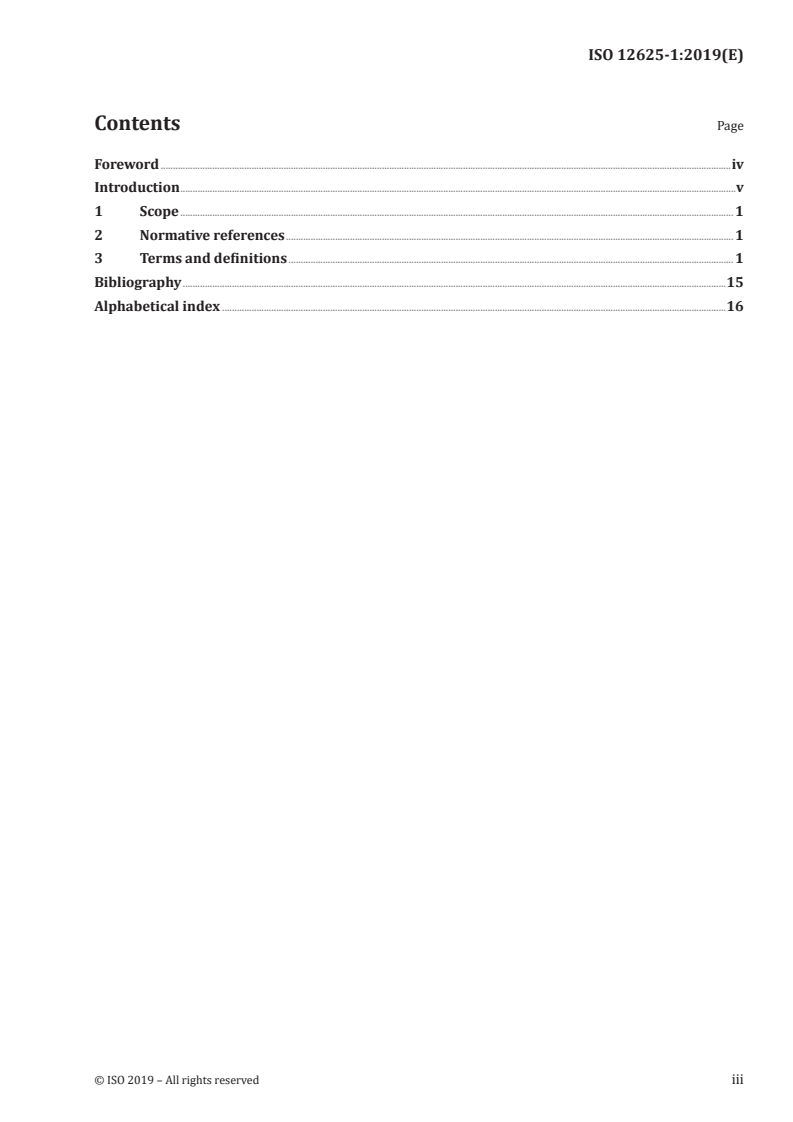

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
Bibliography .15
Alphabetical index .16
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 12625-1:2019(E)

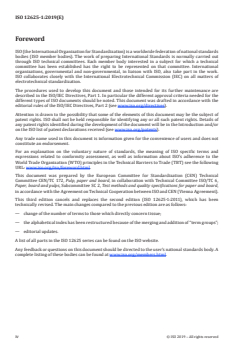

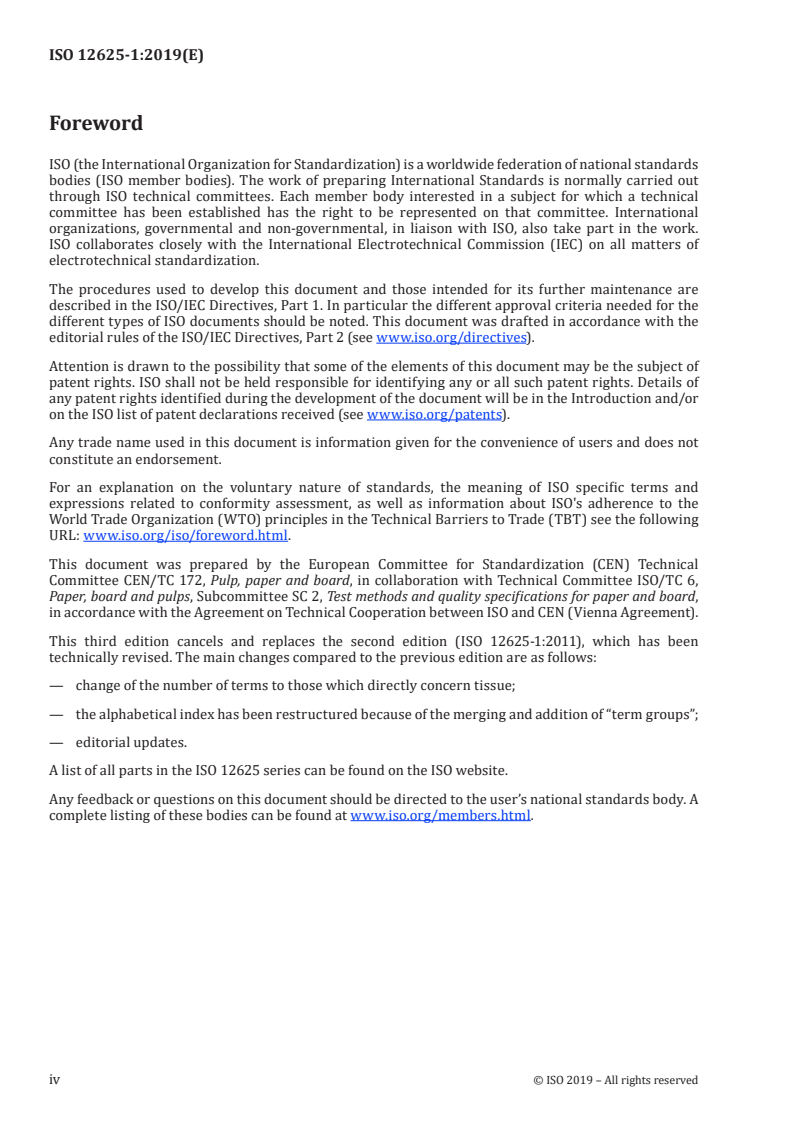

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by the European Committee for Standardization (CEN) Technical
Committee CEN/TC 172, Pulp, paper and board, in collaboration with Technical Committee ISO/TC 6,
Paper, board and pulps, Subcommittee SC 2, Test methods and quality specifications for paper and board,
in accordance with the Agreement on Technical Cooperation between ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 12625-1:2011), which has been
technically revised. The main changes compared to the previous edition are as follows:
— change of the number of terms to those which directly concern tissue;
— the alphabetical index has been restructured because of the merging and addition of “term groups”;
— editorial updates.
A list of all parts in the ISO 12625 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 12625-1:2019(E)

Introduction
This document defines terms for the determination of the physical properties of tissue paper
manufactured using creping or un-creped techniques, and includes products made using a combination
of these tissue-making processes.
Tissue products form an important and growing market for single-use disposable hygiene and
industrial products. The current range of these familiar products includes toilet tissue, facial tissue,
kitchen/household towels, hand towels, handkerchiefs, table napkins, mats, industrial wipes, other
absorbent tissue papers and lotion-treated products.
Tissue-paper-manufacturing technology has evolved and diverged from "ordinary" paper technology
so that a new glossary has become necessary.
The purpose of this document is to allow a common understanding of the various tissue-making
terms between tissue manufacturers, tissue converters and tissue customers, and to facilitate the
harmonization of testing methods. Each listed term is briefly defined and, where this was thought to
be useful, an example is given. While elaborating this document, English was chosen as the original
language. It was then stated that some expressions cannot be translated into another language. For
those cases, the English expression is used.
© ISO 2019 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 12625-1:2019(E)
Tissue paper and tissue products —
Part 1:
Vocabulary
1 Scope
This document establishes general principles for the use of terms in the entire working field of tissue
paper and tissue products.
It permits the use of a common terminology in industry and commerce.
It is expressly stated that ISO 15755 applies for the detection of impurities and contraries in tissue
paper and tissue products.
For the determination of moisture content in tissue paper and tissue products, ISO 287 applies.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
absorbency
ability of a tissue paper (3.58) and/or a tissue product (3.59) to take up a liquid
3.2 Absorption
3.2.1
absorption capacity
mass of liquid that is absorbed per unit mass of the test piece
Note 1 to entry: Water-absorption capacity is defined in ISO 12625-8.
3.2.2
absorption rate
mass of liquid that is absorbed by a test piece per unit time, determined by dividing the total mass of
liquid that is absorbed over a given time period by the duration of the period
3.2.3
absorption time
time required for complete wetting of a sample
[SOURCE: ISO 12625-8:2010, 3.1]
© ISO 2019 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 12625-1:2019(E)

3.3
accelerated ageing
procedure which allows for the fast prediction of changes in the characteristics of tissue paper (3.58) or
tissue product (3.59) that occur in normal conditions over a longer time
Note 1 to entry: This is particularly the case for wet strength tissue paper or tissue product for which the wet
resistance occurs over time. An accelerated ageing procedure for determining wet strength is specified in
ISO 12625-5.
3.4
apparent bulk density
mass per unit volume of tissue paper (3.58) or tissue product (3.59), calculated from its grammage (3.28)
and bulking thickness (3.10)
Note 1 to entry: It is determined from the grammage of the tissue paper or the tissue product divided by the
thickness determined on a stack of that tissue.
[SOURCE: ISO 12625-3:2014, 3.4]
3.5
away-from-home tissue products
AFH tissue products
tissue products (3.59) intended for use in the institutional and industrial markets
EXAMPLE Tissue products used in hospitals, restaurants, hotels, offices.
3.6
base paper
single-ply tissue paper sheet produced as a semi-finished product intended to be converted to a
finished product
3.7
base sheet forming
wet forming of a web on one, or between two, endless running wires or between one wire and a felt,
2 2
producing an endless sheet of tissue with a grammage (3.28) typically between 10 g/m and 50 g/m
3.8 Brightness
3.8.1
D65 brightness
intrinsic radiance (reflectance) factor measured with a reflectometer having the characteristics
described in ISO 2469, equipped with a filter or corresponding function having an effective wavelength
of 457 nm and a half-peak bandwidth of 44 nm, and adjusted so that the UV content of the irradiation
incident upon the test piece corresponds to that of the CIE standard illuminant D65
[SOURCE: ISO 2470-2:2008, 3.4, modified — Symbol R and Note 1 to entry were removed.]
457,D65
3.8.2
C brightness
ISO brightness
intrinsic diffuse radiance (reflectance) factor measured with a reflectometer having the characteristics
described in ISO 2469, equipped with a filter or corresponding function having an effective wavelength
of 457 nm and a half bandwidth of 44 nm, and adjusted so that the UV content of the irradiation incident
upon the test piece corresponds to that of the CIE illuminant C
[SOURCE: ISO 2470-1:2016, 3.4, modified — Preferred term "C brightness" added, and symbol R and
457
Note 1 to entry removed.]
3.9
bulk
inverse of apparent bulk density (3.4)
2 © ISO 2019 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 12625-1:2019(E)

3.10
bulking thickness
thickness of a single sheet of tissue paper (3.58) or tissue product (3.59), calculated from the thickness
of several superimposed sheets, measured under the applied static load
[SOURCE: ISO 12625-3:2014, 3.3]
3.11
calendering
mechanical treatment of base sheet being passed in the nip between two smooth cylinders with the aim
of improving the smoothness or surface softness (3.52.2) of a tissue paper (3.58) or tissue product (3.59)
Note 1 to entry: This operation is carried out by means of a calender. In addition, this process permits some
control of the thickness of tissue paper or tissue product.
3.12
cellulose wadding
creped web or sheet of open formation, made of cellulosic fibres (mainly chemical pulp) and comprising
one or more plies of lightweight paper
Note 1 to entry: An open formation is obtained when paper is produced at low basis weight and high stretch
(usually more than 35 %).
Note 2 to entry: Soft crepe paper of very low grammage, normally used in bundles or pads containing several sheets.
[SOURCE: ISO 4046-4:2016, 4.37, modified — (mainly chemical pulp) added and Note 1 to entry and
Note 2 to entry added]
3.13
cloth-like feel
attribute of a tissue paper (3.58) or tissue product (3.59) such that it resembles the feel of a woven cloth
material
3.14 Colour
3.14.1
CIELAB colour space
three-dimensional approximately uniform colour space, produced by plotting in rectangular
coordinates L*, a*, b*
Note 1 to entry: The quantity L* is a measure of the lightness of the test piece, where L* = 0 corresponds to black
and L* = 100 is defined by the perfect reflecting diffuser. Visually, the quantities a* and b* represent respectively
the red-green and yellow-blue axes in colour space, such that
— +a* is a measure of the degree of redness of the test piece,
— −a* is a measure of the degree of greenness of the test piece,
— +b* is a measure of the degree of yellowness of the test piece, and
— −b* is a measure of the degree of blueness of the test piece.
If both a* and b* are equal to zero, the test piece is grey.
[SOURCE: ISO 5631-3:2015, 3.6, modified — Note 1 to entry added]
3.14.2
CIELAB colour (D65/10°)
L*, a* and b* values of the sample according to the CIELAB 1976 system, evaluated according to the
CIE 1964 (10°) standard colorimetric observer and the CIE standard illuminant D65
Note 1 to entry: See ISO 12625-7 for further information.
© ISO 2019 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 12625-1:2019(E)

[SOURCE: ISO/TR 10688:2015, 2.5.2, modified — Preferred term "(L*, a*, b*)" removed, preferred term
CIELAB colour (D65/10°) and Note 1 to entry added]
3.14.3
CIELAB colour (C/2°)
L*, a* and b* values of the sample according to the CIELAB 1976 system, evaluated according to the
CIE 1931 (2°) standard colorimetric observer and the CIE illuminant C
Note 1 to entry: See ISO 12625-15 for further information.
[SOURCE: ISO/TR 10688:2015, 2.5.1, modified — Preferred term "(L*, a*, b*)" removed, preferred term
CIELAB colour (C/2°) and Note 1 to entry added]
3.15
conventional wet pressing
CWP
tissue-making process by which the wet-formed web is pressed against the Yankee cylinder (3.63) while
supported by a felt, and entirely dried by the Yankee cylinder
3.15.1
Yankee coating
coating package
combination of adhesive/release agent and potentially other chemical additives applied to the Yankee
cylinder (3.63) prior to the creping operation in order to ensure a homogeneous and even contact
between the tissue paper (3.58) web and the drying cylinder, and induce an easy release of the web
from the creping blade
3.15.1.1
adhesive
component of Yankee coating (3.15.1) delivering specific adhesion, durability and hardness
characteristics
3.15.1.2
modifier
component of Yankee coating (3.15.1) that changes its physical properties
Note 1 to entry: For example, plasticizers, corrosion inhibitors and emulsifiers.
3.15.1.3
release
component of Yankee coating (3.15.1) responsible for the reduction of creping blade friction, regulating
adhesion and ensuring proper removal of the tissue sheet from the Yankee cylinder (3.63)
3.15.2
coating in converting
process to apply additives (chemicals, lotion) onto the tissue sheet during converting
Note 1 to entry: The term "coating" has a different meaning in the tissue industry from that in the printing and
writing paper manufacturing industry. In the paper industry, the term "coating" refers to
— a layer of a pigment/binder composition applied to the surface of a paper or board having an impact on the
surface structure, the optical appearance and the optical and printing behaviour of the coated product, and
— the process of applying a coating composition.
4 © ISO 2019 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 12625-1:2019(E)

3.16
converting
manufacturing of a tissue product (3.59) by a process or operation applied after the papermaking process
Note 1 to entry: For example, unwinding and winding procedures, the assembling of tissue base paper to single
or multi-ply webs, their calendering, embossing, laminating, perforating, cutting in the machine direction (MD)
or cross direction (CD), winding of small rolls for end-user purposes, folding in the machine direction and/or
cross direction, stacking of the separated folded sheets and all kinds of packaging. Converting may include lotion
treatment and printing.
3.17
core
tube around which paper is wound to form a reel or a roll of finished product
Note 1 to entry: A core is usually constructed as a one- or multi-ply wall of paper wound and laminated with an
adhesive.
Note 2 to entry: Some rolls of finished products may have no core.
3.18
creping
process by which the web is mechanically removed from the Yankee cylinder (3.63) by a blade in the
machine direction in order to change its properties, which include stretch, thickness, strength and
softness
Note 1 to entry: It is a major part of the tissue-making process.
Note 2 to entry: Creping is included in terms 3.18.1 to 3.18.6.
Note 3 to entry: The Yankee cylinder (3.63) is usually protected by a coating layer.
3.18.1
creped paper
thin, lightweight paper that has been subjected to creping action on a tissue machine
Note 1 to entry: Creped paper shall not be confused with "crepe" paper which is a type of creped paper that has
not been stretched and is often used for decoration and packing material.
3.18.2
creping doctor blade
sharp thin blade that is pressed against the Yankee cylinder (3.63) of a tissue machine under high
pressure and at a specific angle in order to remove the web from the cylinder
3.18.3
double creped paper
tissue paper (3.58) creped in two consecutive process steps
Note 1 to entry: The second creping cylinder downstream of the main Yankee cylinder (3.63) usually works on the
opposite paper side.
3.18.4
dry creped paper
tissue paper (3.58) manufactured using a dry creping process
Note 1 to entry: A typical example is creping by means of a creping doctor blade (3.18.2) against a Yankee cylinder
(3.63) of an almost dry sheet with a dry matter content typically between 95 % and 98 %.
3.18.5
uncreped tissue paper
tissue paper (3.58) typically obtained from a TAD (3.56) process in which the sheet is dried completely
in the TAD section with no creping step on a Yankee cylinder (3.63)
© ISO 2019 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 12625-1:2019(E)

3.18.6
wet creped paper
creped paper (3.18.1) typically produced on a wet creped tissue machine, where creping takes place
on the surface of a Yankee cylinder (3.63) while the sheet is still wet (typically 25 % to 65 % moisture
content) and is followed by post-drying to a fully air-dry condition with conventional drying cylinders
or other drying devices
3.19
cushioning
pillowing
process of making a cushioned structure resulting in a macro-structure of regularly distributed
"cushions" of low-density material separated by high density regions with strong fibre-to-fibre bonding
3.20
disintegration
process that is characterized by a material breaking into small pieces in water under specified
conditions
3.21
drapability
ability of a tissue product (3.59) to spread over an object in a typically textile-like way
3.22
embossing
converting process by which a raised or depressed design is produced, generally by pressure
between engraved rolls or plates, or between an engraved roll or plate and an elastic or a deformable
supporting surface
Note 1 to entry: The main objectives of this process are to deliver bulk and ply bonding.
Note 2 to entry: Typical embodiments are full-face embossed or combined spot-embossed tissue products, for
example toilet papers or kitchen towels.
Note 3 to entry: Embossing is included in terms 3.22.1 to 3.22.14.
3.22.1
border embossing
embossing along all edges of a tissue product (3.59) parallel to the border lines
Note 1 to entry: Mainly done in order to generate ply bonding by mechanical means and for decorative purposes.
Typically used with paper handkerchiefs in cases and napkins.
3.22.2
edge embossing
type of knurling (3.34) along the edge of a tissue product (3.59)
3.22.3
embossed laminate
laminate produced from at least two plies of tissue paper (3.58) in a converting process in which
primarily at least one ply is embossed, the plies forming the laminate being ply-bonded by glue
application to the embossed points
Note 1 to entry: Alternatively, the laminate can be achieved by mechanically bonding the embossed sheet to other
sheet(s) using pressure sufficient to enable fibre-to-fibre-bonding to occur at the embossed points.
3.22.4
embossing pattern
design created in the sheet or the product by the process of embossing
3.22.5
female embossing
see matched steel embossing (3.22.9)
6 © ISO 2019 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 12625-1:2019(E)

3.22.6
foot-to-foot embossing
pin-to-pin embossing
punta-punta embossing
point-to-point embossing
tip-to-tip embossing
steel embossing process where a first steel roll has a pattern or raised protrusions and a second has an
identical pattern or raised protrusions such that each protrusion is registered face to face
3.22.7
glued border embossing
border embossing (3.22.1) combined with a simultaneous ply-bonding with glue at the top face of the
embossed protrusions
Note 1 to entry: This process is especially used to produce handkerchiefs.
3.22.8
male embossing
see matched steel embossing (3.22.9)
3.22.9
matched steel embossing
steel/steel embossing process where a first steel roll has a pattern of raised protrusions (male
embossing) and a second one has an identical pattern of depressions (female embossing), formed so
that they allow the protrusions of the first roll to dip partly into depressions of the second roll
3.22.10
nested embossing
process of pressing a pre-embossed ply with a glue applied to the top faces of the raised protrusions to
a second pre-embossed ply without glue, to produce a multi-ply laminated web in a nested manner
Note 1 to entry: See marrying roll (3.38).
3.22.11
perforation embossing
embossing by a method that creates very small and discrete ruptures at precisely controlled locations
within the web
3.22.12
spot embossing
embossing by use of predominantly linear embossing points forming a pattern
EXAMPLE A flower or a geometric shape.
3.22.13
steel/rubber embossing
embossing achieved by pressure between an engraved steel embossing roll bearing a pattern of
embossing protrusions and a rubber backing roll
3.22.14
steel/steel embossing
embossing achieved by pressure between two steel rolls, one bearing male protrusions and the other
female depressions
3.23
embryonic web
wet web immediately after forming
© ISO 2019 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO 12625-1:2019(E)

3.24
facial tissue
soft and absorbent tissue product (3.59) with wet-strength, intended for use on the face, for blowing the
nose or for make-up removal
Note 1 to entry: Facial tissues are also called handkerchiefs in box in some countries.
3.25
finished product
tissue product (3.59) after converting that is ready for its intended use
Note 1 to entry: The finished product may be either packed or unpacked (tissue product).
3.26
folded product
tissue product (3.59) folded during converting for purposes of packaging and dispensing
3.26.1
cross-folded product
tissue product (3.59) folded in both the machine direction and cross direction
Note 1 to entry: Typical examples are handkerchiefs in cases or napkins.
3.26.2
interfolded tissue product
tissue product (3.59) folded in such a way that when one sheet is withdrawn from the dispenser (box or
device) the next sheet is presented for easy withdrawal
Note 1 to entry: Typical examples are facial tissues or hand towels.
3.27
folding
converting process applied to certain tissue products (3.59) for purposes of packaging and dispensing
Note 1 to entry: There are several ways of folding tissue to obtain different stacks, for example C-fold, J-fold,
M-fold, V-fold, W-fold or Z-fold. These configurations are folded in a tissue paper (3.58) web in the shape of the
designated letters. Some of these result in interfolded tissue products.
Note 2 to entry: Folding can be done in the machine direction, in the cross direction or in a combination of both.
3.28
grammage
mass of a unit area of tissue paper (3.58) or tissue product (3.59)
[SOURCE: ISO 12625-6:2016, 3.1, modified — removal of "determined by the procedure in this
document"]
3.29
handkerchief
typically a multi-ply border-embossed, cross-folded, soft and absorbent tissue product (3.59) with wet-
strength, intended for blowing and wiping the nose, sold in cases of several items
3.30
haptic feel
see tactile feel (3.55)
Note 1 to entry: Haptic feel is synonymous with tactile feel. The term is sometimes used as a synonym of softness,
when focusing, for example, on household towels or kitchen towels, to characterize the different type of softness
and lower softness level of high-grammage tissue products (3.59), in comparison with typical low-grammage, soft
tissue products, like facial tissues or handkerchiefs.
8 © ISO 2019 – All rights reserved

---------------------- Page: 13 ----------------------
ISO 12625-1:2019(E)

3.31
household roll
towel
kitchen towel
wet-strength tissue product (3.59) in the form of a roll, divided by means of perforation, intended for
general use in the household
3.32
hygiene paper
sanitary paper
general term for tissue paper (3.58) intended for personal hygiene use
3.33
imprinted web
pre-dried or finally dried web, obtained after it has been moulded in a structured three-dimensional
fabric, also known as forming or marking fabric, for example in a TAD (3.56) process
3.34
knurling
embossing of a tissue product (3.59) done with knurling wheels in the machine direction (MD)
Note 1 to entry: See edge embossing (3.22.2).
Note 2 to entry: This type of embossing very often occurs in small, endless traces.
3.35
laminated paper
multi-ply tissue paper (3.58) achieved by ply-bonding by laminating (3.36)
Note 1 to entry: In the case of laminating associated with embossing, an embossed laminate (3.22.3).
3.36
laminating
process of joining together two or more plies of a tissue material (tissue paper web, tissue paper sheet)
to form a multi-ply tissue product (3.59)
3.37
layer
stratum of the ply in the z-direction characterized by a defined fibre composition
Note 1 to entry: Layers per ply is the number of layers with a distinct furnish in one ply. Using a multi-layer
headbox, it is possible to produce a single-ply sheet or web with several layers.
3.38
marrying roll
additional rubber or steel press roll typically used with the nested process to achieve ply bonding
Note 1 to entry: In the case of a two-ply nested product, this press roll works by forming a press nip together with
the steel embossing roll that is in contact with the glue application unit. This press roll system then connects and
presses the embossed, untreated first ply against the protrusions of the nested embossed second ply of a base
tissue web.
3.39
multi-layer ply
ply consisting of several layers characterized by a different composition in each layer
3.40
napkin
tissue product (3.59) intended for protection and wiping during meals
© ISO 2019 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO 12625-1:2019(E)

3.41
opacity
ratio of the single-sheet luminous reflectance factor (C), R , to the intrinsic luminous reflectance
y,0
factor, R , of the same sample
y,∞
Note 1 to entry: See ISO 12625-16 for further information.
[SOURCE: ISO/TR 10688:2015, 2.24, modified — Removal of "the single-sheet reflectance factor is defined
as the reflectance factor of a single sheet of paper with a black cavity as backing" in Note 1 to entry.]
3.42
tie bar
uncut zone in the perforation line
[SOURCE: ISO 12625-12:2010, 3.3]
3.43
towel
generally wet-strength tissue product (3.59) intended for wiping, taking off, cleaning and absorbing
Note 1 to entry: This term covers hand towels, industrial wipes and kitchen towels.
3.43.1
hand towel
tissue product (3.59) intended for wiping and drying hands
3.43.2
industrial wipe
tissue product (3.59) intended for industrial use as opposed to household use
Note 1 to entry: Nonwoven products may also exist under this term.
3.43.3
household towel
paper towel intended for general domestic use
3.43.4
kitchen towel
household towel
paper towel intended for household use
3.44
perforation efficiency
E
p
difference between the tensile strengths of non-perforated and perforated material from the same
sample divided by the tensile strength of non-perforated material
Note 1 to entry: The higher the perforation efficiency, the easier the sheet separation.
[SOURCE: ISO 12625-12:2010, 3.2, modified — Note 1 to entry added]
3.45
ply bonding
converting process by which two or more plies are bonded together
Note 1 to entry: Ply bonding is included in 3.45.1 and 3.45.2.
3.45.1
chemical ply bonding
ply bonding achieved with an adhesive (glue or hotmelt) to produce a multi-ply laminated product
10 © ISO 2019 – All rights reserved

---------------------- Page: 15 ----------------------
ISO 12625-1:2019(E)

3.45.2
mechanical ply bonding
ply bonding achieved without the application of any kind of adhesive
Note 1 to entry: For example, embossi
...

NORME ISO
INTERNATIONALE 12625-1
Troisième édition
2019-05
Papier tissue et produits tissue —
Partie 1:
Vocabulaire
Tissue paper and tissue products —
Part 1: Vocabulary
Numéro de référence
ISO 12625-1:2019(F)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 12625-1:2019(F)

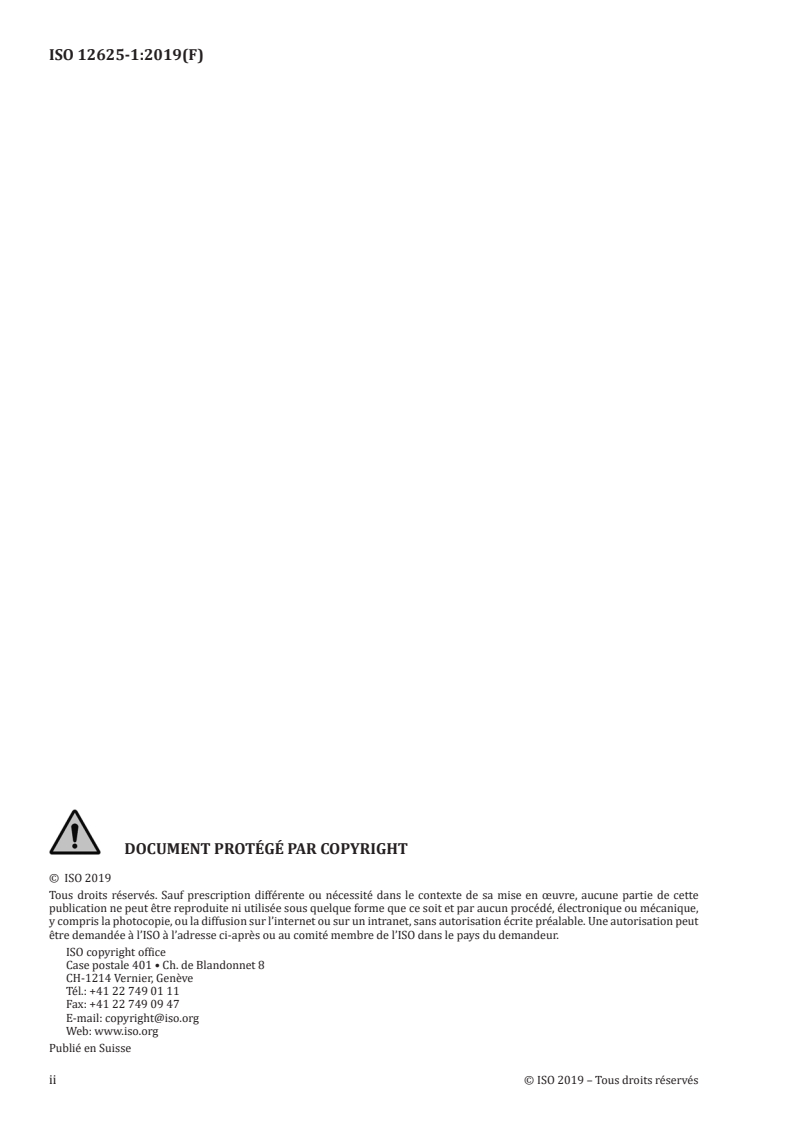

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2019
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
Fax: +41 22 749 09 47
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2019 – Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 12625-1:2019(F)

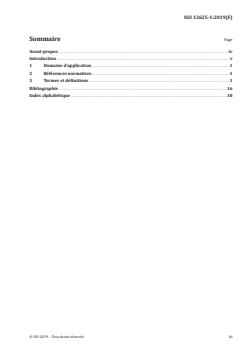

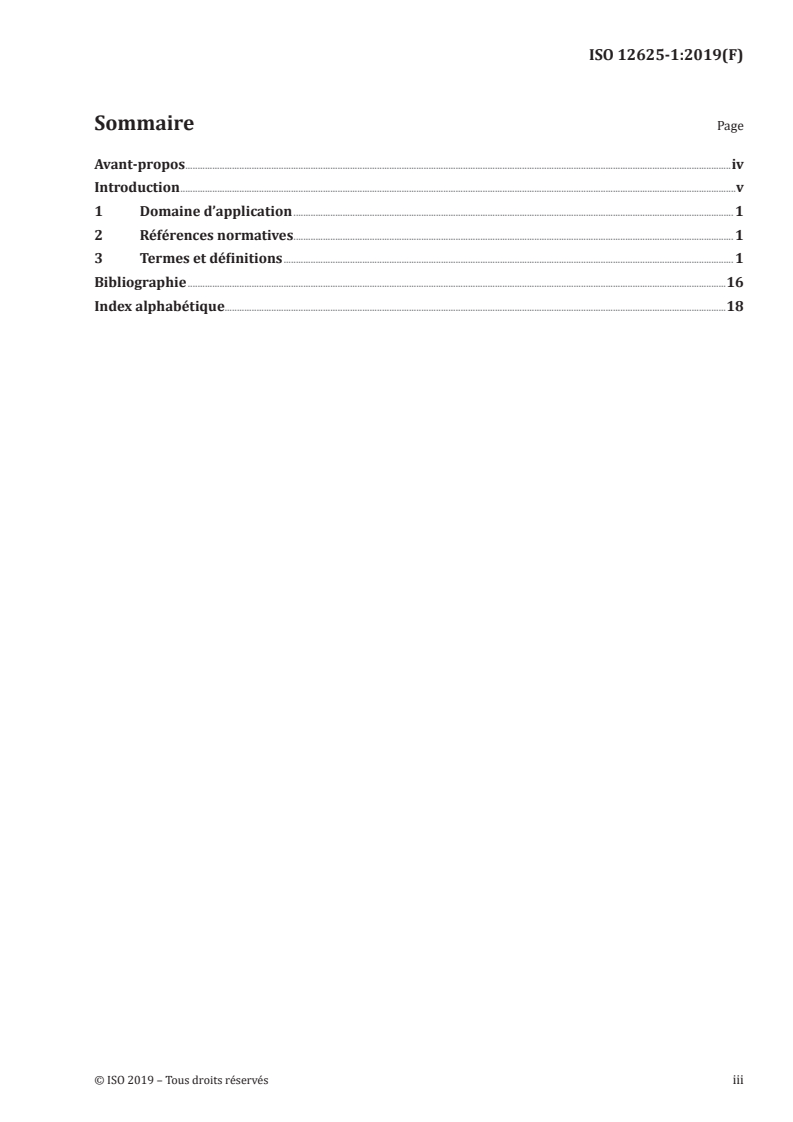

Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
Bibliographie .16
Index alphabétique.18
© ISO 2019 – Tous droits réservés iii

---------------------- Page: 3 ----------------------
ISO 12625-1:2019(F)

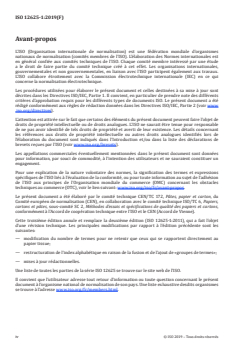

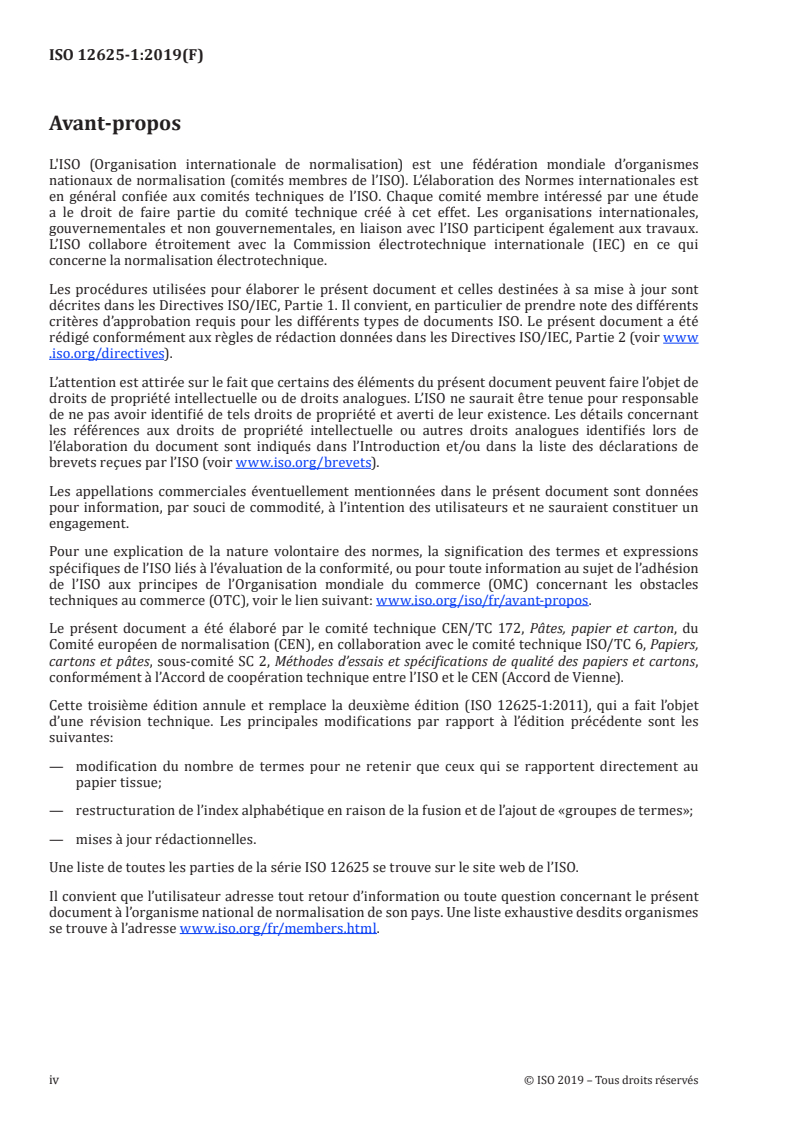

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/directives).
L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: www .iso .org/iso/fr/avant -propos.
Le présent document a été élaboré par le comité technique CEN/TC 172, Pâtes, papier et carton, du
Comité européen de normalisation (CEN), en collaboration avec le comité technique ISO/TC 6, Papiers,
cartons et pâtes, sous-comité SC 2, Méthodes d’essais et spécifications de qualité des papiers et cartons,
conformément à l’Accord de coopération technique entre l’ISO et le CEN (Accord de Vienne).
Cette troisième édition annule et remplace la deuxième édition (ISO 12625-1:2011), qui a fait l’objet
d’une révision technique. Les principales modifications par rapport à l’édition précédente sont les
suivantes:
— modification du nombre de termes pour ne retenir que ceux qui se rapportent directement au
papier tissue;
— restructuration de l’index alphabétique en raison de la fusion et de l’ajout de «groupes de termes»;
— mises à jour rédactionnelles.
Une liste de toutes les parties de la série ISO 12625 se trouve sur le site web de l’ISO.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes
se trouve à l’adresse www .iso .org/fr/members .html.
iv © ISO 2019 – Tous droits réservés

---------------------- Page: 4 ----------------------
ISO 12625-1:2019(F)

Introduction
Le présent document définit des termes pour la détermination des propriétés physiques du papier
tissue fabriqué au moyen de techniques de crêpage ou sans crêpage, et comprend les produits élaborés
à partir d’une combinaison de ces procédés de fabrication de papier tissue.
Les produits tissue représentent un marché important et en croissance constante pour les produits
industriels et les produits d’hygiène à usage unique. La gamme actuelle de ces produits d’hygiène familiers
comprend le papier-toilette, les mouchoirs boîte, les essuie-tout ménagers, les articles d’essuyage ménager,
les essuie-mains, les mouchoirs en étuis, les serviettes de table, les sets de table, les articles d’essuyage
industriel et d’autres papiers tissue absorbants et produits tissue imprégnés de lotion.
L’évolution des techniques de fabrication du papier tissue et leur différenciation par rapport aux
techniques papetières «classiques» ont rendu nécessaire l’élaboration d’un nouveau glossaire.
L’objet du présent document est de permettre une compréhension commune des différents termes
relatifs à la fabrication du papier tissue par les fabricants, les transformateurs et les clients, et de
faciliter l’harmonisation des méthodes d’essai. Chaque terme répertorié dans la liste fait l’objet d’une
définition succincte, illustrée par un exemple lorsque cela a été jugé utile. Au moment de l’élaboration
du présent document, la langue anglaise a été choisie comme langue de référence. Il a ensuite été établi
que certaines expressions ne peuvent pas être traduites, auquel cas l’expression anglaise est utilisée.
© ISO 2019 – Tous droits réservés v

---------------------- Page: 5 ----------------------
NORME INTERNATIONALE ISO 12625-1:2019(F)
Papier tissue et produits tissue —
Partie 1:
Vocabulaire
1 Domaine d’application
Le présent document établit des principes généraux pour l’utilisation de termes dans l’industrie du
papier tissue et des produits tissue.
Il permet ainsi l’utilisation d’une terminologie commune dans l’industrie et dans le commerce.
Il est mentionné expressément que l’ISO 15755 s’applique lorsqu’il est procédé à la détection d’impuretés
et de défauts sur le papier tissue et les produits tissue.
Pour déterminer la teneur en humidité du papier tissue et des produits tissue, l’ISO 287 s’applique.
2 Références normatives
Le présent document ne contient aucune référence normative.
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https: //www .iso .org/obp
— IEC Electropedia: disponible à l’adresse http: //www .electropedia .org/
3.1
pouvoir absorbant
aptitude d’un papier tissue (3.58) et/ou d’un produit tissue (3.59) à absorber un liquide
3.2 Absorption
3.2.1
capacité d’absorption
masse de liquide absorbée par unité de masse de l’éprouvette
Note 1 à l'article: La capacité d’absorption d’eau est définie dans l’ISO 12625-8.
3.2.2
vitesse d’absorption
masse de liquide absorbée par une éprouvette par unité de temps, déterminée en divisant la masse
totale de liquide absorbée sur une période donnée par la durée de ladite période
3.2.3
temps d’absorption
temps nécessaire au mouillage complet d’un échantillon
[SOURCE: ISO 12625-8:2010, 3.1]
© ISO 2019 – Tous droits réservés 1

---------------------- Page: 6 ----------------------
ISO 12625-1:2019(F)

3.3
vieillissement accéléré
mode opératoire qui permet de prévoir rapidement les modifications des caractéristiques du papier
tissue (3.58) ou du produit tissue (3.59) qui surviennent dans les conditions normales au bout d’un
temps plus long
Note 1 à l'article: C’est en particulier le cas du papier tissue ou d’un produit tissue résistant à l’état humide dont la
résistance à l’état humide se développe dans le temps. Un mode opératoire de vieillissement accéléré permettant
de déterminer la résistance à l’état humide est spécifié dans l’ISO 12625-5.
3.4
masse volumique moyenne
masse du papier tissue (3.58) ou du produit tissue (3.59) par unité de volume, calculée à partir de son
grammage (3.28) et de l’épaisseur moyenne d’une feuille en liasse (3.10)
Note 1 à l'article: Elle est déterminée à partir du grammage du papier tissue ou du produit tissue, divisé par
l’épaisseur déterminée sur une pile de ce papier ou produit tissue.
[SOURCE: ISO 12625-3:2014, 3.4]
3.5
produits tissue hors foyer
produits tissue AFH
produits tissue (3.59) destinés à être utilisés sur les marchés institutionnel et industriel
EXEMPLE Produits tissue utilisés dans les hôpitaux, les restaurants, les hôtels, les bureaux.
3.6
papier sortie machine
feuille de papier tissue à pli unique, fabriquée comme produit semi-fini et destinée à être transformée
en produit fini
3.7
formation de la feuille
formation par voie humide d’une feuille, sur une ou entre deux toiles sans fin ou entre une toile
et un feutre, permettant d’obtenir une feuille de papier tissue continue dont le grammage (3.28) est
2 2
généralement compris entre 10 g/m et 50 g/m
3.8 Degré de blancheur
3.8.1
degré de blancheur D65
facteur de luminance (réflectance) intrinsèque, mesuré avec un réflectomètre présentant les
caractéristiques décrites dans l’ISO 2469, équipé d’un filtre ou doté d’une fonction correspondante,
ayant une longueur d’onde efficace de 457 nm et une largeur de bande à mi-hauteur de 44 nm et réglé de
manière que la teneur en UV du rayonnement incident arrivant sur l’éprouvette corresponde à celle de
l’illuminant normalisé CIE D65
[SOURCE: ISO 2470-2:2008, 3.4, modifiée — Le symbole R et la Note 1 à l’article ont été supprimés.]
457,D65
3.8.2
degré de blancheur ISO
degré de blancheur C
facteur de luminance diffuse (réflectance) intrinsèque, mesuré avec un réflectomètre présentant les
caractéristiques décrites dans l’ISO 2469, équipé d’un filtre ou doté d’une fonction correspondante,
ayant une longueur d’onde efficace de 457 nm et une largeur de bande à mi-hauteur de 44 nm, et réglé
de manière que la teneur en UV du rayonnement incident arrivant sur l’éprouvette corresponde à celle
de l’illuminant CIE C
[SOURCE: ISO 2470-1:2016, 3.4, modifiée — Le terme privilégié «degré de blancheur C» a été ajouté et le
symbole R et la Note 1 à l’article ont été supprimés.]
457
2 © ISO 2019 – Tous droits réservés

---------------------- Page: 7 ----------------------
ISO 12625-1:2019(F)

3.9
main
inverse de la masse volumique moyenne (3.4)
3.10
épaisseur moyenne d’une feuille en liasse
épaisseur d’une feuille unique de papier tissue (3.58) ou de produit tissue (3.59), calculée à partir de
l’épaisseur de plusieurs feuilles superposées, mesurée sous la charge statique appliquée
[SOURCE: ISO 12625-3:2014, 3.3]
3.11
calandrage
traitement mécanique d’une feuille sortie machine passée dans la zone de pincement entre
deux cylindres lisses dans le but d’améliorer le lissé ou la douceur de surface (3.52.2) d’un papier tissue
(3.58) ou d’un produit tissue (3.59)
Note 1 à l'article: Cette opération est effectuée au moyen d’une calandre. Ce procédé permet, en outre, de contrôler
dans une certaine mesure l’épaisseur du papier tissue ou du produit tissue.
3.12
cellulose wadding
bande ou feuille crêpée formée de fibres de cellulose (principalement de pâte chimique), présentant une
structure ouverte, et comprenant un ou plusieurs pli(s) de papier mince
Note 1 à l'article: Une structure ouverte est obtenue lorsque le papier produit est de faible grammage et à fort
allongement (généralement plus de 35 %).
Note 2 à l'article: Papier crêpé doux de très faible grammage, normalement utilisé en liasses ou en matelas
comportant plusieurs feuilles.
Note 3 à l'article: Terme non usité en France.
[SOURCE: ISO 4046-4:2016, 4.37, modifiée — La parenthèse «(principalement de pâte chimique)» a été
ajoutée, le terme «jet(s)» a été remplacé par «pli(s)» et les Notes 1, 2 et 3 à l’article ont été ajoutées].
3.13
toucher textile
propriété d’un papier tissue (3.58) ou d’un produit tissue (3.59) qui, au toucher, ressemble à un matériau
textile tissé
3.14 Couleur
3.14.1
espace chromatique CIELAB
espace chromatique à trois dimensions approximativement uniforme, obtenu en portant en coordonnées
rectangulaires les grandeurs L*, a*, b*
Note 1 à l'article: La grandeur L* est une mesure de la clarté de l’éprouvette, où L* = 0 correspond au noir
et L* = 100 est définie comme étant le diffuseur parfait par réflexion. Visuellement, les grandeurs a* et b*
représentent respectivement les axes rouge-vert et jaune-bleu de l’espace chromatique, de sorte que
— +a* est une mesure de la composante rouge de l’éprouvette,
— −a* est une mesure de la composante verte de l’éprouvette,
— +b* est une mesure de la composante jaune de l’éprouvette, et
— −b* est une mesure de la composante bleue de l’éprouvette.
Si a* et b* sont toutes les deux égales à zéro, l’éprouvette est grise.
[SOURCE: ISO 5631-3:2015, 3.6, modifiée — La Note 1 à l’article a été ajoutée.]
© ISO 2019 – Tous droits réservés 3

---------------------- Page: 8 ----------------------
ISO 12625-1:2019(F)

3.14.2
couleur CIELAB (D65/10°)
coordonnées L*, a* et b* de l’échantillon selon le système CIELAB 1976, évaluées en utilisant l’observateur
colorimétrique normalisé CIE 1964 (10°) et l’illuminant normalisé CIE D65
Note 1 à l'article: Voir l’ISO 12625-7 pour de plus amples informations.
[SOURCE: ISO/TR 10688:2015, 2.5.2, modifiée — Le terme privilégié «(L*, a*, b*)» a été supprimé, le
terme privilégié couleur CIELAB (D65/10°) et la Note 1 à l’article ont été ajoutés.]
3.14.3
couleur CIELAB (C/2°)
coordonnées L*, a* et b* de l’échantillon selon le système CIELAB 1976, évaluées en utilisant l’observateur
colorimétrique normalisé CIE 1931 (2°) et l’illuminant CIE C
Note 1 à l'article: Voir l’ISO 12625-15 pour de plus amples informations.
[SOURCE: ISO/TR 10688:2015, 2.5.1, modifiée — Le terme privilégié «(L*, a*, b*)» a été supprimé, le
terme privilégié couleur CIELAB (C/2°) et la Note 1 à l’article ont été ajoutés.]
3.15
procédé presse humide conventionnelle de pressage
CWP
procédé de fabrication du papier tissue selon lequel la feuille formée à l’état humide est pressée
contre le cylindre Yankee (3.63) tout en étant supportée par un feutre, et complètement séchée par le
cylindre Yankee
3.15.1
coating sur cylindre Yankee
produits de coating
mélange d’un agent adhérant/décollant avec potentiellement d’autres additifs chimiques, pulvérisé sur
le cylindre Yankee (3.63) préalablement au crêpage afin de garantir un contact homogène et régulier
entre la feuille de papier tissue (3.58) et le cylindre sécheur, et d’assurer un décollage facile de la feuille
au niveau de la lame de crêpage
3.15.1.1
adhésif
composant du coating sur cylindre Yankee (3.15.1) présentant des caractéristiques spécifiques
d’adhésion, de durabilité et de dureté
3.15.1.2
agent modificateur
composant du coating sur cylindre Yankee (3.15.1) qui modifie les propriétés physiques de ce dernier
Note 1 à l'article: Par exemple, plastifiants, inhibiteurs de corrosion et émulsifiants.
3.15.1.3
antiadhésif
agent de de décrochement
composant du coating sur cylindre Yankee (3.15.1) responsable de la réduction du frottement de la lame
de crêpage, régulant l’adhésion et permettant le décollage convenable de la feuille de tissue se trouvant
sur le cylindre Yankee (3.63)
Note 1 à l'article: Le terme «release» est également utilisé en français.
4 © ISO 2019 – Tous droits réservés

---------------------- Page: 9 ----------------------
ISO 12625-1:2019(F)

3.15.2
enduction en transformation
procédé consistant à appliquer des additifs (produits chimiques, lotion) sur la feuille de tissue pendant
la transformation
Note 1 à l'article: Le terme «enduction» a un sens différent dans l’industrie du papier tissue et dans l’industrie du
papier impression-écriture. Dans cette dernière, le terme «enduction» fait référence à un traitement de surface,
c’est-à-dire:
— à une couche d’une composition pigment/liant, appliquée à la surface d’un papier ou d’un carton, ayant une
influence sur la structure de la surface et sur l’aspect visuel, ainsi que sur le comportement optique et à
l’impression du produit couché; et
— au procédé d’application d’une sauce de couchage.
3.16
transformation
fabrication d’un produit tissue (3.59) par un procédé ou une opération effectué(e) après le procédé de
fabrication du papier
Note 1 à l'article: Par exemple, les opérations de déroulage et d’enroulage, l’assemblage de papiers tissue sortie
machine en feuilles à pli unique ou multiplis, leur calandrage, gaufrage, laminage, prédécoupe, découpe dans le
sens machine (SM) ou le sens travers (ST), le bobinage de rouleaux de petites dimensions destinés à l’utilisateur
final, le pliage dans le sens machine et/ou le sens travers, la disposition en liasses de feuilles pliées individuelles
et tous les types d’emballage. La transformation peut inclure le traitement avec une lotion et l’impression.
3.17
mandrin
tube autour duquel est enroulé le papier afin de constituer une bobine ou un rouleau de produit fini
Note 1 à l'article: Un mandrin est généralement construit sous la forme d’une paroi simple couche ou multicouche
de papier enroulé et laminé avec un adhésif.
Note 2 à l'article: Certains rouleaux de produits finis peuvent être dépourvus de mandrin.
3.18
crêpage
procédé consistant à retirer du cylindre Yankee (3.63) la feuille de papier par voie mécanique au moyen
d’une lame dans le sens machine pour en modifier les propriétés, parmi lesquelles son allongement, son
épaisseur, sa résistance et sa douceur
Note 1 à l'article: Il s’agit d’une étape importante du procédé de fabrication des papiers tissue.
Note 2 à l'article: Le crêpage est décliné de 3.18.1 à 3.18.6.
Note 3 à l'article: Le cylindre Yankee (3.63) est généralement protégé par une couche de coating.
3.18.1
papier crêpé
papier mince et léger ayant été soumis à un crêpage sur une machine à papier tissue
Note 1 à l'article: Il ne faut pas confondre le papier crêpé et le papier crépon qui est un type de papier crêpé qui
n’a pas été étiré et qui est souvent utilisé pour la décoration et l’emballage.
3.18.2
lame de crêpage
racle crêpeur
lame mince et affûtée appliquée contre le cylindre Yankee (3.63) d’une machine à papier tissue sous une
pression élevée et suivant un angle spécifique afin de décoller la feuille de papier du cylindre
© ISO 2019 – Tous droits réservés 5

---------------------- Page: 10 ----------------------
ISO 12625-1:2019(F)

3.18.3
papier doublement crêpé
papier tissue (3.58) crêpé en deux étapes consécutives
Note 1 à l'article: Le second cylindre de crêpage placé en aval du cylindre Yankee (3.63) principal fonctionne
généralement du côté opposé du papier.
3.18.4
papier crêpé à sec
papier tissue (3.58) fabriqué selon un procédé de crêpage à sec
Note 1 à l'article: Un exemple type est le crêpage sous l’action d’une lame de crêpage (3.18.2) appliquée contre un
cylindre Yankee (3.63) d’une feuille quasiment sèche dont la plage de siccité varie généralement entre 95 % et 98 %.
3.18.5
papier tissue non crêpé
papier tissue (3.58) généralement obtenu selon un procédé TAD (3.56), la feuille étant entièrement
séchée dans la section TAD, sans crêpage sur un cylindre Yankee (3.63)
3.18.6
papier crêpé à l’état humide
papier crêpé (3.18.1) généralement produit sur une machine à papier tissue crêpé à l’état humide, le
crêpage s’effectuant à la surface d’un cylindre Yankee (3.63), la feuille étant encore humide (teneur en
humidité généralement comprise entre 25 % et 65 %), avec séchage final à l’air sec à l’aide de cylindres
sécheurs conventionnels ou d’autres dispositifs de séchage
3.19
structure en coussinets
structure résultant d’un procédé de fabrication conduisant à une macrostructure en «coussinets» à
distribution régulière de matière à faible masse volumique, séparés par des zones de masse volumique
élevée avec une liaison forte de fibre à fibre
3.20
délitage
processus au cours duquel un matériau se sépare en petits morceaux dans l’eau dans des conditions
spécifiées
3.21
drapabilité
aptitude d’un produit tissue (3.59) à s’étaler sur un objet à la manière d’un textile
3.22
gaufrage
procédé de transformation permettant de reproduire des motifs en relief ou en creux, généralement
par l’application d’une pression entre des cylindres ou des plaques gravé(e)s, ou entre un cylindre ou
une plaque gravé(e) et une surface d’appui élastique ou déformable
Note 1 à l'article: Ce procédé vise principalement à obtenir de la main et l’association des plis.
Note 2 à l'article: Les produits tissue à gaufrage intégral ou à gaufrage de motifs combinés en sont des exemples
types, par exemple papier-toilette ou essuie-tout ménagers.
Note 3 à l'article: Le gaufrage est décliné de 3.22.1 à 3.22.14.
3.22.1
gaufrage de bord
gaufrage le long de tous les bords d’un produit tissue (3.59) parallèlement aux lignes de bord
Note 1 à l'article: Il est principalement procédé à ce type de gaufrage pour lier des plis entre eux par des moyens
mécaniques et à des fins décoratives. Procédé utilisé généralement pour les mouchoirs en étuis et les serviettes
de table.
6 © ISO 2019 – Tous droits réservés

---------------------- Page: 11 ----------------------
ISO 12625-1:2019(F)

3.22.2
moletage
type de knurling (3.34) le long du bord d’un produit tissue (3.59)
3.22.3
gaufré laminé
laminé obtenu à partir d’au moins deux plis de papier tissue (3.58) soumis à un procédé de transformation
dans lequel au moins un pli est préalablement gaufré, les plis devant constituer le laminé étant collés
entre eux par l’application de colle aux points de gaufrage
Note 1 à l'article: Le laminé peut également être obtenu par liaison mécanique de la feuille gaufrée à une ou
plusieurs autres feuilles en exerçant une pression suffisante pour assurer une adhésion fibre à fibre aux points
de gaufrage.
3.22.4
motif de gaufrage
empreinte créée dans la feuille ou le produit par le procédé de gaufrage
3.22.5
gaufrage femelle
voir gaufrage mâle-femelle (3.22.9)
3.22.6
gaufrage collé pointe à pointe
gaufrage collé pointe-pointe
procédé de gaufrage acier selon lequel un premier cylindre en acier présente un motif ou des picots qui
est/sont reproduit(s) par le second cylindre afin que chaque picot soit synchronisé en face à face
3.22.7
gaufrage de bord collé
gaufrage de bord (3.22.1) combiné à une association simultanée des plis par application de colle au
niveau de la face supérieure des picots du cylindre gaufreur
Note 1 à l'article: Ce procédé est plus particulièrement utilisé pour la fabrication de mouchoirs en étuis.
3.22.8
gaufrage mâle
voir gaufrage mâle-femelle (3.22.9)
3.22.9
gaufrage mâle-femelle
procédé de gaufrage acier/acier dans lequel un premier cylindre en acier présente un motif de picots en
relief (gaufreur mâle) et un second cylindre présente un motif identique en creux (gaufreur femelle),
formés de manière à permettre la pénétration partielle des motifs en relief du premier cylindre dans les
creux du second cylindre
3.22.10
gaufrage «nested»
procédé de gaufrage séparé des plis, avec application de colle sur un des plis au niveau des surfaces
supérieures des motifs en relief et mariage avec le deuxième pli à l’aide d’un cylindre marieur pour
former une feuille laminée multiplis de façon que les motifs en relief d’un pli s’emboîtent dans les motifs
en creux de l’autre
Note 1 à l'article: Voir cylindre marieur (3.38).
3.22.11
gaufrage avec perforation
gaufrage effectué selon une méthode permettant d’obtenir de très petits trous en des points précis
du papier
© ISO 2019 – Tous droits réservés 7

---------------------- Page: 12 ----------------------
ISO 12625-1:2019(F)

3.22.12
gaufrage décoratif
gaufrage formant, par ses points essentiellement linéaires, un motif
EXEMPLE Une fleur ou une forme géométrique.
3.22.13
gaufrage acier/caoutchouc
gaufrage réalisé par l’application d’une pression entre un cylindre gaufreur en acier gravé portant un
motif de picots de gaufrage et un contre-cylindre en caoutchouc
3.22.14
gaufrage acier/acier
gaufrage réalisé par l’application d’une pression entre deux cylindres en acier, l’un des cylindres portant
des picots en relief et l’autre les éléments en creux correspondants
3.23
feuille humide en formation
feuille humide immédiatement après formation
3.24
mouchoir boîte
produit tissue (3.59) doux et absorbant, résistant à l’état humide, destiné à être utilisé sur le visage,
pour se moucher ou se démaquiller
Note 1 à l'article: Dans certains pays, les mouchoirs boîte sont aussi appelés serviettes à démaquiller.
3.25
produit fini
produit tissue (3.59) après transformation et prêt à être employé pour son usage prévu
Note 1 à l'article: Le produit fini peut être emballé ou non (produit tissue).
3.26
produit plié
produit tissue (3.59) plié au cours du procédé de transformation pour des besoins d’emballage et de
distribution
3.26.1
produit plié croisé
produit tissue (3.59) plié à la fois dans le sens machine et dans le sens travers
Note 1 à l'article: Les mouchoirs en étuis ou les serviettes de table en sont des exemples types.
3.26.2
produit tissue enchevêtré
produit tissue (3.59) plié de sorte que le retrait d’une feuille du distributeur (boîte ou appareil) entraîne
la feuille suivante pour en faciliter le retrait
Note 1 à l'article: Les mouchoirs boîte ou les essuie-mains en sont des exemples types.
3.27
pliage
procédé de transformation appliqué à certains produits tissue (3.59) pour des besoins d’emballage et de
distribution
Note 1 à l'article: Il existe différentes manières de plier un produit tissue pour obtenir différentes piles, par
exemple pliage en C, en J, en M, en V, en W ou en Z. Ces configurations sont obtenues par pliage du produit selon la
forme des lettres mentionnées ci-dessus. Des produits tissue enchevêtrés peuvent ainsi être obtenus.
Note 2 à l'article: Le pliage peut être effectué dans le sens machine, dans le sens travers ou selon une combinaison
des deux sens.
8 © ISO 2019 – Tous droits réservés

---------------------- Page: 13 ----------------------
ISO 12625-1:2019(F)

3.28
grammage
masse par unité de surface d’un papier tissue (3.58) ou d’un produit tissue (3.59)
[SOURCE: ISO 12625-6:2016, 3.1, modifiée — La partie de la définition «déterminée selon le mode
opératoire décrit dans le présent document» a été supprimée.]
3.29
mouchoir en étui
produit tissue (3.59) multiplis généralement gaufré sur les bords et plié croisé, doux et absorbant, ayant
une résistance à l’état humide, destiné à être utilisé pour se moucher et s’essuyer le nez, en vente dans
des étuis de plusieurs unités
3.30
sensation haptique
voir sensation tactile (3.55)
Note 1 à l'article: Le terme «sensation tactile» en est un synonyme. Le terme est parfois utilisé comme synonyme
de douceur lorsque l’on cherche à caractériser différents types de douceur et le niveau de douceur moins élevé
des produits tissue à grammage élevé, tels que les articles d’essuyage ménager ou les essuie-tout ménagers, par
comparaison à des produits tissue (3.59) typiquement doux et à grammage peu élevé, tels que les mouchoirs boîte
ou les mouchoirs en étuis.
3.31
article d’essuyage
essuie-tout ménager
rouleau ménager
produit tissue (3.59) résistant à l’état humide, se présentant sous la forme d’un rouleau, divisé au moyen
de lignes de prédé
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
