ISO 18580:2015

Motorcycles — Verification of total running resistance force during mode running on a chassis dynamometer

ISO 18580:2015 specifies the verification method of total running resistance force when the exhaust gas emissions and/or fuel consumption of motorcycles are measured during mode running on a chassis dynamometer. The performance of chassis dynamometer is verified by comparing the measured total running resistance force (measured by a chassis dynamometer absorption force) and the target total running resistance force (calculated from velocity, acceleration and/or deceleration). This International Standard is applicable when the running resistance force of a chassis dynamometer is set in accordance with ISO 11486.

Motocycles — Vérification de la force totale de résistance à l'avancement durant les essais sur un banc dynamométrique en mode roulage

General Information

• Status: Published
• Publication Date: 12-Nov-2015
• ICS: 43.140 - Motorcycles and mopeds
• Technical Committee: ISO/TC 22/SC 38 - Motorcycles and mopeds
• Drafting Committee: ISO/TC 22/SC 38 - Motorcycles and mopeds
• Parallel Committee: ISO/TC 43/SC 1 - Noise
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 02-Apr-2021

Relations

• Consolidated By: ISO 19014-1:2018 - Earth-moving machinery — Functional safety — Part 1: Methodology to determine safety-related parts of the control system and performance requirements
• Effective Date: 06-Jun-2022

Standards Content (Sample)

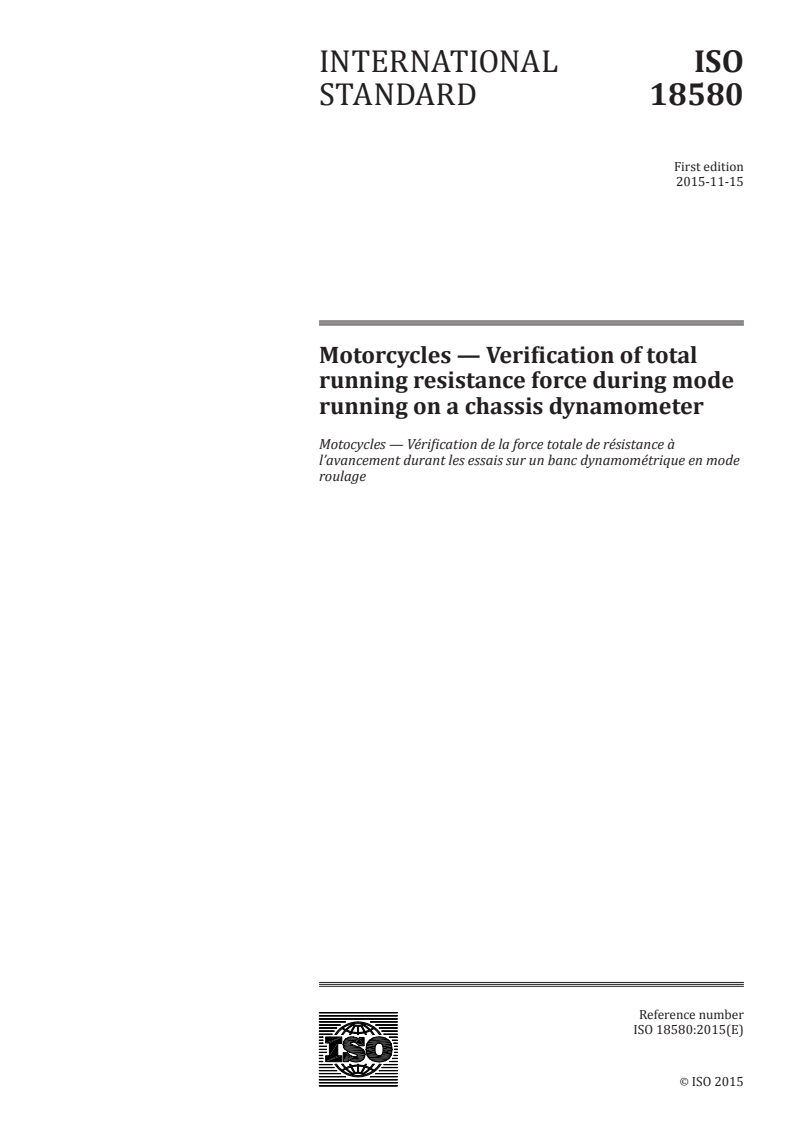

INTERNATIONAL ISO
STANDARD 18580
First edition
2015-11-15
Motorcycles — Verification of total
running resistance force during mode
running on a chassis dynamometer
Motocycles — Vérification de la force totale de résistance à
l’avancement durant les essais sur un banc dynamométrique en mode
roulage
Reference number
ISO 18580:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 18580:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 18580:2015(E)

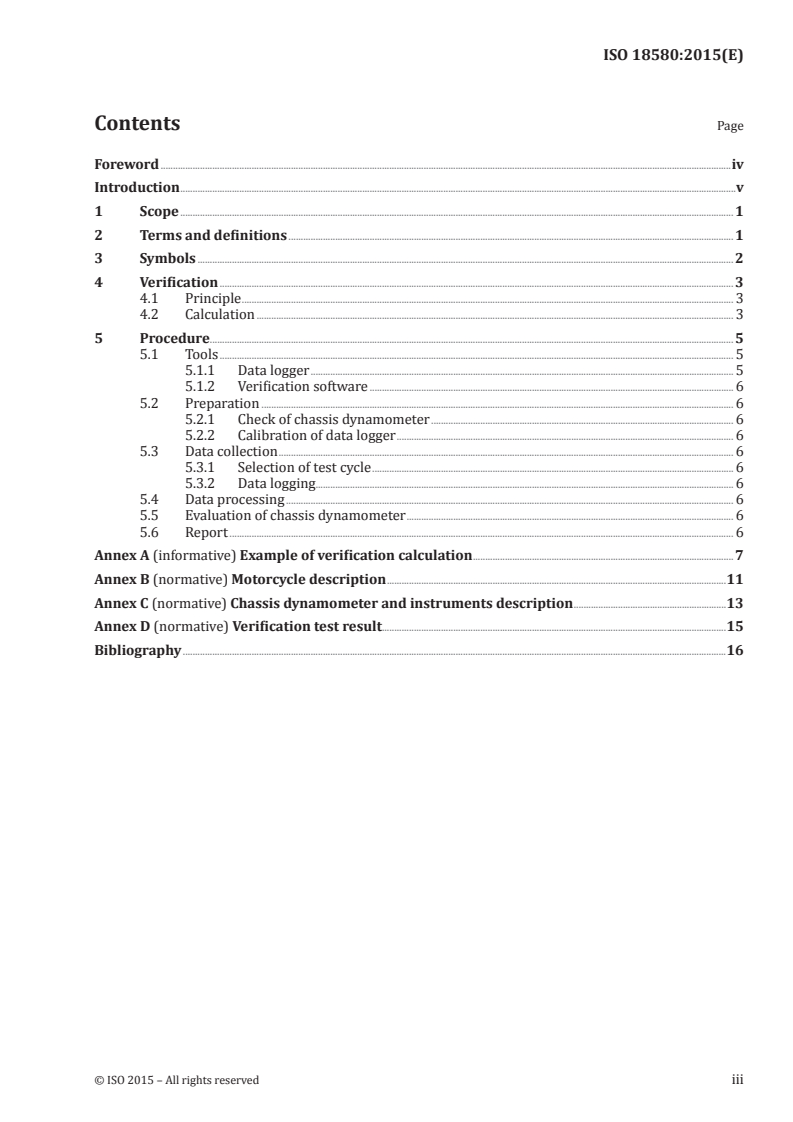

Contents  Page
Foreword .iv
Introduction .v
1 Scope . 1
2  Terms and definitions . 1
3  Symbols . 2
4  Verification . 3
4.1 Principle . 3
4.2 Calculation . 3
5  Procedure. 5
5.1 Tools . 5
5.1.1 Data logger . 5
5.1.2 Verification software . 6
5.2 Preparation . 6
5.2.1 Check of chassis dynamometer . 6
5.2.2 Calibration of data logger . 6
5.3 Data collection . 6
5.3.1 Selection of test cycle . 6
5.3.2 Data logging. 6
5.4 Data processing . 6
5.5 Evaluation of chassis dynamometer . 6
5.6 Report . 6
Annex A (informative) Example of verification calculation . 7
Annex B (normative) Motorcycle description .11
Annex C (normative) Chassis dynamometer and instruments description .13
Annex D (normative) Verification test result.15
Bibliography .16
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 18580:2015(E)

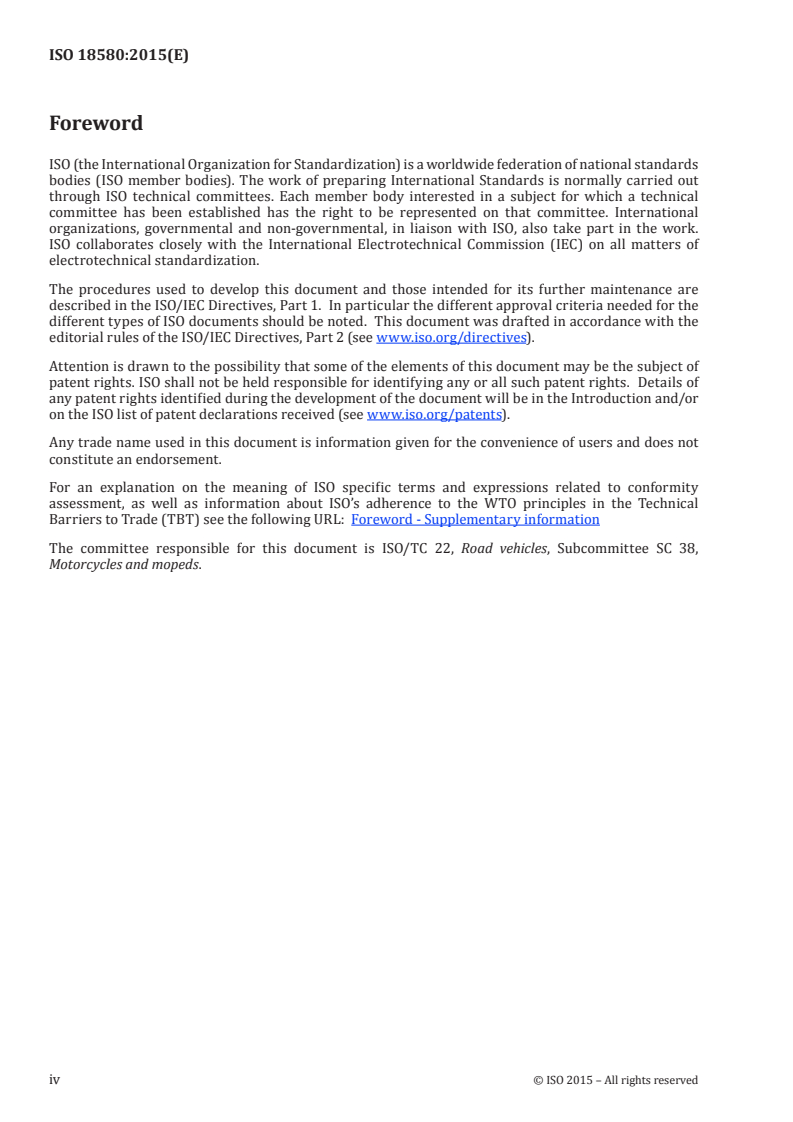

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 38,
Motorcycles and mopeds.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 18580:2015(E)

Introduction
The ordinary chassis dynamometer has the mechanical inertia system where the running resistance is
set on the chassis dynamometer in accordance with ISO 11486 and the verification of force generated by
the inertia mass is not necessary because the equivalent inertia mass is mechanically set by a flywheel.
A chassis dynamometer using the electric inertia function is not equipped with such a mechanical
flywheel equivalent to inertia mass system and the inertia force is electrically set in the same way of the
running resistance force control. The inertia force is generated by the acceleration and/or deceleration,
therefore, it is necessary to check the performance of electric inertia function during the mode running
test and this International Standard specifies the method to verify the chassis dynamometer operated
normally. The verification method specified in this International Standard can be applicable not only
for the total running resistance check during the exhaust gas and/or fuel consumption mode test but
also the system installation and the periodical performance check. The accurate verification can be
achieved when this method is applied to the ordinary mechanical inertia system chassis dynamometer.
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 18580:2015(E)
Motorcycles — Verification of total running resistance
force during mode running on a chassis dynamometer
1 Scope
This International Standard specifies the verification method of total running resistance force when
the exhaust gas emissions and/or fuel consumption of motorcycles are measured during mode running
on a chassis dynamometer. The performance of chassis dynamometer is verified by comparing the
measured total running resistance force (measured by a chassis dynamometer absorption force) and
the target total running resistance force (calculated from velocity, acceleration and/or deceleration).
This International Standard is applicable when the running resistance force of a chassis dynamometer
is set in accordance with ISO 11486.
2  Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
equivalent inertia mass of motorcycle
m
i
mass obtained by adding the rotating mass of the front wheel to the total mass of the motorcycle, rider
and instruments
2.2
mechanical equivalent inertia mass of chassis dynamometer
m
b
equivalent inertia mass of mechanical rotating parts of chassis dynamometer, e.g. roller and shaft
and/or fly wheel
2.3
chassis dynamometer absorption force
F
dy
tangential force acted on the roller surface which is calculated from a roller shaft or motor cradling
torque and roller radius
Note 1 to entry: The chassis dynamometer absorption force is the running resistance force for a chassis dynamometer
equipped with a mechanical flywheel equivalent inertia mass system and is sum of running resistance force and
inertia force generated by motorcycles for a chassis dynamometer using the electric inertia function.
2.4
total friction loss of a chassis dynamometer
F
f
friction and aerodynamic loss of rotating parts of chassis dynamometer, e.g. bearings and roller(s)
2.5
running resistance force
rolling resistance and aerodynamic loss of motorcycle on flat surface
2.6
inertia force
force generated by inertia mass of motorcycle or chassis dynamometer during acceleration and/or
deceleration
© ISO 2015 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 18580:2015(E)

2.7
total running resistance force
sum of running resistance force and inertia force of motorcycle
2.8
target total running resistance force
F
tg
total running resistance force calculated in accordance with equivalent inertia mass of motorcycle,
velocity, acceleration and/or deceleration
2.9
measured total running resistance force
F
m
sum of the chassis dynamometer absorption force, total friction loss of chassis dynamometer and an
inertia force generated by the mechanical equivalent inertia mass of chassis dynamometer
2.10
target integral work
W
tg
integral work calculated in accordance with measured velocity and F during test mode running,
tg
in kilo joule
2.11
measured integral work
W
m
integral work calculated in accordance with measured velocity and F during test mode running,
m
in kilo joule
3  Symbols
Table 1 — Symbols
Symbols Definition Unit
A slope of the regression line —
a rolling resistance of front wheel N
B intercept of the regression line —
b coefficient proportional to motorcycle speed N/(km/h)
2
c aerodynamic drag coefficient N/(km/h)
e integral work error %
W
F tangential force acted on the roller surface N
dy
F friction and aerodynamic loss of rotating parts of chassis dynamometer N
f
F target total running resistance force N
tg
F the i-th data of F data sets N
tg,i tg
F measured total running resistance force N
m
F the i-th data of F data sets N
m,i m
m equivalent inertia mass of mechanical rotating parts of chassis dynamometer kg
b
mass obtained by adding the rotating mass of the front wheel to the total mass of
m kg
i
the motorcycle, rider and instruments
T time s
V roller rotational speed km/h
W target integral work J
tg
W measured integral work J
m
2 © ISO 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 18580:2015(E)

Table 1 (continued)
Symbols Definition Unit
γ correlation coefficient —
σ standard deviation —
σ relative standard deviation (cov: coefficient of variation) %
cov
4  Verification
4.1  Principle
The equivalence between the target and measured total running resistance force is verified by the
linear regression statistical analysi
...
