Overview

ISO 7240-25:2010 - Fire detection and fire alarm systems - Part 25 - specifies requirements, test methods and performance criteria for components that use radio-frequency (r.f.) transmission paths. It covers both individual components and, where necessary, system-level requirements so that wireless elements achieve integrity and stability comparable to wired fire detection and alarm systems. The standard also defines conformance assessment, marking, data and testing procedures for r.f. components installed in and around buildings.

Key topics and technical requirements

• Scope of application: Components using r.f. transmission paths (transmitters, receivers, radio parts, antennas, intermediate elements, base stations) and hybrid systems combining wired and r.f. transmission.
• Performance criteria and tests: Defined test methods and performance criteria for component and system behaviour, including system tests and component tests (see clause structure in the standard).
• Power supply and service life: Requirements for power-supply equipment and autonomous power sources (battery-operated devices), plus guidance on service-life assessment.
• Environmental and EMC requirements: Environmental testing (temperature, vibration, damp heat, shock) and electromagnetic compatibility considerations relevant to wireless fire alarm components.
• Radio path behaviour: Definitions and requirements related to antenna, site attenuation, collision, adjacent channel selectivity, blocking/desensitization, and spurious response rejection.
• Compatibility and system design: Rules for assessing compatibility between wireless and wired elements and requirements where component interaction requires knowledge of system design.
• Marking and data: Obligations for marking, identification codes and data exchange to support installation, maintenance and conformity assessment.
• Limitations clarified: The standard does not restrict spectrum usage (frequency/power), maximum permitted number of r.f. components, or allowed component counts affected by loss of a transmission path-these aspects are left to national rules or other guidance.

Practical applications and who uses it

ISO 7240-25:2010 is applicable to:

• Manufacturers of wireless smoke/heat detectors, radio call points, wireless input/output devices, and base stations - for design, testing and conformity claims.
• Test laboratories and certification bodies - to run the standardized component and system tests required for compliance.
• System designers and integrators - when deploying hybrid wired/wireless fire detection and alarm systems and ensuring component compatibility and installation robustness.
• Regulatory authorities and specifiers - to reference performance and testing requirements in procurement and codes.

Practical applications include wireless detector networks, retrofit wireless links for alarm systems, remote alarm signalling, and systems where cabling is impractical.

Related standards

• ISO 7240 series (e.g., ISO 7240-1, -2, -4, -18)
• EN 54-25 (European standard on which ISO 7240-25 is based)
• Relevant IEC/ITU and EMC standards referenced for environmental and electromagnetic testing

Keywords: ISO 7240-25:2010, fire detection, fire alarm systems, radio transmission paths, r.f., wireless detectors, conformity assessment, site attenuation, autonomous power source.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7240-25
First edition
2010-06-01
Fire detection and fire alarm systems —
Part 25:
Components using radio transmission
paths
Systèmes de détection et d'alarme d'incendie —
Partie 25: Composants utilisant des voies de transmission radio

Reference number
©
ISO 2010
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .iv
Introduction.vi
1 Scope.1
2 Normative references.1
3 Definitions and abbreviations .2
3.1 Definitions .2
3.2 Abbreviated terms .5
4 System requirements.5
4.1 General .5
4.2 Radio frequency transmission paths .5
5 Components requirements.7
5.1 Compliance .7
5.2 General .7
5.3 Power supply equipment.7
5.4 Environmental.8
6 Marking.9
7 Data.9
7.1 General .9
7.2 Input/output devices .10
8 Tests .10
8.1 General requirements .10
8.2 System tests .11
8.3 Components tests .21
Annex A (normative) Test configuration by using radio-frequency-shielded test equipment .37
Annex B (normative) Immunity to site attenuation (path loss) .41
Annex C (informative) Data and calculation of the service life of the autonomous power source(s).42
Bibliography.44

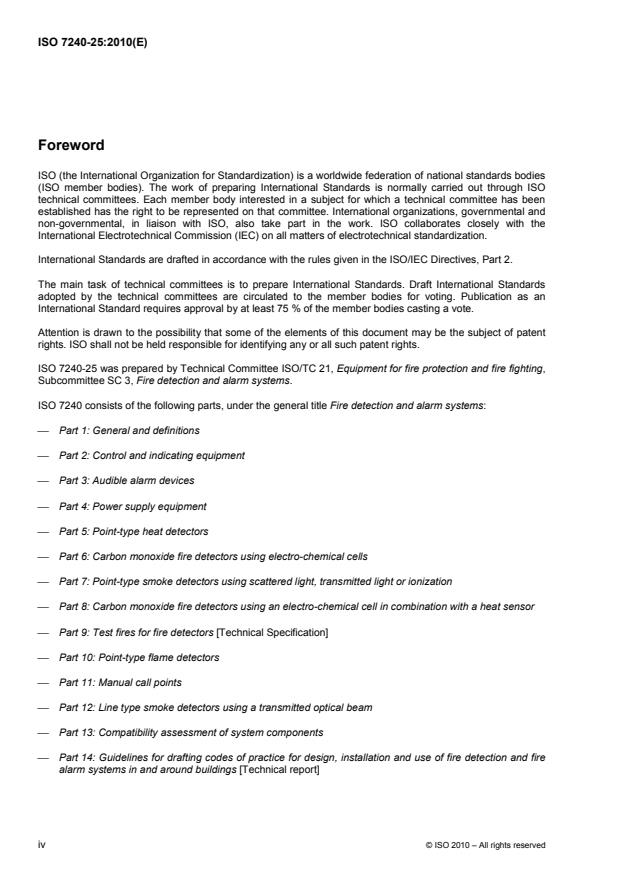

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7240-25 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 3, Fire detection and alarm systems.
ISO 7240 consists of the following parts, under the general title Fire detection and alarm systems:
⎯ Part 1: General and definitions
⎯ Part 2: Control and indicating equipment
⎯ Part 3: Audible alarm devices
⎯ Part 4: Power supply equipment
⎯ Part 5: Point-type heat detectors
⎯ Part 6: Carbon monoxide fire detectors using electro-chemical cells
⎯ Part 7: Point-type smoke detectors using scattered light, transmitted light or ionization
⎯ Part 8: Carbon monoxide fire detectors using an electro-chemical cell in combination with a heat sensor
⎯ Part 9: Test fires for fire detectors [Technical Specification]
⎯ Part 10: Point-type flame detectors
⎯ Part 11: Manual call points
⎯ Part 12: Line type smoke detectors using a transmitted optical beam
⎯ Part 13: Compatibility assessment of system components
⎯ Part 14: Guidelines for drafting codes of practice for design, installation and use of fire detection and fire
alarm systems in and around buildings [Technical report]
iv © ISO 2010 – All rights reserved

⎯ Part 15: Point type fire detectors using scattered light, transmitted light or ionization sensors in
combination with a heat sensor
⎯ Part 16: Sound system control and indicating equipment
⎯ Part 17: Short-circuit isolators
⎯ Part 18: Input/output devices
⎯ Part 19: Design, installation, commissioning and service of sound systems for emergency purposes
⎯ Part 20: Aspirating smoke detectors
⎯ Part 21: Routing equipment
⎯ Part 22: Smoke-detection equipment for ducts
⎯ Part 24: Sound-system loudspeakers
⎯ Part 25: Components using radio transmission paths
⎯ Part 27: Point-type fire detectors using a scattered-light, transmitted-light or ionization smoke sensor, an
electrochemical-cell carbon-monoxide sensor and a heat sensor
⎯ Part 28: Fire protection control equipment
A part 23, dealing with visual alarm indicators, is under development.
Introduction
This part of ISO 7240 is based on European Standard EN 54-25, prepared by the European Committee for
Standardization, CEN/TC 72, Fire detection and fire alarm systems.
This part of ISO 7240 defines requirements and tests in addition to those in other parts of ISO 7240 that allow
components of a fire detection and alarm system using radio transmission paths to operate with an integrity
and stability similar to those of wire transmission paths.
This part of ISO 7240 includes both equipment and system requirements because of the integral relationship
between equipment that forms the system.
Limitations to the use of radio components, such as capacity, can be specified in national rules or guidelines.
Technical aspects of the assessment of frequencies, bands and channels should be considered.

vi © ISO 2010 – All rights reserved

INTERNATIONAL STANDARD ISO 7240-25:2010(E)

Fire detection and fire alarm systems —
Part 25:
Components using radio transmission paths
1 Scope
This part of ISO 7240 specifies requirements, test methods and performance criteria for components used in
fire detection and alarm systems, installed in and around buildings, which use radio-frequency (r.f.)
transmission paths. It specifies requirements for the assessment of conformance of the components to the
requirements of this part of ISO 7240.
Where components work together and this requires knowledge of the system design, this part of ISO 7240
also specifies requirements for the system.
When the fire detection and alarm system uses wired and r.f. transmission paths, the relevant parts of
ISO 7240 apply together with this part of ISO 7240. Requirements relevant to wire transmission paths are
superseded or modified by those included in this part of ISO 7240.
This part of ISO 7240 does not restrict
⎯ the intended use of radio spectrum, e.g. frequency, power output of devices;
⎯ the allowed maximum number of the components using r.f. transmission paths within the fire detection
and alarm system or one wire transmission path and/or r.f. transmission path;
⎯ the allowed maximum number of the components affected by loss of one wire transmission path and/or r.f.
transmission path.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7240-2, Fire detection and alarm systems — Part 2: Control and indicating equipment
ISO 7240-4, Fire detection and alarm systems — Part 4: Power supply equipment
ISO 7240-5:2003, Fire detection and alarm systems — Part 5: Point-type heat detectors
ISO 7240-11, Fire detection and alarm systems — Part 11: Manual call points
ISO 7240-18, Fire detection and alarm systems — Part 18: Input/output devices
IEC 60068-1, Environmental testing — Part 1: General and guidance
IEC 60068-2-1, Environmental testing — Part 2-1: Tests — Test A: Cold
IEC 60068-2-2, Environmental testing — Part 2-2: Tests — Test B: Dry heat
IEC 60068-2-6, Environmental testing — Part 2-6: Tests — Test Fc: Vibration (sinusoidal)
IEC 60068-2-27, Environmental testing — Part 2-27: Tests — Test Ea and guidance: Shock
IEC 60068-2-30, Environmental testing — Part 2-30: Tests — Test Db: Damp heat, cyclic (12 h + 12 h cycle)
IEC 60068-2-42, Environmental testing — Part 2-42: Tests — Test Kc: Sulphur dioxide test for contacts and
connections
IEC 60068-2-78, Environmental testing — Part 2-78: Tests — Test Cab: Damp heat, steady state
IEC 61620:1998, Insulating liquids — Determination of the dielectric dissipation factor by measurement of the
conductance and capacitance — Test method
IEC 61672-1:2002, Electroacoustics — Sound level meters — Part 1: Specifications
ITU-T O.153, Basic parameters for the measurement of error performance at bit rates below the primary rate
EN 50130-4, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard: Immunity
requirements for components of fire, intruder and social alarm systems
3 Definitions and abbreviations
For the purposes of this document, the terms, definitions and symbols given in ISO 7240-1 and the following
apply.
3.1 Definitions
3.1.1
adjacent channel selectivity
measure of the capability of the receiver to operate satisfactorily in the presence of an unwanted signal that
differs in frequency from the wanted signal by an amount equal to the adjacent channel separation for which
the equipment is intended
3.1.2
antenna
element of a radio component of the fire detection and alarm system that allows coupling between the
component and the media where r.f. waves are propagated
3.1.3
assigned band
frequency band within which the equipment is authorized to operate
3.1.4
autonomous power source
p.s.e. without any link to the public power supply or an equivalent system not rechargeable during operation
and able by itself to power the supplied component
EXAMPLE A primary battery.
3.1.5
base station
transceiver in the system that communicates with a certain number of components
2 © ISO 2010 – All rights reserved

3.1.6
blocking or desensitization
measure of the capability of the receiver to receive a wanted modulated signal without exceeding a given
degradation due to the presence of an unwanted input signal at any frequencies other than those of the
spurious responses or the adjacent channels or bands
3.1.7
collision
simultaneous transmissions, from two or more transmitters belonging to the same system, of sufficient signal
strength to cause, by mutual interaction, corruption or obliteration of the information carried by the r.f.
transmission path
3.1.8
compatibility
capacity of a component of the system to operate with another component of this system
⎯ within the limits specified by each component,
⎯ within the specified limits given by the relevant parts of ISO 7240 if available or given by the manufacturer
if not available,
⎯ within specified configurations of the system
3.1.9
fire detection and alarm system
group of components including a c.i.e. that, when arranged in (a) specified configuration(s), is capable of
detecting and indicating a fire, and giving signals for appropriate action
3.1.10
identification code
part of a message used to identify a transmitting r.f. communication device belonging to the system
3.1.11
intermediate element
device connected to a transmission path of a fire detection and alarm system, used to receive and/or transmit
signals necessary for the operation of the fire detection and alarm system
NOTE An intermediate element meets the requirements of an input/output device in accordance with ISO 7240-18
but it is not restricted to electrical signals.
3.1.12
limited frequency range
frequency of the local oscillator signal (f ) applied to the first mixer of the receiver plus or minus the sum of
LO
the intermediate frequencies (f ,. f ) and half of the switching range, r , of the receiver, as defined by the
I1 In sw
expression in Equation (1):
nn
rr
sw sw
− ff−− uu  +  (1)
fff
∑∑
IIjj
LO l LO
jj=1 =1
3.1.13
manufacturer
natural or legal person who places the equipment on the market under his own name
NOTE Normally, the manufacturer designs and manufactures the product himself. A manufacturer can also design,
manufacture, assemble, pack, process or label the product as subcontractor or he assembles, packs, processes, or labels
products as ready-made products.
3.1.14
r.f. transmission path
means of communication between at least two points, using r.f. wave propagation
3.1.15
radio part
component or part of the component incorporating the receiver and/or transmitter
NOTE The radio part can include a power supply, e.g. an autonomous power source.
3.1.16
receiver
device that receives the r.f. energy corresponding to an r.f. transmission path
NOTE The receiver can be incorporated in a component of the fire detection and alarm system.
3.1.17
r.f. interference
r.f. transmission from a source other than a component of the fire detection and alarm system that can cause
corruption or obliteration of wanted signals and that does not conform to the definition of collision or message
substitution
3.1.18
service life
period of useful life of an autonomous power source under specified conditions
3.1.19
site attenuation
degradation of the r.f. signal due to either transmission path loss or a change in the environment of the fire
detection and alarm system after its installation
NOTE Site attenuation can be changed for example by installation or relocation of reflection or absorption materials.
3.1.20
special tool
device not normally carried by the public (e.g. a key), normally provided by the manufacturer and that is used
for opening the enclosure of the component to detach the antenna
NOTE It is intended to deter unauthorized access to the antenna, while being available on site either at a defined
location or from a “responsible person” familiar with and having knowledge of the system.
3.1.21
spurious response rejection
measure of the capability of the receiver to receive a wanted, modulated signal without exceeding a given
degradation due to the presence of an unwanted, modulated signal at any other frequency at which a
response is obtained
3.1.22
switching range
r
sw
maximum frequency range over which the receiver or the transmitter can be operated within the alignment
range without reprogramming or realignment
3.1.23
transmitter
device which generates the r.f. energy necessary for an r.f. transmission path
NOTE The transmitter can be incorporated in a component of the fire detection and alarm system.
4 © ISO 2010 – All rights reserved

3.2 Abbreviated terms
c.i.e. control and indicating equipment
p.s.e. power supply equipment
r.f. radio frequency
RMS root mean square
4 System requirements
4.1 General
The requirements of this part of ISO 7240 shall be applied, together with requirements of the relevant part of
ISO 7240, where the r.f. transmission path component has the same function as the component covered by
that part and when not otherwise specified in this part of ISO 7240.
For example, a component with a r.f. transmission path, having the function of a heat detector shall comply
with ISO 7240-5 and a component having the function of a manual call point shall comply with ISO 7240-11.
4.2 Radio frequency transmission paths
4.2.1 Immunity to site attenuation
The manufacturer shall provide means either in the component itself or by the system configuration to ensure
that a site attenuation, which can be caused by influences for different reasons on site, shall not affect the r.f.
transmission path adversely in a way that communication between components is not possible.
The immunity to site attenuation shall be specified as follows:
a) for r.f. operating frequencies up to 10 MHz: at least 10 dB;
b) for r.f. operating frequencies higher than 10 MHz: as calculated in Annex B.
The manufacturer shall provide the necessary documentation and/or means of evaluation that permits an
assessment of the full functionality of the component. If these means are a part of the component, the user
shall not be able to interfere with these means (see 8.2.2).
4.2.2 Alarm signal integrity
The components of the system shall use a transmission protocol on the transmission path to ensure that no
alarm message is lost (see 8.2.3).
4.2.3 Identification of components
4.2.3.1 Each component using an r.f. transmission path shall be identified by an individual identification
code as belonging to one specific fire detection and alarm system.
4.2.3.2 The manufacturer shall provide means to ensure that a component using an r.f. transmission path
shall not be accepted by other fire detection and alarm systems (see 8.2.4).
4.2.4 Receiver performance
Unless otherwise specified in mandatory national regulations, the receiver shall meet the requirements given
in Table 1.
Table 1 — Minimum receiver performance characteristics
Working frequency
Limit
Characteristic offset Notes
dB
MHz
For all bandwidths and modulation
Adjacent channel selectivity W 36 ⎯
schemes
W 40 ± 1
In direct sequence spread spectrum
W 45 ± 2
Blocking or desensitization systems (DSSS) the working frequency
W 60 ± 5
is the centre frequency
W 65 ± 10
Spurious response rejection W 40 ⎯ ⎯

The manufacturer of the receiver shall provide a test report by a test laboratory to demonstrate that the
requirements of this subclause are fulfilled. If the manufacturer cannot provide this evidence, the tests
described in 8.2.5 shall be conducted. The manufacturer shall provide the means to carry out the test,
e.g. stop frequency hopping.
4.2.5 Immunity to interference
4.2.5.1 General
4.2.5.1.1 Tests shall be conducted to determine the level of immunity to the following sources:
⎯ radio influences from the fire detection and alarm system;
⎯ radio influences from other users of the spectrum.
4.2.5.1.2 The following influences are not covered:
⎯ random influences as a result of electromagnetic effects;
NOTE 1 These are covered by EMC guidelines (see EN 50130-4).
⎯ deliberate electromagnetic attack on the r.f. transmission path.
NOTE 2 No special sabotage resistance is required for fire detection and alarm systems in ISO 7240.
4.2.5.1.3 Unless otherwise specified in mandatory national regulations, the requirements of 4.2.5 shall
apply.
4.2.5.2 Availability of r.f. transmission path in two or more technically similar systems from the
same manufacturer
For two or more technically similar systems from the same manufacturer operating within the same radio
range the r.f. transmission paths shall not mutually impede one another.
The manufacturer shall specify the means for assessment, which shall be suitable to ensure the availability of
all parts of the system in all expected system configurations (see 8.2.6).
4.2.5.3 Availability of the r.f. transmission path in the presence of other band users
Where equipment from other users is operating at the maximum permitted limits (e.g. power, bandwidth and
duty cycle) in the same r.f. band or sub-band, r.f. interference shall not prevent signal transmission (see 8.2.7).
6 © ISO 2010 – All rights reserved

NOTE The definition in EN 300220-1 applies for establishing the duty cycle.
4.2.5.4 Integrity of the r.f. transmission path
The application of one of the r.f. interference signals specified in 8.2.7 to one of the fire detection and alarm
system receivers shall not cause an alarm condition or a fault warning condition at the c.i.e.
4.2.6 Loss of communication
The loss of the ability of the system to transmit a message of any component with an r.f. transmission path to
the c.i.e. within periods specified in ISO 7240-2 shall be recognized in less than 300 s and shall be indicated
in less than 100 s (see 8.2.8).
4.2.7 Antenna
The antenna or its cable shall be detachable only by opening the enclosure of the component or by using
special tools provided by the manufacturer (see 8.2.9).
5 Components requirements
5.1 Compliance
In order to comply with this part of ISO 7240, the components shall meet the requirements of this Clause 5,
which shall be verified by visual inspection or engineering assessment, shall be tested in accordance with
Clause 8 and shall meet the requirements of the tests.
5.2 General
5.2.1 All components shall meet the requirements of the relevant part of ISO 7240 and the additional
specific requirements in 5.3 and 5.4, including the transmission paths.
5.2.2 The component shall be designed such that the removal from its base and/or point of installation are
detected and indicated as a fault.
5.2.3 Components that rely on software control in order to fulfil the requirements of this part of ISO 7240
shall comply with the relevant part of ISO 7240.
5.3 Power supply equipment
5.3.1 The components shall be powered by
a) an autonomous power source, e.g. a primary battery; or
b) a p.s.e. in accordance with ISO 7240-4.
5.3.2 All components powered by an autonomous power source shall be within the enclosure of the
component.
The manufacturer shall declare the type of the autonomous power source and its service life for the
component in normal operation. The service life shall be demonstrated by a statement of calculation. This
calculation shall take into account the mean consumption and voltage under quiescent and at standard
atmospheric conditions. The product of the specified discharge time and the mean discharge current shall not
be greater than 85 % of the rated capacity of the power source.
NOTE The remaining 15 % of the rated capacity takes into account self-discharge of the power source.
The mean consumption shall be calculated based on the electronic element of the circuit.
Where calculation is not practical, the mean consumption shall be measured at nominal voltage for at least 1 h
under quiescent operation after the stabilization period specified by the manufacturer. The verification of this
calculation shall be made as defined in 8.3.3. Annex C gives an example for the calculation of the service life
of the autonomous power source.
5.3.3 All components powered by an autonomous power source shall be able to transmit a fault signal (low
power) before the power source fails. The following conditions shall be taken into account (see 8.3.4).
a) The component shall be capable of generating and transmitting a fault signal within 60 min after replacing
a good or new autonomous power source by a preconditioned power source representing a discharged
power source at the end of its service life.
b) The component shall be capable of operating as intended when it is activated using the preconditioned
power source representing a discharged power source at the end of its service life.
c) The component shall keep the fire alarm condition and/or another activated condition for at least 30 min
(where alarm condition is not applicable).
5.3.4 The loss of the power source shall be indicated as a fault signal from point in accordance with
ISO 7240-2. Where several power sources are used for different functions within one component, the fault
signal shall be given for each power source (see 5.3.3).
5.3.5 Either the component shall be designed to make polarity reversal impossible or, if not, the polarity of
the connections for the power source shall be identifiable and the polarity reversal shall not damage the
component (see 8.3.5).
5.4 Environmental
5.4.1 General
Components shall be tested to the environmental tests defined in the relevant part of ISO 7240. The functional
tests of the radio part of the component before and after the environmental treatment shall be conducted in
accordance with 8.3.
The type and severity of the environmental tests are separately specified for the following main categories of
equipment containing a transmitter/receiver:
⎯ c.i.e.;
⎯ other components (e.g. detectors, manual call points, input/output devices).
5.4.2 General test procedure
Unless otherwise stated, the components of the fire detection and alarm system containing the transmitter and
the receiver, respectively, shall be mounted in the radio-frequency-shielded test equipment in accordance with
Annex A.
The component transmitting the alarm signal shall be tested together with a typical component receiving the
alarm signal and vice versa.
The measurements of the attenuation values, A, shall be conducted with the component mounted in the test
equipment and with the fixtures closed correctly. However, during some of the environmental exposures the
fixtures shall be opened or the equipment under test shall be taken out of the fixture.
8 © ISO 2010 – All rights reserved

5.4.3 Provision for testing
The manufacturer shall provide a sufficient number of specimens for testing. The required number of
specimens in Table 2 is dependent on the type of component being tested.
Table 2 — Provisions for testing
Components Number of specimens
C.i.e. At least 1 (in accordance with ISO 7240-2)
Other components (e.g. detectors, manual call points, At least 16 (in accordance with the relevant part of
input/output devices) ISO 7240)

The specimens submitted shall be deemed representative of the manufacturer's normal production with
regard to their construction and calibration. Where specimens are comprised of at least two parts — a base
(socket) and a head (body) — and the radio part and the power supply are located only in one of these parts,
only this part shall be tested in accordance with this part of ISO 7240. The other part is used to trigger the
radio part.
6 Marking
6.1 The marking shall be in accordance with the marking requirements of the relevant part of ISO 7240.
6.2 The element containing the radio part shall be additionally clearly marked with
a) the number of this part of ISO 7240 (i.e. ISO 7240-25);
b) the marking required by national regulations.
6.3 The element containing an autonomous power source shall be additionally clearly marked with
a) the type and the reference of the power source(s) recommended by the manufacturer, which indications
shall be visible during its replacement;
b) the service life of the autonomous power source.
7 Data
7.1 General
The manufacturer shall prepare the documentation to evaluate the compatibility in the configuration(s)
specified by the manufacturer. This documentation shall include at least the following:
a) list of the relevant components of the fire detection and alarm system, which shall define for each
component the functions (a part of this definition shall include a description of the software and of the
hardware) and the technical information for each component to facilitate proof of the compatibility of each
sub-system within the global network system;
b) test reports relative to the conformity of the components, with indication of the relevant part of ISO 7240;
c) characteristics of the r.f. transmission path between each component and the c.i.e.;
d) how the requirements of 4.2.3 are satisfied;
e) utilization limits and functional limits of the system, e.g. configuration, the number of components that are
able to communicate with one base station.
7.2 Input/output devices
The documentation of the input/output devices shall comply with the requirements of 7.1.
The input/output devices shall be delivered with technical instructions and sufficient installation and
maintenance information to enable their setting and their operation, or, if all of this information is not provided
with each input/output device, the reference to the appropriate documents shall be indicated on each device
or given with it.
For an efficient operation of the input/output device, this documentation shall detail the requirements for the
correct processing of the signals of the input/output device. This may be a detailed technical specification, a
reference to an adequate processing protocol or by a reference to the list of c.i.e. that can be connected, etc.
NOTE Additional information can be required by the certification body for the assessment of the input/output device
according to this part of ISO 7240.
8 Tests
8.1 General requirements
8.1.1 General
Tests in accordance with this part of ISO 7240 may be combined with tests required in other parts of ISO 7240.
NOTE If the specimens are detachable elements, i.e. comprising of at least two parts — a base (socket) and a head
(body) — then at least the two parts together are regarded as a complete component.
8.1.2 Standard atmospheric conditions for testing
Unless otherwise stated in the test procedures, the conditions defined in the relevant part of ISO 7240 shall
apply.
8.1.3 Operating conditions for tests
If a test method requires that a specimen be operational, then the specimen shall be powered as required by
the manufacturer and shall be connected to suitable monitoring equipment with characteristics as required by
the manufacturer's data. Unless otherwise specified in the test method, the supply parameters applied to the
specimen shall be set within the manufacturer's specified range(s) and shall remain substantially constant
throughout the tests. The value chosen for each parameter shall normally be the nominal value or the mean of
the specified range.
The details of the powered and of the monitoring equipment, as well as the alarm criteria used, shall be given
in the test report.
8.1.4 Mounting and orientation
The mounting and orientation requirements defined in the relevant part of ISO 7240 shall apply.
8.1.5 Tolerances
The requirements for tolerances defined in the relevant part of ISO 7240 shall apply.
10 © ISO 2010 – All rights reserved

8.2 System tests
8.2.1 Test schedule for system tests
The test order and the number of samples are given in Table 3.
Table 3 — Test schedule for system tests
Number of device(s)/component(s)
Reference
System tests
subclause
C.i.e. Other components
Immunity to site attenuation 8.2.2 documentation only documentation only
Alarm signal integrity 8.2.3 1 10 or maximum number of acceptable
samples by the system, if less than 10
Identification of components with an 8.2.4 documentation only documentation only
r.f. transmission path
Receiver performance 8.2.5 see Table 1 see Table 1
Mutual disturbance between 8.2.6 at least 2 10 or maximum number of acceptable
systems of the same manufacturer samples by the system, if less than 10
Compatibility with other band users 8.2.7 at least 1 at least 1
Detection of a loss of 8.2.8 at least 1 as specified by the manufacturer
communication on an r.f.
transmission path
Antenna 8.2.9 1 1
8.2.2 Immunity to site attenuation
8.2.2.1 Object
To demonstrate that the appropriate r.f. transmission path complies with the requirements of 4.2.1 in a
medium free from interference and in the relevant frequency band.
8.2.2.2 Test procedure
In accordance with the manufacturer's documentation, verify by engineering assessment the requirements of
4.2.1.
NOTE The assessment takes into account the difference of the technical approaches of different manufacturers to
avoid communication loss by site attenuation.
8.2.2.3 Requirements
The assessment shall indicate that the requirements of 4.2.1 are fulfilled.
8.2.3 Alarm signal integrity
8.2.3.1 Object
To demonstrate that an alarm message to or from a component is not lost due to collisions and/or r.f.
transmission path occupation and that the system complies with the requirements defined in 4.2.2.
8.2.3.2 Test procedure
Activate input signals to 10 components simultaneously to transmit or receive alarm messages by means
provided by the manufacturer. If the system capacity is less than 10 components, trigger the maximum
number of components.
8.2.3.3 Requirements
The first alarm message shall be indicated within 10 s and the last alarm message within 100 s. No alarm
message shall be lost.
NOTE The value of 100 s is not intended to show the compliance with the alarm response time or with the fault
response time of ISO 7240-2.
8.2.4 Identification of components with r.f. transmission path
8.2.4.1 Object
To demonstrate that the component complies with the requirements of 4.2.3.
8.2.4.2 Test procedure
Verify that the documentation provided by the manufacturer fulfils the requirements of 4.2.3.1 and 4.2.3.2.
8.2.4.3 Requirements
The manufacturer shall show that the identification of a component with an r.f. transmission path complies with
the requirements of 4.2.3.
The probability that component with an r.f. transmission path is identified and accepted as belonging to
another system from the same system manufacturer not intended to receive shall be less than 1:1 000 000.
8.2.5 Receiver performance
8.2.5.1 Adjacent channel selectivity
8.2.5.1.1 Object
To demonstrate that the adjacent channel selectivity of the receiver complies with the requirements of 4.2.4.
8.2.5.1.2 Test procedure
Cary out the test procedure as follows.
a) Undertake the measurement under normal conditions.
Connect two signal generators, A (e.g. a detector) and B, to the receiver (e.g. c.i.e.) via a combining
network to the receiver antenna or test antenna. Signal generator B is initially switched off.
b) Set signal generator A as follows:
⎯ to the nominal frequency of the receiver;
⎯ with normal modulation of the wanted signal;
⎯ at a signal level that gives sufficient response at the receiver.
12 © ISO 2010 – All rights reserved

Increase the signal level of signal generator A by 3 dB.
Set signal generator B as follows:
⎯ to the channel frequency immediately above the wanted signal;
⎯ with an unmodulated signal;
⎯ at an increasing signal level until the wanted criteria (e.g. interconnection protocol) are exceeded.
Repeat the measurement with signal generator B set to the channel frequency immediately below the
wanted signal.
8.2.5.1.3 Measurements
Record the settings of signal generator A and signal generator B.
Record the upper and lower adjacent channel selectivity as the ratio of the level of the unwanted signal to the
level of the wanted signal, with the signals expressed in decibels.
8.2.5.1.4 Requirements
The adjacent channel selectivity shall be not less than the unwanted signal as stated in Table 1.
8.2.5.2 Blocking or desensitization
8.2.5.2.1 Object
To demonstrate that the blocking or desensitization robustness of the receiver complies with the requirements
of 4.2.4.
8.2.5.2.2 Test procedure
Cary out the test procedure as follows.
a) Undertake the measurement under normal conditions.
b) Connect two signal generators, A (e.g. a detector) and B, to the receiver (e.g. c.i.e.) via a combining
network to the receiver antenna or test antenna. Signal generator B is initially switched off.
c) Set signal generator A as follows:
⎯ to the nominal frequency of the receiver;
⎯ with normal modulation of the wanted signal;
⎯ at a signal level that gives sufficient response at the receiver.
d) Increase the signal level of signal generator A by 3 dB.
e) Set signal generator B as follows:
⎯ to a frequency 1 MHz above the upper edge of the nominal band;
⎯ with an unmodulated signal;
⎯ at an increasing signal level until the wanted criteria (e.g. interconnection protocol) are exceeded.
f) Repeat the measurement with signal generator B set to 2 MHz, then 5 MHz, then 10 MHz above the
upper edge of the nominal band.
g) Repeat the measurement with signal generator B set to 1 MHz, then 2 MHz, then 5 MHz, then 10 MHz
below the lower edge of the nominal band.
8.2.5.2.3 Measurements
Record the settings of signal generator A and signal generator B.
Record the level of signal generator B, as the ratio of the lowest level of the unwanted signal to the level of the
wanted signal, with the signals expressed in decibels, at which the signal from signal generator A is blocked.
8.2.5.2.4 Requirements
The blocking or desensitization robustness shall be in accordance with Table 1.
8.2.5.3 Spurious response rejection
8.2.5.3.1 Object
To demonstrate the spurious response rejection of the receiver complies with the requirements of 4.2.4.
8.2.5.3.2 Preliminary calculations
Calculate the following:
a) limited frequency range;
b) frequencies outside the limited frequency range, at which spurious responses can occur outside the
limited frequency range for the remainder of the frequency range of interest, as appropriate (see 8.2.5.3.6
and 8.2.5.3.7).
NOTE The frequencies outside the limited frequency range are equal to the harmonics of the frequency, f , of the
LO
local oscillator signal applied to the first mixer of the receiver plus or minus the first intermediate frequency, f , of the
I1
receiver. Hence, the frequencies of these spurious responses are nf ± f , where n is an integer not less than 2.
LO I1
For the calculations in a) and b), the manufacturer shall state the frequency of the receiver, the frequency of
the local oscillator signal, f , applied to the first mixer of the receiver, the intermediate frequencies (f , f
LO I1 I2
etc.), and the switching range, r , of the receiver.
sw
Measure the first image response of the receiver to verify the calculation of spurious response frequencies.
8.2.5.3.3 Arrangements for test signals
Sources of test signals for application to the receiver input shall be connected in such a way that the source
impedance presented to the receiver input is 50 Ω (non-reactive impedance).
This requirement shall be met irrespective of whether one or more signals using a combining network are
applied to the receiver simultaneously.
The levels of the test signals at the receiver input terminals (RF socket) shall be expressed in terms of
electromagnetic force.
The effects of any intermodulation products and noise produced in the test signal sources shall be negligible.
14 © ISO 2010 – All rights reserved

8.2.5.3.4 Test procedure — Method of search over the limited frequency range
Cary out the test procedure as follows.
a) Connect two signal generators, A (e.g. a detector) and B, to the receiver (e.g. c.i.e.) via a combining
network (see Figure 1). Signal generator B is initially switched off, maintaining the output impedance.

Figure 1 — Measurement arrangement
b) Set signal generator A as follows:
⎯ to the nominal frequency of the receiver;
⎯ with normal modulation of the wanted signal;
⎯ at a signal level that gives sufficient response at the receiver.
NOTE Signalling and modulation are identical to the target radio link.
c) Adjust the level of the wanted signal from generator
...
