ISO 20712-2:2007
(Main)Water safety signs and beach safety flags — Part 2: Specifications for beach safety flags — Colour, shape, meaning and performance
Water safety signs and beach safety flags — Part 2: Specifications for beach safety flags — Colour, shape, meaning and performance
ISO 20712-2:2007 specifies requirements for the shape and colour of beach safety flags for the management of activities on coastal and inland beaches, to be used for giving information on wind and water conditions and other hazardous conditions, and to indicate the location of swimming and other aquatic activity zones extending from the beach into the water. It also specifies the colorimetric and photometric properties and the physical properties, including strength and colour fastness, of the materials from which beach safety flags are to be made. It is not applicable to flags for use on firing ranges or to flags for use to indicate water quality or to signalling used for maritime traffic.
Signaux de sécurité relatifs à l'eau et drapeaux de sécurité pour les plages — Partie 2: Spécifications des drapeaux de sécurité pour les plages — Couleur, forme, signification et performance
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 20712-2
First edition
2007-09-15
Water safety signs and beach safety
flags —
Part 2:
Specifications for beach safety flags —
Colour, shape, meaning and performance
Signaux de sécurité relatifs à l'eau et drapeaux de sécurité pour les
plages —
Partie 2: Spécifications des drapeaux de sécurité pour les plages —
Couleur, forme, signification et performance
Reference number
©
ISO 2007

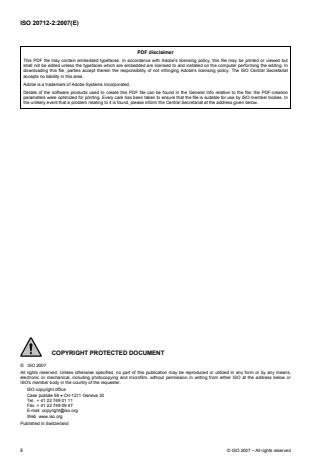

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Beach safety flags.2
4.1 General.2
4.2 Meaning, function, shape and colour of beach safety flags .2
4.3 Dimensions of beach safety flags.4
4.3.1 Rectangular flags.4
4.3.2 Conical flags.4
5 Beach safety flag material .4
5.1 General.4
5.2 Colorimetric and photometric properties of the material.4
5.3 Physical properties of polyester material .5
5.3.1 Mass per unit area .5
5.3.2 Threads per unit length in woven polyester .5
5.3.3 Numbers of wales and courses in knitted polyester .5
5.4 Colour fastness of material .5
5.4.1 Colour fastness to light .5
5.4.2 Colour fastness to fresh water.5
5.4.3 Colour fastness to salt water .5
5.4.4 Colour fastness to wet and dry rubbing .5
5.4.5 Colour fastness to weathering.5
5.5 Strength.5
5.5.1 Tensile strength of woven materials .5
5.5.2 Bursting strength of knitted materials .6
6 Measurement of chromaticity coordinates and luminance factor.6
Annex A (informative) Examples of colours.7

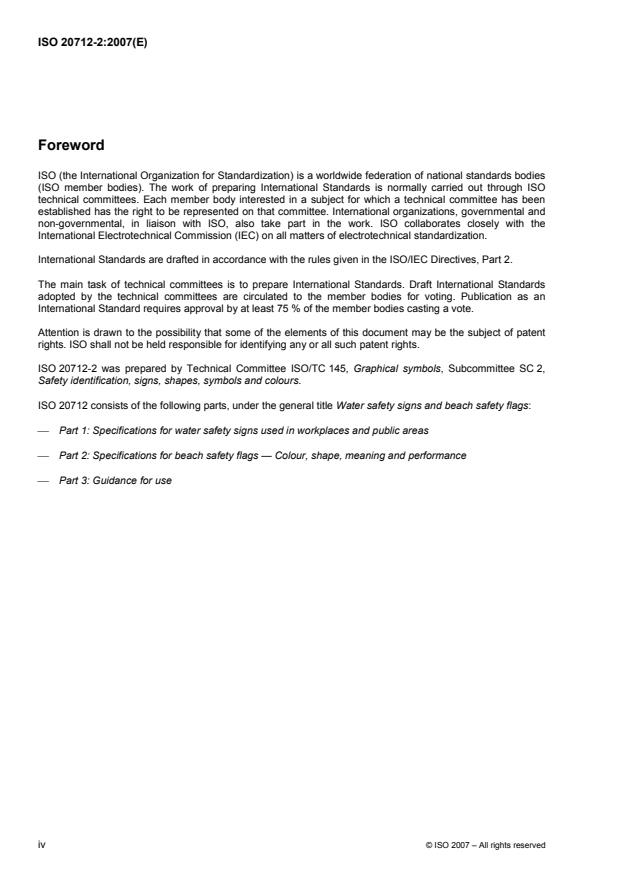

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 20712-2 was prepared by Technical Committee ISO/TC 145, Graphical symbols, Subcommittee SC 2,
Safety identification, signs, shapes, symbols and colours.
ISO 20712 consists of the following parts, under the general title Water safety signs and beach safety flags:
⎯ Part 1: Specifications for water safety signs used in workplaces and public areas
⎯ Part 2: Specifications for beach safety flags — Colour, shape, meaning and performance
⎯ Part 3: Guidance for use
iv © ISO 2007 – All rights reserved
Introduction
There is a need to standardize a system of giving safety information that relies as little as possible on the use
of words to achieve understanding.
Continued growth in international trade, travel and mobility of labour requires a common method of
communicating safety information.
Lack of standardization may lead to confusion and perhaps accidents.
The use of standardized beach safety flags does not replace proper work methods, instructions and accident
prevention training and/or measures. Education is an essential part of any system that provides safety
information.
NOTE Some countries’ statutory regulations may differ in some respects from those given in this part of ISO 20712.
INTERNATIONAL STANDARD ISO 20712-2:2007(E)
Water safety signs and beach safety flags —
Part 2:
Specifications for beach safety flags — Colour, shape, meaning
and performance
IMPORTANT — The colours represented in the electronic file of this document can be neither viewed
on screen nor printed as true representations. Although the copies of this document printed by ISO
have been produced to correspond (with an acceptable tolerance as judged by the naked eye) to the
requirements of this part of ISO 20712, it is not intended that these printed copies be used for colour
matching.
1 Scope
This part of ISO 20712 specifies requirements for the shape and colour of beach safety flags for the
management of activities on coastal and inland beaches, to be used for giving information on wind and water
conditions and other hazardous conditions, and to indicate the location of swimming and other aquatic activity
zones extending from the beach into the water. It also specifies the colorimetric and photometric properties
and the physical properties, including strength and colour fastness, of the materials from which beach safety
flags are to be made.
It is not applicable to flags for use on firing ranges or to flags for use to indicate water quality or to signalling
used for maritime traffic.
NOTE The illustrations in this part of ISO 20712 are as accurate as possible within the limitations of the printing
process.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 105-A02, Textiles — Tests for colour fastness — Part A02: Grey scale for assessing change in colour
ISO 105-A03, Textiles — Tests for colour fastness — Part A03: Grey scale for assessing staining
ISO 105-B02, Textiles — Tests for colour fastness — Part B02: Colour fastness to artificial light: Xenon arc
fading lamp test
ISO 105-B03, Textiles — Tests for colour fastness — Part B03: Colour fastness to weathering: Outdoor
exposure
ISO 105-E01, Textiles — Tests for colour fastness — Part E01: Colour fastness to water
ISO 105-E02, Textiles — Tests for colour fastness — Part E02: Colour fastness to sea water
ISO 105-X12, Textiles — Tests for colour fastness — Part X12: Colour fastness to rubbing
ISO 2076, Textiles — Man-made fibres — Generic names
ISO/CIE 10526, CIE standard illuminants for colorimetry
ISO/CIE 10527, CIE standard colorimetric observers
ISO 13934-1, Textiles — Tensile properties of fabrics — Part 1: Determination of maximum force and
elongation at maximum force using the strip method
ISO 13938-1, Textiles — Bursting properties of fabrics — Part 1: Hydraulic method for determination of
bursting strength and bursting distension
ISO 17724, Graphical symbols — Vocabulary
EN 1049-2:1993, Textiles — Woven fabrics — Construction — Methods of analysis — Part 2: Determination
of number of threads per unit length
EN 12127, Textiles — Fabrics — Determination of mass per unit area using small samples
CIE 15, Colorimetry
BS 2F 127:1991, Specification for nylon fabrics suitable for coating with natural or synthetic elastomers for
aerospace purposes
BS 5441, Methods of test for knitted fabrics
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 17724 and the following apply.
3.1
beach
area forming a shoreline or sloping bank at the edge of the sea or a river estuary or lake
3.2
beach safety flag
material that gives a particular safety message by means of a combination of one or more colours and a
geometric shape, and is attached by one end to a pole or rope
NOTE A flag can also have additional support, e.g. a horizontal support.
4 Beach safety flags
4.1 General
Beach safety flags shall be made of material conforming to Clause 5.
4.2 Meaning, function, shape and colour of beach safety flags
The meaning, function, colour and shape of beach safety flags shall be as specified in Table 1.
2 © ISO 2007 – All rights reserved
Table 1 — Meaning, function, shape and colour of beach safety flags
Beach safety flag Meaning, function, shape and colour
Meaning Dangerous conditions.
To signify a severe hazard: water conditions unsafe for swimming
Function
and other water activities. People should not enter the water.
Shape and colour Rectangle, red.
BF.01
Meaning General warning flag.
To signify a general warning of a hazard which requires a
Function
supplementary sign giving further information.
Shape and colour Rectangle, yellow.
BF.02
Lifeguard-patrolled swimming and bodyboarding zone or lifeguard
Meaning
on duty.
Pair of flags to signify a swimming and bodyboarding zone which
Function
has a lifeguard patrol, or a single flag to signify that a lifeguard is
on duty.
Rectangle, red and yellow. Divided horizontally into two equal
Shape and colour
BF.03 halves; red half at the top.
Meaning Surfboard and other water craft zone or boundary.
To signify a zone, or the boundary of a zone, designated for use
Function
of surfboards and other water craft.
Rectangle, black and white. Divided into four equal rectangles,
Shape and colour
two black and two white. Upper black rectangle at the pole side.
BF.04
Meaning Emergency evacuation.
To signify that people should leave the water because of an
Function
emergency.
Rectangle, red and white. Divided into four equal rectangles, two
Shape and colour
red and two whi
...
