Standards Content (sample)

INTERNATIONAL ISO
STANDARD 3116
Fifth edition
2019-05
Magnesium and magnesium alloys —
Wrought magnesium and magnesium
alloys
Magnésium et alliages de magnésium — Magnésium et alliages de
magnésium corroyés
Reference number
ISO 3116:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO 3116:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 3116:2019(E)

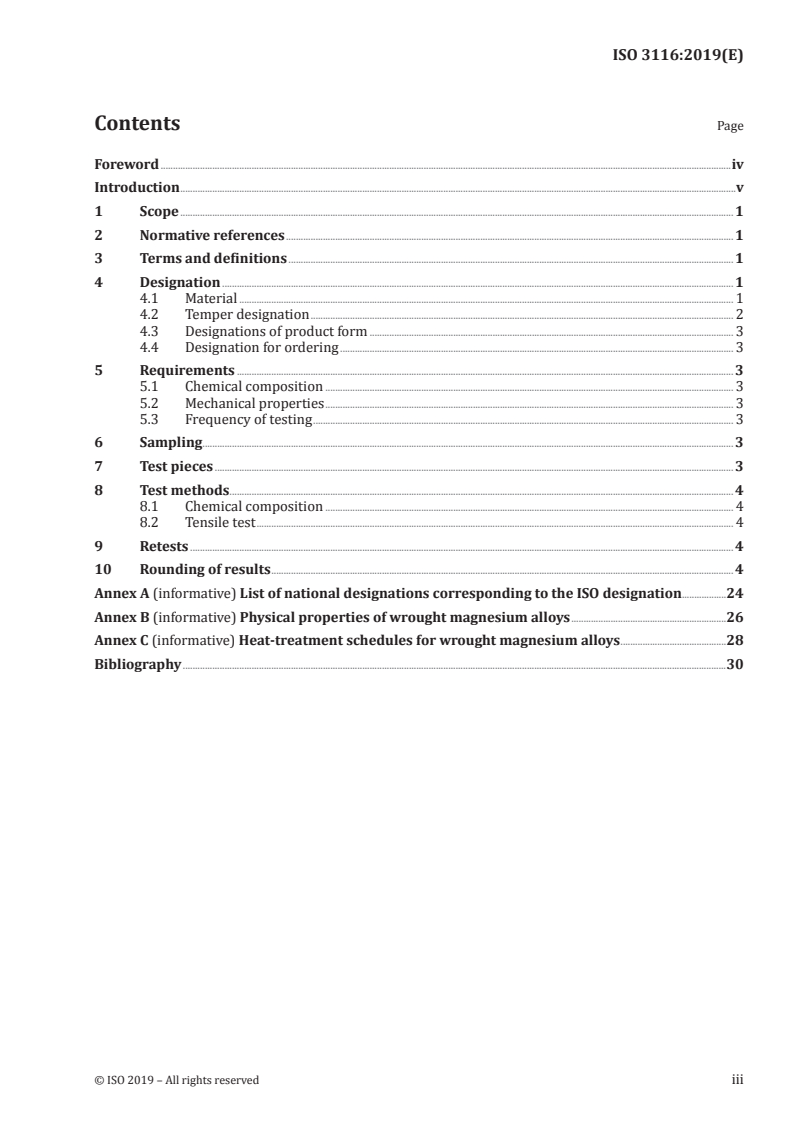

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Designation ................................................................................................................................................................................................................ 1

4.1 Material ......................................................................................................................................................................................................... 1

4.2 Temper designation ............................................................................................................................................................................ 2

4.3 Designations of product form .................................................................................................................................................... 3

4.4 Designation for ordering ................................................................................................................................................................ 3

5 Requirements .......................................................................................................................................................................................................... 3

5.1 Chemical composition ...................................................................................................................................................................... 3

5.2 Mechanical properties ...................................................................................................................................................................... 3

5.3 Frequency of testing ........................................................................................................................................................................... 3

6 Sampling ........................................................................................................................................................................................................................ 3

7 Test pieces ................................................................................................................................................................................................................... 3

8 Test methods ............................................................................................................................................................................................................. 4

8.1 Chemical composition ...................................................................................................................................................................... 4

8.2 Tensile test .................................................................................................................................................................................................. 4

9 Retests ............................................................................................................................................................................................................................. 4

10 Rounding of results ............................................................................................................................................................................................ 4

Annex A (informative) List of national designations corresponding to the ISO designation..................24

Annex B (informative) Physical properties of wrought magnesium alloys ...............................................................26

Annex C (informative) Heat-treatment schedules for wrought magnesium alloys ...........................................28

Bibliography .............................................................................................................................................................................................................................30

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 3116:2019(E)

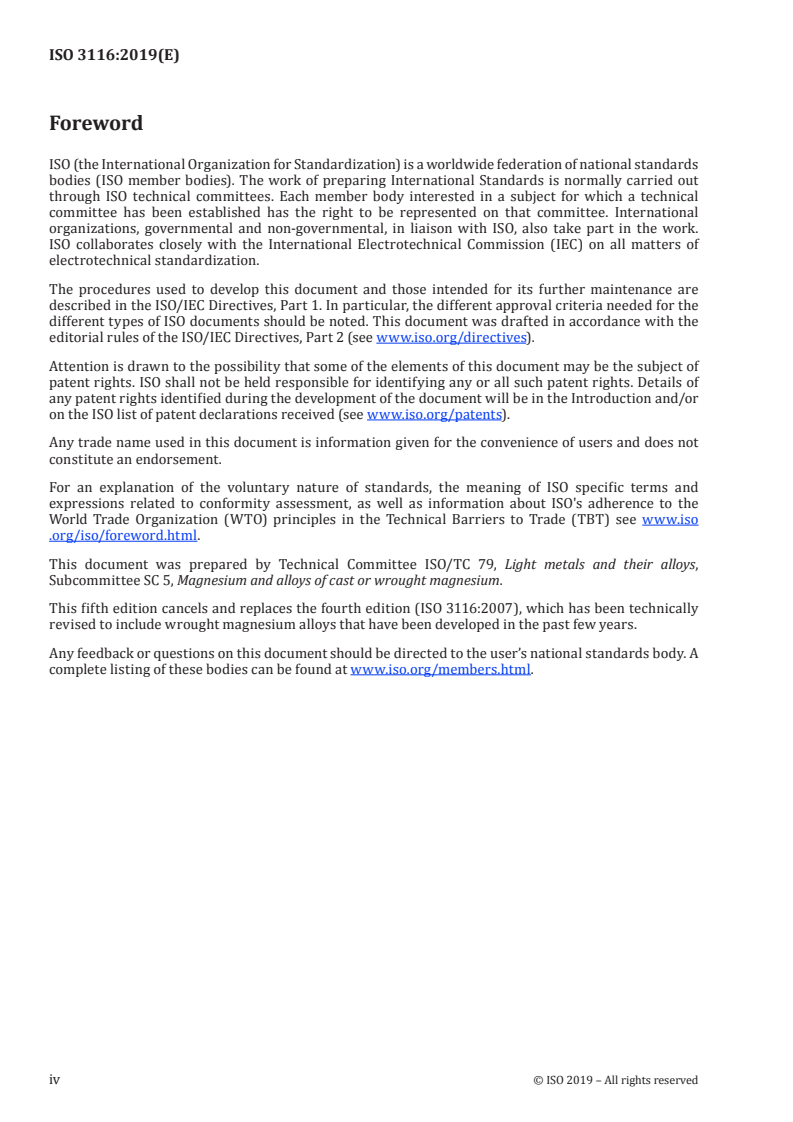

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 79, Light metals and their alloys,

Subcommittee SC 5, Magnesium and alloys of cast or wrought magnesium.

This fifth edition cancels and replaces the fourth edition (ISO 3116:2007), which has been technically

revised to include wrought magnesium alloys that have been developed in the past few years.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 3116:2019(E)
Introduction

This document classifies the commercially available magnesium alloys into a number of grades suitable

for the application to which they might be put.

Some of the alloys referenced in this document can be the subject of a patent or of patent applications and

their listing herein is not to be construed in any way as the granting of a licence under such patent rights.

© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 3116:2019(E)
Magnesium and magnesium alloys — Wrought magnesium
and magnesium alloys
1 Scope

This document specifies the chemical composition and mechanical properties of magnesium and

magnesium alloys for wrought products in the form of bars and solid sections, tubes and hollow

sections, forgings, and plate and sheet.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 80000-1:2009, Quantities and units — Part 1: General

ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature

EN 515, Aluminium and aluminium alloys — Wrought products — Temper designations
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Designation
4.1 Material
The material shall be designated by symbols as given in Tables 1 to 47.

The designation for alloys shall consist of a prefix character “M”, which represents magnesium, and not

more than three capital letters representing the alloying elements specified in the greatest amount,

arranged in order of decreasing percentages, or in alphabetical order if of equal percentages, followed

by the respective percentages rounded off to whole numbers and a serial letter in lower case.

The letters used to represent the alloying elements shall be those in Table 1. The third letter is used when

the third largest amount of element is above or equal to 1 wt.%. If the third and fourth largest amount

of elements are above or equal to 1, the higher amount of elements is taken; if of equal percentage, the

third letter is decided by the producer who developed the alloy.
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 3116:2019(E)
Table 1 — Letters representing alloying elements
Letters Element Name of element Letters Element Name of element
A Al Aluminium N Ni Nickel
B Bi Bismuth P Pb Lead
C Cu Copper Q Ag Silver
D Cd Cadmium R Cr Chromium
E RE Rare Earth S Si Silicon
F Fe Iron T Sn Tin
H Th Thorium V Gd Gadolinium
J Sr Strontium W Y Yttrium
K Zr Zirconium X Ca Calcium
L Li Lithium Y Sb Antimony
M Mn Manganese Z Zn Zinc

In rounding percentages, the nearest whole number shall be used. If two choices are possible, for

example when the decimal is followed by a 5 only or a 5 followed only by zeros, the nearest even whole

number shall be used. When a range is specified for the alloying element, the rounded mean shall be

used in the designation. When only a minimum percentage is specified for the alloying element, the

rounded minimum percentage shall be used in the designation. For example:
— an aluminium content of 1,2 wt.% is written as A1;
— an aluminium content of 1,5 wt.% is written as A2;
— an aluminium content of 2,5 wt.% to 3,6 wt.% is written as A3;
— an aluminium content of 2,5 wt.% is written as A2.

The serial letter is defined as “a” or “b” when the two compositions have only minor difference.

For example, ISO-MgAl3Zn1(A) is designated as MAZ31a and ISO-MgAl9Ca1Zn1 is designated as

MAXZ911.

A list of national designations corresponding to this document is given in Annex A. A table of physical

properties of the listed alloys is given in Annex B.
4.2 Temper designation
The following symbols shall be used for temper designation:
— O: annealed;
— F: as fabricated;

— H × 8: fully hardened (stain hardened to give maximum ultimate tensile strength);

— H × 4: half hardened (stain hardened to give an ultimate tensile strength approximately midway

between that of annealed and H × 8 temper);

— H × 2: quarter hardened (stain hardened to give an ultimate tensile strength approximately midway

between that of annealed and H × 4 temper);

— H112: Strain hardened from working at elevated temperature or from a limited amount of cold

work, and for which there are mechanical properties limits.

— T5: cooled from an elevated temperature shaping process and then artificially aged;

— T6: solution heat treated and then artificially aged.
2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 3116:2019(E)
The temper designations shall be in accordance with EN 515.
Details of heat treatments are given in Annex C.
4.3 Designations of product form
The following symbols shall be used for product form:
— B: bars and solid sections;
— T: tubes and hollow sections;
— F: forgings;
— P: plate and sheet.
4.4 Designation for ordering
EXAMPLE

An order for magnesium bars, conforming to this document, of magnesium alloy MAZ31a, delivered in the as-

fabricated condition (F) is as follows:
ISO 3116 - ISO-MgAl3Zn1 (A) (or MAZ31a) - F - B
Tonnage and dimensions shall be specified in addition.
5 Requirements
5.1 Chemical composition

The chemical composition of wrought magnesium alloys, taken as cast analysis at the time the material

is cast, shall conform to the requirements for the appropriate material given in Table 2.

5.2 Mechanical properties

The minimum values of the mechanical properties of wrought products in magnesium alloys in the

defined temper conditions shall be as given in Tables 3 to 48.
5.3 Frequency of testing

The frequency of testing shall be subject to an agreement between the manufacturer and the purchaser.

6 Sampling

Conditions for sampling, formation of batches and frequency of verification shall be subject to an

agreement between the manufacturer and the purchaser.
7 Test pieces

Test pieces shall be taken in the longitudinal direction. For rolled flat products of thickness > 0,6 mm,

test pieces may be taken in the long transverse direction.
© ISO 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 3116:2019(E)
8 Test methods
8.1 Chemical composition

The determination of the alloying elements given in Table 2 shall be performed in accordance with the

relevant International Standards, or other standards as agreed between the supplier and the customer.

8.2 Tensile test
Tensile tests shall be carried out in accordance with ISO 6892-1.
9 Retests

Conditions for retests shall be subject to an agreement between the manufacturer and the purchaser.

10 Rounding of results

The number representing the result for any value specified in this document shall be expressed to

the same number of decimal places as the corresponding number in this document. The rounding of

numbers shall meet the requirements of ISO 80000-1:2009, B.3, rule A or B. The choice shall be left to

the discretion of the manufacturer, unless the use of one of the rules is agreed by the time of acceptance

of the order.
4 © ISO 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 3116:2019(E)
© ISO 2019 – All rights reserved 5
Table 2 — Chemical composition of wrought magnesium and magnesium alloys
Composition
Material designation
% (mass fraction)
Prod-
Alloy
uct
Oth- Oth-
group
Designa- Ele-
form
Symbol Number Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers ers
tion ment
each total
min.
0,00 0,00

Mg ISO-Mg99.99 ISO-WD11000 MG9999 B 99,99 0,002 0,003 0,002 — — — — — — — 0,002 0,002 0,002 0,01

03 03
max.
min. Rem. 7,5 0,35 0,15 — 0,01 — — — 0,001 0,02 — — — — — —
MgAlAg ISO-MgAl8Ag ISO-WD25110 MAQ80 F,P
0,8
max. — 8,5 0,55 0,35 — 0,10 — — — 0,02 0,05 0,02 0,02 0,001 0,01 0,30
min. Rem. 4,5 — 0,15 — — — — — 0,7 — — — — — — —
ISO-MgAl5Ca1 ISO-WD25120 MAX51 B,T
max. — 5,4 0,30 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 5,5 — 0,15 — — — — — 0,7 — — — — — — —
MgAlCa ISO-MgAl6Ca1 ISO-WD25130 MAX61 B,T,P
max. — 6,5 0,30 0,40 — — — — — 1,5 — 0,10 0,005 0, 05 0,005 0,05 0,30
min. Rem. 5,5 — 0,15 — — — — — 1,6 — — — — — — —
ISO-MgAl6Ca2 ISO-WD25140 MAX62 B,T,P
max. — 6,5 0,30 0,40 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min Rem. 2,5 0,50 0,20 — — 1,0 — — — — — — — — — —
MgAlLi ISO-MgAl3Li2 ISO-WD26110 MAL32 P
0,00 0,00
max. — 3,5 0,8 0,40 — — 3,0 — — — — 0,01 0,005 0,02 0,15
15 05
Min. Rem. 5,5 — 0,15 — — — — — — — — — — — — —
MgAlMn ISO-MgAl6Mn ISO-WD21240 MAM60 B,T,P
max. — 6,5 0,30 0,40 — — — — — — — 0,10 0,005 0,01 0,005 0,05 0,30
min. Rem. 0,50 — 0,10 — — — — — — 0,6 — — — — —
ISO-MgAl1Sn1 ISO-WD25150 MAT11 B,P 0,004
max. — 1,2 — 0,30 — — — — — — 1,2Sn 0,01 — — 0,01 0,15
MgAlSn
min. Rem. 6,0 — 0,2 — — — — — — 0,7 — — — — — —
ISO-MgAl6Sn1 ISO-WD25160 MAT61 B,P
max. — 6,8 — 0,4 — — — — — — 1,3Sn 0,025 0,005 — — 0,05 0,15
min. Rem. 2,5 0 0,6 — — — — — — 0,9 — — — — — —
MgAlSr ISO-MgAl3Sr1 ISO-WD21450 MAJ31 B
max. — 3,5 0,25 0,8 — — — — — — 1,5Sr 0,10 0,02 0,05 0,005 0,05 0,15
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plate and sheet
RE = neodymium and other heavy rare earth metals
RemAlnder.
Zn+Ag.
---------------------- Page: 10 ----------------------
ISO 3116:2019(E)
6 © ISO 2019 – All rights reserved
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Prod-
Alloy
uct
Oth- Oth-
group
Designa- Ele-
form
Symbol Number Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers ers
tion ment
each total
min. Rem. 2,4 0,50 0,15 — — — — — — — — — — — — —
ISO-MgAl3Zn1(A) ISO-WD21150 MAZ31a B,T,F,P
max. — 3,6 1,5 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 2,4 0,5 0,05 — — — — — — — — — — — — —
ISO-
ISO-WD21151 MAZ31b B,T,F,P
MgAl3Zn1(B)
max. — 3,6 1,5 0,4 — — — — — — — 0,10 0,05 0,05 0,005 0,05 0,30
min. Rem. 2,5 0,50 0,20 — — — — — — — — — — — — —
ISO-MgAl3Zn1(C) ISO-WD21153 MAZ31c B, P
0,00
max. — 3,5 1,5 0,40 — — — — — — — 0,05 — — 0,02 0,15
MgAlZn
min. Rem. 5,5 0,50 0,15 — — — — — — — — — — — — —
ISO-MgAl6Zn1 ISO-WD21160 MAZ61 B,T,F, P
max. — 6,5 1,5 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 7,8 0,20 0,12 — — — — — — — — — — — — —
ISO-MgAl8Zn ISO-WD21170 MAZ80 B,T,F
max. — 9,2 0,8 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 8,6 0,35 0,15 — — — — — — — — — — — — —
ISO-MgAl9Zn1 ISO-WD21180 MAZ91 B,T
0,00
max. — 9,5 1,0 0,50 — — — — — — — 0,10 0,05 0,005 0,05 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plate and sheet
RE = neodymium and other heavy rare earth metals
RemAlnder.
Zn+Ag.
---------------------- Page: 11 ----------------------
ISO 3116:2019(E)
© ISO 2019 – All rights reserved 7
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Prod-
Alloy
uct
Oth- Oth-
group
Designa- Ele-
form
Symbol Number Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers ers
tion ment
each total
min. Rem. 2,4 0,5 0,15 — — — — — 0,7 — — — — — — —
ISO-MgAl3Ca-
ISO-WD22110 MAXZ311 B,T
1Zn1
max. — 3,6 1,0 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 5,5 0,5 0,15 — — — — — 0,7 — — — — — — —
ISO-MgAl6Ca-
ISO-WD22120 MAXZ611 B,T,P
1Zn1
max. — 6,5 1,0 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 5,5 0,5 0,15 — — — — — 1,6 — — — — — — —
ISO-MgAl6Ca-
ISO-WD22130 MAXZ621 B,T,P
2Zn1
max. — 6,5 1,0 0,40 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
MgAlCa-
min. Rem. 7,5 0,5 0,15 — — — — — 0,7 — — — — — — —
ISO-MgAl8Ca-
ISO-WD22140 MAXZ811 B, P
1Zn1
max. — 8,5 1,5 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 8,6 0,35 0,15 — — — — — 0,7 — — — — — — —
ISO-MgAl9Ca-
ISO-WD22150 MAXZ911 B,T
1Zn1
max. — 9,5 1,0 0,50 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 8,6 0,35 0,15 — — — — — 1,6 — — — — — — —
ISO-MgAl9Ca-
ISO-WD22160 MAXZ921 B,T
2Zn1
max. — 9,5 1,0 0,50 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. — 0,3 — 5,5 — — 0,3 3,0 0,002 0,2 — — — — — —
ISO-MgGd6Y4Zn1 ISO-WD69120 MVWZ641 F,P
max. — — 1,0 — 6,5 — — 0,7 4,5 0,020 1,0Ag 0,05 0,02 0,02 0,001 0,01 0,30
min. Rem. — — — 6,5 0,9 — 0,4 4,6 — — — — — — — —
ISO-MgG-
ISO-WD69130 MVWE751 B
d7Y5RE1
max. — — — — 7,5 1,5 — 1,0 5,7 — — 0,01 — 0,10 0,004 — 0,30
min. Rem. — — — 6,5 — — 0,2 5,5 — — — — — — — —
MgGdY ISO-MgGd7Y6 ISO-WD69140 MVW76 B
max. — — — 0,03 7,5 — 0,2 0,5 6,5 — — 0,01 0,010 0,02 0,005 0,01 0,30
min. Rem. — — — 8,0 — — 0,4 2,8 — — — — — — — —
ISO-MgGd8Y3 ISO-WD69150 MVW83 B,F,P
max. — 0,02 0,10 0,05 9,0 — — 0,6 3,5 — — 0,05 0,01 0,02 0,005 0,01 0,15
min. Rem. — 1,0 0,6 7,5 — — — 3,5 — — — — — — — —
ISO-MgGd8Y4Zn2 ISO-WD69160 MVWZ842 B,F,P
max. — — 2,0 1,0 9,0 — — — 5,0 — — 0,05 0,01 0,02 0,005 0,01 0,15
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plate and sheet
RE = neodymium and other heavy rare earth metals
RemAlnder.
Zn+Ag.
---------------------- Page: 12 ----------------------
ISO 3116:2019(E)
8 © ISO 2019 – All rights reserved
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Prod-
Alloy
uct
Oth- Oth-
group
Designa- Ele-
form
Symbol Number Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers ers
tion ment
each total
min. Rem. — — — 3,8 — — 0,8 — — — — — — — — —
MgGdZr ISO-MgGd4Zr1 ISO-WD69170 MVK41 B
max. — — — 0,01 4,2 — — 1,2 — — — 0,02 0,01 0,05 0,01 0,03 0,30
min. Rem. — 0,5 — — — 8,5 — — — — — — — — — —
MgLiZn ISO-MgLi9Zn1 ISO-WD96110 MLZ91 B,T,P
max. — 0,05 1,5 0,05 — — 9,5 — — 0,05 — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 2,5 2,5 — — — 3,5 — — — — — — — — — —
ISO-MgLi4Al3Zn3 ISO-WD96120 MLAZ433 P
max. — 3,5 3,5 — — — 4,5 — — — — 0,5 0,05 0,05 — 0,05 0,30
MgLiAl
min. Rem. 2,5 2,5 — — — 9,5 — — — — — — — — — —
ISO-MgLi-
ISO-WD96130 MLAZ1033 P
10Al3Zn3
max. — 3,5 3,5 — — — 10,5 — — — — 0,5 0,05 0,05 — 0,05 0,30
min. Rem. — — 1,2 — — — — — — — — — — — — —
MgMn ISO-MgMn2 ISO-WD43150 MM2 B,T
max. — — — 2,0 — — — — — — — 0,10 — 0,05 0,01 0,05 0,30
min. Rem. — — — — 2,4 — 0,4 3,7 — — — — — — — —
ISO-MgY4RE3Z-
ISO-WD95360 MWEK431b B,F
r1(B)
max. — — 0,20 0,03 — 4,4 0,2 1,0 4,3 — — 0,01 0,01 0,02 0,005 0,01 0,30
min. Rem. — — — — 2,4 — 0,4 3,7 — — — — — — — —
ISO-MgY4RE3Z-
ISO-WD95370 MWEK431c B,P
0,00
r(C)
max. — — 0,06 0,03 — 4,4 — 1,0 4,3 — — — 0,005 0,02 0,01 0,30
MgYRE
min. Rem. — — — — 1,5 — 0,4 4,75 — — — — — — — —
ISO-MgY5RE4Zr1 ISO-WD95350 MWEK541 B,F
max. — — 0,20 0,03 — 4,0 0,2 1,0 5,5 — — 0,01 0,01 0,02 0,005 0,01 0,30
min. Rem. — — — — 0,7 — 0,4 6,7 — — — — — — — —
ISO-MgY7RE1Zr1 ISO-WD95380 MWEK711 B
max. — — — — — 2,0 — 1,0 8,5 — — 0,01 0,05 — 0,004 — 0,30
min. Rem. — — — — 0,7 — 0,4 8,2 — — — — — — — —
ISO-MgY9RE1Zr1 ISO-WD95390 MWEK911 B
max. — — — — — 1,9 — 1,0 9,5 — — 0,01 — — 0,004 — 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plate and sheet
RE = neodymium and other heavy rare earth metals
RemAlnder.
Zn+Ag.
---------------------- Page: 13 ----------------------
ISO 3116:2019(E)
© ISO 2019 – All rights reserved 9
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Prod-
Alloy
uct
Oth- Oth-
group
Designa- Ele-
form
Symbol Number Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers ers
tion ment
each total
min. Rem. — 2,0 — — — — — 6,2 — — — — — — — —
ISO-MgY7Zn3 ISO-WD96110 MWZ73 B,T,P
max. — — 3,0 — — — — — 7,4 — — 0,10 0,005 0,05 0,005 0,05 0,30
MgYZn
min. Rem. — 4,5 — — — — — 6,2 — — — — — — — —
ISO-MgY7Zn5 ISO-WD96120 MWZ75 B,T,P
max. — — 5,5 — — — — — 7,4 — — 0,10 0,005 0,05 0,005 0,05 0,30
min. Rem. 0,5 6,0 0,30 — — — — — — — — — 0,5 — — —
ISO-MgZn8Al-
MgZnAl ISO-WD32110 MZAC811 B
1Cu1
max. — 1,5 8,0 0,70 — — — — — — — 0,01 0,01 1,0 0,01 — —
min. Rem. — 1,5 — — 0,2 — — — — — — 0,30 — — —
MgZnCu ISO-MgZn2Cu ISO-WD32120 MZC20 P
max. — — 2,5 — — 0,6Ce — — — — — 0,05 0,02 0,6 — 0,01 0,05
min. Rem. — 6,0 0,5 — — — — — — — — — 1,0 — — —
MgZn- ISO-MgZn-
ISO-WD32150 MZCM711 B
CuMn 7Cu1Mn1
max. — 0,2 7,0 1,0 — — — — — — — 0,01 0,05 1,5 0,01 0,05 0,30
min. Rem. — 1,75 0,6 — — — — — — — — — — — — —
ISO-MgZn2Mn1 ISO-WD32350 MZM21 B,T,F,P
max. — 0,1 2,3 1,3 — — — — — — — 0,1 0,06 0,1 0,005 0,05 0,30
min. Rem. — 1,8 0,50 — 0,10 — — — — — — — — — — —
ISO-MgZn2Mn-
MgZnMn ISO-WD32351 MZME210 B,T,P
1RE
max. — 0,02 2,4 0,9 — 0,6Ce — — — — — 0,01 0,008 0,006 0,004 0,01 0,20
min. Rem. — 4,5 0,5 — — — — — — — — — — — — —
ISO-MgZn5Mn1 ISO-WD32360 MZM51 B
max. — — 6,0 2,0 — — — — — — — 0,01 0,005 0,01 0,004 — 0,30
min Rem. — 2,5 — — — — 0,45 — — — — — — — — —
ISO-MgZn3Zr ISO-WD32250 MZK30 B,T,F
max. — — 4,0 — — — — 0,8 — — — — — — — 0,05 0,30
MgZnZr
min. Rem. — 4,8 — — — — 0,45 — — — — — — — — —
ISO-MgZn6Zr ISO-WD32260 MZK60 B,T,F
max. — — 6,2 — — — — 0,8 — — — — — — — 0,05 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plate and sheet
RE = neodymium and other heavy rare earth metals
RemAlnder.
Zn+Ag.
---------------------- Page: 14 ----------------------
ISO 3116:2019(E)
Table 3 — ISO-Mg 99.99 (MG9999)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 10 185 95 22
10 < t ≤ 40 180 90 21
Table 4 — Alloy ISO-MgAl8Ag (MAQ80)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Forgings
F All 320 210 4
Plate and sheet
F 10 < t ≤ 30 370 250 6

Values for separately forged test pieces shall be agreed between the manufacturer and the customer.

Table 5 — Alloy ISO-MgAl5Ca1 (MAX51)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 65 240 100 8
Tubes and hollow sections
F 1 ≤ t ≤ 10 240 100 8
Table 6 — Alloy ISO- MgAl6Ca1 (MAX61)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
mm R R A
m p0,2
2 2
N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 65 250 120 6
Tubes and hollow sections
F 1 ≤ t ≤ 10 250 120 6
Plate and sheet
H112 0,5 ≤ t ≤ 3 260 200 4
10 © ISO 2019 – All rights reserved
---------------------- Page: 15 ----------------------
ISO 3116:2019(E)
Table 7 — Alloy ISO-MgAl6Ca2 (MAX62)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 65 250 120 6
Tubes and hollow sections
F 1 ≤ t ≤ 10 250 120 6
Plate and sheet
H112 0,5 ≤ t ≤ 3 260 200 4
Table 8 — Alloy ISO-MgAl3Li2 (MAL32)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Plate and sheet
F All 230 160 18
Table 9 — Alloy ISO-MgAl6Mn (MAM60)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 65 250 140 8
Tubes and hollow sections
F 1 ≤ t ≤ 10 250 140 8
Plate and sheet
O 0,5 ≤ t ≤ 3 240 140 11
H112 0,5 ≤ t ≤ 3 260 200 4
Table 10 — Alloy ISO-MgAl1Sn1 (MAT11)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F t ≤ 16 270 240 16
Plate and sheet
F 1 < t ≤ 3 220 100 9
F t ≤ 1 230 200 5
O t ≤ 1 220 160 12
© ISO 2019 – All rights reserved 11
---------------------- Page: 16 ----------------------
ISO 3116:2019(E)
Table 11 — Alloy ISO-MgAl6Sn1 (MAT61)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F t ≤ 16 300 200 13
Plate and sheet
F 1 < t ≤ 3 280 140 22
F t ≤ 1 300 230 6
O t ≤ 1 310 220 23
Table 12 — Alloy ISO-MgAl3Sr1 (MAJ31)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
H8 t ≤ 16 340 220 13
Table 13 — Alloy ISO-MgAL3Zn1 (MAZ31)
Temper Thickness Tensile strength 0,2 % Proof stress Elongation
R R A
m p0,2
2 2
mm N/mm N/mm %
min. min. min.
Bars and solid sections t = D for solid round bars
F 1 ≤ t ≤ 10 220 140 10
10 < t ≤ 65 240 150 10
Tubes and hollow sections
F 1 ≤ t ≤ 10 220 140 10
Forgings
F All 235 130 8
Plate and sheet
O 0,5 ≤ t ≤ 6 220 105 11
6 < t ≤ 25 210 105 9
H × 2 0,5 ≤ t ≤ 6 250 160 5
6 < t ≤ 25 220 120 8
H × 4 0,5 ≤ t ≤ 6 260 200 4
6 < t ≤ 25 250 160 6

Values for separately forged test pieces shall be agreed between the manufacturer and the customer.

12 © ISO 2019 – All rights reserved
---------------------- Page
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
