ISO 7005-1:2011

Pipe flanges - Part 1: Steel flanges for industrial and general service piping systems

ISO 7005-1:2011 establishes a base specification for pipe flanges suitable for general purpose and industrial applications including, but not limited to, chemical process industries, electric power generating industries, petroleum and natural gas industries. It places responsibility for the selection of a flange series with the purchaser. It is applicable to flanges within facilities engaged in the processing or handling of a wide variety of fluids, including steam, pressurized water and chemical, petroleum, natural gas or related products. ISO 7005-1:2011 is also applicable to packaged equipment piping, which interconnects individual pieces or stages of equipment within a packaged equipment assembly for use within facilities engaged in the processing or handling of a variety of fluids, including steam and chemical, petroleum, natural gas or related products.

Brides de tuyauteries — Partie 1: Brides en acier pour systèmes de canalisations industrielles et d'utilisation générale

General Information

• Status: Published
• Publication Date: 14-Jul-2011
• ICS: 23.040.60 - Flanges, couplings and joints
• Technical Committee: ISO/TC 5/SC 10 - Metallic flanges and their joints
• Drafting Committee: ISO/TC 5/SC 10 - Metallic flanges and their joints
• Current Stage: 9093 - International Standard confirmed
• Start Date: 03-May-2023
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 7005-1:1992 - Metallic flanges - Part 1: Steel flanges
• Effective Date: 15-Apr-2008

Overview

ISO 7005-1:2011 - "Pipe flanges - Part 1: Steel flanges for industrial and general service piping systems" is an international base specification for steel pipe flanges used across industrial piping systems. It covers flange selection and specification for applications such as chemical plants, power generation, petroleum and natural gas facilities (including LNG and offshore), steam and pressurized water systems, and packaged equipment piping. The standard recognizes two flange series commonly used worldwide and places responsibility for choosing the appropriate flange series and related data with the purchaser.

Key topics and technical requirements

• Flange series and compatibility: Defines two normative series - the PN series (DN size designations) and the class series (NPS/class designations). Mating dimensions are expected to be compatible within the same series, nominal size and rating.
• Purchaser specification data: Requires purchasers to specify series (PN or class), flange rating (PN number or class), size (DN or NPS), material, design pressure and temperature, minimum application temperature, and fluid service category.
• Pressure/temperature limits: References tables of allowable pressure/temperature ratings that depend on flange material and temperature - users must refer to the applicable reference flange standard for exact ratings.
• Materials and process: Specifies that flange materials and manufacturing processes should conform to the chosen series’ reference standard and applicable material requirements.
• Terms, definitions and application considerations: Provides clear definitions (design pressure/temperature, flanged joint, packaged equipment, owner, purchaser, manufacturer, fabricator) and guidance for application, selection and installation.
• Installation guidance and annexes: Includes practical guidance and an informative annex listing purchaser information requirements.

Applications and users

Who uses ISO 7005-1:2011:

• Piping engineers and designers specifying flanged connections in process plants
• Procurement and purchasing teams selecting flange types and materials
• Flange manufacturers and fabricators producing to buyer requirements
• Plant owners, operators and EPC contractors defining installation and material requirements
• Vendors of packaged equipment and skid-mounted assemblies

Practical uses:

• Specifying flange dimensions, materials and pressure/temperature ratings for new installations and replacements
• Ensuring compatibility of flanged components in packaged equipment and plant piping systems
• Aligning purchaser/manufacturer responsibilities during procurement

Related standards

• EN 1092-1 (PN series flanges)
• ANSI/ASME B16.5 (Class series, NPS 1/2–24)
• ANSI/ASME B16.47 (Large diameter class series, NPS 26–60)

Keywords: ISO 7005-1:2011, pipe flanges, steel flanges, PN series, class series, EN 1092-1, ASME B16.5, flange pressure-temperature ratings, piping systems.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7005-1
Second edition
2011-07-15
Pipe flanges —
Part 1:
Steel flanges for industrial and general
service piping systems
Brides de tuyauteries —
Partie 1: Brides en acier pour systèmes de canalisations industrielles et
d'utilisation générale
Reference number
©
ISO 2011
©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Purchaser specification data.5
5 Process.6
6 Pressure limits.6
7 Material .7
8 Application considerations .7
9 Other considerations for specification .8
10 Installation guidance.8
Annex A (informative) Information to be specified by the purchaser.9
Bibliography.10

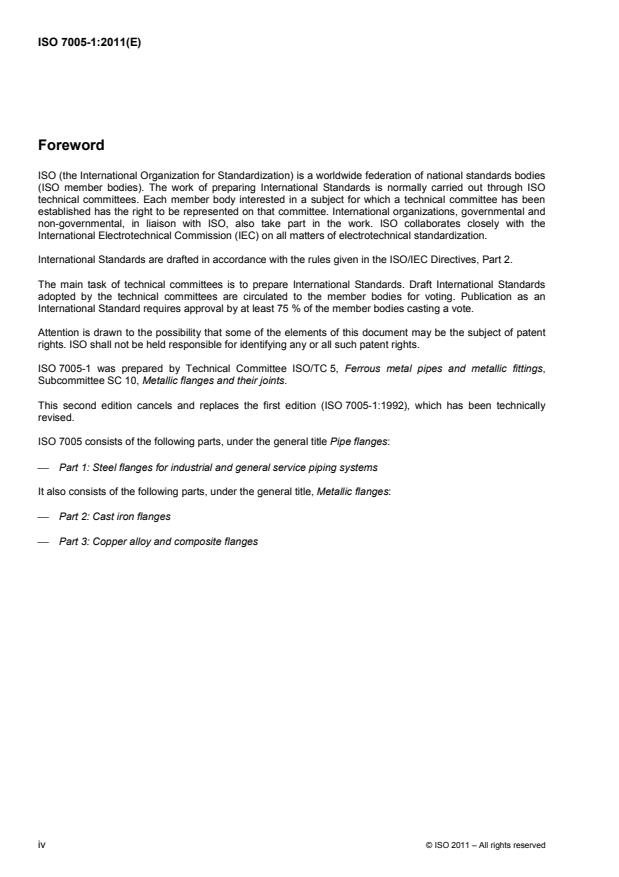

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7005-1 was prepared by Technical Committee ISO/TC 5, Ferrous metal pipes and metallic fittings,
Subcommittee SC 10, Metallic flanges and their joints.
This second edition cancels and replaces the first edition (ISO 7005-1:1992), which has been technically
revised.
ISO 7005 consists of the following parts, under the general title Pipe flanges:
⎯ Part 1: Steel flanges for industrial and general service piping systems
It also consists of the following parts, under the general title, Metallic flanges:
⎯ Part 2: Cast iron flanges
⎯ Part 3: Copper alloy and composite flanges
iv © ISO 2011 – All rights reserved

Introduction
This part of ISO 7005 makes normative reference to a family of two distinct steel flange series, each of which
has sectorial relevance in noteworthy global marketplaces. Each is widely used within these regional entities.
Each of these individual flange series, taken separately, represents a very large installed flange population
and as such, it is not an economically viable option to compel replacement with a single flange series.
The steel flange harmonization specified in the previous edition did not achieve the anticipated market
acceptance. This can be attributed firstly to the fact that this part of ISO 7005 has not, prior to this revision,
been updated and, secondly, that this part of ISO 7005 lacked normative requirements for many materials and
their corresponding pressure/temperature ratings. In addition, dimensional compromises made during the
drafting of the previous edition have not been acknowledged in important market sectors. While this part of
ISO 7005 remained unchanged for many years, sectorial flange standards have kept pace and by doing so
maintained market prominence. With this revision, normative reference requirements are added for the two
most prominent sectorial flange series, each endowed with significant market presence.
The revision of this part of ISO 7005 is intended to more readily accommodate and expand regional and
national standardization needs by providing ready access to a sectorial series whose requirements are
contemporaneous with regional imperatives.

INTERNATIONAL STANDARD ISO 7005-1:2011(E)

Pipe flanges —
Part 1:
Steel flanges for industrial and general service piping systems
1 Scope
This part of ISO 7005 establishes a base specification for pipe flanges suitable for general purpose and
industrial applications including, but not limited to, chemical process industries, electric power generating
industries, petroleum and natural gas industries. It places responsibility for the selection of a flange series with
the purchaser.
It is applicable to flanges within facilities engaged in the processing or handling of a wide variety of fluids,
including steam, pressurized water and chemical, petroleum, natural gas or related products.
EXAMPLE Steam power plant, petroleum refinery, loading terminal, natural gas processing plant (including liquefied
natural gas facilities), offshore oil and gas production platforms, chemical plant, bulk plant, compounding plant, tank farm.
This part of ISO 7005 is also applicable to packaged equipment piping, which interconnects individual pieces
or stages of equipment within a packaged equipment assembly for use within facilities engaged in the
processing or handling of a variety of fluids, including steam and chemical, petroleum, natural gas or related
products.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 1092-1, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories —
PN designated — Part 1: Steel flanges
ANSI/ASME B16.5, Pipe Flanges and Flanged Fittings — NPS 1/2 through NPS 24 Metric/Inch Standard
ANSI/ASME B16.47, Large Diameter Steel Flanges — NPS 26 Through NPS 60 Metric/Inch Standard
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
ambient temperature
temperature of the surrounding atmosphere in the immediate vicinity of the flange used in a piping system
3.2
design pressure
most severe pressure, taking into account its corresponding temperature selected for the design of the piping
to which the flange is attached
NOTE The piping design pressure, taking into account the flange material and its application temperature, is not
permitted to exceed the maximum allowable pressure listed in the tables of pressure/temperature ratings of the reference
flange standard.
3.3
design temperature
maximum temperature, at design pressure, likely to be reached in operation as either the temperature of the
flowing fluid or the temperature at the mid-thickness of the piping wall to which the flange is attached, as
specified by the purchaser
NOTE The piping design temperature, taking into account the flange material and its application pressure, is not
permitted to exceed the maximum allowable temperature listed in the tables of pressure/temperature ratings of the
reference flange standard.
3.4
fabricator
erector
individual or organization that takes responsibility for fabrication or installation of piping in accordance with the
owner's piping engineering design specification and in accordance with the requirements of the governing
piping code or standard
NOTE When so designated by the owner, he may be recognized as the purchaser; not to be confused with a flange
manufacturer.
3.5
flanged joint
joint that is composed of interrelated components (flanges, gasket and bolting), which are assembled with
good practice to provide both mechanical strength and leaktightness
3.6
flange nominal size
〈PN series〉 alphanumeric designation of size, used for reference purposes, which is common for components
used in a piping system, comprising the letters DN followed by a dimensionless number indirectly related to
the physical size of the bore or outside diameter of the end connection, as appropriate
NOTE 1 The number following DN does not represent a measurable value and is not used for calculation purposes.
The use of the prefix DN is applicable to steel flanges bearing PN designations.
NOTE 2 Adapted from ISO 6708:1995, definition 2.1.
3.7
flange nominal size
〈class series〉 alphanumeric designation of size, used for reference purposes, which is common for
components used in a piping system, comprising the letters NPS followed by a dimensionless number having
an indirect correspondence to the physical size of the bore or outside diameter of the end connection, as
appropriate
NOTE The dimensionless number may be used as a size identifier without the prefix NPS. This size identification
number does not represent a measurable value and is not used for calculation purposes. The use of the prefix NPS is
applicable to steel flanges bearing class designations.
2 © ISO 2011 – All rights reserved

3.8
flange rating designation
〈PN series〉 alphanumeric designation that is used for reference purposes, relating to flange
pressure/temperature capability, taking into account flange material mechanical properties and component
dimensional characteristics, comprising the letters PN followed by a dimensionless number
NOTE 1 The number following the letters PN does not represent a measurable value and is not used for calculation
purposes except where specified in a relevant standard. Reference to PN is meaningful only when it is related to a
relevant component. The use of the designation PN is applicable to all steel flanges bearing nominal size designations DN.
NOTE 2 It is the intent that all flange end equipment of the same nominal size (DN) designated by the same PN
number have compatible mating dimensions.
NOTE 3 The maximum allowable pressure for a flange having a PN number depends on the flange material and its
application temperature and is to be found in tables of pressure/temperature ratings in the reference flange standard.
NOTE 4 Adapted from ISO 7268.
3.9
flange rating designation
〈class series〉 alphanumeric designation that is used for reference purposes, relating to flange
pressure/temperature capability, taking into account flange material mechanical properties and component
dimensional characteristics comprising a dimensionless number that is frequently preceded by the word
“class”
NOTE 1 The designation number does not represent a measurable value and is not used for calculation purposes
except where specified in a relevant standard. Reference to a class is meaningful only when it is related to a relevant
component. The use of the designation class is applicable to all steel flanges bearing size designations NPS.
NOTE 2 It is the intent that all flange end equipment of the same nominal size (NPS) designated by the same class
number have compatible mating dimensions.
NOTE 3 The maximum allowable pressure for a flange having a class number depends on the flange material and its
application temperature and is to be found in tables of pressure/temperature ratings in the reference flange standard.
3.10
flange series
series
classification system for flange designs having a common derivation
NOTE 1 This part of ISO 7005 specifics flanges of two series: PN series and class series.
NOTE 2 It is the intent that all flange end equipment of the same series having the same rating designation and the
same nominal size have compatible mating dimensions.
3.11
flange style
style
name used within a flange series for designating dimensional features usually relating to an attachment
method
EXAMPLE Threaded, socket, slip-on, lapped, blind or welding neck.
3.12
