INTERNATIONAL STANDARD ISO 22472:2016(E)
Ships and marine technology — Guidelines for the
operation and installation of voyage data recorder (VDR)
1 Scope
The purpose of this International Standard is to provide guidance for the planning, installation
and operational testing of voyage data recorder (VDR) installations according to specifications of
IMO Resolution MSC.333 (90) and associated IEC 61996-1. This International Standard mainly covers
interfaces between VDR and external sensors, which are the main subject for technical agreements
among users, shipyards, VDR suppliers and/or sensor manufacturers when installations are planned.
In addition, matters of performance test and playback are described as well. Furthermore, details
for checking of items related to the interfaces and the installation are introduced. This International
Standard is not intended for the standardization of performance factors and functional requirements
related to VDR.
When whole or partial replacement of an existing simplified VDR (S-VDR) is required, this International
Standard provides guidance according to the requirements of IMO Resolution MSC.163 (78) and
IEC 61996-2 for installation of the items concerned.
NOTE Texts of this International Standard that are identical to that of IMO Resolution MSC.333 (90) and/or
IEC 61996–1 are formatted in italics, and the regulation and associated performance standard clause numbers
are indicated in brackets, where necessary.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
IEC 60945, Maritime navigation and radiocommunication equipment and systems — General requirements
— Methods of testing and required testing results
IEC 61097-7, Global maritime distress and safety system (GMDSS) — Part 7: Shipborne VHF radiotelephone
transmitter and receiver — Operational and performance requirements, methods of testing and required
test results
IEC 61162-1, Maritime navigation and radiocommunication equipment and systems — Digital interfaces —
Part1: Single talker and multiple listeners
IEC 61162-2, Maritime navigation and radiocommunication equipment and systems — Digital interfaces —
Part2: Single talker and multiple listeners, high-speed transmission
IEC 61162-450, Maritime navigation and radiocommunication equipment and systems — Digital interfaces
— Part 450: Multiple talkers and multiple listeners — Ethernet interconnection
IEC 61996-1, Marine navigation and radiocommunication equipment and systems — Shipborne voyage
data recorder (VDR) — Performance requirements — Methods of testing and required test results
IMO Resolution MSC.333 (90):2012, Performance standards for shipborne voyage data recorders (VDRs)
© ISO 2016 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 22472:2016(E)
3 Terms, definitions and abbreviated terms
For the purposes of this document, the following terms and definitions apply.
3.1 Terms and definitions
3.1.1
alert
announcement of abnormal situations and conditions requiring attention
Note 1 to entry: Alerts are divided in four priorities: emergency alarms, alarms, warnings and caution.
3.1.2
alarm
condition requiring immediate attention and action, to maintain the safe navigation and operation of the ship
Note 1 to entry: An alarm is a high priority of an alert.
3.1.3
bridge work station
position at which a person is expected to be when performing one of the normal bridge duties
EXAMPLE The following work stations as described in MSC/Circ.982:
— workstation for navigating and manoeuvring;
— workstation for monitoring;
— workstation for manual steering;
— workstation for docking;
— workstation for planning and documentation;
— workstation for safety; and
— workstation for communication.
3.1.4
combined EPIRB/VDR capsule
single unit which meets all the requirements of a satellite EPIRB (as required by the carriage requirements of
SOLAS IV) and all the relevant requirements of a VDR (as required by the carriage requirements of SOLAS V)
Note 1 to entry: Combined EPIRB/VDR capsule was defined by IMO COMSAR 8.
3.1.5
configuration data
describes the vessel’s equipment, its installation on the vessel and its relation to the VDR
Note 1 to entry: The storage and playback software uses this data to store the data record and to convert the data
record into information that assists casualty investigation during playback.
3.1.6
data
any item of information received by the VDR for recording, including numerical values, text and audio or
radar signals and including all configuration data, except where specifically stated or where the context
dictates otherwise
3.1.7
dedicated reserve power source
battery, with suitable automatic charging arrangements, dedicated solely to the VDR, of sufficient capacity
to operate it as required by IMO Resolution MSC.333 (90):2012, 5.4.2
2 © ISO 2016 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 22472:2016(E)
3.1.8
final recording medium
items of hardware on which the data is recorded such that access to any one of them would enable the data
to be recovered and played back by use of suitable equipment
Note 1 to entry: The combination of a fixed recording medium (3.1.9) and float-free recording medium (3.1.10) and
long-term recording medium (3.1.11), together, is recognized as the final recording medium.
3.1.9
fixed recording medium
part of the final recording medium (3.1.8) which is protected against fire, shock, penetration and a
prolonged period on the ocean floor
Note 1 to entry: to entry: It is expected to be recovered from the deck of the vessel that has sunk. It has a means of
indicating location.
3.1.10
float-free recording medium
part of the final recording medium (3.1.8) which should float-free after a sinking
Note 1 to entry: It has a means of indicating location.
3.1.11
long-term recording medium
permanently installed part of the final recording medium (3.1.8)
Note 1 to entry: It provides the longest record duration and has a readily accessible interface for downloading the
stored data.
3.1.12
playback equipment
any data medium with the playback software, the operational instructions and any special parts required
for connecting a commercial-off-the-shelf laptop computer to the VDR
3.1.13
playback software
copy of the software program to provide the capability to download the stored data and play back the
information
Note 1 to entry: The software should be compatible with an operating system available with commercial-off-the-
shelf laptop computers and where non-standard or proprietary formats are used for storing the data in the VDR, the
software should convert the stored data into open industry standard formats.
3.1.14
playback system
system including the playback equipment that is capable of downloading and playing back the recorded data
3.1.15
voyage data recorder
VDR
complete system, including any items required to interface with the sources of input signals, their processing
and encoding, the final recording medium, the playback equipment, the power supply and dedicated reserve
power source
3.1.16
resolution
smallest detectable increment between two values
3.1.17
signal source
any sensor or device external to the VDR, to which the VDR is connected and from which it obtains signals
and data to be recorded
© ISO 2016 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 22472:2016(E)
3.2 Abbreviated terms
EPFS Electronic Position Fixing System
IMO International Maritime Organization
IEC International Electrotechnical Commission
INS Integrated Navigation System
LAN Local area network
ROV Remotely operated vehicle
UTC Coordinated universal time
VHF Very high frequency
4 VDR interface
4.1 General
According to IMO Resolution MSC.333 (90):2012, Clause 8 and IEC 61996-1:2013, 4.3.5, interfacing
between the various sensors and VDR shall be in accordance with the relevant international interface
standard (IEC 61162 series), where possible. As a minimum, the sentences that VDR is to support are
given in IEC 61996-1:2013, Annex A.
In case there is no free interface port available for the connection to the VDR, a “data splitter”-interface
should be added for providing the additionally required output port of a sensor. A “data splitter”-
interface shall comply with IEC 60945.
It is also specified that any connection to any item of the ship’s equipment shall be such that operation
of that equipment suffers no deterioration, even if the VDR system develops faults. [IMO Resolution
MSC.333 (90):2012, Clause 8].
It may be noted that the use of signals defined under common standards results in fewer problems
for the installation of any VDR, even if the interfaces of several mandatory shipborne equipment are
(still) not internationally standardized, such as VHF communication signals, radar image, watertight
door/fire door/hull opening (door) status signals and alert signals. It is therefore desired on the
installation planning phase that equipment output signals should at least be in accordance with the
alternative signals that are specified in Clause 5.
4.2 Input signals required for VDR interfaces
To promote common understanding among equipment manufacturers, ship builders and operators,
the signals used for the interfaces between sensors and the VDR are described in 4.2.1 to 4.2.6, 4.3 and
4.4. Forms for filling in and checking the details for each individual input to the VDR are provided in
5.2 to 5.21.
4.2.1 Signals defined in applicable parts of IEC 61162 series
The characteristics of “talkers” and “listeners” referred to IEC 61162-1. With regard to VDR interfacing,
the VDR is considered the “listener” and the sensors are considered the “talkers”. Thus, when planning
VDR installation, care shall be taken to ensure that sensors and VDR are compatible in terms of interface
signal types.
a) IEC 61162-1 and IEC 61162-2
IEC 61162-1 and IEC 61162-2 are of the single-talker and multi-listener type communication. The
difference between types is the communication speed, i.e. 4 800 bps by IEC 61162-1 and 38,4 kbps
4 © ISO 2016 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 22472:2016(E)
by IEC 61162-2. At present, IEC 61162-1 is normally used for communications between marine
equipment, except that IEC 61162-2 is used for AIS interfaces and sometimes gyro compass.
Table 1 — Sentences used for interface of VDR (referred to in IEC 61996–1:2013, Annex A)
Parameter to be recorded IEC 61996-1:2013 Sentence format
clause(s)
1 Date and time 4.6.1 ZDA
2 Ship’s position and datum used 4.6.2 GNS, DTM, GLL, GGA, RMC, NSR
3 Speed (water and/or ground) 4.6.3 VBW, VLW, VTG
4 Heading (true) 4.6.4 THS, HDT
5 Heading (magnetic) 4.6.4 HDG
6 Depth (echo sounder) 4.6.9 DPT
7 Alarms 4.6.10 ALR, ALA, FIR, WAT, ACM, HBT,
ALC, ALF
8 Rudder order/response manual 4.6.11 RSA, ROR
9 Rudder order/response automatic 4.6.11 HTC, HTD
10 Engine order/response 4.6.12 ETL, PRC, TRC, TRD, RPM, XDR,
ROR, RSA
11 Hull openings, watertight doors, Fire doors 4.6.13, 4.6.14 DOR, GEN, XDR
12 Accelerations and hull stress 4.6.15 HSS, XDR
13 Wind speed and direction 4.6.16 MWV, MWD
14 AIS 4.6.17 VDM, VDO, ALR
15 VDR alert output ALC, HBT
NOTE No. 15 is a “talker” and not recording data for VDR.
b) IEC 61162-450
IEC 61162-450 is based on the application of an appropriate suite of existing international standards
to provide a framework for implementing data transfer between devices on a shipboard Ethernet
network. IEC 61162-450 provides a higher speed and higher capacity alternative to the IEC 61162-1
and IEC 61162-2 standards while retaining these standards’ basic data format.
Sentences available for use for VDRs are listed in Table 1.
NOTE 1 Appropriate methods to ensure network safety and security may be applied.
NOTE 2 IEC 61162-460 is published.
4.2.2 Signals other than IEC 61162 format
Any interface units which may be required to convert non-IEC 61162 signals, shall conform to the
requirements of IEC 60945 (IEC 61996-1:2013, 4.3.5).
According to the requirement that any connection to any item of the ship’s equipment shall be such that
operation of that equipment suffers no deterioration, even if the VDR system develops faults [IMO Resolution
MSC.333 (90):2012, Clause 8], interface signals shall be provided by the sensors in such a way, that
failures of the VDR or of cables connecting the VDR cannot hamper the functionality of the source
equipment, i.e. contacts or signals of equipment for primary ship manoeuvring functions shall be
provided as “dry contacts” or through isolation amplifiers.
Signal formats not specified in IEC 61996-1 such as “contact” signal and analogue signals (e.g. voltage,
current, synchro and pulse, etc.) except Bridge and Communications audio signals, have to be converted
to a “serial signal” before they can be interfaced to VDR.
© ISO 2016 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 22472:2016(E)
In some VDR units, a signal converter will be included. In other instances, it will be possible to insert a
converter between the sensor and the VDR. Thus in most instances of non-standard signals, it should
still be possible to achieve an interface. However, there are still many sensors which output analogue
signals and it is recommended that operators, shipbuilders and owners ensure that interface between
specific equipment is possible.
4.2.3 Bridge audible sound captured by microphones
In accordance with IEC 61996-1:2013, 4.6.5 [IMO Resolution MSC.333 (90):2012, 5.5.5], requirement
of microphone is as follows. Microphones shall be positioned on the bridge covering all work stations as
described in MSC/Circ.982 so that conversation is recorded. The recording shall be such that, on playback,
a normal speaking voice shall provide adequate intelligibility while the ship is performing its normal
operations. This performance shall be maintained at all work stations while there is a single audio alarm
anywhere on the bridge or any noise, including noise from faulty equipment or mounting, or wind. This shall
be achieved through the use of at least two channels of audio recording. Microphones positioned outside on
bridge wings, shall be recorded on at least one additional separate channel.
In addition, it is stated in IEC 61996-1:2013, 5.6.1 that the microphones forming the bridge audio data
source are to be c
...
DRAFT INTERNATIONAL STANDARD
ISO/DIS 22472
ISO/TC 8/SC 6 Secretariat: JISC
Voting begins on: Voting terminates on:
2015-04-25 2015-07-25
Ships and marine technology — Guidelines for the
operation and installation of voyage data recorders (VDR)
Navires et technologie maritime — Lignes directrices pour le fonctionnement et l’installation des
enregistreurs de données de voyage (VDR)
ICS: 47.040
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 22472:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2015
---------------------- Page: 1 ----------------------
ISO/DIS 22472:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 22472

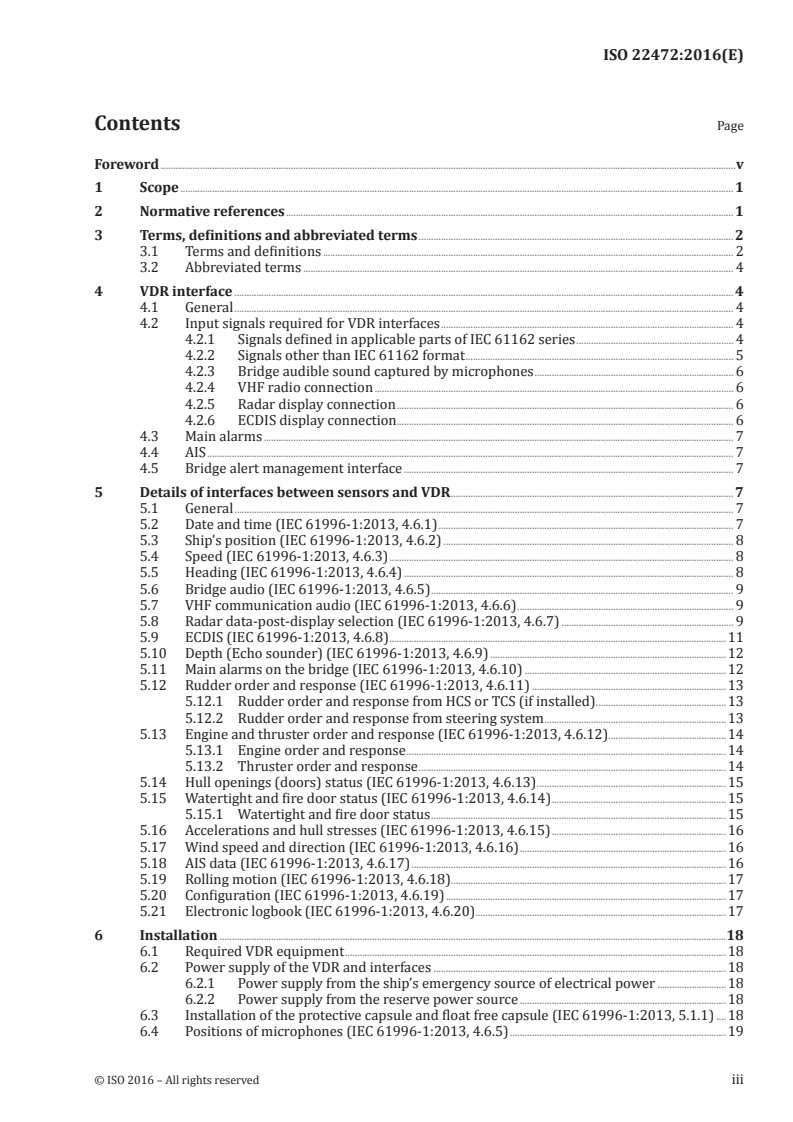

Contents Page
Foreword . v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 2
3.1 Terms and definitions . 2
3.2 Abbreviated terms . 4
4 VDR interface . 4
4.1 Input signals required for VDR interfaces . 4
4.1.1 Signals defined in applicable parts of IEC 61162 series . 4
4.1.2 Signals in other than IEC 61162 format . 5
4.1.3 Bridge audible sound captured by microphones . 6
4.1.4 VHF radio connection . 6
4.1.5 Radar display connection . 6
4.1.6 ECDIS display connection . 7
4.2 Main Alarms . 7
4.3 AIS . 7
4.4 Bridge alert management interface . 7
5 Details of interfaces between sensors and VDR . 7
5.1 Date and Time (IEC 61996-1:2013/4.6.1) . 7
5.2 Ship’s position (IEC 61996-1:2013/4.6.2) . 8
5.3 Speed (IEC 61996-1:2013/4.6.3) . 8
5.4 Heading (IEC 61996-1:2013/4.6.4) . 9
5.5 Bridge audio (IEC 61996-1:2013/4.6.5) . 9
5.6 VHF communication audio (IEC 61996-1:2013/4.6.6) . 10
5.7 Radar data-post-display selection (IEC 61996-1:2013/4.6.7) . 10
5.8 ECDIS (IEC 61996-1:2013/4.6.8) . 11
5.9 Depth (Echo sounder) (IEC 61996-1:2013/4.6.9) . 13
5.10 Main alarms on the Bridge (IEC 61996-1:2013/4.6.10) . 13
5.11 Rudder order and response (IEC 61996-1:2013/4.6.11) . 14
5.11.1 Rudder order and response (Automatic control: where HCS or TCS installed) . 14
5.11.2 Rudder order and response (by Manual operation: where HCS or TCS not installed) . 14
5.12 Engine and Thruster order and response (IEC 61996-1:2013/4.6.12) . 15
5.12.1 Engine order and response . 15
5.12.2 Thruster order and response . 15
5.13 Hull openings (doors) status (IEC 61996-1:2013/4.6.13) . 16
5.14 Watertight and fire door status (IEC 61996-1:2013/4.6.14) . 16
5.14.1 Watertight and fire door status . 16
5.15 Accelerations and hull stresses (IEC 61996-1:2013/4.6.15) . 16
5.16 Wind speed and direction (IEC 61996-1:2013/4.6.16) . 18
5.17 AIS Data (IEC 61996-1:2013/4.6.17). . 18
5.18 Rolling motion (IEC 61996-1:2013/4.6.18) . 18
5.19 Configuration (IEC 61996-1:2013/4.6.19) . 19
5.20 Electronic logbook (IEC 61996-1:2013/4.6.20) . 19
6 Installation Direction . 20
6.1 Required VDR equipment . 20
6.2 Power supply of the VDR and interfaces . 20
6.2.1 Power supply from the ship's emergency source of electrical power . 20
6.2.2 Power supply from the reserve power source . 20
6.3 Installation of the protective capsule and float free capsule(IEC 61996-1:2013/5.1.1) . 20
© ISO 2014 — All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 22472
6.4 Positions of microphones (IEC 61996-1:2013/4.6.5) .21
6.5 Cable connections .21
6.6 Ship specific documentation .21
6.6.1 Planning and approval documentation .21
7 Acceptance test (Commissioning) .22
8 Performance Test (Annual survey) .22
9 Download and playback equipment for investigation authorities .22
Annex A (informative) Mandatory Alarms (IEC 61996-1 Annex B) .23
Annex B (informative) LAN image protocol (IEC 61996-1 Annex E) .26
B.1 Overview .26
B.2 Image status and information text .26
B.2.1 General .26
B.2.2 General identifier .26
B.2.3 Timestamp .26
B.2.4 Class of image .27
B.2.5 Display location .27
B.2.6 Active status .28
B.2.7 Examples of status and information text .28
B.2.8 Transmitter configuration .29
B.2.9 Receiver configuration .29
Annex C (informative) Network for image transmission (IEC 61996-1 Annex F) .31
C.1 A General .31
C.2 Network choice .31
C.3 Network topology examples .31
C.4 Service and installation .32
Annex D (informative) ECDIS display source information (IEC 61996-1 Annex G) .34
D.1 Overview .34
D.2 Data block status and information text field .34
D.3 Data text .34
D.4 Level data names .34
D.5 Required information to be recorded .35
D.6 Optional information to be recorded .35
Annex E (Informative) Manufacturer’s documentation (IEC 61996-1 ed2/5.5) .39
E.1 Installation guidelines (IEC 61996-1 ed2/5.5.1) .39
E.2 Operation and maintenance manual (IEC 61996-1 ed2/5.5.2) .40
E.3 Information for use by an investigation authority (IEC 61996-1 ed2/5.5.3) .40
Annex F (informative) Performance test report (IMO MSC.1/Cric.1222 Appendix) .41
Bibliography .45
iv © ISO 2014 — All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 22472
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 22472 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee
SC 6, Navigation and ship operations.
This second edition cancels and replaces the first edition (ISO 22472:2006) of which has been technically
revised.
© ISO 2014 — All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 22472
Ships and marine technology — Guidelines for the operation
and installation of voyage data recorder (VDR)
1 Scope
The purpose of this document provides guidance for the planning, installation and operational testing of VDR
installations according to specifications of IMO Resolution MSC.333 (90) and associated IEC 61996-1:2013.
These standards mainly deal with interfaces between VDR and external sensors, which are the main subject
for technical agreements amongst user, shipyard, VDR supplier and/or sensor manufacturers when
installations are planned. In addition, matters of performance test and playback are described as well.
Furthermore, details for checking of items related to the interfaces and the installation are introduced. This
standard is not intended for the standardization of performance factors and functional requirements related to
VDR.
When whole or partial replacement of an existing simplified VDR (S-VDR) is required, this document provides guidance
according to the requirements of IMO Resolution MSC.163(78) and IEC 61996-2 for installation of the items concerned.
NOTE All text of this International Standards which is identical to that of IMO Resolution MSC.333(90) and/or IEC
61996-1:2013 are formatted in italics, and the Regulation and associated performance standard clause numbers are
indicated in brackets, where necessary.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60945, Maritime navigation and radiocommunication equipment and systems - General requirements -
Methods of testing and required testing results
IEC 61097-7:1996, Global maritime distress and safety system (GMDSS) - Part 7: Shipborne VHF
radiotelephone transmitter and receiver - Operational and performance requirements, methods of testing and
required test results
IEC 61162-1:2010, Maritime navigation and radiocommunication equipment and systems – Digital interfaces –
Part1: Single talker and multiple listeners
IEC 61162-2:1998, Maritime navigation and radiocommunication equipment and systems – Digital interfaces –
Part2: Single talker and multiple listeners, high-speed transmission
IEC 61162-450:2011, Maritime navigation and radiocommunication equipment and systems – Digital
interfaces – Part 450: Multiple talkers and multiple listeners – Ethernet interconnection
IEC 61996-1:2013, Marine navigation and radiocommunication equipment and systems - Shipborne voyage
data recorder (VDR) - Performance requirements - Methods of testing and required test results
IMO Resolution MSC.302 (87) 2010, Performance standards for bridge alert management
IMO Resolution MSC.333 (90) 2012, Performance standards for shipborne voyage data recorders (VDRs)
© ISO 2014 — All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/DIS 22472
VESA:2007, Video electronics standards association – VESA and industry standards and guidelines for
computer display monitor timing (DMT), Version 1.0, Revision 0.11
3 Terms, definitions and abbreviated terms
For the purposes of this document, the following terms, definitions and abbreviated terms apply.
3.1 Terms and definitions
3.1.1
alert
announcement of abnormal situations and conditions requiring attention. Alerts are divided in four priorities:
emergency alarms, alarms, warnings and caution
3.1.2
alarm
high priority of an alert. A condition requiring immediate attention and action, to maintain the safe navigation
and operation of the ship
3.1.3
bridge work station
position at which a person is expected to be when performing one of the normal bridge duties at, for example,
the following work stations:
centre line conning;
bridge wing(s);
main radar;
chart table;
helmsman;
communication
3.1.4
combined EPIRB/VDR capsule
single unit which meets all the requirements of a satellite EPIRB (as required by the carriage requirements of
SOLAS IV) and all the requirements of a VDR (as required by the carriage requirements of SOLAS V).
Note 1 to entry: Combined EPIRB/VDR capsule was defined by IMO COMSAR 8.
3.1.5
configuration data
describes the vessel's equipment, its installation on the vessel and its relation to the VDR. The storage and
playback software uses this data to store the data record and to convert the data record into information that
assists casualty investigation during playback.
3.1.6
data
any item of information received by the VDR for recording, including numerical values, text and audio or radar
signals and including all configuration data, except where specifically stated or where the context dictates
otherwise.
2 © ISO 2014 — All rights reserved
---------------------- Page: 7 ----------------------
ISO/DIS 22472
3.1.7
dedicated reserve power source
a battery, with suitable automatic charging arrangements, dedicated solely to the VDR, of sufficient capacity to
operate it as required by IMO Resolution MSC.333(90)/5.4.2.
3.1.8
final recording medium
the items of hardware on which the data is recorded such that access to any one of them would enable the
data to be recovered and played back by use of suitable equipment. The combination of a fixed recording
medium and float-free recording medium and long-term recording medium, together, is recognized as the final
recording medium.
3.1.9
fixed recording medium
part of the Final Recording Medium which is protected against fire, shock, penetration and a prolonged period
on the ocean floor. It is expected to be recovered from the deck of the vessel that has sunk. It has a means of
indicating location.
3.1.10
float-free recording medium
part of the Final Recording Medium which should float-free after a sinking. It has a means of indicating
location.
3.1.11
long-term recording medium
permanently installed part of the Final Recording Medium. It provides the longest record duration and has a
readily accessible interface for downloading the stored data.
3.1.12
playback equipment
any data medium with the playback software, the operational instructions and any special parts required for
connecting a commercial-off-the-shelf laptop computer to the VDR.
3.1.13
playback software
copy of the software program to provide the capability to download the stored data and play back the
information. The software should be compatible with an operating system available with commercial-off-the-
shelf laptop computers and where non-standard or proprietary formats are used for storing the data in the
VDR, the software should convert the stored data into open industry standard formats
3.1.14
playback system
system including the playback equipment that is capable of downloading and playing back the recorded data
3.1.15
Voyage data recorder
VDR
complete system, including any items required to interface with the sources of input signals, their processing
and encoding, the final recording medium, the playback equipment, the power supply and dedicated reserve
power source
3.1.16
resolution
smallest detectable increment between two values
3.1.17
signal source
any sensor or device external to the VDR, to which the VDR is connected and from which it obtains
signals and data to be recorded.
© ISO 2014 — All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/DIS 22472
3.2 Abbreviated terms
EPFS Electronic Position Fixing System
s and safety system
IMO International Maritime Organization
IEC International Electrotechnical Commission
INS Integrated Navigation System
LAN Local area network
ROV Remotely operated vehicle
UTC Coordinated universal time
VHF Very high frequency
4 VDR interface
According to IMO Resolution MSC.333 (90)/8 and IEC 61996-1:2013/4.3.5, interfacing between the various
sensors and VDR shall be in accordance with the relevant international interface standard IEC 61162 series,
where possible. As a minimum, the sentences that VDR is to support are given in Annex A of IEC 61996-
1:2013.
In case there is no free interface port available for the connection to the VDR, a "data splitter"-interface should
be added for providing the additionally required output port of a sensor. A ‘data splitter-interface’ shall comply
with IEC 60945.
It is also specified that any connection to any item of the ship’s equipment shall be such that operation of that
equipment suffers no deterioration, even if the VDR system develops faults. (MSC.333 (90)/8).
It may be noted that the use of signals defined under common standards results in fewer problems for the
installation of any VDR, even if the interfaces of several mandatory shipborne equipment are (still) not
internationally standardised, such as VHF communication signals, radar image, watertight door / fire door /
hull opening (door) status signals and alert signals. It is therefore desired on the installation planning phase
that equipment output signals should at least be in accordance with the alternative signals that specified on
paragraph 5 of this guideline.
4.1 Input signals required for VDR interfaces
To promote common understanding amongst equipment manufacturers, ship builders and operators, the
signals used for the interfaces between sensors and the VDR are described in clauses 4.1.1 to 4.1.6, 4.2 and
4.3. clauses 5.1 to 5.20 then provide forms for filling in and checking the details for each individual input to
the VDR.
4.1.1 Signals defined in applicable parts of IEC 61162 series
IEC 61162
The characteristics of ‘talkers’ and ‘listeners’ referred to IEC 61162-1. With regard to VDR interfacing the
VDR is considered the ‘listener’ and the sensors are considered the ‘talkers’. Thus, when planning VDR
installation, care shall be taken to ensure that sensors and VDR are compatible in terms of interface signal
types.
a) IEC 61162-1 and IEC 61162-2
4 © ISO 2014 — All rights reserved
---------------------- Page: 9 ----------------------
ISO/DIS 22472
IEC 61162-1 and IEC 61162-2 are of the single talker and multi-listener type communication. The difference
between types is the communication speed, i.e. 4 800 bps by IEC 61162-1 and 38,4 kbps by IEC 61162-2. At
present, IEC 61162-1 is normally used for communications between marine equipment, except that IEC
61162-2 is typically used for Gyro compass and AIS interfaces.
Table 1 — Sentences used for interface of VDR (referred to IEC 61996-1:2013, Annex A)
Parameter to be recorded IEC 61996 Sentence format
clause(s)
1 Date and time 4.6.1 ZDA
2 Ship’s position and datum used 4.6.2 GNS, DTM, GLL, GGA,
a
RMC, NSR
3 Speed (water and/or ground) 4.6.3 VBW, VLW, VTG
4 Heading (true) 4.6.4 THS, HDT
5 Heading (magnetic) 4.6.4 HDG
6 Depth (echo sounder) 4.6.9 DPT
7 Alarms 4.6.10 ALR, ALA, FIR, WAT,
a a a
ACM , HBT, ALC , ALF
8 Rudder order / response manual 4.6.11 RSA, ROR
9 Rudder order / response automatic4.6.11 HTC, HTD
10 Engine order / response 4.6.12 ETL, PRC, TRC, TRD,
RPM, XDR, ROR, RSA
11 Hull openings, watertight doors, 4.6.13, 4.6.14 DOR, GEN, XDR
Fire doors
12 Accelerations and hull stress 4.6.15 HSS, XDR
13 Wind speed and direction 4.6.16 MWV, MWD
14 AIS 4.6.17 VDM, VDO, ALR
a
15 VDR alert output ALC , HBT
Note No.15 is as “talker” and not recording data for VDR
b) IEC 61162-450
IEC 61162-450 is based on the application of an appropriate suite of existing international standards to
provide a framework for implementing data transfer between devices on a shipboard Ethernet network. IEC
61162-450 provides a higher speed and higher capacity alternative to the IEC 61162-1 and IEC 61162-2
standards while retaining these standards’ basic data format.
Sentences available for being used for VDR are listed in table 1.
4.1.2 Signals in other than IEC 61162 format
Any interface units which may be required to convert non-IEC 61162 signals, shall conform to the
requirements of IEC 60945 (IEC 61996-1 / 4.3.5).
According to the requirement that any connection to any item of the ship’s equipment shall be such that
operation of that equipment suffers no deterioration, even if the VDR system develops faults (MSC. 333(90)
/8), interface signals shall be provided by the sensors in such a way, that failures of the VDR or of cables
© ISO 2014 — All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/DIS 22472
connecting the VDR cannot hamper the functionality of the source equipment: i.e. contacts or signals of
equipment for primary ship manoeuvring functions shall be provided as “dry contacts” or via isolation
amplifiers.
Signal formats not specified in IEC 61996-1 such as ‘contact’ signal and analogue signals (e.g. voltage,
current, synchro and pulse, etc.) except Bridge and Communications audio signals, have to be converted to a
‘serial signal’ before they can be interfaced to VDR.
In some VDR units a signal converter will be included. In other instances it will be possible to insert a
converter between the sensor and the VDR. Thus in most instances of non-standard signals it should still be
possible to achieve an interface. However, there are still many sensors which output analogue signals and it
is recommended that operators, shipbuilders and owners ensure that interface between specific equipments is
possible.
4.1.3 Bridge audible sound captured by microphones
In accordance with IEC 61996-1:2013/4.6.5 Bridge audio (MSC. 333(90) /5.5.5), requirement of microphone is
as follows. Microphones shall be positioned on the bridge covering all work stations as described in
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
