ISO 13291:2006

Zinc sulfide concentrates - Determination of zinc - Solvent extraction and EDTA titrimetric method

ISO 13291:2006 specifies a solvent extraction/titrimetric method for the determination of the mass fraction of zinc in zinc sulfide concentrates. The method is applicable to zinc sulfide concentrates having a mass fraction of zinc in the range from 11 % to 62 %.

Concentrés sulfurés de zinc — Dosage du zinc — Méthode par extraction à l'aide d'un solvant et titrage à l'EDTA

General Information

• Status: Published
• Publication Date: 13-Jun-2006
• ICS: 73.060.99 - Other metalliferous minerals
• Technical Committee: ISO/TC 183 - Copper, lead, zinc and nickel ores and concentrates
• Drafting Committee: ISO/TC 183 - Copper, lead, zinc and nickel ores and concentrates
• Current Stage: 9093 - International Standard confirmed
• Start Date: 18-Sep-2025
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO 11393-1:2018 - Protective clothing for users of hand-held chainsaws - Part 1: Test rig for testing resistance to cutting by a chainsaw
• Effective Date: 06-Jun-2022
• Revises: ISO 13291:1997 - Zinc sulfide concentrates - Determination of zinc content - Solvent extraction and EDTA titrimetric method
• Effective Date: 15-Apr-2008

Overview

ISO 13291:2006 - "Zinc sulfide concentrates - Determination of zinc - Solvent extraction and EDTA titrimetric method" specifies a laboratory analytical procedure for measuring the mass fraction of zinc in zinc sulfide (ZnS) concentrates. The method applies to concentrates with zinc content in the range 11% to 62% and combines acid dissolution, selective solvent extraction (MIBK), and EDTA titrimetry at pH 5.5.

Key topics and requirements

• Scope and applicability: Valid for zinc sulfide concentrates having 11–62 % zinc; intended for routine assay and quality control.
• Analytical principle: Dissolve the test portion (bromine + nitric acid; HF/sulfuric for residue), form a zinc–thiocyanate complex, extract selectively into methyl isobutyl ketone (MIBK), chemically mask interferents (thiourea, citrate, iodide), then titrate the organic phase with standardized EDTA using xylenol orange indicator.
• Sample handling: Air-equilibrated test sample per ISO 9599; typical test portion ~2.5 g with duplicate determinations and reagent blank runs.
• Reagents & standards: Uses analytical-grade reagents (bromine, nitric, hydrofluoric acids, MIBK, thiourea, di-ammonium citrate, ammonium thiocyanate, buffer, potassium iodide). EDTA 0.05 mol/L is standardized against high‑purity zinc metal under the same conditions as sample analyses.
• Apparatus & conditions: Class A volumetric glassware, platinum crucibles for insoluble residues, muffle furnace for ashing, controlled oven balance precision to 0.1 mg.
• Quality and precision: Requires at least duplicate determinations, blank corrections, and EDTA standardization; the standard includes precision, trueness checks and procedures for accepting analytical values.
• Safety note: Method uses hazardous chemicals (bromine, HF, strong acids) - follow appropriate health, safety and regulatory controls.

Practical applications

• Routine zinc assay and grade verification in mining and concentrator laboratories.
• Quality control of zinc sulfide concentrates prior to smelting or sale.
• Verification and certification of concentrate composition for metallurgical accounting, contract settlement and regulatory reporting.
• Use by analytical chemists, assay labs, metallurgists, mining quality assurance teams and standards/inspection bodies.

Related standards

• ISO 9599 - hygroscopic moisture in sulfide concentrates (sample prep)
• ISO 3696 - water for analytical laboratory use
• ISO 385, ISO 648, ISO 1042, ISO 4787 - volumetric glassware specifications and use
• ISO Guide 35 - reference material principles

Keywords: ISO 13291:2006, zinc sulfide concentrates, solvent extraction, EDTA titrimetric method, zinc determination, MIBK extraction, analytical method, concentrate assay.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13291
Second edition
2006-06-15
Zinc sulfide concentrates —
Determination of zinc — Solvent
extraction and EDTA titrimetric method
Concentrés sulfurés de zinc — Dosage du zinc — Méthode par
extraction à l'aide d'un solvant et titrage à l'EDTA

Reference number
©
ISO 2006
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Principle. 1
4 Reagents. 2
5 Apparatus . 3
6 Sample . 3
6.1 Test sample . 3
6.2 Test portion . 3
7 Procedure . 3
7.1 Number of determinations . 3
7.2 Blank test. 4
7.3 Dissolution of test portion . 4
7.4 Extraction . 4
7.5 Titration. 4
7.6 Determination of the titration factor of the EDTA standard solution . 5
8 Expression of results . 5
9 Precision. 6
9.1 Expression of precision . 6
9.2 Procedure for obtaining the final result . 6
9.3 Between-laboratories precision . 6
9.4 Check of trueness. 7
10 Test report . 8
Annex A (normative) Procedure for the preparation and determination of the mass of a predried
test portion . 9
Annex B (normative) Flowchart of the procedure for the acceptance of analytical values for test
samples. 11
Annex C (normative) Elements that interfere with this method . 12
Annex D (informative) Derivation of precision equations. 13
Bibliography . 18

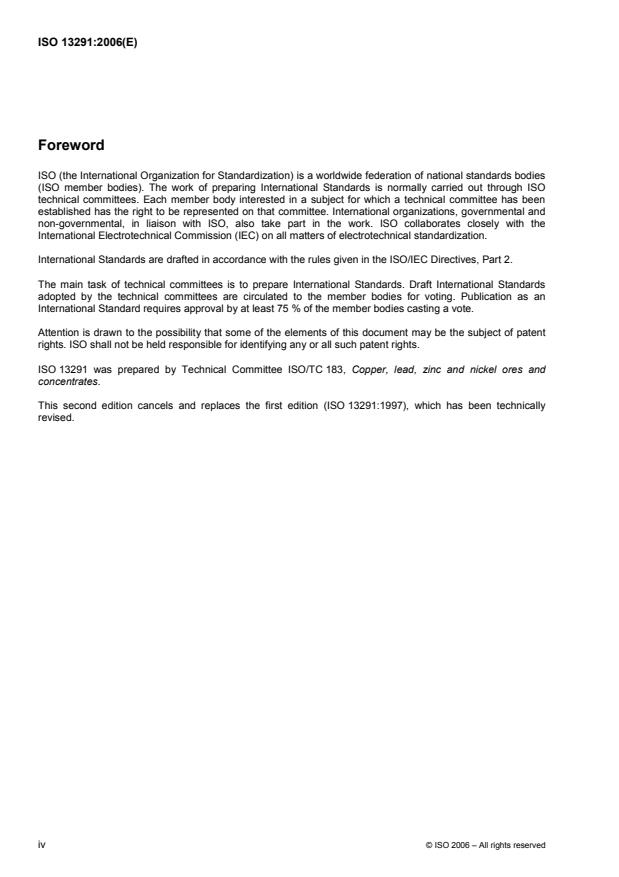

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13291 was prepared by Technical Committee ISO/TC 183, Copper, lead, zinc and nickel ores and
concentrates.
This second edition cancels and replaces the first edition (ISO 13291:1997), which has been technically
revised.
iv © ISO 2006 – All rights reserved

INTERNATIONAL STANDARD ISO 13291:2006(E)

Zinc sulfide concentrates — Determination of zinc — Solvent
extraction and EDTA titrimetric method
WARNING — This International Standard may involve hazardous materials, operations and equipment.
It is the responsibility of the user of this International Standard to establish appropriate health and
safety practices and determine the applicability of regulatory limitations prior to use.
1 Scope
This International Standard specifies a solvent extraction/titrimetric method for the determination of the mass
fraction of zinc in zinc sulfide concentrates.
The method is applicable to zinc sulfide concentrates having a mass fraction of zinc in the range from 11 % to
62 %.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 385, Laboratory glassware — Burettes
ISO 648, Laboratory glassware — One-mark pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 4787, Laboratory glassware — Volumetric glassware — Methods for use and testing of capacity
ISO 9599, Copper, lead and zinc sulfide concentrates — Determination of hygroscopic moisture in the
analysis sample — Gravimetric method
ISO Guide 35, Reference materials — General and statistical principles for certification
3 Principle
A test portion of zinc concentrate is dissolved in bromine and nitric acid. Any remaining insoluble residue is
dissolved in sulfuric, nitric and hydrofluoric acids. A zinc thiocyanate complex is selectively extracted into
methyl isobutyl ketone, after screening of some elements with thiourea and citrate ions. Partially extracted
cadmium is screened with iodide ions before the final titration as explained in Annex C. Cobalt is extracted
and determined separately, if present at concentration levels exceeding 0,05 %. Zinc is determined by titration
with EDTA solution at pH 5,5.
4 Reagents
During the analysis, only reagents of recognized analytical grade and water that complies with grade 2 of
ISO 3696 shall be used.
4.1 Zinc metal, minimum purity 99,99 %, free from oxide prior to use.
The surface of the metal may be cleaned by immersing the metal in hydrochloric acid (4.2), diluted 1 + 9 for
1 min, then washing well with water, followed by an acetone rinse and drying in an oven at 50 °C.
4.2 Hydrochloric acid, (ρ 1,16 g/ml to 1,19 g/ml).

4.3 Bromine.
4.4 Nitric acid, (ρ 1,42 g/ml).
4.5 Hydrofluoric acid, (ρ 1,13 g/ml to 1,15 g/ml).
4.6 Hydrochloric acid, (ρ 1,16 g/ml to 1,19 g/ml) diluted (1 + 4).
Add 200 ml of hydrochloric acid (4.2) to 800 ml of water.
4.7 Sulfuric acid, diluted (1 + 1).
Add carefully and slowly, with stirring, 500 ml of sulfuric acid (ρ 1,84 g/ml) to 500 ml of water.
4.8 Ammonia, (ρ 0,89 g/ml).
4.9 4-methyl-2-pentanone (methyl isobutyl ketone).
4.10 Ethanol, pure or denatured.
4.11 Screening solution.
Dissolve 60 g of thiourea, 100 g of di-ammonium citrate and 200 g of ammonium thiocyanate in water and
dilute to 1 l. Filter if necessary.
4.12 Sodium fluoride solution (20 g/l).
Dissolve 20 g of sodium fluoride in water. Dilute to 1 l.
4.13 Thiourea solution (100 g/l).
Dissolve 100 g of thiourea in water and dilute to 1 l.
4.14 Buffer solution.
Dissolve 250 g of hexamethylenetetramine in water. Add 60 ml of acetic acid (ρ 1,05 g/ml) and dilute to 1 l.
4.15 EDTA standard volumetric solution (0,05 mol/l).
Dissolve 18,6 g of the di-sodium salt of ethylenediaminetetraacetic acid dihydrate (EDTA) in water. Dilute to
1 l.
4.16 Potassium iodide solution (1 000 g/l).
Dissolve 100 g of potassium iodide in water and dilute to 100 ml.
Prepare fresh on the day of use.
2 © ISO 2006 – All rights reserved

4.17 Xylenol orange indicator (1 % m/m).
Mix 1 g of the sodium salt of xylenol orange with 99 g of potassium nitrate crystals, by gently grinding in a
ceramic mortar with a pestle. Mixing is considered complete when the colour is uniform throughout.
4.18 Iron stock solution.
Dissolve 45 g of iron(III) nitrate nonahydrate [Fe(NO )⋅9H O] in water and dilute to 1 l.
3 3 2
5 Apparatus
Ordinary laboratory equipment and the following.
5.1 Volumetric glassware, of class A complying with ISO 385, ISO 648 and ISO 1042 and used in
accordance with ISO 4787.
5.2 Platinum crucibles, of 25 ml capacity.
5.3 Balance, capable of being read to 0,1 mg.
5.4 Oven, with its temperature controlled at 105 °C ± 5 °C.
5.5 Muffle furnace, having a maximum required operating temperature higher than 800 °C.
5.6 Laboratory hotplate.
6 Sample
6.1 Test sample
Prepare an air-equilibrated test sample in accordance with ISO 9599.
NOTE A test sample is not required if predried test portions are to be used (see Annex A).
6.2 Test portion
Taking multiple increments, extract a test portion from the test sample in such a manner that it is
representative of the dish or tray. Weigh, to the nearest 0,1 mg, 2,5 g of test sample. At the same time as the
test portion is weighed, weigh test portions for the determination of hygroscopic moisture in accordance with
ISO 9599.
Alternatively, the method specified in Annex A may be used to prepare predried test portions directly from the
laboratory sample.
7 Procedure
7.1 Number of determinations
Carry out the determinations at least in duplicate, as far as possible under repeatability conditions, on each
test sample.
NOTE Repeatability conditions exist where mutually independent test results are obtained with the same method on
identical test material in the same laboratory by the same operator, using the same equipment within short intervals of
time.
7.2 Blank test
Determine a reagent blank. It is advisable to perform duplicate blank determinations every time an analysis is
carried out on a laboratory sample. The blank samples are carried through the whole procedure, apart from
where no laboratory-sample test portion is required. However, 5 ml of iron stock solution (4.18) should be
added to assist in the determination of turbidity. The volume of EDTA titrant used is V .
b
7.3 Dissolution of test portion
Place the test portion in a 300 ml narrow-necked conical flask. Moisten the material with about 20 ml of water
and add 2 ml to 3 ml of bromine (4.3). Allow to react at ambient temperature for 15 min, swirling the flask and
contents from time to time. Add 15 ml of nitric acid (4.4) and leave for a further 15 min. Place the flask on a
hotplate (5.6) and bring gently to the boil, to expel all bromine vapours. Cool, add 100 ml of water, heat to
boiling and cool.
If no insoluble material is present, transfer the liquid to a 500 ml one-mark volumetric flask, rinsing the conical
flask thoroughly. Make up to the mark with water.
If insoluble residue is present, filter through a medium-speed cellulose filter paper into a 500 ml one-mark
volumetric flask. Rinse the filter thoroughly with water. Place the filter and insoluble residue in a platinum
crucible (5.2) and gently ash in the muffle furnace (5.5) set at 800 °C. Add 2 ml of dilute sulfuric acid (4.7),
2 ml of nitric acid (4.4) and 2 ml of hydrofluoric acid (4.5) and evaporate the solution nearly to dryness. Cool
and add water in small quantities, to dissolve the soluble salts. Filter through a medium-speed cellulose filter
paper and add the filtrate and washing solution to the 500 ml one-mark volumetric flask used above. Make up
to the mark with water.
If the sample contains lead, damage to the platinum crucible may occur. In this case, insoluble material should
be treated as follows.
Rinse the insoluble residue into a polytetrafluoroethylene beaker with a fine jet of water. Place the filter in a
porcelain crucible and gently ash the paper in the muffle furnace (5.5) at 600 °C to 700 °C. Allow the crucible
to cool to ambient temperature.
Rinse the material in the crucible by washing with a small quantity of water into the polytetrafluroethylene
beaker used above. Add 2 ml of dilute sulfuric acid (4.7), 2 ml of nitric acid (4.4) and 2 ml of hydrofluoric acid
(4.5) and evaporate the solution nearly to dryness. Cool and add water in small quantities, to dissolve the
soluble salts. Filter through a medium-speed cellulose filter paper and add the filtrate and washing solution to
the 500 ml one-mark volumetric flask used above. Make up to the mark with water.
Should it be confirmed that the filter paper contains no zinc, the procedure of ashing the filter may be omitted.
7.4 Extraction
Pipette 50,00 ml of the solution obtained in 7.3 into a 250 ml separating funnel. Add ammonia (4.8) dropwise
until a slight turbidity develops. Add 5 ml of dilute hydrochloric acid (4.6) and 50 ml of screening solution (4.11).
Mix well. Add 80 ml of 4-methyl-2-pentanone (4.9) and shake for 1 min. Allow the phases to separate and
slowly transfer the lower aqueous phase to another separating funnel. Perform a second extraction with 20 ml
of 4-methyl-2-pentanone (4.9). Separate the phases and discard the aqueous phase. Combine the two
separate organic phases in a 400 ml low-form beaker.
Place 1 ml of dilute hydrochloric acid (4.6) and 70 ml of ethanol (4.10) in each of the two separating funnels.
Shake well and discharge the contents from both funnels into the 400 ml low-form beaker.
7.5 Titrat
...
