Road vehicles — Unified diagnostic services (UDS) — Part 5: Unified diagnostic services on Internet Protocol implementation (UDSonIP)

This document specifies an application profile for the implementation of unified diagnostic services (UDS) Internet Protocol (IP) in road vehicles (UDSonIP). UDSonIP references ISO 14229-1 and ISO 14229-2 and specifies implementation requirements of the diagnostic services to be used for diagnostic communication on Internet Protocol. This document includes — additional requirements specific to the implementation of UDS on the Ethernet network, and — specific restrictions in the implementation of UDS on the Ethernet network.

Véhicules routiers — Services de diagnostic unifiés (SDU) — Partie 5: SDU sur l'implémentation du protocole internet (SDUsurIP)

General Information

Status
Published
Publication Date
24-Apr-2022
Current Stage
4060 - Close of voting
Start Date
05-Aug-2021
Completion Date
04-Aug-2021
Ref Project

RELATIONS

Buy Standard

Standard
ISO 14229-5:2022 - Road vehicles — Unified diagnostic services (UDS) — Part 5: Unified diagnostic services on Internet Protocol implementation (UDSonIP) Released:4/25/2022
English language
26 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 14229-5
Second edition
2022-04
Road vehicles — Unified diagnostic
services (UDS) —
Part 5:
Unified diagnostic services on Internet
Protocol implementation (UDSonIP)
Véhicules routiers — Services de diagnostic unifiés (SDU) —
Partie 5: SDU sur l'implémentation du protocole internet (SDUsurIP)
Reference number
ISO 14229-5:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 14229-5:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 14229-5:2022(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction .............................................................................................................................................................................................................................. vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

4 Symbols and abbreviated terms..........................................................................................................................................................1

4.1 Symbols ......................................................................................................................................................................................................... 1

4.2 Abbreviated terms .............................................................................................................................................................................. 2

5 Conventions ............................................................................................................................................................................................................... 2

6 Service primitive interface definition .......................................................................................................................................... 2

7 Technical requirements overview .................................................................................................................................................... 3

8 Application layer .................................................................................................................................................................................................. 4

8.1 ISO 14229-1 service primitive parameters ................................................................................................................... 4

8.2 A_Data.req, A_Data.ind, and A_Data.conf service interface ........................................................................... 4

8.3 UDSonIP services overview ........................................................................................................................................................ 4

8.4 A_PDU definition ................................................................................................................................................................................... 5

8.4.1 Generic DoIP header of A_PDU ............................................................................................................................... 5

8.4.2 A_PDU for UDS request and response message ...................................................................................... 6

8.4.3 A_PDU for UDS periodic response message ............................................................................................... 6

8.5 DiagnosticSessionControl service UDSonIP implementation requirements .................................. 7

8.5.1 General ........................................................................................................................................................................................ 7

8.5.2 TCP connection handling ............................................................................................................................................ 7

8.5.3 TCP connection closing ................................................................................................................................................. 7

8.6 ECUReset service UDSonIP implementation requirements ........................................................................... 9

8.6.1 General ........................................................................................................................................................................................ 9

8.6.2 TCP connection handling ............................................................................................................................................ 9

8.6.3 TCP connection closing ................................................................................................................................................. 9

8.7 ReadDataByPeriodicIdentifier service UDSonIP implementation requirements ....................... 9

8.7.1 General ........................................................................................................................................................................................ 9

8.7.2 Service interface ................................................................................................................................................................. 9

8.7.3 Service primitive data types ................................................................................................................................ 11

8.7.4 Periodic response message A_PDU format .............................................................................................. 11

8.7.5 Periodic transmission response message handling ......................................................................... 11

8.7.6 Periodic transmission message flow .............................................................................................................12

8.8 ResponseOnEvent service UDSonIP implementation requirements ................................................... 14

8.8.1 General ..................................................................................................................................................................................... 14

8.8.2 Activated storageState ............................................................................................................................................... 14

8.9 Timing parameter definition .................................................................................................................................................. 17

8.9.1 Request and response message timing parameter values ......................................................... 17

8.9.2 Unsolicited response messages .......................................................................................................................... 17

9 Presentation layer ...........................................................................................................................................................................................17

10 Session layer ..........................................................................................................................................................................................................17

10.1 Service primitive parameter definition ........................................................................................................................ 17

10.2 S_Data.req, S_Data.ind, and S_Data.conf service interface .......................................................................... 18

11 Transport layer ..................................................................................................................................................................................................18

11.1 Service primitive parameter definition ........................................................................................................................ 18

11.2 T_Data.req, T_Data.ind, and T_Data.conf service interface .......................................................................... 18

11.3 T_PDU definition ................................................................................................................................................................................ 21

11.4 DoIP transport layer and network layer interface adaptation .................................................................22

iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------

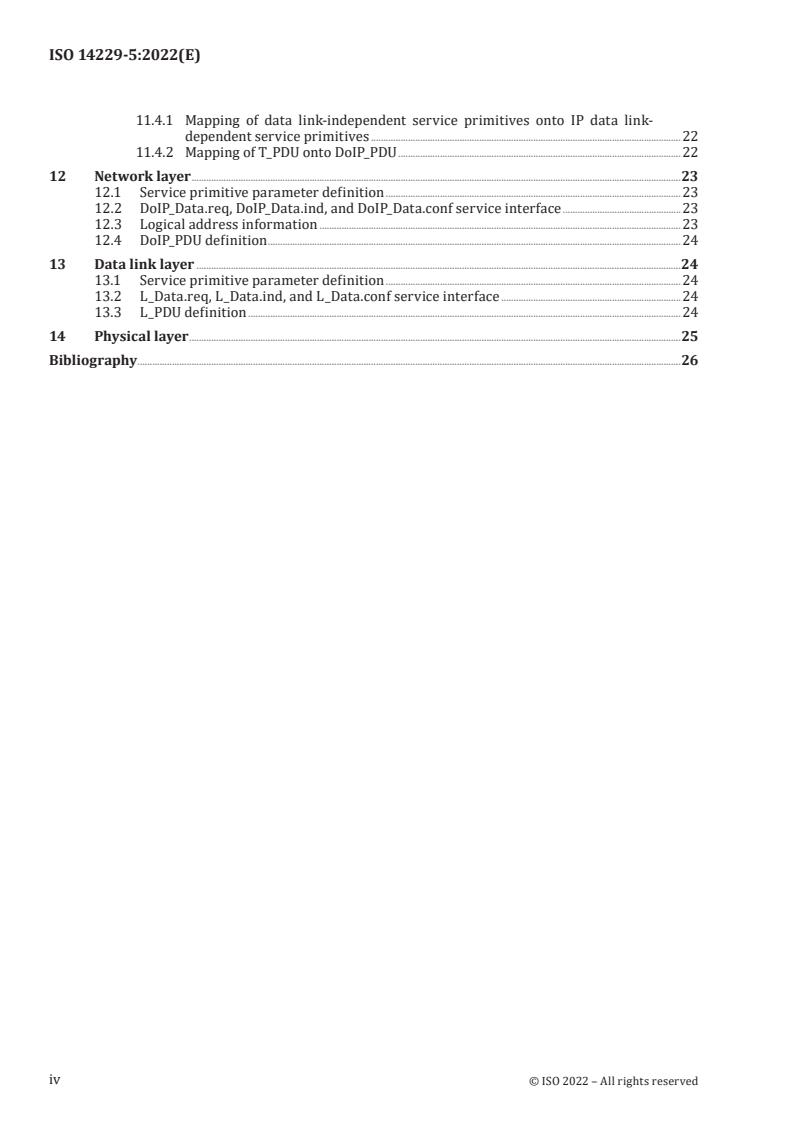

ISO 14229-5:2022(E)
11.4.1 Mapping of data link-independent service primitives onto IP data link-

dependent service primitives .............................................................................................................................. 22

11.4.2 Mapping of T_PDU onto DoIP_PDU ................................................................................................................... 22

12 Network layer .......................................................................................................................................................................................................23

12.1 Service primitive parameter definition ........................................................................................................................ 23

12.2 DoIP_Data.req, DoIP_Data.ind, and DoIP_Data.conf service interface ................................................23

12.3 Logical address information ................................................................................................................................................... 23

12.4 DoIP_PDU definition ........................................................................................................................................................................ 24

13 Data link layer .....................................................................................................................................................................................................24

13.1 Service primitive parameter definition ........................................................................................................................ 24

13.2 L_Data.req, L_Data.ind, and L_Data.conf service interface ......................................................................... 24

13.3 L_PDU definition ................................................................................................................................................................................ 24

14 Physical layer ........................................................................................................................................................................................................25

Bibliography .............................................................................................................................................................................................................................26

© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 14229-5:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,

Data communication.

This second edition cancels and replaces the first edition (ISO 14229-5:2013), which has been technically

revised.
The main changes are as follows:
— restructuration of the document;
— introduction of requirement numbers, names and definitions;

— technical content improvements based on implementation feedback from the automotive industry.

A list of all parts in the ISO 14229 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 14229-5:2022(E)
Introduction

The ISO 14229 series has been established in order to define common requirements for diagnostic

systems, whatever the serial data link is.

To achieve this, the ISO 14229 series is based on the Open Systems Interconnection (OSI) Basic Reference

[1] [2]

Model in accordance with ISO/IEC 7498-1 and ISO/IEC 10731 , which structures communication

systems into seven layers. When mapped on this model, the services used by a diagnostic tester (client)

and an electronic control unit (ECU, server) are structured into the following layers:

— application layer (layer 7) specified in ISO 14229-1 and ISO 14229-3 to ISO 14229-8;

— presentation layer (layer 6) specified in ISO 14229-1 and ISO 14229-3 to ISO 14229-8;

— session layer services (layer 5) specified in ISO 14229-2 and ISO 14229-3 to ISO 14229-8.

Figure 1 illustrates the UDSonIP document and related documents according to the OSI model.

Figure 1 — UDSonIP document reference according to OSI model
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 14229-5:2022(E)
Road vehicles — Unified diagnostic services (UDS) —
Part 5:
Unified diagnostic services on Internet Protocol
implementation (UDSonIP)
1 Scope

This document specifies an application profile for the implementation of unified diagnostic services

(UDS) Internet Protocol (IP) in road vehicles (UDSonIP).

UDSonIP references ISO 14229-1 and ISO 14229-2 and specifies implementation requirements of the

diagnostic services to be used for diagnostic communication on Internet Protocol.

This document includes

— additional requirements specific to the implementation of UDS on the Ethernet network, and

— specific restrictions in the implementation of UDS on the Ethernet network.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 13400-2, Road vehicles — Diagnostic communication over Internet Protocol (DoIP) — Part 2: Transport

protocol and network layer services

ISO 13400-3, Road vehicles — Diagnostic communication over Internet Protocol (DoIP) — Part 3: Wired

vehicle interface based on IEEE 802.3

ISO 14229-1, Road vehicles — Unified diagnostic services (UDS) — Part 1: Application layer

ISO 14229-2, Road vehicles — Unified diagnostic services (UDS) — Part 2: Session layer services

IETF RFC 793:1981, Transmission Control Protocol — DARPA Internet Program — Protocol Specification

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 14229-1 and ISO 14229-2

apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Symbols and abbreviated terms
4.1 Symbols
© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 14229-5:2022(E)
— empty table cell or feature undefined
time
P_Client
client application layer timer
P2_Server server application layer timer
S3_Client client session layer timer
S3_Server
server session layer timer
S3_Server_Reload
server session layer timeout value-reload
P6_DoIP_Client client application layer timeout value for DoIP
4.2 Abbreviated terms
DID data identifier
DoIP diagnostic communication over Internet Protocol
DoIP_AI DoIP address information
DoIP_SA DoIP source address
DoIP_TA DoIP target address
DoIP_TAtype DoIP target address type
GH_PT generic header payload type
GH_PL generic header payload length
IP Internet Protocol
OSI Open System Interconnection
pDID periodic data identifier
UDS unified diagnostic services
VM vehicle manufacturer
5 Conventions
[2]

This document is based on OSI service conventions as specified in ISO/IEC 10731 .

6 Service primitive interface definition

The service interface defines the service and parameter mapping from the application layer to the

session layer.

Figure 2 shows the Data.req (request), Data.ind (indication), and Data.conf (confirmation) service

interface.
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 14229-5:2022(E)
Key
1 service access point between application and application layer
2 read back from N-layer service provider
t time
Figure 2 — Data.req, Data.ind, and Data.conf service interface
7 Technical requirements overview

Table 1 provides an overview on the technical requirements and their associated requirement number.

Table 1 — Technical requirements overview
OSI#.REQ# Technical requirement title
7 Application layer
7.1 ISO 14229-1 service primitive parameters
7.2 A_Data.req, A_Data.ind, and A_Data.conf service interface
7.3 UDSonIP-specific requirements
7.4 No UDSonIP-specific requirements
7.5 Generic DoIP header of A_PDU
7.6 A_PDU for UDS request and response message
7.7 A_PDU for UDS periodic response message
7.8 DiagnosticSessionControl – TCP connection handling
7.9 DiagnosticSessionControl – TCP connection closing
7.10 ECUReset – TCP connection handling
7.11 ECUReset – TCP connection closing
7.12 ReadDataByPeriodicIdentifier – A_Data.req
7.13 ReadDataByPeriodicIdentifier – A_Data.ind
7.14 ReadDataByPeriodicIdentifier – A_Data.conf
7.15 ReadDataByPeriodicIdentifier – Service primitive parameters
7.16 ReadDataByPeriodicIdentifier – Periodic response A_PDU format

7.17 ReadDataByPeriodicIdentifier – Periodic transmission response message handling

7.18 ReadDataByPeriodicIdentifier – Periodic transmission response message server restrictions

© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 14229-5:2022(E)
Table 1 (continued)
OSI#.REQ# Technical requirement title
7.19 Timing parameter definition
7.20 Unsolicited response messages
6 Presentation layer
No requirement statement in this document
5 Session layer
5.1 Service primitive parameter definition
5.2 S_Data.req, S_Data.ind, and S_Data.conf service interface
4 Transport layer
4.1 Service primitive parameter definition
4.2 T_Data.req, T_Data.ind, and T_Data.conf service interface

4.3 Mapping of data link-independent service primitives onto IP data link-dependent service

primitives
4.4 Mapping of T_PDU onto DoIP_PDU
3 Network layer
3.1 Service primitive parameter definition
3.2 DoIP_Data.req, DoIP_Data.ind, and DoIP_Data.conf service interface
3.3 Logical address information
2 Data link layer
2.1 Service primitive parameter definition
2.2 L_Data.req, L_Data.ind, and L_Data.conf service interface
1 Physical layer
No requirement statement in this document
8 Application layer
8.1 ISO 14229-1 service primitive parameters

This document is part of the ISO 14229 series and therefore, the service primitive parameter

implementation follows the ISO 14229-1 specification.
REQ 7.1 UDSonIP – ISO 14229-1 service primitive parameters

The service primitive parameter shall be implemented as specified in ISO 14229-1.

8.2 A_Data.req, A_Data.ind, and A_Data.conf service interface

This document is part of the ISO 14229 series and therefore, the service interface implementation

follows the ISO 14229-1 specification.
REQ 7.2 UDSonIP – A_Data.req, A_Data.ind, and A_Data.conf service interface

The A_Data.req, A_Data.ind, and A_Data.conf service interface shall be implemented as specified in ISO 14229-1.

8.3 UDSonIP services overview

The purpose of Table 2 is to reference all ISO 14229-1 and ISO 14229-2 services as they are applicable

for an implementation in this document. Table 2 contains the UDSonIP diagnostic services. Certain

UDSonIP applications can restrict the number of useable services and can categorize them in application

areas/diagnostic sessions (default session, programming session, etc.).
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 14229-5:2022(E)
REQ 7.3 UDSonIP – UDSonIP-specific requirements

Services that are marked “UDSonIP-specific requirements” shall be implemented as specified in the referenced

subclause number in accordance with Table 2 "Reference" column.
REQ 7.4 UDSonIP – No UDSonIP-specific requirements

Services specified in Table 2 that are marked “No UDSonIP-specific requirements” shall be implemented as spec-

ified in ISO 14229-1 and ISO 14229-2 with no additional restrictions.
Table 2 — Overview of applicable ISO 14229-1-defined services
Functional unit name Diagnostic service name Comment Reference

Diagnostic and communi- DiagnosticSessionControl UDSonP-specific requirements see 8.5

cation management
ECUReset UDSonP-specific requirements see 8.6
SecurityAccess No UDSonP-specific requirements —
CommunicationControl No UDSonP-specific requirements —
TesterPresent No UDSonP-specific requirements —
Authentication No UDSonP-specific requirements —
SecuredDataTransmission No UDSonP-specific requirements —
ControlDTCSetting No UDSonP-specific requirements —
ResponseOnEvent UDSonP-specific requirements see 8.8
LinkControl No UDSonP-specific requirements —
Data transmission ReadDataByIdentifier No UDSonP-specific requirements —
ReadMemoryByAddress No UDSonP-specific requirements —
ReadScalingDataByIdentifier No UDSonP-specific requirements —
ReadDataByPeriodicIdentifier UDSonP-specific requirements see 8.7
DynamicallyDefineDataIdentifier No UDSonP-specific requirements —
WriteDataByIdentifier No UDSonP-specific requirements —
WriteMemoryByAddress No UDSonP-specific requirements —
Stored data transmission ReadDTCInformation No UDSonP-specific requirements —
ClearDiagnosticInformation No UDSonP-specific requirements —

Input/output control InputOutputControlByIdentifier No UDSonP-specific requirements —

Remote activation of RoutineControl No UDSonP-specific requirements —
routine
Upload/ download RequestDownload No UDSonP-specific requirements —
RequestUpload No UDSonP-specific requirements —
TransferData No UDSonP-specific requirements —
RequestTransferExit No UDSonP-specific requirements —
RequestFileTransfer No UDSonP-specific requirements —
8.4 A_PDU definition
8.4.1 Generic DoIP header of A_PDU
REQ 7.5 UDSonIP – Generic DoIP header of A_PDU

The A_PDU definition includes the generic DoIP header which shall be followed according to ISO 13400-2.

© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 14229-5:2022(E)
8.4.2 A_PDU for UDS request and response message

The A_PDU of UDSonIP implements an ISO 13400-2 generic DoIP header and payload for UDS request

and response messages.
REQ 7.6 UDSonIP – A_PDU for UDS request and response message

Figure 3 specifies the UDSonIP A_PDU for UDS request and response message in accordance with ISO 13400-2,

which shall be followed for all UDSonIP messages.
Figure 3 shows the A_PDU which consists of:
— protocol version;
— payload type: 8001 , diagnostic message (request/response);
— payload length;
— logical source and target address;
— ISO 14229-1 service identifier;
— ISO 14229-1 data.
Figure 3 — A_PDU for UDS request and response message
8.4.3 A_PDU for UDS periodic response message

Periodic response messages are differentiated from non-periodic response messages with a specific

DoIP payload type.
REQ 7.7 UDSonIP – A_PDU for UDS periodic response message

Figure 4 specifies the UDSonIP A_PDU for UDS periodic response message in accordance with ISO 13400-2,

which shall be followed for all UDSonIP messages.
Figure 4 shows the A_PDU which consists of:
— protocol version;
— payload type: 8004 , diagnostic message (periodic response);
— payload length;
— logical source and target address;
— ISO 14229-1 periodic data identifier;
— ISO 14229-1 periodic data.
© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 14229-5:2022(E)
Figure 4 — A_PDU for UDS periodic response message
8.5 DiagnosticSessionControl service UDSonIP implementation requirements
8.5.1 General

This document specifies the specific UDSonIP DiagnosticSessionControl service implementation

requirements and restrictions.
8.5.2 TCP connection handling

This requirement specifies the UDSonIP DiagnosticSessionControl service TCP handling if a connection

is disconnected.
REQ 7.8 UDSonIP – DiagnosticSessionControl – TCP connection handling

If a TCP connection is disconnected due to a session change, a new TCP connection and routing activation as

specified in ISO 13400-2 shall be performed before diagnostic communication is continued (see Figure 4).

8.5.3 TCP connection closing

This requirement specifies the UDSonIP DiagnosticSessionControl service TCP connection closing.

REQ 7.9 UDSonIP – DiagnosticSessionControl – TCP connection closing

If the TCP connection is disconnected due to a session change, the server shall initiate the closing of the TCP

connection as specified in IETF RFC 793:1981, 3.5 after sending a DiagnosticSessionControl positive response

message and prior to the execution of the DiagnosticSessionControl service (see Figure 5).

© ISO 2022 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 14229-5:2022(E)
Figure 5 — Switch to programming session handling
© ISO 2022 – All rights reserved
---------------------- Page: 14 ----------------------
ISO 14229-5:2022(E)
8.6 ECUReset service UDSonIP implementation requirements
8.6.1 General

In addition to the generic implementation requirements stated in ISO 14229-1, the following

requirements are applicable for an UDSonIP implementation.
8.6.2 TCP connection handling

This requirement specifies the UDSonIP ECUReset service TCP handling if a connection is disconnected.

REQ 7.10 UDSonIP – ECUReset TCP connection handling

If a TCP connection is disconnected between the client and a server, a new TCP connection and routing activation,

as specified in ISO 13400-2, shall be established with this server, where the ECUReset is applied.

8.6.3 TCP connection closing
This requirement specifies the UDSonIP ECUReset service TCP connection closing.
REQ 7.11 UDSonIP – ECUReset TCP connection closing

The server shall initiate the closing of the TCP connection as specified in IETF RFC 793:1981, 3.5 after sending an

ECUReset positive response message and prior to the execution of the ECUReset service.

8.7 ReadDataByPeriodicIdentifier service UDSonIP implementation requirements
8.7.1 General

This document specifies the specific UDSonIP ReadDataByPeriodicIdentifier service implementation

requirements or restrict
...
