ISO 6613:2023

Windows and doors - Air permeability - Test method

This document specifies the test method to determine the air permeability of completely assembled windows and pedestrian door sets of any material, when exposed to positive or negative test pressures. This test method is designed to take account of conditions in use, when the window or door set is installed in accordance with the manufacturer’s specification and the requirements of relevant International Standards and codes of practice. This document does not apply to joints between the window or door frame and the building construction.

Fenêtres et portes – Perméabilité à l’air – Méthode d’essai

General Information

• Status: Published
• Publication Date: 23-Mar-2023
• ICS: 91.060.50 - Doors and windows
• Technical Committee: ISO/TC 162 - Doors, windows and curtain walling
• Drafting Committee: ISO/TC 162 - Doors, windows and curtain walling
• Current Stage: 6060 - International Standard published
• Start Date: 24-Mar-2023
• Due Date: 26-Nov-2023
• Completion Date: 24-Mar-2023

Relations

• Revises: ISO 8272:1985 - Doorsets - Air permeability test
• Effective Date: 05-Nov-2022
• Revises: ISO 6613:1980 - Windows and door height windows - Air permeability test
• Effective Date: 06-Jun-2022

Overview

ISO 6613:2023 - "Windows and doors - Air permeability - Test method" is the international test method for measuring air permeability (air leakage) of completely assembled windows and pedestrian door sets of any material. It specifies laboratory procedures, equipment and reporting requirements for both positive and negative test pressures, and is intended to reflect in-use conditions when specimens are installed per manufacturer instructions and relevant codes. The standard does not cover the joint between the frame and the building construction.

Key topics and technical requirements

• Scope and terms: Defines key terms such as air permeability, test pressure, opening joint, length of opening joint and overall area (see ISO 22496 for vocabulary).
• Test apparatus: Requires a pressure-rated test chamber with one open side, controlled pressure application (including rapid pressure changes), and an airflow instrument with specified accuracy (±5% for flows >1 m3/h; ±0.05 m3/h for flows ≤1 m3/h).
• Specimen preparation: Specimens must be fixed as intended for use, fully operable, clean and dry. Ventilation devices are normally sealed unless their flow is being measured.
• Environmental conditioning: Test specimen conditioned at 10–30 °C and 25–75% RH for at least 4 hours before testing; temperature and humidity tolerances are specified.
• Pressure sequences: Apply pressure in steps of 50 Pa to 300 Pa, then 150 Pa increments above 300 Pa. Pulse tests (three pulses) are required prior to step measurements (external: pulses 10% above max or 500 Pa; internal doors: 10% above max or 150 Pa).
• Chamber correction: Procedures to measure and account for test chamber leakage. If chamber leakage is <5% of the classification limit it may be treated as zero; in no case shall chamber leakage exceed 30% of the combined specimen+chamber leakage.
• Results and normalization: Airflow results are adjusted to standard conditions (293 K, 101.3 kPa) and expressed per unit joint length (m3/(h·m)) or per unit area (m3/(h·m2)) as applicable. Reporting must include measurement accuracy and test conditions.

Applications and users

• Manufacturers of windows and pedestrian doors - to verify product performance and support product data sheets.
• Independent test laboratories - to perform standardized air leakage testing for certification and compliance.
• Certification bodies and regulatory authorities - to assess conformity with building codes and performance classes.
• Façade engineers, architects and specifiers - to select products that meet thermal comfort, energy efficiency and ventilation design requirements.
• Building owners and contractors - to interpret test reports and ensure installed units meet expected airtightness.

Related standards

• ISO 22496 - Windows and pedestrian doors - Vocabulary (referenced for definitions)
• ISO/IEC Guide 99 - Vocabulary of metrology (for measurement accuracy and uncertainty)

Keywords: ISO 6613:2023, air permeability test, windows and doors, air leakage testing, test method, door set air permeability, test chamber, building code compliance.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 6613
Second edition
2023-03
Windows and doors — Air
permeability — Test method
Fenêtres et portes – Perméabilité à l’air – Méthode d’essai
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principles of test . . 2
5 Test apparatus .3
6 Preparation of the test specimen .3
7 Test procedure .3
7.1 Preliminaries . 3
7.2 Air permeability of the test chamber . 4
7.2.1 General . 4
7.2.2 Test chamber with known air permeability . 4
7.2.3 Test chamber with unknown air permeability . 4
7.3 Overall air permeability of the test specimen and the test chamber — Positive
pressures . 4
7.3.1 General . 4
7.3.2 Measurement of the air permeability for windows and external pedestrian
door sets . 4
7.3.3 Measurement of the air permeability for internal pedestrian door sets . 4
7.4 Overall air permeability of the test specimen and the test chamber — Negative
pressures . 5
8 Test results . . 5
9 Test report . 5
Annex A (informative) Test pressure sequences .13
Bibliography .14
iii

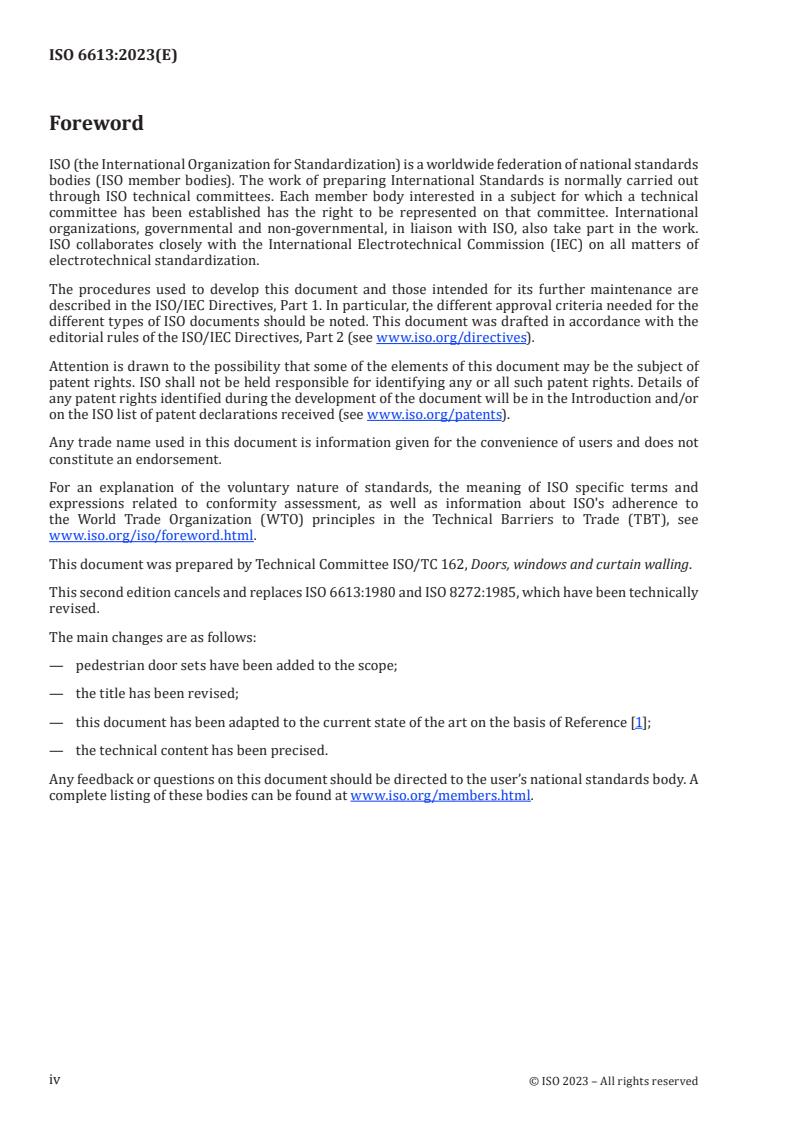

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 162, Doors, windows and curtain walling.
This second edition cancels and replaces ISO 6613:1980 and ISO 8272:1985, which have been technically
revised.
The main changes are as follows:
— pedestrian door sets have been added to the scope;
— the title has been revised;
— this document has been adapted to the current state of the art on the basis of Reference [1];
— the technical content has been precised.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 6613:2023(E)
Windows and doors — Air permeability — Test method
1 Scope
This document specifies the test method to determine the air permeability of completely assembled
windows and pedestrian door sets of any material, when exposed to positive or negative test pressures.
This test method is designed to take account of conditions in use, when the window or door set is
installed in accordance with the manufacturer’s specification and the requirements of relevant
International Standards and codes of practice.
This document does not apply to joints between the window or door frame and the building construction.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 22496, Windows and pedestrian doors — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 22496 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
closed
closing condition where movable parts rest in or at the fixed parts in a way in which the movable parts
can be fastened (3.2) [latched (3.3) and/or locked (3.4)]
3.2
fastened
closing condition where the movable part is restrained at one or more points by latching and/or locking
3.3
latched
fastened (3.2) condition where the movable part is returned to its closed (3.1) position and restrained
Note 1 to entry: The movable part is restrained by either:
a) a self-engaging fastener, or
b) a roller catch, or
c) a latch.
3.4
locked
fastened (3.2) condition where the movable part is further restrained in the closed (3.1) position by
additional operations to engage integrated locking devices which affect the product’s characteristics
Note 1 to entry: The restraining in the closed position is done by additional operations of, for example, handle,
key, automatic devices or electronic devices.
Note 2 to entry: Integrated locking devices are, for example, nut bolts or deadbolts.
3.5
test pressure
difference between the static air pressures inside and outside of the test chamber
Note 1 to entry: The test pressure is positive if the static air pressure inside the chamber of the test apparatus is
higher than that outside the test chamber.
Note 2 to entry: The test pressure is negative if the static air pressure inside the chamber of the test apparatus is
lower than that outside the test chamber.
Note 3 to entry: The intended “outside” of the specimen shall be facing to the side, from where the positive
pressure is applied.
3.6
air permeability
amount of air passing through all joints between casement or leaf and frame profiles of a test specimen
caused by the test pressure (3.5)
3.7
opening joint
line of discontinuity between either a frame and its matched component or two components which can
be opened by means of their building hardware
Note 1 to entry: Conventionally, this discontinuity is as seen from the opening face of the test specimen.
Note 2 to entry: See Figures 1 to 6.
3.8
length of opening joint
length of the line of discontinuity between either a frame and its matched component or two components
which can be opened by means of their building hardware
Note 1 to entry: The length of joint should be expressed in metres.
Note 2 to entry: Actual length of gaskets or seals fitted into the underlying profiles of the components or joints of
components built into opening parts are not relevant.
Note 3 to entry: See Figures 1 to 6.
3.9
overall area
area of the test specimen measured parallel to the
...
