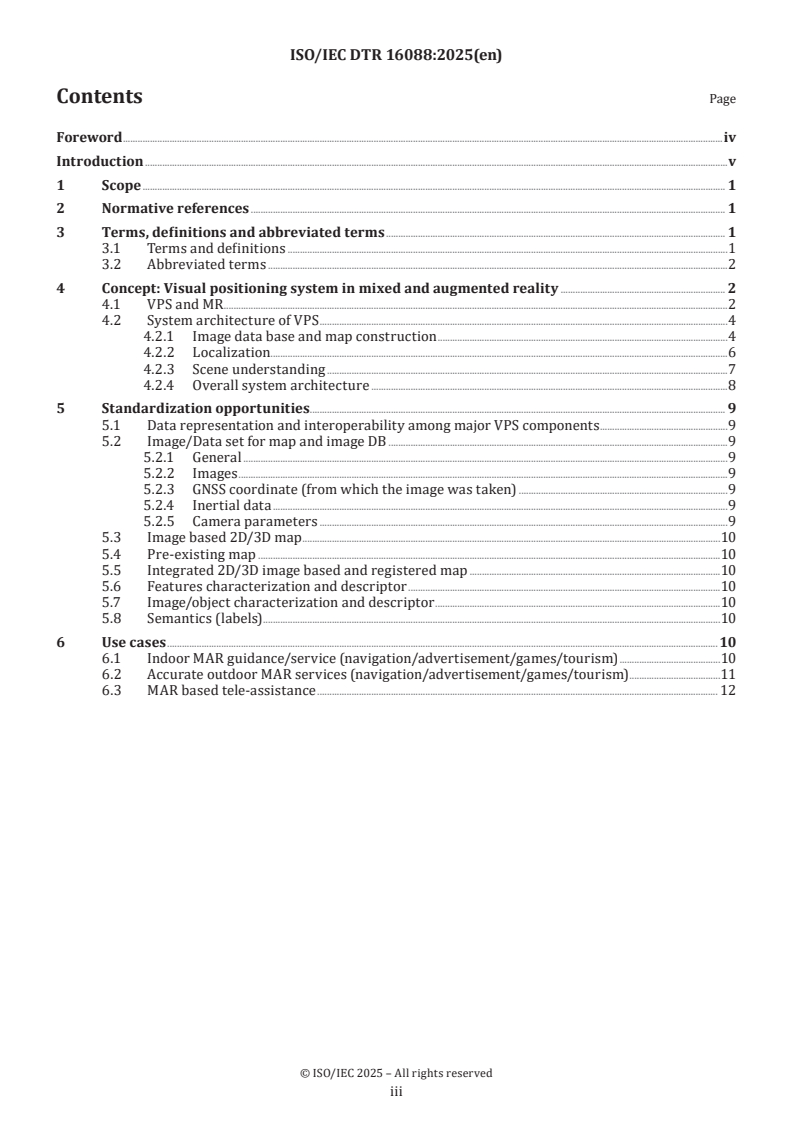

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions .1
3.2 Abbreviated terms .2
4 Concept: Visual positioning system in mixed and augmented reality . 2
4.1 VPS and MR .2
4.2 System architecture of VPS .4
4.2.1 Image data base and map construction .4
4.2.2 Localization.6
4.2.3 Scene understanding .7
4.2.4 Overall system architecture .8
5 Standardization opportunities . . 9
5.1 Data representation and interoperability among major VPS components .9
5.2 Image/Data set for map and image DB .9
5.2.1 General .9
5.2.2 Images .9
5.2.3 GNSS coordinate (from which the image was taken) .9
5.2.4 Inertial data .9
5.2.5 Camera parameters .9
5.3 Image based 2D/3D map .10
5.4 Pre-existing map .10
5.5 Integrated 2D/3D image based and registered map .10
5.6 Features characterization and descriptor .10
5.7 Image/object characterization and descriptor .10
5.8 Semantics (labels) .10
6 Use cases . 10
6.1 Indoor MAR guidance/service (navigation/advertisement/games/tourism) .10
6.2 Accurate outdoor MAR services (navigation/advertisement/games/tourism) .11
6.3 MAR based tele-assistance . 12
© ISO/IEC 2025 – All rights reserved
iii

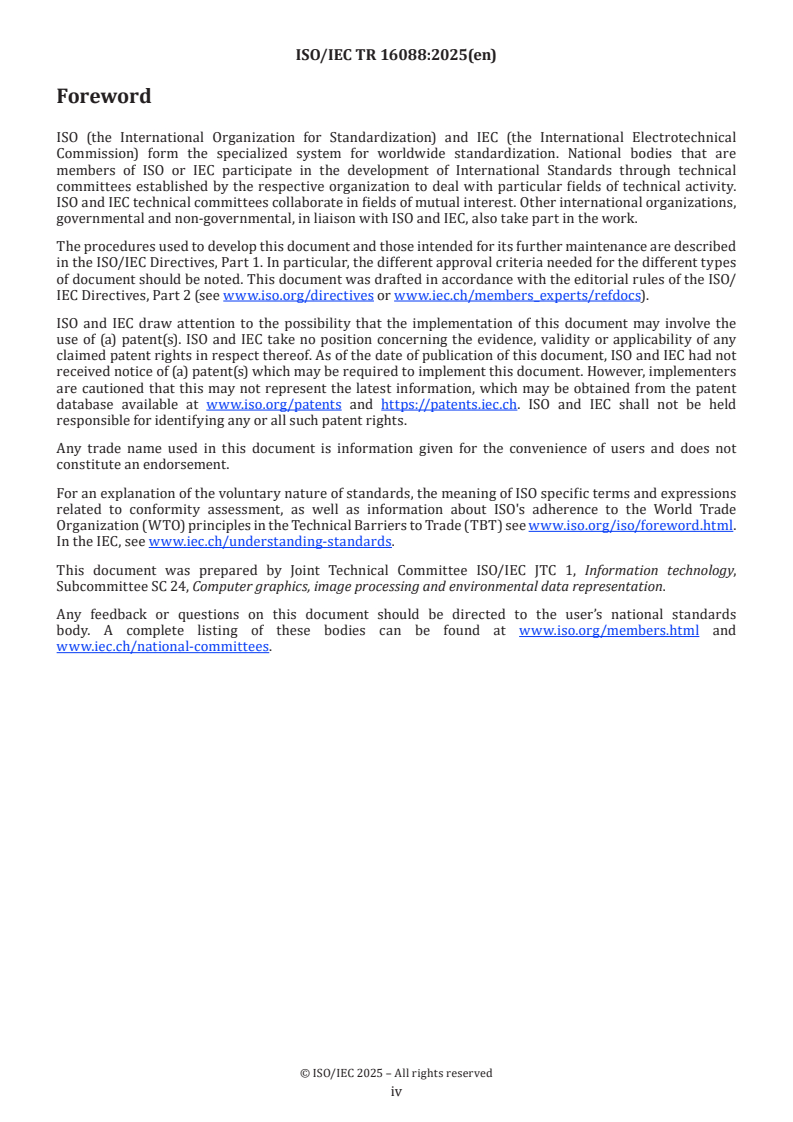

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 24, Computer graphics, image processing and environmental data representation.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
© ISO/IEC 2025 – All rights reserved
iv
Introduction
Mixed and augmented reality (MAR) refers to the contents and the underlying technology that can overlay/
insert (or augment) and display information over/in the real world. The augmentation means certain
“virtual” or “artificial” information is spatially registered in a proper position and orientation within
the 3D real world. To realize this “spatial” registration, the MAR system includes a functionality, called
“positioning”, that can recognize and understand the real world in 3D, track the position and orientation of
the user so that the mixed reality scene can be composed and displayed to the user in the right way. When
the positioning function implementation is based primarily on the camera images, it is referred to as the
“Visual” positioning system (VPS).
This document outlines the basic reference MAR architecture, especially the detailed system components for
the VPS and relevant informational constructs. Such a reference model can serve as a basis for discovering
opportunities for future MAR standardization.
The focus is given to the system components and information constructs for image (visual) based scene
recognition and tracking. The document also provides definitions for terms as related to pertaining domains,
and illustrate typical VPS/MAR use cases. Note that the detailed processes or algorithms for different
system components are out of scope.
© ISO/IEC 2025 – All rights reserved
v
Technical Report ISO/IEC TR 16088:2025(en)
Information technology — Computer graphics, image
processing and environmental representation — Constructs
for visual positioning systems in mixed and augmented
reality (MAR)
1 Scope
This document specifies the concept of visual positioning system (VPS) in the context of mixed and
augmented reality (MAR) and describes a reference model for it in terms of the essential system components
and information constructs.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 18039:2019, Information technology — Computer graphics, image processing and environmental data
representation — Mixed and augmented reality (MAR) reference model
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 18039 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1.1
image based map
map which is created from only images without pre-existing map
3.1.2
image registered map
map annotated with camera images taken from key locations in it
3.1.3
pre-existing metric map
conventional geographical map in standard distance unit and scale
3.1.4
positioning system
mixed and augmented reality subsystem that tracks the location and orientation of the user/client or specific
designated object
© ISO/IEC 2025 – All rights reserved
3.2 Abbreviated terms
AI artificial intelligence
GNSS global navigational satellite system
IMU inertial measurement unit
MAR mixed and augmented reality
SfM structure from motion
SLAM simultaneous localization and mapping
VPS visual positioning system
4 Concept: Visual positioning system in mixed and augmented reality
4.1 VPS and MR
MAR refers to a spatially coordinated combination of media/information components that represent on the
one hand the real world and its objects, and on the other those that are virtual, synthetic and computer
generated. In other words, MAR content overlays/inserts (or augments) and displays information over/in
the real world (see Figure 1). The term overlaying in effect means certain “virtual” or “artificial” information
(e.g. a virtual sofa in Figure 1) is spatially registered and placed in a proper position and orientation in the
real space (e.g. corner of the living room in Figure 1) with respect to the user’s view and display. This makes
MAR distinguished from e.g. a close captioned system where certain information is overlaid on a designated
location on the display screen, and n
...
