ISO 3008-1:2019

Fire resistance tests - Door and shutter assemblies - Part 1: General requirements

This document, used in conjunction with ISO 834-1, specifies a method for determining the fire resistance of door and shutter assemblies designed primarily for installation within openings incorporated in vertical separating elements, such as - hinged and pivoted doors, - horizontally sliding and vertically sliding doors, including articulated sliding doors and sectional doors, - steel single-skin folding shutters (un-insulated), - other sliding, folding doors, - tilting doors, - rolling shutter doors, - removable panels in walls, - self-closing openable windows. Requirements are included for mechanical pre-conditioning, e.g. "cycling" of door and shutter assemblies prior to the conduct of the fire-resistance test.

Essais de résistance au feu — Assemblages de portes et volets — Partie 1: Exigences générales

General Information

• Status: Published
• Publication Date: 29-Jan-2019
• ICS: 13.220.50 - Fire-resistance of building materials and elements
• ICS: 91.060.50 - Doors and windows
• Technical Committee: ISO/TC 92/SC 2 - Fire containment
• Drafting Committee: ISO/TC 92/SC 2/WG 3 - Fire resistance tests for doors, shutters and glazed elements
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 02-Jun-2025
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 3008-1:2025 - Fire resistance tests - Door and shutter assemblies - Part 1: General requirements
• Effective Date: 04-Nov-2023
• Revises: ISO 3008:2007 - Fire-resistance tests - Door and shutter assemblies
• Effective Date: 16-Sep-2017

Overview

ISO 3008-1:2019 - Fire resistance tests - Door and shutter assemblies - Part 1: General requirements specifies a standardized method for determining the fire resistance of door and shutter assemblies intended for vertical separating elements. Used together with ISO 834-1, this document covers a wide range of assemblies (hinged, sliding, rolling, folding, tilting doors, removable panels, air transfer grilles and self-closing openable windows) and sets out general test arrangements, safety and conditioning requirements for reliable fire-resistance testing.

Key Topics

• Scope and terminology: Definitions relevant to door and shutter assemblies, associated and supporting constructions, gaps, cills and door hardware.
• Test specimen requirements: Guidance on specimen size, number, design, construction and verification prior to testing.
• Installation and supporting construction: How to mount test specimens, detailing associated and supporting constructions, restraints, and allowable gaps to reproduce realistic boundary conditions.
• Conditioning / pre-conditioning: Requirements for moisture conditioning and mechanical pre-conditioning (e.g., “cycling” of doors/shutters) to simulate in-service wear before fire testing.
• Instrumentation and measurements:
  • Furnace and unexposed-face temperature measurement (thermocouples and locations)
  • Maximum temperature monitoring and door frame temperature
  • Pressure and heat-flux measurement methods
  • Deflection and retention-force measurement procedures
• Test procedure and performance criteria: Procedures for conducting the fire-resistance test and evaluating performance against integrity and insulation criteria.
• Reporting and field of direct application: Required test report content and guidance on applicability of test results to timber, steel, glazed constructions and fixings/hardware.
• Safety: Explicit cautions about hazards from smoke, gases and mechanical risks during fire testing.

Applications and Users

ISO 3008-1:2019 is designed for practical use by:

• Fire test laboratories performing standardized fire-resistance testing of doors and shutters
• Manufacturers of fire doors, rolling shutters and associated hardware for product development and certification
• Fire safety engineers and consultants evaluating building compartmentation and egress performance
• Specifiers, architects and building code officials referencing validated fire performance for compliance and acceptance
• Third-party certification bodies assessing conformity with fire-resistance ratings

Using ISO 3008-1 ensures reproducible, comparable test results for fire-resistance performance of door and shutter assemblies, supporting regulatory compliance and safer building design.

Related standards

• ISO 834-1 - Fire-resistance tests - Elements of building construction - Part 1: General requirements (used in conjunction)
• ISO 834-8 - Specific requirements for non-loadbearing vertical separating elements
• ISO 3009 - Fire-resistance tests - Glazed elements
• ISO 13943 - Fire safety - Vocabulary

Keywords: ISO 3008-1:2019, fire resistance tests, door and shutter assemblies, fire-resistance testing, mechanical pre-conditioning, ISO 834-1.

Standards Content (Sample)

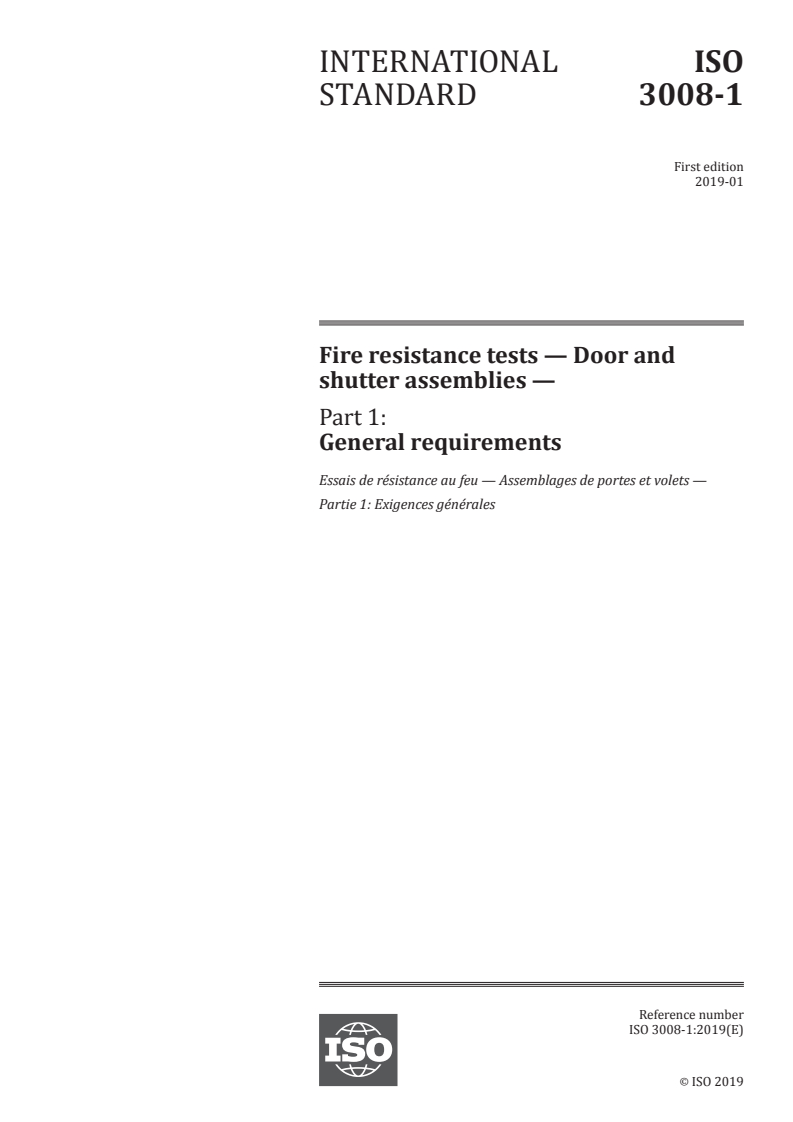

INTERNATIONAL ISO
STANDARD 3008-1
First edition
2019-01
Fire resistance tests — Door and
shutter assemblies —
Part 1:
General requirements
Essais de résistance au feu — Assemblages de portes et volets —
Partie 1: Exigences générales
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

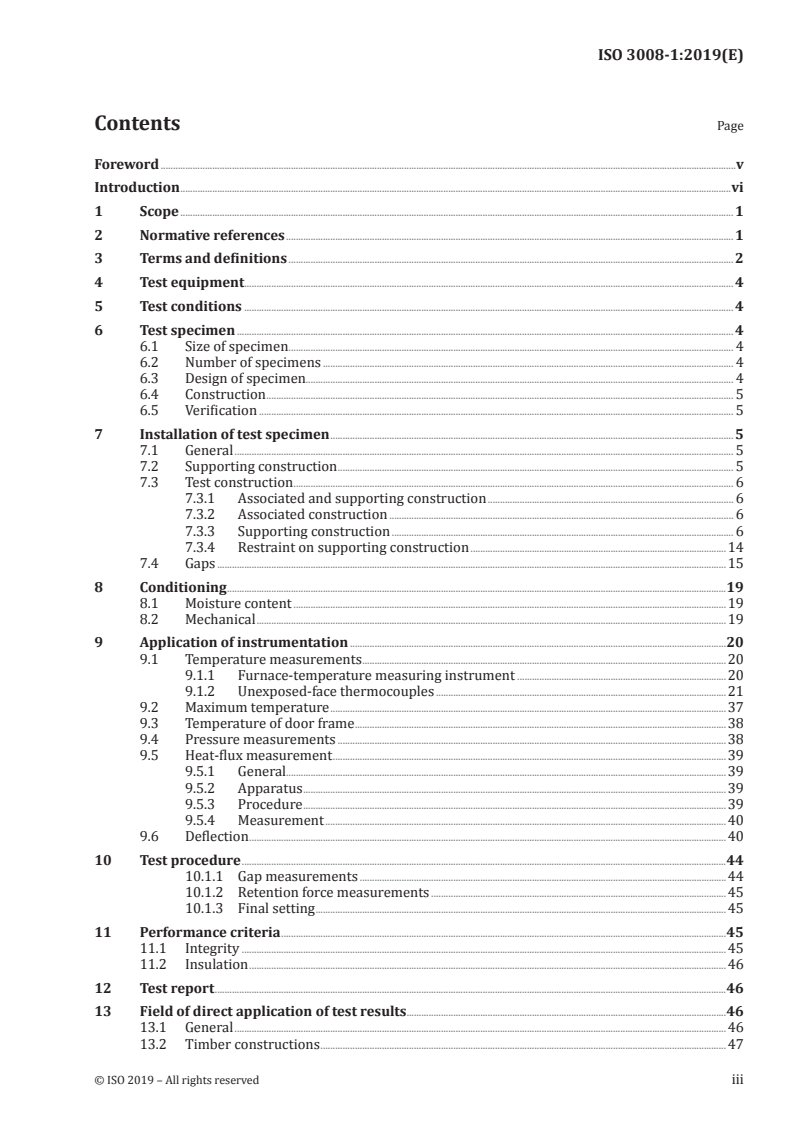

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Test equipment. 4
5 Test conditions . 4
6 Test specimen . 4
6.1 Size of specimen . 4
6.2 Number of specimens . 4
6.3 Design of specimen. 4
6.4 Construction . 5
6.5 Verification . 5
7 Installation of test specimen . 5
7.1 General . 5
7.2 Supporting construction . 5
7.3 Test construction . 6
7.3.1 Associated and supporting construction . 6
7.3.2 Associated construction . 6
7.3.3 Supporting construction . 6
7.3.4 Restraint on supporting construction .14
7.4 Gaps .15
8 Conditioning .19
8.1 Moisture content .19
8.2 Mechanical .19
9 Application of instrumentation .20
9.1 Temperature measurements .20
9.1.1 Furnace-temperature measuring instrument .20
9.1.2 Unexposed-face thermocouples .21
9.2 Maximum temperature .37
9.3 Temperature of door frame .38
9.4 Pressure measurements .38
9.5 Heat-flux measurement .39
9.5.1 General.39
9.5.2 Apparatus .39
9.5.3 Procedure .39
9.5.4 Measurement .40
9.6 Deflection .40
10 Test procedure .44
10.1.1 Gap measurements .44
10.1.2 Retention force measurements .45
10.1.3 Final setting .45
11 Performance criteria .45
11.1 Integrity .45
11.2 Insulation .46
12 Test report .46
13 Field of direct application of test results.46
13.1 General .46
13.2 Timber constructions .47
13.3 Steel constructions .47
13.4 Glazed constructions .47

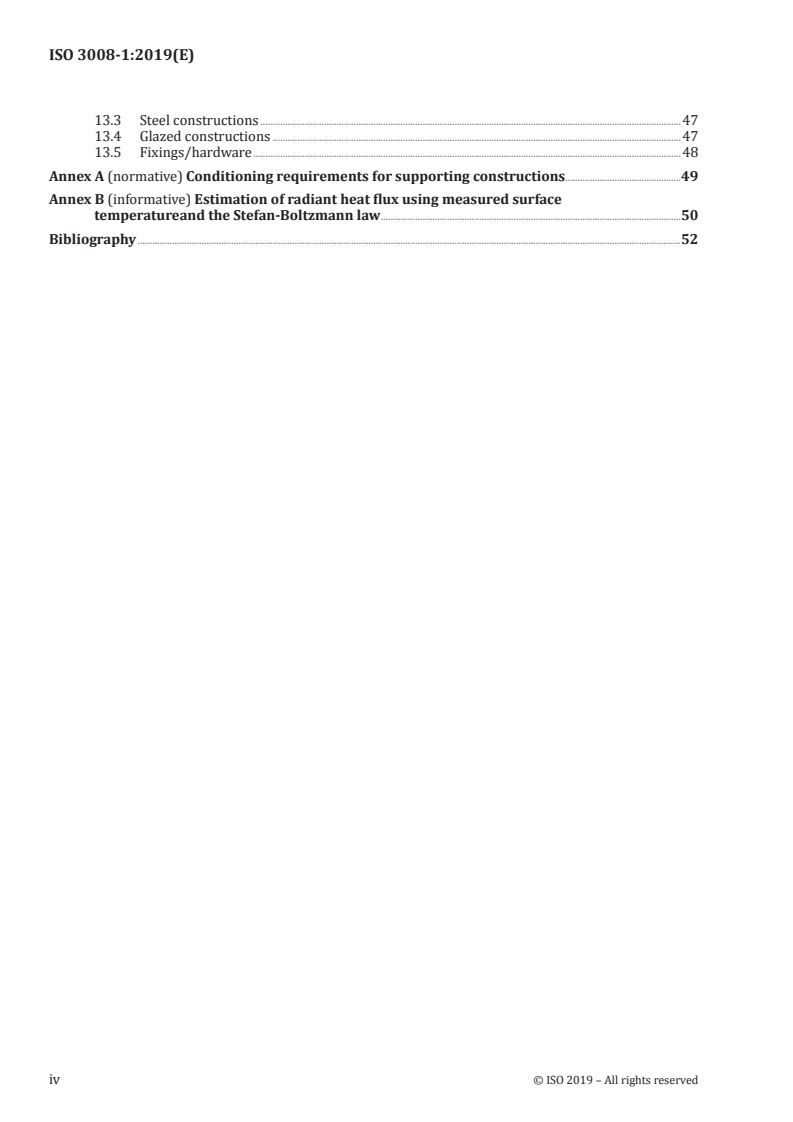

13.5 Fixings/hardware .48
Annex A (normative) Conditioning requirements for supporting constructions .49
Annex B (informative) Estimation of radiant heat flux using measured surface
temperatureand the Stefan-Boltzmann law .50
Bibliography .52
iv © ISO 2019 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee SC 2, Fire
containment.
This first edition of ISO 3008-1 cancels and replaces the third edition of ISO 3008:2007, which has been
technically revised.
The following main changes have been made:
— air transfer grilles and openable windows are included in the Scope;
— revisions have been made to locations and measuring techniques for unexposed surface temperature
measurements and preconditioning requirements for door and shutter assemblies.
A list of all the parts in the ISO 3008 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
Introduction
This document contains specific requirements for fire-resistance testing which are unique to the
elements of building construction described as doors and shutters. The requirements for these doors
and shutters are intended to be applied in appropriate conjunction with the detailed and general
requirements contained in ISO 834-1.
vi © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 3008-1:2019(E)
Fire resistance tests — Door and shutter assemblies —
Part 1:
General requirements
CAUTION — The attention of all persons concerned with managing and carrying out this
fire-resistance test is drawn to the fact that fire testing may be hazardous and that there
is a possibility that toxic and/or harmful smoke and gases may be evolved during the test.
Mechanical and operational hazards can also arise during the construction of the test elements
or structures, their testing and disposal of test residues.
An assessment of all potential hazards and risks to health shall be made and safety precautions
shall be identified and provided. Written safety instructions shall be issued. Appropriate
training shall be given to relevant personnel. Laboratory personnel shall ensure that they follow
written safety instructions at all times.
1 Scope
This document, used in conjunction with ISO 834-1, specifies a method for determining the fire
resistance of door and shutter assemblies designed primarily for installation within openings
incorporated in vertical separating elements, such as
— hinged and pivoted doors,
— horizontally sliding and vertically sliding doors, including articulated sliding doors and sectional
doors,
— steel single-skin folding shutters (un-insulated),
— other sliding, folding doors,
— tilting doors,
— rolling shutter doors,
— removable panels in walls,
— self-closing openable windows.
Requirements are included for mechanical pre-conditioning, e.g. “cycling” of door and shutter
assemblies prior to the conduct of the fire-resistance test.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 834-1, Fire-resistance tests — Elements of building construction — Part 1: General requirements
ISO 834-8, Fire-resistance tests — Elements of building construction — Part 8: Specific requirements for
non-loadbearing vertical separating elements
ISO 3009, Fire-resistance tests — Elements of building construction — Glazed elements
ISO 13943, Fire safety — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 834-1, ISO 13943 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
associated supporting construction
specific construction in which the door or shutter assembly is installed as intended for use in practice
and which is used to close off the furnace and provide the levels of restraint and thermal heat transfer
to be experienced in normal use
3.2
cill
member that spans between two frame jambs at the base, which might or might not be set into the floor,
and that remains visible
3.3
door assembly
door set
complete assembly, consisting of pivoted, hinged or sliding door leaves or leaf including any frame that
is provided for closing of permanent openings in separating elements
Note 1 to entry: This includes all side panels, vision panels or transom panels. The assembly shall be complete
with grilles and louvers together with the door hardware and any fire seals, smoke seals, draught seals, acoustic
seals that are used in the assembly.
3.4
door hardware
items such as hinges, handles, locks, panic bar(s), escutcheons, letter plates, kick plates, sliding gear,
closing devices, electrical components, wiring, etc., that are, or can be, used in the door or shutter
assembly
3.5
double action
action of a fire door leaf that opens in both directions
3.6
fire seal
seal fitted to the frame or to the leaf edge for the purpose of extending the period of integrity of the
assembly
3.7
floor
upper surface of the horizontal element on which the door or shutter assembly is mounted and which
extends from the exposed face to the unexposed face of the assembly
3.8
flush over panel
fixed panel fitted within the head and jambs above the door leaf without a transom fitted
3.9
gap
clearance between two nominally adjacent surfaces and/or edges, e.g. between the edge of a leaf and
the frame or face of the leaf and the frame stop
2 © ISO 2019 – All rights reserved

3.10
primary leaf
leaf of a multi-leaved door assembly that is the largest and/or has the handle attached to it as the
preferred leaf for general operation
Note 1 to entry: If the leaves of a multi-leaved door are the same size and if the handles (or other hardware such
as push plates) are fitted to all leaves, then no primary leaf exists for that door assembly.
3.11
shutter assembly
complete assembly consisting of rolling, folded or sliding curtains, including guides, rollers, tracks, and
operating mechanism and housings
3.12
side panel
fixed panel that is incorporated to one side of a door that is part of the test specimen
3.13
single action
action of a fire door leaf that opens in only one direction
3.14
smoke seal
seal fitted to the frame or to the leaf edge for the purpose of restricting the flow of smoke or hot gases
3.15
standard supporting construction
form of construction used to close off the furnace and to support the door or shutter assembly being
evaluated and which has a quantifiable influence on both the thermal heat transfer between the
construction and the test specimen and provides known resistance to thermal distortion
3.16
test specimen
door or shutter assembly that is installed in a standard or associated supporting construction to allow
its evaluation
3.17
through connection
fixing or internal spacer that either penetrates through the door or shutter construction from one face
to another or directly connects the faces one to the other
3.18
transom
member that extends across the frame from jamb to jamb at the head of the leaf and that creates an
aperture to house a transom panel
3.19
transom panel
fixed panel that is incorporated above a door and is bounded on all edges by either the frame head, the
jambs or the transom
3.20
air transfer grille
product which is installed in an aperture in a door or shutter assembly that allows a path for air
movement through the door or shutter assembly
3.21
reactive air transfer grille
air transfer grille that resists the spread of fire and hot gases by the activation of its intumescent
components
3.22
mechanical air transfer grille
air transfer grille that resists the spread of fire and hot gases by the closure of blades, plates or slats
which are normally in the open position.
4 Test equipment
4.1 The test equipment shall be as specified in ISO 834-1. The furnace used shall be related to the
orientation of the test specimen. For vertical specimens, the wall testing furnace is suitable, for horizontal
specimens, the floor furnace is applicable.
4.2 Measurement of heat flux from the unexposed surface of specimens shall be made as described in 9.5.
4.3 Where it is not possible to apply disc thermocouples as specified in ISO 834-1 to the unexposed
surface of the test specimen, due to the size or shape of the specimen, or when the dimension of the
element to be measured is less than 12 mm, such as when testing air transfer grilles, an alternate
thermocouple and pad may be used. Instead of copper discs, twisted thermocouple wire may be used.
The wire leads of the thermocouple are to have an immersion under the pad and be in contact with
the unexposed surface for not less than 25 mm. The hot junction of the thermocouple is to be placed
approximately under the centre of the pad. The pad is permitted to be deformed in order to be held
firmly against the surface of the element being measured and is to fit closely about the thermocouple.
When the blade of the air transfer grille or other parts of the test specimen is less than the specified
pad size, reduce the pad to match the element being measured. The pad length shall be as specified and
parallel to the test specimen length. If the modified thermocouple pad cannot be placed on the contour
of the surface, then no thermocouple is required at that location. The wires for the thermocouple in the
length covered by the pad shall not be heavier than 0,82 mm and are to be electrically insulated with
heat-resistant and moisture-resistant coatings.
5 Test conditions
Test conditions require the application of the heating and pressure conditions of the standard test as
defined in ISO 834-1.
6 Test specimen
6.1 Size of specimen
The test specimen and all its components shall be full size. When this is restricted by the size of the
opening of the furnace (which is normally 3 m × 3 m), the door or shutter assembly or the self-closing
openable window shall be tested at the maximum size possible and the fire resistance of the full sized
assembly shall be derived by an extended application analysis. However, the minimum dimensions of
supporting construction shall not be less than that prescribed in 7.3.1.
6.2 Number of specimens
The number of test specimens shall be selected as described in ISO 834-1. If testing is carried out from
one side only, it shall be stated in the test report whether this is due to the symmetrical nature of the
door or because it is required to resist fire from one side only.
6.3 Design of specimen
6.3.1 The design of the test specimen and the choice of supporting construction shall take into account
the requirements of 7.3 if the widest field of direct application is to be achieved.
4 © ISO 2019 – All rights reserved

6.3.2 Where the door or shutter assembly incorporates air transfer grilles or side, transom or flush
over panels, whether glazed or unglazed, these shall be tested as part of the door or shutter assembly.
The side panel shall always be on the latch side.
6.3.3 The test specimen shall be fully representative of the door or shutter assembly as intended for
use in practice, including any appropriate surface finishes and fittings that are an essential part of the
specimen and that can influence its behaviour in a test construction.
6.4 Construction
The test specimen shall be constructed as described in ISO 834-1.
6.5 Verification
6.5.1 The sponsor shall provide a specification to a level of detail sufficient to allow the laboratory
to conduct a detailed examination of the specimen before the test and to agree on the accuracy of the
information supplied. ISO 834-1 provides detailed guidance on verification of the test specimen.
6.5.2 When the method of construction precludes a detailed survey of the specimen without having
to permanently damage it, or if it is considered that it will subsequently be impossible to evaluate
construction details from a post-test examination, then one of two options shall be exercised by the
laboratory:
— either the laboratory shall oversee the manufacture of the door or shutter assembly(ies) subjected
to the test, or
— the sponsor shall, at the discretion of the laboratory, be requested to supply an additional assembly
or that part of the assembly that cannot be verified (e.g. a door leaf) in addition to the number
required for the testing. The laboratory shall then choose freely which of these shall be subjected to
the testing and which shall be used to verify the construction.
7 Installation of test specimen
7.1 General
7.1.1 The test specimen shall be installed as intended for use in practice, incorporating all hardware
and other items that can influence the performance of the specimen.
7.1.2 The test specimen shall be mounted in a supporting construction, the field of application of
which covers the type (see 7.3.1) in which it is intended for use. The design of the connection between
the test specimen and the supporting construction, including any fixings and materials used to make the
connection, shall be as intended for use in practice and shall be regarded as part of the test specimen.
7.1.3 The whole area of the test specimen, together with at least the minimum dimensions of the
supporting construction required by 7.3.1, shall be exposed to the heating conditions.
7.2 Supporting construction
The fire resistance of any supporting construction shall not be determined from a test in conjunction
with a test specimen and shall be at least commensurate with that anticipated for the test specimen.
7.3 Test construction
7.3.1 Associated and supporting construction
The space between the specimen and the frame shall be filled with either
— associated construction, or
— supporting construction.
There shall be a minimum zone, 200 mm wide, of supporting construction exposed within the furnace
each side and over the top of the aperture into which the test specimen is fixed. The thickness of the
supporting construction may be increased outside of the 200 mm zone. The test construction may
incorporate more than one test specimen providing that there is a minimum separation of 200 mm
between each specimen and between the specimens and the edge of the furnace.
7.3.2 Associated construction
When the test specimen is always installed in a specific, normally proprietary form of construction,
that is permanently associated with its intended use in practice, then the specimen shall be installed in
a sample of this associated construction.
7.3.3 Supporting construction
7.3.3.1 Where the test specimen is not permanently associated with a specific form of construction,
the area between the test specimen and the support frame shall be filled with a rigid or flexible standard
supporting construction as specified in ISO 834-8.
7.3.3.2 The choice of standard supporting construction shall reflect the range of intended use for
the door or shutter assembly. The rules governing the applicability of the chosen standard supporting
construction to other end use situations are given in Clause 13.
6 © ISO 2019 – All rights reserved

7.3.3.3 Figures 1 to 8 illustrate the use of supporting constructions in conjunction with the mounting
of specimens of different types.
Key
1 steel vertical “C” stud
2 12,5 mm plasterboard
3 screws at 300 mm fixing centres
Figure 1 — Example of a horizontal cross-section of a flexible standard supporting construction
Key
1 standard supporting construction (block wall)
2 door assembly (test specimen)
3 test frame
a
Key items 1 and 2 form the test construction.
Figure 2 — Example of door assembly in a rigid standard supporting construction
8 © ISO 2019 – All rights reserved

Key
1 standard or associated supporting construction
2 door assembly (test specimen)
3 test frame
4 free edge insulation
a
Key items 1 and 2 form the test construction.
Figure 3 — Example of a door assembly in flexible standard or associated supporting
construction
Dimensions in millimetres
Key
1 floor
2 standard supporting construction
3 associated supporting construction
4 free edge insulation
Figure 4 — Example of horizontal sections for mounting hinged door specimens
10 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
1 rigid non-combustible material
2 cill
Figure 5 — Examples for mounting hinged door specimens (vertical sections)
Dimensions in millimetres
a) Vertical section
b) Horizontal section
Key
1 supporting construction
2 floor, rigid non-combustible material
3 top of furnace
4 bottom of furnace
5 side of furnace
Figure 6 — Example of details for mounting sliding door specimens
12 © ISO 2019 – All rights reserved

Dimensions in millimetres
a) Vertical section
b) Horizontal section
Key
1 supporting construction
2 floor, rigid non-combustible material
3 top of furnace
Figure 7 — Example of details for mounting folding door specimens
Dimensions in millimetres
a) Vertical section
b) Horizontal section
Key
1 supporting construction
2 floor, rigid non-combustible material
Figure 8 — Example of details for mounting rolling-shutter specimens
7.3.4 Restraint on supporting construction
7.3.4.1 For flexible standard supporting constructions and all associated supporting constructions, the
partition or wall shall be erected so that it can distort freely perpendicular to the plane of the construction
along the vertical edges, i.e. there shall be a free edge at each end of the construction.
14 © ISO 2019 – All rights reserved

7.3.4.2 For rigid standard supporting constructions, the wall shall be erected with no freedom to
distort perpendicular to the plane of the wall along the vertical edges, i.e. it shall be fixed to the inside of
the test frame as in normal practice.
7.3.4.3 If the bottom of the test specimen is at floor level in practice, then, at the bottom of the
aperture, continuity of the floor shall be simulated using a solid, non-combustible rigid material that has
a minimum width of 200 mm on each side of the assembly, i.e. from the exposed to the unexposed face.
The furnace floor can be regarded as part of the simulation of the floor continuity provided that it is level
with the base of the assembly. If a cill detail is incorporated as part of the door or shutter assembly, this
shall be incorporated within, or placed on top of, the extension. If the test specimen is not to be used at
floor level, and provided that it has a frame detail to all four sides of the aperture, then it may be mounted
simply within the thickness of the wall, without the extension.
If the specimen is tested in conjunction with a non-combustible floor, then this might not represent the
situation when the specimen is installed above a combustible flooring such as timber or carpet.
7.4 Gaps
7.4.1 The adjustment of the door leaf, leaves or shutter and gaps shall be within the tolerances of the
design values stipulated by the sponsor. These shall be representative of those used as intended for use
in practice, so that appropriate clearances exist, e.g. between the fixed and moveable components.
7.4.2 In order to generate the widest field of direct application, the gaps shall be set between the
middle value and the maximum value within the range of gaps given by the sponsor.
NOTE A door or shutter assembly with a specified range of gaps from 3 mm to 8 mm is tested with gaps set
between 5,5 mm and 8 mm.
Examples of gap measurement are given in Figures 9 to 12.
Figure 9 — Examples of clearance gap measurements for hinged and pivoted doors —
Vertical sections
16 © ISO 2019 – All rights reserved

a) Single doors
b) Meeting edge for double doors
Figure 10 — Examples of gap measurements for hinged and pivoted doors
a) Single doors
b) Roller shutters
c) Sliding folding doors
Key
1 junction between two leaves
Figure 11 — Examples of gap measurements — Horizontal sections
18 © ISO 2019 – All rights reserved

a) Sliding doors b) Roller shutters c) Sliding folding doors
Figure 12 — Examples of gap measurements — Vertical sections
8 Conditioning
8.1 Moisture content
The test specimen shall be conditioned in accordance with ISO 834-1. Requirements for conditioning of
supporting constructions are given in Annex A.
8.2 Mechanical
Some product standards exist for certification purposes that require mechanical testing before the
start of the fire test. Durability requirements are given in the relevant product standard. Where a
relevant product standard does not exist, the following preconditioning shall be performed before the
start of the fire test exposure:
The testing laboratory shall be satisfied that the door leaf, panel or shutter curtain operates
satisfactorily. A series of 50 opening/closing cycles of at least 75° for side-hung doorsets and at least
300 mm for sliding doorsets and shutters shall precede the fire test.
9 Application of instrumentation
9.1 Temperature measurements
9.1.1 Furnace-temperature measuring instrument
Plate thermometers shall be provided in accordance with ISO 834-1. They shall be evenly distributed
over a vertical plane 100 mm from the nearest plane of the test construction; see Figure 13. There shall
be at least one plate thermometer for every 1,5 m of the exposed surface area of the test construction,
subject to a minimum of four. The plate thermometer shall be oriented so that “side A” faces the back
wall of the furnace.
Dimensions in millimetres
Key
1 plane of furnace
2 nearest plane of test construction
3 test frame
Figure 13 — Example of positions of furnace-temperature measuring devices (plate
thermometer) — Horizontal section
20 © ISO 2019 – All rights reserved

9.1.2 Unexposed-face thermocouples
9.1.2.1 Where no evaluation against the insulation criteria is required of the door or shutter assembly,
or any part thereof, no temperature measurements are required.
9.1.2.2 Where it is required to evaluate compliance with the insulation criteria, thermocouples of the
type specified in ISO 834-1 shall be attached to the unexposed face for the purpose of obtaining the average
and maximum surface temperatures. Where it is not possible to apply disc thermocouples as specified in
ISO 834-1 to the unexposed surface of the test specimen, due to the size or shape of the specimen, such
as when testing air transfer grilles, an alternate thermocouple and pad shall be used as described in 4.3.
Examples of the location of unexposed-face thermocouples are shown in Figures 14 to 27.
Dimensions in millimetres
Key
thermocouple for maximum temperature rise
thermocouple for average temperature rise
3 door frame
4 door leaf
Figure 14 — Example of locations of unexposed-face thermocouples —
General arrangement — Single-leaf door, 1 200 mm
22 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
3 primary door leaf
4 secondary door leaf
5 door frame
Figure 15 — Example of locations of unexposed-face thermocouples — General arrangement —
Double-leaf door assembly: primary leaf, 1 200 mm wide; secondary leaf, <1 200 mm
Dimensions in millimetres
Key
thermocouples for maximum temperature rise
2 clear opening
NOTE Although thermocouples are shown on both sides of the door face in this illustration to show proximity
to the frame, they are placed only on the non-fire-exposed face.
Figure 16 — Example of locations of unexposed-face thermocouples at periphery
of hinged and pivoted doors (detail)
24 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
thermocouples for maximum temperature rise
NOTE Although thermocouples are shown on both sides of the door face in this illustration to show proximity
to the meeting edge, they are placed only on the non-fire-exposed face.
Figure 17 — Example of location of unexposed-face thermocouples on meeting edges —
Hinged or pivoted double-leaf doors
Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
3 clear opening
4 door track
Figure 18 — Example of locations of unexposed-face thermocouples —
Single-leaf sliding door
26 © ISO 2019 – All rights reserved

Dimensions in millimetres
a) Section view
b) Plan view
c) Plan view
Key
thermocouples for maximum temperature rise
NOTE Although thermocouples are shown on both sides of the door face in this illustration to show proximity
to the frame, they are placed only on the non-fire-exposed face.
Figure 19 — Example of locations of unexposed-face thermocouples —
Single-leaf sliding door
Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
3 clear opening
4 shutter curtain
NOTE Although thermocouples are shown on both sides of the door face in this illustration to show proximity
to the frame, they are placed only on the non-fire-exposed face.
Figure 20 — Example of locations of unexposed-face thermocouples, general arrangement —
Roller shutter
28 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
1 to 6 thermocouples for maximum temperature rise
Thermocouples 1, 3, 4 and 6 are always required. Thermocouples 2 and 5 are not required if the leaf width is less
than 1 200 mm.
Figure 21 — Reduction in number of unexposed-face thermocouples with decreasing leaf width
Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
W width of panel
H height of panel
Figure 22 — Examples of locations of thermocouples in discrete areas, e.g. side panels, over
panels and transom panels, assuming that there is only one of each type in the specimen
30 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
Figure 23 — Example of locations of thermocouples on unexposed face —
Example of double-leaf door with hinged flush over panel (largest leaf width <1 200 mm)
Dimensions in millimetres
Key
thermocouples for maximum temperature rise
thermocouples for average temperature rise
Figure 24 — Example of locations of thermocouples on unexposed face —
Example for double-leaf door with transom panel (largest leaf width <1 200 mm)
32 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
thermocouples for maximum temperature rise
2 transom frame width for application of thermocouples
3 transom panel
4 door leaf
NOTE 1 Although thermocouples are shown on both sides of the door face in this illustration to show proximity
to the frame, they are placed only on the non-fire-exposed face.
NOTE 2 See 9.3 for additional guidance on single doors.
Figure 25 — Example of locations of thermocouples on an unexposed face —
Example for double-leaf door with transom panel (largest leaf width <1 200 mm)
Dimensions in millimetres
Key
thermocouples 9 to 20 for maximum temperature rise
thermocouples 1 to 8 for both average and maximum temperature rise
NOTE 1 Average temperature of glazed area is the average of thermocouples 6 and 7.
NOTE 2 Maximum temperature of glazed area is the maximum of thermocouples 6 to 10.
NOTE 3 Average temperature of door leaf is the average of thermocouples 1 to 5.
NOTE 4 Maximum temperature of door leaf is the
...
