ISO 14127:2024

Carbon-fibre-reinforced composites — Determination of the resin, fibre and void contents

This document specifies methods for calculating the resin, fibre and void contents of a carbon-fibre-reinforced composite from the densities of the resin, the fibre and the composite and the mass of fibre in the composite (using method A), for calculating the fibre content from the thickness of the composite (using method B), and for calculating the fibre content by volume and areal void content through microscopic analysis (using method C). Method A specifies three different resin removal procedures for the determination of the mass of fibre in the composite (viz a combustion procedure, a procedure by digestion in nitric acid and a procedure by digestion in a mixture of sulfuric acid and hydrogen peroxide). The selection of the procedure to be used is made by considering the combustibility of the resin used in the composite, its ability to decompose and the type of resin concerned. Method A is only of limited applicability when filled resins are present that can prevent complete dissolution and/or combustibility of the resin. Method B (thickness measurement method) is only applicable to composites moulded from prepregs of known fibre mass per unit area. Method C (microscopic method) is only applicable to carbon-fibre-reinforced composites with unidirectional, orthogonal and multidirectional laminates. It can also be used as reference for determination of the areal void content and fibre volume content of aramid- or glass-fibre-reinforced plastics, but is not applicable to fabric reinforced composites.

Composites renforcés de fibres de carbone — Détermination des teneurs en résine, en fibre et en vide

L'ISO 14127:2008 spécifie des méthodes d'essai pour calculer les teneurs en résine, en fibre et en vide à partir des masses volumiques de la résine, de la fibre et du composite, ainsi qu'à partir de la masse de fibres dans le composite (méthode A), et pour calculer la teneur en fibre à partir de l'épaisseur du composite (méthode B). La méthode A spécifie trois différents modes opératoires d'élimination de la résine pour déterminer la masse de fibres dans le composite (c'est-à-dire un mode opératoire par combustion, un mode opératoire de digestion par acide nitrique et un mode opératoire de digestion par mélange d'acide sulfurique et d'eau oxygénée). La sélection du mode opératoire à utiliser est faite en tenant compte de la combustibilité, de la capacité de décomposition et du type de résine utilisée dans le composite. Il est à noter que la méthode A est d'application limitée en présence de résines chargées pouvant avoir un effet sur la solubilité complète et/ou sur la combustibilité de la résine. La méthode B (méthode de mesurage de l'épaisseur) s'applique uniquement aux composites moulés à partir de préimprégnés dont on connaît la masse surfacique de fibre.

General Information

• Status: Published
• Publication Date: 07-Jul-2024
• ICS: 83.120 - Reinforced plastics
• Technical Committee: ISO/TC 61/SC 13 - Composites and reinforcement fibres
• Drafting Committee: ISO/TC 61/SC 13 - Composites and reinforcement fibres
• Current Stage: 6060 - International Standard published
• Start Date: 08-Jul-2024
• Due Date: 05-Oct-2024
• Completion Date: 08-Jul-2024

Relations

• Revises: ISO 14127:2008 - Carbon-fibre-reinforced composites — Determination of the resin, fibre and void contents
• Effective Date: 06-Jun-2022

Standards Content (Sample)

International
Standard
ISO 14127
Second edition
Carbon-fibre-reinforced
2024-07
composites — Determination of the
resin, fibre and void contents
Composites renforcés de fibres de carbone — Détermination des
teneurs en résine, en fibre et en vide
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

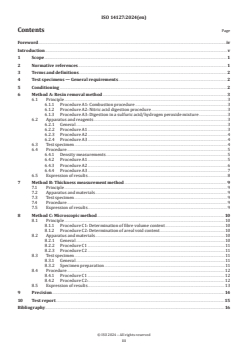

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Test specimens — General requirements . 2
5 Conditioning . 2
6 Method A: Resin removal method .3
6.1 Principle .3
6.1.1 Procedure A1: Combustion procedure .3
6.1.2 Procedure A2: Nitric acid digestion procedure .3
6.1.3 Procedure A3: Digestion in a sulfuric acid/hydrogen peroxide mixture .3
6.2 Apparatus and reagents .3
6.2.1 General .3
6.2.2 Procedure A1 .3
6.2.3 Procedure A2 .4
6.2.4 Procedure A3 .4
6.3 Test specimen .4
6.4 Procedure .5
6.4.1 Density measurements .5
6.4.2 Procedure A1 .5
6.4.3 Procedure A2 .6
6.4.4 Procedure A3 .7
6.5 Expression of results . .8
7 Method B: Thickness measurement method .9
7.1 Principle .9
7.2 Apparatus and materials .9
7.3 Test specimen .9
7.4 Procedure .9
7.5 Expression of results .9
8 Method C: Microscopic method . 10
8.1 Principle .10
8.1.1 Procedure C1: Determination of fibre volume content .10
8.1.2 Procedure C2: Determination of areal void content .10
8.2 Apparatus and materials .10
8.2.1 General .10
8.2.2 Procedure C1 .11
8.2.3 Procedure C2 .11
8.3 Test specimen .11
8.3.1 General .11
8.3.2 Specimen preparation .11
8.4 Procedure . 12
8.4.1 Procedure C1 . 12
8.4.2 Procedure C2: . 12
8.5 Expression of results . . 13
9 Precision . 14
10 Test report .15
Bibliography .16

iii

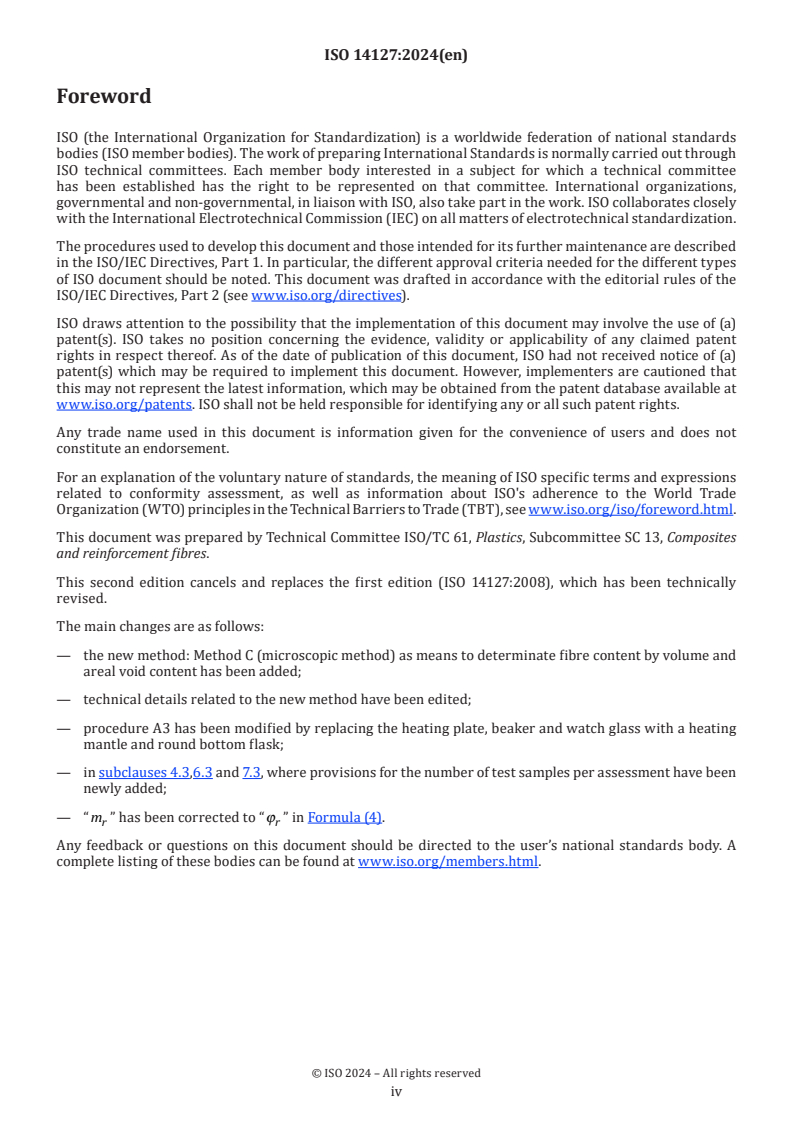

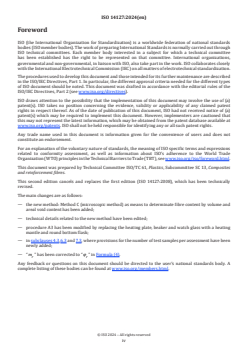

Foreword
