INTERNATIONAL ISO/IEC
STANDARD 24661
First edition
2023-05
Information technology — User
interfaces — Full duplex speech
interaction
Technologies de l'information — Interfaces utilisateur — Interaction
vocale en duplex intégral
Reference number
ISO/IEC 24661:2023(E)
© ISO/IEC 2023
---------------------- Page: 1 ----------------------
ISO/IEC 24661:2023(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 24661:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms.3
5 Overview of FDX speech interaction UI . 3
5.1 Functional view . 3
5.2 Main characteristics . 4
5.2.1 General . 4
5.2.2 Continuous . 5
5.2.3 Natural. 5
5.2.4 Adaptable . 5
5.2.5 Initiative . 5
5.2.6 Context-based . 5
5.2.7 Knowledge-based . 5
5.2.8 Model-based . 5
6 Reference architecture of FDX speech interaction UI . 5
6.1 General . 5
6.2 Interaction tasks . 6
6.3 Functional components . 7
6.3.1 General . 7
6.3.2 Acoustic acquisition . . . 7
6.3.3 Speech recognition . 9
6.3.4 Conversation processing . 10
6.3.5 Speech synthesis .12
6.4 Resources .12
6.4.1 Knowledge base .12
6.4.2 Data resources . 13
6.5 Computing infrastructures .13
6.5.1 Cloud and edge computing . 13
6.5.2 AI and ML systems . 14
6.5.3 Network . 14
7 Functional requirements and recommendations of FDX speech interaction UI .14
7.1 General requirements and recommendations . 14
7.2 Interaction task requirements and recommendations . 15
7.3 Functional component requirements and recommendations . 15
7.3.1 Acoustic acquisition requirements and recommendations .15
7.3.2 Speech recognition requirements and recommendations .15
7.3.3 Conversation processing requirements and recommendations . 16
7.3.4 Speech synthesis requirements and recommendations . 17
7.4 Resource requirements and recommendations . 17
7.5 Computing infrastructures requirements and recommendations . 17
8 Processes of FDX speech interaction UI .18
8.1 General . 18
8.2 Engineering process . 18
8.3 Interaction process . 19
9 Security and privacy considerations of FDX speech interaction UI .20
Annex A (informative) Example scenarios of FDX speech interaction .21
Bibliography .23
iii
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/IEC 24661:2023(E)

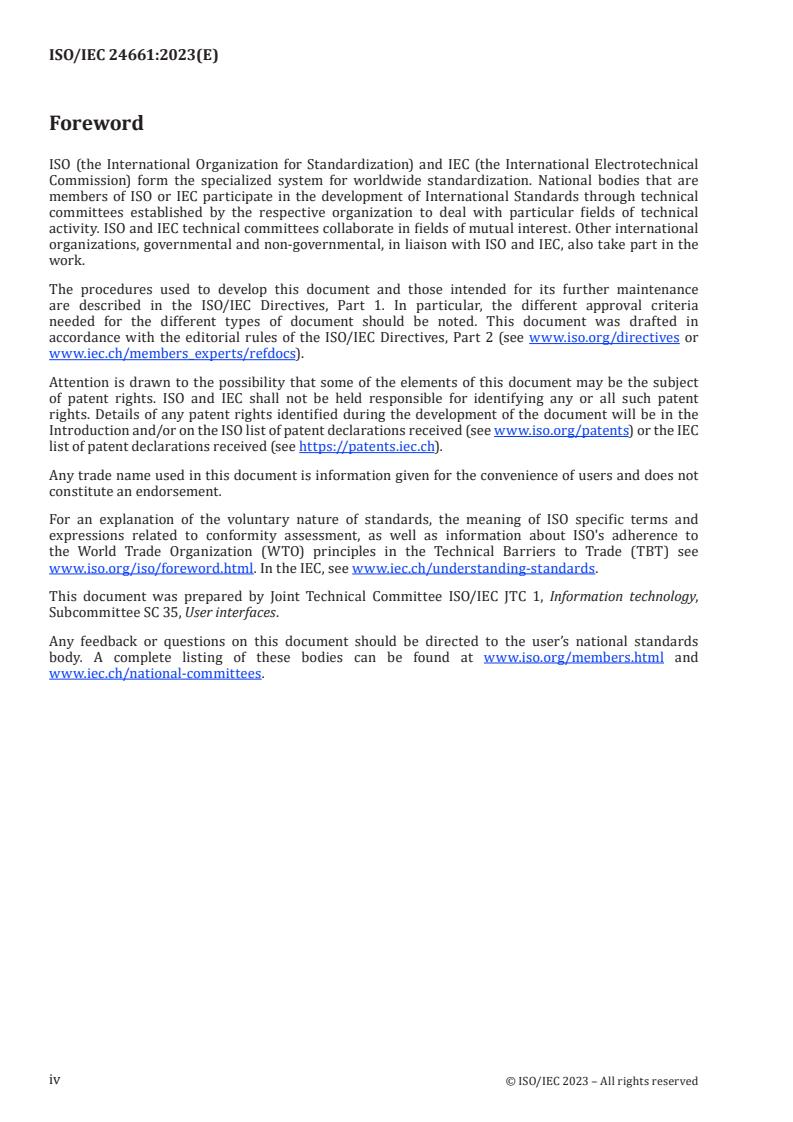

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance
are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria
needed for the different types of document should be noted. This document was drafted in
accordance with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC
list of patent declarations received (see https://patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 35, User interfaces.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
iv
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 24661:2023(E)
Introduction
Speech interaction user interface (UI) has been widely used for industrial applications and daily
services. For example, it can be applied to automatic customer service in the telecommunication
industry as a part of an interactive voice response system. From a communication point of view, a speech
interaction UI can be recognized as a duplex-based system which enables bidirectional communication.
In the early stages, speech interaction UIs for conventional dialogue systems were generally half duplex
(HDX) based and were designed to be in a turn-oriented work mode. As the requirements of human-
machine interaction have grown in complexity and diversity, the turn-oriented speech interaction UI
has become unfit for a conversation between humans and machines.
Currently, full duplex (FDX) techniques are used in the speech interaction UI to support session-
oriented conversations between humans and machines. The most significant differences between turn-
oriented and session-oriented speech interactions are continuity and naturalness, which have made
great progress in various applications of speech interaction UI, e.g. smart speaker, chatbot, intelligent
assistant.
In recent years, a growing number of FDX speech interaction UIs have been studied and developed.
This requires a common understanding of general models and specifications through standardization
activities. In response to the standardization needs both from industry and academia, this document
intends to provide a reference architecture, functional components and technical requirements of FDX
speech interaction UI. For the benefit of system designers, developers, service providers and ultimate
users, this document is composed of the following clauses:
— Clause 5 describes a functional view and general features of FDX speech interaction;
— Clause 6 provides a reference architecture and functional layers of FDX speech interaction UI;
— Clause 7 specifies the functional requirements regarding each functional layer;
— Clause 8 discusses the processes of FDX speech interaction UI;
— Clause 9 describes security and privacy considerations related to FDX speech interaction UI.
v
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24661:2023(E)
Information technology — User interfaces — Full duplex
speech interaction
1 Scope
This document specifies user interfaces (UIs) designed for full duplex (FDX) speech interaction. It also
specifies the FDX speech interaction model, features, functional components and requirements, thus
providing a framework to support natural conversational interfaces between humans and machines. It
also provides privacy considerations for applying FDX speech interaction.
This document is applicable to UIs for speech interaction and communication protocols for setting up a
session-oriented FDX interaction between humans and machines.
This document does not define the speech interaction engines themselves or specify the details of
specific engines, devices and approaches.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
duplex
method of communication capable of transmitting data in both directions
[SOURCE: ISO 21007-1:2005, 2.18]
3.2
full duplex
FDX
method of communication capable of transmitting data in both directions at the same time
[SOURCE: ISO 21007-1:2005, 2.25]
3.3
functional unit
entity of hardware or software, or both, capable of accomplishing a specified purpose
Note 1 to entry: Functional units can be integrated as a system.
[SOURCE: ISO/IEC 2382:2015, 2123022, modified — Note 1 to entry has been changed and Note 2 and
3 to entry have been removed.]
1
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 24661:2023(E)
3.4
half duplex
HDX
method of communication capable of transmitting data in both directions but only in one direction at
any time
[SOURCE: ISO 21007-1:2005, 2.27]
3.5
microphone array
system that is composed of multiple microphones with definite spatial topology, which samples and
filters the spatial characteristics of signals
3.6
speech interaction
activities of information transmission and communication between humans and a system through
speech
Note 1 to entry: A system can be seen as a combination of functional units (3.3).
3.7
speech recognition
automatic speech recognition
ASR
conversion, by a functional unit (3.3), of a speech signal to a representation of the content of the speech
Note 1 to entry: The content to be recognized can be expressed as a proper sequence of words or phonemes.
[SOURCE: ISO/IEC 2382:2015, 2120735, modified — Notes 2 to 4 to entry have been removed.]
3.8
speech synthesis
generation of speech from data through a mechanical method or electronic method
Note 1 to entry: Speech can be generated from text, image, video and audio. The process of conversion from text
to speech is the main approach in speech interaction (3.6).
Note 2 to entry: The result of speech synthesis is also called "artificial speech" in order to differ from natural
speech through human vocal organs.
3.9
voice activity detection
VAD
process of analysis and identification of the starting and ending points of valid speech in a continuous
speech stream
3.10
voice trigger
process in a system in the audio stream monitoring state, which switches to command word recognition,
continuous speech recognition and other processing states after the detection of certain features or
events
2
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 24661:2023(E)
4 Symbols and abbreviated terms
AAC advanced audio coding
AC3 audio coding 3
AI artificial intelligence
ASR automatic speech recognition
EVRC enhanced variable rate codec
FDX full duplex
HDX half duplex
ML machine learning
MP3 MPEG audio layer 3
NER named entity recognition
NLG natural language generation
NLP natural language processing
NLU natural language understanding
SNR signal-to-noise ratio
TTS text-to-speech
UI user interface
VAD voice activity detection
WAV waveform audio file format
WMA Windows media audio
5 Overview of FDX speech interaction UI
5.1 Functional view
Speech interaction UI can function as a communication channel between a human and a system. A
user can apply a speech interaction UI to have a conversation with a system, while a system can also
respond to the user with synthesized speech through the speech interaction UI. Such bidirectional
communication can be viewed as a duplex speech interaction. With different data transmission
sequences, there are two types of duplex speech interactions, including HDX mode and FDX mode.
In the case of HDX speech interaction, both a human and a system can communicate with each other in
one direction at a time. An HDX speech interaction is characterized as a turn-oriented dialogue, where
a system will return to the default state after it finishes one round of dialogue. In addition, the system
cannot collect speech signals during the process of its speech broadcasting.
NOTE 1 A typical HDX-based communication system is a two-way radio such as walkie-talkie. A walkie-talkie
uses a "push-to-talk" button to control the signal transmission channel. A user can turn on the transmitter and
turn off the receiver by using the button, so that the voice from remote users cannot be heard.
3
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/IEC 24661:2023(E)
In contrast to HDX speech interaction, FDX speech interaction allows a human and a system to
communicate with each other simultaneously. An FDX speech interaction is characterized as a session-
oriented conversation, where a system keeps the conversation continuous and ensures that both user
and system are in the same context after two or more rounds of dialogue. In addition, the user and the
system can speak within the same interval of time. Example scenarios of FDX speech interaction are
shown in Annex A.
NOTE 2 A typical FDX-based communication system is the telephone, where both local and remote users can
speak and be heard at the same time.
From the functional point of view, a system can keep receiving the input data from the user and
providing feedback to them through an FDX speech interaction UI during the whole human-machine
conversation. Figure 1 depicts a functional view of FDX speech interaction UI that includes inputs,
processing and outputs.
Figure 1 — Functional view of FDX speech interaction UI
This functional view provides a non-technical description of how an FDX speech interaction uses UI to
achieve its goal. Through the FDX speech interaction UI, a system can receive the input speech signals,
transcript the useful signals into the text, abstract the semantic information from transcription text,
make predictions and decisions regarding interaction tasks based on semantic information, and either
take actions based on the decisions or provide speech feedback to users as the outputs, or both. In
contrast to HDX mode, an FDX speech interaction is characterized by functions of continuous speech
acquisition by a system after it has been awoken once. Such function can be performed even when a
system is outputting synthesized speeches or other actions. This is considered to be a conversational
interruption, i.e. technically, both uplink speech stream and downlink speech stream may take place at
the same time. An FDX speech interaction UI shall have abilities to execute the conversation processing
whenever there are speech interruptions and to generate updated outputs based on the new inputs.
During this process, scenarios and contexts can be used to define the semantic range of the conversation.
A conversation can be cross scenarios and contexts. General knowledge and big data are required for
the conversation processing. Computational approaches such as cloud computing and AI computational
approaches should be introduced in the FDX speech interaction UI. Such functional components are
applied to performing intelligent conversation processing, which is a distinguishing characteristic of
FDX mode compared with HDX mode
5.2 Main characteristics
5.2.1 General
To demonstrate the breadth of FDX speech interaction UI, some common characteristics are described
in 5.2.2 to 5.2.8. In the aggregate, these characteristics are intrinsic to many FDX speech interaction
UIs, which will differentiate FDX speech interaction UIs from non-FDX speech interaction UIs. The list
4
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 24661:2023(E)
of characteristics of FDX speech interaction UIs is not exhaustive, but broadly conceptual and not tied
to a specific methodology or architecture.
5.2.2 Continuous
Through an FDX speech interaction UI, a user can keep talking as continuous inputs, while the system
can keep receiving and processing the input data.
5.2.3 Natural
An FDX speech interaction UI can support a natural conversation between a human and a system. A
system only needs to be awoken once at the beginning of the conversation. A user can talk at will and
freely interrupt the system at any time during a conversation.
5.2.4 Adaptable
An FDX speech interaction UI can adapt to different changes in itself and the environment in which it
is deployed. It can be used in different vertical industries and applied to cross-domain applications and
tasks by feeding on dynamic data and updating status based on new data.
5.2.5 Initiative
An FDX speech interaction UI can exhibit dynamic predictions of conversational intention based on
external data sources, control the pace of conversation, and actively provide feedback to guide the user
for further steps.
5.2.6 Context-based
An FDX speech interaction UI builds its core functions on context, e.g. semantic understanding,
historical information inheritance, data analysis and dialogue generation.
5.2.7 Knowledge-based
An FDX speech interaction UI can use knowledge from multiple sourced information, including
contextual information, historical information, retrieval information and user information. This
information can be stored in the general knowledge and database.
NOTE Retrieval information refers to information that is searched from other resources, e.g. internet
website, database and knowledge base.
5.2.8 Model-based
An FDX speech interaction UI operates with various degrees of utilization of an acoustic model and
language model. With the rapid development of emerging technologies, some FDX speech interaction
UI are also embedded with cloud frameworks and AI-related models, e.g. convolutional neural network
(CNN), recurrent neural network (RNN) and long short-term memory (LSTM) network.
6 Reference architecture of FDX speech interaction UI
6.1 General
Based on the functional view described in Figure 1, a reference architecture of FDX speech interaction
UI is represented in terms of functional layers depicted in Figure 2. It provides a common understanding
of function units and their relationships, which are technically necessary to construct an FDX speech
interaction UI. While this reference architecture is not limited to a specific base technology (e.g. FDX
speech interaction UI built with neural networks), it does not encompass every type of dynamic FDX
speech interaction UI.
5
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC 24661:2023(E)
Figure 2 — Reference architecture of FDX speech interaction UI
This reference architecture consists of multiple layers and components. Such layers can be described in
terms of the inputs, the outputs and the intents or functions. Each layer and its components can be used
and tested separately. All layers can be integrated together to enable users to have conversations with
the system and help to fulfil their requirements.
NOTE The system can be various smart devices, e.g. smart phone, smart home appliance, intelligent assistant
app and customer service robot.
Speech data streams are transmitted through two physical channels. The upstream channel transmits
speech data from the user to system. The downstream channel transmits speech data from the system
to the user. Both channels shall be able to work at the same time without mutual-interference, thus to
provide the system with the capability of “hearing” while “talking”.
6.2 Interaction tasks
Interaction tasks refer to some specific purposes and requirements that need to be satisfied using an
FDX speech interaction UI. One or more tasks can be defined for FDX speech interaction UI.
Each interaction task can be logically designed using traditional software engineering approaches,
which involves defining the scenarios, the environmental features, the input and output, the function
units, the database and the data flow.
Interaction tasks differ in the types of scenarios and the user requirements. Examples of interaction
tasks can include, e.g. phone call, navigation, home service, chatting. While the scenarios should be
defined in a general design, methods to resolve the specific problems should be addressed during
the construction process. For example, using FDX speech interaction for a task of navigation, while
a car driving scenario should be defined in the top-level design process, the point of interest (POI),
6
© ISO/IEC 2023 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 24661:2023(E)
the key words and the statement of specific enquiry of road and route should be addressed during the
construction process.
6.3 Functional components
6.3.1 General
In FDX speech interaction UI, interaction interface is a functional combination of “hearing”,
“recognizing”, “understanding” and “talking”. An interaction interface is created using functional
components including acoustic processing, speech recognition, conversation processing and speech
synthesis. Figure 3 shows an example procedural relationship of the main functional components
referring to the input and the output of FDX speech interaction.
Figure 3 — Example procedural relationship of the main functional components of FDX speech
interaction UI
While the components described in the 6.3.2 to 6.3.5 play core functions in an FDX speech interaction UI,
additional functions can be added or modified to fulfil the user’s extra requirements. Although there are
temporal relations in the process of speech interaction between these components, some components
can interact with others at the same time. For example, the semantic voice activity detection (VAD) and
the irrelevant content rejection in speech recognition also use the NLU and the semant
...
DRAFT INTERNATIONAL STANDARD
ISO/IEC DIS 24661
ISO/IEC JTC 1/SC 35 Secretariat: AFNOR
Voting begins on: Voting terminates on:
2022-04-20 2022-07-13
Information technology — User interfaces — Full duplex
speech interaction
ICS: 35.240.20
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
This document is circulated as received from the committee secretariat.
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/IEC DIS 24661:2022(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. © ISO/IEC 2022
---------------------- Page: 1 ----------------------
ISO/IEC DIS 24661:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC DIS 24661:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms.2
5 Overview of FDX speech interaction UI . 3
5.1 Functional view . 3
5.2 Main characteristics . 4
5.2.1 General . 4
5.2.2 Continuous . 4
5.2.3 Natural. 5
5.2.4 Adaptable . 5
5.2.5 Initiative . 5
5.2.6 Context-based . 5
5.2.7 Knowledge-based . 5
5.2.8 Model-based . 5
6 Reference architecture of FDX speech interaction UI . 5
6.1 General . 5
6.2 Interaction tasks . 6
6.3 Functional components . 7
6.3.1 General . 7
6.3.2 Acoustic acquisition . . . 7
6.3.3 Speech recognition . 9
6.3.4 Conversation processing . 10
6.3.5 Speech synthesis .12
6.4 Resources .12
6.4.1 Knowledge base .12
6.4.2 Data resources . 13
6.5 Computing infrastructures .13
6.5.1 Cloud and edge computing . 13
6.5.2 AI and ML systems . 14
6.5.3 Network . 14
7 Functional requirements of FDX speech interaction UI.14
7.1 General requirements . 14
7.2 Interaction tasks requirements. 14
7.3 Functional components requirements . 15
7.3.1 Acoustic acquisition requirements . 15
7.3.2 Speech recognition requirements . 15
7.3.3 Conversation processing requirements . 16
7.3.4 Speech synthesis requirements . 16
7.4 Resources requirements . 17
7.5 Computing infrastructures requirements . 17
8 Processes of FDX speech interaction UI .17
8.1 General . 17
8.2 Engineering process . 17
8.3 Interaction process . 18
9 Security and privacy considerations of FDX speech interaction UI .20
Annex A (informative) Example scenarios of FDX speech interaction .21
Bibliography .23
iii
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/IEC DIS 24661:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 35, User interfaces.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC DIS 24661:2022(E)
Introduction
Speech interaction user interface has been widely used for industrial applications and daily services.
For example, it can be applied to automatic customer service in the telecommunication industry as a
part of interactive voice response system. From the view of communication, a speech interaction user
interface can be recognized as a duplex based system which enables bidirectional communication. In
early stage, speech interaction user interfaces for conventional dialogue system were generally half
duplex based and were designed to be turn–oriented work mode. As the growing complexity and
diversity of requirements of human-machine interaction, the turn–oriented speech interaction user
interface has become unfit for a conversation between human and machine.
Nowadays, full duplex (FDX) techniques are used in the speech interaction user interface to support
session–oriented conversation between human and machine. The most differences between turn-
oriented and session-oriented speech interaction are continuity and naturalness, which make great
progress in various applications of speech interaction user interface, such as smart speaker, chatbot,
intelligent assistant, etc.
In recent years, a growing number of FDX speech interaction user interfaces have been studied
and developed. It requires a common understanding of general model and specifications through
standardization activities. In response to the standardization needs both from industry and academia,
this document intends to provide a reference architecture, functional components and technical
requirements of FDX speech interaction user interface. For the benefit of system designers, developers,
service providers and ultimate users, this document is composed of the following clauses:
— Clause 5 describes functional view and general features of FDX speech interaction,
— Clause 6 provides a reference architecture and functional layers of FDX speech interaction user
interface,
— Clause 7 specifies the functional requirements regarding each functional layer,
— Clause 8 discusses the processes of FDX speech interaction user interface,
— Clause 9 describes security and privacy considerations related to FDX speech interaction user
interface.
This document is not intended to specify the very details of specific engines, devices and approaches.
v
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/IEC DIS 24661:2022(E)
Information technology — User interfaces — Full duplex
speech interaction
1 Scope
This document specifies user interfaces designed for full duplex speech interaction. It also specifies
the full duplex speech interaction model, features, functional components and requirements, thus
providing a framework to support natural conversational interfaces between human and machine. It
also provides privacy considerations for applying full duplex speech interaction.
This document is applicable to user interfaces for speech interaction and communication protocols for
setting up a session–oriented full duplex interactions between human and machine. This document is
not applicable to defining the speech interaction engines themselves.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
duplex
method of communication capable of transmitting data in both directions
[SOURCE: ISO 21007-1:2005, 2.18]
3.2
full duplex
method of communication capable of transmitting data in both directions at the same time
[SOURCE: ISO 21007-1:2005, 2.25]
3.3
functional unit
entity of hardware or software, or both, capable of accomplishing a specified purpose
Note 1 to entry: Functional units can be integrated as a system.
[SOURCE: ISO/IEC 2382:2015, 2123022, modified - Note 1 to entry has been changed and Note 2 and 3
to entry have been removed.]
3.4
half duplex
method of communication capable of transmitting data in both directions but only in one direction at
any time
[SOURCE: ISO 21007-1:2005, 2.27]
1
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC DIS 24661:2022(E)
3.5
microphone array
system that is composed of multiple microphones with definite spatial topology, which samples and
filters the spatial characteristics of signals
3.6
speech interaction
activities of information transmission and communication between human and system through speech
Note 1 to entry: A system can be seen as combination of functional units.
3.7
speech recognition
automatic speech recognition
conversion, by a functional unit, of a speech signal to a representation of the content of the speech
Note 1 to entry: The content to be recognized can be expressed as a proper sequence of words or phonemes.
[SOURCE: ISO/IEC 2382:2015, 2120735, modified - Note 2 to 4 to entry have been removed and admitted
terms have been added.]
3.8
speech synthesis
generation of speech from data through mechanical method or electronic method
Note 1 to entry: Speech can be generated from text, image, video and audio. The process of conversion from text
to speech is the main approach in speech interaction.
Note 2 to entry: The result of speech synthesis is also called artificial speech in order to differ from the natural
speech through human vocal organ.
3.9
voice activity detection
process of analysis and identification of the starting and ending points of valid speech in continuous
speech stream
3.10
voice trigger
speech wake-up
process that system, in the state of audio stream monitoring, switches to command word recognition,
continuous speech recognition and other processing state after the detection of certain features or
events
4 Symbols and abbreviated terms
AAC advanced audio coding
AC3 audio coding 3
AI artificial intelligence
ASR automatic speech recognition
EVRC enhanced variable rate codec
FDX full duplex
HDX half duplex
ML machine learning
2
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC DIS 24661:2022(E)
MP3 MPEG audio layer 3
NER named entity recognition
NLG natural language generation
NLP natural language processing
NLU natural language understanding
SNR signal-to-noise ratio
TTS text-to-speech
UI user interface
VAD voice activity detection
WAV waveform audio file format
WMA Windows media audio
5 Overview of FDX speech interaction UI
5.1 Functional view
Speech interaction UI can function as a communication channel between human and system. A user
can apply a speech interaction UI to have a conversation with system, while system can also respond to
the user with synthesized speech through the speech interaction UI. Such bidirectional communication
can be viewed as a duplex speech interaction. With different data transmission sequence, there are two
types of duplex speech interaction including HDX mode and FDX mode.
In case of HDX speech interaction, both human and system can communicate with each other in one
direction at a time. An HDX speech interaction is characterized as a turn-oriented dialogue, where
system will return to the default state after it finishes one round of dialogue. Besides, the system cannot
collect speech signals during the process of its speech broadcasting.
NOTE 1 A typical HDX based communication system is the two-way radio such as walkie-talkie. A walkie-
talkie uses a "push-to-talk" button to control the signal transmission channel. A user can turn on the transmitter
and turn off the receiver by using the button, so that the voice from remote users cannot be heard.
In contrast to HDX speech interaction, FDX speech interaction allows human and system to communicate
with each other simultaneously. An FDX speech interaction is characterized as a session-oriented
conversation, where system keeps the conversation continuous and ensures that both user and system
are in the same context after two or more rounds of dialogue. In addition, the user and the system can
speak within the same interval of time.
NOTE 2 A typical FDX based communication system is the telephone, both local and remote users can speak
and be heard at the same time.
From the functional point of view, a system can keep receiving the input data from the user and
providing feedbacks to them through an FDX speech interaction UI during the whole human-machine
conversation. Figure 1 depicts a functional view of FDX speech interaction UI that includes inputs,
processing and outputs.
3
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/IEC DIS 24661:2022(E)
Figure 1 — Functional view of FDX speech interaction UI
This functional view provides a non-technical description of how an FDX speech interaction UI to
achieve its goal. Through the FDX speech interaction UI, a system can receive the input speech signals,
transcript the useful signals into the text, abstract the semantic information from transcription text,
make predictions and decisions regarding to interaction tasks based on semantic information, take
actions based on the decisions and/or provide speech feedbacks to users as the outputs. Different from
HDX mode, an FDX speech interaction is characterized with functions of continuous speech acquisition
by a system after it has been awoken once. Such function can be performed even when system is
outputting synthesized speeches or other actions. This is behaved as a conversational interruption,
which means, technically, both uplink speech stream and downlink speech stream may take place at
the same time. An FDX speech interaction UI shall have abilities to execute the conversation processing
whenever there are speech interruptions and to generate updated outputs based on the new inputs.
During this process, scenarios and contexts can be used to defined the sematic range of the conversation.
A conversation can be cross scenarios and contexts. General knowledge and big data are required for
the conversation processing. Computational approaches such as cloud computing and AI computational
approaches should be introduced in the FDX speech interaction UI. Such functional components are
applied to performing intelligent conversation processing which is a distinguished characteristic of
FDX mode compared with HDX mode
5.2 Main characteristics
5.2.1 General
To demonstrate the breadth of FDX speech interaction UI, some common characteristics are described
as follows. In the aggregate these characteristics are intrinsic to many FDX speech interaction UIs,
which will differentiate FDX speech interaction UIs from non-FDX speech interaction UIs. The list of
characteristics of FDX speech interaction UIs is not exhaustive, but broadly conceptual and not tied to a
specific methodology or architecture.
5.2.2 Continuous
Through an FDX speech interaction UI, a user can keep talking as continuous inputs, while system can
keep receiving and processing the input data.
4
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC DIS 24661:2022(E)
5.2.3 Natural
An FDX speech interaction UI can support a natural conversation between human and system. System
only needs to be awoken once at beginning of the conversation. A user can talk at will and freely
interrupt system at any time during a conversation.
5.2.4 Adaptable
An FDX speech interaction UI can adapt to different changes in itself and the environment in which it
is deployed. It can be used in different vertical industries and applied to cross-domain applications and
tasks by feeding on dynamic data and updating status based on new data.
5.2.5 Initiative
An FDX speech interaction UI can exhibit dynamic prediction of conversational intention based on
external data sources, control the pace of conversation, and actively provide feedbacks to guide the
user for the further steps.
5.2.6 Context-based
An FDX speech interaction UI builds its core functions, such as semantic understanding, historical
information inheritance, data analysis and dialogue generation, on the context.
5.2.7 Knowledge-based
An FDX speech interaction UI can use knowledge from multiple sourced information, including
contextual information, historical information, retrieval information and user information. This
information can be stored in the general knowledge and data base.
NOTE Retrieval information refers to those are searched from other resources such as internet website,
database and knowledge base etc.
5.2.8 Model-based
An FDX speech interaction UI operates with various degree of utilization of acoustic model and language
model. With a rapid development of emerging technologies, some FDX speech interaction UI are also
embedded with cloud frameworks and AI-related models, such as convolutional neural network (CNN),
recurrent neural network (RNN), long short-term memory (LSTM) network, etc.
6 Reference architecture of FDX speech interaction UI
6.1 General
Based on the functional view described in Figure 1, a reference architecture of FDX speech interaction
UI is represented in terms of functional layers depicted in Figure 2. It provides a common understanding
of function units and the relationships of themselves, which are technically necessary to construct an
FDX speech interaction UI. While this reference architecture is not limited to a specific base technology
(such as FDX speech interaction UI built with neural networks), it does not encompass every type of
dynamic FDX speech interaction UI.
5
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC DIS 24661:2022(E)
Figure 2 — Reference architecture of FDX speech interaction UI
This reference architecture consists of multiple layers and components. Such layers can be described in
terms of the inputs, the outputs and the intents or functions. Each layer and its components can be used
and tested separately. All layers can be integrated together to enable users to have conversations with
system and help to fulfil their requirements.
NOTE System can be various smart devices, such as smart phone, smart home appliance, intelligent assistant
app, customer service robot, etc.
Speech data streams are transmitted through two physical channels. The upstream channel transmits
speech data from the user to system. The downstream channel transmits speech data from system
to the user. Both channels shall be able to work at the same time without mutual-interference, thus to
provide system with the capability of “hearing” while “talking”.
6.2 Interaction tasks
Interaction tasks refer to some specific purposes and requirements need to be satisfied using an FDX
speech interaction UI. One or more tasks can be defined for FDX speech interaction UI.
Each interaction task can be logically designed using traditional software engineering approaches,
which involves defining the scenarios, the environment features, the input and output, the function
units, the data base and the data flow.
Interaction tasks differ in the types of scenarios and the user requirements. Examples of interaction
tasks can include phone call, navigation, home service, chatting, etc. While the scenarios should be
defined in a general designing, methods to resolve the specific problems should be addressed during
the construction process. For example, using FDX speech interaction for a task of navigation, while
a car driving scenario should be defined in the top-level design process, the point of interest (POI),
6
© ISO/IEC 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC DIS 24661:2022(E)
the key words and the statement of specific enquiry of road and route should be addressed during the
construction process.
6.3 Functional components
6.3.1 General
In FDX speech interaction UI, interaction interface is a fun
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
