Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules — Part 10: Syntax service directories (Syntax version number: 4, Syntax release number: 3)

This document specifies the syntax service directories of all parts in the ISO 9735 series.

Échange de données informatisé pour l'administration, le commerce et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application — Partie 10: Annuaires de syntaxe (numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 3)

General Information

Status
Published
Publication Date
18-Jul-2022
Current Stage
6060 - International Standard published
Due Date
30-Sep-2022
Completion Date
19-Jul-2022
Ref Project

RELATIONS

Buy Standard

Standard
ISO 9735-10:2022 - Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules — Part 10: Syntax service directories (Syntax version number: 4, Syntax release number: 3) Released:19. 07. 2022
English language
73 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

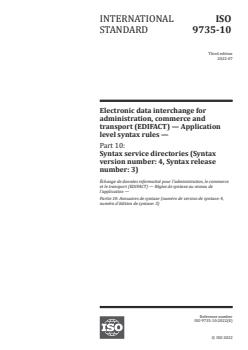

INTERNATIONAL ISO
STANDARD 9735-10
Third edition
2022-07
Electronic data interchange for
administration, commerce and
transport (EDIFACT) — Application
level syntax rules —
Part 10:
Syntax service directories (Syntax
version number: 4, Syntax release
number: 3)
Échange de données informatisé pour l'administration, le commerce
et le transport (EDIFACT) — Règles de syntaxe au niveau de
l'application —
Partie 10: Annuaires de syntaxe (numéro de version de syntaxe: 4,
numéro d'édition de syntaxe: 3)
Reference number
ISO 9735-10:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 9735-10:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 9735-10:2022(E)

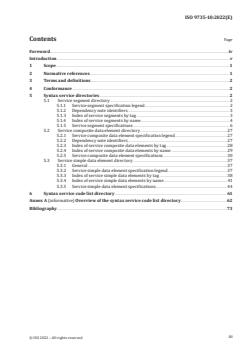

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction .................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 2

4 Conformance ............................................................................................................................................................................................................ 2

5 Syntax service directories .........................................................................................................................................................................2

5.1 Service segment directory ........................................................................................................................................................... 2

5.1.1 Service segment specification legend .............................................................................................................. 2

5.1.2 Dependency note identifiers .................................................................................................................................... 3

5.1.3 Index of service segments by tag ......................................................................................................................... 3

5.1.4 Index of service segments by name ................................................................................................................... 4

5.1.5 Service segment specifications ............................................................................................................................. 6

5.2 Service composite data element directory ................................................................................................................. 27

5.2.1 Service composite data element specification legend ................................................................... 27

5.2.2 Dependency note identifiers ................................................................................................................................. 27

5.2.3 Index of service composite data elements by tag ...............................................................................28

5.2.4 Index of service composite data elements by name .........................................................................29

5.2.5 Service composite data element specifications ...................................................................................30

5.3 Service simple data element directory .......................................................................................................................... 37

5.3.1 General ..................................................................................................................................................................................... 37

5.3.2 Service simple data element specification legend ............................................................................. 37

5.3.3 Index of service simple data elements by tag ........................................................................................38

5.3.4 Index of service simple data elements by name .................................................................................. 41

5.3.5 Service simple data element specifications.............................................................................................44

6 Syntax service code list directory ..................................................................................................................................................61

Annex A (informative) Overview of the syntax service code list directory ............................................................62

Bibliography .............................................................................................................................................................................................................................73

iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 9735-10:2022(E)

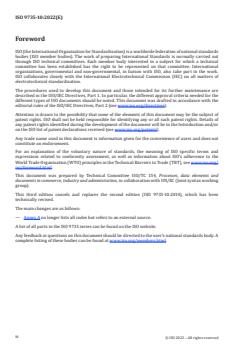

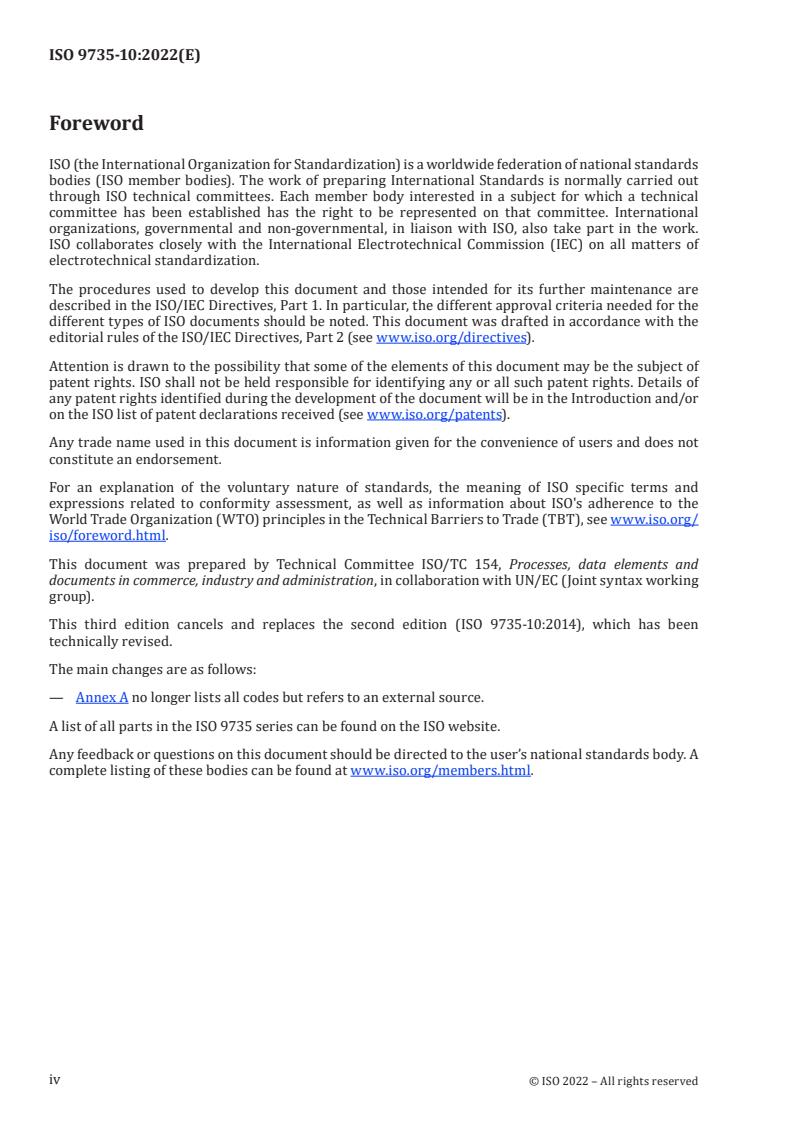

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/

iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 154, Processes, data elements and

documents in commerce, industry and administration, in collaboration with UN/EC (Joint syntax working

group).

This third edition cancels and replaces the second edition (ISO 9735-10:2014), which has been

technically revised.
The main changes are as follows:
— Annex A no longer lists all codes but refers to an external source.
A list of all parts in the ISO 9735 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 9735-10:2022(E)
Introduction

This document includes the rules at the application level for the structuring of data in the interchange of

electronic messages in an open environment, based on the requirements of either batch or interactive

processing. These rules have been agreed by the United Nations Economic Commission for Europe (UN/

ECE) as syntax rules for Electronic Data Interchange for Administration, Commerce and Transport

(EDIFACT) and are part of the United Nations Trade Data Interchange Directory (UNTDID) which also

includes both batch and interactive Message Design Guidelines.

This document can be used in any application; but messages using these rules can only be referred to

as EDIFACT messages if they comply with other guidelines, rules and directories in the UNTDID. For

UN/EDIFACT, batch messages comply with the message design rules for batch usage. These rules are

maintained in the UNTDID.

Communications specifications and protocols are outside the scope of this document.

© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 9735-10:2022(E)
Electronic data interchange for administration, commerce
and transport (EDIFACT) — Application level syntax
rules —
Part 10:
Syntax service directories (Syntax version number: 4,
Syntax release number: 3)
1 Scope

This document specifies the syntax service directories of all parts in the ISO 9735 series.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 9735-1, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 1: Syntax rules

common to all parts

ISO 9735-2, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 2: Syntax rules

specific to batch EDI

ISO 9735-3, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 3: Syntax rules

specific to interactive EDI

ISO 9735-4, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 4: Syntax and

service report message for batch EDI (message type — CONTRL)

ISO 9735-5, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 5: Security rules

for batch EDI (authenticity, integrity and non-repudiation of origin)

ISO 9735-6, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 6: Secure

authentication and acknowledgement message (message type - AUTACK)

ISO 9735-7, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 7: Security rules

for batch EDI (confidentiality)

ISO 9735-8, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 8: Associated

data in EDI
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 9735-10:2022(E)

ISO 9735-9, Electronic data interchange for administration, commerce and transport (EDIFACT) —

Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 9: Security key

and certificate management message (message type- KEYMAN)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 9735-1 apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Conformance

Whereas this document shall use a version number of “4” in the mandatory data element 0002 (Syntax

version number), and shall use a release number of “02” in the conditional data element 0076 (Syntax

release number), each of which appears in the segment UNB (Interchange header), interchanges

continuing to use the syntax defined in the earlier published versions shall use the following Syntax

version numbers, in order to differentiate them from each other and from this document:

— ISO 9735:1988: Syntax version number: 1
— ISO 9735:1988 (amended and reprinted in 1990): Syntax version number: 2
— ISO 9735:1988 and ISO 9735:1988/Amd 1:1992: Syntax version number: 3
— ISO 9735:1998 (all parts): Syntax version number: 4

Conformance to a standard means that all of its requirements, including all options, are supported. If

all options are not supported, any claim of conformance shall include a statement to identify options to

which conformance is claimed.

Data that is interchanged is in conformance if the structure and representation of the data conform to

the syntax rules specified in this document.

Devices supporting this document are in conformance when they can create and/or interpret the data

structured and represented in conformance with this document.

Conformance to this document shall include conformance to ISO 9735-1, ISO 9735-2, ISO 9735-3,

ISO 9735-4, ISO 9735-5, ISO 9735-6, ISO 9735-7, ISO 9735-8 and ISO 9735-9.

When identified in this document, provisions defined in related standards shall form part of the

conformance criteria.
5 Syntax service directories
5.1 Service segment directory
5.1.1 Service segment specification legend
Function The function of the segment

POS The sequential position number of the stand-alone data element or composite data element

in the segment table
© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 9735-10:2022(E)

TAG The tags for all service segments contained in the segment directory shall start with the

letter “U”.

The tags of all service composite data elements start with the letter “S”, and the tags of all

service simple data elements start with the figure “0”.
Name Name of a COMPOSITE DATA ELEMENT in capital letters
Name of a STAND-ALONE DATA ELEMENT in capital letters
Name of a component data element in small letters

S The status of the stand-alone data element or composite data element in the segment, or of

the components in the composite (where M = Mandatory and C = Conditional)

R The maximum number of occurrences of a stand-alone data element or composite data

element in the segment

Repr. Data value representation of the stand-alone data element or component data elements in

the composite:
a alphabetic characters
n numeric characters
an alphanumeric characters
a3 3 alphabetic characters, fixed length
n3 3 numeric characters, fixed length
an3 3 alphanumeric characters, fixed length
a..3 up to 3 alphabetic characters
n..3 up to 3 numeric characters
an..3 up to 3 alphanumeric characters
5.1.2 Dependency note identifiers
Code Name
D1 One and only one
D2 All or none
D3 One or more
D4 One or none
D5 If first, then all
D6 If first, then at least one more
D7 If first, then none of the others
See ISO 9735-1:2002, 11.5 for the definition of the dependency note identifiers.
5.1.3 Index of service segments by tag
Change indicators (compared with the previous edition of this document):
a plus sign (+) for an addition
an asterisk (*) for an amendment to structure
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 9735-10:2022(E)
a hash sign (#) for changes to names
a vertical bar (|) for changes to text for descriptions, notes and functions
a minus sign (-) for a deletion
an X sign (X) for marked for deletion
Tag Name
UCD Data element error indication
UCF Group response
UCI Interchange response
UCM Message/package response
UCS Segment error indication
UGH Anti-collision segment group header
UGT Anti-collision segment group trailer
UIB Interactive interchange header
UIH Interactive message header
UIR Interactive status
UIT Interactive message trailer
UIZ Interactive interchange trailer
UNB Interchange header
UNE Group trailer
UNG Group header
UNH Message header
UNO Object header
UNP Object trailer
UNS Section control
UNT Message trailer
UNZ Interchange trailer
USA Security algorithm
USB Secured data identification
USC Certificate
USD Data encryption header
USE Security message relation
USF Key management function
USH Security header
USL Security list status
USR Security result
UST Security trailer
USU Data encryption trailer
USX Security references
USY Security on references
5.1.4 Index of service segments by name
Change indicators (compared with the previous edition of this document):
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 9735-10:2022(E)
a plus sign (+) for an addition
an asterisk (*) for an amendment to structure
a hash sign (#) for changes to names
a vertical bar (|) for changes to text for descriptions, notes and functions
a minus sign (-) for a deletion
an X sign (X) for marked for deletion
Tag Name
UGH Anti-collision segment group header
UGT Anti-collision segment group trailer
USC Certificate
UCD Data element error indication
USD Data encryption header
USU Data encryption trailer
UNG Group header
UCF Group response
UNE Group trailer
UIB Interactive interchange header
UIZ Interactive interchange trailer
UIH Interactive message header
UIT Interactive message trailer
UIR Interactive status
UNB Interchange header
UCI Interchange response
UNZ Interchange trailer
USF Key management function
UNH Message header
UNT Message trailer
UCM Message/package response
UNO Object header
UNP Object trailer
UNS Section control
USB Secured data identification
USA Security algorithm
USH Security header
USL Security list status
USE Security message relation
USY Security on references
USX Security references
USR Security result
UST Security trailer
UCS Segment error indication
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 9735-10:2022(E)
5.1.5 Service segment specifications
Change indicators (compared with the previous edition of this document):
a plus sign (+) for an addition
an asterisk (*) for an amendment to structure
a hash sign (#) for changes to names
a vertical bar (|) for changes to text for descriptions, notes and functions
a minus sign (-) for a deletion
an X sign (X) for marked for deletion
Details of the service segments are specified in Table 1 to Table 34.
Table 1 — Details of UCD DATA ELEMENT ERROR INDICATION segment
UCD DATA ELEMENT ERROR INDICATION segment

Function: To identify an erroneous stand-alone, composite or component data element, and to identify the nature

of the error.
Pos TAG Name S R Repr. Notes/Remarks
010 0085 SYNTAX ERROR, CODED M 1 an..3
020 S011 DATA ELEMENT IDENTIFICATION M 1
0098 Erroneous data element position in segment M n..3
0104 Erroneous component data element position C n..3
0136 Erroneous data element occurrence C n..6
Table 2 — Details of UCF GROUP RESPONSE segment
UCF GROUP RESPONSE segment

Function: To identify a group in the subject interchange and to indicate acknowledgement or rejection (action

taken) of the UNG and UNE segments, and to identify any error related to these segments. It can also identify errors

related to the USA, USC, USD, USH, USR, UST, or USU security segments when they appear at the group level. De-

pending on the action code, it may also indicate the action taken on the messages and packages within that group.

Pos TAG Name S R Repr. Notes/Remarks
010 0048 GROUP REFERENCE NUMBER M 1 an..14
020 S006 APPLICATION SENDER IDENTIFICATION C 1 7
0040 Application sender identification M an..35
0007 Identification code qualifier C an..4
DEPENDENCY NOTES:
1 D5(060, 050) If first, then all.
2 D5(070, 060, 050) If first, then all.
3 D5(080, 060, 050, 090) If first, then all.
4 D5(090, 080, 060, 050) If first, then all.
OTHER REMARKS:

5 0135, may only contain the values UNG, UNE, USA, USC, USD, USH, USR, UST, or USU.

6 This data element shall be present when reporting an error in a security segment.

7 This data element shall be present if it was present in the subject interchange.

© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 9735-10:2022(E)
Table 2 (continued)
UCF GROUP RESPONSE segment

Function: To identify a group in the subject interchange and to indicate acknowledgement or rejection (action

taken) of the UNG and UNE segments, and to identify any error related to these segments. It can also identify errors

related to the USA, USC, USD, USH, USR, UST, or USU security segments when they appear at the group level. De-

pending on the action code, it may also indicate the action taken on the messages and packages within that group.

Pos TAG Name S R Repr. Notes/Remarks
030 S007 APPLICATION RECIPIENT IDENTIFICATION C 1 7
0044 Application recipient identification M an..35
0007 Identification code qualifier C an..4
040 0083 ACTION, CODED M 1 an..3
050 0085 SYNTAX ERROR, CODED C 1 an..3 1,2,3,4
060 0135 SERVICE SEGMENT TAG, CODED C 1 an..3 1,2,3,4,5
070 S011 DATA ELEMENT IDENTIFICATION C 1 2
0098 Erroneous data element position in segment M n..3
0104 Erroneous component data element position C n..3
0136 Erroneous data element occurrence C n..6
080 0534 SECURITY REFERENCE NUMBER C 1 an..14 3,4,6
090 0138 SECURITY SEGMENT POSITION C 1 n..6 3,4,6
DEPENDENCY NOTES:
1 D5(060, 050) If first, then all.
2 D5(070, 060, 050) If first, then all.
3 D5(080, 060, 050, 090) If first, then all.
4 D5(090, 080, 060, 050) If first, then all.
OTHER REMARKS:

5 0135, may only contain the values UNG, UNE, USA, USC, USD, USH, USR, UST, or USU.

6 This data element shall be present when reporting an error in a security segment.

7 This data element shall be present if it was present in the subject interchange.

Table 3 — Details of UCI INTERCHANGE RESPONSE segment:
UCI INTERCHANGE RESPONSE segment:

Function: To identify the subject interchange, to indicate interchange receipt, to indicate acknowledgement or

rejection (action taken) of the UNA, UNB and UNZ segments, and to identify any error related to these segments.

It can also identify errors related to the USA, USC, USD, USH, USR, UST, or USU security segments when they ap-

pear at the interchange level. Depending on the action code, it may also indicate the action taken on the groups,

messages, and packages within that interchange.
Pos TAG Name S R Repr. Notes/Remarks
010 0020 INTERCHANGE CONTROL REFERENCE M 1 an..14
020 S002 INTERCHANGE SENDER M 1
DEPENDENCY NOTES:
1 D5(060, 050) If first, then all.
2 D5(070, 060, 050) If first, then all.
3 D5(080, 060, 050, 090) If first, then all.
4 D5(090, 080, 060, 050) If first, then all.
OTHER REMARKS:

5 0135, may only contain the values UNA, UNB, UNZ, USA, USC, USD, USH, USR, UST, or USU.

6 This data element shall be present when reporting an error in a security segment.

© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 9735-10:2022(E)
Table 3 (continued)
UCI INTERCHANGE RESPONSE segment:

Function: To identify the subject interchange, to indicate interchange receipt, to indicate acknowledgement or

rejection (action taken) of the UNA, UNB and UNZ segments, and to identify any error related to these segments.

It can also identify errors related to the USA, USC, USD, USH, USR, UST, or USU security segments when they ap-

pear at the interchange level. Depending on the action code, it may also indicate the action taken on the groups,

messages, and packages within that interchange.
Pos TAG Name S R Repr. Notes/Remarks
0004 Interchange sender identification M an..35
0007 Identification code qualifier C an..4
0008 Interchange sender internal identification C an..35
0042 Interchange sender internal sub-identification C an..35
030 S003 INTERCHANGE RECIPIENT M 1
0010 Interchange recipient identification M an..35
0007 Identification code qualifier C an..4
0014 Interchange recipient internal identification C an..35
0046 Interchange recipient internal sub-identification C an..35
040 0083 ACTION, CODED M 1 an..3
050 0085 SYNTAX ERROR, CODED C 1 an..3 1,2,3,4
060 0135 SERVICE SEGMENT TAG, CODED C 1 an..3 1,2,3,4,5
070 S011 DATA ELEMENT IDENTIFICATION C 1 2
0098 Erroneous data element position in segment M n..3
0104 Erroneous component data element position C n..3
0136 Erroneous data element occurrence C n..6
080 0534 SECURITY REFERENCE NUMBER C 1 an..14 3,4,6
090 0138 SECURITY SEGMENT POSITION C 1 n..6 3,4,6
DEPENDENCY NOTES:
1 D5(060, 050) If first, then all.
2 D5(070, 060, 050) If first, then all.
3 D5(080, 060, 050, 090) If first, then all.
4 D5(090, 080, 060, 050) If first, then all.
OTHER REMARKS:

5 0135, may only contain the values UNA, UNB, UNZ, USA, USC, USD, USH, USR, UST, or USU.

6 This data element shall be present when reporting an error in a security segment.

© ISO 2022 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 9735-10:2022(E)
Table 4 — Details of UCM MESSAGE/PACKAGE RESPONSE segment
UCM MESSAGE/PACKAGE RESPONSE segment

Function: To identify a message or package in the subject interchange, and to indicate that message's or package's

acknowledgement or rejection (action taken), and to identify any error related to the UNH, UNT, UNO, and UNP

segments. It can also identify errors related to the USA, USC, USD, USH, USR, UST, or USU security segments when

they appear at the message or package level.
Pos TAG Name S R Repr. Notes/Remarks
010 0062 MESSAGE REFERENCE NUMBER C 1 an..14 1,2
020 S009 MESSAGE IDENTIFIER C 1 2
0065 Message type M an..6
0052 Message version number M an..3
0054 Message release number M an..3
0051 Controlling agency, coded M an..3
0057 Association assigned code C an..6
0110 Code list directory version number C an..6
0113 Message type sub-function identification C an..6
030 0083 ACTION, CODED M 1 an..3
040 0085 SYNTAX ERROR, CODED C 1 an..3 4,5,6,7
050 0135 SERVICE SEGMENT TAG, CODED C 1 an..3 4,5,6,7,8
060 S011 DATA ELEMENT IDENTIFICATION C 1 5
0098 Erroneous data element position in segment M n..3
0104 Erroneous component data element position C n..3
0136 Erroneous data element occurrence C n..6
070 0800 PACKAGE REFERENCE NUMBER C 1 an..35 1,3
080 S020 REFERENCE IDENTIFICATION C 99 3
0813 Reference qualifier M an..3
0802 Reference identification number M an..35
090 0534 SECURITY REFERENCE NUMBER C 1 an..14 6,7,9
100 0138 SECURITY SEGMENT POSITION C 1 n..6 6,7,9
DEPENDENCY NOTES:
1 D1(010, 070) One and only one.
2 D2(010, 020) All or none.
3 D2(070, 080) All or none.
4 D5(050, 040) If first, then all.
5 D5(060, 050, 040) If first, then all.
6 D5(090, 050, 040, 100) If first, then all.
7 D5(100, 090, 050, 040) If first, then all.
OTHER REMARKS:

8 0135, may only contain the values UNH, UNT, UNO, UNP, USA, USC, USD, USH, USR, UST, or USU.

9 This data element shall be present when reporting an error in a security segment.

© ISO 2022 – All rights reserved
---------------------- Page: 14 ----------------------
ISO 9735-10:2022(E)
Table 5 — Details of UCS SEGMENT ERROR INDICATION segment
UCS SEGMENT ERROR INDICATION segment

Function: To identify either a segment containing an error or a missing segment, and to identify any error related

to the complete segment.
Pos TAG Name S R Repr. Notes/Remarks
010 0096 SEGMENT POSITION IN MESSAGE BODY M 1 n..6
020 0085 SYNTAX ERROR, CODED C 1 an..3 1
REMARKS:

1 0085, shall contain a value only if the error pertains to the segment identified by data element 0096.

Table 6 — Details of UGH ANTI-COLLISION SEGMENT GROUP HEADER segment
UGH ANTI-COLLISION SEGMENT GROUP HEADER segment
Function: To head, identify and specify an anti-collision segment group.
Pos TAG Name S R Repr. Notes/Remarks
010 0087 ANTI-COLLISION SEGMENT GROUP IDENTIFICATION M 1 an..4 1
REMARKS:

1 0087, the value shall be the segment group number of the UGH/UGT segment group as stated in the message

specification. It shall be identical to the value in 0087 in the corresponding UGT segment.

Table 7 — Details of UGT ANTI-COLLISION SEGMENT GROUP TRAILER segment
UGT ANTI-COLLISION SEGMENT GROUP TRAILER segment
Function: To end and check the completeness of an anti-collision segment group.
Pos TAG Name S R Re
...
