Textile glass — Determination of combustible-matter content

ISO 1887:2014 specifies a method for the determination of the combustible-matter content of products made from textile glass, such as continuous-filament yarns, staple-fibre yarns, rovings, chopped strands, milled fibres, fabrics, chopped-strand and continuous-filament mats, and other glass reinforcements.

Verre textile — Détermination de la teneur en matières combustibles

General Information

Status
Published
Publication Date
26-Aug-2014
Current Stage
9093 - International Standard confirmed
Start Date
24-Jul-2020
Completion Date
24-Jul-2020
Ref Project

RELATIONS

Buy Standard

Standard
ISO 1887:2014 - Textile glass -- Determination of combustible-matter content
English language
5 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 1887:2014 - Textile glass -- Determination of combustible-matter content
English language
5 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 1887
Fourth edition
2014-09-01
Textile glass — Determination of
combustible-matter content
Verre textile — Détermination de la teneur en matières combustibles
Reference number
ISO 1887:2014(E)
ISO 2014
---------------------- Page: 1 ----------------------
ISO 1887:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 1887:2014(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Terms and definitions ..................................................................................................................................................................................... 1

3 Principle ........................................................................................................................................................................................................................ 1

4 Apparatus ..................................................................................................................................................................................................................... 1

5 Test specimens........................................................................................................................................................................................................ 2

5.1 Selection of test specimens .......................................................................................................................................................... 2

5.2 Number of test specimens ............................................................................................................................................................. 3

6 Procedure..................................................................................................................................................................................................................... 3

6.1 Precautions to be taken during test ...................................................................................................................................... 3

6.2 Weighing the specimen holder .................................................................................................................................................. 3

6.3 Weighing the dried test specimen plus holder ............................................................................................................ 4

6.4 Weighing the calcinated test specimen plus holder ................................................................................................ 4

7 Expression of results ........................................................................................................................................................................................ 5

8 Precision ....................................................................................................................................................................................................................... 5

9 Test report ................................................................................................................................................................................................................... 5

© ISO 2014 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 1887:2014(E)

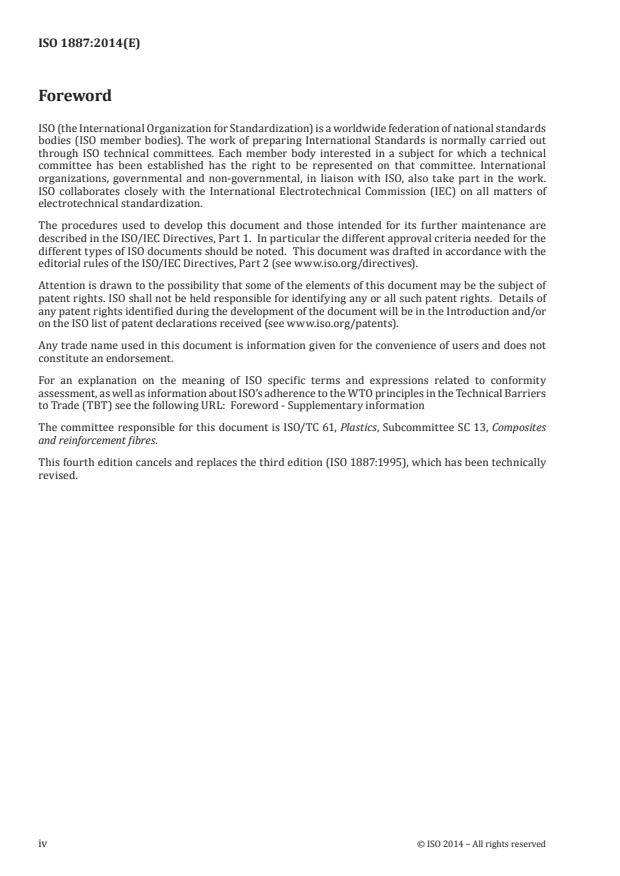

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT) see the following URL: Foreword - Supplementary information

The committee responsible for this document is ISO/TC 61, Plastics, Subcommittee SC 13, Composites

and reinforcement fibres.

This fourth edition cancels and replaces the third edition (ISO 1887:1995), which has been technically

revised.
iv © ISO 2014 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 1887:2014(E)
Textile glass — Determination of combustible-matter
content
1 Scope

This International Standard specifies a method for the determination of the combustible-matter content

of products made from textile glass, such as continuous-filament yarns, staple-fibre yarns, rovings,

chopped strands, milled fibres, fabrics, chopped-strand and continuous-filament mats, and other glass

reinforcements.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
combustible-matter content

ratio of the mass of material removed on calcination from a dried textile glass product to the mass of the

dried product

Note 1 to entry: This ratio is expressed as a percentage in this International Standard. It is equal to the content

of size or finish on the textile glass product when the size or finish is completely combustible without significant

residue (i.e. primarily organic products).
3 Principle

Test specimens, dried under prescribed conditions, are weighed before and after calcination at

a temperature of 625 °C ± 20 °C or, with types of glass which are unstable at this temperature, at a

temperature between 500 °C and 600 °C, also kept constant to within 20 °C.
4 Apparatus

4.1 Air-circulation oven, for drying specimens, capable of being maintained at 105 °C ± 5 °C or the

chosen drying temperature and maintained to within ±5 °C (see 6.3).

4.2 Muffle furnace, capable of being maintained, with a tolerance of ±20 °C, at any desired temperature

up to 625 °C, the temperature being measured at the centre of the muffle furnace with the door closed.

4.3 Desiccator, containing a suitable desiccant, for example silica gel, calcium chloride, phosphorous(V)

oxide.

4.4 Specimen holder, made from a material stable at the test temperature, allowing the best possible

air circulation around the test specimen and designed to prevent loss of material. The holder may be a

porcelain crucible, a basket made of stainless-steel gauze, etc.
4.5 Stainless-steel tongs, for handling test specimens and holders.
4.6 Balance, accurate to 0,1 mg.
4.7 Polished-metal templates, for the preparation of test specimens.
© ISO 2014 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 1887:2014(E)

4.8 Suitable cutting tool, for cutting mat or fabric, for example a knife, scissors, or a cutting disc.

4.9 Suitable wrap-reel, for taking yarn and roving test specimens.
5 Test specimens
5.1 Selection of test specimens

Unless stated to the contrary in the product specification or by the person requesting

...

DRAFT INTERNATIONAL STANDARD ISO/DIS 1887
ISO/TC 61/SC 13 Secretariat: JISC
Voting begins on Voting terminates on
2011-04-29 2011-09-29

INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION

Textile glass — Determination of combustible-matter content
Verre textile — Détermination de la teneur en matières combustibles
[Revision of third edition (ISO 1887:1995)]
ICS 59.100.10

In accordance with the provisions of Council Resolution 15/1993 this document is circulated in

the English language only.

Conformément aux dispositions de la Résolution du Conseil 15/1993, ce document est

distribué en version anglaise seulement.

To expedite distribution, this document is circulated as received from the committee

secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at

publication stage.

Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du

secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au

Secrétariat central de l'ISO au stade de publication.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE

REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.

IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT

INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO

WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.

RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH

THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
© International Organization for Standardization, 2011
---------------------- Page: 1 ----------------------
ISO/DIS 1887

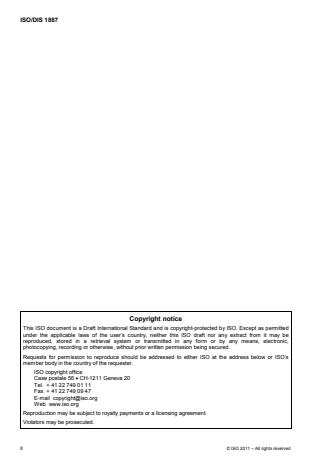

Copyright notice

This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted

under the applicable laws of the user’s country, neither this ISO draft nor any extract from it may be

reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic,

photocopying, recording or otherwise, without prior written permission being secured.

Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s

member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2011 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 1887
&Rntents Page

Foreword ............................................................................................................................................................ iv

1 Scope ...................................................................................................................................................... 1

2 Terms and definitions ........................................................................................................................... 1

3 Principle ................................................................................................................................................. 1

4 Apparatus ............................................................................................................................................... 1

5 Test specimens ...................................................................................................................................... 2

5.1 Selection of test specimens ................................................................................................................. 2

5.2 Number of test specimens.................................................................................................................... 3

6 Procedure ............................................................................................................................................... 3

6.1 Precautions to be taken during test .................................................................................................... 3

6.2 Weighing the specimen holder ............................................................................................................ 3

6.3 Weighing the dried test specimen plus holder .................................................................................. 4

6.4 Weighing the calcinated test specimen plus holder .......................................................................... 4

7 Expression of results ............................................................................................................................ 4

8 Precision ................................................................................................................................................ 5

9 Test report .............................................................................................................................................. 5

© ISO 201 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 1887
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 1887 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 13, Composites and

reinforce ment fibres.

This forth edition cancels and replaces the thard edition (ISO 1887:1995), of which has been technically

revised.
iv © ISO 2011 – All rights reserved
---------------------- Page: 4 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 1887
Textile glass — Determination of combustible-matter content
1 Scope

This International Standard specifies a method for the determination of the combustible-matter content of

products made from textile glass, such as continuous-filament yarns, staple-fibre yarns, rovings, chopped

Strands, milled fibres, fabrics, chopped-Strand and continuous-filament mats and other glass reinforcements.

2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
combustible-matter content

The ratio of the mass of material removed on calcination from a dried textile glass product to the mass of the

dried product.

NOTE This ratio is expressed as a percentage in this International Standard. It is equal to the content of size or finish

on the textile glass product when the size or finish is completely combustible without significant residue (i.e. primarily

organic products).
3 Principle

Test specimens, dried under prescribed conditions, are weighed before and after calcination at a temperature

of 625 °C ± 20 °C or, with types of glass which are unstable at this temperature, at a temperature between

500 °C and 600 °C , also kept constant to within 20 °C.
4 Apparatus

4.1 Air-circulation oven, for drying specimens, capable of being maintained at 105 °C + 5 °C or the

chosen drying temperature ± 5 °C (see 6.3).

4.2 Muffle furnace, capable of being maintained, with a tolerante of ± 20 °C, at any desired temperature up

to 625 °C, the temperature being measured at the centre of the muffle furnace with the door closed.

4.3 Desiccator, containing a suitable desiccant, for example silica gel, Calcium chloride, phosphorous(V)

Oxide.

4.4 Specimen holder, made from a material stable at the test temperature, allowing the best possible air

circulation around the test specimen and designed to prevent loss of material. The holder may be a porcelain

crucible, a basket made of stainless-steel gauze, etc.
4.5 Stainless-steel tongs, for handling test specimens and holders.
4.6 Balance, accurate to 0,l mg.
4.7 Polished-metal templates, for the preparation of test specimens.
© ISO 2011 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/DIS 1887
4.8 Suitable cutting too
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
