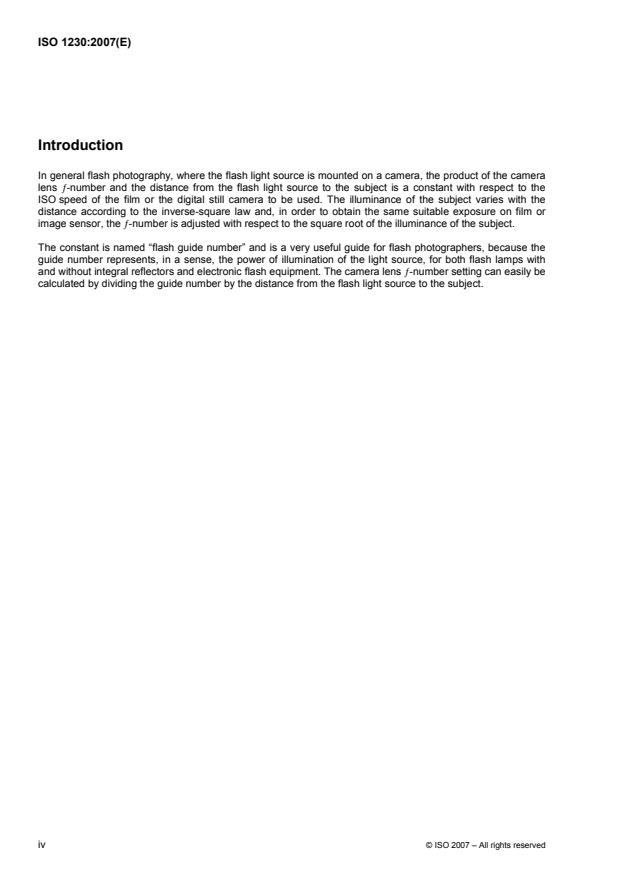

Introduction
In general flash photography, where the flash light source is mounted on a camera, the product of the camera
lens ƒ-number and the distance from the flash light source to the subject is a constant with respect to the
ISO speed of the film or the digital still camera to be used. The illuminance of the subject varies with the
distance according to the inverse-square law and, in order to obtain the same suitable exposure on film or
image sensor, the ƒ-number is adjusted with respect to the square root of the illuminance of the subject.
The constant is named “flash guide number” and is a very useful guide for flash photographers, because the
guide number represents, in a sense, the power of illumination of the light source, for both flash lamps with
and without integral reflectors and electronic flash equipment. The camera lens ƒ-number setting can easily be
calculated by dividing the guide number by the distance from the flash light source to the subject.

iv © ISO 2007 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 1230:2007(E)

Photography — Determination of flash guide numbers for
electronic flash equipment
1 Scope
This International Standard specifies the definition and determination of the ISO guide number of electronic
flash equipment. It does not specify the definitions and measuring methods for the light output of electronic
flash equipment, which are specified in ISO 2827.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
guide number
N
GN
product of the camera lens ƒ-number, required for a suitable exposure on a film or an image sensor, and the
distance from the flash light source to the subject with respect to the ISO speed of the film or the digital still
camera to be used
NOTE The guide number is expressed in metres. Annex A provides the conversion calculation for converting the
guide number from metres into feet.
2.2
ISO guide number
N
ISO/GN
guide number, for a film or a digital still camera of ISO 100, “X ” synchronization and an exposure time which
can fully utilize the total output of the flash light source
3 Calculation of the guide number
3.1 ISO guide number
The ISO guide number, N , shall be calculated using the following formula:
ISO/GN
Nk=I()t dt (1)
ISO/GN

where
–1 2 –1
k is a constant equal to 0,51 lm ⋅m⋅s ;
∫I(t)dt is the time integral of the luminous intensity of electronic flash equipment, expressed in candella
–1
seconds (cd⋅s = lm⋅sr ⋅s).
See Annex B for details of Equation (1).
© ISO 2007 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 1230:2007(E)
3.2 Guide number for any ISO speed other than 100
The guide number for any ISO speed other than 100 can be calculated from the following formula:
S
NN(ISO,S) =× (2)
ISO/GN
100
where S is the ISO speed (arithmetic).
4 Designation of guide number
Designation of guide numbers on products or instructions should be rounded to two significant digits and
followed by metres. When a guide number does not express the ISO guide number [i.e. for films or digital still
cameras other than those of ISO speed 100 (arithmetic)], the refere
...
