ISO/PRF 4029

Fasteners - Hexagon socket set screws with cup point

ISO 4029:2003 specifies the characteristics of hexagon socket set screws with cup point and threads from M1,6 up to and including M24 and of product grade A.

Fixations — Vis sans tête à six pans creux, à bout cuvette

L'ISO 4029:2003 spécifie les caractéristiques des vis sans tête à six pans creux, à bout cuvette, de filetage M1,6 à M24 inclus et de grade A.

General Information

• Status: Not Published
• ICS: 21.060.10 - Bolts, screws, studs
• Technical Committee: ISO/TC 2/SC 11 - Fasteners with metric external thread
• Drafting Committee: ISO/TC 2/SC 11 - Fasteners with metric external thread
• Current Stage: 5020 - FDIS ballot initiated: 2 months. Proof sent to secretariat
• Start Date: 23-Dec-2025
• Completion Date: 27-Dec-2025

Relations

• Revises: ISO 4029:2003 - Hexagon socket set screws with cup point
• Effective Date: 04-Nov-2023

Overview

ISO/PRF 4029 (ISO 4029) defines the characteristics of hexagon socket set screws with cup point. The standard covers metric coarse-pitch threads from M1.6 up to M30 for steel and M1.6 up to M24 for stainless steel, and specifies product grade A. It clarifies dimensional forms (including broached sockets), acceptable surface conditions, marking and labelling, and reference requirements for mechanical and tolerance classes. Note: set screws covered by ISO 4029 are not intended for use under tensile load.

Key topics and requirements

• Scope and thread range: Metric sizes M1.6–M30 (steel) and M1.6–M24 (stainless steel); product grade A.
• Dimensions and forms: Detailed cup-point geometry, permissible alternative socket/broach forms, chamfer and angle notes, and standard lengths (see length table).
• Tolerances and gauging: Thread tolerance guidance and combined gauging for hexagon sockets (ISO 965-1, ISO 23429). Tolerance class 6g is referenced.
• Mechanical properties and hardness: Steel hardness classes per ISO 898-5 (e.g., 45H referenced); stainless steel grades and hardness classes per ISO 3506-3 (examples: A2‑21H, A4‑21H).
• Surface condition and coatings: Default “as processed” for steel; “clean and bright” and optional “passivated” for stainless steel. Coating standards referenced include ISO 4042 (electroplated) and ISO 10683 (zinc flake).
• Marking and labelling: Product marking is not required unless agreed. Packaging must show ISO 4029 reference, thread size and length, hardness/grade info, surface condition, manufacturer ID, lot number, and quantity.
• Acceptance and inspection: Acceptance inspection per ISO 3269; surface discontinuity limits per ISO 6157-1.
• Designation examples: The standard provides designation formats (e.g., “Hexagon socket set screw ISO 4029 – M6 × 12 – 45H” for steel).

Applications and who uses it

ISO 4029 is essential for:

• Fastener manufacturers producing hexagon socket set screws (cup point) to meet international dimensions, tolerances and marking.
• Design and mechanical engineers specifying fasteners for assemblies where set screws are used for locating, locking collars, and securing components on shafts (not for tensile loading).
• Procurement and quality assurance teams ensuring purchased parts conform to ISO fastener standards and are correctly labelled and tested.
• Distributors and OEMs in automotive, industrial machinery, instrumentation and electronics where consistent interchangeability and conformity are required.

Related standards

Key referenced ISO standards include:

• ISO 724, ISO 965-1 (threads and tolerances)
• ISO 898-5 (mechanical properties - set screws)
• ISO 3506-3 (stainless steel set screws)
• ISO 23429 (gauging of hexagon sockets)
• ISO 4042, ISO 10683 (coatings)
• ISO 3269, ISO 6157-1 (inspection/surface discontinuities)
• ISO 8991, ISO 8992 (designation and general fastener requirements)

By following ISO 4029, stakeholders ensure consistent, compatible and inspectable hexagon socket set screws with cup point across global supply chains.

Standards Content (Sample)

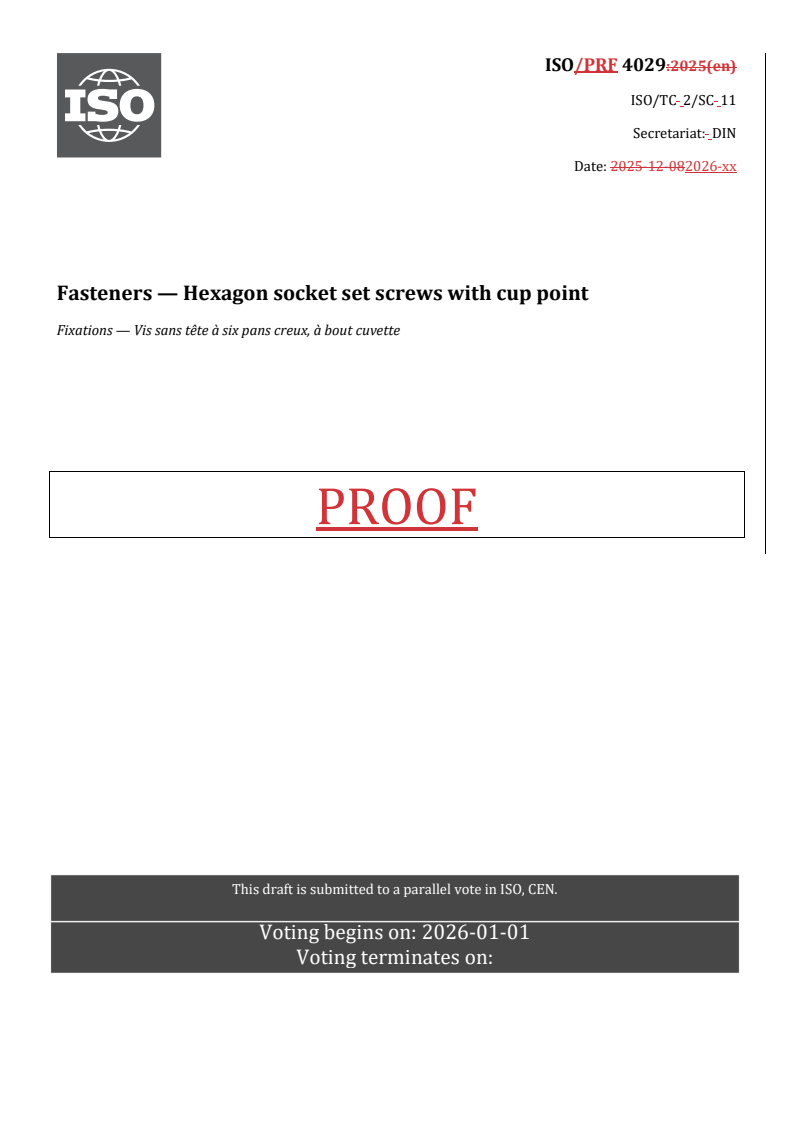

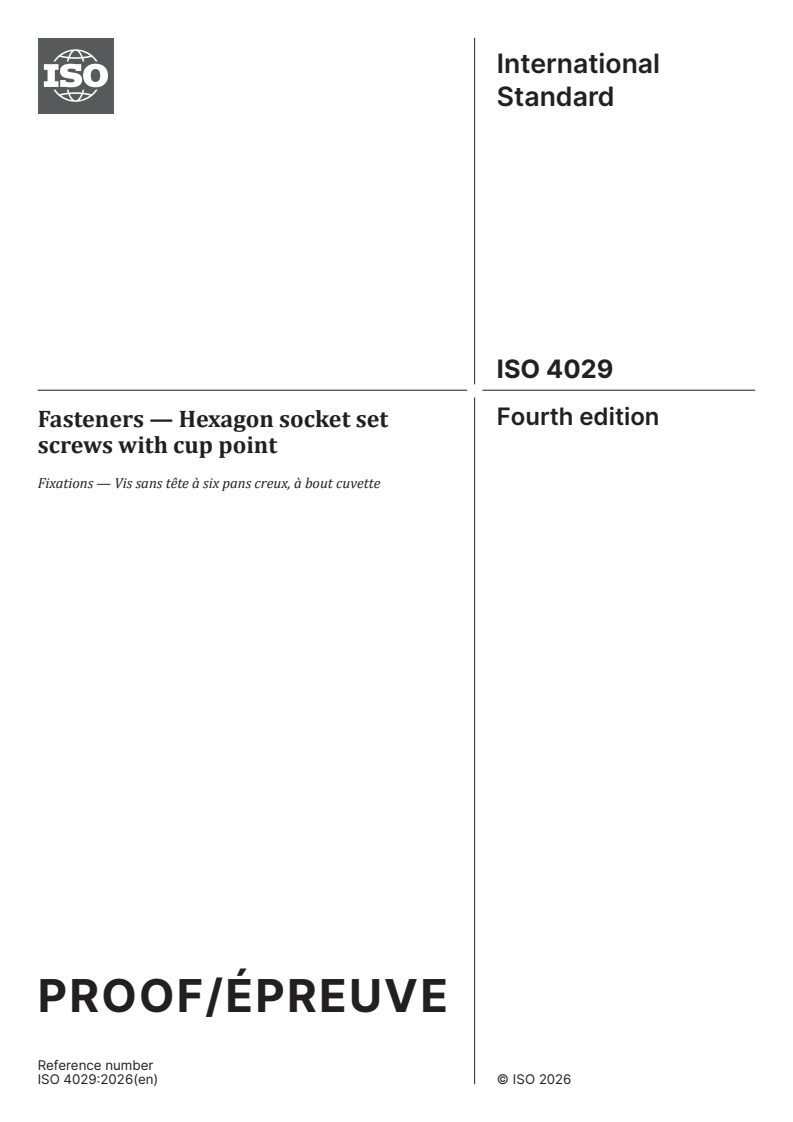

International
Standard
ISO 4029
Fourth edition
Fasteners — Hexagon socket set
screws with cup point
Fixations — Vis sans tête à six pans creux, à bout cuvette
PROOF/ÉPREUVE
Reference number
ISO 4029:2026(en) © ISO 2026
ISO 4029:2026(en)

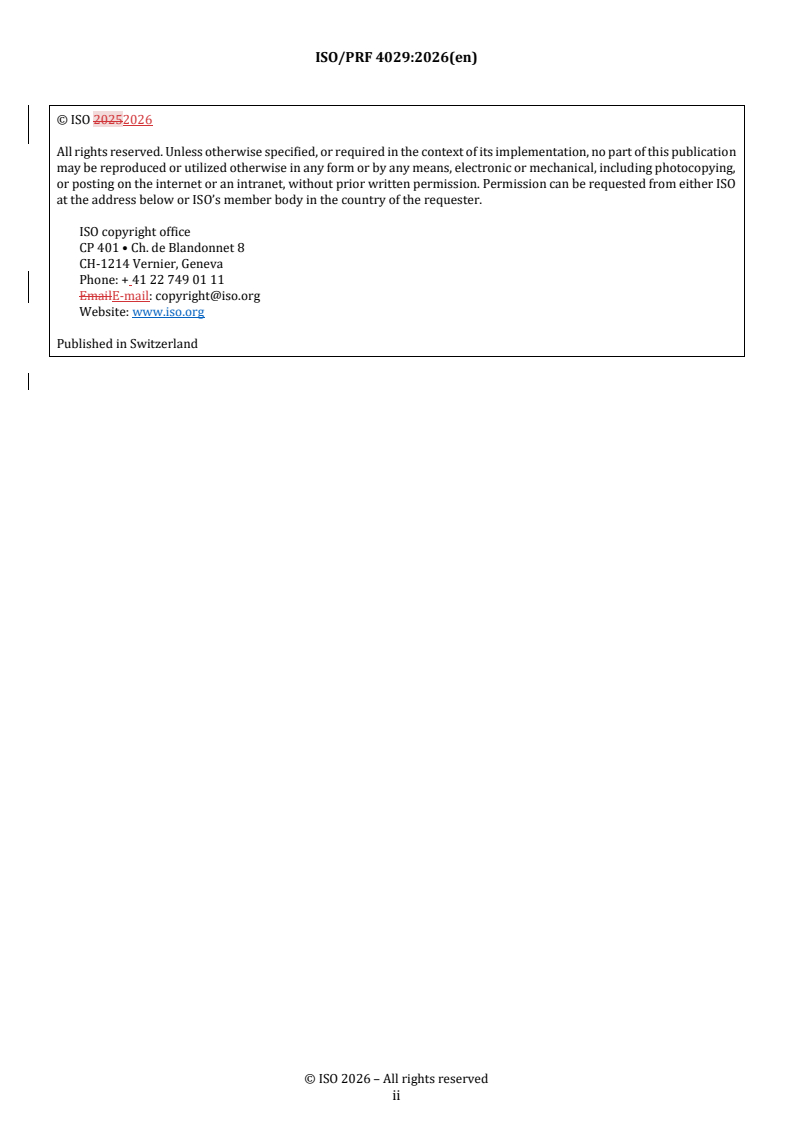

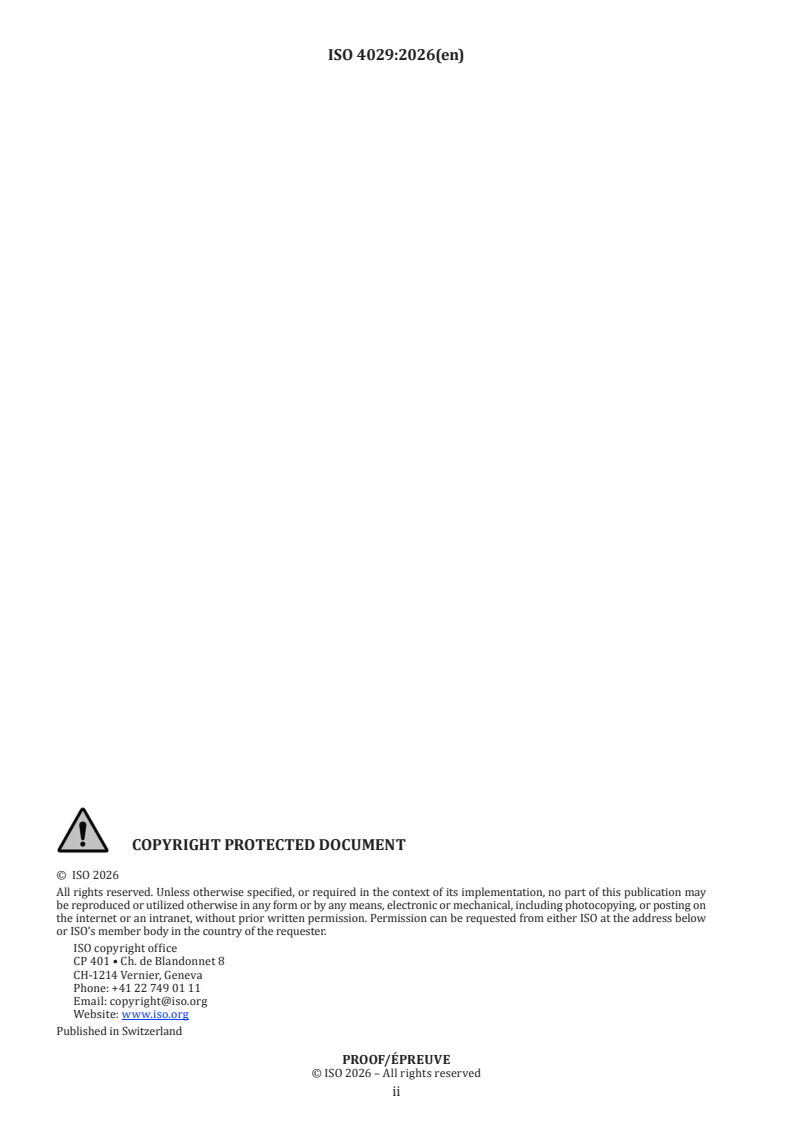

© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
PROOF/ÉPREUVE
ii
ISO 4029:2026(en)

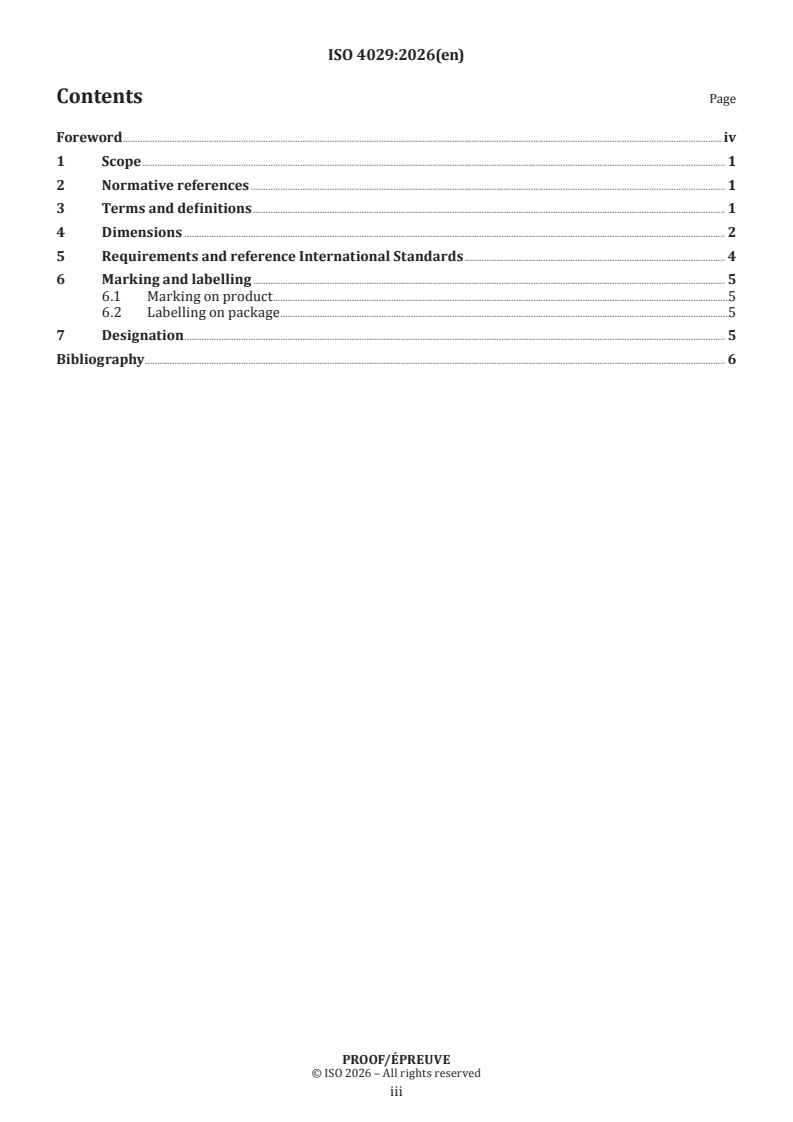

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions . 2
5 Requirements and reference International Standards . 4
6 Marking and labelling . 5
6.1 Marking on product . .5
6.2 Labelling on package .5
7 Designation . 5
Bibliography . 6
PROOF/ÉPREUVE
iii
ISO 4029:2026(en)

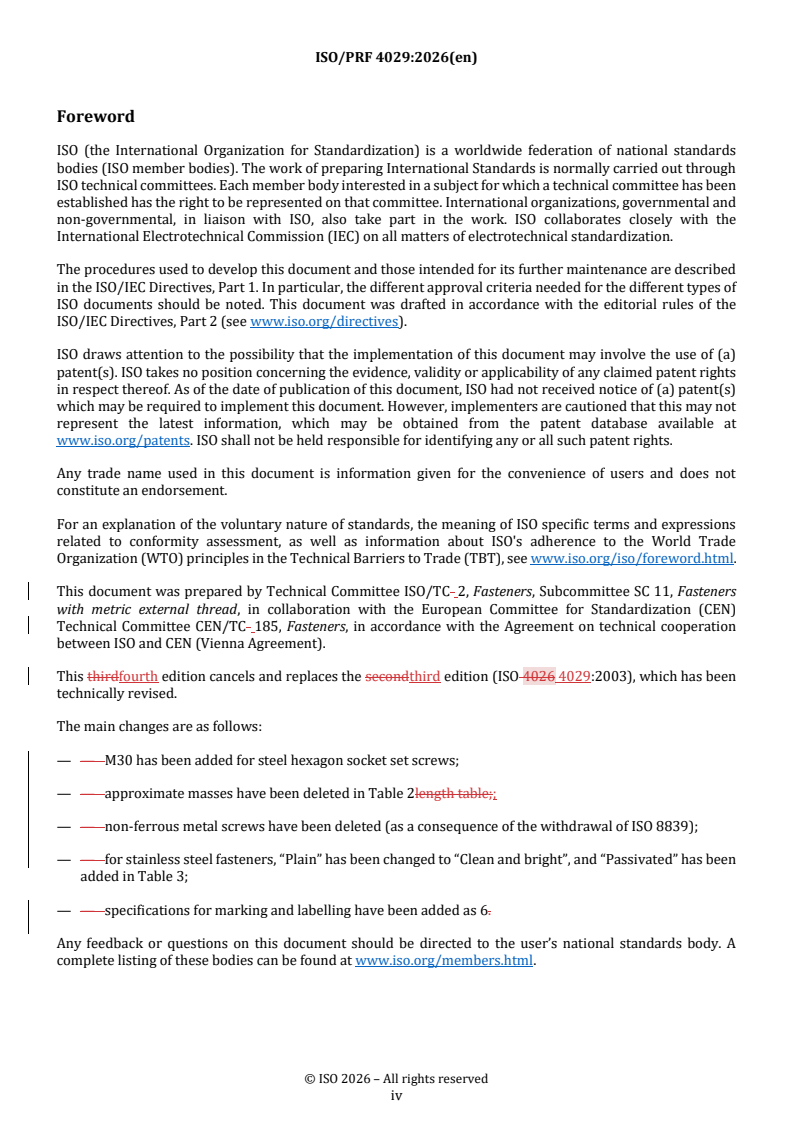

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 2, Fasteners, Subcommittee SC 11, Fasteners
with metric external thread, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 185, Fasteners, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This fourth edition cancels and replaces the third edition (ISO 4029:2003), which has been technically
revised.
The main changes are as follows:
— M30 has been added for steel hexagon socket set screws;
— approximate masses have been deleted in Table 2;
— non-ferrous metal screws have been deleted (as a consequence of the withdrawal of ISO 8839);
— for stainless steel fasteners, “Plain” has been changed to “Clean and bright”, and “Passivated” has been
added in Table 3;
— specifications for marking and labelling have been added as Clause 6.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
PROOF/ÉPREUVE
iv
International Standard ISO 4029:2026(en)
Fasteners — Hexagon socket set screws with cup point
1 Scope
This document specifies the characteristics of hexagon socket set screws with cup point, with metric coarse
pitch threads M1,6 to M30 for steel and M1,6 to M24 for stainless steel, and with product grade A.
Set screws are not intended for use under tensile load.
If in certain cases other specifications are requested, hardness classes and stainless steel grades can be
selected from ISO 898-5 or ISO 3506-3, and dimensional options from ISO 888, ISO 965-1 or ISO 4753.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 225, Fasteners — Bolts, screws, studs and nuts — Symbols and descriptions of dimensions
ISO 724, ISO general purpose metric screw threads — Basic dimensions
ISO 888, Fasteners — Bolts, screws and studs — Nominal lengths and thread lengths
ISO 898-5, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 5: Set screws and
similar threaded fasteners with specified hardness classes — Coarse thread and fine pitch thread
ISO 965-1, ISO general purpose metric screw threads — Tolerances — Part 1: Principles and basic data
ISO 1891-4, Fasteners — Vocabulary — Part 4: Control, inspection, delivery, acceptance and quality
ISO 3269, Fasteners — Acceptance inspection
ISO 3506-3, Fasteners — Mechanical properties of corrosion resistant stainless steel fasteners — Part 3: Set
screws (and similar fasteners not under tensile stress) with specified grades and hardnes
...
