ISO/DTR 13849-3
(Main)Safety of machinery — Safety-related parts of control systems — Part 3: Markov model-based PFH calculation
Safety of machinery — Safety-related parts of control systems — Part 3: Markov model-based PFH calculation
Sécurité des machines — Parties des systèmes de commande relatives à la sécurité — Partie 3: Modèle de Markov basé sur le calcul PFH
General Information
Standards Content (Sample)

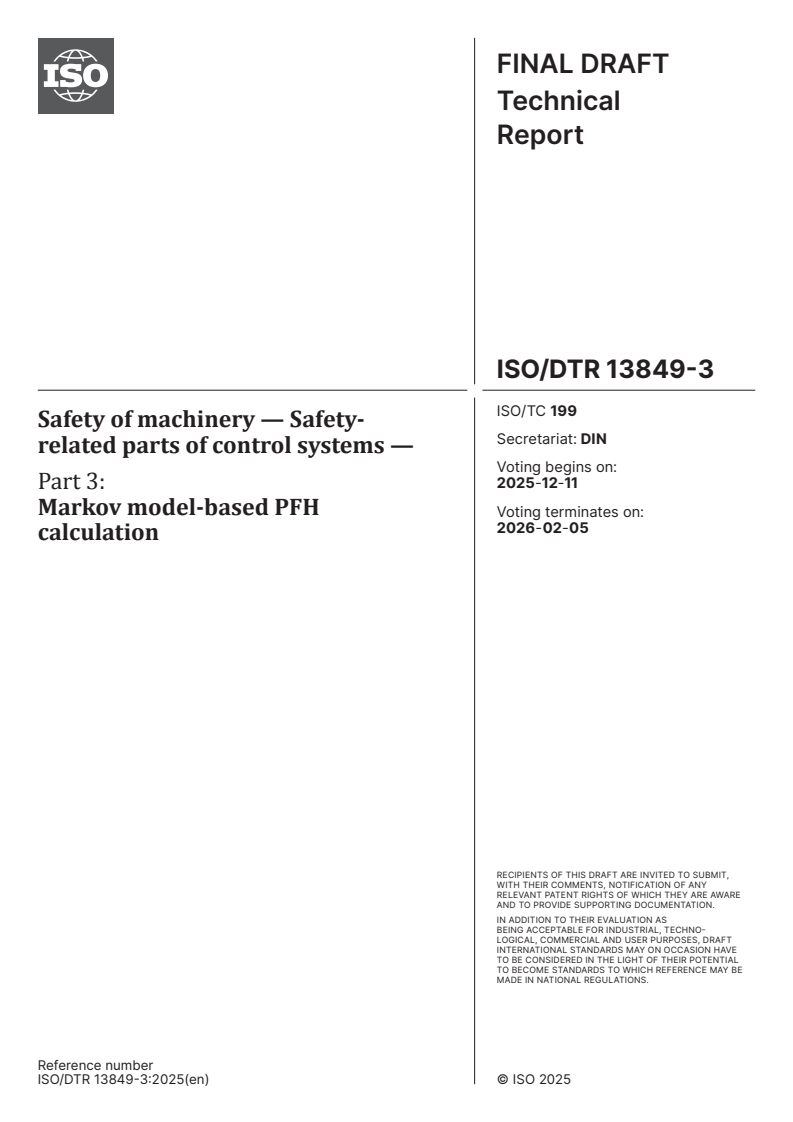

FINAL DRAFT
Technical
Report
ISO/TC 199
Safety of machinery — Safety-
Secretariat: DIN
related parts of control systems —
Voting begins on:
2025-12-11
Part 3:
Markov model-based PFH
Voting terminates on:
2026-02-05
calculation
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
Technical
Report
ISO/TC 199
Safety of machinery — Safety-
Secretariat: DIN
related parts of control systems —
Voting begins on:
Part 3:
Markov model-based PFH
Voting terminates on:
calculation
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviated terms . 1
3.1 Terms and definitions .1
3.2 Symbols and abbreviated terms .1
4 Basic assumptions . 7
5 Channels . 8
5.1 General .8
5.2 Functional channel.8
5.3 Test channel .9
5.4 Channel comprising elements connected logically in series .9
5.5 Limitation of λ (Capping) .10
CHD
6 Wearing parts . 10
7 Common cause failures .11
8 Series arrangement of subsystems .12
9 Single-channel architecture with and without test channel .13
9.1 General . 13
9.2 General solution for the single-channel architecture . 13
9.3 Single-channel architecture with time-optimal testing.14
9.4 Single-channel architecture with external diagnostics . 15
9.5 Single-channel architecture with external diagnostics and time-optimal testing . 15
9.6 Single-channel architecture without diagnostics . 15
9.7 Simplified general solution for the single-channel architecture .16
9.8 Simplified solution for the single-channel architecture with time-optimal testing .16
10 Two-channel architectures . .16
10.1 General .16
10.2 General solution for the two-channel architecture .17
10.3 Two-channel architecture with continuous testing .19
10.4 Two-channel architecture without testing .19
10.5 Simplified general solution for the two-channel architecture . 20
10.6 Simplified solution for the symmetrical two-channel architecture . 20
10.7 Simplified solution for the two-channel architecture with continuous testing .21
10.8 Simplified solution for the two-channel architecture without testing .21
Annex A (informative) Examples of the application of this formula-based approach .22
Annex B (informative) Derivation of the PFH formulas presented in the main part .34
Bibliography . 74
iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 199, Safety of machinery.
A list of all parts in the ISO 13849 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document has been prepared to enhance the capabilities of the simplified procedure of
ISO 13849-1:2023, 6.1.8 and Annex K, for estimating the performance level for subsystems.
By addressing the designated architectures of ISO 13849-1, the document presents an approach using
Markov model-based formulas to estimate the average frequency of a dangerous failure of the safety
function. As well as the simplified procedure of ISO 13849-1, the method considers the architecture, the
MTTF of channels, diagnostic coverage DC , the common cause factor β and the mission time T .
D avg M
Beyond the capabilities of the simplified procedure the method presented here can allow for different test
rates, a mission time different from 20 years, a common cause factor different from 2 % and any MTTF
D
ratio of a functional channel and its related test channel. Asymmetric redundancy is supported without
beforehand symmetrisation.
The formulas of this document can also be used in the context of other standards demanding the estimation
of PFH as long as the system under assessment meets the method's underlying assumptions (see Clause 4).
ISO 13849 and IEC 62061 govern the functional safety of machinery and require the probability of failure
to be determined for each safety function in terms of a quantitative estimation of the PFH value (average
frequency of a dangerous failure of the safety function).
NOTE In IEC 62061 (as well as in IEC 61508), PFH is descriptively denoted as the “average frequency of a dangerous
failure of the safety function”. The abbreviation PFH stems from the International Standard’s former denotation as the
“probability of a dangerous failure per hour”.
These International Standards assist users in ascertaining the PFH in different ways: IEC 62061 by
provision of equations for calculation of the PFH, ISO 13849-1 by a table and some associated formulas. Both
approaches have their drawbacks. The equations in IEC 62061 fail to address single-channel tested systems
in desirable depth and in some cases yield very conservative results for two-channel tested systems. The
table-based solution in ISO 13849-1 lacks flexibility owing to the fixed specification of the mission time
and the common cause factor (β) and entails additional overhead for asymmetrical two-channel systems.
Usually, the methods in the two standards will yield PFH values deviating to some extent from each other.
The objective of the PFH equations presented and derived in this document is for the benefits of flexible
solutions involving equations to be combined with the more precise modelling technique upon which the
table solution is based. The PFH equations yield good to very good reproduction of the table values stated
in ISO 13849-1:2023, Annex K, and in particular cases assume the form of equations already contained in
IEC 62061. They can therefore be regarded as a further development of the instruments of both International
Standards.
Markov models, which are also among the instruments considered suitable in IEC 61508-6 and IEC 61508-7,
are selected exclusively as the method for analysis of the architectures studied within this document. Unlike
the numerical methods (stochastic Petri nets, Monte Carlo simulation), Markov models enable equations
to be derived. They are also superior to reliability block diagrams (RBDs) in their handling of mutually
influencing failure processes and the reinsertion of repaired systems. The drawback of the Markov method
of being able to handle only exponentially distributed processes (constant transition rates) does not provide
significant detriment to the precision of the results.
Simple special cases are treated as non-standard cases of the higher-level more complex cases, enabling
overall methodical coherence to be attained.
The body part of this document addresses the use of the formulas for the estimation of the PFH value. The
definitions, variables and the basic assumptions are presented as well as the formulas.
Annex A demonstrates the application of this approach to the examples A and B in ISO 13849-1:2023, Annex I.
Annex B of this document discloses the derivation of the presented formulas based on Markov models for
the different architectures.
v
FINAL DRAFT Technical Report ISO/DTR 13849-3:2025(en)
Safety of machinery — Safety-related parts of control
systems —
Part 3:
Markov model-based PFH calculation
1 Scope
This document provides formulas for the estimation of the PFH value of single-channel architectures
as well as two-channel architectures with and without diagnostics in accordance with ISO 13849-1. The
formulas presented in this document are based on Markov modelling and can be used as an alternative to
the simplified procedure of ISO 13849-1 for estimating the quantifiable aspects of the performance level
(see ISO 13849-1:2023, 6.1.8, Figure 12, and Annex K). They can also serve as an alternative to any other
adequate method for estimating the quantifiable aspects of the performance level.
NOTE Different estimation methods can vary in the resulting PFH values due to their nature. A certain variation is
usually be the consequence of different modelling approaches and unavoidable simplifications specific to the method.
Other requirements of ISO 13849-1, e.g. on categories or software, are not addressed by this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for
design
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13849-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.2 Symbols and abbreviated terms
The definition of parameters related to the quantitative estimation of the PFH value, such as mean time to
dangerous failure MTTF , diagnostic coverage DC, common cause factor β mission time T , etc., can be found
D M
in ISO 13849-1:2023, Clause 3.
With only a few exceptions, all variables used in this document are listed in Table 1 below.
NOTE Within this document components with mechanical wear are concisely addressed as wearing elements or
wearing parts.
Table 1 — Used variables and locations of their appearance
Pre-
Variable ferred Description Use (selection)
unit
B – Number of working cycles by which 10 % of the wearing Formulas (5), (6), (B.1),
10D E
elements E have failed dangerously (B.4), (B.5)
C – Auxiliary variable used for two-channel systems Formulas (31), (B.102)
N
C – Auxiliary variable used for two-channel systems Formulas (30), (B.101)
P
DC – Diagnostic coverage of the functional channel of a sin- Figures 3, 4, 9, B.2, B.3;
gle-channel system or a symmetrical two-channel system Formulas (11), (13), (14),
(15), (17), (18), (38), (B.47),
(B.49), (B.50), (B.51),
(B.54), (B.55), (B.125),
(B.126)
DC – Diagnostic coverage of channel A of a two-channel system Figures 6, 7, (B.14), (B.15);
A
Formulas (20), (22), (24),
(32), (36), (39), (B.65),
(B.66), (B.99)
– Generalized diagnostic coverage of channel A of a two-chan- Formulas (24), (26), (37),
DC
A
nel system with consideration of the test interval of the (B.64), (B.65), (B.122),
channel (B.123)
DC – Diagnostic coverage of channel B of a two-channel system Figures 6, 7, (B.14), (B.15);
B
Formulas (21), (23), (25),
(33), (36), (39), (B.68),
(B.69), (B.100)
– Generalized diagnostic coverage of channel B of a two-chan- Formulas (25), (27), (37),
DC
B
nel system with consideration of the test interval of the (B.67), (B.68), (B.122),
channel (B.123)
DC – Diagnostic coverage of channel CH Formula (4)
CH
DC – Diagnostic coverage of element i of channel CH Figure 1, Formula (4)
i
i = 1 … n
E – Element or wearing element Formulas (5), (6), (B.1),
(B.2), (B.3), (B.4), (B.5)
E – Element i of channel CH Figure 1, Formulas (1), (2),
i
(3), (4)
i = 1 … n
d d/a Mean annual number of operation days of a wearing element Formula (7)
op
h h/d Mean daily number of operation hours of a wearing element Formula (7)
op
−1
L h Auxiliary variable used for two-channel systems Figures B.21, B.22;
A
Formulas (19), (20), (22),
(26), (28), (29), (30), (31),
(32), (34), (B.66), (B.94),
(B.95), (B.98), (B.99),
(B101), (B102), (B104),
(B.106)
−1
L h Auxiliary variable used for two-channel systems Figures B.21, B.22;
B
Formulas (19), (21), (23),
(27), (28), (29), (30), (31),
(33), (35), (B.69), (B.94),
(B.95), (B.98), (B.100),
(B.101), (B.102), (B.105),
(B.107)
−1
L h Auxiliary variable used for single-channel systems Formulas (B.30), (B.32),
α
(B.34)
−9 −1
NOTE 1 FIT = 10 h
TTabablele 1 1 ((ccoonnttiinnueuedd))
Pre-
Variable ferred Description Use (selection)
unit
−1
L h Auxiliary variable used for single-channel systems Formulas (B.30), (B.33),
β
(B.34)
−1
L h Auxiliary variable used for single-channel systems Formulas (B.30), (B.31),
θ
(B.34)
−1
L h Auxiliary variable used for two-channel systems Formulas (28), (B.94)
−1
L h Auxiliary variable used for two-channel systems Formulas (29), (B.95)
MTTF a Mean time to dangerous failure of channel CH Formulas (2), (3)
D CH
MTTF a Mean time to dangerous failure of the wearing element E Formula (B.5)
D E
MTTF a Mean time to dangerous failure of the element i of channel CH Formulas (2), (3)
D Ei
i = 1 … n
−1 −1
n h , a Operating frequency (number of operations per time unit) Formulas (5), (6), (7), (B.1),
op
of the wearing element E; in case of intermittent operation: (B.4), (B.5)
mean operating frequency based on a time span of one year
P – Mean probability of the state “A DD” Formula (B.59)
A DD
p – Instantaneous probability of the state “A DU” Formula (B.92)
A DU
P – Mean probability of the state “A DU 2” Formula (B.60)
A DU 2
p – Instantaneous probability of the state “B DU” Formula (B.93)
B DU
−1
PFH h Average frequency of a dangerous failure per hour Figures B.3, B.15;
Formulas (10), (11), (13),
NOTE PFH is seen as the mean value over time of the fre-
(14), (15), (16), (17), (18),
quency of the unmet demands upon the safety function (fre-
(19), (36), (37), (38), (39),
quency of unsuccessful attempts, frequency of malfunction).
(40), (B.34), (B.35), (B.47),
(B.49), (B.50), (B.51),
(B.52), (B.54), (B.55),
(B.97), (B.98), (B.119),
(B.120), (B.121), (B.122),
(B.123), (B.124), (B.125),
(B.126), (B.127), (B.128),
(B.135)
−1
pfh h Instantaneous value of the frequency of a dangerous failure Formulas (B.29), (B.30),
(instantaneous value of the PFH) (B.34), (B.96), (B.97)
−1
PFH h PFH of a single-channel, untested system (see PFH) Formulas (B.38), (B.39),
NT
(B.40)
−1
PFH h PFH of a single-channel, time-optimal tested system (see Formulas (B.37), (B.39),
TOT
PFH) (B.40)
−1
PFH h PFH contribution of subsystem i of a series arrangement of n Formulas (10), (B.114),
i
subsystems (B.115), (B.116), (B.117),
i = 1 … n
(B.118), (B.119)
or
or
PFH component i of a two-channel system in simplified anal-
i = 1 … 5
ysis (see PFH)
P – Mean probability of the state “FPN” (flow partitioning node) Figure B.7; Formulas (B.10),
FPN
(B.12)
p – Instantaneous probability of the state “FPN” (flow partition- Figure B.7; Formulas (B.6),
FPN
ing node) (B.7), (B.8), (B.9), (B.10),
(B.11)
p – Instantaneous probability of the state i Formulas (B.19), (B.20),
i
(B.23), (B.24), (B.70), (B.71),
i = 1 … 3
(B.72), (B.76), (B.77), (B.78)
−9 −1
NOTE 1 FIT = 10 h
TTabablele 1 1 ((ccoonnttiinnueuedd))
Pre-
Variable ferred Description Use (selection)
unit
p – Instantaneous probability of the state “INT” Figure B.27;
INT
Formulas (B.108), (B.109),
(B.110), (B.111)
p – Instantaneous probability of the state “M D” of a single-chan- Formulas (B.28), (B.29)
M D
nel system
p – Instantaneous probability of the state “OK” of a single-chan- Formulas (B.27), (B.29)
OK
nel system
P – Mean probability of the state “OK” of a two-channel system Formulas (B.59), (B.60),
OK
(B.61)
−1
r h Demand rate upon the safety function Figures B.3, B.12, B.15;
d
Formulas (11), (12), (14),
(17), (B.15), (B.16), (B.17),
(B.18), (B.35), (B.36),
(B.41), (B.45), (B.46),
(B.47), (B.50), (B.54)
−1
r h Repair rate Figures B.3, B.15
r
−1
r h Test rate of the functional channel of a single-channel system Figures 3, 4, 9, B.2, B.3, B.12;
t
or a symmetrical two-channel system Formulas (11), (12), (14),
(17), (B.15), (B.16), (B.17),
(B.29), (B.35), (B.36),
(B.41), (B.45), (B.46), (B.47),
(B.50), (B.54), (B.126)
−1
r h Test rate of element i of channel CH Figure 1
ti
i = 1 … n
−1
r h Test rate of channel A of a two-channel system Figures 6, B.14, B.15;
tA
Formulas (22), (24), (B.57),
(B.124)
−1
r h Test rate of channel B of a two-channel system Figures 6, B.14, B.15;
tB
Formulas (23), (25), (B.58),
(B.124)
T h Test interval of a symmetrical two-channel system; clear- Figures 9, B.7, B.27;
ing interval of the flow partitioning node “FPN” or the state Formulas (38), (B.10),
“INT” (B.11), (B.12), (B.13), (B.14),
(B.15), (B.111), (B.113),
(B.125)
T h, a Time until 10 % of the wearing elements E have failed dan- Formulas (6), (B.1), (B.2),
10D E
gerously (B.3)
T h Test interval of channel A of a two-channel system Figures 6, 7, B.14, B.16, B.18,
A
B.24; Formulas (20), (24),
(36), (B.57), (B.59), (B.61),
(B.62), (B.64), (B.65),
(B.66), (B.114), (B.120),
(B.121)
T h Test interval of channel B of a two-channel system Figures 6, 7, B.14, B.16,
B
B.24; Formulas (21), (25),
(36), (B.58), (B.63), (B.67),
(B.68), (B.69), (B116),
(B.120), (B.121)
t s Cycle time of a wearing element Formula (7)
cycle
−9 −1
NOTE 1 FIT = 10 h
TTabablele 1 1 ((ccoonnttiinnueuedd))
Pre-
Variable ferred Description Use (selection)
unit
T h, a Mission time; if a proof test according to IEC 62061:2021, Formulas (11), (13), (17),
M
3.2.47, is implemented, the proof test interval supersedes T . (18), (19), (20), (21), (22),
M
(23), (24), (25), (36), (37),
(38), (39), (40), (B.34),
(B.35), (B.37), (B.47),
(B.49), (B.54), (B.55),
(B.60), (B.61), (B.62),
(B.63), (B.65), (B.66),
(B.68), (B.69), (B.97),
(B.98), (B.99), (B.100),
(B.115), (B.117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.125), (B.126),
(B.127), (B.128), (B.135)
TRTE – Time-related test efficiency on a single-channel tested sys- Figure B.13; Formulas (12),
tem (B.41), (B.45), (B.46)
β – Common cause factor, constituting a quantitative dimen- Figures 3, 6, 7, 8, 9, B.1; B.2,
sion for the common cause failures of two channels (sin- B.14; Formulas (8), (9), (38)
gle-channel system: functional channel F and test channel M;
two-channel system: channels A and B)
Δt h, a Period of time for which the mean operation frequency n of Formulas (7)
op
a wearing element is calculated (typically one year)
Formulas (B.6), (B.7)
or
Small time interval used for limit calculation
−1
Λ h Failure-induced absolute inflow rate to the flow partitioning Figure B.7; Formulas (B.6),
node “FPN” (B.7), (B.8), (B.9), (B.10),
(B.11), (B.12)
−1
Λ h Failure-induced absolute outflow rate from the flow parti- Figures B.7, B.27;
tioning node “FPN” or from the state “INT” Formulas (B.12), (B.111),
(B.113)
−1
Λ h Absolute outflow rate from the flow partitioning node “FPN” Figure B.7; Formulas (B.11),
caused by periodic clearing (B.12)
−1
λ h , FIT Failure-induced nominal inflow rate to the flow partitioning Figures B.7, B.27;
node “FPN” or to the intermediate state “INT” Formulas (B.13), (B.14),
(B.108), (B.110), (B.111),
(B.113)
−1
λ h , FIT Failure-induced nominal outflow rate from the flow parti- Figures B.7, B.27;
tioning node “FPN” or from the intermediate state “INT” Formulas (B.6), (B.7), (B.8),
(B.9), (B.10), (B.11), (B.12),
(B.13), (B.14), (B.108),
(B.110), (B.111), (B.113)
−1
λ h , FIT Failure-induced nominal outflow rate from the flow parti- Figures B.7, B.8, B.9, B.12;
A
tioning node “FPN” Formulas (B.13), (B.16),
(B.29), (B.32), (B.33)
−9 −1
NOTE 1 FIT = 10 h
TTabablele 1 1 ((ccoonnttiinnueuedd))
Pre-
Variable ferred Description Use (selection)
unit
−1
λ h , FIT Dangerous failure rate of channel A of a two-channel system Figures 6, 7, 8, B.14, B.15,
AD
B.18B.26; Formulas (19),
(20), (22), (26), (28), (29),
(30), (31), (32), (34), (36),
(37), (39), (40), (B.59),
(B.61), (B.62), (B.64),
(B.66), (B.91), (B.92), (B.93),
(B.94), (B.95), (B.96), (B.97),
(B.98), (B.99), (B.101),
(B.102), (B.114), (B.115),
(B.116), (B117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.127), (B.128),
(B.135)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (8), (B.103)
AD SER-free AD
−1
λ h , FIT Surrogate inflow rate to the state “A DU 2” of a two-channel Figures B.18, B.19, B.20;
A SI
system Formulas (B.60), (B.61),
(B.62), (B.64)
−1
λ h , FIT Nominal outflow rate from the flow partitioning node “FPN” Figures B.7, B.8, B.9, B.12;
B
caused by periodic clearing Formulas (B.14), (B.17),
(B.29), (B.32), (B.33)
−1
λ h , FIT Dangerous failure rate of channel B of a two-channel system Figures 6, 7, 8, B.14, B.15,
BD
(B.26); Formulas (19), (21),
(23), (27), (28), (29), (30),
(31), (33), (35), (36), (37),
(39), (40), (B.63), (B.67),
(B.69), (B.91), (B.92), (B.93),
(B.94), (B.95), (B.96), (B.97),
(B.98), (B.100), (B.101),
(B.102), (B.114), (B.115),
(B.116), (B117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.127), (B.128),
(B.135)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (8), (B.103)
BD SER-free BD
−1
λ h , FIT Surrogate inflow rate to the state “B DU 2” of a two-channel Figures B.19, B.20;
B SI
system Formulas (B.63), (B.67)
−1
λ h , FIT Common cause failure rate Figure B.1; Formulas (8),
CC
(9), (B.48), (B.103),
−1
λ h , FIT Dangerous failure rate of channel CH Formula (1)
CHD
−1
λ h , FIT Dangerous failure rate of each of the functional channels of a Figure 9; Formulas (38),
D
symmetrical two-channel system (B.125), (B.126)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (38), (B.125),
D SER-free D
(B.126)
−1
λ h , FIT Constant surrogate dangerous failure rate over time for the Formulas (5), (B.2), (B.3),
ED
wearing element E (B.4)
−1
λ h , FIT Dangerous failure rate of the element i of channel CH com- Figure 1; Formulas (1), (2),
EiD
prising n Elements (3)
i = 1 … n
−9 −1
NOTE 1 FIT = 10 h
TTabablele 1 1 ((ccoonnttiinnueuedd))
Pre-
Variable ferred Description Use (selection)
unit
−1
λ h , FIT Dangerous failure rate of the functional channel F of a sin- Figures 3, 4, 5, B.2, B.3, B.6,
FD
gle-channel system; dangerous failure results in loss of the B.11, B.12; Formulas (11),
safety function (13), (14), (15), (16), (17),
(18), (B.16), (B.17), (B.35),
(B.47), (B.49), (B.50),
(B.51), (B.52), (B.54), (B.55)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (9), (B.48)
FD SER-free FD
−1
λ h , FIT Transition rate from state i to state j Figures B.10, B.23;
ij
Formulas (B.19), (B.20),
i = 1 … 3
(B.70), (B.71), (B.72)
j = 1 … 3
−1
λ h , FIT Dangerous failure rate of the test channel M of a single-chan- Figures 3, B.2, B.3, B.6, B.11,
MD
nel system; dangerous failure results in loss of the diagnos- B.12; Formulas (11), (13),
tics function (17), (18), (B.16), (B.17),
(B.35), (B.47), (B.49),
(B.54), (B.55)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (9), (B.48)
MD SER-free MD
−9 −1
NOTE 1 FIT = 10 h
The significance of variables not listed in Table 1 is evident directly from the context.
4 Basic assumptions
Any modelling requires assumptions used by the model. The models discussed here, and their assumptions
are adjusted specifically to the typical boundary conditions of machine control systems. The following basic
assumptions generally apply throughout this document:
— Implementation of the safety functions with a logical series arrangement comprising discrete subsystems
in which the PFH of each subsystem is calculated separately.
— Use of the following subsystem architectures:
— Single-channel untested system (1oo1, designated architecture of categories B and 1);
— Single-channel tested system (1oo1D, designated architecture of category 2);
— Two-channel untested system (1oo2);
— Two-channel tested system (1oo2D, designated architecture of categories 3 and 4).
— No redundancy for increasing of the availability.
— Demand rate upon the safety function r ≥ 1/a. In terms of IEC 61508 this includes r = 1/a, high demand
d d
mode of operation and continuous mode of operation.
— In the case of diagnostics, test intervals not greater than the mission time.
NOTE 1 Setting the test interval of a channel to the mission time means one test at the end of the mission time
which is equivalent to no diagnostics for that channel. Commonly test intervals greater than one year are not
regarded as acceptable.
— Repair following detection of failure by diagnostics (automatic or manual as per specification).
— Repair following a hazardous event.
NOTE 2 In principle, consideration of the repair following a hazardous event also necessitates consideration
of the demand upon the safety function. It is found however that the demand rate needs be considered during
calculation of the PFH only in the case of certain 1oo1D applications.
— The reciprocals of the mean repair time (MRT) and the mean time to restoration (MTTR) are substantially
greater than the dangerous channel failure rates.
— Where a proof test (not usual in the machinery sector) is implemented: setting of the mission time T to
M
the length of the proof-test interval.
— Ignoring rates of failure to safety.
NOTE 3 This constitutes estimation on the safe side and permits simpler models and equations. It also prevents
non-guaranteed failures to safety from causing a mathematical improvement in PFH.
— Real component behaviour is idealized.
— Constant failure rates of channels over time; it follows that the MTTF (mean time to dangerous failure)
D
is equal to the reciprocal of the dangerous failure rate (MTTF = 1/λ ).
D D
NOTE 4 The mission time of wearing parts is limited to T (corresponding to B working cycles). Use of
10D 10D
a surrogate failure rate (substitute MTTF ) assumed to be constant over time is thus justified as an acceptable
D
approximation; see Clause 6 and Annex B.2.
— No systematic failures included in the PFH calculation.
NOTE 5 The PFH calculation addresses random hardware failures only. The important aspect of systematic
failures is addressed by following the relevant requirements of ISO 13849-1.
— PFH is seen as the mean value over time of the frequency of the unmet demands upon the safety function
(frequency of unsuccessful attempts, frequency of malfunction).
NOTE 6 The frequency of the unmet demands at worst is equal to the hazard rate. For high or continuous
demand mode, i.e. the modes of operation addressed by this document, the hazard rate conforms with the
unconditional failure intensity upon which the definition of the PFH in IEC 61508 is based.
NOTE 7 In conjunction with the potential scale of harm, this frequency is essential to the residual risk despite
implementation of the safety function.
— Perfect repair, where applicable: perfect proof test.
NOTE 8 It is assumed that following repair, both function blocks are intact and have the original failure rate
for the remaining mission time. In the context of the general assumption of constant failure rates over time, this
means that a function block that has not failed at the time of repair need not necessarily be replaced, but only
checked for its proper function.
5 Channels
5.1 General
In the block diagrams of the models described here, channels are shown as discrete function blocks. A
distinction is drawn between functional channels and test channels.
5.2 Functional channel
A functional channel performs the safety function when required or continuously. In the two-channel tested
systems described here (1oo2D), each functional channel also has the purpose of diagnostics of the other
functional channel, either by performing the full diagnostics function, or by serving as a sensor or actuator
in it.
NOTE Effective diagnostics requires both detection of the failure and performance of the predefined safety-
oriented action.
Loss of the ability to perform the safety function or the test function is described as a dangerous failure of the
functional channel. Use of a suitable system architecture can prevent the dangerous failure of a functional
channel from leading to a dangerous system failure (loss of the safety function).
5.3 Test channel
A test channel tests, at certain times or continually, the ability of a functional channel to perform the safety
function. Loss of this test function does not of itself lead to failure of the safety function. To obviate the
need for an additional term, it is nevertheless described as dangerous failure of the test channel, since with
regard to the test channel it constitutes the least favourable form of failure in safety terms.
5.4 Channel comprising elements connected logically in series
Functional channels and test channels often consist of elements arranged logically in series, as shown
in Figure 1. A channel CH comprising n elements then suffers dangerous failure when at least one of its
elements E … E fails dangerously.
1 n
Figure 1 — Channel CH consisting of n elements
The dangerous failure rate of the channel can then be calculated by means of the equation:
(1)
CHDE1D E2DEnD
ISO 13849-1 uses the mean time to dangerous failure (MTTF ) instead of the dangerous failure rate.
D
ISO 13849-1 and this document assume all failure rates of single elements and complete channels to be
constant over time. Therefore, the following applies for an element E or, respectively, for a channel CH:
i
MTTF , MTTF (2)
DEi DCH
EDi CHD
and, conversely
, (3)
EDi CHD
MTTF MTTF
DEi DCH
Therefore, within ISO 13849-1, MTTF can be regarded as a synonym of the reciprocal of the dangerous
D
failure rate λ . Nevertheless, it is important to note that Formula (2) and Formula (3) are valid only in case
D
of failure rates which are constant over time.
In a functional channel for which diagnostics is implemented, the diagnostics can differ between the
individual elements. The diagnostic coverage of an element with a high failure rate then has a greater effect
for the channel as a whole than the diagnostic coverage of an element with a low failure rate. The mean
diagnostic coverage for the channel can therefore be computed as the sum of all weighted element diagnostic
coverages. The element diagnostic coverages are weighted with their respective components of the total
failure rate of the channel:
E1D E2D EDn
DC DC DC DC (4)
CH 12 n
CHD CHD CHD
NOTE 1 The models presented here consider diagnostics only for functional channels. Diagnostics for test channels,
where implemented, is disregarded. This constitutes estimation on the safe side of the PFH. Internal diagnostics of
elements is not addressed by this document.
NOTE 2 For category 2, 3 or 4 it remains necessary to calculate the average diagnostic coverage (DC ) over both
avg
channels to decide whether the category requirements on the minimum value of DC are met.
avg
5.5 Limitation of λ (Capping)
CHD
ISO 13849-1 limits the maximum value of MTTF for each channel to 100 years for subsystems of category
D
B, 1, 2 and 3. For subsystems of category 4 the limiting value is 2 500 years. This limitation is intended
to ensure that redundancy and testing is needed to achieve higher performance levels. Therefore, when
determining the PL the capping of MTTF for each channel is always required and not only for the simplified
D
procedure for estimating the performance level of subsystems (ISO 13849-1:2023, 6.1.8). In conjunction
with the limitation of the maximum achievable PL with categories B, 1 and 2, as required in ISO 13849-1,
these measures pursue a similar objective as the architectural constraints of IEC 62061.
As the channel failure rates used here are constant over time, they are equal to the reciprocal of the MTTF
D
for each channel. The capping of MTTF for each channel can therefore be transferred to the following
D
limitations of λ :
CHD
— For categories B, 1, 2 and 3 the λ for each channel is limited to a minimum value of
CHD
−6 −1
λ = 1,14×10 h = 1 142 FIT.
CHD min 1
−8 −1
— For category 4 the λ for each channel is limited to a minimum value of λ = 4,57×10 h = 46 FIT.
CHD CHD min 2
NOTE Capping of MTTF as a means to avoid untested single-channel architectures to be used with high-risk
D
applications is specific to ISO 13849. International Standards like IEC 61508 or IEC 62061 accomplish the same goal by
setting out SIL-specific architectural constraints.
6 Wearing parts
Like other calculation-based methods, Markov models are not able on their own to handle failure rates that
change over time. Where the failure behaviour of elements is determined essentially by wear, the failure
rate of the elements increases over time. However, IEC 62061 and ISO 13849-1 present a pragmatic approach
to resolving this problem: use of the element is limited to the period preceding the strong wear phase at
the end of its usable life, and a constant surrogate failure rate over time is calculated as an approximation
of the actual failure rate for the resulting limited usage phase. The result of this approach is shown in the
remainder of this clause.
On average, 10 % of the specimens of a wearing element E will have failed dangerously after B working
10D, E
cycles under specified conditions. If n is the operation frequency (mean number of operations per time
op
unit, typically noted in cycles per year) the surrogate failure rate λ is given by
ED
n
op
(5)
ED
10 B
10DE
NOTE 1 When the operating frequency n is very low (e.g. < 1/month), wear is not a predominant cause of failure
op
even in typical wearing parts. The use of Formula (5) is not then appropriate.
NOTE 2 The derivation of Formula (5) originates in ISO 13849-1 and is also presented in Annex B.2 of this document.
As mentioned above, the use of this approximated surrogate dangerous failure rate has to be limited to the
time period without strong wear. This period ends when B working cycles have been completed. The
10D, E
corresponding service life is given by
B
10DE
T = (6)
10DE
n
op
Therefore, Formula (5) is valid only if the operational life of the element E is limited to a time interval of
T . If T is shorter than the mission time T of the control system, the element E has to be replaced by
10D, E 10D, E M
a new specimen during T each time it has been used for a time span of T .
M 10D, E
In many cases the operation frequency n varies over time: for example, operating times alternate with
op
idle times. Then a mean value of n for the period of time Δt can be used based on the number n of cycles
op
completed during Δt. An equivalent equation for n is known from ISO 13849-1 as well as from IEC 62061:
op
s
dh
...

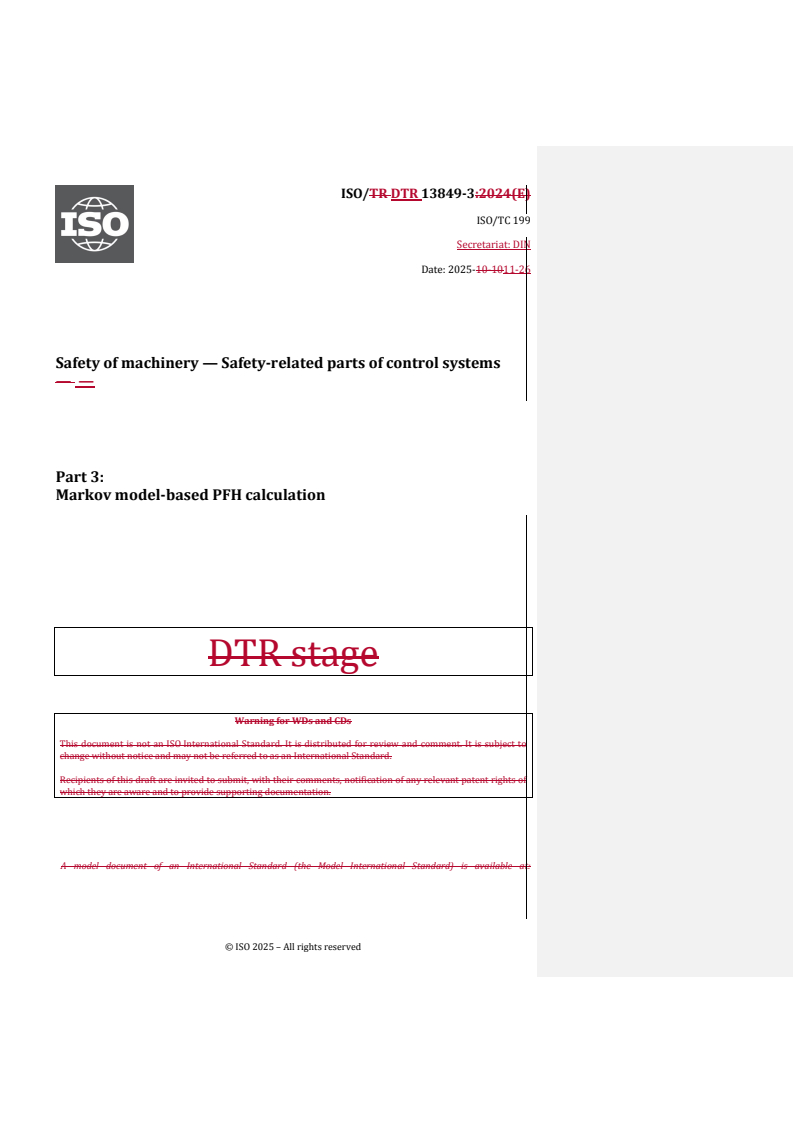

ISO/TR DTR 13849-3:2024(E)
ISO/TC 199
Secretariat: DIN
Date: 2025-10-1011-26
Safety of machinery — Safety-related parts of control systems
— —
Part 3:
Markov model-based PFH calculation
DTR stage
Warning for WDs and CDs
This document is not an ISO International Standard. It is distributed for review and comment. It is subject to
change without notice and may not be referred to as an International Standard.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
A model document of an International Standard (the Model International Standard) is available at:

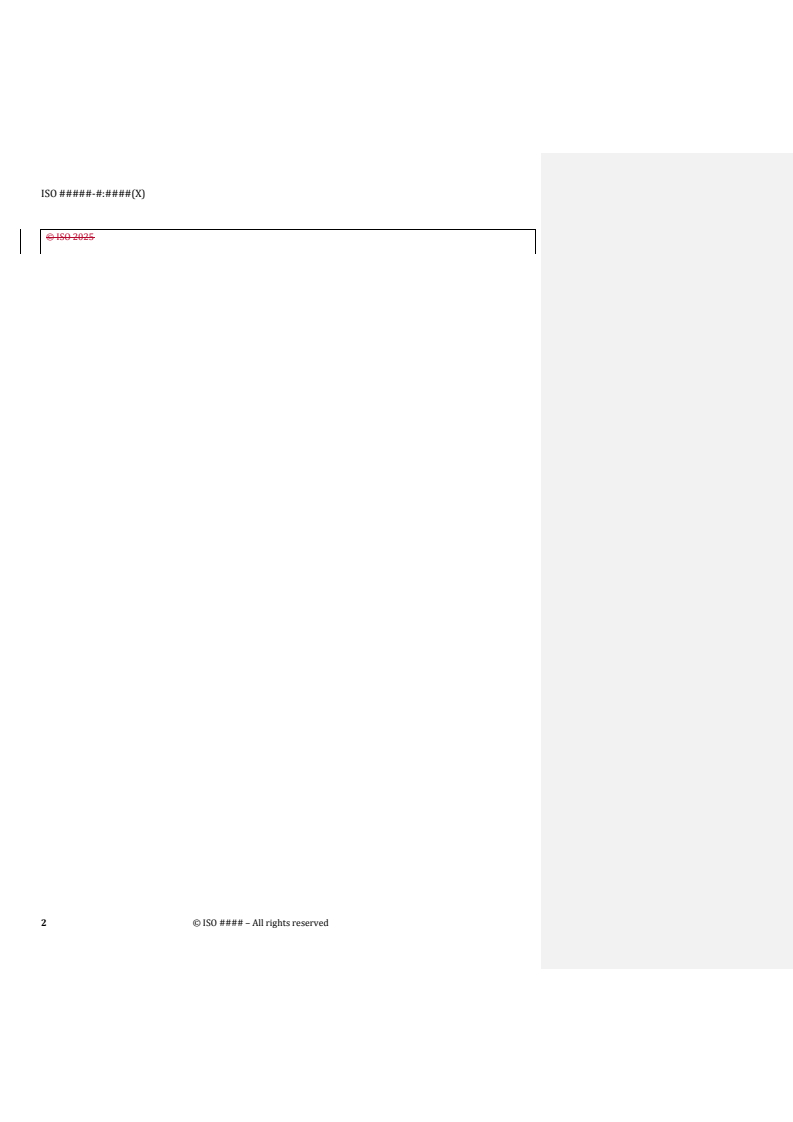

ISO #####-#:####(X)
2 © ISO #### – All rights reserved
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: copyright@iso.org
Website: www.iso.orgwww.iso.org
Published in Switzerland
iii
Contents
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Symbols and abbreviated terms . 1
4 Basic assumptions . 11
5 Channels . 13
5.1 General . 13
5.2 Functional channel . 13
5.3 Test channel . 13
5.4 Channel comprising elements connected logically in series . 13
5.5 Limitation of λ (Capping) . 15
CHD
6 Wearing parts . 15
7 Common cause failures . 16
8 Series arrangement of subsystems . 17
9 Single-channel architecture with and without test channel . 18
9.1 General . 18
9.2 General solution for the single-channel architecture . 19
9.3 Single-channel architecture with time-optimal testing . 20
9.4 Single-channel architecture with external diagnostics . 20
9.5 Single-channel architecture with external diagnostics and time-optimal testing . 21
9.6 Single-channel architecture without diagnostics . 21
9.7 Simplified general solution for the single-channel architecture . 22
9.8 Simplified solution for the single-channel architecture with time-optimal testing. 22
10 Two-channel architectures . 22
10.1 General . 22
10.2 General solution for the two-channel architecture . 24
10.3 Two-channel architecture with continuous testing . 25
10.4 Two-channel architecture without testing . 26
10.5 Simplified general solution for the two-channel architecture . 26
10.6 Simplified solution for the symmetrical two-channel architecture . 27
10.7 Simplified solution for the two-channel architecture with continuous testing . 28
10.8 Simplified solution for the two-channel architecture without testing . 28
Annex A (informative) Examples of the application of this formula-based approach . 29
Annex B (informative) Derivation of the PFH formulas presented in the main part . 43
Bibliography . 99
iv
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 199, Safety of machinery.
A list of all parts in the ISO 13849 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
Introduction
This technical reportdocument has been prepared on behalf of ISO/TC 199/WG 8 to enhance the capabilities
of the simplified procedure of ISO 13849--1:2023, 6.1.8 and Annex K, for estimating the performance level for
subsystems.
By addressing the designated architectures of ISO 13849--1, the reportdocument presents an approach using
Markov model-based formulas to estimate the average frequency of a dangerous failure of the safety function.
As well as the simplified procedure of ISO 13849--1, the method considers the architecture, the MTTF of
D
channels, diagnostic coverage DCavg, the common cause factor β and the mission time TM.
Beyond the capabilities of the simplified procedure the method presented here can allow for different test
rates, a mission time different from 20 years, a common cause factor different from 2 % and any MTTF ratio
D
of a functional channel and its related test channel. Asymmetric redundancy is supported without beforehand
symmetrisation.
The formulas of this document can also be used in the context of other standards demanding the estimation
of PFH as long as the system under assessment meets the method's underlying assumptions (see
Clause 4Clause 4).).
The ISO 13849 and IEC 62061 standards governinggovern the functional safety of machinery and require the
probability of failure to be determined for each safety function in terms of a quantitative estimation of the PFH
value (average frequency of a dangerous failure of the safety function).
NOTE In IEC 62061 (as well as in IEC 61508)), PFH is descriptively denoted as the “average frequency of a dangerous
failure of the safety function”. The abbreviation PFH stems from the standard’sInternational Standard’s former
denotation as the “probability of a dangerous failure per hour”.
These standardsInternational Standards assist users in ascertaining the PFH in different ways: IEC 62061 by
provision of equations for calculation of the PFH, ISO 13849--1 by a table and some associated formulas. Both
approaches have their drawbacks. The equations in IEC 62061 fail to address single-channel tested systems
in desirable depth and in some cases yield very conservative results for two-channel tested systems. The table-
based solution in ISO 13849--1 lacks flexibility owing to the fixed specification of the mission time and the
common cause factor (β) and entails additional overhead for asymmetrical two-channel systems. Usually, the
methods in the two standards will yield PFH values deviating to some extent from each other.
The objective of the PFH equations presented and derived in this document is for the benefits of flexible
solutions involving equations to be combined with the more precise modelling technique upon which the table
solution is based. The PFH equations yield good to very good reproduction of the table values stated in
ISO 13849--1:2023, Annex K, and in particular cases assume the form of equations already contained in
IEC 62061. They can therefore be regarded as a further development of the instruments of both
standardsInternational Standards.
Markov models, which are also among the instruments considered suitable in IEC 61508--6 and IEC 61508--
7, are selected exclusively as the method for analysis of the architectures studied within this document. Unlike
the numerical methods (stochastic Petri nets, Monte Carlo simulation), Markov models enable equations to be
derived. They are also superior to reliability block diagrams (RBDs) in their handling of mutually influencing
failure processes and the reinsertion of repaired systems. The drawback of the Markov method of being able
to handle only exponentially distributed processes (constant transition rates) does not provide significant
detriment to the precision of the results.
Simple special cases are treated as non-standard cases of the higher-level more complex cases, enabling
overall methodical coherence to be attained.
vi
The body part of this document addresses the use of the formulas for the estimation of the PFH value. The
definitions, variables and the basic assumptions are presented as well as the formulas.
Annex AAnnex A demonstrates the application of this approach to the examples A and B in ISO 13849--1:2023,
Annex I.
Annex BAnnex B of this document discloses the derivation of the presented formulas based on Markov models
for the different architectures.
vii
Safety of machinery — Safety-related parts of control systems —
Part 3: Markov model-based PFH calculation
Part 3:
Markov model-based PFH calculation
1 Scope
This technical report is intended to provideThis document provides formulas for the estimation of the PFH
value of single-channel architectures as well as two-channel architectures with and without diagnostics
according toin accordance with ISO 13849--1:2023. The formulas presented in this document are based on
Markov modelling and can be used as an alternative to the simplified procedure of ISO 13849--1:2023 for
estimating the quantifiable aspects of the performance level (see ISO 13849--1:2023, 6.1.8, Figure 12, and
Annex K). They can also serve as an alternative to any other adequate method for estimating the quantifiable
aspects of the performance level.
NOTE Different estimation methods can vary in the resulting PFH values due to their nature. A certain variation
willis usually be the consequence of different modelling approaches and unavoidable simplifications specific to the
method.
Other requirements of ISO 13849--1, e.g. on categories or software, are not addressed by this document. These
requirements need to be fulfilled independent of the alternative, Markov based PFH calculation.
2 Normative references
There are no normative references in this document.
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for
design
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13849-1:2023-04 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.2 Symbols and abbreviated terms
For theThe definition of parameters related to the quantitative estimation of the PFH value, such as mean time
to dangerous failure MTTF , diagnostic coverage DC, common cause factor β mission time T , etc., seecan be
D M
found in ISO 13849--1:2023, Clause 3.
With only a few exceptions, all variables used in this document are listed in Table 1Table 1 below.
NOTE Within this document components with mechanical wear are concisely addressed as wearing elements or
wearing parts.
Table 1 — Used variables and locations of their appearance
Pre-
Variable ferred Description Use (selection)
unit
B – Number of working cycles by which 10 % of the wearing Formulas (5), (6), (B.1),
10D E
elements E have failed dangerously (B.4)Formulas (5), (6),
(B.1), (B.4), (B.5), (B.5)
C – Auxiliary variable used for two-channel systems Formulas (31)Formulas (3
N
1), (B.102), (B.102)
C – Auxiliary variable used for two-channel systems Formulas (30)Formulas (3
P
0), (B.101), (B.101)
DC – Diagnostic coverage of the functional channel of a single- Figures 3, 4, 9, B.2, B.3;
channel system or a symmetrical two-channel system Formulas (11), (13), (14),
(15), (17), (18), (38),
(B.47), (B.49), (B.50),
(B.51), (B.54), (B.55),
(B.125)Figures 3, 4, 9, B.2,
B.3; Formulas (11), (13),
(14), (15), (17), (18), (38),
(B.47), (B.49), (B.50),
(B.51), (B.54), (B.55),
(B.125), (B.126), (B.126)
DC – Diagnostic coverage of channel A of a two-channel system Figures 6, 7, (B.14), (B.15);
A
Formulas (20), (22), (24),
(32), (36), (39), (B.65),
(B.66)Figures 6, 7, (B.14),
(B.15); Formulas (20),
(22), (24), (32), (36), (39),
(B.65), (B.66), (B.99),
(B.99)
¯ – Generalized diagnostic coverage of channel A of a two- Formulas (24), (26), (37),
𝐷𝐷𝐷𝐷 𝐷𝐷𝐷𝐷
A A
channel system with consideration of the test interval of the (B.64), (B.65),
channel (B.122)Formulas (24),
(26), (37), (B.64), (B.65),
(B.122), (B.123), (B.123)
DCB – Diagnostic coverage of channel B of a two-channel system Figures 6, 7, (B.14), (B.15);
Formulas (21), (23), (25),
(33), (36), (39), (B.68),
(B.69)Figures 6, 7, (B.14),
(B.15); Formulas (21),
(23), (25), (33), (36), (39),
(B.68), (B.69), (B.100),
(B.100)
¯ Generalized diagnostic coverage of channel B of a two- Formulas (25), (27), (37),
–
𝐷𝐷𝐷𝐷 𝐷𝐷𝐷𝐷
B B
channel system with consideration of the test interval of the (B.67), (B.68),
channel (B.122)Formulas (25),
(27), (37), (B.67), (B.68),
(B.122), (B.123), (B.123)
DCCH – Diagnostic coverage of channel CH Formula (4)Formula (4)
Pre-
Variable ferred Description Use (selection)
unit
DC – Diagnostic coverage of element i of channel CH Figure 1Figure 1,
i
Formula (4), Formula (4)
i = 1 … n
E – Element or wearing element Formulas (5), (6), (B.1),
(B.2), (B.3), (B.4)Formulas
(5), (6), (B.1), (B.2), (B.3),
(B.4), (B.5), (B.5)
E – Element i of channel CH Figure 1, Formulas (1), (2),
i
(3)Figure 1, Formulas (1),
i = 1 … n
(2), (3), (4), (4)
d d/a Mean annual number of operation days of a wearing element Formula (7)Formula (7)
op
h h/d Mean daily number of operation hours of a wearing element Formula (7)Formula (7)
op
−1
LA h Auxiliary variable used for two-channel systems Figures B.21, B.22;
Formulas (19), (20), (22),
(26), (28), (29), (30), (31),
(32), (34), (B.66), (B.94),
(B.95), (B.98), (B.99),
(B101), (B102),
(B104)Figures B.21, B.22;
Formulas (19), (20), (22),
(26), (28), (29), (30), (31),
(32), (34), (B.66), (B.94),
(B.95), (B.98), (B.99),
(B101), (B102), (B104),
(B.106), (B.106)
−1
L h Auxiliary variable used for two-channel systems Figures B.21, B.22;
B
Formulas (19), (21), (23),
(27), (28), (29), (30), (31),
(33), (35), (B.69), (B.94),
(B.95), (B.98), (B.100),
(B.101), (B.102),
(B.105)Figures B.21, B.22;
Formulas (19), (21), (23),
(27), (28), (29), (30), (31),
(33), (35), (B.69), (B.94),
(B.95), (B.98), (B.100),
(B101), (B102), (B105),
(B.107), (B.107)
−1
Lα h Auxiliary variable used for single-channel systems Formulas (B.30),
(B.32)Formulas (B.30),
(B.32), (B.34), (B.34)
−1
L h Auxiliary variable used for single-channel systems Formulas (B.30),
β
(B.33)Formulas (B.30),
(B.33), (B.34), (B.34)
−1
L h Auxiliary variable used for single-channel systems Formulas (B.30),
θ
(B.31)Formulas (B.30),
(B.31), (B.34), (B.34)
−1
L h Auxiliary variable used for two-channel systems Formulas (28)Formulas (2
8), (B.94), (B.94)
Pre-
Variable ferred Description Use (selection)
unit
−1
L h Auxiliary variable used for two-channel systems Formulas (29)Formulas (2
9), (B.95), (B.95)
MTTF a Mean time to dangerous failure of channel CH Formulas (2)Formulas (2),
D CH
(3), (3)
MTTFD E a Mean time to dangerous failure of the wearing element E Formula (B.5)Formula (B.5
)
MTTF a Mean time to dangerous failure of the element i of Formulas (2)Formulas (2),
D Ei
channel CH (3), (3)
i = 1 … n
−1 −1
n h , a Operating frequency (number of operations per time unit) of Formulas (5), (6), (7),
op
the wearing element E; in case of intermittent operation: (B.1), (B.4)Formulas (5),
mean operating frequency based on a time span of one year (6), (7), (B.1), (B.4), (B.5),
(B.5)
P – Mean probability of the state “A DD” Formula (B.59)Formula (B.
A DD
59)
p – Instantaneous probability of the state “A DU” Formula (B.92)Formula (B.
A DU
92)
PA DU 2 – Mean probability of the state “A DU 2” Formula (B.60)Formula (B.
60)
p – Instantaneous probability of the state “B DU” Formula (B.93)Formula (B.
B DU
93)
−1
PFH h Average frequency of a dangerous failure per hour Figures B.3, B.15;
Formulas (10), (11), (13),
NOTE PFH is seen as the mean value over time of the
(14), (15), (16), (17), (18),
frequency of the unmet demands upon the safety function
(19), (36), (37), (38), (39),
(frequency of unsuccessful attempts, frequency of
(40), (B.34), (B.35), (B.47),
malfunction).
(B.49), (B.50), (B.51),
(B.52), (B.54), (B.55),
(B.97), (B.98), (B.119),
(B.120), (B.121), (B.122),
(B.123), (B.124), (B.125),
(B.126), (B.127),
(B.128)Figures B.3, B.15;
Formulas (10), (11), (13),
(14), (15), (16), (17), (18),
(19), (36), (37), (38), (39),
(40), (B.34), (B.35), (B.47),
(B.49), (B.50), (B.51),
(B.52), (B.54), (B.55),
(B.97), (B.98), (B.119),
(B.120), (B.121), (B.122),
(B.123), (B.124), (B.125),
(B.126), (B.127), (B.128),
(B.135), (B.135)
−1
pfh h Instantaneous value of the frequency of a dangerous failure Formulas (B.29), (B.30),
(instantaneous value of the PFH) (B.34),
(B.96)Formulas (B.29),
(B.30), (B.34), (B.96),
(B.97), (B.97)
Pre-
Variable ferred Description Use (selection)
unit
−1
PFH h PFH of a single-channel, untested system (see PFH) Formulas (B.38),
NT
(B.39)Formulas (B.38),
(B.39), (B.40), (B.40)
−1
PFH h PFH of a single-channel, time-optimal tested system (see Formulas (B.37),
TOT
PFH) (B.39)Formulas (B.37),
(B.39), (B.40), (B.40)
−1
PFHi h PFH contribution of subsystem i of a series arrangement of n Formulas (10), (B.114),
subsystems (B.115), (B.116), (B.117),
i = 1 … n
(B.118)Formulas (10),
or
or
(B.114), (B.115), (B.116),
PFH component i of a two-channel system in simplified
i = 1 … 5
(B.117), (B.118), (B.119),
analysis (see PFH)
(B.119)
PFPN – Mean probability of the state “FPN” (flow partitioning node) Figure B.7;
Formulas (B.10)Figure B.7;
Formulas (B.10), (B.12),
(B.12)
p – Instantaneous probability of the state “FPN” (flow Figure B.7; Formulas (B.6),
FPN
partitioning node) (B.7), (B.8), (B.9),
(B.10)Figure B.7;
Formulas (B.6), (B.7),
(B.8), (B.9), (B.10), (B.11),
(B.11)
p – Instantaneous probability of the state i Formulas (B.19), (B.20),
i
(B.23), (B.24), (B.70),
i = 1 … 3
(B.71), (B.72), (B.76),
(B.77)Formulas (B.19),
(B.20), (B.23), (B. 24),
(B.70), (B.71), (B.72),
(B.76), (B.77), (B.78),
(B.78)
p – Instantaneous probability of the state “INT” Figure B.27;
INT
Formulas (B.108), (B.109),
(B.110)Figure B.27;
Formulas (B.108), (B.109),
(B.110), (B.111), (B.111)
p – Instantaneous probability of the state “M D” of a single- Formulas (B.28)Formulas (
M D
channel system B.28), (B.29), (B.29)
p – Instantaneous probability of the state “OK” of a single- Formulas (B.27)Formulas (
OK
channel system B.27), (B.29), (B.29)
P – Mean probability of the state “OK” of a two-channel system Formulas (B.59),
OK
(B.60)Formulas (B.59),
(B.60), (B.61), (B.61)
−1
r h Demand rate upon the safety function Figures B.3, B.12, B.15;
d
Formulas (11), (12), (14),
(17), (B.15), (B.16), (B.17),
(B.18), (B.35), (B.36),
(B.41), (B.45), (B.46),
(B.47), (B.50)Figures B.3,
B.12, B.15; Formulas (11),
(12), (14), (17), (B.15),
Pre-
Variable ferred Description Use (selection)
unit
(B.16), (B.17), (B.18),
(B.35), (B.36), (B.41),
(B.45), (B.46), (B.47),
(B.50), (B.54), (B.54)
−1
r h Repair rate Figures B.3Figures B.3,
r
B.15, B.15
−1
r h Test rate of the functional channel of a single-channel Figures 3, 4, 9, B.2, B.3,
t
system or a symmetrical two-channel system B.12; Formulas (11), (12),
(14), (17), (B.15), (B.16),
(B.17), (B.29), (B.35),
(B.36), (B.41), (B.45),
(B.46), (B.47), (B.50),
(B.54)Figures 3, 4, 9, B.2,
B.3, B.12; Formulas (11),
(12), (14), (17), (B.15),
(B.16), (B.17), (B.29),
(B.35), (B.36), (B.41),
(B.45), (B.46), (B.47),
(B.50), (B.54), (B.126),
(B.126)
−1
r h Test rate of element i of channel CH Figure 1Figure 1
ti
i = 1 … n
−1
r h Test rate of channel A of a two-channel system Figures 6, B.14, B.15;
tA
Formulas (22), (24),
(B.57)Figures 6, B.14, B.15;
Formulas (22), (24),
(B.57), (B.124), (B.124)
−1
r h Test rate of channel B of a two-channel system Figures 6, B.14, B.15;
tB
Formulas (23), (25),
(B.58)Figures 6, B.14, B.15;
Formulas (23), (25),
(B.58), (B.124), (B.124)
T h Test interval of a symmetrical two-channel system; clearing Figures 9, B.7, B.27;
interval of the flow partitioning node “FPN” or the state Formulas (38), (B.10),
“INT” (B.11), (B.12), (B.13),
(B.14), (B.15), (B.111),
(B.113)Figures 9, B.7, B.27;
Formulas (38), (B.10),
(B.11), (B.12), (B.13),
(B.14), (B.15), (B.111),
(B.113), (B.125), (B.125)
T h, a Time until 10 % of the wearing elements E have failed Formulas (6), (B.1),
10D E
dangerously (B.2)Formulas (6), (B.1),
(B.2), (B.3), (B.3)
T h Test interval of channel A of a two-channel system Figures 6, 7, B.14, B.16,
A
B.18, B.24; Formulas (20),
(24), (36), (B.57), (B.59),
(B.61), (B.62), (B.64),
(B.65), (B.66), (B.114),
(B.120)Figures 6, 7, B.14,
B.16, B.18, B.24;
Pre-
Variable ferred Description Use (selection)
unit
Formulas (20), (24), (36),
(B.57), (B.59), (B.61),
(B.62), (B.64), (B.65),
(B.66), (B.114), (B.120),
(B.121), (B.121)
T h Test interval of channel B of a two-channel system Figures 6, 7, B.14, B.16,
B
B.24; Formulas (21), (25),
(36), (B.58), (B.63), (B.67),
(B.68), (B.69), (B116),
(B.120)Figures 6, 7, B.14,
B.16, B.24; Formulas (21),
(25), (36), (B.58), (B.63),
(B.67), (B.68), (B.69),
(B116), (B.120), (B.121),
(B.121)
tcycle s Cycle time of a wearing element Formula (7)Formula (7)
T h, a Mission time; if a proof test according to IEC 62061:2021, Formulas (11), (13), (17),
M
3.2.47, is implemented, the proof test interval supersedes (18), (19), (20), (21), (22),
T . (23), (24), (25), (36), (37),
M
(38), (39), (40), (B.34),
(B.35), (B.37), (B.47),
(B.49), (B.54), (B.55),
(B.60), (B.61), (B.62),
(B.63), (B.65), (B.66),
(B.68), (B.69), (B.97),
(B.98), (B.99), (B.100),
(B.115), (B.117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.125), (B.126),
(B.127),
(B.128)Formulas (11),
(13), (17), (18), (19), (20),
(21), (22), (23), (24), (25),
(36), (37), (38), (39), (40),
(B.34), (B.35), (B.37),
(B.47), (B.49), (B.54),
(B.55), (B.60), (B.61),
(B.62), (B.63), (B.65),
(B.66), (B.68), (B.69),
(B.97), (B.98), (B.99),
(B.100), (B.115), (B.117),
(B.120), (B.121), (B.122),
(B.123), (B.124), (B.125),
(B.126), (B.127), (B.128),
(B.135), (B.135)
TRTE – Time-related test efficiency on a single-channel tested Figure B.13;
system Formulas (12), (B.41),
(B.45)Figure B.13;
Formulas (12), (B.41),
(B.45), (B.46), (B.46)
β – Common cause factor, constituting a quantitative dimension Figures 3, 6, 7, 8, 9, B.1;
for the common cause failures of two channels (single- B.2, B.14; Formulas (8),
(9)Figures 3, 6, 7, 8, 9, B.1;
Pre-
Variable ferred Description Use (selection)
unit
channel system: functional channel F and test channel M; B.2, B.14; Formulas (8),
two-channel system: channels A and B) (9), (38), (38)
Δt h, a Period of time for which the mean operation frequency n Formulas (7)
op
of a wearing element is calculated (typically one year)
Formulas (B.6)Formulas (7
or )
Small time interval used for limit calculation Formulas (B.6), (B.7), (B.7)
−1
Λ h Failure-induced absolute inflow rate to the flow partitioning Figure B.7; Formulas (B.6),
node “FPN” (B.7), (B.8), (B.9), (B.10),
(B.11)Figure B.7;
Formulas (B.6), (B.7),
(B.8), (B.9), (B.10), (B.11),
(B.12), (B.12)
−1
Λ h Failure-induced absolute outflow rate from the flow Figures B.7, B.27;
partitioning node “FPN” or from the state “INT” Formulas (B.12),
(B.111)Figures B.7, B.27;
Formulas (B.12), (B.111),
(B.113), (B.113)
−1
Λ3 h Absolute outflow rate from the flow partitioning node “FPN” Figure B.7;
caused by periodic clearing Formulas (B.11)Figure B.7;
Formulas (B.11), (B.12),
(B.12)
−1
λ h , FIT Failure-induced nominal inflow rate to the flow partitioning Figures B.7, B.27;
node “FPN” or to the intermediate state “INT” Formulas (B.13), (B.14),
(B.108), (B.110),
(B.111)Figures B.7, B.27;
Formulas (B.13), (B.14),
(B.108), (B.110), (B.111),
(B.113), (B.113)
−1
λ2 h , FIT Failure-induced nominal outflow rate from the flow Figures B.7, B.27;
partitioning node “FPN” or from the intermediate state “INT” Formulas (B.6), (B.7),
(B.8), (B.9), (B.10), (B.11),
(B.12), (B.13), (B.14),
(B.108), (B.110),
(B.111)Figures B.7, B.27;
Formulas (B.6), (B.7),
(B.8), (B.9), (B.10), (B.11),
(B.12), (B.13). (B.14),
(B.108), (B.110), (B.111),
(B.113), (B.113)
−1
λ h , FIT Failure-induced nominal outflow rate from the flow Figures B.7, B.8, B.9, B.12;
A
partitioning node “FPN” Formulas (B.13), (B.16),
(B.29), (B.32)Figures B.7,
B.8, B.9, B.12;
Formulas (B.13), (B.16),
(B.29), (B.32), (B.33),
(B.33)
−1
Figures 6, 7, 8, B.14, B.15,
λAD h , FIT Dangerous failure rate of channel A of a two-channel system
B.18B.26; Formulas (19),
(20), (22), (26), (28), (29),
(30), (31), (32), (34), (36),
(37), (39), (40), (B.59),
Pre-
Variable ferred Description Use (selection)
unit
(B.61), (B.62), (B.64),
(B.66), (B.91), (B.92),
(B.93), (B.94), (B.95),
(B.96), (B.97), (B.98),
(B.99), (B.101), (B.102),
(B.114), (B.115), (B.116),
(B117), (B.120), (B.121),
(B.122), (B.123), (B.124),
(B.127), (B.128)Figures 6,
7, 8, B.14, B.15, B.18 B.26;
Formulas (19), (20), (22),
(26), (28), (29), (30), (31),
(32), (34), (36), (37), (39),
(40), (B.59), (B.61), (B.62),
(B.64), (B.66), (B.91),
(B.92), (B.93), (B.94),
(B.95), (B.96), (B.97),
(B.98), (B.99), (B.101),
(B.102), (B.114), (B.115),
(B.116), (B117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.127), (B.128),
(B.135), (B.135)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (8)Formulas (8),
AD SER-free AD
(B.103), (B.103)
−1
λ h , FIT Surrogate inflow rate to the state “A DU 2” of a two-channel Figures B.18, B.19, B.20;
A SI
system Formulas (B.60), (B.61),
(B.62)Figures B.18, B.19,
B.20; Formulas (B.60),
(B.61), (B.62), (B.64),
(B.64)
−1
λB h , FIT Nominal outflow rate from the flow partitioning node “FPN” Figures B.7, B.8, B.9, B.12;
caused by periodic clearing Formulas (B.14), (B.17),
(B.29), (B.32)Figures B.7,
B.8, B.9, B.12;
Formulas (B.14), (B.17),
(B.29), (B.32), (B.33),
(B.33)
−1
λ h , FIT Dangerous failure rate of channel B of a two-channel system Figures 6, 7, 8, B.14, B.15,
BD
(B.26); Formulas (19),
(21), (23), (27), (28), (29),
(30), (31), (33), (35), (36),
(37), (39), (40), (B.63),
(B.67), (B.69), (B.91),
(B.92), (B.93), (B.94),
(B.95), (B.96), (B.97),
(B.98), (B.100), (B.101),
(B.102), (B.114), (B.115),
(B.116), (B117), (B.120),
(B.121), (B.122), (B.123),
(B.124), (B.127),
(B.128)Figures 6, 7, 8,
B.14, B.15, (B.26);
Formulas (19), (21), (23),
Pre-
Variable ferred Description Use (selection)
unit
(27), (28), (29), (30), (31),
(33), (35), (36), (37), (39),
(40), (B.63), (B.67), (B.69),
(B.91), (B.92), (B.93),
(B.94), (B.95), (B.96),
(B.97), (B.98), (B.100),
(B.101), (B.102), (B.114),
(B.115), (B.116), (B117),
(B.120), (B.121), (B.122),
(B.123), (B.124), (B.127),
(B.128), (B.135), (B.135)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (8)Formulas (8),
BD SER-free BD
(B.103), (B.103)
−1
λB SI h , FIT Surrogate inflow rate to the state “B DU 2” of a two-channel Figures B.19, B.20;
system Formulas (B.63)Figures B.
19, B.20; Formulas (B.63),
(B.67), (B.67)
−1
Figure B.1; Formulas (8),
λCC h , FIT Common cause failure rate
(9), (B.48),
(B.103)Figure B.1;
Formulas (8), (9), (B.48),
(B.103), ,
−1
λCHD h , FIT Dangerous failure rate of channel CH Formula (1)Formula (1)
−1
λ h , FIT Dangerous failure rate of each of the functional channels of a Figure 9; Formulas (38),
D
symmetrical two-channel system (B.125)Figure 9;
Formulas (38), (B.125),
(B.126), (B.126)
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (38),
D SER-free D
(B.125)Formulas (38),
(B.125), (B.126), (B.126)
−1
λ h , FIT Constant surrogate dangerous failure rate over time for the Formulas (5), (B.2),
ED
wearing element E (B.3)Formulas (5), (B.2),
(B.3), (B.4), (B.4)
−1
λ h , FIT Dangerous failure rate of the element i of channel CH Figure 1; Formulas (1),
EiD
comprising n Elements (2)Figure 1; Formulas (1),
i = 1 … n
(2), (3), (3)
−1
λFD h , FIT Dangerous failure rate of the functional channel F of a single- Figures 3, 4, 5, B.2, B.3, B.6,
channel system; dangerous failure results in loss of the B.11, B.12; Formulas (11),
safety function (13), (14), (15), (16), (17),
(18), (B.16), (B.17), (B.35),
(B.47), (B.49), (B.50),
(B.51), (B.52),
(B.54)Figures 3, 4, 5, B.2,
B.3, B.6, B.11, B.12;
Formulas (11), (13), (14),
(15), (16), (17), (18),
(B.16), (B.17), (B.35),
(B.47), (B.49), (B.50),
(B.51), (B.52), (B.54),
(B.55), (B.55)
Pre-
Variable ferred Description Use (selection)
unit
−1
λ h , FIT As λ , but without the component caused by soft errors Formulas (9)Formulas (9),
FD SER-free FD
(B.48), (B.48)
−1
λ h , FIT Transition rate from state i to state j Figures B.10, B.23;
ij
Formulas (B.19), (B.20),
i = 1 … 3
(B.70), (B.71)Figures B.10,
j = 1 … 3
B.23; Formulas (B.19),
(B.20), (B.70), (B.71),
(B.72), (B.72)
−1
λMD h , FIT Dangerous failure rate of the test channel M of a single- Figures 3, B.2, B.3, B.6,
channel system; dangerous failure results in loss of the B.11, B.12; Formulas (11),
diagnostics function (13), (17), (18), (B.16),
(B.17), (B.35), (B.47),
(B.49), (B.54)Figures 3,
B.2, B.3, B.6, B.11, B.12;
Formulas (11), (13), (17),
(18), (B.16), (B.17), (B.35),
(B.47), (B.49), (B.54),
(B.55), (B.55)
−1
λMD SER-free h , FIT As λMD, but without the component caused by soft errors Formulas (9)Formulas (9),
(B.48), (B.48)
−9 −1
NOTE 1 FIT = 10 h
The significance of variables not listed in Table 1Table 1 is evident directly from the context.
4 Basic assumptions
Any modelling requires assumptions used by the model. The models discussed here, and their assumptions
are adjusted specifically to the typical boundary conditions of machine control systems. The following basic
assumptions generally apply throughout this document:
— Implementation of the safety functions with a logical series arrangement comprising discrete subsystems
in which the PFH of each subsystem is calculated separately.
— Use of the following subsystem architectures:
— Single-channel untested system (1oo1, designated architecture of categories B and 1);
— Single-channel tested system (1oo1D, designated architecture of category 2);
— Two-channel untested system (1oo2);
— Two-channel tested system (1oo2D, designated architecture of categories 3 and 4).
— No redundancy for increasing of the availability.
— Demand rate upon the safety function r ≥ 1/a. In terms of IEC 61508 this includes r = 1/a, high demand
d d
mode of operation and continuous mode of operation.
— In the case of diagnostics, test intervals not greater than the mission time.
NOTE 1 Setting the test interval of a channel to the mission time means one test at the end of the mission time
which is equivalent to no diagnostics for that channel. Commonly test intervals greater than one year are not
regarded as acceptable.
— Repair following detection of failure by diagnostics (automatic or manual as per specification).
— Repair following a hazardous event.
NOTE 2 In principle, consideration of the repair following a hazardous event also necessitates consideration of
the demand upon the safety function. It is found however that the demand rate needs be considered during
calculation of the PFH only in the case of certain 1oo1D applications.
— The reciprocals of the mean repair time (MRT) and the mean time to restoration (MTTR) are substantially
greater than the dangerous channel failure rates.
— Where a proof test (not usual in the machinery sector) is implemented: setting of the mission time TM to
the length of the proof-test interval.
— Ignoring rates of failure to safety.
NOTE 3 This constitutes estimation on the safe side and permits simpler models and equations. It also prevents
non-guaranteed failures to safety from causing a mathematical improvement in PFH.
— Real component behaviour is idealized.
— Constant failure rates of channels over time; it follows that the MTTF (mean time to dangerous failure) is
D
equal to the reciprocal of the dangerous failure rate (MTTF = 1/λ ).
D D
NOTE 4 The mission time of wearing parts is limited to T10D (corresponding to B10D working cycles). Use of a
surrogate failure rate (substitute MTTF ) assumed to be constant over time is thus justified as an acceptable
D
approximation; see Clause 6Clause 6 and Annex B.2.
— No systematic failures included in the PFH calculation.
NOTE 5 The PFH calculation addresses random hardware failures only. The important aspect of systematic
failures has to beis addressed by following the relevant requirements of ISO 13849-1.
— PFH is seen as the mean value over time of the frequency of the unmet demands upon the safety function
(frequency of unsuccessful attempts, frequency of malfunction).
NOTE 6 The frequency of the unmet demands at worst is equal to the hazard rate. For high or continuous demand
mode, i.e. the modes of operation addressed by this document, the hazard rate conforms with the unconditional
failure intensity upon which the definition of the PFH in IEC 61508 is based.
NOTE 7 In conjunction with the potential scale of harm, this frequency is essential to the residual risk despite
implementation of the safety function.
— Perfect repair, where applicable: perfect proof test.
NOTE 8 It is assumed that following repair, both function blocks are intact and have the original failure rate for
the remaining mission time. In the context of the general assumption of constant failure rates over time, this means
that a function block that has not failed at the time of repair need not necessarily be replaced, but only checked for
its proper function.
5 Channels
5.1 General
In the block diagrams of the models described here, channels are shown as discrete function blocks. A
distinction is drawn between functional channels and test channels.
5.2 Functional channel
A functional channel performs the safety function when required or continuously. In the two-channel tested
systems described here (1oo2D), each functional channel also has the purpose of diagnostics of the other
functional channel, either by performing the full diagnostics function, or by serving as a sensor or actuator in
it.
NOTE Effective diagnostics requires both detection of the failure and performance of the predefined safety-oriented
action.
Loss of the ability to perform the safety function or the test function is described as a dangerous failure of the
functional channel. Use of a suitable system architecture can prevent the dangerous failure of a functional
channel from leading to a dangerous system failure (loss of the safety function).
5.3 Test channel
A test channel tests, at certain times or continually, the ability of a functional channel to perform the safety
function. Loss of this test function does not of itself lead to failure of the safety function. To obviate the need
for an additional term, it is nevertheless described as dangerous failure of the test channel, since with regard
to the test channel it constitutes the least favourable form of failure in safety terms.
5.4 Channel comprising elements connected logically in series
Functional channels and test channels often consist of elements arranged logically in series, as shown in
Figure 1Figure 1. A channel CH comprising n elements then suffers dangerous failure when at least one of its
elements E … E fails dangerously.
1 n
Figure 1 — Channel CH consisting of n elements
The dangerous failure rate of the channel can then be calculated by means of the equation:
𝜆𝜆 =𝜆𝜆 +𝜆𝜆 + … +𝜆𝜆 + … +𝜆𝜆 (1)
CHD E1D E2D E𝑛𝑛D E𝑛𝑛DE𝑛𝑛D
ISO 13849--1:2023 uses the mean time to dangerous failure (MTTFD) instead of the dangerous failure rate.
ISO 13849--1:2023 and this document assume all failure rates of single elements and complete channels to be
constant over time. Therefore, the following applies for an element E or, respectively, for a channel CH:
i
1 1 1
𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹 𝐹𝐹 = , , 𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹 𝐹𝐹 = (2)
D E𝑖𝑖 D E𝑖𝑖 D CH D CH
𝜆𝜆 𝜆𝜆 𝜆𝜆
E𝑖𝑖D E𝑖𝑖D CHD
and, conversely
1 1
𝜆𝜆 = , 𝜆𝜆 = (3)
E𝑖𝑖D CHD
𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹 𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹
D E𝑖𝑖 D CH
1 1
𝜆𝜆 = , 𝜆𝜆 = (3)
E𝑖𝑖D CHD
𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹 𝑀𝑀𝑀𝑀𝑀𝑀𝐹𝐹
D E𝑖𝑖 D CH
Therefore, within ISO 13849--1:2023, MTTF can be regarded as a synonym of the reciprocal of the dangerous
D
failure rate 𝜆𝜆 . Nevertheless, it is important to note that Formula (2)Formula (2) and Formula (3)Formula (3)
D
are valid only in case of failure rates which are constant over time.
In a functional channel for which diagnostics is implemented, the diagnostics can differ between the individual
elements. The diagnostic coverage of an element with a high failure rate then has a greater effect for the
channel as a whole than the diagnostic coverage of an element with a low failure rate. The mean diagnostic
coverage for the channel can therefore be computed as the sum of all weighted element diagnostic coverages.
The element diagnostic coverages are weighted with th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
