ISO 6182-11:2019 - Fire protection - Automatic sprinkler systems - Part 11: Requirements and test methods for pipe hangers establishes construction, performance, test and marking requirements for typical types of pipe hangers used in sprinkler systems. The standard defines terminology, materials, rod sizes, material thickness limits, product consistency (manufacturer quality control), performance criteria and specified test methods to verify strength, coating thickness and vibration resistance.

Key topics and technical requirements

• Scope & purpose: Specifies construction requirements, performance requirements, test methods and marking for pipe hangers used in automatic sprinkler systems.
• Definitions: Detailed terminology for hanger and attachment types (e.g., band/loop hangers, clevis, clevis hanger, beam clamp, riser clamp, ceiling flange, cast‑in insert, expansion and undercut anchors).
• Materials: Hangers shall be made of ferrous or other non‑heat‑sensitive materials (see clause 5.1).
• Rod sizes: Nominal rod diameters are defined (Table 1) and rolled‑thread root diameters are addressed (clauses 5.2.x).
• Material thickness: Minimum uncoated flat steel thickness permitted for certain hangers is given (example: unprotected flat steel ≥ 3 mm acceptable for some clevis and band hangers when ≥ 25 mm wide and meeting strength criteria) (clause 6.1).
• Performance requirements: Includes elongation and pull requirements, criteria for concrete inserts and vibration resistance (clause 7).
• Test methods:
  • Metallic coating thickness: gravimetric, X‑ray spectrometry, magnetic methods (ISO 1460, ASTM B568 referenced) (clause 8.1).
  • Mechanical tests for rods, pipe attachments and building attachment components (clauses 8.2–8.3).
  • Vibration tests (clause 8.4).
• Marking: Requirements for hanger and factory marking to support traceability and compliance (clause 9).
• Normative references: Includes ISO 1460, ISO 2064, ISO 2178, ISO 3575, ISO 4998 and ASTM B568 among others.

Practical applications and users

ISO 6182-11:2019 is used to ensure reliable, safe and durable supports for sprinkler piping. Typical users include:

• Manufacturers of pipe hangers, clamps, rods and building attachment components for sprinkler systems.
• Fire protection engineers and designers specifying hanger assemblies for projects.
• Installers and contractors selecting compliant hangers and anchors.
• Testing laboratories and product certifiers executing the test methods in the standard.
• Procurement teams and building owners ensuring components meet performance and marking requirements.
• Code authorities and inspectors verifying installations against recognized standards.

Related standards

• ISO 6182 series (other parts for automatic sprinkler systems)
• ISO 1460, ISO 2064, ISO 2178, ISO 3575, ISO 4998, ASTM B568 - referenced test and coating standards

Keywords: ISO 6182-11:2019, pipe hangers, automatic sprinkler systems, fire protection, test methods, performance requirements, pipe hanger standards, hanger materials, rod sizes, coating thickness, vibration tests.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 6182-11
Second edition
2019-05
Fire protection — Automatic sprinkler
systems —
Part 11:
Requirements and test methods for
pipe hangers
Protection contre l'incendie — Systèmes d'extinction automatiques du
type sprinkler —
Partie 11: Exigences et méthodes d'essai relatives aux dispositifs de
fixation des conduites
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Product consistency . 4
5 Materials and rod sizes . 4
5.1 Materials . 4
5.2 Rod sizes . 4
5.3 Ceiling flanges . 5
6 Material thickness. 5
6.1 Uncoated material thickness. 5
6.2 Coated material thickness . 5
7 Performance requirements . 6
7.1 General . 6
7.2 Elongation and pull requirements . 6
7.3 Concrete inserts . 7
7.4 Vibration requirements . 7
8 Test methods . 7
8.1 Metallic coating thickness test (see 6.2) . 7
8.1.1 General. 7
8.1.2 Gravimetric determination of the mass per area . 7
8.1.3 Measurement of coating thickness by X-ray spectrometry . 7
8.1.4 Magnetic determination of coating thickness . 7
8.1.5 Other methods . 7
8.2 Tests for rods and pipe attachments (see 7.2) . 7
8.3 Tests for building attachment components (support fixings) (see 7.3) . 8
8.4 Vibration tests (see 7.4) . 9
9 Marking . 9
9.1 Hangers . 9
9.2 Factory marking . 9
Annex A (normative) Tolerances .13
Bibliography .14

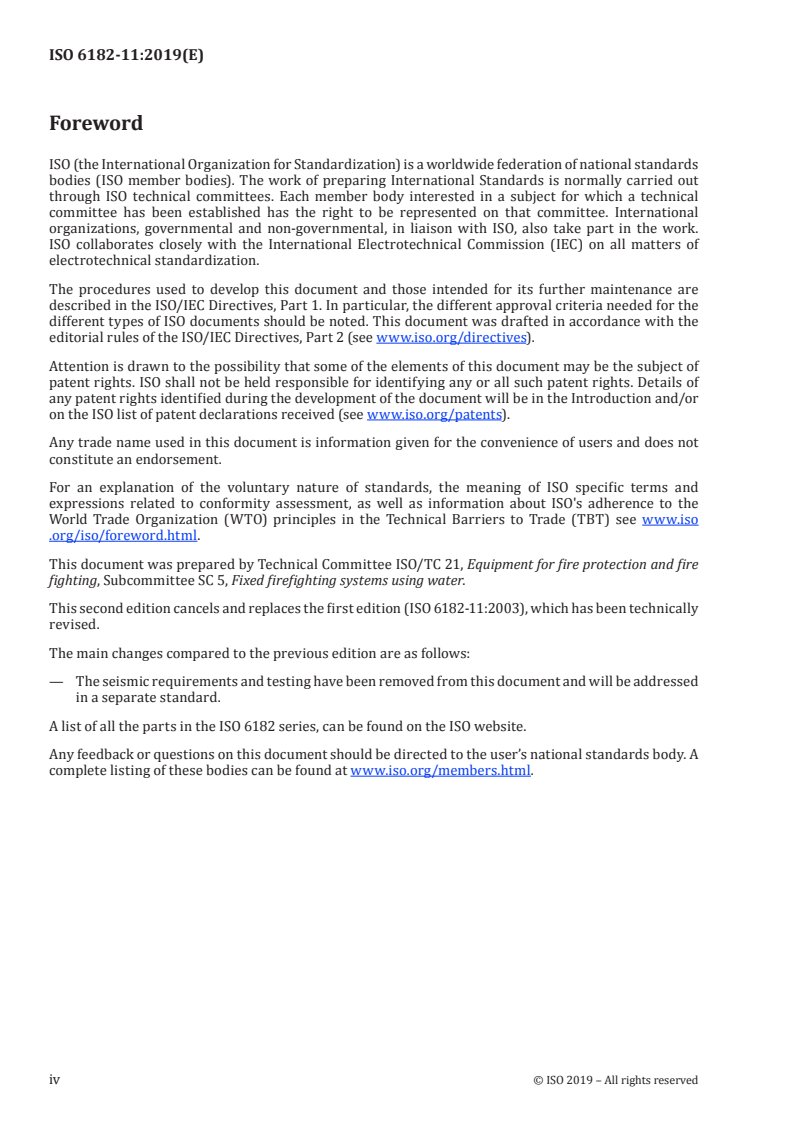

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 5, Fixed firefighting systems using water.
This second edition cancels and replaces the first edition (ISO 6182-11:2003), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— The seismic requirements and testing have been removed from this document and will be addressed
in a separate standard.
A list of all the parts in the ISO 6182 series, can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 6182-11:2019(E)
Fire protection — Automatic sprinkler systems —
Part 11:
Requirements and test methods for pipe hangers
1 Scope
This document specifies construction requirements, performance requirements, test methods and
marking requirements for typical types of pipe hangers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1460, Metallic coatings — Hot dip galvanized coatings on ferrous materials — Gravimetric
determination of the mass per unit area
ISO 2064, Metallic and other inorganic coatings — Definitions and conventions concerning the measurement
of thickness
ISO 2178, Non-magnetic coatings on magnetic substrates — Measurement of coating thickness —
Magnetic method
ISO 3575:2016, Continuous hot-dip zinc-coated and zinc-iron alloy-coated carbon steel sheet of commercial
and drawing qualities
ISO 4998:2014, Continuous hot-dip zinc-coated and zinc-iron alloy-coated carbon steel sheet of
structural quality
ASTM B568, Standard test method for measurement of coating thickness by X-ray spectrometry
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
3.1
band (loop) hanger
type of pipe hanger where the distance from the structure to the pipe is adjustable and usually utilizes
a metallic strip looped around the pipe for support of a load
Note 1 to entry: See Figure 1 j).
3.1.1
adjustable swivel band (loop) hanger
type of pipe hanger that is intended to accommodate support of piping at various directions in the
same plane
Note 1 to entry: See Figure 1 e).
3.2
bracket
cantilever-type pipe hanger that is attached directly to a vertical surface of the building structure
Note 1 to entry: See Figure 1 l).
3.3
building attachment component
support fixing
pipe hanger component set into the wall, such as driven fastener, expansion anchor, undercut anchor, or
cast-in insert, intended to support the pipe hanger
3.4
cast-in insert
type of building attachment component cast into the concrete at the time of pouring
Note 1 to entry: See Figure 1 m).
Note 2 to entry: Cast-in inserts can be channels, which take special threaded bolts, or internally threaded sockets,
which accept conventional bolts or rods.
3.5
ceiling flange
type of building attachment component pipe hanger that is attached directly to an overhead surface of
a building structure
Note 1 to entry: See Figure 1 k).
3.6
beam clamp
type of building attachment that is rigidly attached to both edges of the bottom flange of a
structural member
Note 1 to entry: See Figure 1 a).
3.7
C-clamp
building attachment component that grips a flange by means of a jaw and setscrew combination
Note 1 to entry: See Figure 1 q).
3.8
riser clamp
pipe attachment component intended to support vertical piping (risers) at various levels
Note 1 to entry: See Figure 1 b).
3.9
top/bottom clamp
building attachment intended to rigidly grip one edge of a top or bottom flange of a steel structural
member
Note 1 to entry: See Figure 1 d).
2 © ISO 2019 – All rights reserved

3.10
clevis hanger
type of split-ring pipe-attachment component
Note 1 to entry: See Figure 1 i).
3.11
clip
pipe-attachment component, usually a one piece and nonadjustable "U" shaped device that partially
embraces a pipe intended to be attached directly to a building structure
Note 1 to entry: See Figure 1 c).
3.12
coupler
threaded rod coupling
threaded element used to connect the building attachment component (support fixing) to the rod
Note 1 to entry: See Figure 1 p).
Note 2 to entry: Couplers can have male or female threads (usually female) and can be the same thread throughout
or two different thread diameters to link fixings and rods of different sizes (increaser coupler).
3.13
driven fastener
type of building attachment component driven into solid concrete or structural steelwork by means of a
special tool, usually powder actuated, and can have female or, usually, male thread linked to the rod by
means of a coupler
3.14
expansion anchor
type of building attachment component set into the concrete ceiling or wall of the building structure in
self-drilled or pre-drilled cylindrical holes
Note 1 to entry: See Figure 1 n) and Figure 1 o).
Note 2 to entry: Ceiling fixings are usually “deformation-controlled” internally threaded socket anchors, which
are expanded by driving an expander plug to the base of the shell or by driving the shell over the expander plug.
Note 3 to entry: Fixings for walls can be socket anchors or can be “torque-controlled” anchors, either through-
bolts (where an expander clip is expanded by the tightening of the bolt) or sleeve anchors (where the sleeve is
expanded by the tightening of the bolt).
3.15
pipe hanger
assembly of components used singly or in combination with other assemblies for supporting gravity
loads of a piping system
Note 1 to entry: A pipe hanger can comprise a building attachment component (support fixing), coupler, rod or
equivalent and pipe attachment component as shown in Figure 2, or a simple bracket and building attachment
component (support fixing) as indicated in Figure 3.
3.16
non-heat sensitive material
material whose measured tensile strength at (540 ± 10) °C is at least 90 % of the value measured at
(20 ± 5) °C
3.17
pipe attachment component
pipe hanger component that is attached directly to the pipe
Note 1 to entry: See Figures 2 and 3.
3.18
retaining strap
building attachment component, usually made from steel strip, intended for use in combination with a
beam clamp, C-clamp or a top/bottom clamp to hold the clamp in place on the beam
Note 1 to entry: See Figure 1 q).
3.19
solid ring
pipe hanger that completely encircles a pipe without a positive gripping action that has to be slipped
onto the end of the pipe and cannot be opened in any way for attachment to the pipe after the piping is
fabricated
Note 1 to entry: See Figure 1 f).
3.19.1
split ring
pipe hanger that completely encircles a pipe without a positive gripping action that can be opened in
some way to allow it to be installed on the pipe after the pipeline is fabricated
Note 1 to entry: See Figure 1 g).
3.19.2
swivel ring
solid or split ring pipe hanger, equipped with a top swivel allowing the pipe h
...
