INTERNATIONAL ISO
STANDARD 20860-2
First edition
2009-03-01
Road vehicles — 50 Ω impedance radio
frequency connection system interface —
Part 2:
Test procedures
Véhicules routiers — Interface de système de connexion de
radiofréquence d'une impédance de 50 Ω —
Partie 2: Méthodes d'essai
Reference number
ISO 20860-2:2009(E)
©
ISO 2009
---------------------- Page: 1 ----------------------
ISO 20860-2:2009(E)

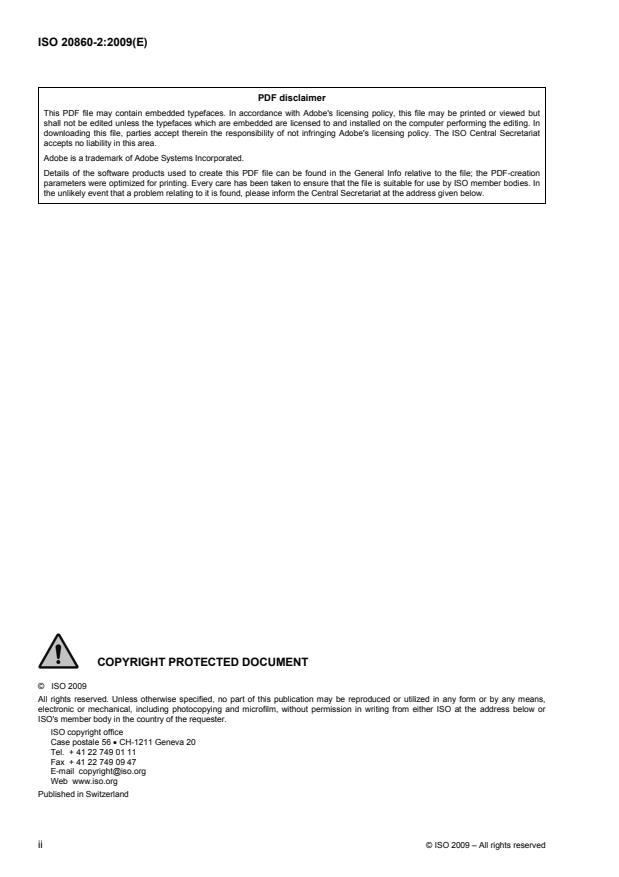

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 20860-2:2009(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions. 1
3.2 Abbreviated terms . 2
4 Principle. 2
5 Preparation of the test samples . 2
5.1 Dimensional characteristics . 2
5.2 Material characteristics. 2
5.3 Making of the test samples. 3
5.4 Quality test of the test samples. 3
5.5 Documentation of the test samples . 3
6 Visual inspection . 3
6.1 Purpose. 3
6.2 Apparatus . 3
6.3 Test samples . 3
6.4 Reference samples . 3
6.5 Procedure . 3
6.6 Requirements . 4
7 Connector electrical tests. 4
7.1 General. 4
7.2 Contact resistance. 4
7.3 Insulation resistance . 5
7.4 Dielectric withstand voltage . 5
7.5 Return loss (VSWR). 6
7.6 Insertion loss. 7
7.7 RF leakage (screening effectiveness). 8
8 Connector mechanical tests. 9
8.1 Gauge mechanical pull test . 9
8.2 Connector-connector mating/unmating force . 10
8.3 Polarization and coding feature effectiveness . 10
8.4 Mechanical pull test. 11
9 Environmental tests. 13
9.1 Vibration/mechanical shock . 13
9.2 Thermal shock. 15
9.3 Temperature/humidity cycling. 16
9.4 High temperature exposure . 18
10 Test sequence plans. 19
Bibliography . 21
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 20860-2:2009(E)

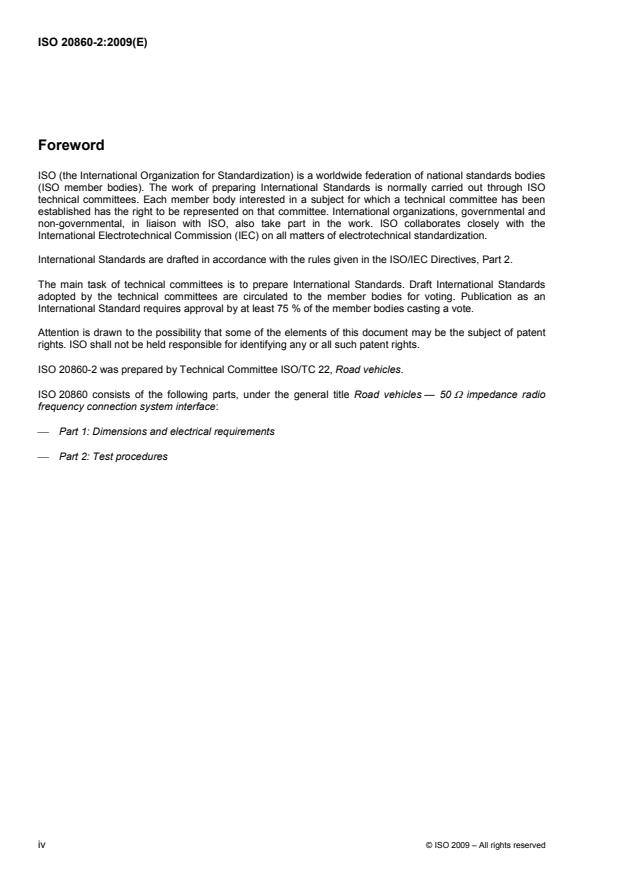

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 20860-2 was prepared by Technical Committee ISO/TC 22, Road vehicles.
ISO 20860 consists of the following parts, under the general title Road vehicles — 50 Ω impedance radio
frequency connection system interface:
⎯ Part 1: Dimensions and electrical requirements
⎯ Part 2: Test procedures
iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 20860-2:2009(E)
Road vehicles — 50 Ω impedance radio frequency connection
system interface —
Part 2:
Test procedures
1 Scope
This part of ISO 20860 specifies the tests for male and female connectors of the 50 Ω impedance interface for
radio frequency applications in road vehicles, and ensures communication to and within road vehicles.
These tests apply to all coaxial connectors for road vehicles with a 50 Ω radio frequency interface in
accordance with ISO 20860-1.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/TS 16949, Quality management systems — Particular requirements for the application of ISO 9001:2000
for automotive production and relevant service part organizations
ISO 20860-1, Road vehicles — 50 Ω impedance radio frequency connection system interface — Part 1:
Dimensions and electrical requirements
IEC 60068-2-6, Environmental testing — Part 2-6: Tests — Test Fc: Vibration (sinusoidal)
IEC 60068-2-27, Environmental testing — Part 2-27: Tests — Test Ea and guidance: Shock
IEC 60169-10, Radio-frequency connectors — Part 10: R.F. coaxial connectors with inner diameter of outer
conductor 3 mm (0,12 in) with snap-on coupling — Characteristic impedence 50 ohms (Type SMB)
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 20860-1 and the following apply.
3.1.1
adapter “Adap 1”
Adap 1
apparatus consisting of a male ISO 20860-1 connector, mateable with a female ISO 20860-1 connector and
on the other side with an SMA female connector
© ISO 2009 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 20860-2:2009(E)
3.1.2
adapter “Adap 2”
Adap 2
apparatus consisting of a female ISO 20860-1 connector, mateable with a male ISO 20860-1 connector and
on the other side with an SMA female connector
3.2 Abbreviated terms
CT/A continuity totalizer/analyzer
NWA network analyzer
PC printed circuit
RF radio frequency
SMA subminiature version A
VSWR voltage standing wave ratio
4 Principle
Connectors in accordance with ISO 20860-1 need to be tested as one unit consisting of connector and cable.
The cable itself and the quality of the application to the connector can impact the test results. Therefore, only
those cables approved by the vehicle manufacturer and those tools and processes recommended by the
connector manufacturer shall be used for the preparation of the test samples. These tools and processes
should be as similar as possible to those used for the series production. This instruction shall be applied to PC
boards as appropriate, in the case of testing board mount connectors.
The test procedures are not intended to test the samples beyond their limits of resilience. After the tests, the
samples shall not show any damage due to the excessive loads applied.
The condition of the test samples shall be the same as in regular production. The test samples shall not be
specially prepared for the test procedures, apart from as specified in this part of ISO 20860.
The test procedures are planned in such a way that the test samples shall pass through one test sequence. If
the vehicle manufacturer so requests, the test samples may be used for several test sequences. All individual
requirements shall be fulfilled in that case as well.
All test results, laboratory reports and calibration records shall be stored in a central file. Such storage shall be
in accordance with established ISO/TS 16949 requirements.
5 Preparation of the test samples
5.1 Dimensional characteristics
The part construction of the test samples shall conform to the dimensions, shape and detail attributes
specified in ISO 20860-1 and as defined in the latest revision of the manufacturer's applicable part drawing(s).
5.2 Material characteristics
All material used in each test sample shall conform to the specifications in ISO 20860-1 and as defined in the
latest revision of the manufacturer's applicable part drawing(s).
2 © ISO 2009 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 20860-2:2009(E)
5.3 Making of the test samples
The quantity and details relative to making the test cable assemblies are given in the corresponding test
procedures. The length of the cable assembly is the distance between the two reference planes as defined in
ISO 20860-1, with an accuracy of ± 3 mm. The test samples shall be marked so that they can be identified
individually during and after completion of each test sequence.
5.4 Quality test of the test samples
All dimensions specified in ISO 20860-1 shall be tested by adequate means. It shall be ensured that the
centre contact and the outer contact of the samples are continuously conductive.
NOTE For proof of conductivity, flexible contact parts can be touched, but it is advisable not to expose them to a
mating cycle.
5.5 Documentation of the test samples
Each single test cable shall be appropriately identified with a unique label, so that test data can be recorded
and retained for evidence.
6 Visual inspection
6.1 Purpose
This test shall be used to document the physical appearance of the test samples. A comparison shall then be
made with other test samples. In most cases, examinations shall be carried out by a person with normal or
corrected vision and normal colour sensitivity, under cool white fluorescent lighting. Conformity with RAL
colours shall be proven by comparison with the RAL colour table (see Reference [1]). An identical match is not
required, but there shall be clear identification with the intended colour.
6.2 Apparatus
6.2.1 Magnification apparatus 20-times (as required).
6.2.2 Camera, digital camera or video recorder.
6.2.3 RAL colour table or RAL-K5 reference kit (see Reference [1]).
6.3 Test samples
The visual inspection shall be part of all test procedures. All test samples shall be inspected before and after
testing. The cables and connectors that belong to the test apparatus shall be inspected and documented.
6.4 Reference samples
An additional and appropriately identified untested sample from each test group shall be retained for post-test
physical comparisons. Alternatively, photographs and/or videos are encouraged as a more complete means of
documentation instead of the extra sample.
6.5 Procedure
Visually inspect each test specimen prior to testing and/or conditioning. Any manufacturing or material defects
such as cracks, tarnishing, flash, etc. shall be documented. Special attention shall be paid to contact areas
and locking mechanisms.
© ISO 2009 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 20860-2:2009(E)
Record in detail the condition of the samples before and after the test procedures and document any
differences that may occur.
6.6 Requirements
No deviations which may affect the electrical or mechanical performance of the samples, or degrade the long
term performance of the samples, shall be allowed.
7 Connector electrical tests
7.1 General
Perform the tests in accordance with the corresponding test sequence plans in Clause 10. For each
sequential test, the same test samples shall be used.
7.2 Contact resistance
7.2.1 Purpose
This test, which conforms to IEC 60512-2-1, determines the electrical resistance of both the outer conductor
crimps and corresponding contact interface and the inner conductor crimps and corresponding contact
interface.
7.2.2 Apparatus
7.2.2.1 A micro-ohmmeter, which limits the open circuit voltage to 20 mV and limits the current applied
to 100 mA.
7.2.3 Test samples
Ten sample test cables, each 100 mm cable dielectric length, with a female connector in accordance with
ISO 20860-1 on one end and a male SMA connector on the other end.
Ten sample test cables, each 100 mm cable dielectric length, with a male connector in accordance with
ISO 20860-1 on one end and a male SMA connector on the other end.
7.2.4 Reference samples
Three reference cable assemblies, each 200 mm in length, minus the equivalent length of the mated
ISO 20860-1 connectors, with male SMA connectors on both ends.
7.2.5 Procedure
Mate two sample cable assemblies. The SMA connectors on the remaining ends shall be connected in an
adequate way to the test apparatus. The resistance of the whole cable length between the SMA connectors
shall be determined for the centre conductor and for the outer conductor.
The same measurement shall be carried out for the reference sample cable assemblies in order to determine
the average resistance of the SMA connectors and the cable itself. This resistance shall be deducted from the
resulting resistance of the cable assemblies with the two test sample connectors.
7.2.6 Requirements
The total contact resistance of both the inner conductor and the outer conductor shall be in accordance with
ISO 20860-1.
4 © ISO 2009 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 20860-2:2009(E)
7.3 Insulation resistance
7.3.1 Purpose
This test, which conforms to IEC 60512-3-1, Method A, verifies that the electrical resistance between the
centre contact and the outer contact will prevent detrimental electrical conductivity.
7.3.2 Apparatus
7.3.2.1 A megohmmeter, capable of detecting 25 µA or less of leakage current at 500 V d.c.
7.3.3 Test samples
Use ten test samples as described in 7.2.3.
7.3.4 Reference samples
No reference samples are required.
7.3.5 Procedure
Mate two sample cable assemblies. The SMA connectors on the remaining ends shall be connected in an
adequate way to the test apparatus. Raise the voltage to 500 V d.c. and maintain for a minimum of 15 s.
Perform the test at a relative humidity of between 45 % and 75 %. The resistance shall be measured and
recorded. The minimum value shall be used for the requirements.
7.3.6 Requirements
The centre contact to outer contact resistance shall comply with ISO 20860-1.
7.4 Dielectric withstand voltage
7.4.1 Purpose
This test, which conforms to IEC 60512-4-1, Method A, shall be used to verify that the connection is able to
withstand momentary over-potentials. It serves to determine whether insulating materials and spacing within
the connector are adequate.
7.4.2 Apparatus
7.4.2.1 Adjustable a.c. power supply.
7.4.3 Test samples
Use ten test samples as described in 7.2.3.
7.4.4 Reference samples
No reference samples are required.
7.4.5 Procedure
Mate two test sample cable assemblies. The SMA connectors on the remaining ends shall be connected in an
adequate way to the test apparatus. The a.c. voltage shall be linearly increased to 500 V and maintained for
60 s. Perform the test at a relative humidity of between 45 % and 75 %.
© ISO 2009 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 20860-2:2009(E)
7.4.6 Requirements
No dielectric breakdowns or flashover are permitted.
7.5 Return loss (VSWR)
7.5.1 Purpose
This test verifies the RF electrical load corresponding to 50 Ω systems.
7.5.2 Apparatus and calibration
1)
7.5.2.1 An adapter “Adap 1” with an inherent return loss of more than 34 dB to test a female
connector in accordance with ISO 20860-1.
1)
7.5.2.2 An adapter “Adap 2” with an inherent return loss of more than 34 dB to test a male connector
in accordance with ISO 20860-1.
The tests are carried out with an NWA with a standard PC 3,5 (f) port, which shall be adjusted to “one-port”
return loss measurement in the frequency range between 50 MHz and 4 000 MHz.
7.5.3 Test samples
Use ten test samples as described in 7.2.3.
7.5.4 Reference samples
Use the same reference samples as in 7.2.4.
The reference samples are verified as described below.
The measurement with the NWA shall not result in a return loss of:
2)
⎯ u 34 dB at frequencies u 2 000 M
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
