Technical
Report
ISO/IEC TR
14496-24
Second edition
Information technology — Coding of
2025-08
audio-visual objects —
Part 24:
Audio and systems interaction
Technologies de l'information — Codage d'objets audiovisuels —
Partie 24: Codage audio et interaction de systèmes
Reference number
© ISO/IEC 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO/IEC 2025 – All rights reserved
ii

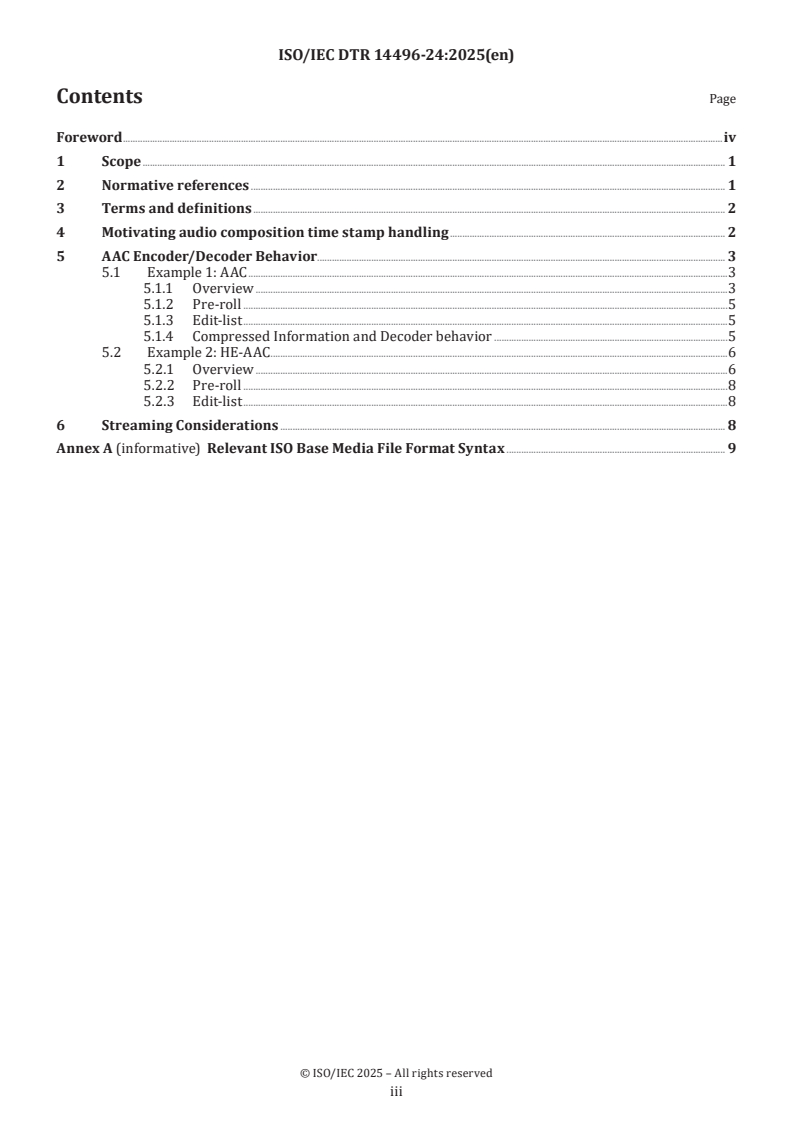

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Motivating audio composition time stamp handling . 2
5 AAC Encoder/Decoder Behavior. 3
5.1 Example 1: AAC .3
5.1.1 Overview .3
5.1.2 Pre-roll .5
5.1.3 Edit-list .5
5.1.4 Compressed Information and decoder behaviour .5
5.2 Example 2: HE-AAC .6
5.2.1 Overview .6
5.2.2 Pre-roll .8
5.2.3 Edit-list .8
6 Streaming Considerations . 9
Annex A (informative) Relevant ISO Base Media File Format Syntax .10
© ISO/IEC 2025 – All rights reserved
iii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
This second edition cancels and replaces the first edition (ISO/IEC TR 14496-24:2008), which has been
technically revised.
The main changes are as follows:
— addition of details about complex audio and system interaction scenarios and HE-AAC content signalling;
— refactored description of timestamp and delay handling;
— extension of the HE-AAC example.
A list of all parts in the ISO/IEC 14496 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
© ISO/IEC 2025 – All rights reserved
iv
Technical Report ISO/IEC TR 14496-24:2025(en)
Information technology — Coding of audio-visual objects —
Part 24:
Audio and systems interaction
1 Scope
This document describes the desired joint behaviour of MPEG-4 Systems (MPEG-4 File Format) and MPEG-
4 Audio codecs. It is desired that MPEG-4 Audio encoders and decoders permit finite length signals to be
encoded to a file (particularly MPEG-4 files) and decoded again to obtain the identical signal, subject to
codec distortions. This enables the use of audio in systems implementations (particularly MPEG-4 Systems),
perhaps with other media such as video, in a deterministic fashion. Most importantly, the decoded signal has
nothing “extra” at the beginning or “missing” at the end.
This permits:
a) an exact "round trip" from raw audio to encoded file back to raw audio (excepting encoding artefacts);
b) predictable synchronization between audio and other media such as video;
c) correct behaviour when performing random access as well as when starting at the beginning of a stream;
d) identical behaviour when edits are applied in the raw domain and the encoded domain (excepting
encoding artefacts).
It is also expected that there be predictable interoperability between encoders (as represented by files) and
decoders. There are two kinds of audio "offsets" (or "delay" in the context of transmission): those that are
result from the encoding process, and those that are result from the decoding process. This document is
primarily concerned with the latter.
These issues are resolved by the following:
— The handling of composition time stamps for audio composition units is specified. Special care is taken
in the case of compressed data, like HE-AAC coded audio, that can be decoded in a backward compatible
fashion as well as in an enhanced fashion.
— Examples are given that show how a finite length signals can be encoded to an MPEG-4 file and decoded
again to obtain the identical signal, excepting codec distortions. Most importantly, the decoded signal
has nothing “extra” at the beginning or “missing” at the end.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 14496-3:2019, Information technology — Coding of audio-visual objects — Part 3: Audio
ISO/IEC 14496-12, Information technology — Coding of audio-visual objects — Part 12: ISO base media file format
© ISO/IEC 2025 – All rights reserved
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496-3 and
ISO/IEC 14496-12 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Motivating audio composition time stamp handling
Following ISO/IEC 14496-3:2019, subclause 1.6.5.2, there are 3 ways to signal HE-AAC content:
— Implicit signalling (backward compatible): the audioObjectType in the AudioSpecificConfig structure is
set to 2, the AudioSpecificInfo does not contain any extension;
— Explicit signalling;
— Backward compatible: the audioObjectType in the AudioSpecificConfig structure is also set to 2, but
the AudioSpecificInfo contains SBR extension;
— Hierarchical (non-backward compatible): the audioObjectType in the AudioSpecificConfig structure
is set to 5.
For compressed data, like HE-AAC coded audio, which can be decoded by different decoder configurations,
decoding can be done in a backward-compatible fashion (AAC only) as well as in an enhanced fashion
(AAC+SBR). In order to ensure that timestamps are correct (so that audio remains synchronized with other
media), the following is taken into consideration concerning MPEG-4 Systems and Audio:
— If compressed data permits both backward-compatible and enhanced decoding, and if the decoder
is operating in a backwards-compatible fashion, then the decoder is not expected to take any action.
However, if the decoder is operating in enhanced fashion such that it is using a post-processor that inserts
some additional delay (e.g. the SBR post-processor in HE-AAC), then it is expected to notify Systems about
the additional time delay incurred relative to the backwards-compatible mode. The exact notification
mechanism between the audio decoder (post-processor) and the systems layer is implementation-
specific and is not reflected in Systems syntax, i.e. the additional delay is not included in the edit list.
With the delay thus notified, Systems can compensate for the additional delay.
— Specifically for HE-AAC (using any of the available signalling mechanisms, i.e. implicit signalling, backward
compatible explicit signalling, or hierarchical explicit signalling) the original access unit timestamps
(i.e. its decoding time stamp, which in this case is the same as its composition time stamp; but also its
presentation time, i.e. after application of any edit list instruction) apply to backward-compatible AAC
decoding and playback adjustment for delay compensation is expected in case of AAC+SBR decoding.
Figure 1 shows the composition unit that is generated by an AAC decoder (upper half) and by an HE-AAC
decoder operating SBR in dual-rate mode (lower half) when being fed with an access unit of an HE-AAC
bitstream. Note that the composition time stamp associated to said access unit applies to the n-th sample of
the composition unit. For the AAC decoder case, n has the value 1. For the HE-AAC decoder case, n has the
value 962+1 to reflect the additional algorithmic delay of 962 samples of the SBR tool at the HE-AAC output
sampling rate (which is twice the sampling rate of the backward compatible AAC output).
Note also that in this document, the term "sample" refers to an audio sample and not an ISOBMFF sample, for
which the term "access unit" is preferred in this document.
© ISO/IEC 2025 – All rights reserved
Figure 1 — Composition unit (audio waveform segment) generated by AAC decoder and HE-AAC
decoder fed with the same access unit (bitstream frame)
5 AAC Encoder/Decoder Behavior
5.1 Example 1: AAC
5.1.1 Overview
Figure 2 shows the AAC encoder and decoder behaviour with respect to the association of encoder input
blocks, access units (AU), timestamps and decoder output blocks or composition units (CU). Note that the
input signal is only two and a fraction blocks long (as indicated by the oscillating waveform). The encoder
essentially extends the waveform at both
...

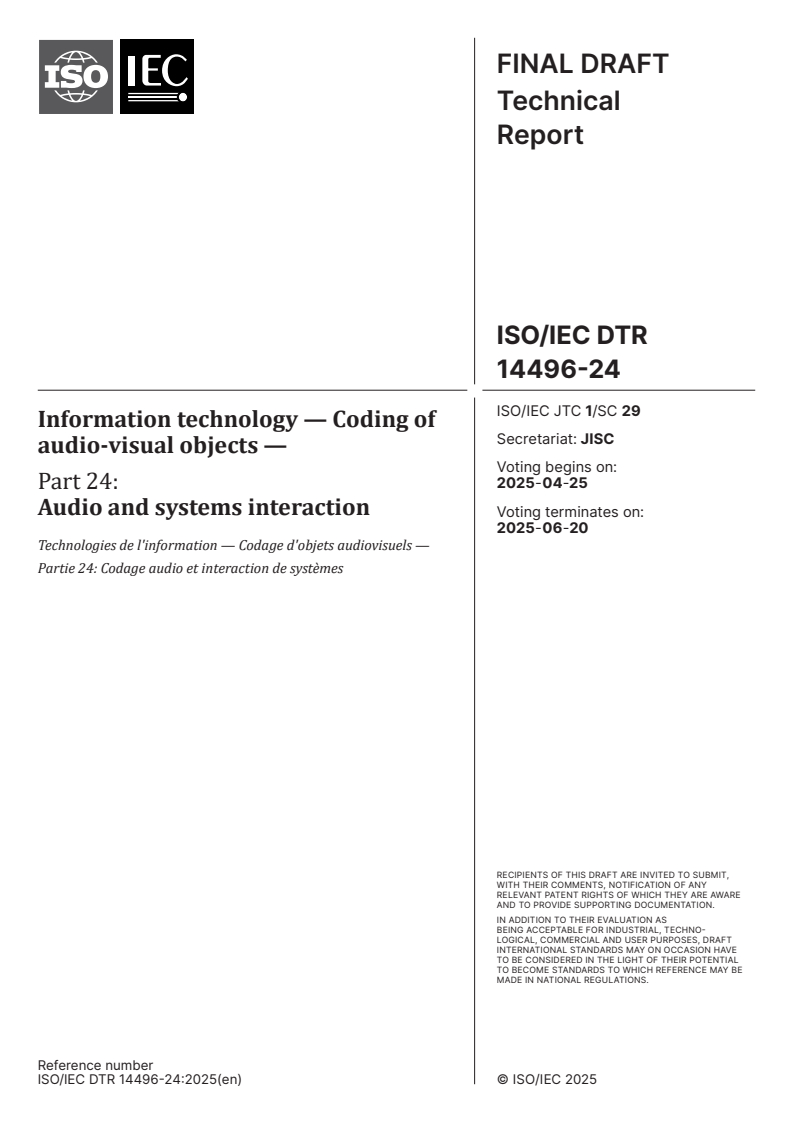

FINAL DRAFT
Technical
Report
ISO/IEC DTR
14496-24
ISO/IEC JTC 1/SC 29
Information technology — Coding of
Secretariat: JISC
audio-visual objects —
Voting begins on:
2025-04-25
Part 24:
Audio and systems interaction
Voting terminates on:
2025-06-20
Technologies de l'information — Codage d'objets audiovisuels —
Partie 24: Codage audio et interaction de systèmes
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/IEC DTR 14496-24:2025(en) © ISO/IEC 2025
FINAL DRAFT
ISO/IEC DTR 14496-24:2025(en)
Technical
Report
ISO/IEC DTR
14496-24
ISO/IEC JTC 1/SC 29
Information technology — Coding of
Secretariat: JISC
audio-visual objects —
Voting begins on:
Part 24:
Audio and systems interaction
Voting terminates on:
Technologies de l'information — Codage d'objets audiovisuels —
Partie 24: Codage audio et interaction de systèmes
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO/IEC 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/IEC DTR 14496-24:2025(en) © ISO/IEC 2025
© ISO/IEC 2025 – All rights reserved
ii
ISO/IEC DTR 14496-24:2025(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Motivating audio composition time stamp handling . 2
5 AAC Encoder/Decoder Behavior. 3
5.1 Example 1: AAC .3
5.1.1 Overview .3
5.1.2 Pre-roll .5
5.1.3 Edit-list .5
5.1.4 Compressed Information and Decoder behavior .5
5.2 Example 2: HE-AAC .6
5.2.1 Overview .6
5.2.2 Pre-roll .8
5.2.3 Edit-list .8
6 Streaming Considerations . 8
Annex A (informative) Relevant ISO Base Media File Format Syntax . 9
© ISO/IEC 2025 – All rights reserved
iii
ISO/IEC DTR 14496-24:2025(en)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
This second edition cancels and replaces the first edition (ISO/IEC TR 14496-24:2008), which has been
technically revised.
The main changes are as follows:
— addition of details about complex audio and system interaction scenarios and HE-AAC content signalling;
— refactored description of timestamp and delay handling;
— extension of the HE-AAC example.
A list of all parts in the ISO/IEC 14496 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
© ISO/IEC 2025 – All rights reserved
iv
FINAL DRAFT Technical Report ISO/IEC DTR 14496-24:2025(en)
Information technology — Coding of audio-visual objects —
Part 24:
Audio and systems interaction
1 Scope
This document describes the desired joint behavior of MPEG-4 Systems (MPEG-4 File Format) and MPEG-
4 Audio codecs. It is desired that MPEG-4 Audio encoders and decoders permit finite length signals to be
encoded to a file (particularly MPEG-4 files) and decoded again to obtain the identical signal, subject to
codec distortions. This enables the use of audio in systems implementations (particularly MPEG-4 Systems),
perhaps with other media such as video, in a deterministic fashion. Most importantly, the decoded signal has
nothing “extra” at the beginning or “missing” at the end.
This permits:
a) an exact "round trip" from raw audio to encoded file back to raw audio (excepting encoding artefacts);
b) predictable synchronization between audio and other media such as video;
c) correct behaviour when performing random access as well as when starting at the beginning of a stream;
d) identical behaviour when edits are applied in the raw domain and the encoded domain (excepting
encoding artefacts).
It is also expected that there be predictable interoperability between encoders (as represented by files) and
decoders. There are two kinds of audio "offsets" (or "delay" in the context of transmission): those that are
result from the encoding process, and those that are result from the decoding process. This document is
primarily concerned with the latter.
These issues are resolved by the following:
— The handling of composition time stamps for audio composition units is specified. Special care is taken
in the case of compressed data, like HE-AAC coded audio, that can be decoded in a backward compatible
fashion as well as in an enhanced fashion.
— Examples are given that show how a finite length signals can be encoded to an MPEG-4 file and decoded
again to obtain the identical signal, excepting codec distortions. Most importantly, the decoded signal
has nothing “extra” at the beginning or “missing” at the end.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 14496-3:2019, Information technology — Coding of audio-visual objects — Part 3: Audio
ISO/IEC 14496-12:2022, Information technology — Coding of audio-visual objects — Part 12: ISO base media
file format
© ISO/IEC 2025 – All rights reserved
ISO/IEC DTR 14496-24:2025(en)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496-3 and
ISO/IEC 14496-12 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Motivating audio composition time stamp handling
Following ISO/IEC 14496-3:2019, subclause 1.6.5.2, there are 3 ways to signal HE-AAC content:
— Implicit signalling (backward compatible): the audioObjectType in the AudioSpecificConfig structure is
set to 2, the AudioSpecificInfo does not contain any extension;
— Explicit signalling;
— Backward compatible: the audioObjectType in the AudioSpecificConfig structure is also set to 2, but
the AudioSpecificInfo contains SBR extension;
— Hierarchical (non-backward compatible): the audioObjectType in the AudioSpecificConfig structure
is set to 5.
For compressed data, like HE-AAC coded audio, which can be decoded by different decoder configurations,
decoding can be done in a backward-compatible fashion (AAC only) as well as in an enhanced fashion
(AAC+SBR). In order to ensure that timestamps are correct (so that audio remains synchronized with other
media), the following is taken into consideration concerning MPEG-4 Systems and Audio:
— If compressed data permits both backward-compatible and enhanced decoding, and if the decoder
is operating in a backwards-compatible fashion, then the decoder is not expected to take any action.
However, if the decoder is operating in enhanced fashion such that it is using a post-processor that inserts
some additional delay (e.g. the SBR post-processor in HE-AAC), then it is expected to notify Systems about
the additional time delay incurred relative to the backwards-compatible mode. The exact notification
mechanism between the audio decoder (post-processor) and the systems layer is implementation-
specific and is not reflected in Systems syntax, i.e. the additional delay is not included in the edit list.
With the delay thus notified, Systems can compensate for the additional delay.
— Specifically for HE-AAC (using any of the available signalling mechanisms, i.e. implicit signalling, backward
compatible explicit signalling, or hierarchical explicit signalling) the original access unit timestamps
(i.e. its decoding time stamp, which in this case is the same as its composition time stamp; but also its
presentation time, i.e. after application of any edit list instruction) apply to backward-compatible AAC
decoding and playback adjustment for delay compensation is expected in case of AAC+SBR decodin
...

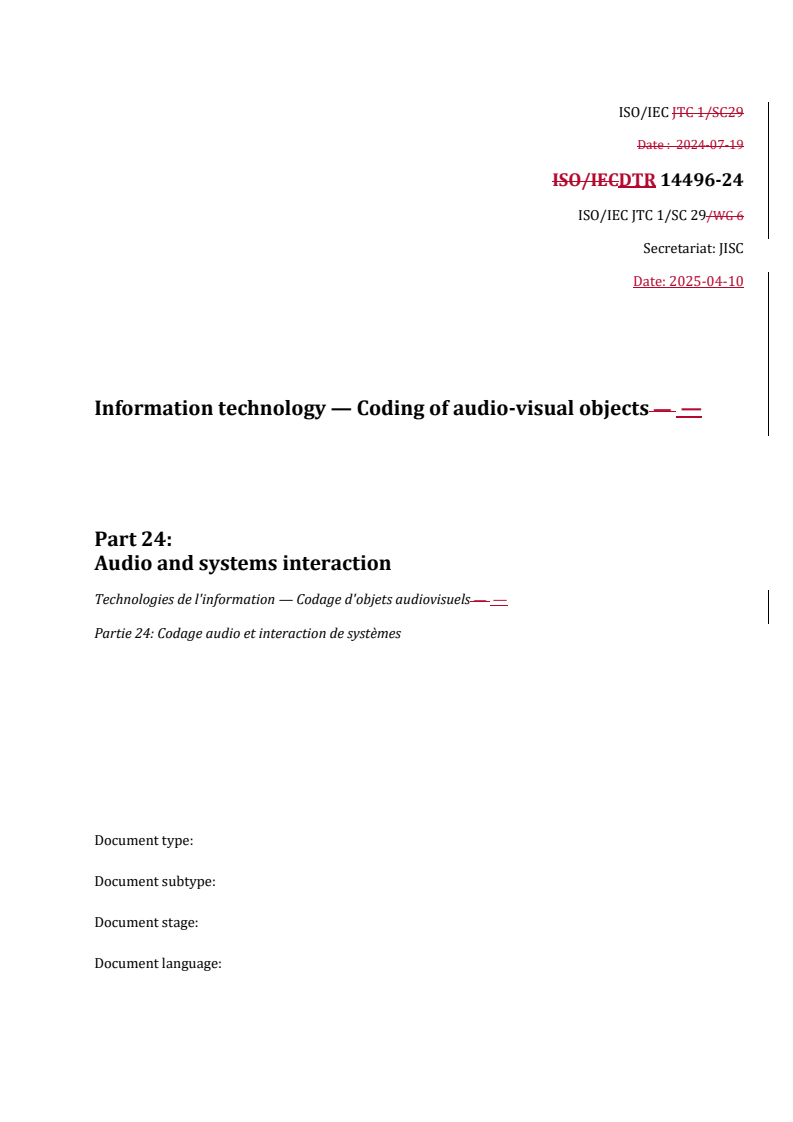

ISO/IEC JTC 1/SC29
Date : 2024-07-19
ISO/IECDTR 14496-24
ISO/IEC JTC 1/SC 29/WG 6
Secretariat: JISC
Date: 2025-04-10
Information technology — Coding of audio-visual objects — —
Part 24:
Audio and systems interaction
Technologies de l'information — Codage d'objets audiovisuels — —
Partie 24: Codage audio et interaction de systèmes
Document type:
Document subtype:
Document stage:
Document language:
Copyright notice
This ISO document is a Draft
International Standard and is
copyright-protected by ISO.
Except as permitted under
FDIS stage
Document type:
Document subtype:
Document stage:
Document language:
ISO/IEC DTR 14496-24 DTR:(en)
© ISO/IEC 2025

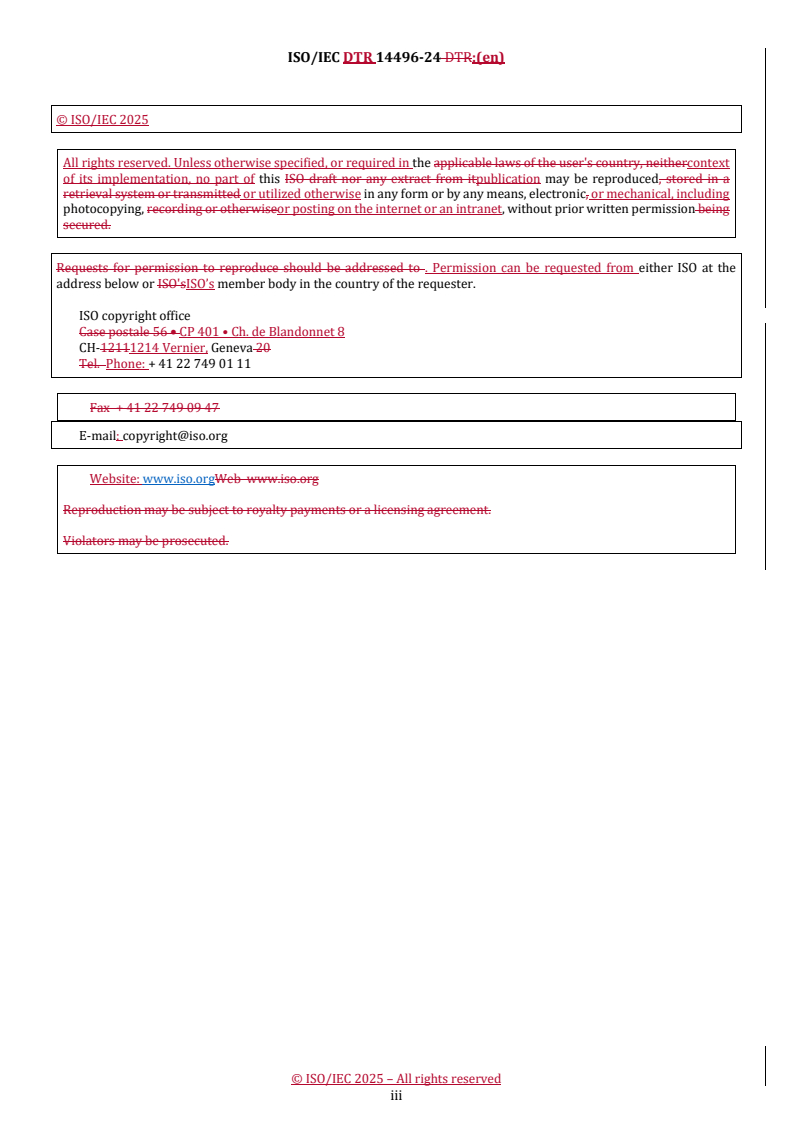

All rights reserved. Unless otherwise specified, or required in the applicable laws of the user's country, neithercontext
of its implementation, no part of this ISO draft nor any extract from itpublication may be reproduced, stored in a
retrieval system or transmitted or utilized otherwise in any form or by any means, electronic, or mechanical, including
photocopying, recording or otherwiseor posting on the internet or an intranet, without prior written permission being
secured.
Requests for permission to reproduce should be addressed to . Permission can be requested from either ISO at the
address below or ISO'sISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CP 401 • Ch. de Blandonnet 8
CH-12111214 Vernier, Geneva 20
Tel. Phone: + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail: copyright@iso.org
Website: www.iso.orgWeb www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
© ISO/IEC 2025 – All rights reserved
iii
ISO/IEC DTR 14496-24 DTR:(en)
Foreword
Published in Switzerland
© ISO/IEC 2025 – All rights reserved
iv
ISO/IEC DTR 14496-24 DTR:(en)
Contents
Foreword . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Motivating audio composition time stamp handling . 2
5 AAC Encoder/Decoder Behavior . 3
6 Streaming Considerations . 10
Annex A (informative) Relevant ISO Base Media File Format Syntax . 11
© ISO/IEC 2025 – All rights reserved
v
ISO/IEC DTR 14496-24 DTR:(en)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members
of ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International StandardsThe procedures used to develop this document and those intended for its further
maintenance are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria
needed for the different types of document should be noted. This document was drafted in accordance with
the editorial rules given inof the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs.).
The main task of the joint technical committee is to prepare International Standards. Draft International Standards
adopted by the joint technical committee are circulated to national bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawnISO and IEC draw attention to the possibility that some of the elementsimplementation of
this document may beinvolve the subjectuse of (a) patent(s). ISO and IEC take no position concerning the
evidence, validity or applicability of any claimed patent rights in respect thereof. As of the date of publication
of this document, ISO and IEC had not received notice of (a) patent(s) which may be required to implement
this document. However, implementers are cautioned that this may not represent the latest information,
which may be obtained from the patent database available at www.iso.org/patents and https://patents.iec.ch.
ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standardsISO/IEC 14496-24.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information Technologytechnology,
Subcommittee SC 29, Coding of Audio, Picture, Multimedia and Hypermedia Informationaudio, picture,
multimedia and hypermedia information.
This second edition cancels and replaces the first edition (ISO/IEC TR 14496-24:2008), which has been
technically revised.
The main changes are as follows:
— — addition of details about complex audio and system interaction scenarios and HE-AAC content
signalling;
— — refactored description of timestamp and delay handling;
— — extension of the HE-AAC example.
A list of all parts in the ISO/IEC 14496 series can be found on the ISO websiteand IEC websites.
© ISO/IEC 2025 – All rights reserved
vi
ISO/IEC DTR 14496-24 DTR:(en)
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committeeswww.iso.org/members.html.
© ISO/IEC 2025 – All rights reserved
vii
Technical Report ISO/IEC 14496-24 DTR
Information technology — Coding of audio-visual objects — —
Part 24:
Audio and systems interaction
1 Scope
This document describes the desired joint behavior of MPEG-4 Systems (MPEG-4 File Format) and MPEG-4
Audio codecs. It is desired that MPEG-4 Audio encoders and decoders permit finite length signals to be
encoded to a file (particularly MPEG-4 files) and decoded again to obtain the identical signal, subject to codec
distortions. This will allowenables the use of audio in systems implementations (particularly MPEG-4
Systems), perhaps with other media such as video, in a deterministic fashion. Most importantly, the decoded
signal will havehas nothing “extra” at the beginning or “missing” at the end.
This permits:
a) an exact ‘"round trip’trip" from raw audio to encoded file back to raw audio (excepting encoding
artifactsartefacts);
b) predictable synchronization between audio and other media such as video;
c) correct behaviorbehaviour when performing random access as well as when starting at the beginning of
a stream;
d) identical behaviorbehaviour when edits are applied in the raw domain and the encoded domain (again,
excepting encoding artifactsartefacts).
It is also expected that there be predictable interoperability between encoders (as represented by files) and
decoders. There are two kinds of audio ‘offsets’"offsets" (or ‘delay’"delay" in the context of transmission):
those that are result from the encoding process, and those that are result from the decoding process. This
document is primarily concerned with the latter.
These issues are resolved by the following:
— The handling of composition time stamps for audio composition units is specified. Special care is taken in
the case of compressed data, like HE-AAC coded audio, that can be decoded in a backward compatible
fashion as well as in an enhanced fashion.
— Examples are given that show how a finite length signals can be encoded to an MPEG-4 file and decoded
again to obtain the identical signal, excepting codec distortions. Most importantly, the decoded signal has
nothing “extra” at the beginning or “missing” at the end.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 14496--3:2019, Information technology — Coding of audio-visual objects — Part 3: Audio
ISO/IEC DTR 14496-24:(en)
ISO/IEC 14496--12:2022, Information technology — Coding of audio-visual objects — Part 12: ISO base media
file format
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496--3 and in
ISO/IEC 14496--12 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/
4 Motivating audio composition time stamp handling
Following ISO/IEC 14496-3:2019, subclause 1.6.5.2, there are 3 ways to signal HE-AAC content:
— Implicit signalling (backward compatible): the audioObjectType in the AudioSpecificConfig structure is set
to 2, the AudioSpecificInfo does not contain any extension;
— Explicit signalling;
— Backward compatible: the audioObjectType in the AudioSpecificConfig structure is also set to 2, but
the AudioSpecificInfo contains SBR extension;
— Hierarchical (non-backward compatible): the audioObjectType in the AudioSpecificConfig structure is
set to 5.
For compressed data, like HE-AAC coded audio, which can be decoded by different decoder configurations,
decoding can be done in a backward-compatible fashion (AAC only) as well as in an enhanced fashion
(AAC+SBR). In order to ensure that timestamps are correct (so that audio remains synchronized with other
media), the following is taken into consideration concerning MPEG-4 Systems and Audio:
— If compressed data permits both backward-compatible and enhanced decoding, and if the decoder is
operating in a backwards-compatible fashion, then the decoder is not expected to take any action.
However, if the decoder is operating in enhanced fashion such that it is using a post-processor that inserts
some additional delay (e.g.,. the SBR post-processor in HE-AAC), then it is expected to notify Systems about
the additional time delay incurred relative to the backwards-compatible mode. The exact notification
mechanism between the audio decoder (post-processor) and the systems layer is implementation-specific
and is not reflected in Systems syntax, i.e. the additional delay is not included in the edit list. With the delay
thus notified, Systems can compensate for the additional delay.
— Specifically for HE-AAC (using any of the available signalling mechanisms, i.e.,. implicit signalling,
backward compatible explicit signalling, or hierarchical explicit signalling) the original access unit
timestamps (i.e. its decoding time stamp, which in this case is the same as its composition time stamp; but
also its presentation time, i.e. after application of any edit list instruction) apply to backward-compatible
AAC decoding and playback adjustment for delay compensation is expected in case of AAC+SBR decoding.
Figure 1Figure 1 shows the composition unit that is generated by an AAC decoder (upper half) and by an HE-
AAC decoder operating SBR in dual-rate mode (lower half) when being fed with an access unit of an HE-AAC
bitstream. Note that the composition time stamp associated to said access unit applies to the n-th sample of
the composition unit. For the AAC decoder case, n has the value 1. For the HE-AAC decoder case, n has the
value 962+1 to reflect the additional algorithmic delay of 962 samples of the SBR tool at the HE-AAC output
sampling rate (which is twice the sampling rate of the backward compatible AAC output).
© ISO/IEC 2025 – All rights reserved
ISO/IEC DTR 14496-24:(en)
Note also that in this document, the term ‘sample’"sample" refers to an audio sample and not an ISOBMFF
sample, for which the term ‘"access unit’unit" is preferred in this document.”.
Figure – 1 — Composition unit (audio waveform segment) generated by AAC decoder and HE-AAC
decoder fed with the same access unit (bitstream frame).)
5 AAC Encoder/Decoder Behavior
5.1 Example 1: AAC
5.1.1 Overview
Figure 2 shows the AAC encoder and decoder behaviorbehaviour with respect to the association of encoder
input blocks, access units (AU), timestamps and decoder output blocks or composition units (CU). Note that
the input signal is only two and a fraction blocks long (as indicated by the oscillating waveform). The encoder
essentially extends the waveform at both ends to facilitate encoding of the entire waveform. The ISO Base
Media File Format “helper” information “pre-roll” and “edit-list” facilitate exact reconstruction of the encoded
waveform segment in the case that the compressed data is stored in an MPEG-4 Format file.
The specifics of encoder behaviorbehaviour are:
— The encoder is expected to produce normative access units;
© ISO/IEC 2025 – All rights reserved
ISO/
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
