ISO 12912:2014
(Main)Circular knitting machines — Vocabulary
Circular knitting machines — Vocabulary
ISO 12912:2014 establishes a vocabulary of terms and a system of classification for circular knitting machines used in the textile industry for the production of weft-knitted fabrics.
Métiers circulaires — Vocabulaire
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 12912
First edition
2014-08-01
Circular knitting machines —
Vocabulary
Métiers circulaires — Vocabulaire
Reference number
©
ISO 2014
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Terms and definitions . 1
2.1 Terms for circular knitting machines . 1
2.2 Terms for construction features of circular knitting machine (according to number and
classification of needle carrier) . 2
2.3 Dimensions . 5
2.4 Terms for rotation . 8
2.5 Machine frame and drive . 9
2.6 Stitch forming elements, holder for needles and other stitch forming elements . 9
2.7 Needle control .11
2.8 Cam system .11
2.9 Yarn feed and monitoring system .15
2.10 Fabric take-down .15
2.11 Pattern equipment .17
2.12 Machine control system and monitoring .18
2.13 Lubrication and cleaning system, safety device and special attachments.18
Bibliography .19

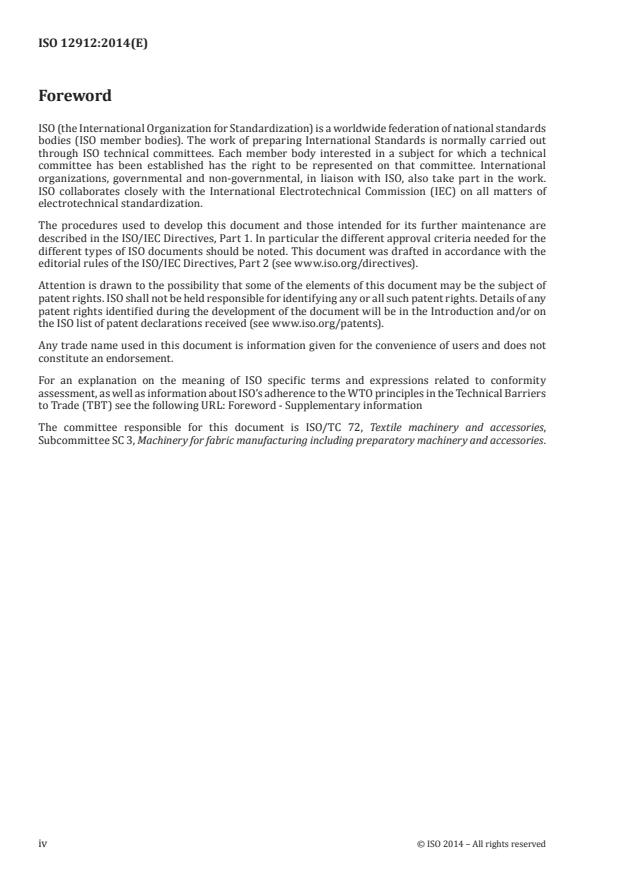

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 72, Textile machinery and accessories,
Subcommittee SC 3, Machinery for fabric manufacturing including preparatory machinery and accessories.
iv © ISO 2014 – All rights reserved
INTERNATIONAL STANDARD ISO 12912:2014(E)
Circular knitting machines — Vocabulary
1 Scope
This International Standard establishes a vocabulary of terms and a system of classification for circular
knitting machines used in the textile industry for the production of weft-knitted fabrics.
NOTE See also the ISO online browsing platform (OBP): https://www.iso.org/obp/ui/
2 Terms and definitions
2.1 Terms for circular knitting machines
2.1.1
circular knitting machine
machine for the production of knitted fabrics with independent needles, longitudinally movable, in
circular arrangement, with stitches formed one after the other within every course from yarn fed
crosswise to the length of the fabric
[SOURCE: ISO 7839:2005, 2.1.2]
Note 1 to entry: The circular knitting machine can be specified more precisely with the following details:
— model (e.g. small, large);
— construction features (e.g. single jersey, double jersey, plain interlock, purl);
— needle type (e.g. latch or slide needle);
— number of feeders (e.g. 48 stitch feeders);
— patterning mechanism (e.g. jacquard unit).
2.1.2
small-diameter circular knitting machine
circular knitting machine with nominal diameter up to 165 mm
2.1.3
large-diameter circular knitting machine
circular knitting machine with nominal diameter of over 165 mm
2.2 Terms for construction features of circular knitting machine (according to number
and classification of needle carrier)
2.2.1
RL circular knitting machine
circular knitting machine for the production of single-face fabrics (RL) by means of needles arranged in
grooves of one carrier
[SOURCE: ISO 7839:2005, 2.1.2.1]
Note 1 to entry: See Figure 1.
Key
1 needle cylinder 7 sinker cam
2 trick 8 needle cam
3 cylinder cam box 9 yarn guide
4 sinker ring 10 yarn
5 needle 11 holding spring
6 sinker 12 cam box plate
Figure 1 — RL circular knitting machine
2.2.2
RR circular knitting machine
circular knitting machine, used mainly for the production of double-face fabrics (RR) by means of
needles arranged in an axial direction in grooves of the needle cylinder and radially in grooves of the
needle disc (dial) in staggered formation to one another
[SOURCE: ISO 7839:2005, 2.1.2.2]
Note 1 to entry: See Figure 2.
2 © ISO 2014 – All rights reserved
Key
1 needle disc
2 needle cylinder
3 disc needle
4 trick
5 cylinder needle
6 trick
Figure 2 — Construction features RR circular knitting machine
2.2.3
interlock circular knitting machine
interlock knitting machine used for the production of plain interlock fabric with needles arranged
opposite each other in needle cylinder grooves in the axial direction and radial in needle disc (dial)
grooves
Note 1 to entry: See Figure 3.
Key
1 needle disc
2 needle cylinder
3 disc needle
4 trick
5 cylinder needle
6 trick
Figure 3 — Construction features interlock circular knitting machine
2.2.4
LL circular knitting machine
circular knitting machine for the production of purl fabrics (LL) with two needle cylinders, one upon
the other, within their grooves, which are arranged flush to each other in an axial direction, the needles
moved from one needle cylinder to the other by means of a needle slider
[SOURCE: ISO 7839:2005, 2.1.2.3]
Note 1 to entry: LL fabrics can contain structures like single-face fabric and/or double-face fabric, respectively
can be replaced by them completely.
Note 2 to entry: See Figure 4.
4 © ISO 2014 – All rights reserved
Key
1 upper needle cylinder
2 lower needle cylinder
3 needle slider
4 double-ended needle
Figure 4 — Construction features LL circular knitting machine
2.3 Dimensions
2.3.1
machine depth
a
total depth of machine without space requirement for additional equipment
EXAMPLE Bobbin holders, control cabinets.
Note 1 to entry: See Figure 5.
2.3.2
machine width
b
total width of machine without space requirement for additional equipment
EXAMPLE Bobbin holders, control cabinets.
Note 1 to entry: See Figure 5.
2.3.3
machine height
h
total height of machine without space requirement for yarn guide units
Note 1 to entry: See Figure 5.
Key
a machine depth
b machine width
h machine height
Figure 5 — Dimensions RR circular knitting machine
2.3.4
nominal diameter
diameter of a circular knitting machine which corresponds to the exact or rounded needle base
diameter d
Note 1 to entry: See Figure 6.
6 © ISO 2014 – All rights reserved
Key
1 needle cylinder
d nominal diameter of machine
t pitch
Figure 6 — Nominal diameter and pitch of circular knitting machines
2.3.5
pitch
t
distance between the centres of two adjacent needles in the same needle carrier, in millimetres, with
full use of needles
[SOURCE: ISO 8188:2007, 3.1]
Note 1 to entry: The pitch at circular knitting machines is the distance between the centres of two adjacent
needles on the circumference of the nominal diameter.
Note 2 to entry: See Figure 6.
2.3.6
gauge
E
number of needles, n, per reference length of 25,4 mm with full use in the needle carrier:
n
n=
25,4mm
[SOURCE: ISO 8188:2007, 3.2.1]
Note 1 to entry: The indication of needle pitch shall be preferred to the indication of needle gauge.
2.3.7
number of needles
number of needles present in a needle carrier
Note 1 to entry: The number of needles is equal to the nominal width, n, divided by the pitch, plus 1.
[SOURCE: ISO 11675:2005, 5.12]
2.4 Terms for rotation
2.4.1
direction of rotation
clockwise or anticlockwise rotation of the needle cylinder or cam casing from above
2.4.2
relative rotation
Z
clockwise rotation of needle cylinder [see Figure 7 a)] or anticlockwise rotation of the cam box [see
Figure 7 b)] with the courses in the fabric forming a Z (right) spiral
Note 1 to entry: The fabric is observed from outside suspended in the machine.
a) Clockwise rotation of needle cylinder b) Anticlockwise rotation of the cam box
Key
1 yarn
2 yarn guide
3 needle cylinder
4 cam box
Figure 7 — Relative rotation Z
2.4.3
relative rotation
S
anticlockwise rotation of needle cylinder [see Figure 8 a)] or clockwise rotation of the cam box [see
Figure 8 b)] with the courses in the fabric forming an S (left) spiral
Note 1 to entry: The fabric is observed from outside suspended in the machine.
8 © ISO 2014 – All rights reserved
a) Anticlockwise rotation of needle cylinder b) Clockwise rotation of the cam box
Key
1 yarn
2 yarn guide
3 needle cylinder
4 cam box
Figure 8 — Relative rotation S
2.5 Machine frame and drive
2.5.1
machine frame
supporting framework which carries all the other machine assemblies
2.5.2
drive
one or more units for generating the movements necessary for the stitch forming procedure and
controlling the machine
2.6 Stitch forming elements, holder for needles and other stitch forming elements
2.6.1
needle cylinder
cylindrical hollow components with external grooves in axial direction for receiving and guiding the
stitch forming elements
Note 1 to entry: See Figure 1.
EXAMPLE Latch needles.
2.6.2
needle disc
dial
ring-shaped disc with grooves in radial direction for receiving and guiding the stitch forming elements
Note 1 to entry: See Figure 2.
EXAMPLE Latch needles.
2.6.3
sinker ring
ring groove running in a radial direction for receiving and guiding holding-down, knock-over, plush,
transfer and other sinkers
Note 1 to entry: See Figure 1.
2.6.4
groove
guide machined into the holder
2.6.5
trick
part between two grooves of needle or sinker holder
2.6.6
knock-over comb
part of needle holder on which stitches are formed (knocked over)
2.6.7
adjusting unit
equipment for horizontal or vertical adjustment of the needle dis
...
