Heat treatable steels, alloy steels and free-cutting steels

ISO 683-5:2017 gives the technical delivery requirements for - semi-finished products, e.g. blooms, billets, slabs (see note 1), - bars (see note 1), - wire rod, - hot-rolled plates (see note 2), and - hammer or drop forgings (see note 1) manufactured from the nitriding steels listed in Table 3 and supplied in one of the heat-treatment conditions given for the different types of products in Table 1, rows 2 to 5, and in one of the surface conditions given in Table 2. The steels are generally intended for the fabrication of quenched and tempered and, subsequently, nitriding machine parts. The requirements for mechanical properties given in this document are restricted to the sizes given in Table 6. NOTE 1 Hammer-forged semi-finished products (blooms, billets, slabs, etc.), seamless rolled rings and hammer-forged bars are in the following covered under semi-finished products or bars and not under the term "hammer and drop forgings". NOTE 2 The term "plate" includes in the following also wide flats unless otherwise stated. In special cases, variations in these technical delivery requirements or additions to these requirements can form the subject of an agreement at the time of enquiry and order (see 5.2 and Annex B). In addition to this document, the general technical delivery requirements of ISO 404 are applicable.

Aciers pour traitement thermique, aciers alliés et aciers pour décolletage

General Information

Status
Published
Publication Date
18-Jul-2017
Current Stage
6060 - International Standard published
Start Date
28-May-2017
Completion Date
19-Jul-2017
Ref Project

RELATIONS

Buy Standard

Standard
ISO 683-5:2017 - Heat treatable steels, alloy steels and free-cutting steels
English language
26 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

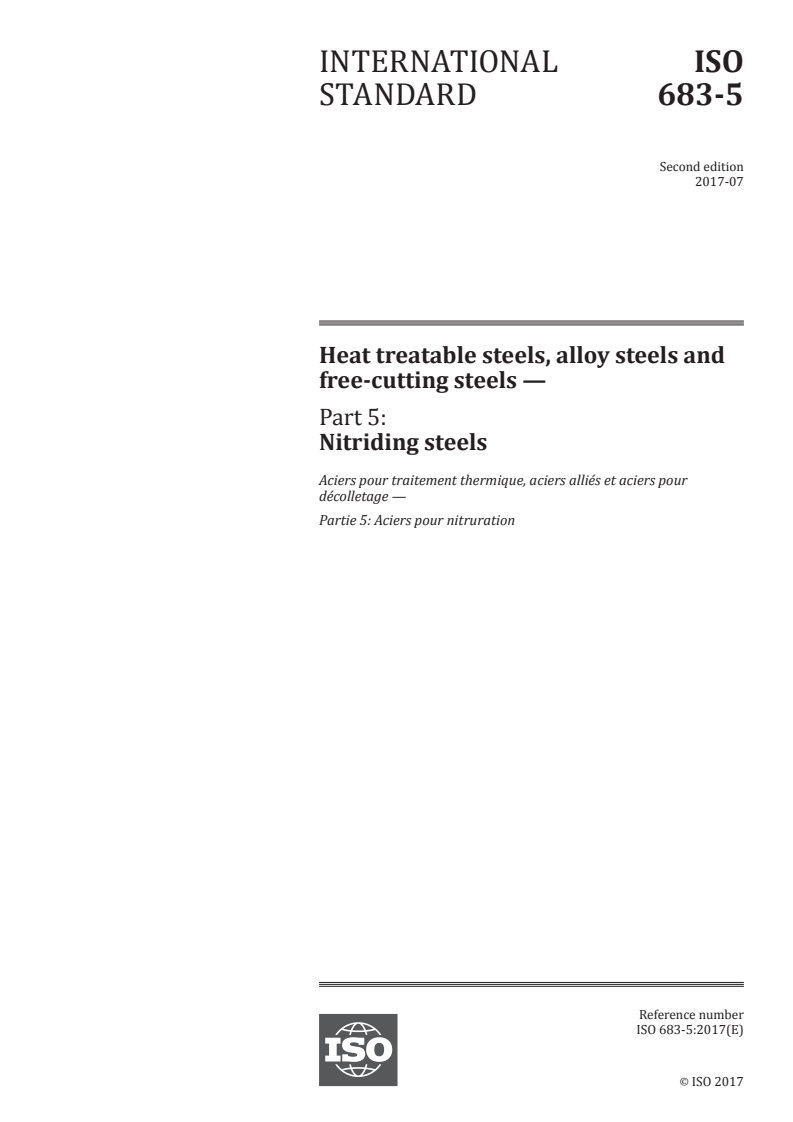

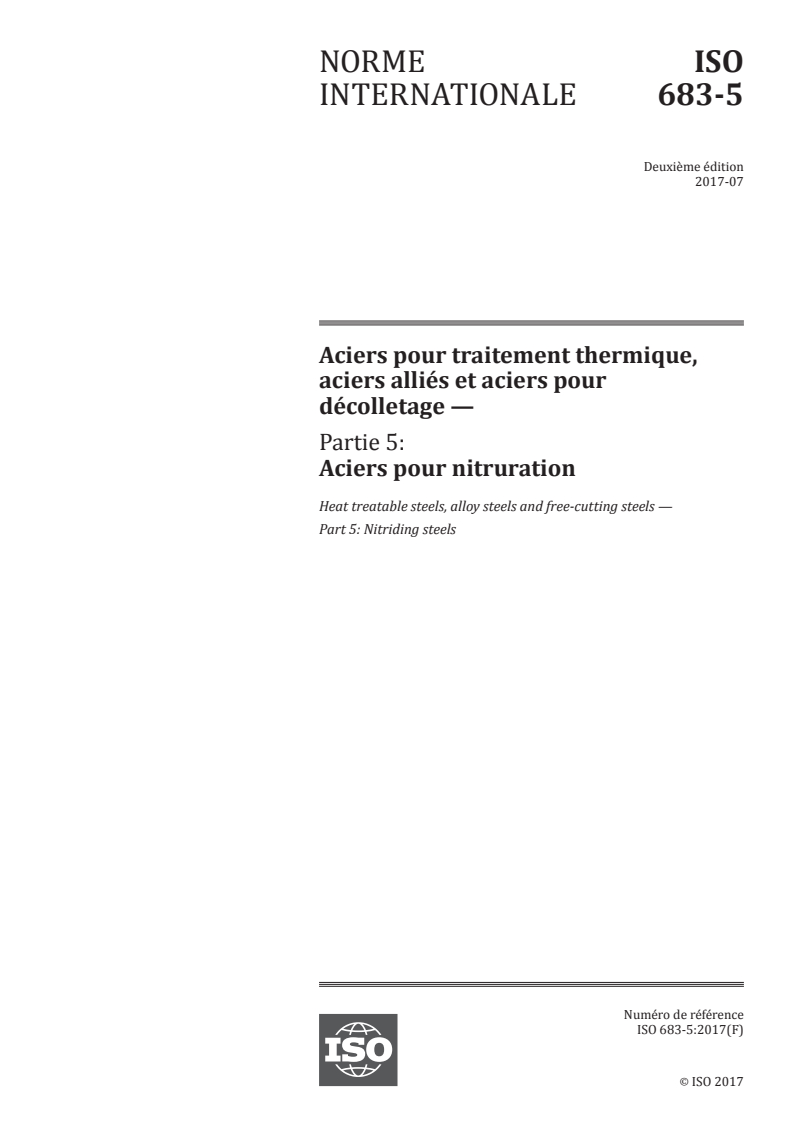

INTERNATIONAL ISO
STANDARD 683-5
Second edition
2017-07
Heat treatable steels, alloy steels and
free-cutting steels —
Part 5:
Nitriding steels
Aciers pour traitement thermique, aciers alliés et aciers pour
décolletage —
Partie 5: Aciers pour nitruration
Reference number
ISO 683-5:2017(E)
ISO 2017
---------------------- Page: 1 ----------------------
ISO 683-5:2017(E)

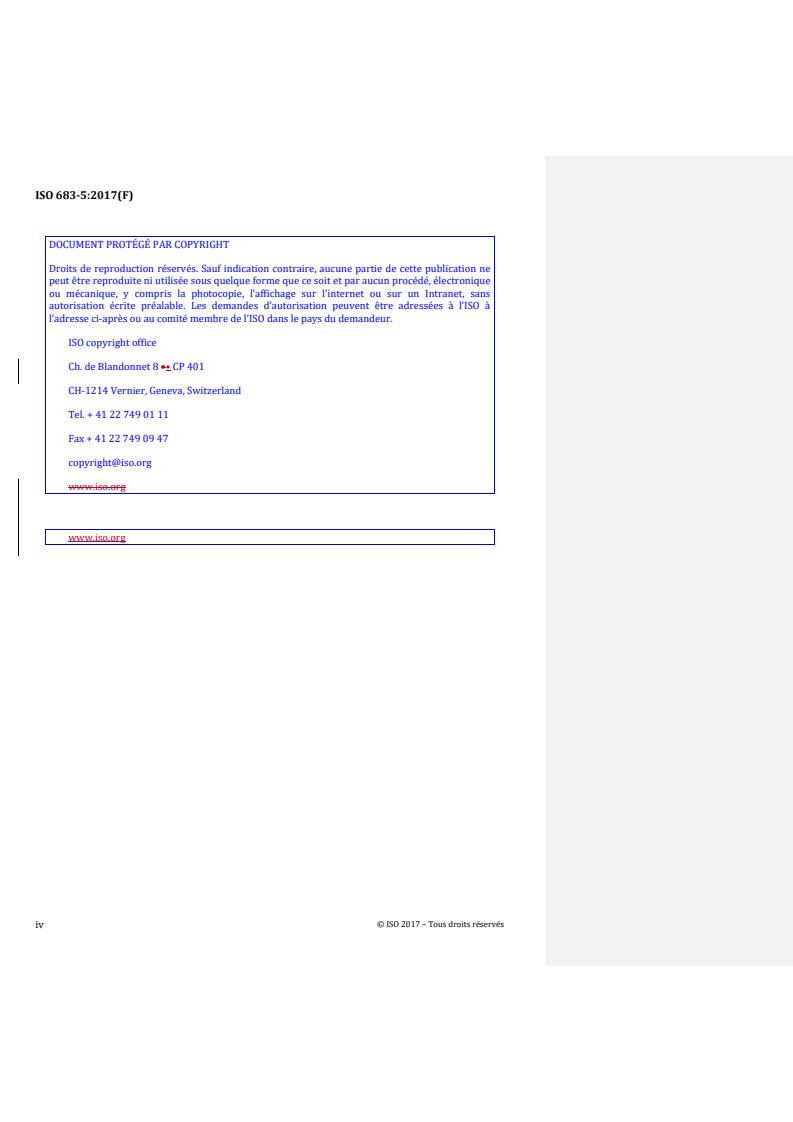

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 683-5:2017(E)

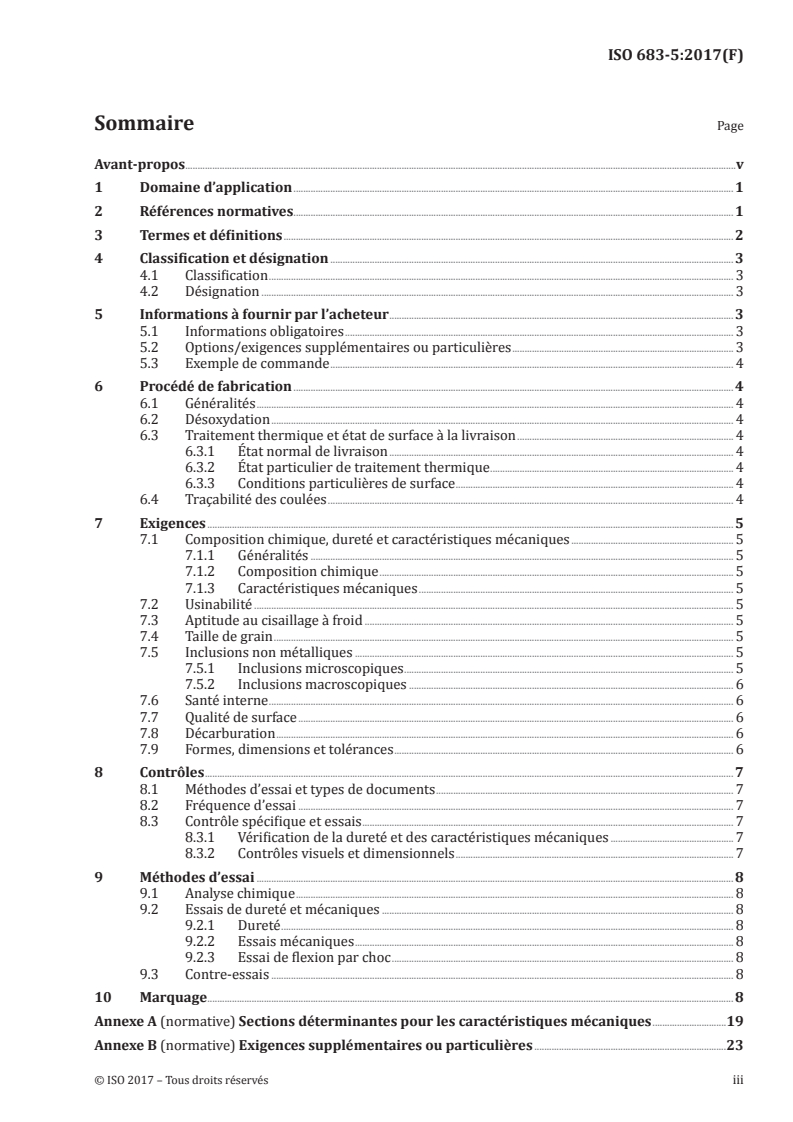

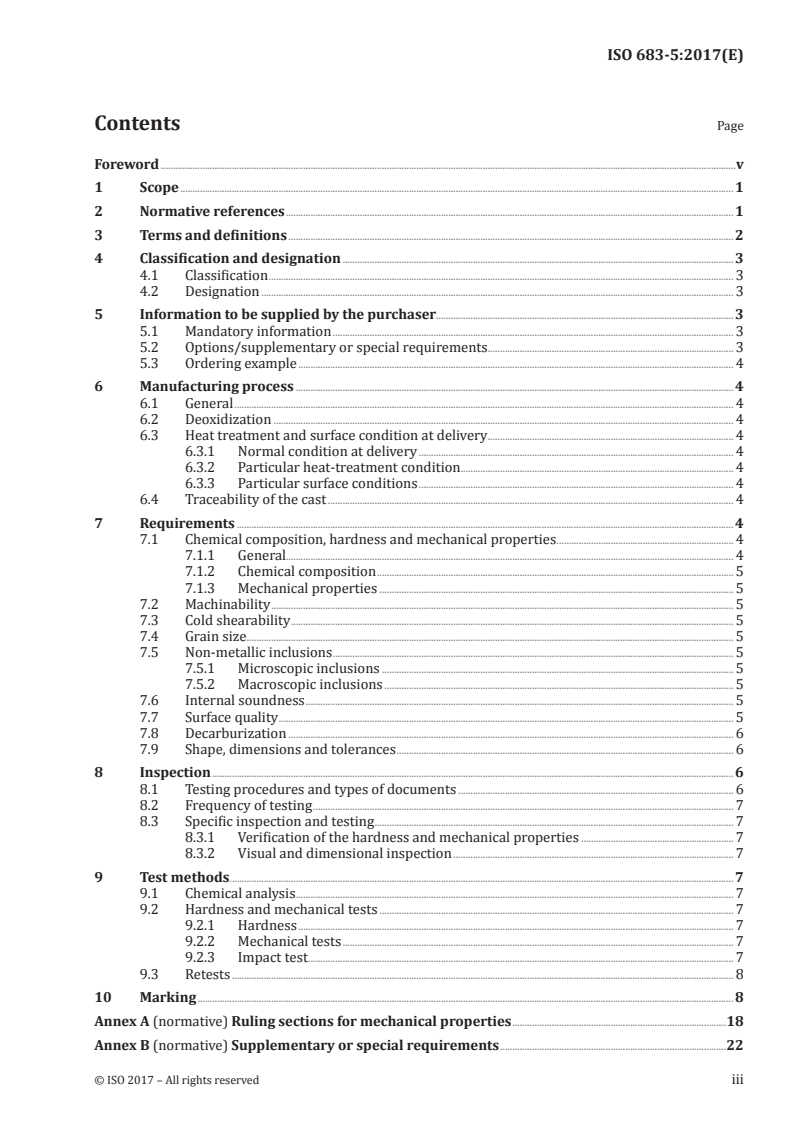

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Classification and designation ............................................................................................................................................................... 3

4.1 Classification ............................................................................................................................................................................................. 3

4.2 Designation ................................................................................................................................................................................................ 3

5 Information to be supplied by the purchaser......................................................................................................................... 3

5.1 Mandatory information ................................................................................................................................................................... 3

5.2 Options/supplementary or special requirements.................................................................................................... 3

5.3 Ordering example ................................................................................................................................................................................. 4

6 Manufacturing process .................................................................................................................................................................................. 4

6.1 General ........................................................................................................................................................................................................... 4

6.2 Deoxidization ........................................................................................................................................................................................... 4

6.3 Heat treatment and surface condition at delivery .................................................................................................... 4

6.3.1 Normal condition at delivery ................................................................................................................................ 4

6.3.2 Particular heat-treatment condition .................. ............................................................................................. 4

6.3.3 Particular surface conditions ................................................................................................................................ 4

6.4 Traceability of the cast ..................................................................................................................................................................... 4

7 Requirements .......................................................................................................................................................................................................... 4

7.1 Chemical composition, hardness and mechanical properties ........................................................................ 4

7.1.1 General...................................................................................................................................................................................... 4

7.1.2 Chemical composition ................................................................................................................................................. 5

7.1.3 Mechanical properties ................................................................................................................................................ 5

7.2 Machinability ............................................................................................................................................................................................ 5

7.3 Cold shearability .................................................................................................................................................................................... 5

7.4 Grain size ...................................................................................................................................................................................................... 5

7.5 Non-metallic inclusions ................................................................................................................................................................... 5

7.5.1 Microscopic inclusions ............................................................................................................................................... 5

7.5.2 Macroscopic inclusions .............................................................................................................................................. 5

7.6 Internal soundness .............................................................................................................................................................................. 5

7.7 Surface quality ......................................................................................................................................................................................... 5

7.8 Decarburization ..................................................................................................................................................................................... 6

7.9 Shape, dimensions and tolerances ......................................................................................................................................... 6

8 Inspection .................................................................................................................................................................................................................... 6

8.1 Testing procedures and types of documents ................................................................................................................ 6

8.2 Frequency of testing ........................................................................................................................................................................... 7

8.3 Specific inspection and testing .................................................................................................................................................. 7

8.3.1 Verification of the hardness and mechanical properties .............................................................. 7

8.3.2 Visual and dimensional inspection .................................................................................................................. 7

9 Test methods ............................................................................................................................................................................................................. 7

9.1 Chemical analysis .................................................................................................................................................................................. 7

9.2 Hardness and mechanical tests ................................................................................................................................................ 7

9.2.1 Hardness ................................................................................................................................................................................. 7

9.2.2 Mechanical tests ............................................................................................................................................................... 7

9.2.3 Impact test ............................................................................................................................................................................. 7

9.3 Retests ............................................................................................................................................................................................................ 8

10 Marking .......................................................................................................................................................................................................................... 8

Annex A (normative) Ruling sections for mechanical properties .......................................................................................18

Annex B (normative) Supplementary or special requirements ............................................................................................22

© ISO 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 683-5:2017(E)

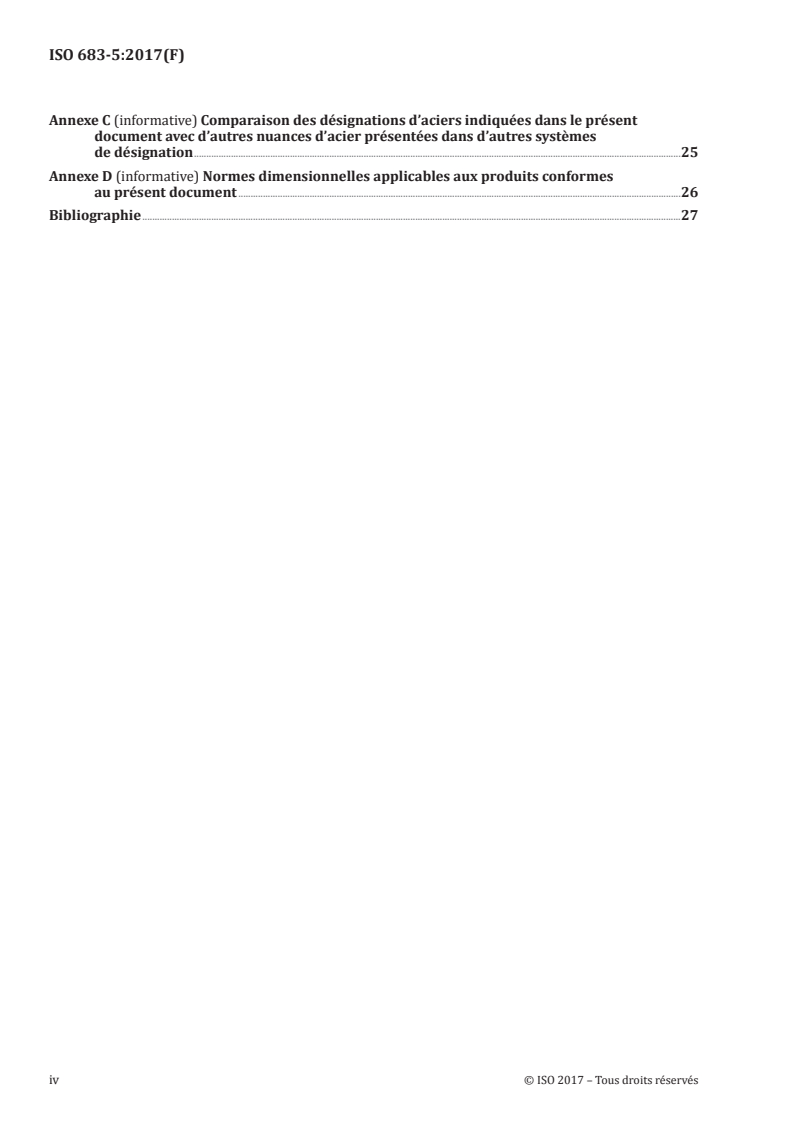

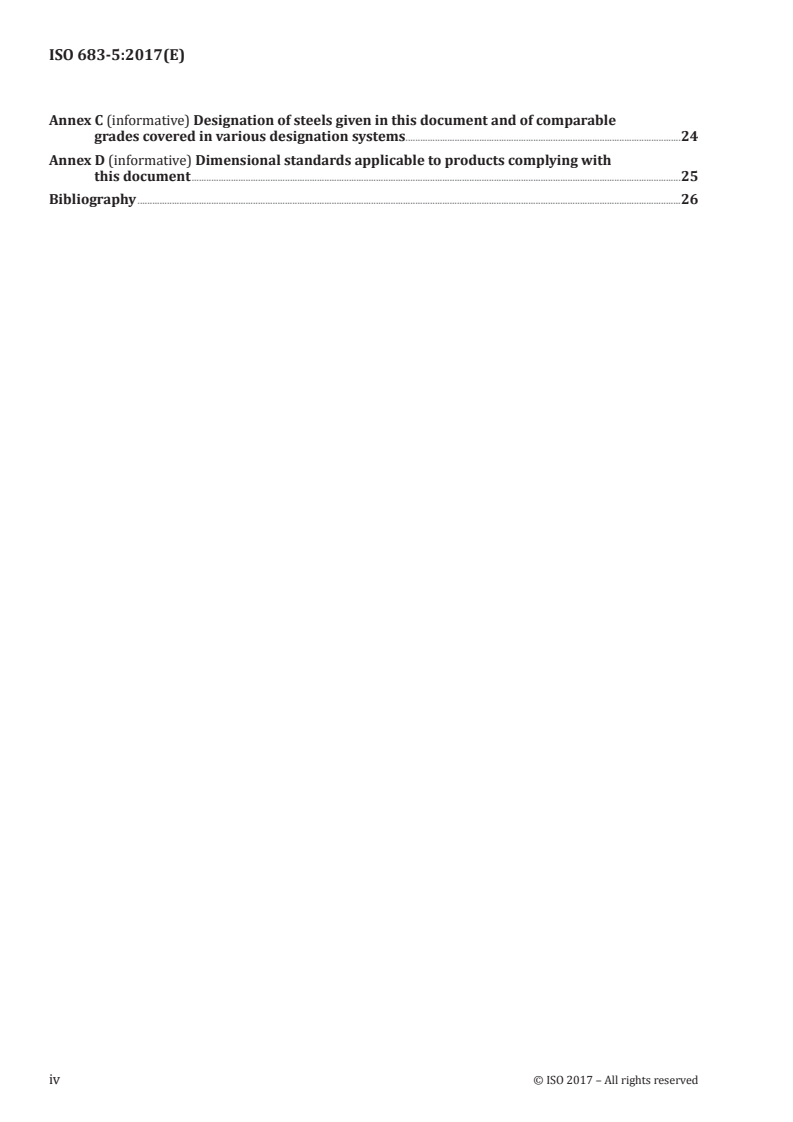

Annex C (informative) Designation of steels given in this document and of comparable

grades covered in various designation systems................................................................................................................24

Annex D (informative) Dimensional standards applicable to products complying with

this document .......................................................................................................................................................................................................25

Bibliography .............................................................................................................................................................................................................................26

iv © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 683-5:2017(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: w w w . i s o .org/ iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 4, Heat

treatable and alloy steels.

This second edition cancels and replaces the first edition (ISO 683-5:2014), of which it constitutes a

minor revision.
The main changes compared to the previous edition are as follows:
— in the Scope, “see 5.2” has been added as a cross reference;
— in 3.1, note 1 to entry has been revised;
— in 5.2, the ordering example has been moved into a new subclause, as 5.3;
— in 7.7.3, the surface class given has been changed from A to 1z2;
— in 9.2.3, the option for retesting has been revised;
— Figure 3 has been renamed as Table 9;
— in A.2.1, the cross references have been corrected to A.2.2 to A.2.4.
A list of all parts in the ISO 683 series can be found on the ISO website.
© ISO 2017 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 683-5:2017(E)
Heat treatable steels, alloy steels and free-cutting steels —
Part 5:
Nitriding steels
1 Scope
This document gives the technical delivery requirements for
— semi-finished products, e.g. blooms, billets, slabs (see note 1),
— bars (see note 1),
— wire rod,
— hot-rolled plates (see note 2), and
— hammer or drop forgings (see note 1)

manufactured from the nitriding steels listed in Table 3 and supplied in one of the heat-treatment

conditions given for the different types of products in Table 1, rows 2 to 5, and in one of the surface

conditions given in Table 2.

The steels are generally intended for the fabrication of quenched and tempered and, subsequently,

nitriding machine parts.

The requirements for mechanical properties given in this document are restricted to the sizes given in

Table 6.

NOTE 1 Hammer-forged semi-finished products (blooms, billets, slabs, etc.), seamless rolled rings and

hammer-forged bars are in the following covered under semi-finished products or bars and not under the term

“hammer and drop forgings”.

NOTE 2 The term “plate” includes in the following also wide flats unless otherwise stated.

In special cases, variations in these technical delivery requirements or additions to these requirements

can form the subject of an agreement at the time of enquiry and order (see 5.2 and Annex B).

In addition to this document, the general technical delivery requirements of ISO 404 are applicable.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 148-1, Metallic materials — Charpy pendulum impact test — Part 1: Test method

ISO 377, Steel and steel products — Location and preparation of samples and test pieces for mechanical testing

ISO 404:2013, Steel and steel products — General technical delivery requirements
ISO 643, Steels — Micrographic determination of the apparent grain size
ISO 3887, Steels — Determination of depth of decarburization
ISO 4885, Ferrous materials — Heat treatments — Vocabulary
© ISO 2017 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 683-5:2017(E)

ISO 4948-1, Steels — Classification — Part 1: Classification of steels into unalloyed and alloy steels based

on chemical composition

ISO 4948-2, Steels — Classification — Part 2: Classification of unalloyed and alloy steels according to main

quality classes and main property or application characteristics
ISO/TS 4949, Steel names based on letter symbols

ISO 4967, Steel — Determination of content of non-metallic inclusions — Micrographic method using

standard diagrams
ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method

ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature

ISO 6929, Steel products — Vocabulary

ISO 7788, Steel — Surface finish of hot-rolled plates and wide flats — Delivery requirements

ISO 9443, Heat-treatable and alloy steels — Surface quality classes for hot-rolled round bars and wire

rods — Technical delivery conditions
ISO/TR 9769, Steel and iron — Review of available methods of analysis
ISO 10474, Steel and steel products — Inspection documents

ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical

composition
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 377, ISO 4885, ISO 4948-1,

ISO 4948-2, ISO 6929 and ISO 14284 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
ruling section
section for which the specified mechanical properties shall apply

Note 1 to entry: Independent of the actual shape and dimensions of the cross-section of the product, the size of its

ruling section is always given by a diameter. This corresponds to the diameter of an “equivalent round bar”. That

is a round bar which will show the same cooling rate as the actual ruling section of the product concerned at its

position for taking the test pieces when being cooled from austenitizing temperature.

3.2
nitriding steel

heat-treatable steel containing controlled amounts of the nitride forming elements, aluminium,

chromium, molybdenum and/or vanadium and are particularly suited for nitriding
3.3
nitriding

heat treatment characterized by keeping a steel product for a sufficiently long time at temperatures

below the transformation temperature AC1 in a nitrogen providing gaseous or liquid salt environment

to achieve diffusion of the nitrogen into the steel surface

Note 1 to entry: An increase in surface hardness, wear resistance and fatigue properties is attained with this

treatment.
2 © ISO 2017 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 683-5:2017(E)
4 Classification and designation
4.1 Classification

The classification of the relevant steel grades is allocated in accordance with ISO 4948-1 and ISO 4948-2.

All steels covered by this document are classified as alloy special steels.
4.2 Designation

For the steel grades covered by this document, the steel names as given in the relevant tables are

allocated in accordance with ISO/TS 4949.

The designation of steels given in this document and of comparable grades covered in various

designation systems is given in Annex C.
5 Information to be supplied by the purchaser
5.1 Mandatory information

The manufacturer shall obtain the following information from the purchaser at the time of enquiry

and order:
a) the quantity to be delivered;

b) the designation of the product form (e.g. slab, bloom, billet, round bar, wire rod);

c) either the designation of the dimensional standard and the dimensions and tolerances selected

from this (see 7.9) or the designation of the drawing or any other document covering the dimensions

and tolerances required for the product;
d) reference to this document, i.e. ISO 683-5;
e) the designation of the steel grade given in Table 3;

f) designation for a test report 2.2 or, if required, any other type of inspection document in accordance

with ISO 10474.
5.2 Options/supplementary or special requirements

A number of options are specified in this document and listed below in this subclause. If the purchaser

does not indicate the wish to implement any of these options, the products will be supplied in accordance

with the basic specification of this document (see 5.1):

a) if a heat-treatment condition other than the untreated condition is required, the symbol for this

other condition (see Table 1, column 2);

b) if another surface condition than hot worked or a special surface quality is required, the surface

condition (see Table 2, column 2) and the surface quality (see 7.7);

c) any supplementary requirement that shall be complied with, the symbol and, where necessary, the

details of this supplementary requirement (see Annex B);
d) any requirement relating to the removal of surface defects (see 7.7.4);
e) any requirement regarding the permissible depth of decarburization (see 7.8);
f) impact test at a temperature lower than room temperature (see 9.2.3).
© ISO 2017 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 683-5:2017(E)
5.3 Ordering example

EXAMPLE 2 t hot-rolled round bars according to ISO 1035-1 with a nominal diameter of 40 mm and a nominal

length of 8 000 mm with diameter tolerance according to class S and with length tolerance according to class L2

made of steel grade ISO 683-5, 31CrMo12 (see Table 3) in heat-treatment condition +QT (see Table 1) with surface

blast cleaned +BC (see Table 2) and with an inspection document 2.2.
Round bars ISO 1035 - 40,0S × 8 000L2
ISO 683-5 - 31CrMo12+QT
inspection document ISO 10474 2.2
6 Manufacturing process
6.1 General

The manufacturing process of the steel and of the products is with the restrictions given by the

requirements in 6.2 and 6.4, left to the discretion of the manufacturer.
6.2 Deoxidization
All steels shall be deoxidized.
6.3 Heat treatment and surface condition at delivery
6.3.1 Normal condition at delivery

Unless otherwise agreed at the time of enquiry and order, the products shall be delivered in the

untreated, i.e. hot-worked condition.
6.3.2 Particular heat-treatment condition

If so agreed at the time of enquiry and order, the products shall be delivered in one of the particular

heat-treatment conditions given in Table 1, lines 3 to 5.
6.3.3 Particular surface conditions

If so agreed at the time of enquiry and order, the products shall be delivered in another particular

surface condition as given in Table 2, lines 3 to 6.
6.4 Traceability of the cast
Each product shall be traceable to the cast (see Clause 10).
7 Requirements
7.1 Chemical composition, hardness and mechanical properties
7.1.1 General

Table 1 shows the combinations of usual heat-treatment conditions at delivery, product forms and

requirements as specified in Tables 3 to 6.
4 © ISO 2017 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 683-5:2017(E)
7.1.2 Chemical composition

The chemical composition determined by cast analysis shall comply with the values in Table 3.

Permissible deviations between the limiting values for cast analysis and the values for product analysis

are given in Table 4.

The product analysis shall be carried out when specified at the time of enquiry and order (see B.5).

7.1.3 Mechanical properties

The requirements for the mechanical properties are for steels delivered in the “soft annealed condition”

(+A) according to the maximum Brinell hardness (see Table 5) and for steels delivered in the “quenched

and tempered condition” (+QT) according to the values cited in Table 6.
7.2 Machinability
All steels are in the condition: “soft annealed” (+A) machinable.

Where a further improved machinability is required, special heat treatments may be agreed at the time

of enquiry and order.
7.3 Cold shearability

Under suitable shearing conditions (avoiding local stress peaks, preheating, application of blades with a

profile adapted to that of the product, etc.), all steels are shearable in the “soft annealed” (+A) condition.

7.4 Grain size

Unless otherwise agreed at the time of enquiry and order, the steel shall show a fine grain structure with

an austenitic grain size of 5 and finer when tested in accordance with ISO 643. For verification, see B.3.

The ferrite content in the core of the quenched and tempered product shall be determined on one

microsection per cast, dimension and heat treatment batch, if agreed at the time of enquiry and order.

7.5 Non-metallic inclusions
7.5.1 Microscopic inclusions

The special steels shall have a certain degree of cleanness; however, verification of the non-metallic

inclusion content requires a special agreement. If there is such an agreement at the time of enquiry

and order, the microscopic non-metallic inclusion content shall be determined to an agreed procedure

and within agreed limits in accordance with ISO 4967 or another standard, e.g. regional standards

EN 10247 or JIS G 0555.
7.5.2 Macroscopic inclusions

This requirement is applicable to the verification of the macroscopic inclusions in special steels. If

verification is agreed, the method and acceptance limits shall be agreed at the time of enquiry and order.

7.6 Internal soundness

The steels shall be free from internal defects likely to have an adverse effect (see B.4).

7.7 Surface quality

7.7.1 All products shall have a smooth surface finish appropriate to the manufacturing processes

applied.
© ISO 2017 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 683-5:2017(E)

7.7.2 Minor surface imperfections which may occur under normal manufacturing conditions, such as

prints originating from rolled-in scale, are not to be regarded as defects.

7.7.3 Bars and wire rod are delivered with surface class 1z2 in accordance with ISO 9443 and hot-rolled

plates and wide flats shall be delivered with a surface in accordance with ISO 7788, unless otherwise

agreed at the time of enquiry and order.

Where no International Standard on the surface quality of steel products exists, detailed requirements

referring to this characteristic shall, where appropriate, be agreed at the time of enquiry and order.

It is more difficult to detect and eliminate surface discontinuities from coiled products than from cut

lengths. This should be taken into account when agreements on surface quality are made.

NOTE Bars and wire rod for cold heading and cold extrusion are covered fully by ISO 4954.

7.7.4 The removal of surface defects by welding shall only be permitted with the approval of the

customer or his/her representative.

If surface discontinuities are repaired, the method and maximum depth of removal shall be agreed at

the time of enquiry and order.
7.8 Decarburization

Requirements relating to the permissible depth of decarburization may be agreed at the time of enquiry

and order.

The depth of decarburization shall be determined in accordance with the micrographic method

specified in ISO 3887.
7.9 Shape, dimensions and tolerances

The shape, dimensions and tolerances of the products shall comply with the requirements agreed at

the time of enquiry and order. The agreements shall, as far as possible, be based on corresponding

International Standards (see Annex D), otherwise on suitable national standards.
8 Inspection
8.1 Testing procedures and types of documents

8.1.1 Products complying with this document shall be ordered and delivered with one of the inspection

documents as specified in ISO 10474. The type of document shall be agreed upon at the time of enquiry

and order. If the order does not contain any specification of this type, a test report 2.2 shall be issued.

8.1.2 If, in accordance with the agreements made at the time of enquiry and order, a test report 2.2 is

to be provided, this shall cover following information:
a) confirmation that the material complies with the requirements of the order;

b) results of the cast analysis for all elements specified in Table 3 for the steel grade concerned.

8.1.3 If in accordance with the agreements in the order an inspection certificate 3.1 or 3.2 is to be

provided, the specific inspections and tests described in 8.2, 8.3 and Clause 9 shall be carried out and the

results shall be confirmed in the inspection certificate.
In addition, the inspection certificate shall cover:
a) confirmation that the material complies with the requirements of the order;
6 © ISO 2017 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 683-5:2017(E)

b) results of the cast analysis for all elements specified in Table 3 for the steel grade concerned;

c) the result of all inspections and tests ordered by supplementary requirements (see Annex B);

d) the symbol letters or numbers relating the inspection certificate, test pieces and products to

each other.
8.2 Frequency of testing

The amount of testing, the sampling conditions and the test methods to be applied for the verific

...
