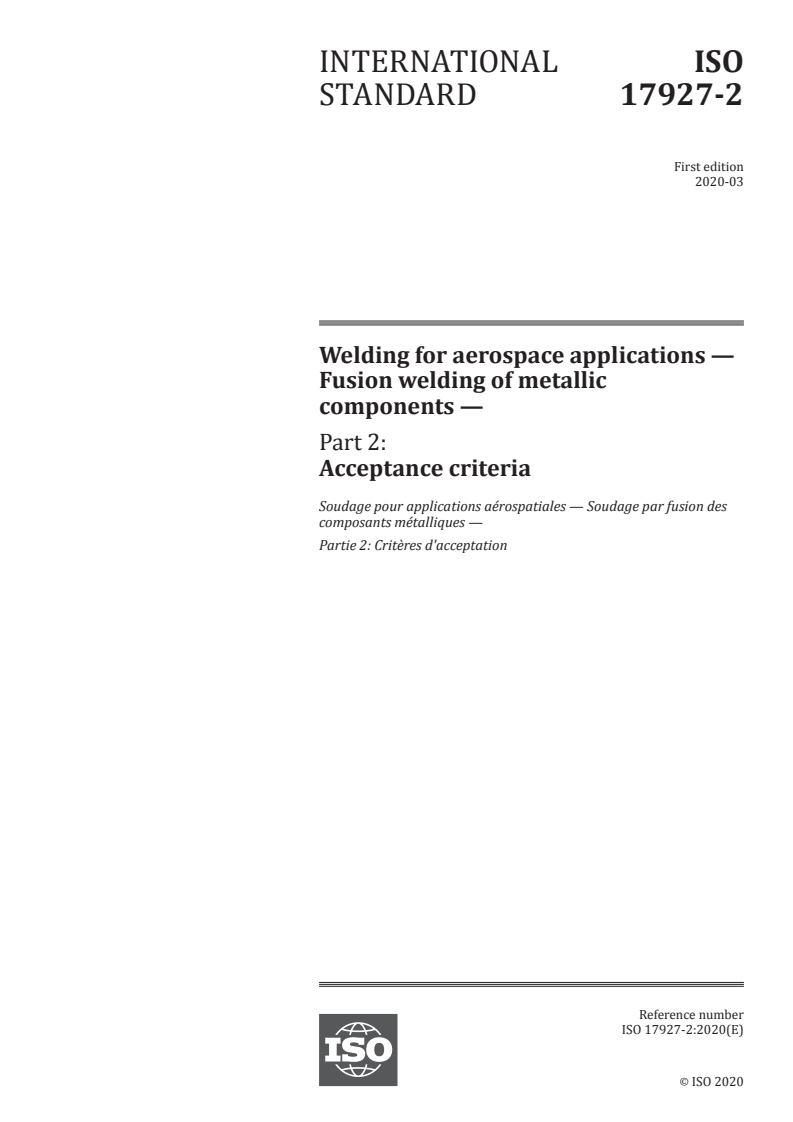

INTERNATIONAL ISO
STANDARD 17927-2
First edition
2020-03
Welding for aerospace applications —
Fusion welding of metallic
components —
Part 2:
Acceptance criteria
Soudage pour applications aérospatiales — Soudage par fusion des
composants métalliques —
Partie 2: Critères d'acceptation
Reference number
ISO 17927-2:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO 17927-2:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 17927-2:2020(E)

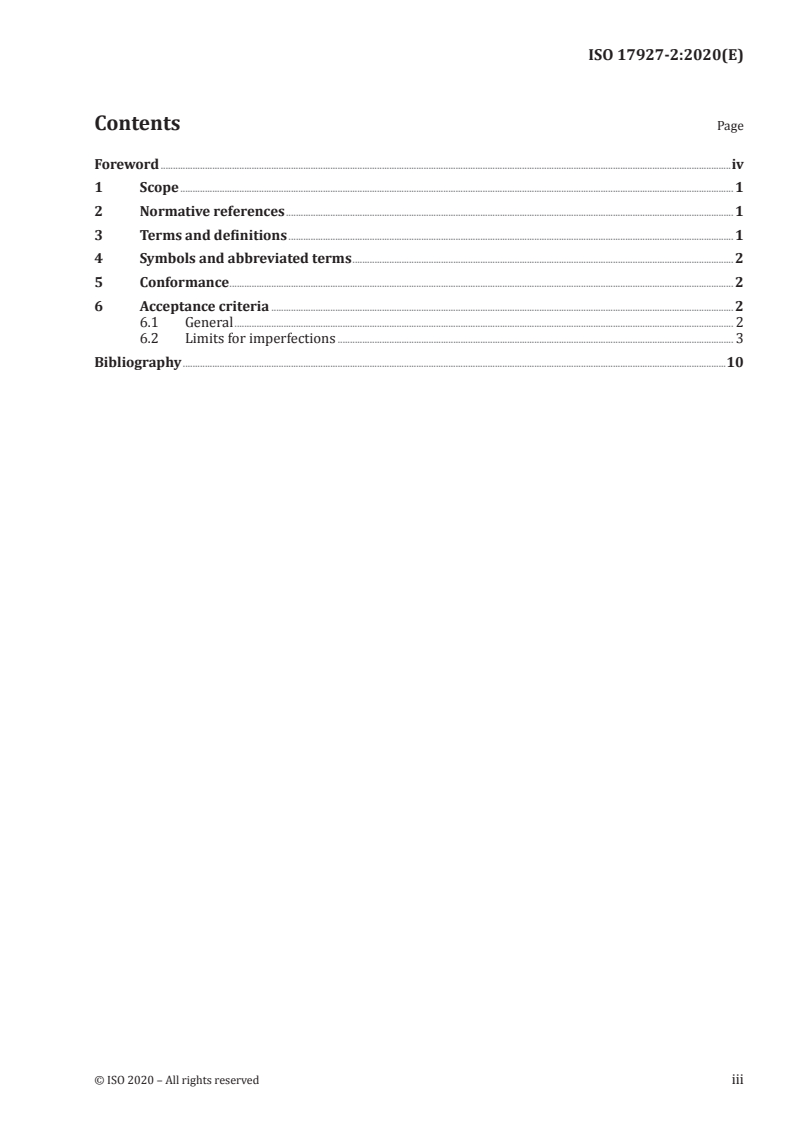

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Symbols and abbreviated terms ........................................................................................................................................................... 2

5 Conformance ............................................................................................................................................................................................................. 2

6 Acceptance criteria ............................................................................................................................................................................................ 2

6.1 General ........................................................................................................................................................................................................... 2

6.2 Limits for imperfections ................................................................................................................................................................. 3

Bibliography .............................................................................................................................................................................................................................10

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 17927-2:2020(E)

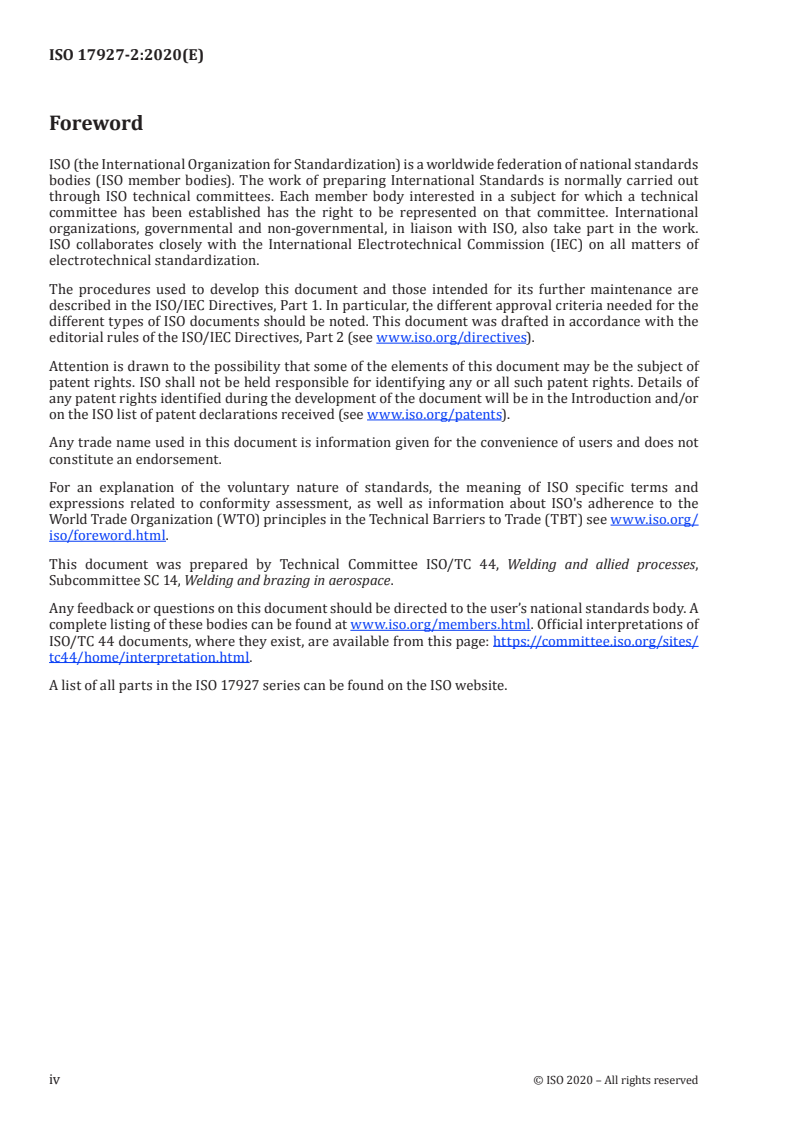

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,

Subcommittee SC 14, Welding and brazing in aerospace.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html. Official interpretations of

ISO/TC 44 documents, where they exist, are available from this page: https:// committee .iso .org/ sites/

tc44/ home/ interpretation .html.
A list of all parts in the ISO 17927 series can be found on the ISO website.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 17927-2:2020(E)
Welding for aerospace applications — Fusion welding of
metallic components —
Part 2:
Acceptance criteria
1 Scope

This document specifies acceptance criteria for fusion weldments on metallic components.

It is to be applied provided it is referenced or approved by the responsible engineering/design authority.

This document covers the following processes given in Table 1 and the material groups given in Table 2.

Table 1 — Fusion welding processes covered by this document
Process Process number (ISO 4063:2009)
Oxyfuel welding 31
Gas shielded arc welding with non-consumable
tungsten electrode, gas tungsten arc welding
Plasma arc welding 15
Electron beam welding 51
Laser welding, laser beam welding 52
Table 2 — Material groups covered by this document
Material group Description
A Unalloyed steel, low alloyed steels, high alloyed ferritic steels
B Austenitic, martensitic and precipitation hardening steels
C Titanium and titanium alloys, niobium, zirconium and other reactive metals
D Aluminium and magnesium alloys

E Materials that do not conform to other material groups (e.g. molybdenum, tungsten, cop-

per alloys)
F Nickel alloys, cobalt alloys.
NOTE Material groups according to ISO 24394.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 6520-1, Welding and allied processes — Classification of geometric imperfections in metallic

materials — Part 1: Fusion welding
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
© ISO 2020 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 17927-2:2020(E)

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
design/engineering authority

organization having the responsibility for the structural integrity or maintenance of airworthiness of

the hardware and compliance with all relevant documents
[SOURCE: ISO 24394:2018, 3.8]
4 Symbols and abbreviated terms
t nominal wall or plate thickness
h dimension of imperfection
b width of weld reinforcement or fillet
a nominal throat thickness
z nominal leg length
5 Conformance

When conformance to this document is claimed, all provisions of this document are to be complied

with, except those for provisions that the design/engineering authority specifically exempts.

6 Acceptance criteria
6.1 General

The dimension of any discontinuity shall be defined by its largest dimension. Two or more

discontinuities shall be treated as one when the spacing between them is less than the dimension of the

larger discontinuity.

Surface imperfections of the weld may be mechanically removed provided that the weld and adjacent

base metal maintain the minimum thickness without undercutting the plane of the base metal. Any

additional engineering requirements (e.g. surface roughness) shall also be met. In the case of weldments

with variations in cross-section along the joint, the thickness, t, shall be considered to be the minimum

thickness at the imperfections.

Imperfections that will be removed in subsequent machining shall not be cause for rejection provided

inspection is carried out after machining. Any weldment with unacceptable imperfections which has

gone through a subsequent manufacturing operation that affects the metallurgical characteristics

(other than hydrogen embrittlement relief) or that cannot be rewelded without affecting final

metallurgical or surface characteristics shall be rejected.

For fillet welds, the minimum size shall be as specified on the engineering drawings.

When fillet weld size is not specified, the minimum leg length shall be:
— for single side weld: 1,5 t ;
min
— for double side weld: 1 t ;
min
where t is the minimum nominal wall or plate thickness.
min
2 © ISO 2020 – All rights
...
