ISO/IEC 22123-1:2023
(Main)Information technology — Cloud computing — Part 1: Vocabulary
Information technology — Cloud computing — Part 1: Vocabulary
This document defines terms used in the field of cloud computing.
Technologies de l'information — Informatique en nuage — Partie 1: Vocabulaire
General Information
Relations
Standards Content (Sample)

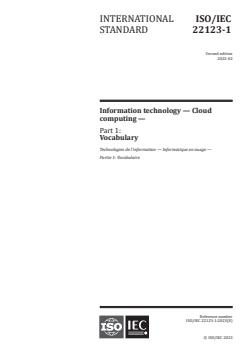

INTERNATIONAL ISO/IEC
STANDARD 22123-1
Second edition
2023-02
Information technology — Cloud
computing —
Part 1:
Vocabulary
Technologies de l'information — Informatique en nuage —
Partie 1: Vocabulaire
Reference number
© ISO/IEC 2023
© ISO/IEC 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO/IEC 2023 – All rights reserved

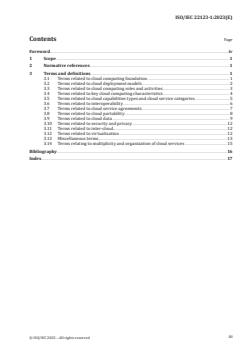

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
3.1 Terms related to cloud computing foundation . 1
3.2 Terms related to cloud deployment models. 2
3.3 Terms related to cloud computing roles and activities . 3
3.4 Terms related to key cloud computing characteristics . 4
3.5 Terms related to cloud capabilities types and cloud service categories . 5
3.6 Terms related to interoperability . 6
3.7 Terms related to cloud service agreements. 7
3.8 Terms related to cloud portability . 8
3.9 Terms related to cloud data . 9
3.10 Terms related to security and privacy .12
3.11 Terms related to inter-cloud . .12
3.12 Terms related to virtualization .12
3.13 Miscellaneous terms .13
3.14 Terms relating to multiplicity and organization of cloud services . 15
Bibliography .16
Index .17
iii
© ISO/IEC 2023 – All rights reserved

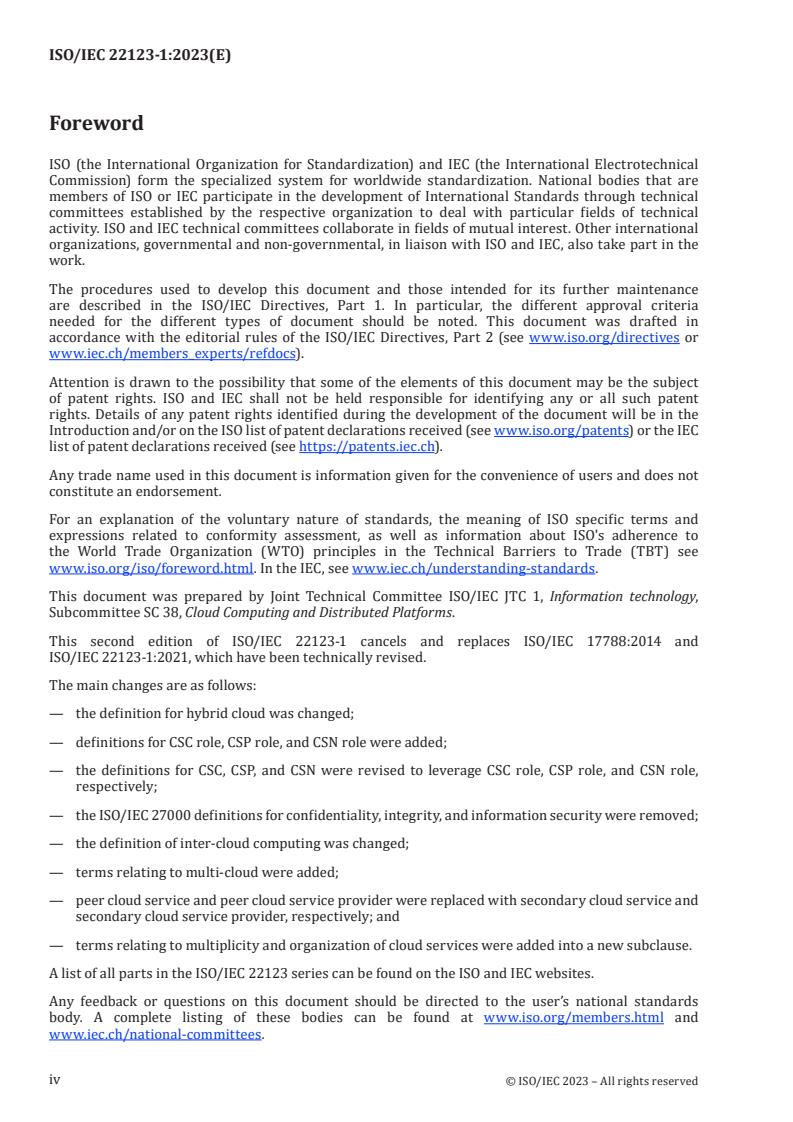

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance
are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria
needed for the different types of document should be noted. This document was drafted in
accordance with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC
list of patent declarations received (see https://patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 38, Cloud Computing and Distributed Platforms.
This second edition of ISO/IEC 22123-1 cancels and replaces ISO/IEC 17788:2014 and
ISO/IEC 22123-1:2021, which have been technically revised.
The main changes are as follows:
— the definition for hybrid cloud was changed;
— definitions for CSC role, CSP role, and CSN role were added;
— the definitions for CSC, CSP, and CSN were revised to leverage CSC role, CSP role, and CSN role,
respectively;
— the ISO/IEC 27000 definitions for confidentiality, integrity, and information security were removed;
— the definition of inter-cloud computing was changed;
— terms relating to multi-cloud were added;
— peer cloud service and peer cloud service provider were replaced with secondary cloud service and
secondary cloud service provider, respectively; and
— terms relating to multiplicity and organization of cloud services were added into a new subclause.
A list of all parts in the ISO/IEC 22123 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
iv
© ISO/IEC 2023 – All rights reserved
INTERNATIONAL STANDARD ISO/IEC 22123-1:2023(E)
Information technology — Cloud computing —
Part 1:
Vocabulary
1 Scope
This document defines terms used in the field of cloud computing.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1 Terms related to cloud computing foundation
3.1.1
cloud computing
paradigm for enabling network access to a scalable and elastic pool of shareable physical or virtual
resources with self-service provisioning and administration on-demand
Note 1 to entry: Examples of resources include servers, operating systems, networks, software, applications, and
storage equipment.
Note 2 to entry: Self-service provisioning refers to the provisioning of resources provided to cloud services (3.1.2)
performed by cloud service customers (3.3.2) through automated means.
3.1.2
cloud service
one or more capabilities offered via cloud computing (3.1.1) invoked using a defined interface
3.1.3
cloud solution
cloud services (3.1.2) combined and controlled to meet cloud service customer (3.3.2) requirements
Note 1 to entry: A cloud solution can use any combination of cloud deployment models (3.2.1).
© ISO/IEC 2023 – All rights reserved
3.2 Terms related to cloud deployment models
3.2.1
cloud deployment model
way in which cloud computing (3.1.1) can be organized based on the control and sharing of physical or
virtual resources
Note 1 to entry: Examples of cloud deployment models include community cloud (3.2.1), hybrid cloud (3.2.3), private
cloud (3.2.4) and public cloud (3.2.5).
3.2.2
community cloud
cloud deployment model (3.2.1) where cloud services (3.1.2) exclusively support and are shared by a
specific collection of cloud service customers (3.3.2) who have shared requirements and a relationship
with one another, and where resources are controlled by at least one member of this collection
3.2.3
hybrid cloud
cloud deployment model (3.2.1) that uses a private cloud (3.2.4) and a public cloud (3.2.5)
3.2.4
private cloud
cloud deployment model (3.2.1) where cloud services (3.1.2) are used exclusively by a single cloud service
customer (3.3.2) and resources are controlled by that cloud service customer (3.3.2)
3.2.5
public cloud
cloud deployment model (3.2.1) where cloud services (3.1.2) are potentially available to any cloud service
customer (3.3.2) and resources are controlled by the cloud service provider (3.3.3)
3.2.6
multi-cloud
multicloud
cloud deployment model (3.2.1) in which a cloud service customer (3.3.2) uses public cloud services (3.1.2)
provided by two or more cloud service providers (3.3.3)
Note 1 to entry: The cloud service customer (3.3.2) is responsible for integration and management of these cloud
services (3.1.2) to form a cloud solution (3.1.3).
3.2.7
cloud service federation
two or more cloud service providers (3.3.3) bound together by an agreed set of policies, processes and
trust in order to provide cloud services (3.1.2)
3.2.8
federated cloud
cloud deployment model (3.2.1) in which the cloud services (3.1.2) are provided by members of a cloud
service federation (3.2.7)
3.2.9
hybrid multi-cloud
cloud deployment model (3.2.1) in which a cloud service customer (3.3.2) uses cloud services (3.1.2) from
a hybrid cloud (3.2.3) and a multi-cloud (3.2.6)
© ISO/IEC 2023 – All rights reserved
3.2.10
inter-cloud
intercloud
cloud deployment model (3.2.1) in which a cloud service provider (3.3.3) offers a cloud service (3.1.2) by
using one or more cloud services (3.1.2) provide by other cloud service providers (3.3.3)
Note 1 to entry: The primary cloud service provider (3.11.2) provides the cloud service typically via intermediation,
aggregation, or arbitrage of the cloud services provided by secondary cloud service providers (3.11.4).
3.3 Terms related to cloud computing roles and activities
3.3.1
party
natural person, legal person or a group of either, whether or not incorporated, that can assume one or
more roles (3.3.10)
3.3.2
cloud service customer
CSC
party (3.3.1) that is acting in a cloud service customer role (3.3.14)
3.3.3
cloud service provider
CSP
party (3.3.1) that is acting in a cloud service provider role (3.3.15)
3.3.4
cloud service user
CSU
natural person, or entity acting on their behalf, associated with a cloud service customer (3.3.2) that
uses cloud services (3.1.2)
Note 1 to entry: Examples of such entities include devices (3.13.4) and applications.
3.3.5
cloud service partner
CSN
party (3.3.1) that is acting in a cloud service partner role (3.3.16)
3.3.6
cloud auditor
cloud service partner (3.3.5) with the responsibility to conduct an audit (3.13.10) of the provision and
use of cloud services (3.1.2)
3.3.7
cloud service broker
cloud service partner (3.3.5) that negotiates relationships between cloud service customers (3.3.2) and
cloud service providers (3.3.3)
3.3.8
activity
specified pursuit or set of tasks
3.3.9
functional component
functional building block needed to engage in an activity (3.3.8), backed by an implementation
3.3.10
role
set of activities (3.3.8) that serves a common purpose
© ISO/IEC 2023 – All rights reserved
3.3.11
sub-role
subset of the activities (3.3.8) of a given role (3.3.10)
3.3.12
device platform cloud service
cloud service (3.1.2) offered by the device platform provider (3.13.13) to support the device platform
(3.13.5)
Note 1 to entry: An application marketplace (3.13.6) can be an example of device platform (3.13.5) cloud service
(3.1.2).
3.3.13
cloud service developer
cloud service partner (3.3.5) with the responsibility for designing, developing, testing and maintaining
the implementation of a cloud service (3.1.2)
3.3.14
cloud service customer role
CSC role
set of activities (3.3.8) for the purpose of using cloud services (3.1.2)
3.3.15
cloud service provider role
CSP role
set of activities (3.3.8) that make cloud services (3.1.2) available
3.3.16
cloud service partner role
CSN role
set of activities (3.3.8) that support, or are auxiliary to, either the cloud service provider role (3.3.15) or
the cloud service customer role (3.3.14), or both
3.4 Terms related to key cloud computing characteristics
3.4.1
measured service
metered delivery of cloud services (3.1.2) such that usage can be monitored, controlled, reported and
billed
3.4.2
tenant
one or more cloud service users (3.3.4) sharing access to a set of physical and virtual resources
3.4.3
multi-tenancy
allocation of physical or virtual resources such that multiple tenants (3.4.2) and their computations and
data are isolated from and inaccessible to one another
3.4.4
on-demand self-service
feature where a cloud service customer (3.3.2) can provision computing capabilities, as needed,
automatically or with minimal interaction with the cloud service provider (3.3.3)
3.4.5
resource pooling
aggregation of a cloud service provider’s (3.3.3) physical or virtual resources to serve one or more cloud
service customers (3.3.2)
© ISO/IEC 2023 – All rights reserved
3.5 Terms related to cloud capabilities types and cloud service categories
3.5.1
cloud capabilities type
classification of the functionality provided by a cloud service (3.1.2) to the cloud service customer (3.3.2),
based on resources used
Note 1 to entry: The cloud capabilities types are application capabilities type (3.5.2), infrastructure capabilities
type (3.5.3) and platform capabilities type (3.5.4).
3.5.2
application capabilities type
cloud capabilities type (3.5.1) in which the cloud service customer (3.3.2) can use the cloud service
provider’s (3.3.3) applications
3.5.3
infrastructure capabilities type
cloud capabilities type (3.5.1) in which the cloud service customer (3.3.2) can provision and use
processing, storage or networking resources
3.5.4
platform capabilities type
cloud capabilities type (3.5.1) in which the cloud service customer (3.3.2) can deploy, manage and run
customer-created or customer-acquired applications using one or more programming languages and
one or more execution environments supported by the cloud service provider (3.3.3)
3.5.5
cloud service category
group of cloud services (3.1.2) that possess some common set of qualities
Note 1 to entry: A cloud service category can include capabilities from one or more cloud capabilities types (3.5.1).
3.5.6
communications as a service
CaaS
cloud service category (3.5.5) in which the capability provided to the cloud service customer (3.3.2) is
real time interaction and collaboration
Note 1 to entry: CaaS can provide both application capabilities type (3.5.2) and platform capabilities type (3.5.4).
3.5.7
compute as a service
CompaaS
cloud service category (3.5.5) in which the capabilities provided to the cloud service customer (3.3.2) are
the provision and use of processing resources needed to deploy and run software
Note 1 to entry: To run some software, capabilities other than processing resources are potentially needed.
3.5.8
data storage as a service
DSaaS
cloud service category (3.5.5) in which the capability provided to the cloud service customer (3.3.2) is the
provision and use of data storage and related capabilities
Note 1 to entry: DSaaS can provide any of the three cloud capabilities types (3.5.1).
© ISO/IEC 2023 – All rights reserved
3.5.9
infrastructure as a service
IaaS
cloud service category (3.5.5) in which the cloud capabilities type (3.5.1) provided to the cloud service
customer (3.3.2) is an infrastructure capabilities type (3.5.3)
Note 1 to entry: The cloud service customer (3.3.2) does not manage or control the underlying physical and
virtual resources, but does have control over operating systems, storage, and deployed applications that use the
physical and virtual resources. The cloud service customer (3.3.2) can also have limited ability to control certain
networking components (e.g., host firewalls).
3.5.10
network as a service
NaaS
cloud service category (3.5.5) in which the capability provided to the cloud service customer (3.3.2) is
transport connectivity and related network capabilities
Note 1 to entry: Network as a service can provide any of the three cloud capabilities types (3.5.1).
3.5.11
platform as a service
PaaS
cloud service category (3.5.5) in which the cloud capabilities type (3.5.1) provided to the cloud service
customer (3.3.2) is a platform capabilities type (3.5.4)
3.5.12
software as a service
SaaS
cloud service category (3.5.5) in which the cloud capabilities type (3.5.1) provided to the cloud service
customer (3.3.2) is an application capabilities type (3.5.2)
3.6 Terms related to interoperability
3.6.1
interoperability
ability of two or more systems or applications to exchange information and to mutually use the
information that has been exchanged
3.6.2
cloud interoperability
ability of a cloud service customer’s (3.3.2) system to interact with a cloud service (3.1.2), or the ability
for one cloud service (3.1.2) to interact with other cloud services (3.1.2), by exchanging information
according to a prescribed method to obtain predictable results
3.6.3
transport interoperability
interoperability (3.6.1) where information exchange uses an established communication infrastructure
between the participating systems
3.6.4
syntactic interoperability
interoperability (3.6.1) such that the formats of the exchanged information can be understood by the
participating systems
3.6.5
semantic data interoperability
interoperability (3.6.1) so that the meaning of the data model within the context of a subject area is
understood by the participating systems
© ISO/IEC 2023 – All rights reserved
3.6.6
behavioural interoperability
interoperability (3.6.1) so that the actual result of the exchange achieves the expected outcome
3.6.7
policy interoperability
interoperability (3.6.1) while complying with the legal, organizational, and policy frameworks applicable
to the participating systems
3.7 Terms related to cloud service agreements
3.7.1
service level agreement
SLA
documented agreement between the service provider and customer that identifies services and service
targets
Note 1 to entry: A service level agreement can also be established between the service provider and a supplier, an
internal group or a customer acting as a supplier.
Note 2 to entry: A service level agreement can be included in a contract or another type of documented agreement.
3.7.2
cloud service product
cloud service (3.1.2), allied to the set of business terms under which the cloud service (3.1.2) is offered
Note 1 to entry: Business terms can include pricing, rating, and service levels.
3.7.3
product catalogue
listing of all the cloud service products (3.7.2) which cloud service providers (3.3.3) make available to
cloud service customers (3.3.2)
3.7.4
service catalogue
listing of all the cloud services (3.1.2) of a particular cloud service provider (3.3.3)
3.7.5
cloud service qualitative objective
cloud SQO
commitment a cloud service provider (3.3.3) makes for a specific, qualitative characteristic of a cloud
service (3.1.2), where the value follows the nominal scale or ordinal scale
Note 1 to entry: A cloud service qualitative objective can be expressed as an enumerated list.
Note 2 to entry: Qualitative characteristics typically require human interpretation.
Note 3 to entry: The ordinal scale allows for existence/nonexistence.
3.7.6
cloud service level agreement
cloud SLA
part of the cloud service agreement (3.7.8) that includes cloud service level objectives (3.7.7) and cloud
service qualitative objectives (3.7.5) for the covered cloud service(s) (3.1.2)
Note 1 to entry: A cloud service level agreement is a service level agreement (3.7.1) used in the context of cloud
computing (3.1.1).
© ISO/IEC 2023 – All rights reserved
3.7.7
cloud service level objective
cloud SLO
commitment a cloud service provider (3.3.3) makes for a specific, quantitative characteristic of a cloud
service (3.1.2), where the value follows the interval scale or ratio scale
Note 1 to entry: A cloud service level objective commitment can be expressed as a range.
3.7.8
cloud service agreement
documented agreement between the cloud service provider (3.3.3) and cloud service customer (3.3.2)
that governs the
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
