Standards Content (sample)

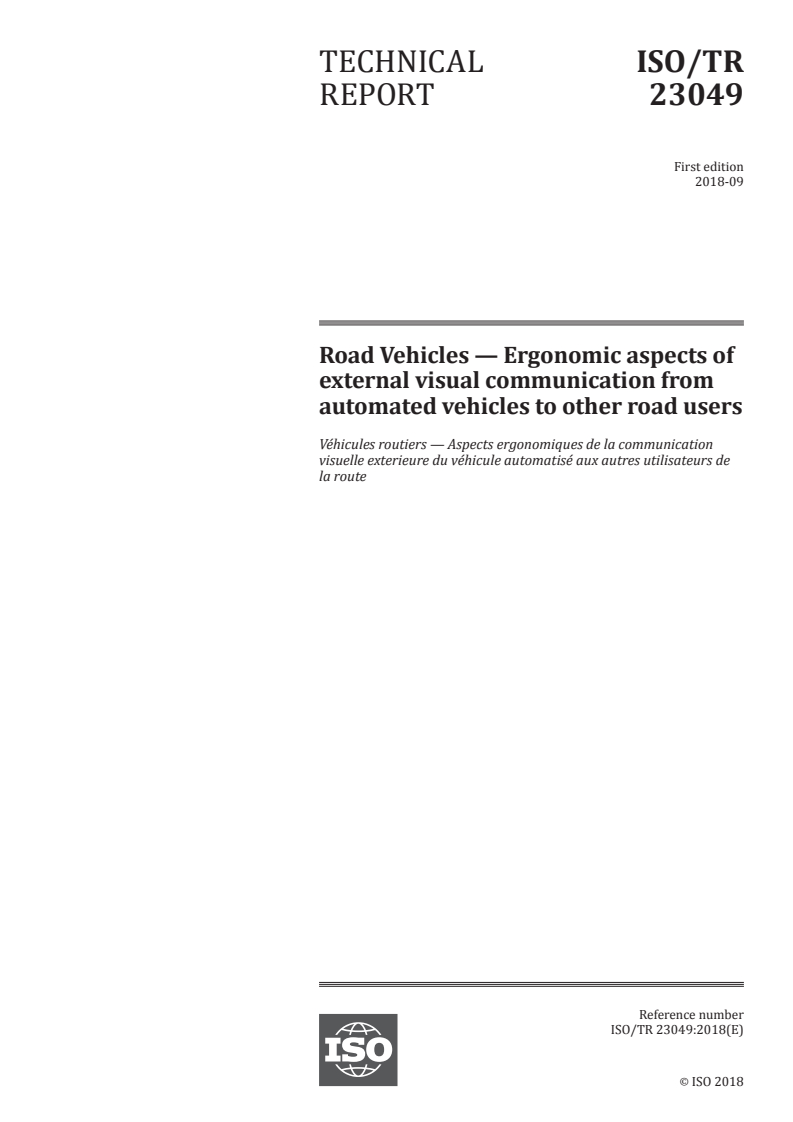

TECHNICAL ISO/TR
REPORT 23049
First edition
2018-09
Road Vehicles — Ergonomic aspects of
external visual communication from
automated vehicles to other road users
Véhicules routiers — Aspects ergonomiques de la communication
visuelle exterieure du véhicule automatisé aux autres utilisateurs de
la route
Reference number
ISO/TR 23049:2018(E)
ISO 2018
---------------------- Page: 1 ----------------------
ISO/TR 23049:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 23049:2018(E)

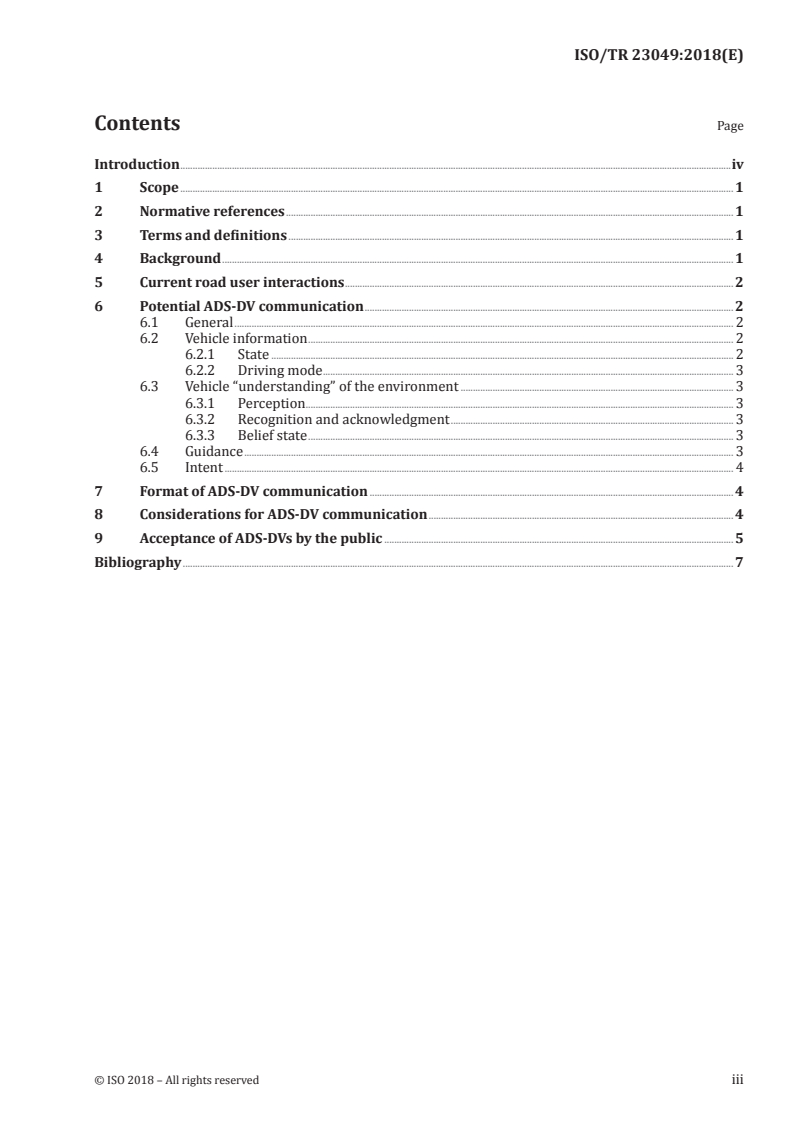

Contents Page

Introduction ................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Background ................................................................................................................................................................................................................ 1

5 Current road user interactions .............................................................................................................................................................. 2

6 Potential ADS-DV communication ...................................................................................................................................................... 2

6.1 General ........................................................................................................................................................................................................... 2

6.2 Vehicle information ............................................................................................................................................................................. 2

6.2.1 State ............................................................................................................................................................................................ 2

6.2.2 Driving mode ....................................................................................................................................................................... 3

6.3 Vehicle “understanding” of the environment ............................................................................................................... 3

6.3.1 Perception .............................................................................................................................................................................. 3

6.3.2 Recognition and acknowledgment ................................................................................................................... 3

6.3.3 Belief state ............................................................................................................................................................................. 3

6.4 Guidance ....................................................................................................................................................................................................... 3

6.5 Intent ............................................................................................................................................................................................................... 4

7 Format of ADS-DV communication .................................................................................................................................................... 4

8 Considerations for ADS-DV communication ............................................................................................................................ 4

9 Acceptance of ADS-DVs by the public .............................................................................................................................................. 5

Bibliography ................................................................................................................................................................................................................................ 7

© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 23049:2018(E)

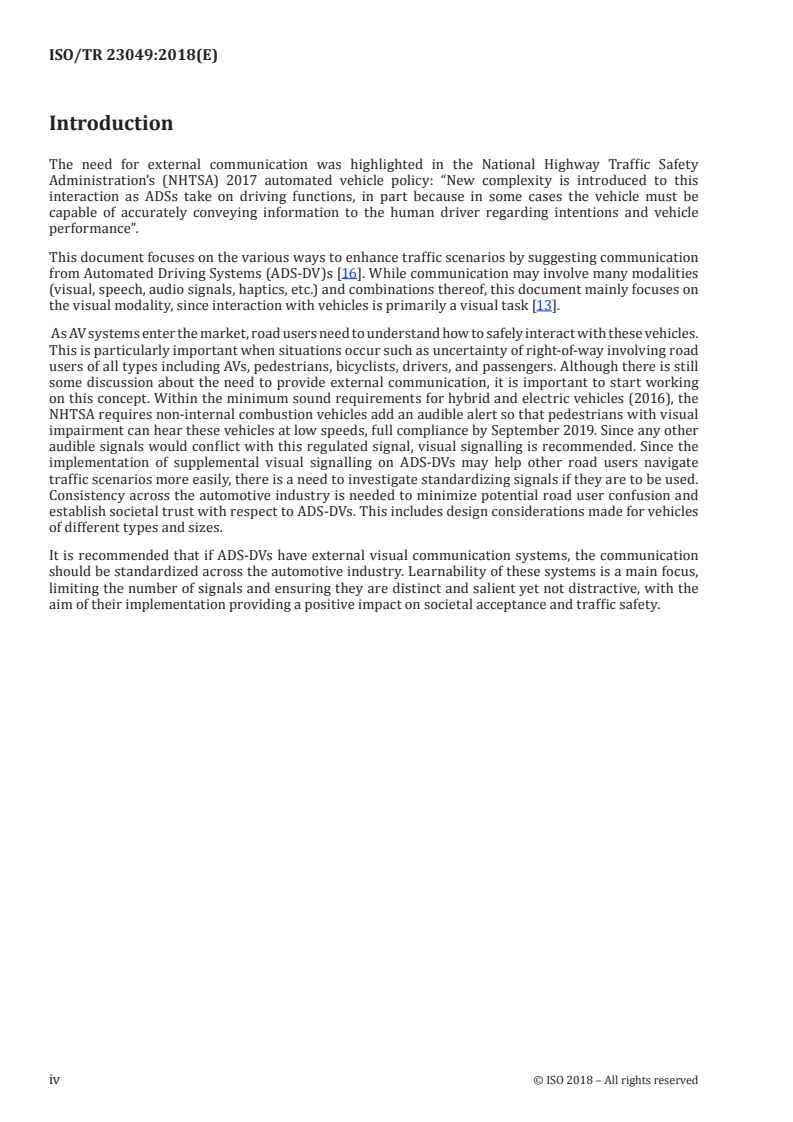

Introduction

The need for external communication was highlighted in the National Highway Traffic Safety

Administration’s (NHTSA) 2017 automated vehicle policy: “New complexity is introduced to this

interaction as ADSs take on driving functions, in part because in some cases the vehicle must be

capable of accurately conveying information to the human driver regarding intentions and vehicle

performance”.

This document focuses on the various ways to enhance traffic scenarios by suggesting communication

from Automated Driving Systems (ADS-DV)s [16]. While communication may involve many modalities

(visual, speech, audio signals, haptics, etc.) and combinations thereof, this document mainly focuses on

the visual modality, since interaction with vehicles is primarily a visual task [13].

As AV systems enter the market, road users need to understand how to safely interact with these vehicles.

This is particularly important when situations occur such as uncertainty of right-of-way involving road

users of all types including AVs, pedestrians, bicyclists, drivers, and passengers. Although there is still

some discussion about the need to provide external communication, it is important to start working

on this concept. Within the minimum sound requirements for hybrid and electric vehicles (2016), the

NHTSA requires non-internal combustion vehicles add an audible alert so that pedestrians with visual

impairment can hear these vehicles at low speeds, full compliance by September 2019. Since any other

audible signals would conflict with this regulated signal, visual signalling is recommended. Since the

implementation of supplemental visual signalling on ADS-DVs may help other road users navigate

traffic scenarios more easily, there is a need to investigate standardizing signals if they are to be used.

Consistency across the automotive industry is needed to minimize potential road user confusion and

establish societal trust with respect to ADS-DVs. This includes design considerations made for vehicles

of different types and sizes.

It is recommended that if ADS-DVs have external visual communication systems, the communication

should be standardized across the automotive industry. Learnability of these systems is a main focus,

limiting the number of signals and ensuring they are distinct and salient yet not distractive, with the

aim of their implementation providing a positive impact on societal acceptance and traffic safety.

iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
TECHNICAL REPORT ISO/TR 23049:2018(E)
Road Vehicles — Ergonomic aspects of external visual
communication from automated vehicles to other road
users
1 Scope

The purpose of this document is to provide guidance for developers of visual external communication

systems for automated vehicles (AV), particularly Automated Driving System – Dedicated Vehicles

(ADS-DV), as defined by SAE J3016.

The main objective of this document is to propose how ADS-DVs could communicate with other road

users via an external communication system. It discusses the interaction between humans and ADS-

DVs within roadway environments. Recommendations for the type of external visual communication

messaging are presented along with the supporting methodological rationale.

This document does not address functionality elements of the ADS-DV external visual communication

system itself. Rather, it serves to propose how the system communicates to human users such that it

can be learned and understood by society at large.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Background

As ADS-DVs enter the market, road users will need to interact with them in an effective manner. In

manually-driven vehicles, the effectiveness of interactions are based intrinsically on the rules of the

road that define priorities for given situations. Recent studies have also shown that vehicle behaviour

also determines the behaviour of other road users [ ]. However, at times it is difficult to resolve a

specific situation deterministically. Common situations include conflict with another road user,

uncertainty as to who has the right-of-way, accommodation of other road users, and acts of fairness on

the road. Currently, such situations are sometimes resolved by coordination and negotiation between

two or more humans such as interactions between driver-pedestrian, driver-driver, and driver-cyclist.

Since a human driver may not be in an ADS-DV or a person may be in the vehicle but not actively

controlling it, effective human-to-human interactions likely will not be feasible and a substitute may be

needed. The vehicle’s behaviour will be programmed or will be a response to changing circumstances,

which may deviate from what people expect in normal human-human interaction. Therefore, a new

way of communication may need to replace these traditional human-to-human communications by

communicating the ADS-DV’s current or planned behaviour with other road users. Such communication

could enable other road users to make more judicious decisions and enable better public acceptance

© ISO 2018 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/TR 23049:2018(E)

of ADS-DVs. Studies are currently investigating the needs and benefits of visual communication of

automated vehicles to surrounding traffic and other road users.
5 Current road user interactions

Currently, vehicular road communication concerns vehicle state, intent and warnings, and several

methods of communication are utilized. Vehicles have dedicated signals that have conventional and

sometimes regulated meanings; these signals can provide state information (brake light, reverse horn

in trucks), intent information (turn signal to indicate intended departure from current lane), and general

warnings (honking, hazard light). These signals are not sent directionally to a specific road user, but all

recipients are expected to respond by taking a suitable action or, at least, by taking notice. Additional

means of communication are informal vehicle signals, such as blinking the headlights or tapping on the

brakes, but the meaning of these messages is ambiguous and depends on local and cultural norms.

A driver can also communicate by taking dynamic actions such as moving into a conflict space, cutting

into the gap between vehicles, or creeping forward onto a busy crosswalk. Finally, there are explicit

communication forms such as hand signals, head movements, torso movements, as well as implicit

communication such as eye contact [ ]. What is unique about these human-to-human communications

is that they are usually directional and intended for specific road users. Currently, such human-to-

human communication is used to resolve difficult situations; for example, in Germany, the rules

of the road mandate this kind of communication when road signs and traffic rules are not enough.

While human-to-human communication is often effective in resolving traffic situations, it can also be

misinterpreted or misused, leading to complications.

The most certain means of communication from a driver is vehicle motion as this indicates what the

driver is actually doing as well as the driver’s intent. For instance, at a stop if a driver takes their foot

off the brake in an automatic-transmission vehicle, the car begins to inch forward, communicating both

that the vehicle is starting to go as well as the driver expects to go next. There is a strong correlation

between vehicle movement and communications, and any new signalling scheme will need to have that

in mind. When vehicle motion state is likely to change imminently, secondary cues could be necessary

to better anticipate the future vehicle behaviour. Brake lights fulfil these tasks as well as eye contact

between pedestrians or side traffic with the driver of the car concerned. ADS-DVs should enable this

information exchange.
6 Potential ADS-DV communication
6.1 General

A traditional vehicle and an ADS-DV can communicate in several methods. The following outline

describes these, considering conveyable information and relevance to road users.
6.2 Vehicle information
6.2.1 State

Vehicle state encompasses speed, rate of acceleration, deceleration, idle, etc. Vehicle state has

traditionally been communicated implicitly through observable behaviours without the requirement

of extra displays; however, this information can be signalled explicitly by multiple modalities. One

acoustic modality example is the tone and beeps used by trucks when backing up or the additional

sounds generated by EVs in lower speed conditions. A visual example involves brake lights indicating

deceleration. In their evaluation of vehicle-to-pedestrian communication displays for AVs, Clamann,

Aubert, and Cummings [ ] utilized a dedicated visual display on a grid which showed vehicle speed

as white text on a black background. The benefits and potential consequences of such explicit signal

concepts for vehicle state would need further exploration.
2 © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/TR 23049:2018(E)
6.2.2 Driving mode

While driving mode can be considered a division of vehicle state, there is also a distinction. Outside of

common driving behaviours, communicating driving mode is meant to convey different information to

other road users and may have a different impact on behaviour. Driving mode communication would

indicate whether the vehicle is operated by automation. An ADS-DV can provide information to other

road users to alert them to the fact the vehicle is an ADS-operated vehicle. There is much debate as to

whether there is a need to indicate this mode information, considering both the concern that certain

road users may wish to “game” such a vehicle or take advantage of it as well as the benefit of enhancing

its conspicuity.
6.3 Vehicle “understanding” of the environment
6.3.1 Perception

A signalling mechanism that provides information to the “world” about what the vehicle sees can be

introduced, though the effectiveness of these mechanisms remains unclear. For example, an ADS-DV

that is approaching a crosswalk can display to the car behind it that there are pedestrians crossing the

road (something that the vehicle behind cannot “see”). An ADS-DV that quickly avoids an obstacle can

indicate the reason for the abrupt manoeuvre to the car behind it.
6.3.2 Recognition and acknowledgment

Another type of information that an ADS-DV can broadcast is its recognition of the scene. For example,

it can indicate whether it recognizes the crosswalk and stop line and whether it r

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
