ISO/TR 3151-1:2023

Visualization elements of PLM-MES interface - Part 1: Overview

This document outlines the visualization elements for data exchange between the Product Lifecycle Management and Manufacturing Execution System (PLM-MES) or Manufacturing Operations Management (MOM). The following are within the scope of this document: - the need for a PLM-MES interface; - the technical elements that make up the PLM-MES interface; - the visualization elements of the PLM-MES interface. The following is outside the scope of this document: - application of the PLM-MES interface and its visualization elements.

Éléments de visualisation pour l’échange de données entre systèmes d’information de gestion du cycle de vie de produits (PLM) et de pilotage de la production (MES) – vue d’ensemble — Partie 1: Vue d’ensemble

General Information

• Status: Published
• Publication Date: 27-Jul-2023
• ICS: 25.040.40 - Industrial process measurement and control
• Technical Committee: ISO/TC 184/SC 4 - Industrial data
• Drafting Committee: ISO/TC 184/SC 4 - Industrial data
• Current Stage: 6060 - International Standard published
• Start Date: 28-Jul-2023
• Due Date: 22-Feb-2025
• Completion Date: 28-Jul-2023

Overview

ISO/TR 3151-1:2023 - "Visualization elements of PLM‑MES interface - Part 1: Overview" is a technical report that defines the visualization and data‑exchange elements for the interface between Product Lifecycle Management (PLM) and Manufacturing Execution Systems (MES) or Manufacturing Operations Management (MOM). This first edition (2023) explains why a PLM‑MES interface is needed, describes the technical building blocks that make up that interface, and catalogs the visualization elements used to represent product, process and production data in 2D/3D contexts. Note: the document does not cover specific applications or deployment methods for these visualization elements.

Key topics and technical coverage

The report outlines the following technical topics and requirements at a conceptual level:

• Need for a PLM‑MES interface: roles, feedback loops, and the information flow between design and production (including differences between MES and MOM).
• Core technical elements that form the interface, including product and manufacturing information formats and middleware expectations.
• Visualization elements required for productive PLM‑MES data exchange, such as:
  • 3D visualization needs and 3D notes attached to digital shape models
  • Product structure for manufacturing BOM (mBOM) and engineering BOM (eBOM)
  • Bill of Process (BOP) and work order visualization
  • 3D shape data exchange and guidance for 3D annotations and videos to demonstrate product assembly or operation
• Reference to related technologies and frameworks such as digital twin, predictive maintenance, and process/change workflows (Engineering Change Management).

The report cites normative references and background standards (e.g., ISO/IEC 20924) and surveys constituent standards that inform the PLM‑MES interface.

Practical applications and users

ISO/TR 3151-1:2023 is practical for professionals designing or aligning PLM and MES/MOM systems who need a common understanding of visualization requirements:

• PLM and MES product managers and architects
• Systems integrators and automation engineers
• Manufacturing engineers, process planners and quality engineers
• Digital manufacturing and Industry 4.0 teams implementing 3D visualization, mBOM/eBOM synchronization and digital twin strategies

By using the overview in ISO/TR 3151‑1 organizations can plan consistent visualization and data‑exchange models for design-to-production handover, production feedback and visual work instructions.

Related standards

Referenced or relevant standards include:

• ISO 10303 AP242, ISO 10303-239, STEP and SMRL
• IEC 62714 (AutomationML), IEC 62264 / ANSI/ISA‑95
• IEC 62890 (life‑cycle management), QIF (Quality Information Framework)
• OAGIS, STEP‑NC, and ISO/IEC 20924 (IoT vocabulary)

Keywords: PLM‑MES interface, visualization elements, ISO 3151‑1:2023, mBOM, eBOM, 3D visualization, MES, MOM, digital twin.

Standards Content (Sample)

TECHNICAL ISO/TR
REPORT 3151-1
First edition
2023-07
Visualization elements of PLM-MES
interface —
Part 1:
Overview
Éléments de visualisation pour l’échange de données entre systèmes
d’information de gestion du cycle de vie de produits (PLM) et de
pilotage de la production (MES) – vue d’ensemble —
Partie 1: Vue d’ensemble
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 3
3.3 Difference between MES and MOM . 4
4 Needs for a PLM-MES interface . 5
4.1 General . 5
4.2 Manufacturing automation pyramid . 9
4.3 Types of manufacturing . 10
5 Elements of the PLM-MES interface .10
5.1 General . 10
5.2 PLM . 11
5.2.1 ISO 10303-239 . . 11
5.2.2 ISO 10303-AP242 . 11
5.2.3 STEP module and resource library (SMRL) .12
5.2.4 IEC 62890 Life-cycle management for systems and components .13
5.2.5 IEC 62714 AutomationML . 14
5.3 MES . 14
5.3.1 General . 14
5.3.2 IEC 62264 and ANSI/ISA-95 . 14
5.3.3 Supervisory control and data acquisition (SCADA) .15
5.3.4 Internet of things (IoT) . 16
5.3.5 Equipment as a service (EaaS) . 16
5.3.6 Quality information framework (QIF) . 17
5.4 PLM-MES Interface. 18
5.4.1 General . 18
5.4.2 Engineering change management (ECM) . 18
5.4.3 eBOM or mBOM . 19
5.4.4 STEP-NC (numerical control) . 20
5.4.5 Predictive maintenance . 21
5.4.6 Digital twin (DTw) . 21
5.4.7 Open Applications Group Interface Specification (OAGIS) . 21
6 Visualization elements of the PLM-MES interface .22
6.1 General .22
6.2 Needs for 3D visualization in a PLM-MES interface . 22
6.3 Product structure of mBOM . 23
6.4 Bill of process (BOP) . 23
6.5 Work order . 23
6.6 3D shape data of product . 23
6.7 3D notes on exchange geometry between PLM and MES . 23
6.8 Use of video to show how a product works . 24
Annex A (informative) Comparison of mBOM definitions .25
Bibliography .26
iii

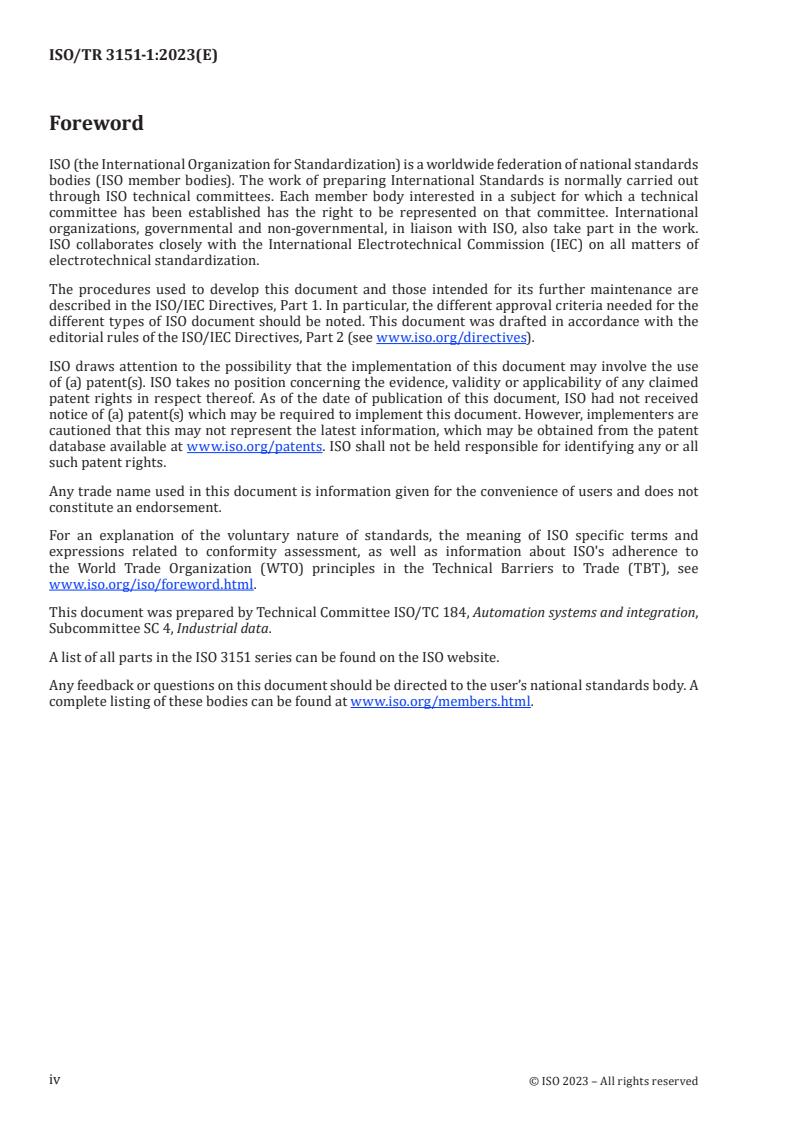

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 4, Industrial data.
A list of all parts in the ISO 3151 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document is an overview of the ISO 3151 series of standards. It explains the main scope of the
ISO 3151 series as well as why the Product Lifecycle Management and Manufacturing Execution System
(PLM-MES) interface is needed. It also describes the elements constituting the PLM-MES interface and
the visualization elements of the PLM-MES interface.
Product Lifecycle Management (PLM) is a technical item often covered within ISO/TC 184/SC 4 and
in IEC/TC 65 where there is a standard for different lifecycles of various product parts. Conversely,
Manufacturing Execution System (MES) is a technical item covered within ISO/TC 184/SC5,
IEC/TC 65 and ISA (International Society of Automation). ISO/TC 184/SC 4 and SC 1 also cover the
standard technology for the automatic machining of the product. Cooperation between these standards
organizations is needed for standards in a PLM-MES interface.
Although literature is referenced to introduce the elements that make up the PLM-MES interface, more
items are also referenced in [1-5] for the basis of this document.
1)
Figure 1 shows the overall PLM-MES interface defined by this document and ISO 3151-2 . The left side
in Figure 1 shows the contents of this document, and the right side shows the contents of ISO 3151-2.
Figure 1 — Concept diagram of PLM-MES interface
The AP242 contains Product and Manufacturing Information (PMI), but its primary concern is to
communicate design information to the manufacturing department. It is understood that the feedback
loop from the manufacturing department to the design department is not well-supported. ISO 3151-2
focuses on a 3D interface that feeds back errors found by the production department to the design
department.
1) Under development. Stage at the time of publication: ISO/CD 3151-2.
v
TECHNICAL REPORT ISO/TR 3151-1:2023(E)
Visualization elements of PLM-MES interface —
Part 1:
Overview
1 Scope
This document outlines the visualization elements for data exchange between the Product Lifecycle
Management and Manufacturing Execution System (PLM-MES) or Manufacturing Operations
Management (MOM).
The following are within the scope of this document:
— the need for a PLM-MES interface;
— the technical elements that make up the PLM-MES interface;
— the visualization elements of the PLM-MES interface.
The following is outside the scope of this document:
— application of the PLM-MES interface and its visualization elements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 20924, Information technology — Internet of Things (IoT) — Vocabulary
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms and definitions given in ISO/IEC 20924 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1 Terms and definitions
3.1.1
3D note
3D text information attached to graphical information of a digital shape model of a product
3.1.2
batch size
number of jointly processed (semi-finished) products
[SOURCE: ISO 22468:2020, 3.1]
3.1.3
bill of material
BOM
listing of all the subassemblies, parts, and/or materials that are used in the production of a product,
including the quantity of each material required to make a product
[SOURCE: IEC 62264-1:2013]
3.1.4
engineering bill of material
eBOM
list of part numbers and assemblies that make up the design engineering configuration that contains
the raw stock size and the material specification.
[SOURCE: ISO 10303-240:2005, 3.4.3]
3.1.5
lot size
quantity of an item ordered for delivery on a specific date or manufactured in a single production run
[33]
Note 1 to entry: See .
3.1.6
manufacturing bill of material
mBOM
list of all the parts, labels, packaging, and assemblies required to build and ship a finished product to
customers
Note 1 to entry: mBOM is different from an engineering bill of material (eBOM) which provides the as-designed
BOM.
Note 2 to entry: See Annex A.
3.1.7
manufacturing execution system
MES
system for producing the desired products or services, including quality control, document
management, plant floor dispatching, work-in-process tracking, detailed product routing and tracking,
labour reporting, resource and rework management, production measurement and data collection
[SOURCE: ISO 16100-1:2009, 3.14]
3.1.8
manufacturing operations management
MOM
activities within Level 3 of a manufacturing facility that coordinate the personnel, equipment and
material in manufacturing
[SOURCE: IEC 62264-1:2013, 3.1.22]
3.2 Abbreviated terms
3D Three Dimensional
AAM Application Activity Model
AIC Application Interpreted Construct
AIM Application Interpreted Model
ANSI American National Standards Institute
AP Application Protocol
ARM Application Reference Model
ATO Assemble-To-Order
BOD Business Object Document
BOM Bill of Material
BOP Bill of Process
CAI Computer-Aided Inspection
CAPP Computer-Aided Process Planning
CC Conformance Class
CMM Coordinate Measuring Machine
DTO Design-To-Order
EaaS Equipment as a Service
eBOM Engineering BOM
ECM Engineering Change Management
ECN Engineering Change Notification
ECO Engineering Change Order
ECR Engineering Change Request
ERP Enterprise Resource Planning
ETO Engineer-To-Order
GD&T Geometric Dimensioning & Tolerancing
HVAC Heating Ventilation Air Conditioning
IEC International Electrotechnical Commission
IIoT Industrial Internet of Things
IoT Internet of Things
IR Integrated Resource
ISA International Society of Automation
ISO International Organization for Standardization
mBOM Manufacturing BOM
M2M Machine-to-Machine
MES Manufacturing Execution System
MOM Manufacturing Operations Management
MS Mapping specification
MTO Make-To-Order
MTS Make-To-Stock
NC Numerical Control
OAGIS Open Applications Group Interface Specification
OPC-UA Open Platform Communications Unified Architecture
PDA Personal Digital Assistant
PLC Programmable Logic Controller
PLCS Product Lifecycle Support
PLM Product Lifecycle Management
PMI Product Manufacturing Information
QIF Quality Information Framework
SCADA Supervisory Control and Data Acquisition
SMRL STEP Module and Resource Library
STEP Standard for the Exchange of Product model data
SW Software
WSN Wireless Sensor Network
3.3 Difference between MES and MOM
The terms MES (manufacturing execution system) and MOM (manufacturing operations management)
system are often used interchangeably, so that by defining different functional spaces for manufacturing
professionals it can be confusing.
The term MES is commonly used in commercial products, whereas the term MOM is often used to
summarize the technical features. While MOM covers the set of functions defined in this document, MES
is the commercial product that implements the set of functions as a SW system, so there are variations
in MES depending on the commercial product.
Because the term MES is used in many different senses, it is difficult to give an unambiguous, agreed-
upon definition. However, many manufacturers mention MES in their daily work, and software vendors
also use MES as their product name, so it is difficult to exclude the use of MES from a general discussion.
Therefore, this document uses the term MES in high-level abstractions where there is no confusion.
MOM is used to represent a standard management process, while MES is used to represent a software
system for MOM. Therefore, MES has a different scope or level depending on the implementation of the
system. In this document, MES is mainly used, and if there is confusion and a clear definition is needed,
the problem is solved by using the term of MOM defined by IEC and ISA.
As shown in Figure 2, ISA-95 defines the term MOM to cover Level 3 architecture and its functions. As
smart manufacturing is integrated into the Industrial Internet of Things (IIoT) in the future, changes to
the Figure 2 model are expected.
[6]
Figure 2 — 3 level architecture of MOM
4 Needs for a PLM-MES interface
4.1 General
The modern commercial market has more suppliers than demand, so customers have more power than
suppliers. Because of this imbalance, suppliers promote 'mass customization' to satisfy customers, and
that force drives the concept of 'personalized production'.
The problem with customization is that it can increase manufacturing costs and time. The PLM-MES
interface technology can help to provide personalized products with mass-production-level prices.
Figure 3 shows the technological development history of growing customer demand moving from
manual production in the mid-19th century to mass production methods symbolized by the conveyor
belt of Ford Motor Company in the early 20th century emerge and mature until the mid-20th century,
with technological advancements as customer demand expands. Mass customization has been
introduced since the late 20th century due to oversupply caused by the development and automation
of production. It also shows the development process of personalized production, which has been
introduced in line with the globalization trend of the 21st century.
Key
X product variety
Y product volume per variant
1 massive production
2 mass customization
3 craft production
A globalization
B regionalization
C personalized production
[7]
Figure 3 — Personalized production
Another issue other than the cost issue of personalized production is the maturity level of the design.
In the case of mass production environment, a small design error causes a big problem (high cost and
time delay) in automated production lines. Therefore, a higher level of maturity of the design is needed.
Through a series of test production cycles, the level of design maturity is further increased. This
requires a high design cost through multiple stages of design cycles and verification. Since the design
cost is relatively low compared to the mass production and production cost, it is possible to increase
the design maturity level.
In the case of personalized production, it is difficult to increase the maturity level of the design due to
cost or time constraints. Since only one is produced using the design, the design cost cannot be large,
and the design time must be short for economic reasons. In many cases, production begins before the
design is finished, so there is more possibility of production problems due to the immature design. In
order to correct errors found after the design is completed, the design is sometimes modified during
the production process. Modification of the errors found during production increases the total time of
production, and the cost increases accordingly.
Figure 4 shows the current (As-Is) interface between PLM, ERP and MES systems optimized for mass
production environments. Typically, ERP does not deal with 3D engineering information such as 3D
CAD models, a separate direct 3D link between PLM and MES is sometimes required. A typical mass
production situation is that a production system is optimized for mass production through a series of
test productions, and a direct link between PLM (design) and MES (production) does not exist in many
cases.
[8]
Figure 4 — As-Is configuration of PLM-MES data exchange
Plant industries such as the shipbuilding industry and the construction industry are make-to-order
(personalized production) since the start of the industry hundreds of years ago. Every product has an
individual design, the production cycle begins even though the design is not yet complete, and there
is pressure to design the product quickly. In the short time allowed for design, each product must be
individually designed. Due to the design costs, it is difficult to afford multiple iterative design cycles.
Also, design verification using the real product is impossible in most cases. Experiments using scaled-
down models are being partially conducted.
Because design and production overlap (this concept is already widely used in “concurrent engineering”),
the two departments of design and manufacturing must work closely together and exchange data. As
the design department and the production department operate in a 3D world, 3D information needs to
be shared between the two departments.
Figure 5 shows the proposed (To-Be) configuration among the three systems to support the personalized
production environment. This configuration adds a direct link between the PLM and the MES. Since
the two systems' PLM and MES are developed without mutual consideration, there is a discrepancy in
terminologies and concepts. In order to support personalized manufacturing which is being discussed
in the fourth industrial revolution or smart manufacturing, a standardized interface definition and
interface implementation between PLM and MES is needed.
[8]
Figure 5 — To-Be configuration of PLM-MES data exchange
PLM and MES have been independently developed and have been used independently for a considerable
period of time. Since the data model for each field is well established, the data model that needs to be
exchanged can be found and mapped in the PLM-MES interface.
The standard interface between PLM and MES can grow large. However, this document only deals with
the visualization elements, to show the full scope of the work as a starting point. In this document,
an overview of the entire PLM-MES interface is described, and the visualization elements are focused
among them.
[9]
There is a commercial product for the PLM-MES interface, but there is no international standard
for the PLM-MES interface. Although there are separate international standards for PLM and MES
respectively, there is no international standard for an interface for exchanging 3D product information
and manufacturing information between PLM and MES. Therefore, this document proposes a part of
the PLM-MES interface. Figure 6 shows an example of the PLM-MES interface developed by Siemens.
[9]
Figure 6 — Siemens integration between PLM, ERP, MES/MOM
In order to establish the PLM-MES interface standard, a common data model between the existing
PLM standards and MES standards can be used as a starting point of the interface. Because the full
scope of the PLM-MES interface is diverse and complex, the scope of this document only focuses on the
visualization elements of the PLM-MES interface.
When the interface is visualized, the detailed information of the interface is hidden so that the displayed
image can intuitively show the overall outline. The text-format feedback sent from the production
department to the design department can also be used as the interface by borrowing the schema
from the existing PLM or MES standards. Since one of the main obstacles is 3D shape information, it is
difficult to use the existing schema as it is. The visualization elements can therefore be the first priority
to develop the overall PLM-MES interface standard.
4.2 Manufacturing automation pyramid
The manufacturing automation pyramid shown in Figure 7 is a diagram showing the various levels of
automation in a discrete manufacturing factory.
[10]
Figure 7 — Manufacturing automation pyramid
At the field level in Figure 7, there are devices, actuators, and sensors that are visible in the field or on
the production floor. The control level controls and operates field-level devices that actually perform
physical tasks. PLC is used at the control level and SCADA is used at the supervisor level. SCADA can
monitor and control multiple systems from a single location.
The planning level utilizes a computer management system known as the MES. MES monitors the entire
manufacturing process of a plant, from raw materials to finished products of the plant. The management
level uses an integrated management system known as Enterprise Resources Management (ERP).
4.3 Types of manufacturing
According to the nature of product orders, manufacturing industry types are generally classified as
[11]
follows :
a) Engineer-to-order (ETO), Design-to-order (DTO)
A customized product that does not make any parts in advance, and when an order comes in, the entire
process from design to production is made according to the order specifications: Shipyard, facility
manufacturing, aircraft/aerospace industry, engineering.
b) Make-to-order (MTO)
Part of the product is made in advance, and the rest of the parts are made according to the order
specifications when an order is received and the finished product is made: Luxury goods, yachts.
c) Assemble-to-order (ATO)
All parts that go into the finished product are made in advance, and when an order comes in, it is
assembled from that point on to make the finished product: Automobile industry, furniture industry,
machinery industry, rolling stock industry.
d) Make-to-stock (MTS)
Products that are made in large quantities in advance and piled up in stock for sale. Most standardized
products: Electronics industry, machinery industry, steel industry.
e) Continuous
A flow production method used to manufacture, produce, or process materials without interruption:
Chemicals, medicines, cosmetics.
[11]
Depending on the arrangement of manufacturing facilities, they can be classified as shown in Table 1 .
[11]
Table 1 — Classification of processes according to the layout of the manufacturing facility
Category Sub-Category Description
Placing processing equipment with similar functions in the same
Unit job shop
space and processing an individual part.
Process layout
Placing processing equipment with similar functions in the same
Batch job shop
space and processing bundled parts.
Gathering facilities with different functions to form an independ-
Discrete flow shop ent production line. Processing parts of assembling products that
follow the same order.
Product layout
The batch process in which processing or assembly is performed
Continuous flow shop
in exactly the same order along the flow line.
5 Elements of the PLM-MES interface
5.1 General
The related technologies that enable the interface of PLM-MES are briefly introduced. They are grouped
into subgroups as PLM, MES and the interface.
5.2 PLM
5.2.1 ISO 10303-239
The ISO 10303 series covers computer-interpretable representation and exchange of product
manufacturing information (PMI). It is designed to exchange product data between different CAD
[3]
systems using a neutral file format and data structure. Its official title is: Industrial automation
systems and integration - Product data representation and exchange. It is known informally as "STEP"
[36]
(Standard for the Exchange of Product model data) . The ISO 10303 series is made of hundreds of
modular parts.
ISO 10303-239 is a standard for PLM that defines an information model for product design, production
processes and resources during the entire product lifecycle of a product, as shown in Figure 8.
[12,13]
Figure 8 — Scope of ISO 10303-239 and related standards for PLM
In Figure 8, AP239 is an application protocol (AP) that manages the lifecycle of a product, so it shows
the relationship with other APs of the ISO 10303 series along the time axis of product development.
The core of AP239 is to manage the whole product data for a long period of time, while other APs are in
charge of more detailed areas in a certain part of the time axis.
AP233 is responsible for the initial requirements’ management of the product. AP209 is responsible for
the performance analysis simulation of the product model. AP242 is responsible for the 3D engineering
design of the product. AP210 is in charge of designing electrical and electronic circuits together with
AP242. AP238 is used to NC machine the model of the designed product, and AP235 is responsible for
material engineering used to manufacture the product.
PLM covers the entire lifecycle of a product, including the production cycle. However, this TR defines
the narrow scope of PLM as a design management tool because, in many manufacturing sites, PLM is
viewed as a tool for design departments.
5.2.2 ISO 10303-AP242
The STEP community has completed the development of STEP AP242 (see Figure 8 and Figure 9)
for "Managed Model-Based 3D Engineering", with a focus on representing 3D model data, geometric
tolerances and PMI for global design and manufacturing collaboration. In addition, STEP AP242 enables
streamlined product design, process planning and manufacturing.
Geometric Dimensioning & Tolerancing (GD&T) data via the AP242 is automatically made available
to downstream applications such as: Computer-Aided Process Planning (CAPP), Computer-Aided
Inspection (CAI), Computer-Aided Tolerance Systems (CATS), Coordinate Measuring Machine (CMM).
[3]
Figure 9 — High-level scope of ISO 10303 AP242
The AP242 contains PMI, but its primary concern is to communicate design information to the
manufacturing department. It is understood that the feedback loop from the manufacturing department
to the design department is not well-supported. ISO 3151-2 focuses on a 3D interface that feeds back
errors found by the production department to the design department.
5.2.3 STEP module and resource library (SMRL)
AP of ISO 10303, which is an industry-specific data schema, consists of
— application activity model (AAM);
— application reference model (ARM);
— application interpreted model (AIM);
— the mapping table mapping specification (MS);
— conformance classes (CCs).
[14]
The boxes in the upper left in Figure 10 show the relationship between the five components of an AP .
[14]
Figure 10 — Evolution of the STEP architecture and current SMRL
The problems of the existing monolithic AP which is composed of AAM, ARM and AIM are that they are
too large, overlap each other, and are not fully harmonized to each other. These deficiencies led to the
development of the STEP modular architecture (400 and 1000 series) around the year 2000. It is for the
adoption of ISO 10303 modular AP for product data representation and exchange, based on application
[3]
modules and resource modules.
A common resource or SMRL is a common concept and basis that supports the entire ISO 10303 series.
For consistency and interoperability throughout ISO 10303, it is necessary to implement APs based on
[15]
the schemas defined in SMRL.
The schemas of AAM and ARM are usually defined using concepts and terms unique to the industry
domain. They are different from the schemas defined in SMRL, which are resources commonly used in
various industries. The development of AIM is to express the schema defined in ARM developed for a
specific industry by schemas of the corresponding SMRL of common resources. A mapping table (MS:
mapping specification) of schemas is created in the development process of AIM.
STEP ISO 10303 application module defines common building blocks for creating modular AP within
ISO 10303. The lowest level modules are wrappers of concepts defined in Integration Resources (IR) or
Application Integrated Constructs (AIC). SMRL contains all STEP resource parts (IR) and application
modules (AIC).
5.2.4 IEC 62890 Life-cycle management for systems and components
In automation applications, the lifecycle of components, devices, and systems is becoming increasingly
diverse compared to the lifetime of the entire engineering plant. Due to the increasing capabilities
of automation components, advances in electronics, and innovations inherent in hardware and
software, the lifecycle of individual automation components continues to shorten. For example, certain
semiconductor components are manufactured only for a short period of time and then discarded.
The lifetime of an automated system is quite long, but it also varies considerably from industry to
industry. In the automotive industry, the lifetime of a production line is usually equal to the period
in which a new car model is manufactured, which is about seven to eight years. In comparison, the
operating lifetime of process plants in the chemical industry is typically around 15 years, whereas in
the oil and energy industry, and power plants can operate up to 50 years.
IEC 62890 establishes the basic principles for the lifecycle management of systems and components used
in the measurement, control and automation of industrial processes. These principles apply to a wide
range of industries. This standard provides the lifecycle of a product type and the lifetime of a product
instance, and associated definitions and reference models. It also defines a coherent set of general
reference models and terms. This standard is used for design, planning, development and maintenance
[16]
of automation systems and components, and technical aspects related to plant operation .
In contrast to ISO 10303-239 PLCs, IEC 62890 is a standard focused on automation systems and their
components. Since the lifespan of an automation system or its parts is usually shorter than that of the
entire plant, the focus is on harmonizing and managing different lifecycles in terms of plant operation
and maintenance. On the other hand, ISO 10303-239 PLCs is a standard for generalized PLM that
manages the entire lifecycle from design to production, maintenance and disposal of products which is
subject to manufacturing.
An additional difference of IEC 62890 is that since the importance of embedded software for automation
is relatively large, the lifecycle is divided based on the managed type and instance along the software
lifespan. On the other hand, ISO 10303-239 divides the lifecycle of a product from conception, design,
purchase of parts, manufacturing, operation, maintenance, and disposal.
5.2.5 IEC 62714 AutomationML
IEC 62714 AutomationML can model connected production systems and transfer the engineering data
[17]
of these systems between domains and companies in a heterogeneous engineering tool environment .
Looking at the goals and components of AutomationML, it is similar to the ISO 10303 STEP standard.
Introduced in 2006, it is being developed based on the XML language. On the other hand, ISO 10303
STEP uses its own language called EXPRESS, and recently, more new languages such as XML are also
used in line with the trends of information technology.
[40]
3D visualization format of Automation ML is standardized as ISO 17506 COLLADA .
5.3 MES
5.3.1 General
This document analyses the interface between PLM and MES. The technologies corresponding to the
MES and the substructure of the MES in the automation pyramid are briefly described in this subclause.
5.3.2 IEC 62264 and ANSI/ISA-95
[18,19]
IEC 62264 is developed based on ANSI/ISA-95. The IEC 62264 series consists of the following
parts:
Part 1 (2013): Object models and attributes of manufacturing operations (First edition 2003-03)
Part 2 (2013): Object model attributes (First edition 2004-07)
Part 3 (2016): Activity models of manufacturing operations management (First edition 2007-06)
Part 4 (2015): Objects models attributes for manufacturing operations management integration
Part 5 (2016): Business to manufacturing transactions
Part 6 (2016): Messaging service model
The interface between ERP and MES is standardized in IEC 62264-1, IEC 62264-2 and IEC 62264-5. The
interface defines an information model and methods for exchanging data between ERP and MES (see
Figure 11). IEC 62264-3, IEC 62264-4, and IEC 62264-6 define the functions and properties of MES.
[20]
Figure 11 — Scope of IEC 62264 for MES
This standard is based on the reference model of Purdue University for computer integrated
manufacturing, as shown in Figure 12. It defines the interface between control functions and other
[21]
enterprise functions, and focuses on data exchange between levels 3 and 4 of the Purdue model
[21]
Figure 12 — ISA domain hierarchy
5.3.3 Supervisory control and data acquisition (SCADA)
ISA 88 is the batch processing industry standard and defines a reference model and data model for
batch control. BatchML is the XML implementation of ISA 88. PackML models standardized machines
and SCADA for batch control in the packaging industry. Figure 13 shows the relationship of related
[22]
standards around the SCADA level using the manufacturing pyramid. OAGIS and AutomationML are
introduced in this document.
[22]
Figure 13 — Manufacturing pyramid based on ISA 95 and NIST
At the SCADA level, IEC 62541 OPC Unified Architecture (OPC-UA) can be used to connect the
components of a production system. It also defines a platform-independent communication mechanism
for online data exchange. It provides generic, extensible, and object-oriented modelling capabilities for
the information that production systems want to expose.
MTConnect, like OPC-UA, is used to access real-time data from shop floor manufacturing equipment,
such as machine tools. The MTConnect standard enables manufacturing equipment to capture execution
monitoring data and transmit it to external sources in structured XML format. From its inception,
MTConnect has been widely used to monitor machine tool health, with limited efforts to contextualize
the collected machine data.
5.3.4 Internet of things (IoT)
As Internet technology matures, Ethernet-based networks, such as EtherNet and EtherCAT, have become
popular to facilitate higher levels of communication. Influenced by IoT and Wireless Sensor Network
(WSN) application needs since 2000, some modern approaches have adopted new standards such as
IEEE 802.11, IEEE 802.15.1 and IEEE 802.15.4. Industrial communication goes beyond the transfer of
[3]
physical data packets between manufacturing entities .
At the physical level, messages can be exchanged over physical communication channels, wired or
wireless. The basis of M2M communication is stable information exchange. Since the 1980s, industrial
communication networks have evolved through several stages. Industrial communications began with
dedicated field bus networks, such as PROFIBUS and Modbus, to enable M2M communications.
5.3.5 Equipment as a service (EaaS)
As the industrial Internet and interoperable machine control interfaces mature, manufacturing
equipment can become an on-demand manufacturing service through connectivity and control over
[23]
the Internet .
Different from the traditional equipment sales,
...
