ISO 24213:2017

Metallic materials - Sheet and strip - Method for springback evaluation in stretch bending

ISO 24213:2017 specifies a method for evaluating the amount of springback of sheets of metallic materials known to exhibit large amounts of springback subjected to plane-strain stretch bending, which is a typical deformation mode generated in press-formed panels. By using this method, the amount of springback under stretch bending is evaluated accurately and quantitatively.

Matériaux métalliques — Tôles et bandes — Méthode d'évaluation du retour élastique lors d'un cintrage sous traction

General Information

• Status: Published
• Publication Date: 06-Jun-2017
• ICS: 77.040.10 - Mechanical testing of metals
• Technical Committee: ISO/TC 164/SC 2 - Ductility testing
• Drafting Committee: ISO/TC 164/SC 2 - Ductility testing
• Current Stage: 9093 - International Standard confirmed
• Start Date: 05-Sep-2022
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO/FDIS 14982-2 - Agricultural and forestry machinery - Electromagnetic compatibility - Part 2: Additional EMC requirements for functional safety
• Effective Date: 06-Jun-2022
• Revises: ISO 24213:2008 - Metallic materials - Sheet and strip - Method for springback evaluation in stretch bending
• Effective Date: 10-Dec-2016

Overview

ISO 24213:2017 - "Metallic materials - Sheet and strip - Method for springback evaluation in stretch bending" defines a standardized laboratory method to quantitatively evaluate springback of metallic sheet and strip produced by plane‑strain stretch bending, a deformation mode typical in press‑formed panels. The standard enables consistent measurement of elastic recovery (springback) by comparing curvature under load and after removal of load, supporting material specification, die design, process control and finite‑element model calibration.

Key topics and requirements

• Test principle: Measure curvature of a stretch‑bent specimen under load (punch contact) and after release; compute the amount of springback as the relative change in curvature.
• Test specimen: Rectangular specimen (500 ± 10 mm long × 50 ± 1 mm wide); thickness equals original sheet thickness; cut orientation (parallel or perpendicular to rolling direction) agreed by parties.
• Test apparatus: Stretch‑bending device with a semi‑cylindrical punch (radius (100 ± 1) mm typical). Figure and tool setup defined in the standard.
• Loading and measurement:
  • Apply calculated blank holding pressure (Annex A); maximum recommended blank holding pressure ≈ 2–3 % of material tensile strength.
  • Control nominal tensile stress from measured punch penetration and force (Annex B).
  • Measure radius of curvature after unloading using a dial gauge or optical probes; dial gauge accuracy 0.001 mm recommended and base width typically 20 mm (Annex C).
  • Environmental/control conditions: ambient 10 °C to 35 °C (preferably 23 ± 5 °C).
• Friction and lubrication: Minimize friction (recommended μ < 0.05); polymer film + machine oil suggested; replace film before each test.
• Reporting: Test conditions (punch radius, penetration, lubricant, blank holding pressure, orientation), results (nominal tensile stress, springback η), material details and measurement uncertainty.

Applications and who uses it

• Materials engineers specifying sheet alloys with known springback behavior.
• Stamping and forming engineers for process control and troubleshooting of press‑formed panels.
• Tool and die designers to design compensation for expected elastic recovery.
• CAE/FEM analysts to calibrate and validate springback predictions in numerical models.
• Quality laboratories performing repeatable, comparative springback tests for supplier control and material acceptance.

Related standards

• ISO 80000‑1 (quantities and units) is normatively referenced for measurement rounding and units.
• Published by ISO/TC 164 (Mechanical testing of metals), second edition replaces ISO 24213:2008.

Keywords: ISO 24213:2017, springback evaluation, stretch bending, metallic sheet, plane‑strain, punch radius, blank holding pressure, nominal tensile stress, radius of curvature, press‑formed panels.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 24213
Second edition
2017-07
Metallic materials — Sheet and strip
— Method for springback evaluation
in stretch bending
Matériaux métalliques — Tôles et bandes — Méthode d’évaluation du
retour élastique lors d’un cintrage sous traction
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

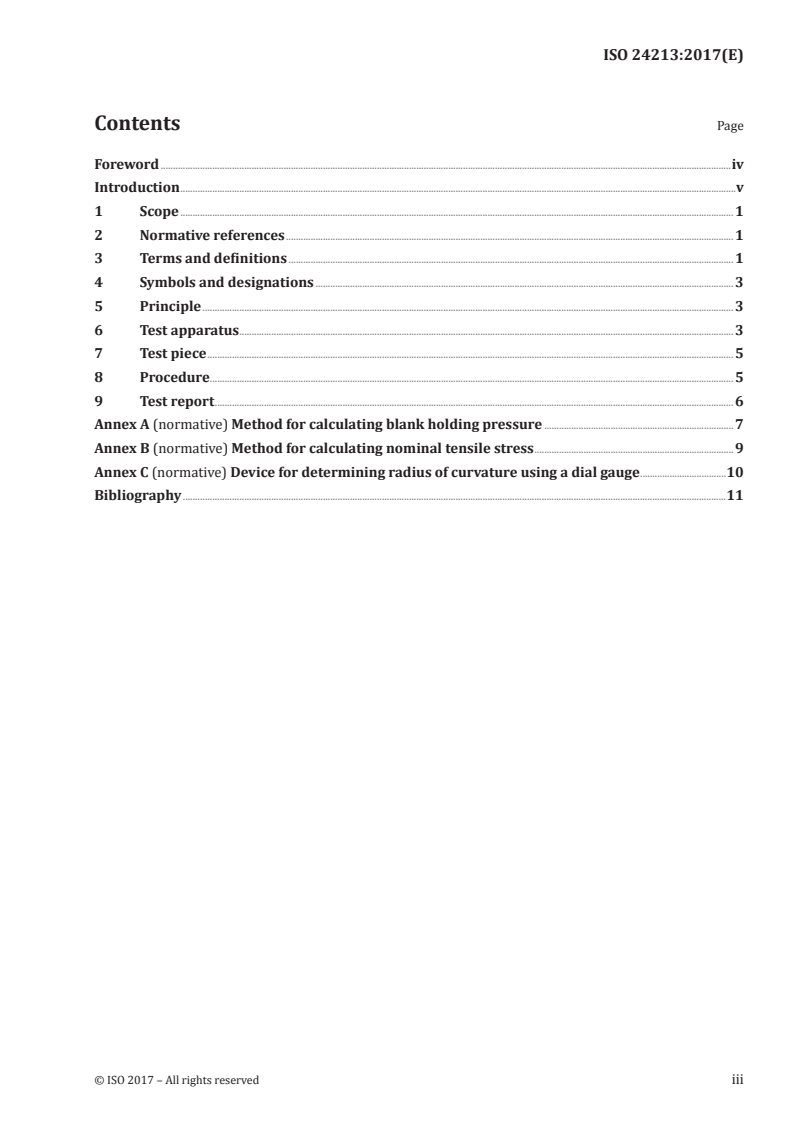

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and designations . 3
5 Principle . 3
6 Test apparatus . 3
7 Test piece . 5
8 Procedure. 5
9 Test report . 6
Annex A (normative) Method for calculating blank holding pressure . 7
Annex B (normative) Method for calculating nominal tensile stress . 9
Annex C (normative) Device for determining radius of curvature using a dial gauge .10
Bibliography .11

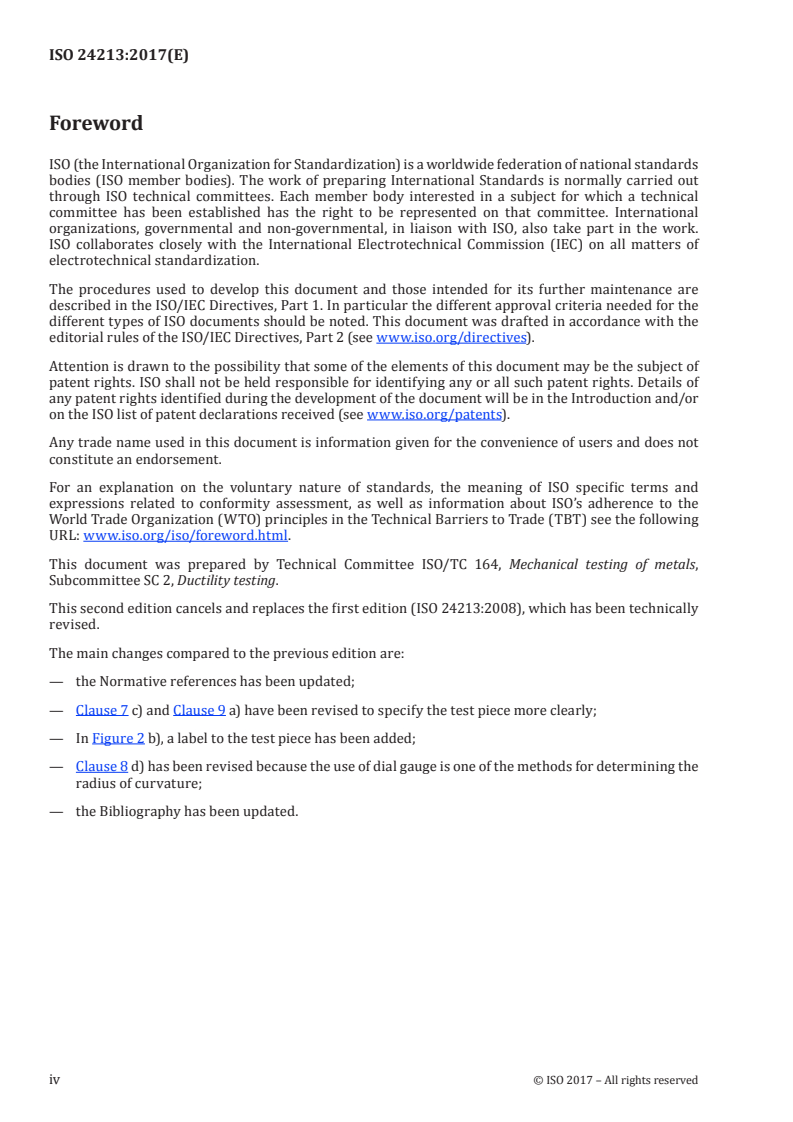

Foreword
