ISO 2301:1973

Sawn timber of broadleaved species - Defects - Measurement

Specifies international methods and relates to classification in ISO 2299. Applies to unplaned sawn timber and such surfaced to size or planed but without profiling. The different measurements are shown in figures. Is a trilingual edition.

Sciages de bois feuillus — Défauts — Mesurage

General Information

• Status: Published
• Publication Date: 31-Jul-1973
• ICS: 79.040 - Wood, sawlogs and sawn timber
• Technical Committee: ISO/TC 218 - Timber
• Drafting Committee: ISO/TC 218/WG 3 - Sawn and processed timber
• Current Stage: 9093 - International Standard confirmed
• Start Date: 01-Aug-2024
• Completion Date: 13-Dec-2025

Overview

ISO 2301:1973 - "Sawn timber of broadleaved species - Defects - Measurement" is an international standard that specifies methods for measuring defects in sawn hardwoods. Published in 1973 (first edition) and issued in English, French and Russian, the standard covers unplaned sawn timber and timber surfaced to size or planed but without profiling. It provides standardized measurement techniques that support the classification given in ISO 2299 (Defects - Classification) and refers to illustrative figures for each measurement method.

Key topics and technical requirements

• Scope and units

  • Measurements may be expressed in absolute units (millimetres, centimetres) or relative values (fractions of the corresponding side or length of the piece).
  • Counts and frequencies are expressed per metre (3.28 ft) of length or per whole piece.

• Knots

  • Two principal measurement methods:
    a) distance between tangents to the knot perimeter drawn parallel to the piece arrises;
    b) minimum diameter of the knot cross‑section.
  • Specific rules for round, oval, splay (spike), branched, arris, cluster and double knots, including when to sum constituent knot sizes.

• Shakes (splits and checks)

  • Face, edge and end shakes are measured by penetration depth (mm or fraction of thickness/width) and length (cm or fraction of piece length).
  • End ring shakes: measured by chord if less than half a circle, by diameter if half circle or greater.

• Wood structure irregularities and discoloration

  • Includes slope of grain (measured over a length at least twice the piece width and expressed as percentage), inbark (depth/length/width and number per metre), tension wood, curly grain, false heartwood, flecks, included sapwood, tannin coloration, etc.

• Biological and sawing defects

  • Fungal defects: measured in centimetres or as percentage of affected surface area.
  • Insect damage (worm-holes): number of galleries/holes per metre or per piece.
  • Sawing defects (wane): measured by maximum difference between corresponding side widths.

Applications and users

ISO 2301 is practical for:

• Saw mill operators and graders implementing consistent timber grading and quality control.
• Timber traders and buyers specifying acceptance criteria for hardwood sawn timber.
• Wood product manufacturers, furniture and joinery producers requiring consistent defect measurement.
• Standards bodies and testing laboratories aligning inspection and classification with ISO 2299.

Related standards

• ISO 2299 - Sawn timber of broadleaved species - Defects - Classification (used together with ISO 2301 for grading and specification).

Keywords: ISO 2301, sawn timber, broadleaved species, defects measurement, knots measurement, shakes, slope of grain, timber grading, ISO 2299.

Standards Content (Sample)

~-
a!!gpi,
’ 2301
\
R
\
ai!&!&
INTERNATIONAL ORGANIZATION. FOR STANDARDIZATION l MEXLlYHAPOAHAII OPI-AHM3ALWl I-IO CTAHAAPTM3ALWi l ORGANIZATION INTERNATIONALE DE NORMALISATION
Sawn timber of broadleaved species -
Defects - Measurement
First edition - 1973 - 08 - 15
Sciages de bois feuillus - DQfauts - Mesurage
Premihe edition - 1973 - 08 - 15
IIklJIoMaTepIlaJIbI JIlGlCTBeHHbIX IIopoA - IIopom - k3[3Mepemce
IIepBoe HsAawe - 1973 - 08 - 15
^c+
cc\
Ref. No./Rbf. No:
2:@ IS0 2301 - 1973 (E/F/R)
UDC/CDU/YAK’674.03-41
ah
VU
Ccwma JVk MC0 2301 - 1973 (A/@/P)
ix
b)Q)
c-r
bois, bois dur, defaut, mesurage de dimension / OnwcaHae: ApeBecma,
Descriptors: wood, hardwoods, defects, dimensional measurement / Descripteurs :
t I
apesecma mepnax, nopOKE, pa3MepbI.
';G
x3
OU
Price based on 10 pages Prix base sur 10 pages / LJeHa paccvmaHa Ha 10 CTp.
"Ls

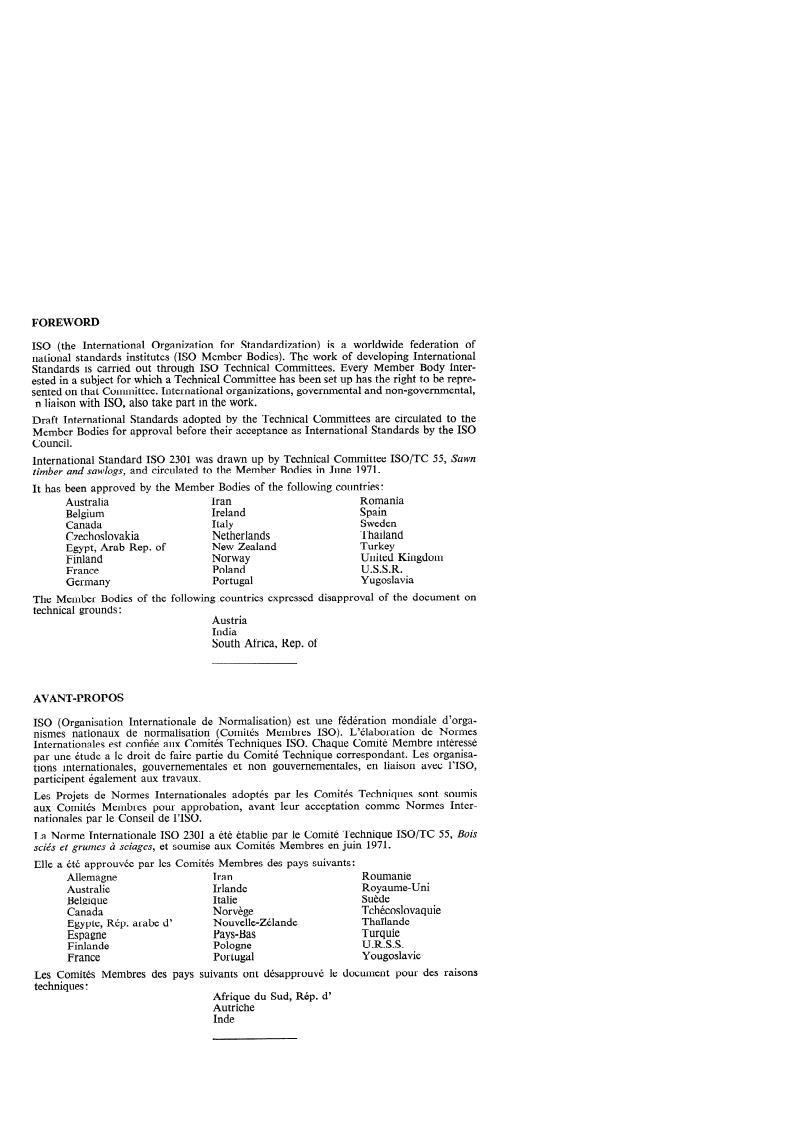

FOREWORD
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards institutes (IS0 Member Bodies). The work of developing International
Standards is carried out through IS0 Technical Committees. Every Member Body inter-
ested in a subject for which a Technical Committee has been set up has the right to be repre-
sented on that Committee. International organizations, governmental and non-governmental,
n liaison with ISO, also take part in the work.
Draft International Standards adopted by the Technical Committees are circulated to the
Member Bodies for approval before their acceptance as International Standards by the IS0
Council.
International Standard IS0 2301 was drawn up by Technical Committee ISO/TC 55, Sawn
timber and sawlogs, and circulated to the Member Bodies in June 1971.
It has been approved by the Member Bodies of the following countries:
Iran Romania
Australia
Belgium Ireland Spain
Italy Sweden
Canada
Czechoslovakia Netherlands Thailand
New Zealand Turkey
Egypt, Arab Rep. of
Finland Norway United Kingdom
Poland U.S.S.R.
France
Germany Portugal Yugoslavia
The Member Bodies of the following countries expressed disapproval of the document on
technical grounds :
Austria
India
South Africa, Rep. of
AVANT-PROPOS
IS0 (Organisation Internationale de Normalisation) est une federation mondiale d’orga-
nismes nationaux de normalisation (Comites Membres ISO). L’elaboration de Normes
Internationales est confide aux Comites Techniques ISO. Chaque Comite Membre interesse
par une etude a le droit de faire partie du Comite Technique correspondant. Les organisa-
tions internationales, gouvernementales et non gouvernementales, en liaison avec l’IS0,
participent egalement aux travaux.
Les Projets de Normes Internationales adopt& par les Comites Techniques sont soumis
aux Comites Membres pour approbation, avant leur acceptation comme Normes Inter-
nationales par le Conseil de 1’ISO.
etablie par le Comite Technique ISO/TC 55, Bois
La Norme Internationale IS0 2301 a et6
scie’s et grumes 2 sciages, et soumise aux Comites Membres en juin 1971.
Elle a ete approuvee par les Comites Membres des pays suivants:
Roumanie
Allemagne Iran
Australie Irlande Royaume-Uni
Suede
Belgique Italie
Canada Norvege Tchecoslovaquie
Egypte, Rep. arabe d’ Nouvelle-Zelande Thai’lande
Espagne Pays-Bas Turquie
U.R.S.S.
Finlande Pologne
France Portugal Y ougoslavie
Les Comites Membres des pays suivants ont desapprouve le document pour des raisons
techniques :
Afrique du Sud, Rep. d’
Autriche
Inde
BBEAEHPIE
IWO (Me~fiyHapo~Ha~ OpraHHsaqax IIO CTaH~apTm3aqmf) 5rBnXeTcfi BceMkIpHoji @eaepa-
qHe$I HaIQiOHaJIbHbIX OpraHOB IlO CTaH~apTEi3aLJmH (KOMkITeTOB-WIeHOB klC0). Pa3pa6OTKa
Me~~yHapOJJHbIX CTaHAapTOB OCyIIJeCTBJUIeTC% TeXHHYeCKMMH KOMMTeTaMll PlCO . ~a~J@i
KOMliTeT-WIeH, 3aHHTepeCOBaHHbIii B fie5ITeJIbHOCTEi KaKoro-nm6o TexHkIYeCKOrO KOMkITeTa,
HMeeT IIpaBO YYaCTBOBaTb B er0 pa6oTax. HpaBHTeJIbCTBeHHbIe H HeIIpaBHTeJIbCTBeHHbIe
Me2QJyHapOJJHbIe OpraHH3aIJHM, COTpyflHHYaIOIiQMe C Hco, TaKlKe IIpHHMMaI-OT yYaCTHe
B pa6oTax.
IIpHHRTbIe TexHWIeCKaMH I(IOMEfTeTaMH, IIepeA
HpOeKTbI MexJJyHapOflHbIX CTaHAapTOB,
MX yTBepxAeHlieM COBeTOM %!tCO B KaYeCTBe MexAyHapOAHbIX CTaHAapTOB, paCCbIJIaEoTCcI
Ha OAo6pewHe BCeM KOMHTeTaM-YJIeHaM.
Me)KAyHapOAHbIfi CTaHAapT MC0 2301 6brn IIOArOTOBJIeH TeXHkIYeCKHM KOMliTeTOM
MCO/TK 55, flu/rohtamepuanbl u nu/Io6oqHble bpesrta, m HanpasneH, B moHe 1971 roga, BceM
KOMEiTeTaM-WeHaM .
OH 6brn oAo6peH KOMkITeTaMM-YJIeHaMH cneAyIom&fx CTpaH :
hcTpaJIH5I KaHaAa CCCP
EenbrmI HHAepJIaHAbI TaiinaHA
repMaHm HoBasi 3enaHAm TYPWR
ErIizneT, Apa6cKan Pecn. HopBerm Q~)EIHJI~IHAEUI
l?fpaH l-IoJ-IbIIIa @paH4mI
IiIpJ-IaHAEfR IIopTyranElrr YexocnoBaKm
IilcrIaHm PyMbIHMCI IIIsesm
COeAtlHeHHOe KopOneBCTBO EOrocnaBm
IiITaJ-IHR
0 International Organization for Standardization, 1973 0
0 Organisation Internationale de Normalisation, 1973 l
@ MeXAJ’HapOAHaH OpraHIi3aIJAR l-l0 CTaHAapTH3aIJHEQ 1973 0
Printed in Switzerland / Imprimk en Suisse / IiI3AaHo B msetiqapm

This page intentionally left blank

-
INTERNATIONAL STANDARD
IS0 2301- 1973 (E/F/R)
NORME INTERNATIONALE
MC0 2301- 1973 (A/@/P)
MEXAYHAPOfiHbIfl CTAHAAPT
Sawn timber of broadleaved species Sciages de bois feuillus rhIOMaTeptWIbI JIEiCTBUIHbIX IIOpO,LJ
Defects Dkfauts
IropoIckl
Measurement
Mesurage EjLsMepemie
