ISO 13232-8:2005

Motorcycles - Test and analysis procedures for research evaluation of rider crash protective devices fitted to motorcycles - Part 8: Documentation and reports

ISO 13232-8:2005 provides a common basis for: test and simulation documentation; data exchange; confirmation of results by other researchers; direct comparison of results between different facilities; enabling other researchers to reproduce the experiment; and the recommended minimum contents of publications which describe tests done according to ISO 13232. ISO 13232 specifies the minimum requirements for research into the feasibility of protective devices fitted to motorcycles, which are intended to protect the rider in the event of a collision. ISO 13232 is applicable to impact tests involving: two-wheeled motorcycles; the specified type of opposing vehicle; either a stationary and a moving vehicle or two moving vehicles; for any moving vehicle, a steady speed and straight-line motion immediately prior to impact; one helmeted dummy in a normal seating position on an upright motorcycle; the measurement of the potential for specified types of injury by body region; evaluation of the results of paired impact tests (i.e. comparisons between motorcycles fitted and not fitted with the proposed devices). ISO 13232 does not apply to testing for regulatory or legislative purposes.

Motocycles — Méthodes d'essai et d'analyse de l'évaluation par la recherche des dispositifs, montés sur les motocycles, visant à la protection des motocyclistes contre les collisions — Partie 8: Documentation et rapports

General Information

• Status: Published
• Publication Date: 07-Dec-2005
• ICS: 43.140 - Motorcycles and mopeds
• Technical Committee: ISO/TC 22/SC 38 - Motorcycles and mopeds
• Drafting Committee: ISO/TC 22/SC 38 - Motorcycles and mopeds
• Current Stage: 9060 - Close of review
• Completion Date: 02-Dec-2030

Relations

• Amended By: ISO 13232-8:2005/Amd 1:2012 - Motorcycles - Test and analysis procedures for research evaluation of rider crash protective devices fitted to motorcycles - Part 8: Documentation and reports - Amendment 1: Ground impact and injury costs
• Effective Date: 18-Dec-2021
• Revises: ISO 13232-8:1996 - Motorcycles - Test and analysis procedures for research evaluation of rider crash protective devices fitted to motorcycles - Part 8: Documentation and reports
• Effective Date: 15-Apr-2008

Overview

ISO 13232-8:2005 is Part 8 of the ISO 13232 series addressing motorcycles and rider crash protective devices. It specifies documentation and reporting requirements to ensure consistent test and simulation records, enable data exchange, permit independent confirmation of results, and support reproducibility and direct comparisons between facilities. ISO 13232-8 is intended for research evaluation (not regulatory testing) of protective devices fitted to two-wheeled motorcycles and complements the other parts of ISO 13232 covering impact conditions, dummies, measurements, injury indices, full-scale tests and simulations.

Key topics and requirements

• Documentation templates: Mandatory completion of standardized forms for full-scale impact tests (Annex A), computer simulations (Annex B) and risk/benefit analyses (Annex C) to capture essential test metadata.
• Scope of applicable tests: Two-wheeled motorcycles, specified opposing vehicles, steady speed/straight-line motion prior to impact, one helmeted dummy in normal seating, and paired impact-test comparisons (device vs. baseline).
• Required content for publications: Minimum items to include when citing ISO 13232 - impact configuration drawings/photographs, high‑speed camera frames, measured impact data (e.g., motorcycle and opposing vehicle speeds, contact point, relative heading angle, dummy/helmet displacements), vehicle/device descriptions and photographs, and lists of injury assessment variables and indices.
• Injury metrics: Standard injury assessment and potential variables and indices (examples listed in the standard include HIC, PAIS, NII, GAMBIT, number of femur/tibia fractures, probability of fatality, normalized injury cost) for paired-comparison reporting.
• Out‑of‑tolerance reporting: If tests deviate from required tolerances, publications must disclose deviation amounts and note that out-of-tolerance tests are not valid for paired comparisons per ISO 13232.
• Reproducibility & data exchange: Emphasis on complete supporting media (plots, stills, high-speed films) and a form (A.7/B.7/C.3) to document compliance or deviations from the standard.

Applications and who uses it

• Research institutions and universities conducting motorcycle safety feasibility studies.
• Independent crash test laboratories and simulation centers standardizing test records and enabling cross-facility comparisons.
• Motorcycle OEMs and safety device developers evaluating passive or deployable rider protection concepts.
• Safety analysts performing risk/benefit studies of protective devices. Note: ISO 13232-8 supports research publication and reproducibility but is explicitly not intended for legislative or regulatory certification.

Related standards

• ISO 13232 series (Parts 1–7) - definitions, impact conditions, dummy specifications, instrumentation, injury indices, full-scale tests, simulations.
• Normative reference: 49 CFR Part 572, subpart E (Anthropometric test dummies).

Keywords: ISO 13232-8, motorcycle protective devices, documentation and reports, full-scale impact tests, computer simulations, risk/benefit analysis, injury indices, paired comparisons, test reproducibility.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13232-8
Second edition
2005-12-15
Motorcycles — Test and analysis
procedures for research evaluation of
rider crash protective devices fitted to
motorcycles —
Part 8:
Documentation and reports
Motocycles — Méthodes d'essai et d'analyse de l'évaluation par la
recherche des dispositifs, montés sur les motocycles, visant à la
protection des motocyclistes contre les collisions —
Partie 8: Documentation et rapports

Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

Contents Page
Foreword.iv
Introduction. v
1 Scope.1
2 Normative references.1
3 Requirements.2
3.1 Documentation for full-scale impact tests.2
3.2 Documentation for computer simulations .2
3.3 Documentation for risk/benefit analysis .2
3.4 Recommendations regarding publication of results .3
Annex A (normative) Forms for full-scale impact test documentation .6
Annex B (normative) Forms for computer simulation documentation .37
Annex C (normative) Forms for risk/benefit analysis documentation.54
Tables
Table 1 — List of injury assessment variables, injury potential variables, and injury indices for inclusion in
publications of paired comparisons .5
Table A.1 — Primary impact results .35
Table A.2 — Entire impact sequence results .36

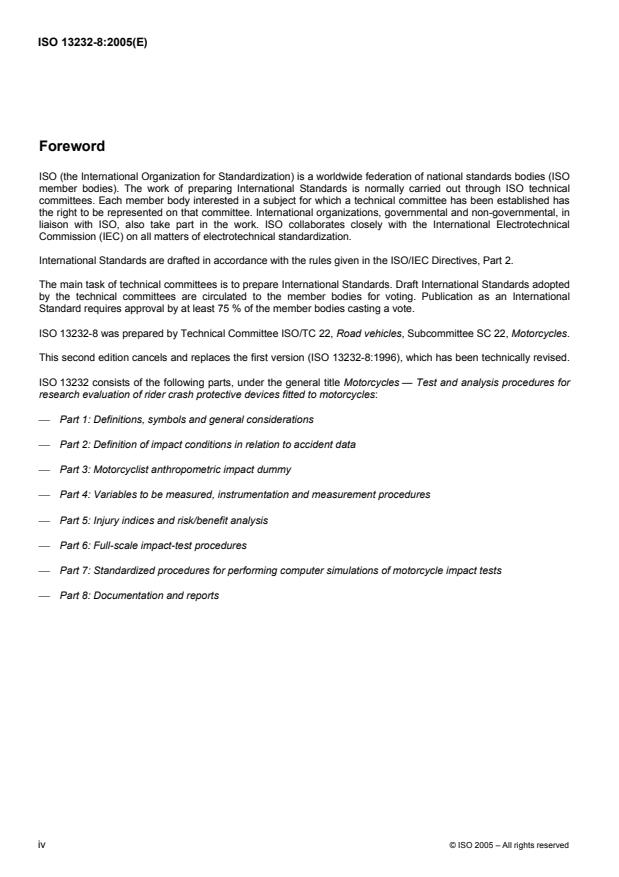

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
ISO 13232-8 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 22, Motorcycles.
This second edition cancels and replaces the first version (ISO 13232-8:1996), which has been technically revised.
ISO 13232 consists of the following parts, under the general title Motorcycles — Test and analysis procedures for
research evaluation of rider crash protective devices fitted to motorcycles:
⎯ Part 1: Definitions, symbols and general considerations
⎯ Part 2: Definition of impact conditions in relation to accident data
⎯ Part 3: Motorcyclist anthropometric impact dummy
⎯ Part 4: Variables to be measured, instrumentation and measurement procedures
⎯ Part 5: Injury indices and risk/benefit analysis
⎯ Part 6: Full-scale impact-test procedures
⎯ Part 7: Standardized procedures for performing computer simulations of motorcycle impact tests
⎯ Part 8: Documentation and reports
iv © ISO 2005 – All rights reserved

Introduction
ISO 13232 has been prepared on the basis of existing technology. Its purpose is to define common research
methods and a means for making an overall evaluation of the effect that devices which are fitted to motorcycles
and intended for the crash protection of riders, have on injuries, when assessed over a range of impact conditions
which are based on accident data.
It is intended that all of the methods and recommendations contained in ISO 13232 should be used in all basic
feasibility research. However, researchers should also consider variations in the specified conditions (for example,
rider size) when evaluating the overall feasibility of any protective device. In addition, researchers may wish to vary
or extend elements of the methodology in order to research issues which are of particular interest to them. In all
such cases which go beyond the basic research, if reference is to be made to ISO 13232, a clear explanation of
how the used procedures differ from the basic methodology should be provided.
ISO 13232 was prepared by ISO/TC 22/SC 22 at the request of the United Nations Economic Commission for
Europe Group for Road Vehicle General Safety (UN/ECE/TRANS/SCI/WP29/GRSG), based on original working
documents submitted by the International Motorcycle Manufacturers Association (IMMA), and comprising eight
interrelated parts.
This revision of ISO 13232 incorporates extensive technical amendments throughout all the parts, resulting from
extensive experience with the standard and the development of improved research methods.
In order to apply ISO 13232 properly, it is strongly recommended that all eight parts be used together, particularly if
the results are to be published.

INTERNATIONAL STANDARD ISO 13232-8:2005(E)

Motorcycles — Test and analysis procedures for research
evaluation of rider crash protective devices fitted to
motorcycles —
Part 8:
Documentation and reports
1 Scope
This part of ISO 13232 provides a common basis for:
⎯ test and simulation documentation;
⎯ data exchange;
⎯ confirmation of results by other researchers;
⎯ direct comparison of results between different facilities;
⎯ enabling other researchers to reproduce the experiment; and
⎯ the recommended minimum contents of publications which describe tests done according to ISO 13232.
ISO 13232 specifies the minimum requirements for research into the feasibility of protective devices fitted to
motorcycles, which are intended to protect the rider in the event of a collision.
ISO 13232 is applicable to impact tests involving:
⎯ two-wheeled motorcycles;
⎯ the specified type of opposing vehicle;
⎯ either a stationary and a moving vehicle or two moving vehicles;
⎯ for any moving vehicle, a steady speed and straight-line motion immediately prior to impact;
⎯ one helmeted dummy in a normal seating position on an upright motorcycle;
⎯ the measurement of the potential for specified types of injury by body region;
⎯ evaluation of the results of paired impact tests (i.e. comparisons between motorcycles fitted and not fitted with
the proposed devices).
ISO 13232 does not apply to testing for regulatory or legislative purposes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

ISO 13232-1, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 1: Definitions, symbols, and general considerations
ISO 13232-2, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 2: Definition of impact conditions in relation to accident data
ISO 13232-3, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 3: Motorcyclist anthropometric impact dummy
ISO 13232-4, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 4: Variables to be measured, instrumentation, and measurement procedures
ISO 13232-5, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 5: Injury indices and risk/benefit analysis
ISO 13232-6, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 6: Full-scale impact test procedures
ISO 13232-7, Motorcycles — Test and analysis procedures for research evaluation of rider crash protective devices
fitted to motorcycles — Part 7: Standardized procedures for performing computer simulations of motorcycle impact
tests
49 CFR Part 572, subpart E: 1993, Anthropometric test dummies, United States of America Code of Federal
Regulations issued by the National Highway Traffic Safety Administration (NHTSA) Washington, D.C.
3 Requirements
3.1 Documentation for full-scale impact tests
All full-scale impact tests which are intended to meet ISO 13232 shall be documented to include the information
specified on forms A.1 through A.8 in Annex A.
The extent to which the requirements, recommendations, and procedures of ISO 13232 have or have not been
followed shall be documented on form A.7.
A complete set of documentation for a full-scale test shall include the complete information in Annex A, including
still photographs and plots, plus copies of the films from the required high speed cameras.
3.2 Documentation for computer simulations
All computer simulations which are intended to meet ISO 13232 shall be documented to include the information
specified on forms B.1 through B.8 in Annex B.
The extent to which the requirements, recommendations, and procedures of ISO 13232 have or have not been
followed shall be documented on form B.7.
3.3 Documentation for risk/benefit analysis
All risk/benefit analyses which are intended to meet ISO 13232 shall be documented to include the information
specified on forms C.1 through C.3 in Annex C.
The extent to which the requirements, recommendations, and procedures of ISO 13232 have or have not been
followed shall be documented on form C.3.
2 © ISO 2005 – All rights reserved

3.4 Recommendations regarding publication of results
The test or computer simulation documentation forms described in Annexes A or B, respectively, should be
completed prior to publication of results of any test or computer simulation which is intended to meet ISO 13232,
and which cites ISO 13232 in the text of the publication.
The risk/benefit analysis documentation forms described in Annex C should be completed prior to publication of
results of any risk/benefit analysis which is intended to meet ISO 13232 and which cites ISO 13232 in the text of
the publication.
3.4.1 Full-scale test publications
Any publications concerning full-scale tests which are intended to meet ISO 13232, should include the following
information, at a minimum.
3.4.1.1 Impact conditions
The publication should include:
a) a description and drawing of the nominal impact configuration, according to the conventions described in
ISO 13232-2;
b) photographs (or tracings of photographs) from the high speed camera film for MC top view and MC side view of
the frame immediately preceding first MC/OV contact;
c) data for each test measured according to the procedures defined in ISO 13232-4:
1) MC impact speed,
2) OV impact speed,
3) OV contact point,
4) relative heading angle,
5) MC roll angle,
6) change in dummy helmet centroid point and joint locations with respect to the MC relative to the pre-test
set up photography.
3.4.1.2 Items not complied with
A list and explanation of all items not complied with, based upon form A.7, should be included in the publication.
3.4.1.3 Vehicle information
The following information should be included in the publication:
⎯ OV make and model;
⎯ MC make and model;
⎯ photographs or scaled drawings of the protective device, in at least two views (from front, side, or top), as fitted,
and deployed, if deployable.
3.4.1.4 Impact sequence information
The impact sequence data described in A.8.2 should be included in the publication.
3.4.1.5 Performance data
A listing of values for all of the injury assessment variables, injury potential variables, and injury indices described
in ISO 13232-5 and listed in A.8.4 should be included in the publication.
3.4.1.6 Paired comparison information
Only tests which meet the impact condition requirements described in 4.5 of ISO 13232-6 should be published.
Only complete paired comparisons (i.e., results for both the standard MC and the MC with protective device) should
be published.
If an out of tolerance test is published, the publication should clearly identify for each such test:
⎯ that the test was out of tolerance;
⎯ the amount by which it was out of tolerance;
⎯ that according to ISO 13232, such test is not considered to be a valid basis for a paired comparison.
The following minimum information should be included in the publication.
3.4.1.6.1 Paired comparisons summary statements
Within each paired comparison:
d) if the injury assessment variables, injury potential variables, and injury indices all show the same kind of effect
of the protective device (e.g., all variables show benefits, or all show harm, or all show no effect), then a
statement of this should be included in the publication;
e) if the variables are mixed with regard to the effect of the protective device, then a statement of this should be
included. In this case, the result should be summarized in the publication by referring to the effect of the
protective device on:
1) the body region of interest (e.g., the head for a head protective device, or leg for a leg protective device),
2) the head injury potential variables,
3) the normalized probable injury cost.
3.4.1.6.2 Comparisons across impact configurations summary statements
For each set of paired comparisons (i.e., involving more than one impact configuration), and for a given protective
device, the following minimum information should be included in the publication:
⎯ for all of the injury assessment variables, injury potential variables, and injury indices listed in Table 1,
summary statements of the following form should be included, depending on the test results (the following is
an example);
EXAMPLE "In four out of seven test pairs the neck maximum torsion moment increased, in two out of seven test pairs it
remained the same, and in one out of seven test pairs it decreased, when the protective device was fitted."
⎯ if zero precedes "out of" in the summary statement (e.g., "in zero out of seven test pairs"), then the phrase
containing the zero may be omitted;
4 © ISO 2005 – All rights reserved

⎯ a statement referring to the need to evaluate protective devices across the population of impact configurations.
3.4.2 Risk/benefit analyses publications
Any publications concerning risk/benefit analysis which are intended to meet ISO 13232 should include the
information in form C.2, and a list and explanation of all items not complied with, based upon form C.3, at a
minimum.
Table 1 — List of injury assessment variables, injury potential variables, and injury indices for inclusion in
publications of paired comparisons
Injury assessment variable, injury potential variable, injury index Time window
Head maximum GAMBIT; Entire
HIC; Entire
Head PAIS; Entire
Neck NII; Entire
Neck PAIS; Entire
Chest PAIS; Entire
Abdomen PAIS; Entire
Number of femur fractures; Entire
Number of knee dislocations; Entire
Number of tibia fractures; Entire
Maximum vertical difference in helmet trajectory (protective device minus baseline); Primary
Percentage change in helmet resultant velocity (protective device compared to At first helmet/OV contact
baseline);
Partial permanent incapacity index; Entire
Probability of fatality; Entire
Risk of life threatening brain injury, from HIC; Entire
Total normalized injury cost. Entire

Annex A
(normative)
Forms for full-scale impact test documentation
The forms which are required to be completed for documentation of each full-scale impact test are given below.
Form A.1 is the document cover page. A.2 contains the motorcycle information. A.3 contains the protective device
information. A.4 contains the opposing vehicle information. A.5 contains information on the dummy and
instrumentation. A.6 contains impact condition information. A.7 contains a compiled checklist of procedures. A.8
contains the resulting test data.
6 © ISO 2005 – All rights reserved

A.1 Documentation for motorcycle/opposing vehicle full-scale impact test

According to ISO 13232
Test number:___________
Motorcycle/protective device:_____________
Impact configuration code:____________
Test number to which this test is being compared:__________

Test
facility:_____________________________________________

NOTE Complete all information on the following pages. For items requiring yes/no responses, indicate "no" if the response
is unknown or negative. Wherever a negative response (i.e., "no") is given, attach an explanation.
A.2 Motorcycle information (ISO 13232-6, 5.2.2)
Manufacturer:
Model:
Year:
Engine displacement: cc
Optional accessories, as tested:
Colour, as tested:
Frame serial number:
Weight (empty, no dummy, with test equipment and protective device, if fitted): Front: kg
Rear: kg
Total: kg
Yes No
Pre-test photographs (without dummy) are attached (side, front views) �  �
At the time of the test, the motorcycle was in sound condition with no structural Yes No
damage or alteration except those related to the fitment of the protective device, if
present:
�  �
A.3 Protective device information (if fitted)
Device description:
Yes No
Photographs or scale drawings in two views are attached: �  �
A.4 Opposing vehicle information (ISO 13232-6, 4.1)
Manufacturer:
Model:
Year:
Colour, as tested:
Vehicle identification number:

8 © ISO 2005 – All rights reserved

Test weight (with test equipment per ISO 13232-6, 5.2.1): Left front: kg
Right front: kg
Left rear: kg
Right rear: kg
Total: kg
Measured overall length: cm Reference OV curb mass: kg
Measured overall width: cm Reference OV curb mass: kg
Measured overall height: cm
Yes No
Pre-test photographs attached (side, front views): �  �
A.5 Dummy and instrumentation information (ISO 13232-3, ISO 13232-4, ISO 13232-6)
A.5.1 Dummy mechanical
Yes No
The test dummy meets the requirements of ISO 13232-3: �  �
Notes:
Number of full-scale impact tests since calibration of (ISO 13232-6, 4.3.1):
head:
neck:
thorax:
knee, L:
knee, R:
Total dummy mass, including sensors, DAS, and permanently mounted cables.

A.5.2 Dummy frangible component conformity of production test data (ISO 13232-3)
Initial and subsequent
COP data attached
Component Manufacturer Lot number
Yes No
Abdominal insert:
Frangible femurs:
L
R
Frangible knee shear pins:
L varus valgus
L torsion
R varus valgus
R torsion
Frangible knee compliance elements:

L varus valgus
L torsion
R varus valgus
R torsion
Frangible tibias:
L
R
All frangible components were new and not previously used:

A.5.3 Sensor, data acquisition and post processing systems verification (ISO 13232-6)
Yes No
�  �
The verification test described in 4.3.3 and 5.3.1 was done and the time history plots are attached:

10 © ISO 2005 – All rights reserved

A.5.4 Joint tensions (ISO 13232-6)
Yes No
All joint tensions were set according to Annex A �  �

A.5.5 Helmet (ISO 13232-6)
Manufacturer:   Serial number:   Lot number:
Model:    Size: � S (56 cm);  � M (58 cm)
Yes  No
Meets all requirements of 4.3.7: �  �
The helmet was installed on the dummy according to Annex D: �  �
Dimension A of the helmet alignment tool was not modified: �  �
If modified, the new dimension was: mm

A.5.6 Instrumentation (ISO 13232-4)
A.5.6.1 Electronic variables recorded (4.1)
Time histories for the following recorded variables are attached in A.8.3 in the following sequence:
Required electronic variables recorded: Recorder Full-scale Plot page Plot attached to A.8.3
channel recording and sequence
Primary Secondary
plotting range
Yes No Yes No
a
First MC/OV contact occurrence
Head:
a
1 1
± 400 g
a
2 1
± 400 g
a
3 ± 400 g 1
a
4 ± 400 g 2
a
5 2
± 400 g
a
6 2
± 400 g
a
7 3
± 400 g
Required electronic variables recorded: Recorder Full-scale Plot page Plot attached to A.8.3
channel recording and sequence
Primary Secondary
plotting range
Yes No Yes No
a
8 3
± 400 g
a
9 3
± 400 g
Chest:
l
uL 6
± 60 mm
l
uR ± 60 mm 6
l
lL 6
± 60 mm
l
lR 6
± 60 mm
Upper neck:
F
x,n 4
± 15 kN
F
y,n 4
± 15 kN
F
z,n 4
± 30 kN
M
x,n 5
± 700 N • m
M
y,n ± 1000 N • m 5
M
z,n
± 700 N • m 5
Upper femurs (required for leg protective
device research):
F
z,uF,L 7
± 12 kN
M
x,uF,L 7
± 600 N • m
M
y,uF,L
± 600 N • m 7
F
z,uF,R
± 12 kN 8
M
x,uF,R
± 600 N • m 8
M
y,uF,R 8
± 600 N • m
Upper tibias (required for leg protective
device research):
M
x,uT,L 9
± 400 N • m
M
y,uT,L 9
± 400 N • m
12 © ISO 2005 – All rights reserved

Required electronic variables recorded: Recorder Full-scale Plot page Plot attached to A.8.3
channel recording and sequence
Primary Secondary
plotting range
Yes No Yes No
M
x,uT,R 9
± 400 N • m
M
y,uT,R 9
± 400 N • m
Permissible electronic variables Recorder Full-scale Plot page Plot attached to A.8.3
recorded: channel recording and sequence
Primary Secondary
plotting range
Yes No Yes No
Lumbar spine:
F
x,l 10
± 5 kN
F
y,l 10
± 5 kN
F
z,l 10
± 10 kN
M
x,l 11
± 500 N • m
M
y,l 11
± 500 N • m
M
z,l
± 250 N • m 11
Upper femurs:
M
z,uF,L 7
± 400 N • m
M
z,uF,R 8
± 400 N • m
Lower femurs:
F
z,lF,L 12
± 12 kN
M
x,lF,L 12
± 500 N • m
M
y,lF,L 12
± 500 N • m
M
z,lF,L 12
± 300 N • m
F
z,lF,R ± 12 kN 13
M
x,lF,R
± 500 N • m 13
M
y,lF,R 13
± 500 N • m
M
z,lF,R 13
± 300 N • m
Upper tibias:
Permissible electronic variables Recorder Full-scale Plot page Plot attached to A.8.3
recorded: channel recording and sequence
Primary Secondary
plotting range
Yes No Yes No
M
z,uT,L 14
± 200 N • m
M
z,uT,R 14
± 200 N • m
Lower tibias:
F
z,lT,L 15
± 40 kN
M
x,lT,L 15
± 400 N • m
M
y,lT,L
± 400 N • m 15
F
z,lT,R 16
± 40 kN
M
x,lT,R 16
± 400 N • m
M
y,lT,R 16
± 400 N • m
Other data plots
a
Label the first MC/OV contact signal on all plots on which it appears.

A.5.6.2 Data acquisition external cable usage (according to 4.5 and 4.5.1 of ISO 13232-4)
There were no external cables attached to the dummy except detachable cables, as described in
Yes No
4.5.1. Only detachable cables, meeting the requirements of 4.5, were used (recommended):
Non-detachable cables were used (not recommended):
a) If used, each non-detachable cable had a mass of less than or equal to 1/3 kg:

b) If used, each non-detachable cable had a length of greater than or equal to 12 m:

c) If used, the total mass of the non-detachable cables was less than or equal to 4 kg:

d) If used, the non-detachable cables were arranged so that each was unrestrained:

e) If used, the non-detachable cables were not attached to the MC, the dummy, or any other cable,

except at the cable extremities:
f) If used, the non-detachable cables were attached to the dummy by means of a connector

attached to the rear portion of the pelvis:

14 © ISO 2005 – All rights reserved

A.6 Impact condition information (ISO 13232-2, ISO 13232-4, ISO 13232-6)
A.6.1 Nominal test condition (according to ISO 13232-2)

Code:                    -       /
OVCP   MCCP  RHA   OVS   MCS
m/s    m/s
Indicate with an arrow approximately 2 cm
long, which represents the MC, the intended
orientation and position of the MC centre line at
first MC/OV contact.
Indicate with a dot the intended contact point
on the OV, and on the MC centre line (front
end, mid-point, or rear end).
A.6.2 Motorcycle (with or without dummy, as specified) (ISO 13232-6)
Yes No
Requirements described in 5.2.2 were met: �  �
Hand grip outboard end height at centre (before dummy is placed on the MC) (C.1)
L:____________cm; R:____________cm
Yes No
Handlebars are adjusted to the same position for all tests within a paired comparison: �  �
Ride height, centre of headlamp (5.3.5) cm
Ride height, centre of taillamp (5.3.5) cm
Overall length (5.2.2) cm
Type of foot rest (C.2.2):
A.6.3 Dummy (positioned on MC) (ISO 13232-6)
Which procedure was used to position the boots: C.2.2.1, C.2.2.2, or C.2.2.3?
Yes No
Did any part of the right boot lie below the brake pedal? �  �
If yes, the distance from the forward edge of the right boot to the forward edge of the right foot rest: cm
Yes No
Did any part of the left boot lie below the gear shift pedal? �  �
If yes, the distance from the forward edge of the left boot to the forward edge of the left foot rest: cm
Distance between knee centre line indices (C.2.3): cm
x y z
K point location (from rear axle, MC centre line, ground) (C.2.4) k k k
L:
cm cm cm
R: cm cm cm
S point location (from rear axle, MC centre line, ground) (C.2.4) x y z
s s s
L:
cm cm cm
R: cm cm cm
Upper torso pitch angle (forward of vertical): (C.2.4.2)      deg
Yes No
Upper torso pitch angle set at standard value: (C.2.4) �  �
If "no", then the reason was because there was an obstruction between the

dummy                   and the                   .
Pre-test MC roll angle with dummy (C.2.4.3)                   .
Yes No
Helmet alignment tool upper edge was horizontal: (D.3) �  �
If "no", then the helmet alignment tool upper edge deviation from the horizontal deg
Lower serrated neck joint setting deg flexion � extension �
Center serrated neck joint setting deg extension

16 © ISO 2005 – All rights reserved

A.6.4 Opposing vehicle (ISO 13232-6)
Ride height (5.2.1) Measured values Reference values
Front, lowest point of bonnet at forward end of bonnet centre line:
cm cm
Right, highest point of front door:
cm cm
Left, highest point of front door:
cm cm
Rear, lowest point of boot lid at rearward end of boot lid centre line:
cm cm
A.6.5 Pre-test measurements (ISO 13232-4, ISO 13232-8)
Yes No
Camera specification page attached (see ISO 13232-8, A.6.5.1): �  �
Target location page attached (see ISO 13232-8, A.6.5.2): �  �
Photograph of the MC with the dummy in the proper position is attached (ISO 13232-4, 4.7): �  �
Perpendicular distances from targets to camera lens MC side MC top view OV side view
(ISO 13232-4, 5.1): view camera camera camera
Ground target 1
⎯⎯⎯
Ground target 2
⎯⎯⎯
MC main frame front target
⎯⎯⎯
MC main frame rear target
⎯⎯⎯
OV side reference target ⎯⎯⎯ ⎯⎯⎯
Helmet centroid  ⎯⎯⎯
Distance between photo-optic or electro-mechanical contact switches, if used (ISO 13232-4, 5.1):
OV: cmMC: cm
A.6.5.1 Camera set up information (ISO 13232-4, 4.6 and 4.7)
Instructions:
1) Sketch the top view of the test layout and camera positions in the box at the right, using the defined
symbols and including the targetted OV contact point.
2) Sketch the + x axis to be in the direction of initial motion of either the MC or the OV, along the track or rail,
and beginning at the targetted OV contact point as defined in ISO 13232-2, Figure 1, as expected at first
MC/OV contact, projected to ground level.
3) Sketch the + y axis to be 90° clockwise from the + x axis. Consider the + z axis to be into the ground.

(Not to scale)
ground fixed panning camera overhead targetted OV
OV MC
camera camera contact point
Camera location
Film
Nominal Lens focal Field of
Film width
Camera analysis a
frame rate length
view width
Field of view
x y z
number interval
mm
f/s mm
m
frames
m m m
1 MC side, narrow (required)
2 MC top, narrow (required)
3 MC rear (or front) (required)
4 OV side (required, if OV speed is
from film)
5 MC side (required) still
•

a
At first MC/OV contact
18 © ISO 2005 – All rights reserved

A.6.5.2 Ground target location information (ISO 13232-4, 4.3.4)
Instructions:
1) Sketch the top view of the test layout and ground target positions in the box at the right, using the defined
symbols and including the targetted OV contact point.
2) Sketch the + x axis to be in the direction of initial motion of either the MC or the OV, along the track or rail,
and beginning at the targetted OV contact point as defined in ISO 13232-2, Figure 1, as expected at first
MC/OV contact, projected to ground level.
3) Sketch the + y axis to be 90° clockwise from the + x axis. Consider the + z axis to be into the ground.
4) For the table below, the origin for the ground targets is as noted as in 2, above, at ground level.

(Not to scale)
OV MC targetted OV targets
contact point
A B C
etc.
Target location Target location
x y z x y z
Target Description m m m Target Description m m m
A   N
B O
C P
D Q
E R
F S
G T
H U
I V
J W
K X
L Y
M Z
Test number
A.6.5.3 MC and OV target information (ISO 13232-4, 4.3.2 and 4.3.3)
Mark and number the MC and OV targets on the drawings provided. Complete the respective tables.

Target location
Target Description
x, m y, m z, m
MC-1
MC-2
MC-3
MC-4
.
Target location
Target Description
x, m y, m z, m
OV-1
OV-2
OV-3
OV-4
.
.
.
20 © ISO 2005 – All rights reserved

Test number
A.6.6 Measured impact conditions (ISO 13232-4 and ISO 13232-6)
Absolute
Relative tolerance
tolerance requirement met with
requirement met respect to test number:
__________________
(ISO 13232-6, 4.5.4)
Yes No Yes No
Relative heading angle (ISO 13232-4, 5.3.2): deg
OV impact speed (ISO 13232-4, 5.3.1): m/s
measurement was electronic � or film analysis �
MC impact speed (ISO 13232-4. 5.3.1): m/s
measurement was electronic � or film analysis �
MC roll angle (ISO 13232-4, 5.3.3): deg
OV contact point from reference point
(centre line of OV leading edge) (ISO 13232-4, 5.3.4): cm
Dummy target positions Pre-test image Pre-impact image Tolerance met
(ISO 13232-4, 5.3.5):
(± 3 cm) (pre-test
to MC/OV pre-
impact)
x y z x y z Yes No
Helmet centroid cm cm cm cm cm cm
Shoulder cm cm cm cm cm cm
Hip cm cm cm cm cm cm
Knee cm cm cm cm cm cm
Ankle cm cm cm cm cm cm
Photographs are attached for: Yes No
Pre-test image:
MC side view frame
MC top view
Pre-impact image:
MC side view
MC top view
Frame preceding first MC/OV contact:

MC side view
MC top view
MC front or rear view
Test number
A.6.7 Ambient conditions (ISO 13232-6)
The requirements for the following conditions were met: Yes No
The temperature in all dummy preparation areas was between 13° C and 30° C (4.5.5):

If "no," was the soaking procedure required (4.5.5)?

If "yes," was the soaking procedure used (5.7)?

Wind velocity (4.5.5):
Test surface gradient (4.5.5):

Enter the time and temperature of each dummy preparation area, measured while the dummy was in the area,
beginning at least three hours before the planned time of impact.
Time Air temperature in area, °C:
Start End Area 1 Area 2 Area 3 Area 4 Area 5 Area 6

Actual impact time:
Each time the dummy was moved to a new area, record the start and end times. Each new area should be
recorded on a separate line.
Area Description
22 © ISO 2005 – All rights reserved

Test number
A.7 Checklist for full-scale impact test procedures
NOTE This checklist lists all requirement subclause titles, with pertinent procedure subclauses listed below the specific
requirements. Each required procedure subclause must be complied with, in addition to the requirement. Procedure subclauses
are indicated with an asterisk (*).
Complied with
a a
a
Explanation, if not complied with (If necessary, attach
Req Rec Per
additional pages)
Yes No
Part 3 Motorcyclist anthropometric impact dummy (all

referenced figures and tables are in ISO 13232-3)
4.1 Basis dummy
√
4.2 Motorcyclist dummy head skins (see Figure A.1) √
4.3.1 Neck shroud (see Figure A.2) √
4.3.2 Lower neck mount (see Figure A.3) √
4.3.3 Motorcyclist neck (see Figures A.4 and A.5) √
* 6.8 Motorcyclist neck dynamic axial torsion test (see √
Figure A.30)
4.3.4 Replacement nodding blocks (see Figure A.6)
√
4.4.1 Replacement thoracic spine
√
4.4.2 Modified chest skin √
4.5.1 Modified straight lumbar spine (see Figures A.7 - A.10) √
4.5.2 Motorcyclist dummy abdominal insert (see Table 1 and √
Figure A.11)
* 6.7 Frangible abdomen test (see Figure A.29) √
4.5.3 Sit/stand pelvis √
4.6 Modified elbow bushing (see Figure A.12) √
4.7 Motorcyclist dummy hands √
4.8.1 Frangible femur bone and mounting hardware (see √
Table 2 and Figures A.13 and A.14)
* 6.1 Frangible bone static bending deflection test (see
√
Table 6)
* 6.2 Frangible bone static torsional deflection test √
* 6.3 Frangible bone dynamic bending fracture test (see √
Figures A.20 -A.26)
* 6.4 Frangible bone dynamic torsional fracture test √
* 6.5 Frangible femur bone static axial load fracture test √
(see Figure A.27)
4.8.2 Femur load cell simulator, if load cell not used (see √
Figure A.15)
4.9 Motorcyclist dummy frangible knee assembly (see √
Table 3 and Figure A.16)
* 6.6 Frangible knee static strength and deflection test √
(see Figure A.28)
4.10 Leg retaining cables √
4.11.1 Frangible tibia bone and mounting hardware (see √
Table 4 and Figures A.17 and A.18)
a
"Req" denotes a requirement of ISO 13232; "Rec" denotes a recommendation of
ISO 13232; "Per" denotes an item which is permitted by ISO 13232.
Complied with
a a
a
Explanation, if not complied with (If necessary, attach
Req Rec Per
additional pages)
Yes No
Part 3 Motorcyclist anthropometric impact dummy (all
referenced figures and tables are in ISO 13232-3)
(continued)
* 6.1 Frangible bone static bending deflection test (see √
Table 6)
* 6.2 Frangible bone static torsional deflection test √
* 6.3 Frangible bone dynamic bending fracture test (see √
Figures A.20 - A.26)
* 6.4 Frangible bone dynamic torsional fracture test √
4.11.2 Modified lower leg skin (see Figure A.19) √
5.1 Frangible component initial conformity of production √
5.2 Frangible component subsequent conformity of √
production (see Table 5)
7.1 Marking √
7.2 Documentation √
Part 4 Variables to be measured, instrumentation, and
measurement procedures (all referenced figures and
tables are in ISO 13232-4)
4.1.1 Required electronically recorded variables √
* 5.2.1 Electronic data reduction (see Table 7) √
a) first MC/OV contact occurrence √
* 5.1 Pre-test measurements related to data reduction √
* 5.2.4.1 Time base analysis
√
b) head (nine linear accelerometers):
1) a
√
2) a √
3) a
√
4) a √
5) a √
6) a
√
7) a √
8) a
√
9) a
√
4.4.1.1 Head accelerometers (see Figures 1 and 2) √
c) chest:
1) l √
uL
2) l
√
uR
3) l
√
lL
4) l √
lR
4.4.1.3 Chest potentiometers (see Figure 3) √
4.1.1.1 Upper neck:
1) F
√
x,n
2) F
√
y,n
24 © ISO 2005 – All rights reserved

Complied with
a a
a
Explanation, if not complied with (If necessary, attach
Req Rec Per
additional pages)
Yes No
3) F
√
z,n
4) M √
x,n
Part 4 Variables to be measured, instrumentation, and
measurement procedures (all referenced figures and
tables are in ISO 13232-4) (continued)
5) M
√
y,n
6) M √
z,n
4.4.1.2 Upper neck load cell √
4.1.1.2 Required for leg protective device evaluation
a) left and right upper femur:
1) F √
z,uF
2) M √
x,uF
3) M
√
y,uF
4.4.1.5 Upper femur load cells √
b) left and right upper tibia:
1) M √
x,uT
2) M √
y,uT
4.4.1.6 Frangible leg bone strain gauges (see √
Table 2 and Figure 4)
* 5.2.2 Calibration of frangible leg bone strain √
gauges
4.1.3 Permissible electronically recorded variables
a) lumbar spine:
1) F
√
x,l
2) F  √
y,l
3) F  √
z,l
4) M
√
x,l
5) M  √
y,l
6) M
√
z,l
4.4.1.4 Lumbar load cell  √
b) left and right upper femur
1) F
√
z,uF
2) M  √
x,uF
3) M
√
y,uF
4) M
√
z,uF
4.4.1.5 Upper femur load cells  √
c) left and right lower femur:
1) F  √
z,lF
2) M
√
x,lF
3) M
√
y,lF
4) M  √
z,lF
Complied with
a a
a
Explanation, if not complied with (If necessary, attach
Req Rec Per
additional pages)
Yes No
4.4.1.6 Frangible leg bone strain gauges (see  √
Table 2 and Figure 4)
d) left and right upper tibia
1) M  √
x,uT
2) M
√
y,uT
3) M
√
z,uT
Part 4 Variables to be measured, instrumentation, and
measurement procedures (all referenced figures and
tables are in ISO 13232-4) (continued)
4.4.1.6 Frangible leg bone strain gauges (see  √
Table 2 and Figure 4)
f) left and right lower tibia:
1) F  √
z,lT
2) M
√
x,lT
3) M
√
y,lT
4.4.1.6 Frangible leg bone strain gauges (see  √
Table 2 and Figure 4)
4.2 Mechanically recorded variables
a) abdomen maximum residual penetration √
b) left and right femur fracture occurrence √
c) left and right knee varus valgus dislocation occurrence √
d) left and right knee torsional dislocation occurrence √
e) left and right tibia fracture occurrence √
4.4.2 Mechanical sensor specifications √
1) abdominal foam insert √
2) frangible femur and tibia bones √
3) knee compliance elements √
4) knee shear pins √
* 5.2.3 Frangible component data reduction √
* 5.2.3.1 Tibia and femur bones √
* 5.2.3.2 Knee torsional and varus valgus shear pins √
* 5.2.3.3 Abdominal insert √
4.3.1 Helmet centroid point
* 5.2.4.2 Helmet trajectory analysis √
* 5.1 Pre-test measurements related to data reduction √
* Annex A Digitizing the helmet centroid point √
1) x √
h
2) y
√
h
3) z √
...
