ISO 13782:2019

Implants for surgery - Metallic materials - Unalloyed tantalum for surgical implant applications

This document specifies the characteristics of, and corresponding test methods for, unalloyed tantalum sheet, rod and wire used in the manufacture of surgical implants. NOTE 1 Provision is made for two grades of tantalum.

Implants chirurgicaux — Matériaux métalliques — Tantale non allié utilisé dans les implants chirurgicaux

General Information

• Status: Published
• Publication Date: 25-Apr-2019
• ICS: 11.040.40 - Implants for surgery, prosthetics and orthotics
• Technical Committee: ISO/TC 150/SC 1 - Materials
• Drafting Committee: ISO/TC 150/SC 1/WG 4 - Metals
• Current Stage: 9092 - International Standard to be revised
• Start Date: 17-Sep-2024
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 13782:1996 - Implants for surgery - Metallic materials - Unalloyed tantalum for surgical implant applications
• Effective Date: 10-Dec-2016

Overview

ISO 13782:2019 defines the required characteristics and corresponding test methods for unalloyed tantalum used in surgical implants. The standard applies to tantalum supplied as sheet, rod and wire and provides requirements for chemical composition, microstructure and mechanical properties. Two grades are accommodated to reflect different production routes (electron beam or vacuum-arc cast and sintered materials).

Key practical points covered by the standard:

• Material forms: sheet, rod and wire for implant manufacture
• Two grades (RO5200 - electron beam/vacuum-arc cast; RO5400 - sintered)
• Analytical and mechanical test requirements to demonstrate conformity

Key Topics

• Chemical composition: The standard lists limits for major and minor elemental constituents (carbon, oxygen, nitrogen, hydrogen, niobium, iron, titanium, tungsten, molybdenum, silicon, nickel) with tantalum as the balance. Hydrogen analysis is required after final heat and surface treatment.

• Microstructure: The microscopic structure shall be uniform and the grain size shall not be coarser than grain size No. 5 (determined per the referenced method).

• Mechanical properties: Tensile strength, yield or proof strength and percentage elongation after fracture are specified for different forms, diameters and conditions (annealed, stress-relieved, cold-worked). The standard describes retest and acceptance rules for tensile specimens.

• Test methods and sampling: Recognized analytical procedures and specific standards are referenced for test methods. Representative tensile test pieces shall be prepared in accordance with ISO 6892-1; grain size shall be determined by ISO 643.

Applications

ISO 13782:2019 is aimed at manufacturers, material suppliers, design engineers and quality teams involved in the production and qualification of surgical implants where unalloyed tantalum is selected for its corrosion resistance and biocompatibility. Typical application benefits include:

• Consistent material quality for implants (pins, wire-based devices, porous structures made from wire/rod or sheet components)
• Clear acceptance criteria for incoming material inspection and supplier qualification
• Traceable test methods that support regulatory and conformity assessment activities

Related Standards

The document references and relies on established test standards, including:

• ISO 6892-1 - Metallic materials - Tensile testing (preparation and test method for tensile properties)
• ISO 643 - Micrographic determination of apparent grain size

These referenced standards specify the test procedures and specimen preparation required to demonstrate conformity with ISO 13782:2019.

For manufacturers and procurement teams, ISO 13782:2019 provides a concise, practical framework to specify, test and accept unalloyed tantalum materials used in surgical implant applications.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13782
Second edition
2019-04
Implants for surgery — Metallic
materials — Unalloyed tantalum for
surgical implant applications
Implants chirurgicaux — Produits à base de métaux — Tantale non
allié utilisé dans les implants chirurgicaux
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Chemical composition . 1
5 Microstructure . 2
6 Mechanical properties . 2
7 Test methods . 3

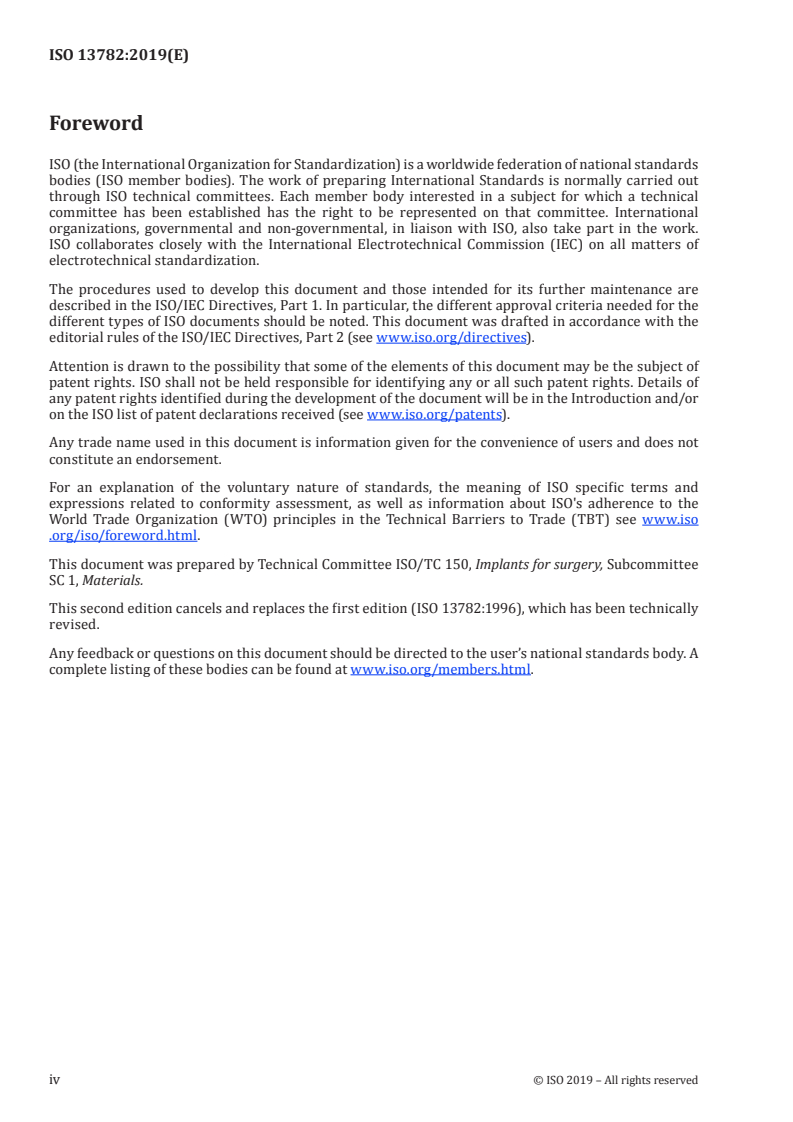

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 150, Implants for surgery, Subcommittee
SC 1, Materials.
This second edition cancels and replaces the first edition (ISO 13782:1996), which has been technically
revised.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete l
...
