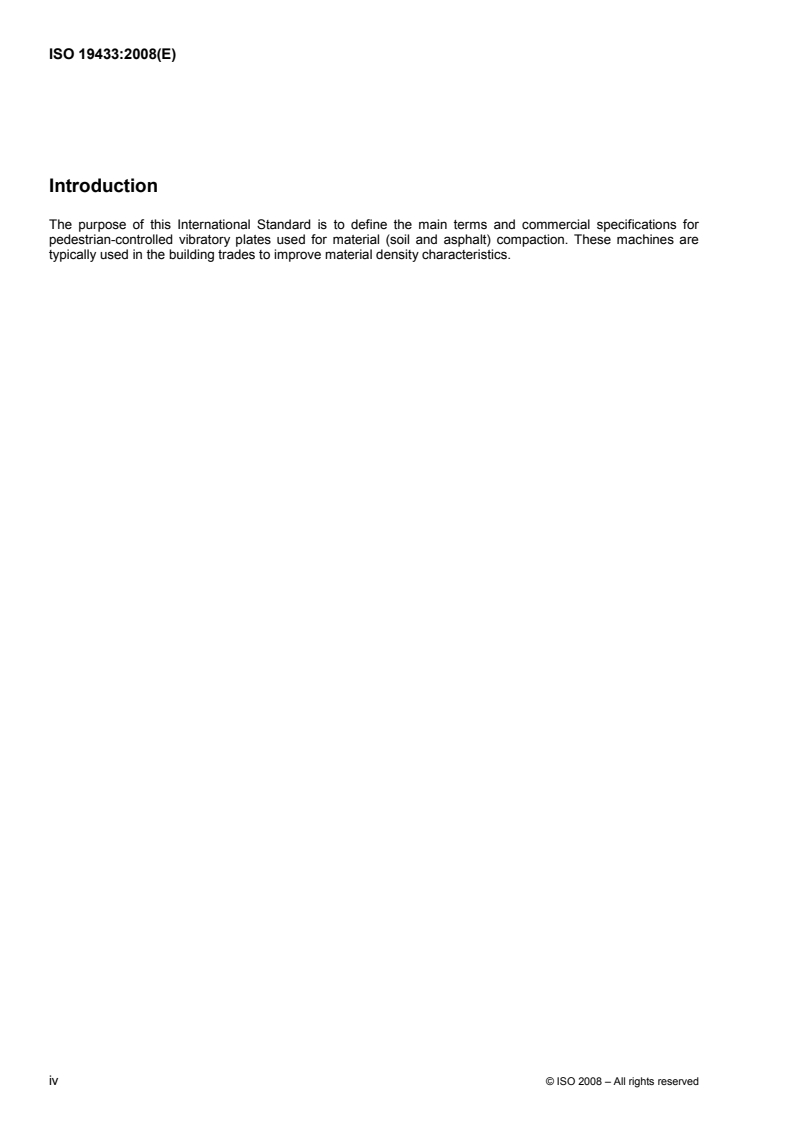

Introduction

The purpose of this International Standard is to define the main terms and commercial specifications for

pedestrian-controlled vibratory plates used for material (soil and asphalt) compaction. These machines are

typically used in the building trades to improve material density characteristics.

iv © ISO 2008 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 19433:2008(E)
Building construction machinery and equipment —
Pedestrian-controlled vibratory plates — Terminology and
commercial specifications
1 Scope

This International Standard provides a terminology and sets out the commercial specifications for

pedestrian-controlled vibratory plates used in building construction. It is applicable to both forward- and

reversible-type plates. These plate compactors are intended for the mechanical compaction of all disturbed

soil, sand or aggregates used for load-bearing purposes — whether in new construction or repairs.

2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
pedestrian-controlled vibratory plate

direct- or remote-controlled machine designed for the purpose of improving material density and stiffness

NOTE The machine compacts material through vibration and impact force generated by the vibrator shaft to the base

plate and transmitted to the material.
2.1.1
forward-type vibratory plate
machine designed to move in only one direction, forward
See Figure 1 a).
2.1.2
reversible-type vibratory plate

machine designed to move in two directions, both forward (away from the operator) and reverse (towards the

operator)
See Figure 1 b).
2.2
prime mover
driving energy source for vibrator mechanism
2.3
transmission

system of components that translates the prime mover energy to the vibrator mechanism

2.4
base plate

machine element that locates the vibrator mechanism and comes in contact with the material being

compacted
See Figure 1.
