Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 16858
First edition
2013-12-15
Ships and marine technology — Loose
gear of lifting appliances on ships —
Pulleys
Navires et technologie maritime — Accessoires mobiles des appareils
de levage sur les navires — Poulies
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Sheave components . 1
4 Designation of sheaves . 3
5 Technical requirements . 3
5.1 Materials . 3
5.2 Ranges . 3
5.3 Process . 3
5.4 Assembly requirements . 4
5.5 Accuracy requirements . 4
5.6 Special explanations . 7
6 Test requirements . 7
7 Inspection rules . 7
8 Package, transportation, and storage . 8
8.1 Package . 8
8.2 Transportation . 8
8.3 Storage . 8
9 Use, maintenance, and scrapping standards of sheaves . 8
Annex A (informative) Common hot-rolled sheave ranges . 9
Bibliography .14

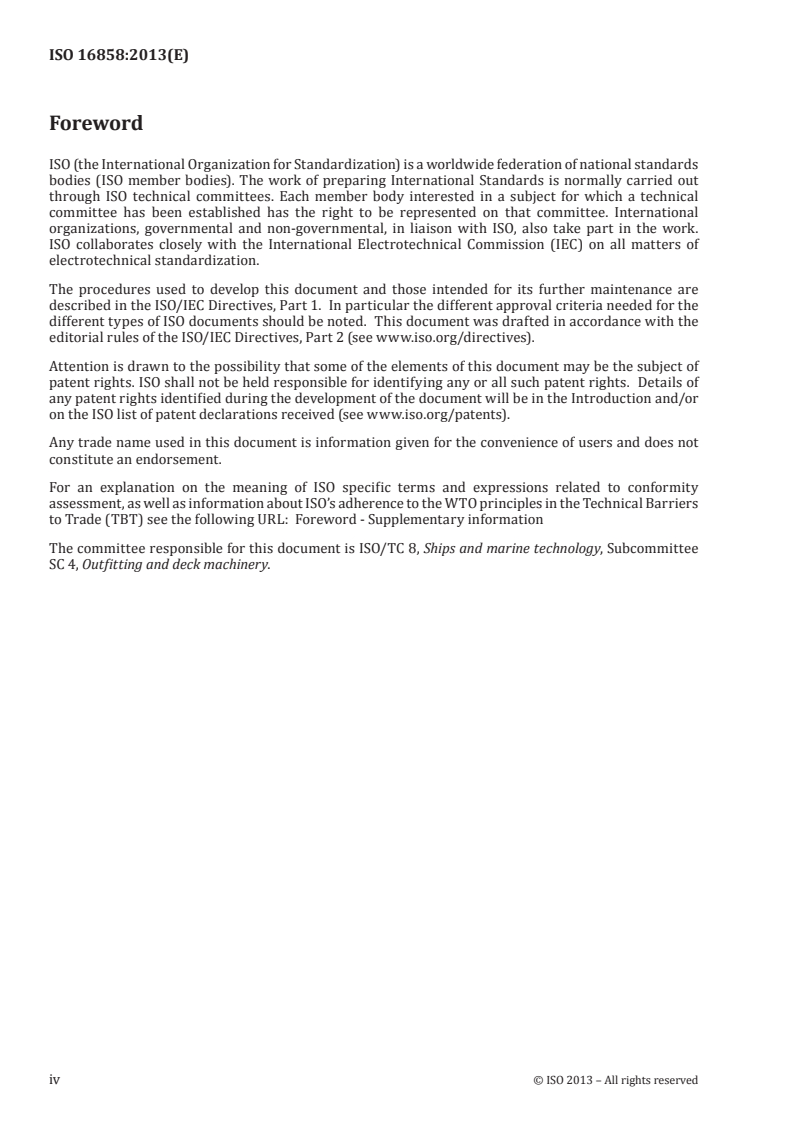

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 4, Outfitting and deck machinery.
iv © ISO 2013 – All rights reserved

INTERNATIONAL STANDARD ISO 16858:2013(E)
Ships and marine technology — Loose gear of lifting
appliances on ships — Pulleys
1 Scope
This International Standard specifies the structural types, basic parameters, technical requirements,
test methods, inspection rules, marking, storage, and transportation of sheaves, loose gear of lifting
appliances on ships.
This International Standard is applicable to hot-rolled sheaves of lifting appliances on ships.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 16855, Ships and Marine Technology — Loose gear of lifting appliances on ships — General requirements
3 Sheave components
For the components and basic dimensions of hot-rolled sheaves, see Figure 1.
Key
1 rim
2 plate
3 hub
4 bolt
5 spacer
6 spacer sleeve
7 bearing
8 dust washer (optional)
Figure 1 — Sheave components
2 © ISO 2013 – All rights reserved

4 Designation of sheaves
Figure — Example
5 Technical requirements
5.1 Materials
The materials of sheave components shall comply with the provisions in Table 1.
Table 1 — Requirements of component materials
Component name Materials
Rim, plate, hub σs ≥ 235 MPa for common carbon steel
Spacer σs ≥ 235 MPa for common carbon steel or σb ≥ 160 MPa for gray cast-iron
Spacer sleeve σs ≥ 600 MPa for quality carbon steel
Bolt Above grade 8,8 specified in ISO 898
Dust cover Wool felt
5.2 Ranges
For the ranges of sheaves, see Annex A.
5.3 Process
5.3.1 Rims and web
The rims and web of sheaves shall be manufactured from a single steel piece, with groove produced by
hot rolling process.
5.3.2 Welding and weld
5.3.2.1 Welding materials used for sheaves shall match the strength of welded materials, in accordance
with International Standards.
5.3.2.2 The rims and hubs of sheaves shall be welded with groove weld, with double groove preferred.
The types of weld shall be in accordance with the related provisions of ISO.
5.3.2.3 The appearance shall have no quality defects such as steel pits, splashes, slag, undercuts, and
surface cracks after welding.
5.3.2.4 After welding of rims and hubs, and before machining of sheaves, the sheave weld shall be
adequately stabilized through thermal or vibratory stress relief, to ensure dimensional stability.
5.3.3 Surface treatment
5.3.3.1 The surface roughness of rope grooves shall not be less than 12,5; their surface hardness shall
be HB260 minimum.
5.3.3.2 Machining positions of sheaves and open positions such as spacer sleeves shall be painted with
antirust oil to prevent corrosion; non-machining positions shall be painted with antirust paint after the
surface removal of rust.
5.4 Assembly requirements
5.4.1 Components can be assembled only after they pass tests.
5.4.2 Rolling bearings shall be cleaned before assembly,
...


INTERNATIONAL ISO
STANDARD 16858
First edition
2013-12-15
Ships and marine technology — Loose
gear of lifting appliances on ships —
Pulleys
Navires et technologie maritime — Accessoires mobiles des appareils
de levage sur les navires — Poulies
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Sheave components . 1
4 Designation of sheaves . 3
5 Technical requirements . 3
5.1 Materials . 3
5.2 Ranges . 3
5.3 Process . 3
5.4 Assembly requirements . 4
5.5 Accuracy requirements . 4
5.6 Special explanations . 7
6 Test requirements . 7
7 Inspection rules . 7
8 Package, transportation, and storage . 8
8.1 Package . 8
8.2 Transportation . 8
8.3 Storage . 8
9 Use, maintenance, and scrapping standards of sheaves . 8
Annex A (informative) Common hot-rolled sheave ranges . 9
Bibliography .14
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 4, Outfitting and deck machinery.
iv © ISO 2013 – All rights reserved

INTERNATIONAL STANDARD ISO 16858:2013(E)
Ships and marine technology — Loose gear of lifting
appliances on ships — Pulleys
1 Scope
This International Standard specifies the structural types, basic parameters, technical requirements,
test methods, inspection rules, marking, storage, and transportation of sheaves, loose gear of lifting
appliances on ships.
This International Standard is applicable to hot-rolled sheaves of lifting appliances on ships.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 16855, Ships and Marine Technology — Loose gear of lifting appliances on ships — General requirements
3 Sheave components
For the components and basic dimensions of hot-rolled sheaves, see Figure 1.
Key
1 rim
2 plate
3 hub
4 bolt
5 spacer
6 spacer sleeve
7 bearing
8 dust washer (optional)
Figure 1 — Sheave components
2 © ISO 2013 – All rights reserved

4 Designation of sheaves
Figure — Example
5 Technical requirements
5.1 Materials
The materials of sheave components shall comply with the provisions in Table 1.
Table 1 — Requirements of component materials
Component name Materials
Rim, plate, hub σs ≥ 235 MPa for common carbon steel
Spacer σs ≥ 235 MPa for common carbon steel or σb ≥ 160 MPa for gray cast-iron
Spacer sleeve σs ≥ 600 MPa for quality carbon steel
Bolt Above grade 8,8 specified in ISO 898
Dust cover Wool felt
5.2 Ranges
For the ranges of sheaves, see Annex A.
5.3 Process
5.3.1 Rims and web
The rims and web of sheaves shall be manufactured from a single steel piece, with groove produced by
hot rolling process.
5.3.2 Welding and weld
5.3.2.1 Welding materials used for sheaves shall match the strength of welded materials, in accordance
with International Standards.
5.3.2.2 The rims and hubs of sheaves shall be welded with groove weld, with double groove preferred.
The types of weld shall be in accordance with the related provisions of ISO.
5.3.2.3 The appearance shall have no quality defects such as steel pits, splashes, slag, undercuts, and
surface cracks after welding.
5.3.2.4 After welding of rims and hubs, and before machining of sheaves, the sheave weld shall be
adequately stabilized through thermal or vibratory stress relief, to ensure dimensional stability.
5.3.3 Surface treatment
5.3.3.1 The surface roughness of rope grooves shall not be less than 12,5; their surface hardness shall
be HB260 minimum.
5.3.3.2 Machining positions of sheaves and open positions such as spacer sleeves shall be painted with
antirust oil to prevent corrosion; non-machining positions shall be painted with antirust paint after the
surface removal of rust.
5.4 Assembly requirements
5.4.1 Components can be assembled only after they pass tests.
5.4.2 Rolling bearings shall be cleaned before assembly,
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
