Information technology - Wireless Beacon-enabled Energy Efficient Mesh network (WiBEEM) for wireless home network services

ISO/IEC 29145-3:2014(E) specifies the network layer (NWK) of the WiBEEM (Wireless Beacon-enabled Energy Efficient Mesh network) protocol for wireless home network services that supports a low power-consuming wireless mesh network as well as device mobility and QoS.

Titre manque

General Information

Status
Published
Publication Date
21-May-2014
Current Stage
6060 - International Standard published
Start Date
21-May-2014
Completion Date
22-May-2014
Ref Project

Buy Standard

Standard
ISO/IEC 29145-3:2014 - Information technology - Wireless Beacon-enabled Energy Efficient Mesh network (WiBEEM) for wireless home network services
English language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

ISO/IEC 29145-3
Edition 1.0 2014-03
INTERNATIONAL
STANDARD
Information technology – Wireless beacon-enabled energy efficient mesh
network (WiBEEM) for wireless home network services –
Part 3: NWK layer
ISO/IEC 29145-3:2014-03(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2014 ISO/IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about

ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address

below or your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
ISO/IEC 29145-3
Edition 1.0 2014-03
INTERNATIONAL
STANDARD
Information technology – Wireless beacon-enabled energy efficient mesh
network (WiBEEM) for wireless home network services –
Part 3: NWK layer
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
ICS 35.200 ISBN 978-2-8322-1450-3

Warning! Make sure that you obtained this publication from an authorized distributor.

---------------------- Page: 3 ----------------------

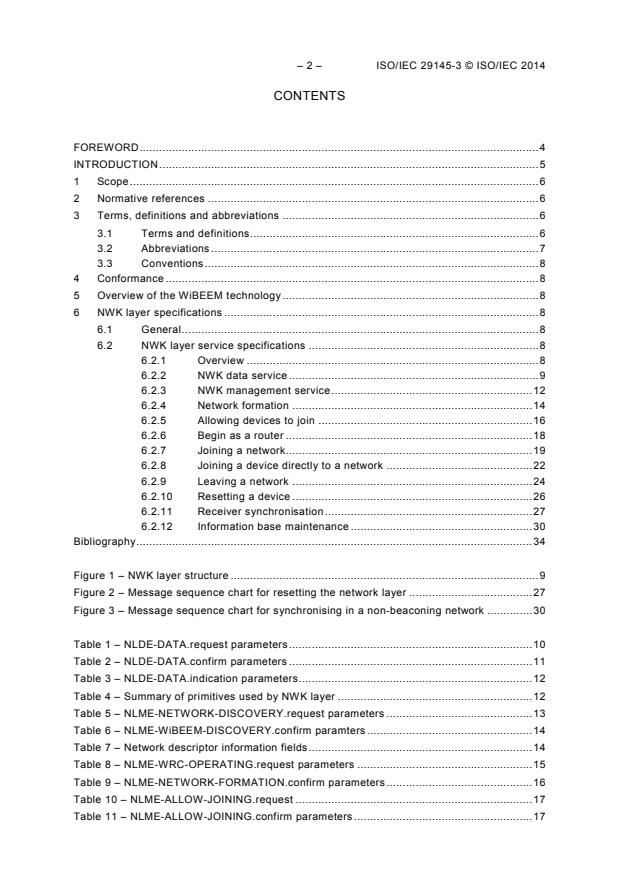

– 2 – ISO/IEC 29145-3 © ISO/IEC 2014
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviations ............................................................................... 6

3.1 Terms and definitions ......................................................................................... 6

3.2 Abbreviations ..................................................................................................... 7

3.3 Conventions ....................................................................................................... 8

4 Conformance ................................................................................................................... 8

5 Overview of the WiBEEM technology ............................................................................... 8

6 NWK layer specifications ................................................................................................. 8

6.1 General .............................................................................................................. 8

6.2 NWK layer service specifications ....................................................................... 8

6.2.1 Overview .......................................................................................... 8

6.2.2 NWK data service ............................................................................. 9

6.2.3 NWK management service .............................................................. 12

6.2.4 Network formation .......................................................................... 14

6.2.5 Allowing devices to join .................................................................. 16

6.2.6 Begin as a router ............................................................................ 18

6.2.7 Joining a network ............................................................................ 19

6.2.8 Joining a device directly to a network ............................................. 22

6.2.9 Leaving a network .......................................................................... 24

6.2.10 Resetting a device .......................................................................... 26

6.2.11 Receiver synchronisation ................................................................ 27

6.2.12 Information base maintenance ........................................................ 30

Bibliography .......................................................................................................................... 34

Figure 1 – NWK layer structure ............................................................................................... 9

Figure 2 – Message sequence chart for resetting the network layer ...................................... 27

Figure 3 – Message sequence chart for synchronising in a non-beaconing network .............. 30

Table 1 – NLDE-DATA.request parameters ........................................................................... 10

Table 2 – NLDE-DATA.confirm parameters ........................................................................... 11

Table 3 – NLDE-DATA.indication parameters ........................................................................ 12

Table 4 – Summary of primitives used by NWK layer ............................................................ 12

Table 5 – NLME-NETWORK-DISCOVERY.request parameters ............................................. 13

Table 6 – NLME-WiBEEM-DISCOVERY.confirm paramters ................................................... 14

Table 7 – Network descriptor information fields ..................................................................... 14

Table 8 – NLME-WRC-OPERATING.request parameters ...................................................... 15

Table 9 – NLME-NETWORK-FORMATION.confirm parameters ............................................. 16

Table 10 – NLME-ALLOW-JOINING.request ......................................................................... 17

Table 11 – NLME-ALLOW-JOINING.confirm parameters ....................................................... 17

---------------------- Page: 4 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 3 –

Table 12 – NLME-SET-SUPERFRAME.request parameters .................................................. 18

Table 13 – NLME-SET-SUPERFRAME.confirm parameters .................................................. 19

Table 14 – NLME-JOIN.request parameters .......................................................................... 20

Table 15 – NLME-JOIN.indication parameters ....................................................................... 21

Table 16 – NLME-JOIN.confirm parameters .......................................................................... 22

Table 17 – NLME-DETERMINED-JOIN.request parameters .................................................. 22

Table 18 – Capability information parameter format .............................................................. 23

Table 19 – NLME-DETERMINED-JOIN.confirm parameters .................................................. 23

Table 20 – NLME-LEAVE.request parameters ....................................................................... 24

Table 21 – NLME-LEAVE.indication parameters ................................................................... 25

Table 22 – NLME-LEAVE.confirm parameters ....................................................................... 25

Table 23 – NLME-RESET.confirm parameters ...................................................................... 27

Table 24 – NLME-SYNC.request parameters ........................................................................ 28

Table 25 – NLME-SYNC.confirm parameters ........................................................................ 29

Table 26 – NLME-READ-NIB.request parameters ................................................................. 30

Table 27 – NLME-READ-NIB.confirm parameters ................................................................. 31

Table 28 – NLME-WRITE-NIB.request parameters ................................................................ 32

Table 29 – NLME-WRITE-NIB.confirm parameters ................................................................ 33

---------------------- Page: 5 ----------------------
– 4 – ISO/IEC 29145-3 © ISO/IEC 2014
INFORMATION TECHNOLOGY –
WIRELESS BEACON-ENABLED ENERGY EFFICIENT MESH
NETWORK (WIBEEM) FOR WIRELESS HOME NETWORK SERVICES –
Part 3: NWK layer
FOREWORD

1) ISO (International Organization for Standardization) and IEC (International Electrotechnical Commission) form the

specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in

the development of International Standards. Their preparation is entrusted to technical committees; any ISO and

IEC member body interested in the subject dealt with may participate in this preparatory work. International

governmental and non-governmental organizations liaising with ISO and IEC also participate in this preparation.

2) In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.

3) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an

international consensus of opinion on the relevant subjects since each technical committee has representation

from all interested IEC and ISO member bodies.

4) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted

by IEC and ISO member bodies in that sense. While all reasonable efforts are made to ensure that the

technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held responsible for

the way in which they are used or for any misinterpretation by any end user.

5) In order to promote international uniformity, IEC and ISO member bodies undertake to apply IEC, ISO and

ISO/IEC publications transparently to the maximum extent possible in their national and regional publications.

Any divergence between any ISO/IEC publication and the corresponding national or regional publication

should be clearly indicated in the latter.

6) ISO and IEC provide no marking procedure to indicate their approval and cannot be rendered responsible for

any equipment declared to be in conformity with an ISO/IEC publication.

7) All users should ensure that they have the latest edition of this publication.

8) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts

and members of their technical committees and IEC or ISO member bodies for any personal injury, property

damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees)

and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC publication or any other IEC,

ISO or ISO/IEC publications.

9) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

10) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

International Standard ISO/IEC 29145-3 was prepared by subcommittee 25: Interconnection

of information technology equipment, of ISO/IEC joint technical committee 1: Information

technology.

The list of all currently available parts of the ISO/IEC 29145 series, under the general title

Information technology – Wireless beacon-enabled energy efficient mesh network (WiBEEM)

for wireless home network services, can be found on the IEC web site.

This International Standard has been approved by vote of the member bodies, and the voting

results may be obtained from the address given on the second title page.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 5 –
INTRODUCTION

This International Standard specifies the WiBEEM (Wireless Beacon-enabled Energy Efficient

Mesh network) protocol, which provides low-power-consuming mesh network functions by

enabling the “beacon mode operation”. WiBEEM is based on the IEEE 802.15.4 standard with

additional upper layer protocols and a specific usage of the MAC layer protocol. Through the

novel use of beacons, WiBEEM technology achieves longer battery life, larger network

support, quicker response, enhanced mobility and dynamic reconfiguration of the network

topology compared with other protocols such as ZigBee.

In the beacon mode, beacon information propagates over the entire mesh network nodes

during the BOP (Beacon-Only Period) of the superframe structure without any beacon

conflicts by utilising a smart beacon scheduling technique in the BOP. It also provides

location information about moving devices without spending extra time running a positioning

and locating algorithm by using RSSI (Received Signal Strength Indication). These features

allow the WiBEEM protocol to be widely used for wireless home network services in the

ubiquitous network era.

One of the key features of the WiBEEM protocol is that it has a special time interval called

BOP (Beacon-Only Period) in the superframe structure that allows more than two beacons to

be transmitted. This unique time period is located at the beginning of the Superframe.

Because the BOP does not use the CSMA/CA mechanism, the network will not work properly

in the beacon mode unless an appropriate algorithm is applied. This algorithm needs to

manage and control multiple beacons in a single superframe. The solution is the Beacon

Scheduling method applied in the BOP to avoid collisions among beacons, providing

synchronisation among all the nodes of the entire mesh network.

For the network layer, the NAA (Next Address Available) mechanism, which is a short address

allocation algorithm, has been adopted to provide an efficient way of utilising the complete 16-

bit address space. The NAA algorithm does not limit the maximum number of children nodes

that a node of a mesh network can have. Since the number of children nodes is unlimited, the

NAA mechanism allows the WiBEEM protocol to be used not only for home network services,

but also for community services. WiBEEM can be used where high network expandability

through efficient use of short address spaces, device mobility and end-to-end QoS are

required.

This part of ISO/IEC 29145 specifies the network layer (NWK) of the WiBEEM protocol for

wireless home network services that support a low-power-consuming wireless mesh network

as well as device mobility and QoS.
---------------------- Page: 7 ----------------------
– 6 – ISO/IEC 29145-3 © ISO/IEC 2014
INFORMATION TECHNOLOGY –
WIRELESS BEACON-ENABLED ENERGY EFFICIENT MESH
NETWORK (WIBEEM) FOR WIRELESS HOME NETWORK SERVICES –
Part 3: NWK layer
1 Scope

This part of ISO/IEC 29145 specifies the network layer (NWK) of the WiBEEM (Wireless

Beacon-enabled Energy Efficient Mesh network) protocol for wireless home network services

that support a low-power-consuming wireless mesh network as well as device mobility and

quality of service.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

ISO/IEC 29145-1:2014, Information technology – Wireless beacon-enabled energy efficient

mesh network (WiBEEM) for wireless home network services – Part 1: PHY layer
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
association
service used to establish the membership of a device in a wireless mesh network
3.1.2
co-ordinator

wireless device configured to provide synchronisation services through the transmission of

beacons

Note 1 to entry: If a co-ordinator is the principal controller of a wireless mesh network, it is called the WMC

(WiBEEM mesh co-ordinator).
3.1.3
device

entity containing an implementation of the WiBEEM applications, NWK, MAC and physical

interface to the wireless medium
3.1.4
frame

data format of aggregated bits from a medium access control (MAC) layer entity transmitted in

a specified sequence
---------------------- Page: 8 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 7 –
3.1.5
packet

format of aggregated bits transmitted in a specified sequence across the physical medium

3.1.6
personal operating space

space of typically about 10 m around a person or an object, no matter whether this person or

object is stationary or in motion
3.1.7
protocol data unit
unit of data exchanged between two peer entities
3.1.8
WiBEEM end device
WiBEEM device acting as the leaf device of a mesh network
3.1.9
WiBEEM mesh co-ordinator
WiBEEM device acting as the principal controller of a mesh network
Note 1 to entry: A WiBEEM mesh network has exactly one WiBEEM mesh co-ordinator.
3.1.10
WiBEEM routable co-ordinator
WiBEEM device acting as the router of a mesh network
3.1.11
wireless medium

medium used to implement the transfer of protocol data units (PDUs) between peer physical

layer (PHY) entities of a low-rate wireless mesh network
3.2 Abbreviations

The following acronyms and abbreviations are used in this standard and commonly used in

other industry publications.
AES Advanced Encryption Standard
ARQ Automatic Request-Response
BO Beacon Order
BOP Beacon Only Period
BTTSL Beacon Transmit Time Slot Length
CAP Contention Access Period
ID Identifier
MIB Management Information Base
NAA Next Address Available
PDU Protocol Data Unit
PQP Prioritised QoS Period
QoS Quality of Service
RAP Reservation-Based Access Period
WED WiBEEM End Device
WiBEEM Wireless Beacon-enabled Energy Efficient Mesh network
WMC WiBEEM Mesh Co-ordinator
---------------------- Page: 9 ----------------------
– 8 – ISO/IEC 29145-3 © ISO/IEC 2014
WRC WiBEEM Routable Co-ordinator
3.3 Conventions

All the italicised words used in this standard represent relevant constants defined and stored

in the MIB (management information base) of each layer.
4 Conformance

A WiBEEM device that claims conformance to this part of ISO/IEC 29145 shall implement all

the primitives that are specified in 6.2. Each WiBEEM device shall be able to act as a WMC, a

WRC and a WED. When operating in the role of a WMC it shall act as specified in 5.3.2 of

ISO/IEC 29145-1:2014, when operating in the role of a WRC, it shall act as specified in 5.3.3

of ISO/IEC 29145-1:2014, and when operating in the role of a WED, it shall act as specified in

5.3.3 of ISO/IEC 29145-1.
5 Overview of the WiBEEM technology

Clause 5 of ISO/IEC 29145-1:2014 presents an overview of the WiBEEM technology and the

functionalities of the WiBEEM devices.
6 NWK layer specifications
6.1 General

This clause specifies the NWK layer of this standard. The NWK layer handles network

management, message broker and routing. This clause specifies the services that shall be

provided by the WiBEEM NWK layer.

Constants and attributes that are specified and maintained by the MAC layer are written in the

text of this clause in italics. Constants have a general prefix of “a”. Attributes have a general

prefix of “mac”.
6.2 NWK layer service specifications
6.2.1 Overview

The NWK layer services provide an interface between the NWK layer and the APP layer. The

NWK layer provides two services, accessed through two SAPs:
– MAC data service, accessed through the NWK layer data SAP (NLDE-SAP); and
– NWK management service, accessed through the NLME-SAP.
Figure 1 depicts the elements and interfaces of NWK layer.
---------------------- Page: 10 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 9 –
NLME-WiBEEM-DISCOVERY.request
NLME-WiBEEM-DISCOVERY.confirm
NLME-WRC-OPERATING.request
NLME-WRC-OPERATING.confirm
NLME-ALLOW-JOINING.request
NLME-ALLOW-JOINING.confirm
NLME-SET-SUPERFRAME.request NLME-SET-SUPERFRAME.confirm
NLDE-DATA.confirm
NLME-JOIN.request
NLME-JOIN.confirm
NLDE-DATA.indication
NLME-DETERMINED-JOIN.request
NLME-JOIN.indication
NLME-LEAVE.request
NLME-DETERMINED-JOIN.confirm
NLME-RESET.request
NLME-LEAVE.confirm
NLME-SYNC.request
NLME-LEAVE.indication
NLME-READ-NIB.request
NLME-RESET.confirm
NLME-WRITE-NIB.request NLME-SYNC.confirm
NLME-SYNC.indication
NLDE-DATA.request
NLME-READ-NIB.confirm
NLME-WRITE-NIB.confirm
Next Higher Layer Entity
nwkBCSN
nwkPassiveAckTimeout
NLDE-SAP NLME-SAP
nwkMaxBroadcastRetries
nwkMaxChildren
nwkMaxDepth
nwkMaxRouters
nwkNeighborTable
nwkNetworkBroadcastDeliveryTime
NLDE NLME
nwkReportConstantCost
nwkRouteDiscoveryRetriesPermitted
NIB
nwkRouteTable
nwkSecureAllFrames
nwkSecurityLevel
MLDE-SAP MLME-SAP
nwkSymLink
nwkCapabilityformation
MAC Layer Entity
wakeupSuperframePeriod
Figure 1 – NWK layer structure
6.2.2 NWK data service
6.2.2.1 Overview

The NWK layer data entity SAP (NLDE-SAP) supports the transport of application protocol

data units (APDUs) between peer application entities.
6.2.2.2 NLDE-DATA.request
6.2.2.2.1 Function

This primitive requests the transfer of a data PDU (NSDU) from the local Application layer

entity to a single or multiple peer application layer entities.
6.2.2.2.2 Semantics of the service primitive
The semantics of this primitive is as follows:
DE-DATA.request (
DstAddr,
NsduLength,
Nsdu,
NsduHandle,
BroadcastRadius,
DiscoverRoute,
SecurityEnable
---------------------- Page: 11 ----------------------
– 10 – ISO/IEC 29145-3 © ISO/IEC 2014
Table 1 specifies the parameters for the NLDE-DATA.request primitive.
Table 1 – NLDE-DATA.request parameters
Name Type Valid range Description
The network address of the entity or entities to
DstAddr Device address Specified by the DstAddr
which the NSDU is being transferred.
The number of octets comprising the NSDU
NsduLength integer
≤nwkcMaxPayloadSize
to be transferred.
The set of octets comprising the NSDU to be
Nsdu Set Of Octets –
transferred.
The handle associated with the NSDU to be
NsduHandle integer 0x00 to 0xff
transmitted by the NWK layer entity.
The distance, in hops, that a broadcast frame
BroadcastRadius integer 0x00 to 0xff
will be allowed to travel through the network.
The DiscoverRoute parameter may be used to
enable route discovery operations for the transit
of this frame.
DiscoverRoute Boolean TRUE or FALSE
TRUE = enable route discovery
FALSE = disable route discovery
The SecurityEnable parameter may be used

Security enable Boolean TRUE or FALSE to enable NWK layer security processing for

the current frame.
6.2.2.2.3 When generated

This primitive is generated by a local APS sublayer entity whenever a data PDU (NSDU) is to

be transferred to a peer APS sublayer entity.
6.2.2.2.4 Effect on receipt

On receipt of this primitive on a device that is not currently associated, the NWK layer will

issue an NLDE-DATA.confirm primitive with a status of INVALID_REQUEST.

On receipt of this primitive, the NLDE first constructs an NPDU in order to transmit the

supplied NSDU.

If, during processing, the NLDE issues the NLDE-DATA.confirm primitive prior to transmission

of the NSDU, all further processing is aborted.
6.2.2.3 NLDE-DATA.confirm
6.2.2.3.1 Function

This primitive reports the results of a request to transfer a data PDU (NSDU) from a local APS

sublayer entity to a single peer APS sublayer entity.
6.2.2.3.2 Semantics of the service primitive
The semantics of this primitive is as follows:
NLDE-DATA.confirm (
NsduHandle,
Status
Table 2 specifies the parameters for the NLDE-DATA.confirm primitive.
---------------------- Page: 12 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 11 –
Table 2 – NLDE-DATA.confirm parameters
Name Type Valid range Description
The handle associated with the
nsduHandle Integer 0x00 to 0xff
NSDU being confirmed.
SUCCESS, TRANSACTION_OVERFLOW,
TRANSACTION_EXPIRED,
CHANNEL_ACCESS_FAILURE,
INVALID_GTS, NO_ACK, The status of the corresponding
Status Enumeration
UNAVAILABLE_KEY, request.
FRAME_TOO_LONG,
FAILED_SECURITY_CHECK,
or INVALID_PARAMETER
6.2.2.3.3 When generated

This primitive is generated by the local NLDE in response to the reception of an NLDE-

DATA.request primitive.
6.2.2.3.4 Effect on receipt

On receipt of this primitive the APS sublayer of the initiating device is notified of the result of

its request to transmit. If the transmission attempt was successful, the status parameter will

be set to SUCCESS. Otherwise, the status parameter will indicate the error.
6.2.2.4 NLDE-DATA.indication
6.2.2.4.1 Function

This primitive indicates the transfer of a data PDU (NSDU) from the NWK layer to the local

APS sublayer entity.
6.2.2.4.2 Semantics of the service primitive
The semantics of this primitive is as follows:
NLDE-DATA.indication (
SrcAddress,
NsduLength,
Nsdu,
LinkQuality
Table 3 specifies the parameters for the NLDE-DATA.indication primitive.
---------------------- Page: 13 ----------------------
– 12 – ISO/IEC 29145-3 © ISO/IEC 2014
Table 3 – NLDE-DATA.indication parameters
Name Type Valid range Description

SrcAddre 16-bit Device Any valid device address The individual device address from which the NSDU

originated.
address Except the broadcast
Address
NsduLength integer The number of octets comprising the NSDU being
≤nwkcMaxPayloadSize
indicated.
Nsdu Set of Object – The set of octets comprising the NSDU being indicated.

LinkQuality Integer 0x00 to 0xff The link quality indication delivered by the MAC on receipt

of this frame as a parameter of the MAC-DATA.indication
primitive.
6.2.2.4.3 When generated

This primitive is generated by the NLDE and issued to the APS sublayer on receipt of an

appropriately addressed data frame from the local MAC sublayer entity.
6.2.2.4.4 Effect on receipt

On receipt of this primitive the APS sublayer is notified of the arrival of data at the device.

6.2.3 NWK management service
6.2.3.1 Overview

The NWK layer management entity SAP (NLME-SAP) allows the transport of management

commands between the next higher layer and the NLME. Table 4 summarises the primitives

supported by the NLME through the NLME-SAP interface. See the following subclauses for

more details on the individual primitives.
Table 4 – Summary of primitives used by NWK layer
Name Request Indication Response Confirm
NLME-WiBEEM-DISCOVERY O O
NLME-WRC-OPERATING O O
NLME-ALLOW-JOINING O O
NLME-WRITE-NIB-SUPERFRAME O O
NLME-JOIN O O O
NLME-DETERMINED-JOIN O O
NLME-LEAVE O O O
NLME-RESET O O
NLME-SYNC O O O
NLME-READ-NIB O O
NLME-WRITE-NIB O O
6.2.3.2 Network discovery

The NWK layer management entity SAP (NLME-SAP) supports the discovery of operating

networks. The primitives employed in network discovery are the NLME-NETWORK-
DISCOVERY primitives.
---------------------- Page: 14 ----------------------
ISO/IEC 29145-3 © ISO/IEC 2014 – 13 –
6.2.3.3 NLME-WiBEEM-DISCOVERY.request
6.2.3.3.1 Functi
...
