(Main)Acoustics — Measurement of sound absorption properties of road surfaces in situ — Part 2: Spot method for reflective surfaces
Acoustics — Measurement of sound absorption properties of road surfaces in situ — Part 2: Spot method for reflective surfaces
This document specifies a test method for measuring in situ the sound absorption coefficient of road surfaces for the one-third octave band frequencies ranging from 250 Hz to 1 600 Hz under normal incidence conditions. If necessary for practical applications the diameter of the tube can be reduced to 80 mm. This will increase the upper boundary of the frequency range to 2 000 Hz one-third octave band (see REF Section_sec_5.4 \r \h 5.4 08D0C9EA79F9BACE118C8200AA004BA90B020000000800000010000000530065006300740069006F006E005F007300650063005F0035002E0034000000 ) but reduces the area under test. The test method is intended for the following applications: — determination of the sound absorption coefficient (and, if of interest, also the complex acoustical impedance) of semi-dense to dense road surfaces; — determination of the sound absorption properties of test tracks according to ISO 10844[ REF Reference_ref_4 \r \h 2 08D0C9EA79F9BACE118C8200AA004BA90B0200000008000000100000005200650066006500720065006E00630065005F007200650066005F0034000000 ] or other similar standards and test surfaces defined in national and international type approval regulations for road vehicles and their tyres; — verification of the compliance of the sound absorption coefficient of a road surface with design-specifications or other requirements.
Acoustique — Mesurage in situ des propriétés d'absorption acoustique des revêtements de chaussées — Partie 2: Méthode ponctuelle pour les surfaces réfléchissantes
General Information
Relations
Standards Content (Sample)

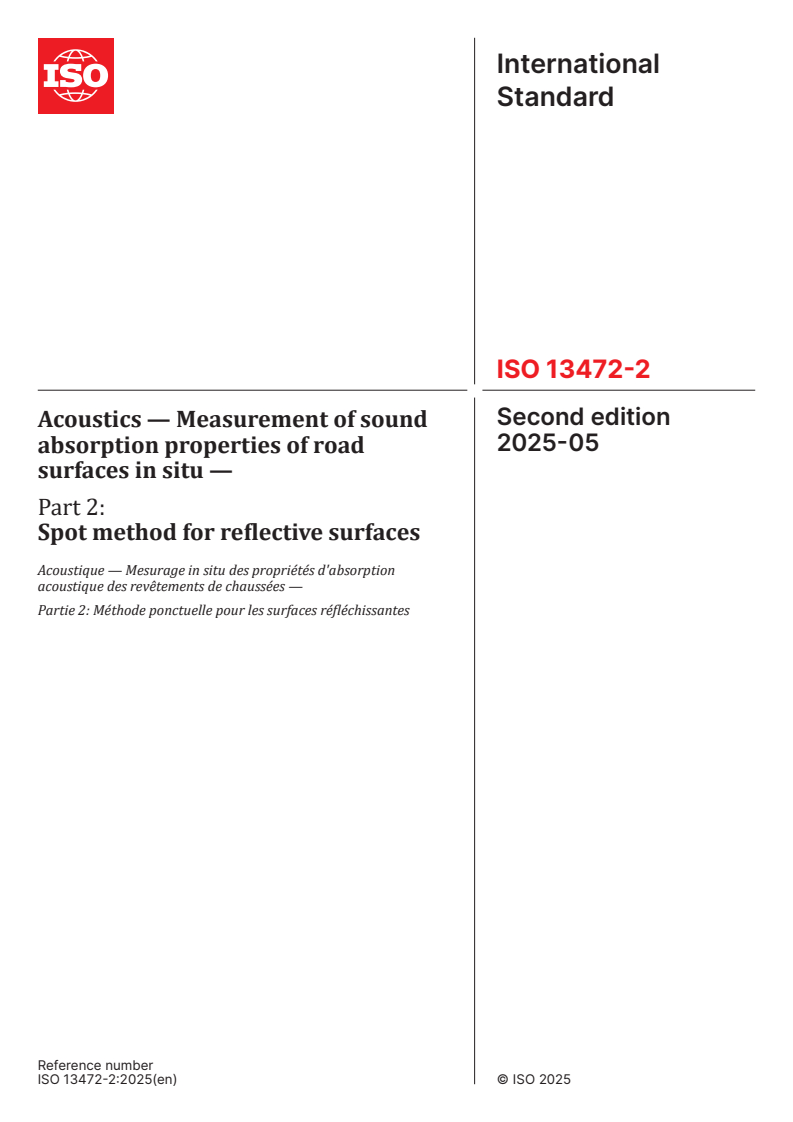

International
Standard
ISO 13472-2
Second edition
Acoustics — Measurement of sound
2025-05
absorption properties of road
surfaces in situ —
Part 2:
Spot method for reflective surfaces
Acoustique — Mesurage in situ des propriétés d'absorption
acoustique des revêtements de chaussées —
Partie 2: Méthode ponctuelle pour les surfaces réfléchissantes
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

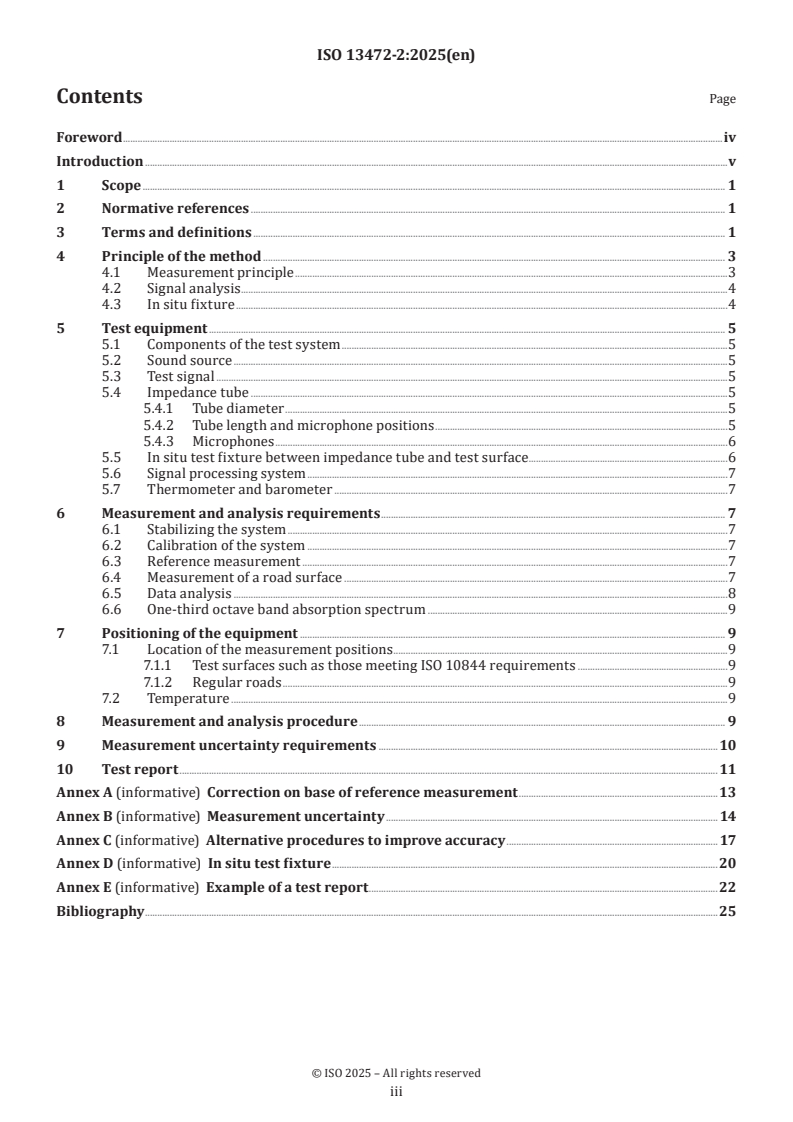

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle of the method . 3
4.1 Measurement principle .3
4.2 Signal analysis . .4
4.3 In situ fixture .4
5 Test equipment . 5
5.1 Components of the test system .5
5.2 Sound source .5
5.3 Test signal .5
5.4 Impedance tube .5
5.4.1 Tube diameter .5
5.4.2 Tube length and microphone positions .5
5.4.3 Microphones .6
5.5 In situ test fixture between impedance tube and test surface .6
5.6 Signal processing system .7
5.7 Thermometer and barometer .7
6 Measurement and analysis requirements . 7
6.1 Stabilizing the system .7
6.2 Calibration of the system .7
6.3 Reference measurement .7
6.4 Measurement of a road surface .7
6.5 Data analysis .8
6.6 One-third octave band absorption spectrum .9
7 Positioning of the equipment . 9
7.1 Location of the measurement positions .9
7.1.1 Test surfaces such as those meeting ISO 10844 requirements .9
7.1.2 Regular roads .9
7.2 Temperature .9
8 Measurement and analysis procedure . 9
9 Measurement uncertainty requirements . 10
10 Test report .11
Annex A (informative) Correction on base of reference measurement .13
Annex B (informative) Measurement uncertainty . 14
Annex C (informative) Alternative procedures to improve accuracy . 17
Annex D (informative) In situ test fixture .20
Annex E (informative) Example of a test report .22
Bibliography .25
iii

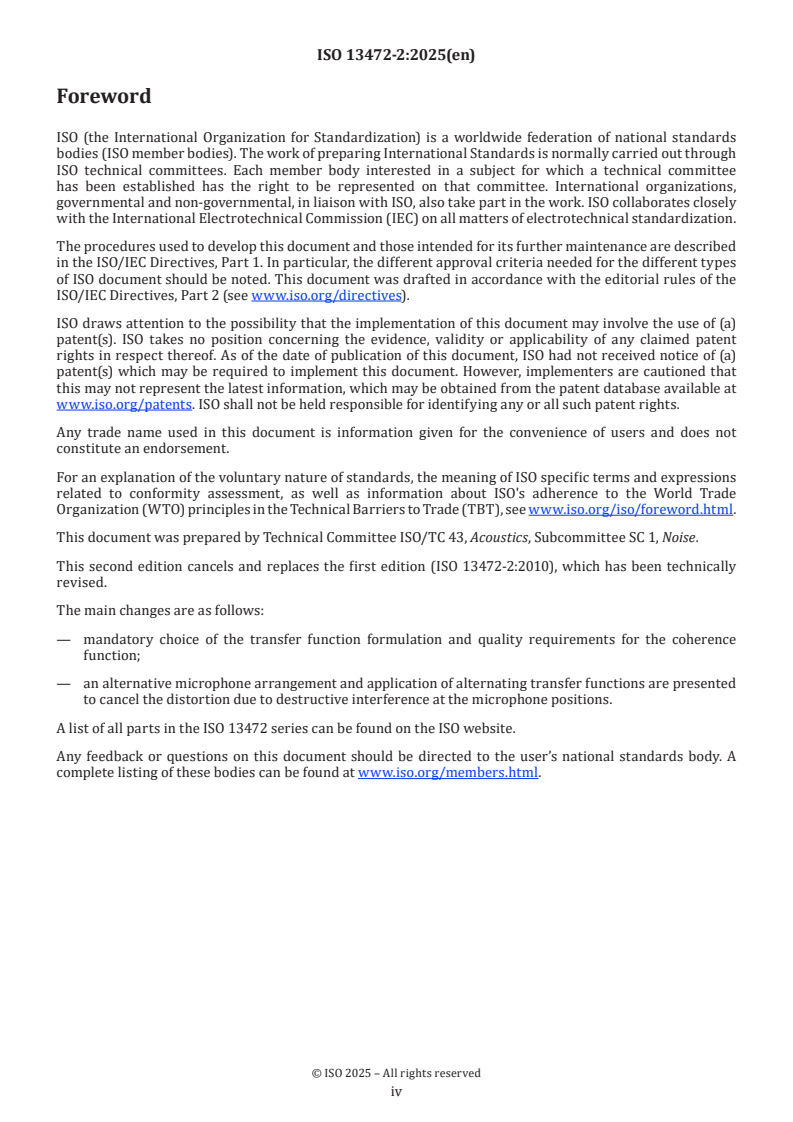

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 43, Acoustics, Subcommittee SC 1, Noise.
This second edition cancels and replaces the first edition (ISO 13472-2:2010), which has been technically
revised.
The main changes are as follows:
— mandatory choice of the transfer function formulation and quality requirements for the coherence
function;
— an alternative microphone arrangement and application of alternating transfer functions are presented
to cancel the distortion due to destructive interference at the microphone positions.
A list of all parts in the ISO 13472 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This method provides a means to evaluate the sound absorption characteristics of a road surface without
damaging the surface. The field of application is limited to low absorption surfaces such as those in
[2]
accordance with ISO 10844 and similar surfaces. Due to air leakage the method is not reliable if the
measured sound absorption coefficient exceeds 0,15. Surfaces with a sound absorption coefficient of 0,10 or
below are considered reflective.
The method in this document is based on propagation of the test signal from the source to the road surface
and back to the receiver through an impedance tube with a diameter of 80 mm to 100 mm. The tube covers
2 2
an area of approximately 0,005 m to 0,008 m and a frequency range, in one-third octave bands, from
250 Hz to 1 600 Hz for a 100 mm diameter, or from 250 Hz to 2 000 Hz, for an 80 mm diameter tube. It uses
the test procedure and signal processing described in ISO 10534-2, but because of the defined frequency
range of application, the dimensions of the system are not freely adjustable.
The essential part in the ISO 10534-2 procedure is the determination of the transfer function between two
microphones at different distances from the sample at the end of the tube. In this case of a reflecting sample
at specific frequencies destructive interferences (nodes) will occur at the microphone positions jeopardizing
the correct determination of the transfer function between the microphone pair.
Therefore in this document the ISO 10534-2 procedure is extended with a preference for transfer function
H calculated as the ratio of the auto spectrum S at the lowest microphone position and the cross
spectrum S and requirements on the resolution, the sample frequency and the block length in the FFT
analysis added with a requirement on the average narrow band coherence within a one-third octave band.
Recommendations for improvement of the accuracy by alternative microphone arrangement, variation in
transfer function and type of random noise are presented in Annex C.
[3]
This method is complementary to the extended surface method (ISO 13472-1 ) that covers an area of
approximately 3 m and a frequency range, in one-third octave bands, from 250 Hz to 4 000 Hz.
