ISO/IEC 14496-2:1999

Information technology - Coding of audio-visual objects - Part 2: Visual

Technologies de l'information — Codage des objets audiovisuels — Partie 2: Codage visuel

General Information

• Status: Withdrawn
• Publication Date: 15-Dec-1999
• Withdrawal Date: 15-Dec-1999
• ICS: 35.040 - Information coding
• ICS: 35.040.40 - Coding of audio, video, multimedia and hypermedia information
• Technical Committee: ISO/IEC JTC 1/SC 29 - Coding of audio, picture, multimedia and hypermedia information
• Drafting Committee: ISO/IEC JTC 1/SC 29 - Coding of audio, picture, multimedia and hypermedia information
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 06-Dec-2001
• Completion Date: 30-Oct-2025

Relations

• Amended By: ISO/IEC 14496-2:1999/Amd 1:2000 - Information technology - Coding of audio-visual objects - Part 2: Visual - Amendment 1: Visual extensions
• Effective Date: 06-Jun-2022
• Corrected By: ISO/IEC 14496-2:1999/Cor 1:2000 - Information technology - Coding of audio-visual objects - Part 2: Visual - Technical Corrigendum 1
• Effective Date: 06-Jun-2022
• Corrected By: ISO/IEC 14496-2:1999/Cor 2:2001 - Information technology - Coding of audio-visual objects - Part 2: Visual - Technical Corrigendum 2
• Effective Date: 06-Jun-2022
• Revised: ISO/IEC 14496-2:2001 - Information technology - Coding of audio-visual objects - Part 2: Visual
• Effective Date: 15-Apr-2008
• Parent: ISO/IEC 14496-2:1999/Cor 1:2000 - Information technology - Coding of audio-visual objects - Part 2: Visual - Technical Corrigendum 1
• Effective Date: 15-Apr-2008
• Parent: ISO/IEC 14496-2:1999/Cor 2:2001 - Information technology - Coding of audio-visual objects - Part 2: Visual - Technical Corrigendum 2
• Effective Date: 15-Apr-2008
• Parent: ISO/IEC 14496-2:1999/Amd 1:2000 - Information technology - Coding of audio-visual objects - Part 2: Visual - Amendment 1: Visual extensions
• Effective Date: 15-Apr-2008

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 14496-2
First edition
1999-12-01
Information technology — Coding of
audio-visual objects —
Part 2:
Visual
Technologies de l'information— Codage des objets audiovisuels —
Partie 2: Codage visuel
Reference number
©
ISO/IEC 1999

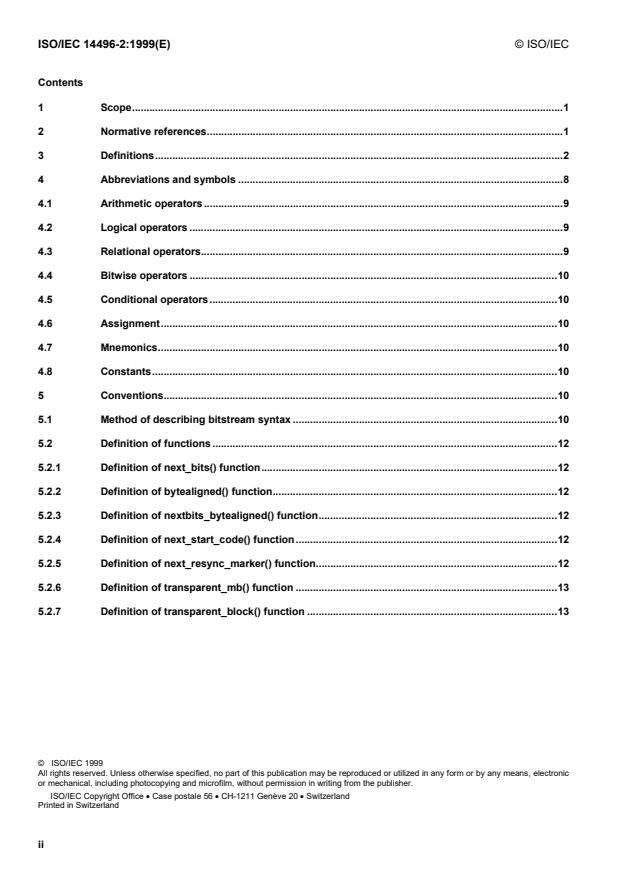

Contents
1 Scope.1
2 Normative references.1
3 Definitions.2
4 Abbreviations and symbols .8
4.1 Arithmetic operators.9
4.2 Logical operators .9
4.3 Relational operators.9
4.4 Bitwise operators .10
4.5 Conditional operators.10
4.6 Assignment.10
4.7 Mnemonics.10
4.8 Constants.10
5 Conventions.10
5.1 Method of describing bitstream syntax .10
5.2 Definition of functions .12
5.2.1 Definition of next_bits() function.12
5.2.2 Definition of bytealigned() function.12
5.2.3 Definition of nextbits_bytealigned() function.12
5.2.4 Definition of next_start_code() function.12
5.2.5 Definition of next_resync_marker() function.12
5.2.6 Definition of transparent_mb() function .13
5.2.7 Definition of transparent_block() function .13
© ISO/IEC 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
ISO/IEC Copyright Office � Case postale 56 � CH-1211 Genève 20 � Switzerland
Printed in Switzerland
ii
© ISO/IEC ISO/IEC 14496-2:1999(E)
5.3 Reserved, forbidden and marker_bit.13
5.4 Arithmetic precision .13
6 Visual bitstream syntax and semantics.13
6.1 Structure of coded visual data.13
6.1.1 Visual object sequence .14
6.1.2 Visual object .14
6.1.3 Video object.14
6.1.4 Mesh object.19
6.1.5 Face object.20
6.2 Visual bitstream syntax .24
6.2.1 Start codes.24
6.2.2 Visual Object Sequence and Visual Object .27
6.2.3 Video Object Layer.29
6.2.4 Group of Video Object Plane .34
6.2.5 Video Object Plane and Video Plane with Short Header.34
6.2.6 Macroblock .48
6.2.7 Block.54
6.2.8 Still Texture Object .55
6.2.9 Mesh Object.64
6.2.10 Face Object.67
6.3 Visual bitstream semantics.77
6.3.1 Semantic rules for higher syntactic structures.77
6.3.2 Visual Object Sequence and Visual Object .77
6.3.3 Video Object Layer.83
6.3.4 Group of Video Object Plane .91
6.3.5 Video Object Plane and Video Plane with Short Header.91
6.3.6 Macroblock related.101
6.3.7 Block related.104
6.3.8 Still texture object .104
6.3.9 Mesh object.109
6.3.10 Face object.112
iii

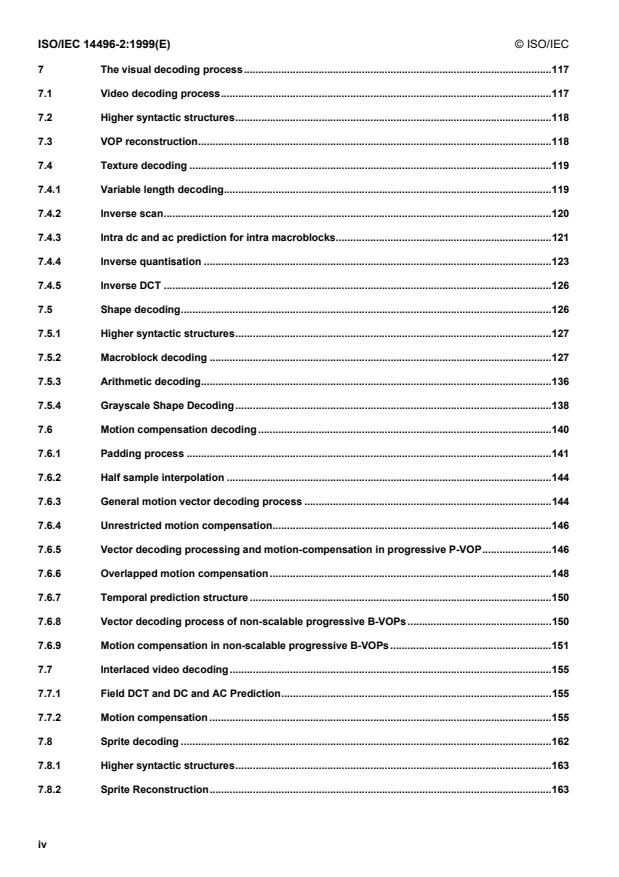

7 The visual decoding process.117
7.1 Video decoding process.117
7.2 Higher syntactic structures.118
7.3 VOP reconstruction.118
7.4 Texture decoding .119
7.4.1 Variable length decoding.119
7.4.2 Inverse scan.120
7.4.3 Intra dc and ac prediction for intra macroblocks.121
7.4.4 Inverse quantisation .123
7.4.5 Inverse DCT .126
7.5 Shape decoding.126
7.5.1 Higher syntactic structures.127
7.5.2 Macroblock decoding .127
7.5.3 Arithmetic decoding.136
7.5.4 Grayscale Shape Decoding.138
7.6 Motion compensation decoding .140
7.6.1 Padding process .141
7.6.2 Half sample interpolation .144
7.6.3 General motion vector decoding process .144
7.6.4 Unrestricted motion compensation.146
7.6.5 Vector decoding processing and motion-compensation in progressive P-VOP.146
7.6.6 Overlapped motion compensation .148
7.6.7 Temporal prediction structure .150
7.6.8 Vector decoding process of non-scalable progressive B-VOPs.150
7.6.9 Motion compensation in non-scalable progressive B-VOPs.151
7.7 Interlaced video decoding.155
7.7.1 Field DCT and DC and AC Prediction.155
7.7.2 Motion compensation .155
7.8 Sprite decoding .162
7.8.1 Higher syntactic structures.163
7.8.2 Sprite Reconstruction.163
iv
© ISO/IEC ISO/IEC 14496-2:1999(E)
7.8.3 Low-latency sprite reconstruction .164
7.8.4 Sprite reference point decoding.165
7.8.5 Warping.165
7.8.6 Sample reconstruction .167
7.9 Generalized scalable decoding.167
7.9.1 Temporal scalability.169
7.9.2 Spatial scalability .172
7.10 Still texture object decoding.175
7.10.1 Decoding of the DC subband.175
7.10.2 ZeroTree Decoding of the Higher Bands .176
7.10.3 Inverse Quantization.181
7.11 Mesh object decoding .188
7.11.1 Mesh geometry decoding.188
7.11.2 Decoding of mesh motion vectors .191
7.12 Face object decoding .193
7.12.1 Frame based face object decoding .193
7.12.2 DCT based face object decoding.194
7.12.3 Decoding of the viseme parameter fap 1.195
7.12.4 Decoding of the viseme parameter fap 2.196
7.12.5 Fap masking .196
7.13 Output of the decoding process.196
7.13.1 Video data .197
7.13.2 2D Mesh data .197
7.13.3 Face animation parameter data .197
8 Visual-Systems Composition Issues .197
8.1 Temporal Scalability Composition .197
8.2 Sprite Composition .198
8.3 Mesh Object Composition.199
9 Profiles and Levels.199
9.1 Visual Object Types .200
9.2 Visual Profiles.202
9.3 Visual Profiles@Levels.202
v
9.3.1 Natural Visual .202
9.3.2 Synthetic Visual.202
9.3.3 Synthetic/Natural Hybrid Visual.203
Annex A (normative) Coding transforms .205
A.1 Discrete cosine transform for video texture.205
A.2 Discrete wavelet transform for still texture .205
A.2.1 Adding the mean .205
A.2.2 Wavelet filter .206
A.2.3 Symmetric extension .206
A.2.4 Decomposition level .207
A.2.5 Shape adaptive wavelet filtering and symmetric extension .207
Annex B (normative) Variable length codes and arithmetic decoding .209
B.1 Variable length codes .209
B.1.1 Macroblock type .209
B.1.2 Macroblock pattern .210
B.1.3 Motion vector.212
B.1.4 DCT coefficients.214
B.1.5 Shape Coding .227
B.1.6 Sprite Coding.233
B.1.7 DCT based facial object decoding.234
B.2 Arithmetic Decoding .246
B.2.1 Aritmetic decoding for still texture object .246
B.2.2 Arithmetic decoding for shape decoding .251
B.2.3 Face Object Decoding.254
Annex C (normative) Face object decoding tables and definitions .256
Annex D (normative) Video buffering verifier.269
D.1 Introduction .269
D.2 Video Rate Buffer Model Definition .269
D.3 Comparison between ISO/IEC 14496-2 VBV and the ISO/IEC 13818-2 VBV (Informative).272
D.4 Video Complexity Model Definition .273
D.5 Video Reference Memory Model Definition .274
vi
© ISO/IEC ISO/IEC 14496-2:1999(E)
D.6 Interaction between VBV, VCV and VMV (informative).274
D.7 Video Presentation Model Definition (informative).275
Annex E (informative) Features supported by the algorithm.277
E.1 Error resilience.277
E.1.1 Resynchronization .277
E.1.2 Data Partitioning .278
E.1.3 Reversible VLC.278
E.1.4 Decoder Operation.279
E.1.5 Adaptive Intra Refresh (AIR) Method .282
E.2 Complexity Estimation .284
E.3 Resynchronization in Case of Unknown Video Header Format .284
Annex F (informative) Preprocessing and postprocessing .286
F.1 Segmentation for VOP Generation.286
F.1.1 Introduction .286
F.1.2 Description of a combined temporal and spatial segmentation framework .286
F.1.3 References.288
F.2 Bounding Rectangle of VOP Formation .289
F.3 Postprocessing for Coding Noise Reduction .290
F.3.1 Deblocking filter .290
F.3.2 Deringing filter.292
F.3.3 Further issues.294
F.4 Chrominance Decimation and Interpolation Filtering for Interlaced Object Coding.294
Annex G (normative) Profile and level indication and restrictions .296
Annex H (informative) Patent statements .298
H.1 Patent statements .298
Annex I (informative) Bibliography.300
Annex J (normative) View dependent object scalability .301
J.1 Introduction .301
J.2 Decoding Process of a View-Dependent Object .301
J.2.1 General Decoding Scheme.301
J.2.2 Computation of the View-Dependent Scalability parameters.303
J.2.3 VD mask computation .304
vii
J.2.4 Differential mask computation.305
J.2.5 DCT coefficients decoding.305
J.2.6 Texture update.305
J.2.7 IDCT .306
Annex K (normative) Decoder configuration information.307
K.1 Introduction .307
K.2 Description of the set up of a visual decoder (informative).307
K.2.1 Processing of decoder configuration information.308
K.3 Specification of decoder configuration information.309
K.3.1 VideoObject .309
K.3.2 StillTextureObject.309
K.3.3 MeshObject .309
K.3.4 FaceObject .310
Annex L (informative) Rate control.311
L.1 Frame Rate Control.311
L.1.1 Introduction .311
L.1.2 Description.311
L.1.3 Summary .314
L.2 Multiple Video Object Rate Control .314
L.2.1 Initialization.315
L.2.2 Quantization Level Calculation for I-frame and first P-frame .315
L.2.3 Update Rate-Distortion Model.317
L.2.4 Post-Frameskip Control.317
L.3 Macroblock Rate Control.319
L.3.1 Rate-Distortion Model.319
L.3.2 Target Number of Bits for Each Macroblock .319
L.3.3 Macroblock Rate Control.320
Annex M (informative) Binary shape coding .322
M.1 Introduction .322
M.2 Context-Based Arithmetic Shape Coding.322
M.2.1 Intra Mode .322
viii
© ISO/IEC ISO/IEC 14496-2:1999(E)
M.2.2 Inter Mode .323
M.3 Texture Coding of Boundary Blocks.324
M.4 Encoder Architecture.324
M.5 Encoding Guidelines .325
M.5.1 Lossy Shape Coding.325
M.5.2 Coding Mode Selection .326
M.6 Conclusions.326
M.7 References.326
Annex N (normative) Visual profiles@levels .328
ix
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in
liaison with ISO and IEC, also take part in the work.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.
International Standard ISO/IEC 14496-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information
technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
ISO/IEC 14496 consists of the following parts, under the general title Information technology — Coding of audio-
visual objects:
— Part 1: Systems
— Part 2: Visual
— Part 3: Audio
— Part 4: Conformance testing
— Part 5: Reference testing
— Part 6: Delivery Multimedia Integration Framework (DMIF)
Annexes A to D, G, J, K and N form a normative part of this part of ISO/IEC 14496. Annexes E, F, H, I, L and M are
for information only.
x
© ISO/IEC ISO/IEC 14496-2:1999(E)
Introduction
Purpose
This part of ISO/IEC 14496 was developed in response to the growing need for a coding method that can facilitate
access to visual objects in natural and synthetic moving pictures and associated natural or synthetic sound for
various applications such as digital storage media, internet, various forms of wired or wireless communication etc.
The use of ISO/IEC 14496 means that motion video can be manipulated as a form of computer data and can be
stored on various storage media, transmitted and received over existing and future networks and distributed on
existing and future broadcast channels.
Application
The applications of ISO/IEC 14496 cover, but are not limited to, such areas as listed below:
IMM Internet Multimedia
IVG Interactive Video Games
IPC Interpersonal Communications (videoconferencing, videophone, etc.)
ISM Interactive Storage Media (optical disks, etc.)
MMM Multimedia Mailing
NDB Networked Database Services (via ATM, etc.)
RES Remote Emergency Systems
RVS Remote Video Surveillance
WMM Wireless Multimedia
Profiles and levels
ISO/IEC 14496 is intended to be generic in the sense that it serves a wide range of applications, bitrates,
resolutions, qualities and services. Furthermore, it allows a number of modes of coding of both natural and synthetic
video in a manner facilitating access to individual objects in images or video, referred to as content based access.
Applications should cover, among other things, digital storage media, content based image and video databases,
internet video, interpersonal video communications, wireless video etc. In the course of creating ISO/IEC 14496,
various requirements from typical applications have been considered, necessary algorithmic elements have been
developed, and they have been integrated into a single syntax. Hence ISO/IEC 14496 will facilitate the bitstream
interchange among different applications.
This part of ISO/IEC 14496 includes one or more complete decoding algorithms as well as a set of decoding tools.
Moreover, the various tools of this part of ISO/IEC 14496 as well as that derived from ISO/IEC 13818-2 can be
combined to form other decoding algorithms. Considering the practicality of implementing the full syntax of ISO/IEC
14496-2, however, a limited number of subsets of the syntax are also stipulated by means of “profile” and “level”.
A “profile” is a defined subset of the entire bitstream syntax that is defined by this part of ISO/IEC 14496. Within the
bounds imposed by the syntax of a given profile it is still possible to require a very large variation in the performance
of encoders and decoders depending upon the values taken by parameters in the bitstream.
In order to deal with this problem “levels” are defined within each profile. A level is a defined set of constraints
imposed on parameters in the bitstream. These constraints may be simple limits on numbers. Alternatively they
may take the form of constraints on arithmetic combinations of the parameters.
xi
Object based coding syntax
Video object
A video object in a scene is an entity that a user is allowed to access (seek, browse) and manipulate (cut and
paste). The instances of video objects at a given time are called video object planes (VOPs). The encoding process
generates a coded representation of a VOP as well as composition information necessary for display. Further, at
the decoder, a user may interact with and modify the composition process as needed.
The full syntax allows coding of rectangular as well as arbitrarily shaped video objects in a scene. Furthermore, the
syntax supports both nonscalable coding and scalable coding. Thus it becomes possible to handle normal
scalabilities as well as object based scalabilities. The scalability syntax enables the reconstruction of useful video
from pieces of a total bitstream. This is achieved by structuring the total bitstream in two or more layers, starting
from a standalone base layer and adding a number of enhancement layers. The base layer can be coded using a
non-scalable syntax, or in the case of picture based coding, even using a syntax of a different video coding
standard.
To ensure the ability to access individual objects, it is necessary to achieve a coded representation of its shape. A
natural video object consists of a sequence of 2D representations (at different points in time) referred to here as
VOPs. For efficient coding of VOPs, both temporal redundancies as well as spatial redundancies are exploited. Thus
a coded representation of a VOP includes representation of its shape, its motion and its texture.
Face object
A 3D (or 2D) face object is a representation of the human face that is structured for portraying the visual
manifestations of speech and facial expressions adequate to achieve visual speech intelligibility and the recognition
of the mood of the speaker. A face object is animated by a stream of face animation parameters (FAP) encoded for
low-bandwidth transmission in broadcast (one-to-many) or dedicated interactive (point-to-point) communications.
The FAPs manipulate key feature control points in a mesh model of the face to produce animated visemes for the
mouth (lips, tongue, teeth), as well as animation of the head and facial features like the eyes. FAPs are quantized
with careful consideration for the limited movements of facial features, and then prediction errors are calculated and
coded arithmetically. The remote manipulation of a face model in a terminal with FAPs can accomplish lifelike
visual scenes of the speaker in real-time without sending pictorial or video details of face imagery every frame.
A simple streaming connection can be made to a decoding terminal that animates a default face model. A more
complex session can initialize a custom face in a more capable terminal by downloading face definition parameters
(FDP) from the encoder. Thus specific background images, facial textures, and head geometry can be portrayed.
The composition of specific backgrounds, face 2D/3D meshes, texture attribution of the mesh, etc. is described in
ISO/IEC 14496-1. The FAP stream for a given user can be generated at the user’s terminal from video/audio, or
from text-to-speech. FAPs can be encoded at bitrates up to 2-3kbit/s at necessary speech rates. Optional temporal
DCT coding provides further compression efficiency in exchange for delay. Using the facilities of ISO/IEC 14496-1,
a composition of the animated face model and synchronized, coded speech audio (low-bitrate speech coder or text-
to-speech) can provide an integrated low-bandwidth audio/visual speaker for broadcast applications or interactive
conversation.
Limited scalability is supported. Face animation achieves its efficiency by employing very concise motion animation
controls in the channel, while relying on a suitably equipped terminal for rendering of moving 2D/3D faces with non-
normative models held in local memory. Models stored and updated for rendering in the terminal can be simple or
complex. To support speech intelligibility, the normative specification of FAPs intends for their selective or complete
use as signaled by the encoder. A masking scheme provides for selective transmission of FAPs according to what
parts of the face are naturally active from moment to moment. A further control in the FAP stream allows face
animation to be suspended while leaving face features in the terminal in a defined quiescent state for higher overall
efficiency during multi-point connections.
The Face Animation specification is defined in ISO/IEC 14496-1 and this part of ISO/IEC 14496. This clause is
intended to facilitate finding various parts of specification. As a rule of thumb, FAP specification is found in the part
2, and FDP specification in the part 1. However, this is not a strict rule. For an overview of FAPs and their
interpretation, read subclauses “6.1.5.2 Facial animation parameter set”, “6.1.5.3 Facial animation parameter units”,
“6.1.5.4 Description of a neutral face” as well as the Table C-1. The viseme parameter is documented in subclause
“7.12.3 Decoding of the viseme parameter fap 1” and the Table C-5 in annex C. The expression parameter is
xii
© ISO/IEC ISO/IEC 14496-2:1999(E)
documented in subclause “7.12.4 Decoding of the expression parameter fap 2” and the Table C-3. FAP bitstream
syntax is found in subclauses “6.2.10 Face Object”, semantics in “6.3.10 Face Object”, and subclause “7.12 Face
object decoding” explains in more detail the FAP decoding process. FAP masking and interpolation is explained in
subclauses “6.3.11.1 Face Object Plane”, “7.12.1.1 Decoding of faps”, “7.12.5 Fap masking”. The FIT interpolation
scheme is documented in subclause “7.2.5.3.2.4 FIT” of ISO/IEC 14496-1. The FDPs and their interpretation are
documented in subclause “7.2.5.3.2.6 FDP” of ISO/IEC 14496-1. In particular, the FDP feature points are
documented in the Figure C-1.
Mesh object
A2D mesh object is a representation of a 2D deformable geometric shape, with which synthetic video objects may
be created during a composition process at the decoder, by spatially piece-wise warping of existing video object
planes or still texture objects. The instances of mesh objects at a given time are called mesh object planes (mops).
The geometry of mesh object planes is coded losslessly. Temporally and spatially predictive techniques and variable
length coding are used to compress 2D mesh geometry. The coded representation of a 2D mesh object includes
representation of its geometry and motion.
Overview of
...
