ISO 14229-1:2013

Road vehicles - Unified diagnostic services (UDS) - Part 1: Specification and requirements

ISO 14229-1:2013 specifies data link independent requirements of diagnostic services, which allow a diagnostic tester (client) to control diagnostic functions in an on-vehicle Electronic Control Unit (ECU, server) such as an electronic fuel injection, automatic gear box, anti-lock braking system, etc. connected to a serial data link embedded in a road vehicle. It specifies generic services, which allow the diagnostic tester (client) to stop or to resume non-diagnostic message transmission on the data link. ISO 14229-1:2013 does not apply to non-diagnostic message transmission on the vehicle's communication data link between two ECUs. However, it does not restrict an in-vehicle on-board tester (client) implementation in an ECU in order to utilize the diagnostic services on the vehicle's communication data link to perform bidirectional diagnostic data exchange. ISO 14229-1:2013 does not specify any implementation requirements.

Véhicules routiers — Services de diagnostic unifiés (SDU) — Partie 1: Spécification et exigences

General Information

• Status: Withdrawn
• Publication Date: 14-Mar-2013
• Withdrawal Date: 14-Mar-2013
• ICS: 43.180 - Diagnostic, maintenance and test equipment
• Technical Committee: ISO/TC 22/SC 31 - Data communication
• Drafting Committee: ISO/TC 22/SC 31/WG 2 - Vehicle diagnostic protocols
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 07-Feb-2020
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 14229-1:2020 - Road vehicles - Unified diagnostic services (UDS) - Part 1: Application layer
• Effective Date: 10-Dec-2016
• Revises: ISO 14229-1:2006 - Road vehicles - Unified diagnostic services (UDS) - Part 1: Specification and requirements
• Effective Date: 26-Sep-2009

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 14229-1
Second edition
2013-03-15
Road vehicles — Unified diagnostic
services (UDS) —
Part 1:
Specification and requirements
Véhicules routiers — Services de diagnostic unifiés (SDU) —
Partie 1: Spécification et exigences

Reference number
©
ISO 2013

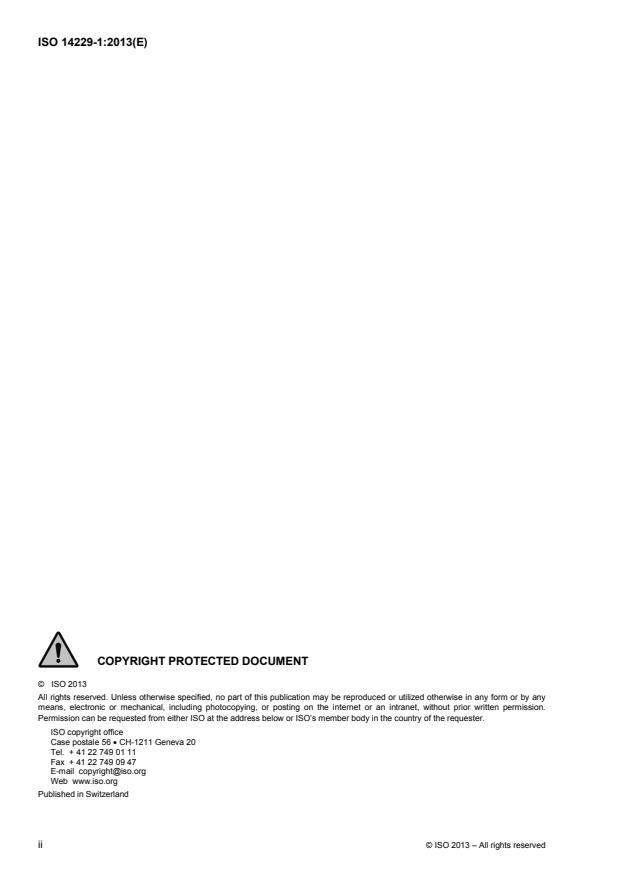

©  ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any
means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.
Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

Contents Page
Foreword .vi
Introduction.vii
1 Scope.1
2 Normative references.1
3 Terms, definitions, symbols and abbreviated terms .1
3.1 Terms and definitions .1
3.2 Abbreviated terms .4
4 Conventions.5
5 Document overview.6
6 Application layer services .7
6.1 General .7
6.2 Format description of application layer services .9
6.3 Format description of service primitives.9
6.4 Service data unit specification.12
7 Application layer protocol .15
7.1 General definition .15
7.2 Protocol data unit specification.16
7.3 Application protocol control information .16
7.4 Negative response/confirmation service primitive .18
7.5 Server response implementation rules .18
8 Service description conventions .29
8.1 Service description .29
8.2 Request message .30
8.3 Positive response message .33
8.4 Supported negative response codes (NRC_) .34
8.5 Message flow examples.34
9 Diagnostic and Communication Management functional unit .35
9.1 Overview.35
9.2 DiagnosticSessionControl (0x10) service.36
9.3 ECUReset (0x11) service .43
9.4 SecurityAccess (0x27) service.47
9.5 CommunicationControl (0x28) service.53
9.6 TesterPresent (0x3E) service .58
9.7 AccessTimingParameter (0x83) service.61
9.8 SecuredDataTransmission (0x84) service .66
9.9 ControlDTCSetting (0x85) service .71
9.10 ResponseOnEvent (0x86) service.75
9.11 LinkControl (0x87) service.99
10 Data Transmission functional unit .106
10.1 Overview.106
10.2 ReadDataByIdentifier (0x22) service .106
10.3 ReadMemoryByAddress (0x23) service.113
10.4 ReadScalingDataByIdentifier (0x24) service .119
10.5 ReadDataByPeriodicIdentifier (0x2A) service .126
10.6 DynamicallyDefineDataIdentifier (0x2C) service.140
10.7 WriteDataByIdentifier (0x2E) service.162
10.8 WriteMemoryByAddress (0x3D) service .167
11 Stored Data Transmission functional unit .174
11.1 Overview.174
11.2 ClearDiagnosticInformation (0x14) Service .175
11.3 ReadDTCInformation (0x19) Service.178
12 InputOutput Control functional unit.245
12.1 Overview.245
12.2 InputOutputControlByIdentifier (0x2F) service .245
13 Routine functional unit.259
13.1 Overview.259
13.2 RoutineControl (0x31) service.260
14 Upload Download functional unit.270
14.1 Overview.270
14.2 RequestDownload (0x34) service.270
14.3 RequestUpload (0x35) service.275
14.4 TransferData (0x36) service.280
14.5 RequestTransferExit (0x37) service.285
14.6 RequestFileTransfer (0x38) service .295
15 Non-volatile server memory programming process .303
15.1 General information.303
15.2 Detailed programming sequence.307
15.3 Server reprogramming requirements .315
15.4 Non-volatile server memory programming message flow examples.319
Annex A (normative) Global parameter definitions .325
A.1 Negative response codes .325
Annex B (normative) Diagnostic and communication management functional unit data-parameter
definitions.333
B.1 communicationType parameter definition .333
B.2 eventWindowTime parameter definition .334
B.3 linkControlModeIdentifier parameter definition .334
B.4 nodeIdentificationNumber parameter definition .335
Annex C (normative) Data transmission functional unit data-parameter definitions .337
C.1 DID parameter definitions .337
C.2 scalingByte parameter definitions.343
C.3 scalingByteExtension parameter definitions.345
C.4 transmissionMode parameter definitions .351
C.5 Coding of UDS version number .352
Annex D (normative) Stored data transmission functional unit data-parameter definitions .353
D.1 groupOfDTC parameter definition.353
D.2 DTCStatusMask and statusOfDTC bit definitions .353
D.3 DTC severity and class definition .366
D.4 DTCFormatIdentifier definition.369
D.5 FunctionalGroupIdentifier definition .369
D.6 DTCFaultDetectionCounter operation implementation example.371
D.7 DTCAgingCounter example .372
Annex E (normative) Input output control functional unit data-parameter definitions .374
E.1 InputOutputControlParameter definitions .374
Annex F (normative) Routine functional unit data-parameter definitions.375
F.1 RoutineIdentifier (RID) definition .375
Annex G (normative) Upload and download functional unit data-parameter .376
G.1 Definition of modeOfOperation values.376
Annex H (informative) Examples for addressAndLengthFormatIdentifier parameter values .377
H.1 addressAndLengthFormatIdentifier example values.377
Annex I (normative) Security access state chart .379

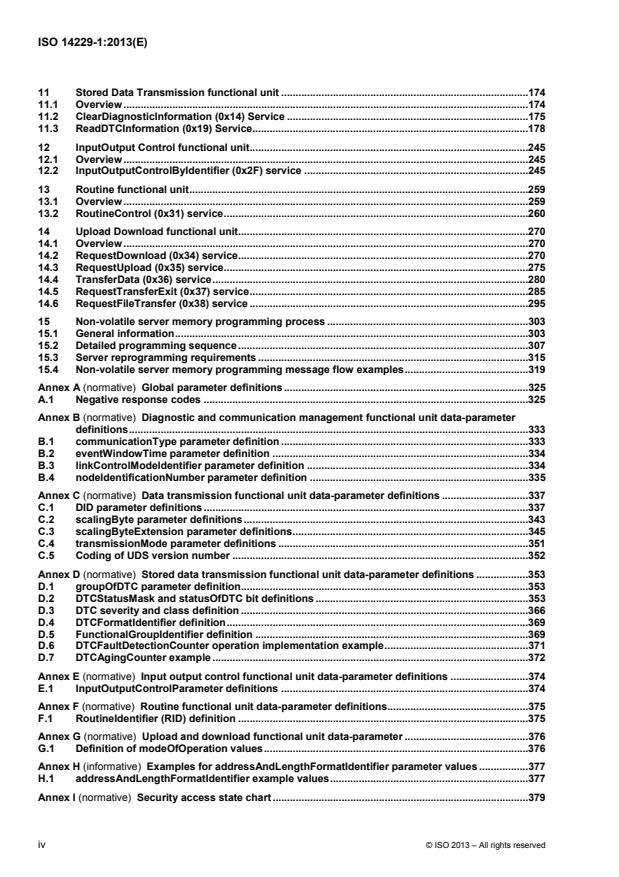

iv © ISO 2013 – All rights reserved

I.1 General .379
I.2 Disjunctive normal form based state transition definitions.379
Annex J (informative) Recommended implementation for multiple client environments.385
J.1 Introduction.385
J.2 Implementation specific limitations .385
J.3 Use cases relevant for system design .386
J.4 Use Case Evaluation:.388
J.5 Multiple client server level implementation.389
Bibliography.391

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14229-1 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3,
Electrical and electronic equipment.
This second edition cancels and replaces the first edition (ISO 14229-1:2006), which has been technically
revised.
ISO 14229 consists of the following parts, under the general title Road vehicles — Unified diagnostic services
(UDS):
⎯ Part 1: Specification and requirements
⎯ Part 2: Session layer services
⎯ Part 3: Unified diagnostic services on CAN implementation (UDSonCAN)
⎯ Part 4: Unified diagnostic services on FlexRay implementation (UDSonFR)
⎯ Part 5: Unified diagnostic services on Internet Protocol implementation (UDSonIP)
⎯ Part 6: Unified diagnostic services on K-Line implementation (UDSonK-Line)
The following part is under preparation:
⎯ Part 7: Unified diagnostic services on Local Interconnect Network implementation (UDSonLIN)
The titles of future parts will be drafted as follows:
⎯ Part n: Unified diagnostic services on … implementation (UDSon…)
vi © ISO 2013 – All rights reserved

Introduction
ISO 14229 has been established in order to define common requirements for diagnostic systems, whatever
the serial data link is.
To achieve this, ISO 14229 is based on the Open Systems Interconnection (OSI) Basic Reference Model in
accordance with ISO 7498-1 and ISO/IEC 10731, which structures communication systems into seven layers.
When mapped on this model, the services used by a diagnostic tester (client) and an Electronic Control Unit
(ECU, server) are broken into the following layers in accordance with Table 1:
⎯ Application layer (layer 7), unified diagnostic services specified in ISO 14229-1, ISO 14229-3
UDSonCAN, ISO 14229-4 UDSonFR, ISO 14229-5 UDSonIP, ISO 14229-6 UDSonK-Line, ISO 14229-7
UDSonLIN, further standards and ISO 27145-3 WWH-OBD.
⎯ Presentation layer (layer 6), vehicle manufacturer specific, ISO°27145-2 WWH-OBD.
⎯ Session layer services (layer 5) specified in ISO 14229-2.
⎯ Transport layer services (layer 4), specified in ISO 15765-2 DoCAN, ISO 10681-2 Communication on
FlexRay, ISO 13400-2 DoIP, ISO 17987-2 LIN, ISO 27145-4 WWH-OBD.
⎯ Network layer services (layer 3), specified in ISO 15765-2 DoCAN, ISO 10681-2 Communication on
FlexRay, ISO 13400-2 DoIP, ISO 17987-2 LIN, ISO 27145-4 WWH-OBD.
⎯ Data link layer (layer 2), specified in ISO 11898-1, ISO 11898-2, ISO 17458-2, ISO 13400-3, IEEE 802.3,
ISO 14230-2, ISO 17987-3 LIN and further standards, ISO 27145-4 WWH-OBD.
⎯ Physical layer (layer 1), specified in ISO 11898-1, ISO 11898-2, ISO 17458-4, ISO 13400-3, IEEE 802.3,
ISO 14230-1, ISO 17987-4 LIN and further standards, ISO 27145-4 WWH-OBD.
NOTE The diagnostic services in this standard are implemented in various applications e.g. Road vehicles –
Tachograph systems, Road vehicles – Interchange of digital information on electrical connections between towing and
towed vehicles, Road vehicles – Diagnostic systems, etc. It is required that future modifications to this standard provide
long-term backward compatibility with the implementation standards as described above.
Table 1 — Example of diagnostic/programming specifications applicable to the OSI layers
OSI seven WWH-
Applicability Enhanced diagnostics services
layer OBD
Application ISO 14229-1, ISO 14229-3 UDSonCAN, ISO 14229-4 UDSonFR, ISO 14229-5 ISO
(layer 7) UDSonIP, ISO 14229-6 UDSonK-Line, ISO 14229-7 UDSonLIN, further standards 27145-3
Presentation ISO
vehicle manufacturer specific
(layer 6) 27145-2
Session
ISO 14229-2
(layer 5)
Seven layer
according to
Transport further
ISO/IEC 7498-1
(layer 4) standards
ISO ISO ISO Not ISO
and
15765-2 10681-2 13400-2 applicable 17987-2
ISO/IEC 10731
Network further
(layer 3) standards
ISO
27145-4
Data link ISO ISO ISO further
ISO ISO
(layer 2) 17458-2 14230-2 17987-3 standards
11898-1, 13400-3,
ISO IEEE
Physical ISO ISO ISO further
11898-2 802.3
(layer 1) 17458-4 14230-1 17987-4 standards

INTERNATIONAL STANDARD ISO 14229-1:2013(E)

Road vehicles — Unified diagnostic services (UDS) —
Part 1:
Specifications and requirements
1 Scope
This part of ISO 14229 specifies data link independent requirements of diagnostic services, which allow a
diagnostic tester (client) to control diagnostic functions in an on-vehicle Electronic Control Unit (ECU, server)
such as an electronic fuel injection, automatic gear box, anti-lock braking system, etc. connected to a serial
data link embedded in a road vehicle.
It specifies generic services, which allow the diagnostic tester (client) to stop or to resume non-diagnostic
message transmission on the data link.
This part of ISO 14229 does not apply to non-diagnostic message transmission on the vehicle's
communication data link between two Electronic Control Units. However, this part of ISO 14229 does not
restrict an in-vehicle on-board tester (client) implementation in an ECU in order to utilize the diagnostic
services on the vehicle's communication data link to perform bidirectional diagnostic data exchange.
This part of ISO 14229 does not specify any implementation requirements.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 14229-2, Road vehicles — Unified diagnostic services (UDS) — Part 2: Session layer services
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
boot manager
part of the boot software that executes immediately after an ECU power on or reset whose primary purpose is
to check whether a valid application is available to execute as compared to transferring control to the
reprogramming software
NOTE The boot manager may also take into account other conditions for transitioning control to the reprogramming
software.
3.1.2
boot memory partition
area of the server memory in which the boot software is located
3.1.3
boot software
software which is executed in a special part of server memory which is used primarily to boot the ECU and
perform server programming
NOTE 1 This area of memory is not erased during a normal programming sequence and must execute when the server
application is missing or otherwise deemed invalid to always ensure the capability to reprogram the server.
NOTE 2 See also 3.1.1 and 3.1.17.
3.1.4
client
function that is part of the tester and that makes use of the diagnostic services
NOTE A tester normally makes use of other functions such as data base management, specific interpretation,
human-machine interface.
3.1.5
diagnostic data
data that is located in the memory of an electronic control unit which may be inspected and/or possibly
modified by the tester
NOTE 1 Diagnostic data includes analogue inputs and outputs, digital inputs and outputs, intermediate values and
various status information.
NOTE 2 Examples of diagnostic data are vehicle speed, throttle angle, mirror position, system status, etc. Three types
of values are defined for diagnostic data:
⎯ the current value: the value currently used by (or resulting from) the normal operation of the electronic control unit;
⎯ a stored value: an internal copy of the current value made at specific moments (e.g. when a malfunction occurs or
periodically); this copy is made under the control of the electronic control unit;
⎯ a static value: e.g. VIN.
The server is not obliged to keep internal copies of its data for diagnostic purposes, in which case the tester may only
request the current value.
NOTE 3 Defining a repair shop or development testing session selects different server functionality (e.g. access to all
memory locations may only be allowed in the development testing session).
3.1.6
diagnostic routine
routine that is embedded in an electronic control unit and that may be started by a server upon a request from
the client
NOTE It could either run instead of a normal operating program, or could be enabled in this mode and executed with
the normal operating program. In the first case, normal operation for the server is not possible. In the second case,
multiple diagnostic routines may be enabled that run while all other parts of the electronic control unit are functioning
normally.
3.1.7
diagnostic service
information exchange initiated by a client in order to require diagnostic information from a server or/and to
modify its behaviour for diagnostic purpose
3.1.8
diagnostic session
state within the server in which a specific set of diagnostic services and functionality is enabled
2 © ISO 2013 – All rights reserved

3.1.9
diagnostic trouble code
DTC
numerical common identifier for a fault condition identified by the on-board diagnostic system
3.1.10
ECU
electronic control unit, containing at least one server
NOTE Systems considered as Electronic Control Units include Anti-lock Braking System (ABS) and Engine
Management System.
3.1.11
functional unit
set of functionally close or complementary diagnostic services
3.1.12
integer type
simple type with distinguished values which are the positive and the negative whole numbers, including zero
NOTE The range of type integer is not specified within this part of ISO 14229.
3.1.13
local client
client that is connected to the same local network as the server and is part of the same address space as the
server
3.1.14
local server
server that is connected to the same local network as the client and is part of the same address space as the
client
3.1.15
OSI
open systems interconnection
3.1.16
permanent DTC
diagnostic trouble code (DTC) that remains in non-volatile memory, even after a clear DTC request, until other
criteria (typically regulatory) are met (e.g. the appropriate monitors for each DTC have successfully passed)
NOTE Refer to the relevant legislation for all necessary requirements.
3.1.17
record
one or more diagnostic data elements that are referred to together by a single means of identification
NOTE A snapshot including various input/output data and trouble codes is an example of a record.
3.1.18
remote server
server that is not directly connected to the main diagnostic network
NOTE 1 A remote server is identified by means of a remote address. Remote addresses represent an own address
space that is independent from the addresses on the main network.
NOTE 2 A remote server is reached via a local server on the main network. Each local server on the main network can
act as a gate to one independent set of remote servers. A pair of addresses must therefore always identify a remote
server: one local address that identifies the gate to the remote network and one remote address identifying the remote
server itself.
3.1.19
remote client
client that is not directly connected to the main diagnostic network
NOTE 1 A remote client is identified by means of a remote address.
NOTE 2 Remote addresses represent an own address space that is independent from the addresses on the main
network.
3.1.20
reprogramming software
part of the boot software that allows for reprogramming of the electronic control unit
3.1.21
security
mechanism for protecting vehicle modules from "unauthorized" intrusion through a vehicle diagnostic data link
3.1.22
server
function that is part of an electronic control unit and that provides the diagnostic services
NOTE This international standard differentiates between the server (i.e. the function) and the electronic control unit
so that this standard remains independent from the implementation.
3.1.23
supported DTC
diagnostic trouble code which is currently configured/calibrated and enabled to execute under pre-defined
vehicle conditions
3.1.24
tester
system that controls functions such as test, inspection, monitoring, or diagnosis of an on-vehicle electronic
control unit and may be dedicated to a specific type of operator (e.g. an off-board scan tool dedicated to
garage mechanics, an off-board test tool dedicated to assembly plants, or an on-board tester)
NOTE The tester is also referenced as the client.
3.2 Abbreviated terms
.con service primitive .confirmation
.ind service primitive .indication
.req service primitive .request
A_PCI application layer protocol control information
ECU electronic control unit
EDR event data recorder
N/A not applicable
NR_SI negative response service identifier
NRC negative response code
OSI open systems interconnection
4 © ISO 2013 – All rights reserved

RA remote address
SA source address
SI service identifier
TA target address
TA_type target address type
4 Conventions
This part of ISO 14229 is based on the conventions discussed in the OSI Service Conventions
(ISO/IEC 10731:1994) as they apply for diagnostic services.
These conventions specify the interactions between the service user and the service provider. Information is
passed between the service user and the service provider by service primitives, which may convey
parameters.
The distinction between service and protocol is summarised in Figure 1.
Application of the Sender Application of the Receiver
ServiceNameRequest.ind
ServiceNameResponse.con
ServiceNameRequest.req ServiceNameResponse.ind
ServiceNameRequest.con
ServiceNameResponse.req
A_SDU with SA, TA, A_SDU with SA, TA, A_SDU with SA, TA, A_SDU with SA, TA,
TAtype, [parameter#1, TAtype, [parameter#1, TAtype, [parameter#1, TAtype, [parameter#1,
parameter#2, .] parameter#2, .] parameter#2, .] parameter#2, .]
A_PDU with SA, TA, A_PDU with SA, TA,
Transmission
TAtype, [parameter#1, TAtype, [parameter#1,
to peer entity
parameter#2, .] parameter#2, .]
A_PDU with SA, TA, A_PDU with SA, TA,
TAtype, A_PCI Transmission TAtype, A_PCI
[parameter#1, to peer entity [parameter#1,
parameter#2, .] parameter#2, .]
Application layer of the Sender Application layer of the Receiver

Figure 1 — The services and the protocol
This part of ISO 14229 defines both confirmed and unconfirmed services.
The confirmed services use the six service primitives request, req_confirm, indication, response, rsp_confirm
and confirmation.
The unconfirmed services use only the request, req_confirm and indication service primitives.
For all services defined in this part of ISO 14229 the request and indication service primitives always have the
same format and parameters. Consequently for all services the response and confirmation service primitives
(except req_confirm and rsp_confirm) always have the same format and parameters. When the service
primitives are defined in this International Standard, only the request and response service primitives are
listed.
Application Layer Application Layer
Protocol Services
5 Document overview
Figure 2 depicts the implementation of UDS document reference according to OSI model.
Unified Diagnostic Services (UDS)
ISO 14229-1 UDS
specification and requirements
subset
OSI Layer 7
Application
ISO 27145-3
ISO 14229-3 ISO 14229-4 ISO 14229-5 ISO 14229-6 ISO 14229-7
WWH-OBD
UDSonFR UDSonIP
UDSonCAN UDSonK-Line UDSonLIN
CMD
ISO 27145-2
OSI Layer 6 vehicle manufacturer specific WWH-OBD
CDD
Presentation
ISO 14229-2 UDS
OSI Layer 5
Session layer services
Session
Standardized Service Primitive Interface
ISO 14229-3,-4,-5,-6,-7 UDSon. implementation
Diagnostic communication over any protocol
DoCAN CoFR DoIP DoK-Line LIN Do.
OSI Layer 4
ISO 15765-2 ISO 10681-2 ISO 13400-2 ISO 17987-2
Transport
CoFR
DoCAN DoIP LIN
transport transport transport Not transport
...
and and and applicable and
network network network network
layer services
layer services layer services layer services
OSI Layer 3
Network
ISO 17987-3
ISO 17458-2 ISO 14230-2
ISO 11898-1 LIN
OSI Layer 2 FlexRay DoK-Line .
CAN protocol
Data Link data link layer data link layer
specification
ISO 13400-3
DoIP
IEEE 802.3
based
wired vehicle
ISO 11898-2 ISO 17458-4 ISO 17987-4
interface
ISO 14230-1
CAN FlexRay LIN
OSI Layer 1 DoK-Line .
ISO 11898-3 electrical electrical
Physical physical layer
CAN physical layer physical layer

Figure 2 — Implementation of UDS document reference according to OSI model
6 © ISO 2013 – All rights reserved

6 Application layer services
6.1 General
Application layer services are usually referred to as diagnostic services. The application layer services are
used in client-server based systems to perform functions such as test, inspection, monitoring or diagnosis of
on-board vehicle servers. The client, usually referred to as external test equipment, uses the application layer
services to request diagnostic functions to be performed in one or more servers. The server, usually a function
that is part of an ECU, uses the application layer services to send response data, provided by the requested
diagnostic service, back to the client. The client is usually an off-board tester, but can in some systems also
be an on-board tester. The usage of application layer services is independent from the client being an off-
board or on-board tester. It is possible to have more than one client in the same vehicle system.
The service access point of the diagnostics application layer provides a number of services that all have the
same general structure. For each service, six service primitives are specified:a service request primitive,
used by the client function in the diagnostic tester application, to pass data about a requested diagnostic
service to the diagnostics application layer;
⎯ a service request primitive, used by the client function in the diagnostic tester application, to pass data
about a requested diagnostic service to the diagnostics application layer;
⎯ a service request-confirmation primitive, used by the client function in the diagnostic tester application,
to indicate that the data passed in the service request primitive is successfully sent on the vehicle
communication bus the diagnostic tester is connected to
⎯ a service indication primitive, used by the diagnostics application layer, to pass data to the server
function of the ECU diagnostic application;
⎯ a service response primitive, used by the server function in the ECU diagnostic application, to pass
response data provided by the requested diagnostic service to the diagnostics application layer;
⎯ a service response-confirmation primitive, used by the server function in the ECU diagnostic
application, to indicate that the data passed in the service response primitive is successfully sent on the
vehicle communication bus the ECU received the diagnostic request on;
⎯ a service confirmation primitive used by the diagnostics application layer to pass data to the client
function in the diagnostic tester application.
Figure 3 depicts the Application layer service primitives - confirmed service.
Client Server
Application Application
Layer Layer
Time
Time
P2_client
P2_server
ServiceName.request
Start Start
ServiceName.request-confirm ServiceName.indication
ServiceName.response
Stop
Stop
ServiceName.confirmation ServiceName.response-confirm
time time
Figure 3 — Application layer service primitives - confirmed service

Figure 4 depicts the application layer service primitives - unconfirmed service.
Client Server
Application Application
Layer Layer
Time
Time
P2_client
P2_server
ServiceName.request
ServiceName.request-confirm ServiceName.indication
time time
Figure 4 — Application layer service primitives - unconfirmed service

For a given service, the request-confirmation primitive and the response-confirmation primitive always have
the same service data unit. The purpose of these service primitives is to indicate the completion of an earlier
request or response service primitive invocation. The service descriptions in this International Standard will
not make use of those service primitives, but the data link specific implementation documents might use those
to define e.g. service execution reference points (e.g. the ECUReset service would invoke the reset when the
response is completely transmitted to the client which is indicated in the server via the service response-
confirm primitive).
8 © ISO 2013 – All rights reserved

request
request
message
message
response message
6.2 Format description of application layer services
Application layer services can have two different formats depending on how the vehicle diagnostic system is
configured. The format of the application layer service is controlled by parameter A_Mtype.
If the vehicle system is configured so that the client can address all servers by using the A_SA and A_TA
address parameters, the default format of application layer services shall be used. This implies A_Mtype =
diagnostics.
If the vehicle system is configured so that the client needs address information in addition to the A_SA and
A_TA address parameters allowing to address certain servers, the remote format of application layers
services shall be used. This implies A_Mtype = remote diagnostics.
The different formats for application layer services are specified in 6.3.
6.3 Format description of service primitives
6.3.1 General definition
All application layer services have the same general format. Service primitives are written in the form:
service_name.type (
parameter A, parameter B, parameter C
[,parameter 1, .]
)
Where:
⎯ "service_name" is the name of the diagnostic service (e.g. DiagnosticSessionControl),
⎯ "type" indicates the type of the service primitive (e.g. request),
⎯ "parameter A, ." is the A_SDU (Application layer Service Data Unit) as a list of values passed by the
service primitive (addressing information),
⎯ "parameter A, parameter B, parameter C" are mandatory parameters that shall be included in all service
calls,
⎯ "[,parameter 1, .]" are parameters that depend on the specific service (e.g. parameter 1 can be the
diagnosticSession for the DiagnosticSessionControl service). The brackets indicate that this part of the
parameter list may be empty.
6.3.2 Service request and service indication primitives
For each application layer service, service request and service indication primitives are specified according to
the following general format:
service_name.request (
A_MType,
A_SA,
A_TA,
A_TA_type,
[A_AE],
A_Length,
A_Data[,parameter 1, .],
)
The request primitive is used by the client function in the diagnostic tester application, to initiate the service
and pass data about the requested diagnostic service to the application layer.
service_name.indication (
A_MType,
A_SA,
A_TA,
A_TA_type,
[A_AE],
A_Length
A_Data[,parameter 1, .],
)
The indication primitive is used by the application layer, to indicate an internal event which is significant to the
ECU diagnostic application and pass data about the requested diagnostic service to the server function of the
ECU diagnostic application.
The request and indication primitive of a specific application layer service always have the same parameters
and parameter values. This means that the values of individual parameters shall not be changed by the
communicating peer protocol entities of the application layer when the data is transmitted from the client to the
server. The same values that are passed by the client function in the client application to the application layer
in the service request call shall be received by the server function of the diagnostic application from the
service indication of the peer application layer.
10 © ISO 2013 – All rights reserved

6.3.3 Service response and service confirm primitives
For each confirmed application layer service, service response and service confirm primitives are specified
according to the following general format:
service_name.response (
A_Mtype,
A_SA,
A_TA,
A_TA_type,
[A_AE],
A_Length
A_Data[,parameter 1, .],
)
The response primitive is used by the server function in the ECU diagnostic application, to initiate the service
and pass response data provided by the requested diagnostic service to the application layer.
service_name.confirm (
A_Mtype,
A_SA,
A_TA,
A_TA_type,
[A_AE],
A_Length
A_Data[,parameter 1, .],
)
The confirm primitive is used by the application layer to indicate an internal event which is significant to the
client application and pass results of an associated previous service request to the client function in the
diagnostic tester application. It does not necessarily indicate any activity at the remote peer interface, e.g if the
requested service is not supported by the server or if the communication is broken.
The response and confirm primitive of a specific application layer service always have the same parameters
and parameter values. This means that the values of individual parameters shall not be changed by the
communicating peer protocol entities of the application layer when the data is transmitted from the server to
the client. The same values that are passed by the server function of the ECU diagnostic application to the
application layer in the service response call shall be received by the client function in the diagnostic tester
application from the service confirmation of the peer application layer.
For each response and confirm primitive two different service data units (two sets of parameters) will be
specified.
⎯ A positive response and positive confirm primitive shall be used with the first service data unit if the
requested diagnostic service could be successfully performed by the server function in the ECU.
⎯ A negative response and confirm primitive shall be used wi
...
