ISO 21324:2016

Space data and information transfer systems - Space data link security protocol

The purpose of ISO 21324:2016 is to specify the Space Data Link Security Protocol (hereafter referred as the Security Protocol) for CCSDS data links. This protocol provides a security header and trailer along with associated procedures that may be used with the CCSDS Telemetry, Telecommand, and Advanced Orbiting Systems Space Data Link Protocols (references [1]-[3]) to provide a structured method for applying data authentication and/or data confidentiality at the Data Link Layer.

Systèmes de transfert des données et informations spatiales — Protocole de sécurité de liaison de données spatiales

General Information

• Status: Published
• Publication Date: 02-Nov-2016
• ICS: 49.140 - Space systems and operations
• Technical Committee: ISO/TC 20/SC 13 - Space data and information transfer systems
• Drafting Committee: ISO/TC 20/SC 13 - Space data and information transfer systems
• Current Stage: 9093 - International Standard confirmed
• Start Date: 14-Nov-2023
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO 13736:2021 - Determination of flash point - Abel closed-cup method
• Effective Date: 06-Jun-2022

Overview

ISO 21324:2016 - "Space data and information transfer systems - Space data link security protocol" specifies the Space Data Link Security Protocol for CCSDS data links. Adopted from CCSDS 355.0-B-1 (first edition 2016‑11‑15), the standard defines a structured method for applying data authentication and/or data confidentiality at the Data Link Layer by introducing a security header and security trailer plus associated procedures. It is designed to work with CCSDS Telemetry (TM), Telecommand (TC), and Advanced Orbiting Systems (AOS) Space Data Link Protocols to enable interoperable, cross‑Agency secure links for space missions.

Key topics and requirements

• Scope and purpose: Defines protocol data units and service procedures for Data Link Layer security; does not mandate specific implementations or interface designs.
• Security primitives: Provides structure for applying data authentication and confidentiality via header/trailer constructs integrated into space link frames.
• Protocol services: Specifies sending/receiving behavior, security association management, and service functions applicable to TM, TC and AOS.
• Baseline implementations: Annex E describes non‑normative baseline modes suitable for many missions; the standard itself does not require particular cryptographic algorithms.
• Conformance & management: Includes managed parameters, conformance requirements and a Protocol Implementation Conformance Statement (PICS) proforma.
• Interoperability focus: Intended for cross‑support among CCSDS member agencies; mandatory capabilities must be implemented for interoperability.

Practical applications

ISO 21324:2016 is used when secure space link communications are required between spacecraft and ground systems or between agencies. Typical use cases include:

• Protecting telemetry and telecommand links from spoofing or unauthorized access.
• Enabling interoperable, cross‑Agency secure operations in multi‑agency missions and ground station networks.
• Defining security behavior for mission planners, system integrators and flight software teams without prescribing specific cryptographic implementations.

Who uses it:

• Space agencies and program offices (for cross‑support and standards alignment)
• Satellite and payload system architects and integrators
• Ground segment and network operators (ground stations, TT&C centers)
• Security engineers and mission assurance teams

Related standards

• CCSDS Space Data Link Protocols (Telemetry, Telecommand, AOS) - ISO 21324 is designed to be used together with these CCSDS protocols.
• ISO/TC 20/SC 13: Space data and information transfer systems - committee responsible for adoption.

Keywords: ISO 21324:2016, space data link security protocol, CCSDS, data link layer security, telemetry security, telecommand security, AOS, data authentication, data confidentiality, space mission interoperability.

Standards Content (Sample)

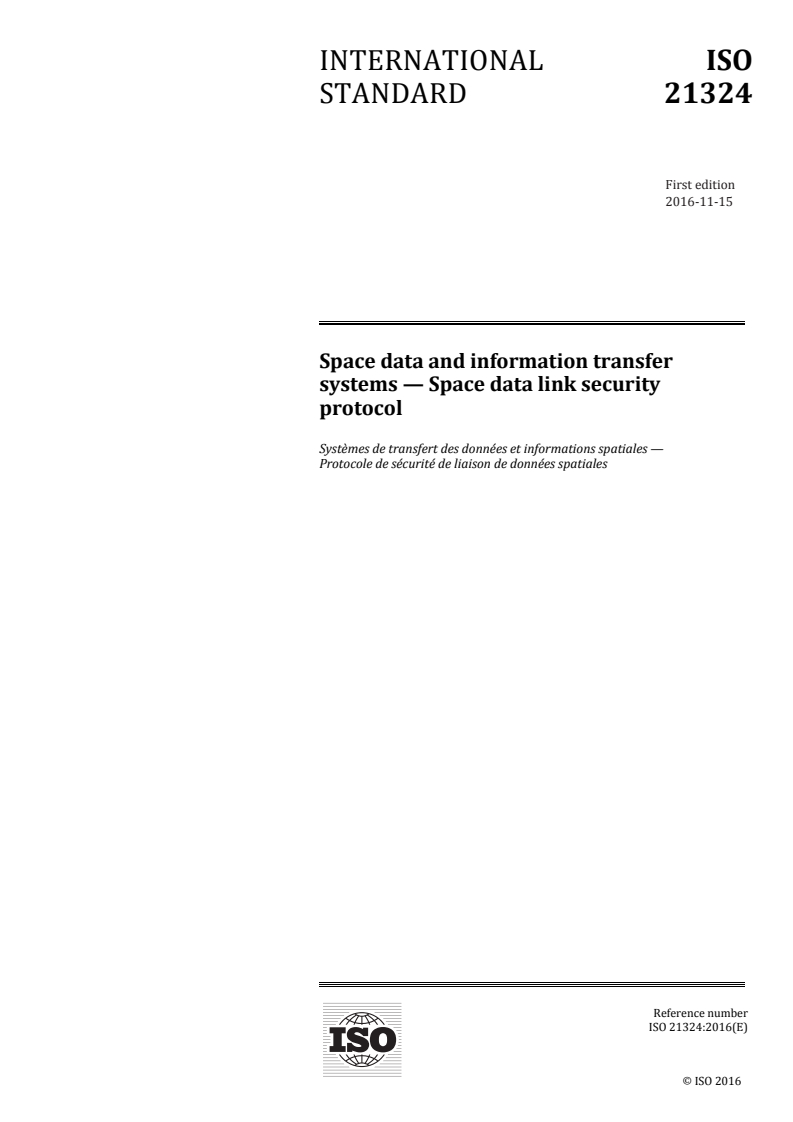

INTERNATIONAL ISO
STANDARD 21324
First edition
2016-11-15
Space data and information transfer
systems — Space data link security
protocol
Systèmes de transfert des données et informations spatiales —
Protocole de sécurité de liaison de données spatiales
Reference number
©
ISO 2016
©  ISO 2016
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any
means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.
Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.
ISO copyright office
Ch. de Blandonnet 8  CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
[e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2016 – All rights reserved

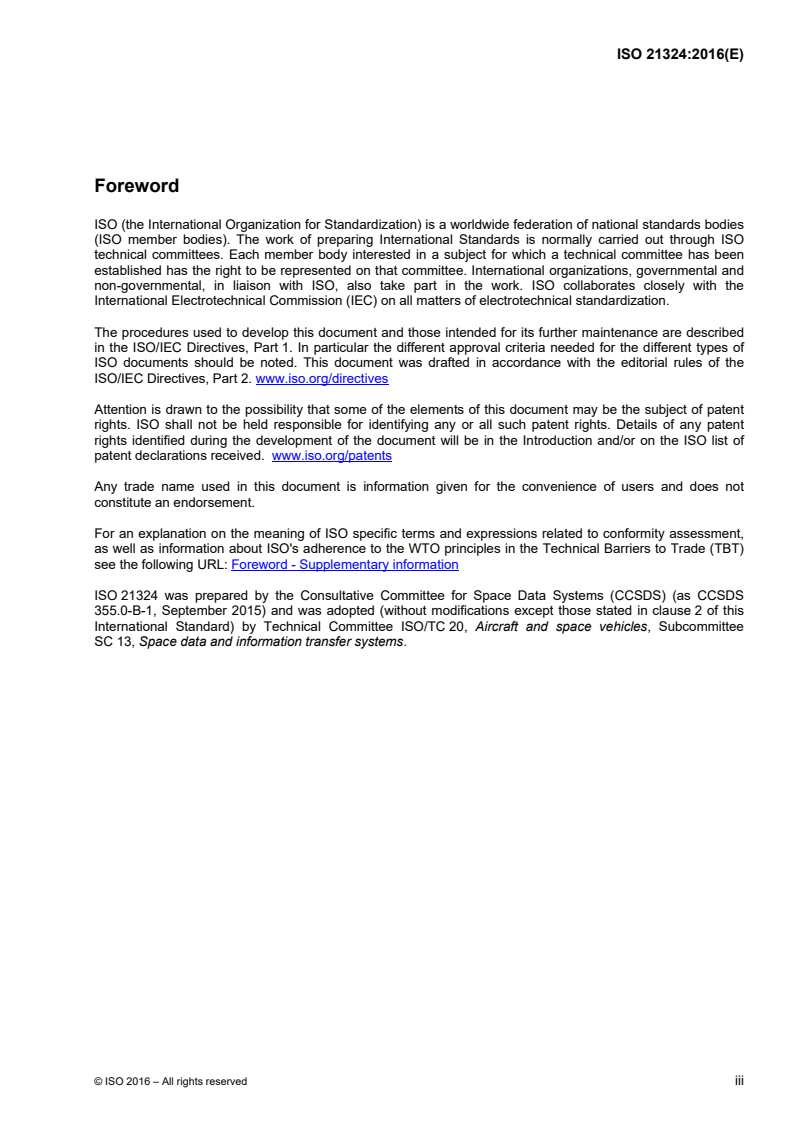

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any patent
rights identified during the development of the document will be in the Introduction and/or on the ISO list of
patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO's adherence to the WTO principles in the Technical Barriers to Trade (TBT)
see the following URL: Foreword - Supplementary information
ISO 21324 was prepared by the Consultative Committee for Space Data Systems (CCSDS) (as CCSDS
355.0-B-1, September 2015) and was adopted (without modifications except those stated in clause 2 of this
International Standard) by Technical Committee ISO/TC 20, Aircraft and space vehicles, Subcommittee
SC 13, Space data and information transfer systems.
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY

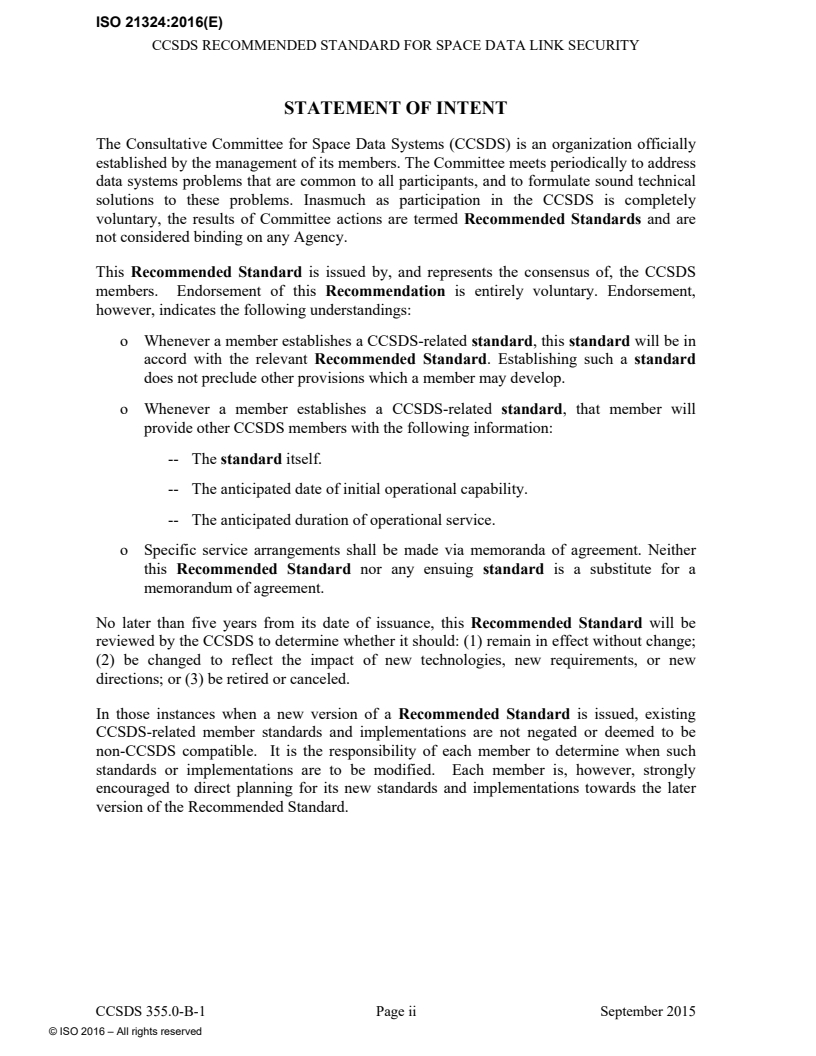

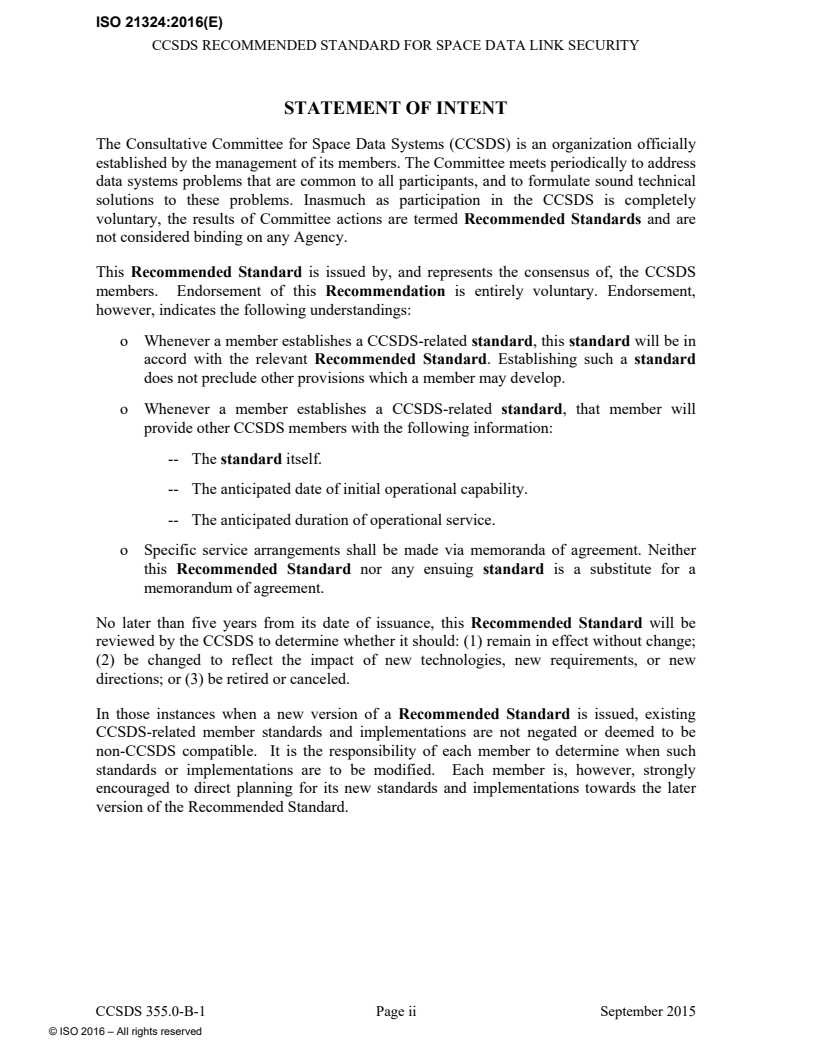

STATEMENT OF INTENT
The Consultative Committee for Space Data Systems (CCSDS) is an organization officially
established by the management of its members. The Committee meets periodically to address
data systems problems that are common to all participants, and to formulate sound technical
solutions to these problems. Inasmuch as participation in the CCSDS is completely
voluntary, the results of Committee actions are termed Recommended Standards and are
not considered binding on any Agency.
This Recommended Standard is issued by, and represents the consensus of, the CCSDS
members. Endorsement of this Recommendation is entirely voluntary. Endorsement,
however, indicates the following understandings:
o Whenever a member establishes a CCSDS-related standard, this standard will be in
accord with the relevant Recommended Standard. Establishing such a standard
does not preclude other provisions which a member may develop.
o Whenever a member establishes a CCSDS-related standard, that member will
provide other CCSDS members with the following information:
-- The standard itself.
-- The anticipated date of initial operational capability.
-- The anticipated duration of operational service.
o Specific service arrangements shall be made via memoranda of agreement. Neither
this Recommended Standard nor any ensuing standard is a substitute for a
memorandum of agreement.
No later than five years from its date of issuance, this Recommended Standard will be
reviewed by the CCSDS to determine whether it should: (1) remain in effect without change;
(2) be changed to reflect the impact of new technologies, new requirements, or new
directions; or (3) be retired or canceled.
In those instances when a new version of a Recommended Standard is issued, existing
CCSDS-related member standards and implementations are not negated or deemed to be
non-CCSDS compatible. It is the responsibility of each member to determine when such
standards or implementations are to be modified. Each member is, however, strongly
encouraged to direct planning for its new standards and implementations towards the later
version of the Recommended Standard.
CCSDS 355.0-B-1 Page ii September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
FOREWORD
This document describes a protocol for applying security services to the CCSDS Space Data
Link Protocols used by space missions over a space link.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CCSDS has processes for identifying patent issues and for securing
from the patent holder agreement that all licensing policies are reasonable and non-
discriminatory. However, CCSDS does not have a patent law staff, and CCSDS shall not be
held responsible for identifying any or all such patent rights.
Through the process of normal evolution, it is expected that expansion, deletion, or
modification of this document may occur. This Recommended Standard is therefore subject
to CCSDS document management and change control procedures, which are defined in
Organization and Processes for the Consultative Committee for Space Data Systems
(CCSDS A02.1-Y-4). Current versions of CCSDS documents are maintained at the CCSDS
Web site:
http://www.ccsds.org/
Questions relating to the contents or status of this document should be sent to the CCSDS
Secretariat at the e-mail address indicated on page i.
CCSDS 355.0-B-1 Page iii September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
At time of publication, the active Member and Observer Agencies of the CCSDS were:
Member Agencies
– Agenzia Spaziale Italiana (ASI)/Italy.
– Canadian Space Agency (CSA)/Canada.
– Centre National d’Etudes Spatiales (CNES)/France.
– China National Space Administration (CNSA)/People’s Republic of China.
– Deutsches Zentrum für Luft- und Raumfahrt (DLR)/Germany.
– European Space Agency (ESA)/Europe.
– Federal Space Agency (FSA)/Russian Federation.
– Instituto Nacional de Pesquisas Espaciais (INPE)/Brazil.
– Japan Aerospace Exploration Agency (JAXA)/Japan.
– National Aeronautics and Space Administration (NASA)/USA.
– UK Space Agency/United Kingdom.
Observer Agencies
– Austrian Space Agency (ASA)/Austria.
– Belgian Federal Science Policy Office (BFSPO)/Belgium.
– Central Research Institute of Machine Building (TsNIIMash)/Russian Federation.
– China Satellite Launch and Tracking Control General, Beijing Institute of Tracking and
Telecommunications Technology (CLTC/BITTT)/China.
– Chinese Academy of Sciences (CAS)/China.
– Chinese Academy of Space Technology (CAST)/China.
– Commonwealth Scientific and Industrial Research Organization (CSIRO)/Australia.
– Danish National Space Center (DNSC)/Denmark.
– Departamento de Ciência e Tecnologia Aeroespacial (DCTA)/Brazil.
– Electronics and Telecommunications Research Institute (ETRI)/Korea.
– European Organization for the Exploitation of Meteorological Satellites (EUMETSAT)/Europe.
– European Telecommunications Satellite Organization (EUTELSAT)/Europe.
– Geo-Informatics and Space Technology Development Agency (GISTDA)/Thailand.
– Hellenic National Space Committee (HNSC)/Greece.
– Indian Space Research Organization (ISRO)/India.
– Institute of Space Research (IKI)/Russian Federation.
– KFKI Research Institute for Particle & Nuclear Physics (KFKI)/Hungary.
– Korea Aerospace Research Institute (KARI)/Korea.
– Ministry of Communications (MOC)/Israel.
– National Institute of Information and Communications Technology (NICT)/Japan.
– National Oceanic and Atmospheric Administration (NOAA)/USA.
– National Space Agency of the Republic of Kazakhstan (NSARK)/Kazakhstan.
– National Space Organization (NSPO)/Chinese Taipei.
– Naval Center for Space Technology (NCST)/USA.
– Scientific and Technological Research Council of Turkey (TUBITAK)/Turkey.
– South African National Space Agency (SANSA)/Republic of South Africa.
– Space and Upper Atmosphere Research Commission (SUPARCO)/Pakistan.
– Swedish Space Corporation (SSC)/Sweden.
– Swiss Space Office (SSO)/Switzerland.
– United States Geological Survey (USGS)/USA.
CCSDS 355.0-B-1 Page iv September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
DOCUMENT CONTROL
Document Title Date Status
CCSDS Space Data Link Security Protocol, September Original issue
355.0-B-1 Recommended Standard, Issue 1 2015

CCSDS 355.0-B-1 Page v September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
CONTENTS
Section Page
1 INTRODUCTION . 1-1

1.1 PURPOSE . 1-1
1.2 SCOPE . 1-1
1.3 APPLICABILITY . 1-1
1.4 RATIONALE . 1-2
1.5 DOCUMENT STRUCTURE . 1-2
1.6 DEFINITIONS . 1-3
1.7 CONVENTIONS . 1-3
1.8 REFERENCES . 1-4

2 OVERVIEW . 2-1

2.1 CONCEPT OF SECURITY PROTOCOL . 2-1
2.2 FEATURES OF SECURITY PROTOCOL . 2-2
2.3 SERVICE FUNCTIONS . 2-6

3 SERVICE DEFINITION . 3-1

3.1 OVERVIEW . 3-1
3.2 FUNCTION AT THE SENDING END . 3-1
3.3 FUNCTION AT THE RECEIVING END . 3-4
3.4 SECURITY ASSOCIATION MANAGEMENT SERVICE . 3-7

4 PROTOCOL SPECIFICATION . 4-1

4.1 PROTOCOL DATA UNITS . 4-1
4.2 SECURITY PROTOCOL PROCEDURES . 4-3

5 USE OF THE SERVICES WITH CCSDS PROTOCOLS . 5-1

5.1 TM PROTOCOL . 5-1
5.2 TC PROTOCOL . 5-1
5.3 AOS PROTOCOL . 5-2
5.4 SUMMARY OF PROTOCOL SERVICES . 5-3

6 MANAGED PARAMETERS . 6-1

6.1 OVERVIEW . 6-1
6.2 REQUIREMENTS . 6-1

7 CONFORMANCE REQUIREMENTS . 7-1
CCSDS 355.0-B-1 Page vi September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
CONTENTS (continued)
Section Page
ANNEX A PROTOCOL IMPLEMENTATION CONFORMANCE
STATEMENT (PICS) PROFORMA (NORMATIVE) . A-1
ANNEX B SECURITY, SANA, AND PATENT CONSIDERATIONS
(INFORMATIVE) .B-1
ANNEX C ABBREVIATIONS AND ACRONYMS (INFORMATIVE) . C-1
ANNEX D INFORMATIVE REFERENCES (INFORMATIVE) . D-1
ANNEX E BASELINE IMPLEMENTATION MODE (INFORMATIVE) .E-1
Figure
2-1  Security Protocol within OSI Model . 2-1
2-2  Security Protocol Interaction with Space Link Frames . 2-2
2-3  Security Protocol Support for TM Services . 2-3
2-4  Security Protocol Support for TC Services . 2-4
2-5  Security Protocol Support for AOS Services . 2-5
4-1  Security Header . 4-1
4-2  Security Trailer . 4-3
5-1  TM Transfer Frame Using the Security Protocol . 5-1
5-2  TC Transfer Frame Using the Security Protocol . 5-2
5-3  AOS Transfer Frame Using the Security Protocol . 5-2
E-1  Security Header (TM Baseline) . E-1
E-2  Security Trailer (TM Baseline) . E-2
E-3  Security Header (TC Baseline) . E-2
E-4  Security Trailer (TC Baseline) . E-3
E-5  Security Header (AOS Baseline) . E-4
E-6  Security Trailer (AOS Baseline) . E-4

Table
5-1 Summary of Protocol and Services Support . 5-3
6-1 Managed Parameters for Security Protocol . 6-1

CCSDS 355.0-B-1 Page vii September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
1 INTRODUCTION
1.1 PURPOSE
The purpose of this Recommended Standard is to specify the Space Data Link Security
Protocol (hereafter referred as the Security Protocol) for CCSDS data links. This protocol
provides a security header and trailer along with associated procedures that may be used with
the CCSDS Telemetry, Telecommand, and Advanced Orbiting Systems Space Data Link
Protocols (references [1]-[3]) to provide a structured method for applying data authentication
and/or data confidentiality at the Data Link Layer.
1.2 SCOPE
This Recommended Standard defines the Security Protocol in terms of:
a) the protocol data units employed by the service provider; and
b) the procedures performed by the service provider.
It does not specify:
a) individual implementations or products;
b) the implementation of service interfaces within real systems;
c) the methods or technologies required to perform the procedures; or
d) the management activities required to configure and control the service.
This Recommended Standard does not mandate the use of any particular cryptographic
algorithm with the Security Protocol. Reference [4] provides a listing of algorithms
recommended by CCSDS; any organization should conduct a risk assessment before
choosing to substitute other algorithms. Annex E (non-normative) defines baseline
implementations suitable for a large range of space missions.
1.3 APPLICABILITY
This Recommended Standard applies to the creation of Agency standards and for secure data
communications over space links between CCSDS Agencies in cross-support situations. The
Recommended Standard includes comprehensive specification of the service for inter-
Agency cross support. It is neither a specification of, nor a design for, real systems that may
be implemented for existing or future missions.
The Recommended Standard specified in this document is to be invoked through the normal
standards programs of each CCSDS Agency, and is applicable to those missions for which
interoperability and cross support based on capabilities described in this Recommended
Standard is anticipated. Where mandatory capabilities are clearly indicated in sections of the
CCSDS 355.0-B-1 Page 1-1 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
Recommended Standard, they must be implemented when this document is used as a basis
for interoperability and cross support. Where options are allowed or implied,
implementation of these options is subject to specific bilateral cross support agreements
between the Agencies involved.
1.4 RATIONALE
The goals of this Recommended Standard are to:
a) provide a standard method of applying security at the Data Link Layer, independent
of the underlying cryptographic algorithms employed by any particular space
mission;
b) preserve compatibility with existing CCSDS Space Data Link Protocol Transfer
Frame Header and Trailer formats and frame processing implementations so that,
where appropriate, legacy frame processing infrastructure may continue to be used
without modification;
c) preserve compatibility with the CCSDS Space Link Extension (SLE) forward and
return services; and
d) facilitate the development of common commercial implementations to improve
interoperability across agencies.
More discussion of the Security Protocol’s goals and design choices, including its interaction
with other CCSDS services, may be found in reference [D3].
1.5 DOCUMENT STRUCTURE
This document is organized as follows:
Section 1 presents the purpose, scope, applicability, and rationale of this Recommended
Standard and lists the conventions, definitions, and references used throughout the document.
Section 2 (informative) provides an overview of the Security Protocol.
Section 3 (normative) defines the services provided by the protocol entity.
Section 4 (normative) specifies the protocol data units provided for these services and the
procedures employed by the service provider.
Section 5 (normative) specifies the constraints associated with these services for each of the
supported Space Data Link Protocols.
Section 6 (normative) lists the managed parameters associated with these services.
CCSDS 355.0-B-1 Page 1-2 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
Section 7 (normative) specifies how to verify an implementation’s conformance with the
Security Protocol.
Annex A (normative) provides a Protocol Implementation Conformance Statement (PICS)
proforma for the Security Protocol.
Annex B (informative) provides an overview of security, SANA registry, and patent
considerations related to this Recommended Standard.
Annex C (informative) provides a glossary of abbreviations and acronyms that appear in the
document.
Annex D (informative) provides a list of informative references.
Annex E (informative) defines baseline implementations suitable for a large range of space
missions.
1.6 DEFINITIONS
For the purposes of this document, the following definitions apply.
NOTE – Generic definitions for the security terminology applicable to this and other
CCSDS documents are provided in reference [D5].
Payload: Data input to be processed by a Security Protocol function.
ApplySecurity Payload: Payload to the ApplySecurity function.
ProcessSecurity Payload: Payload to the ProcessSecurity function.
Authentication Payload: Part of the Transfer Frame to be authenticated.
1.7 CONVENTIONS
1.7.1 NOMENCLATURE
The following conventions apply for the normative specifications in this Recommended
Standard:
a) the words ‘shall’ and ‘must’ imply a binding and verifiable specification;
b) the word ‘should’ implies an optional, but desirable, specification;
c) the word ‘may’ implies an optional specification;
d) the words ‘is’, ‘are’, and ‘will’ imply statements of fact.
CCSDS 355.0-B-1 Page 1-3 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
NOTE – These conventions do not imply constraints on diction in text that is clearly
informative in nature.
1.7.2 INFORMATIVE TEXT
In the normative sections of this document, informative text is set off from the normative
specifications either in notes or under one of the following subsection headings:
– Overview;
– Background;
– Rationale;
– Discussion.
1.8 REFERENCES
The following publications contain provisions which, through reference in this text,
constitute provisions of this document. At the time of publication, the editions indicated
were valid. All publications are subject to revision, and users of this document are
encouraged to investigate the possibility of applying the most recent editions of the
publications indicated below. The CCSDS Secretariat maintains a register of currently valid
CCSDS publications.
[1] TM Space Data Link Protocol. Issue 2. Recommendation for Space Data System
Standards (Blue Book), CCSDS 132.0-B-2. Washington, D.C.: CCSDS, September
2015.
[2] TC Space Data Link Protocol. Issue 3. Recommendation for Space Data System
Standards (Blue Book), CCSDS 232.0-B-3. Washington, D.C.: CCSDS, September
2015.
[3] AOS Space Data Link Protocol. Issue 3. Recommendation for Space Data System
Standards (Blue Book), CCSDS 732.0-B-3. Washington, D.C.: CCSDS, September
2015.
[4] CCSDS Cryptographic Algorithms. Issue 1. Recommendation for Space Data System
Standards (Blue Book), CCSDS 352.0-B-1. Washington, D.C.: CCSDS, November
2012.
NOTE – Informative references are listed in annex D.
CCSDS 355.0-B-1 Page 1-4 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2 OVERVIEW
2.1 CONCEPT OF SECURITY PROTOCOL
The Space Data Link Security Protocol is a data processing method for space missions that
need to apply authentication and/or confidentiality to the contents of Transfer Frames used by
Space Data Link Protocols over a space link. The Security Protocol is provided only at the
Data Link Layer (Layer 2) of the OSI Basic Reference Model (reference [D1]), as illustrated in
figure 2-1. It is an extra service of the Space Data Link Protocols defined in references [1]–[3],
and therefore is to be used together with one of these references. (The Security Protocol is
not applicable for use with the Proximity-1 Space Data Link Protocol.)

Figure 2-1: Security Protocol within OSI Model
CCSDS 355.0-B-1 Page 2-1 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2.2 FEATURES OF SECURITY PROTOCOL
2.2.1 GENERAL
The purpose of the Security Protocol is to provide a secure standard method, with associated
data structures, for performing security functions on octet-aligned user data within Space
Data Link Protocol Transfer Frames over a space link. The maximum length of input data
that can be accommodated is not limited by the Security Protocol, but is an attribute of the
related Space Data Link Protocol. Both Security Header and Trailer are provided for
delimiting the protected data and conveying the necessary cryptographic parameters within
Transfer Frames. The size of the Security Header and Trailer reduces the maximum size of
the Transfer Frame Data Field allowed by the underlying Space Data Link Protocol.
The Security Protocol preserves the quality of service that is provided by the Space Data
Link Protocol. The Security Protocol is scalable to operate across any number of Virtual
Channels supported by the Space Data Link Protocols. The use and sizes of a Security
Header and a Security Trailer for a given Global Virtual Channel or Global Multiplexer
Access Point are managed parameters which remain constant for a given mission.
2.2.2 DATA LINK LAYER PROTOCOLS
Two sublayers of the Data Link Layer are defined for CCSDS space link protocols as shown
in reference [D4]. Each of the three supported Space Data Link Protocols, Telemetry (TM),
Telecommand (TC), and Advanced Orbiting Systems (AOS), correspond to the Data Link
Protocol Sublayer. Operation of the Security Protocol is unaffected by the Synchronization
and Channel Coding Sublayer.
Figure 2-2 shows a simplified representation of Space Data Link Protocol frames and the
effect of the Security Protocol’s inserting header and optional trailer fields to surround the
frame data supplied by higher layers. The detailed structure of the TM, TC, and AOS
Transfer Frames with the Security Protocol is given in references [1], [2], and [3],
respectively, and repeated below in figures 5-1, 5-2, and 5-3 for reference.

Figure 2-2: Security Protocol Interaction with Space Link Frames
CCSDS 355.0-B-1 Page 2-2 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2.2.3 SECURITY SERVICE FOR TM
The relationship of the Security Protocol’s functions to the TM Protocol is shown in
figure 2-3. The figure shows the sending end of a physical channel.
NOTE: TM services not supported by the security protocol are shown greyed-out and italicized
VC_FSH Service
VC_OCF Service
VC Packet Service MC_FSH Service VC Frame Service
VC Access Service MC_OCF Service MC Frame Service
Data for the Data for auxiliary data fields Almost-complete frames
Transfer Frame Data Field in the frame from external sources (*)
ApplySecurity Function
Select data for Transfer Frame Data Field
Construct a partial Transfer Frame The TM Protocol also contains:
Apply encryption and
A
Multiplexing for VCs
authentication to the frame
Call the ApplySecurity function for the frame Multiplexing for MCs
according to the
Security Association
Complete the frame
B
TM Protocol Entity
Security Protocol Entity
Synchronization and Channel Coding
(*) Almost-complete transfer frames are frames without the following fields : Master Frame Count, Operational Control Field, Frame Error Control Field
A : TM ApplySecurity payload
B : TM ApplySecurity return
Figure 2-3: Security Protocol Support for TM Services
The Security Protocol provides all its functions (authentication, encryption, and
authenticated encryption) for the data in the Transfer Frame Data Field of a TM Transfer
Frame. It therefore provides full protection for the service data of the following TM
Services: the Virtual Channel Packet (VCP) Service and the Virtual Channel Access (VCA)
Service.
The Security Protocol provides authentication for some fields in the Transfer Frame Primary
Header and for some auxiliary data fields in a TM Transfer Frame. It does not provide
encryption for these fields. The Security Protocol can provide authentication protection for
the service data of the Virtual Channel Frame Secondary Header (VC_FSH) Service.
The Security Protocol provides no protection for data of the other TM Services that use
auxiliary data fields in a TM Transfer Frame: the Virtual Channel Operational Control Field
(VC_OCF) Service, the Master Channel Frame Secondary Header (MC_FSH) Service, and
the Master Channel Operational Control Field (MC_OCF) Service. The Security Protocol
also provides no protection for the frames supplied to the TM Protocol by external sources
on the following services: the Virtual Channel Frame (VC Frame) Service and the Master
Channel Frame (MC Frame) Service.
CCSDS 355.0-B-1 Page 2-3 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2.2.4 SECURITY SERVICE FOR TC
The relationship of the Security Protocol’s functions to the TC Protocol is shown in
figure 2-4.  The figure shows the sending end of a physical channel.
NOTE: TC services not supported by the security protocol are shown greyed-out and italicized
MAP Packet Service
MAP Access Service
VC Packet Service VC Frame Service
VC Access Service COP Management Service MC Frame Service
Data for the Control information for Almost-complete frames
Transfer Frame Data Field COP-1 protocol from external sources (*)
ApplySecurity Function
Select data for Transfer Frame Data Field
The TC Protocol also contains:
Construct a partial Transfer Frame Multiplexing for MAPs
Apply encryption and
A
COP-1 protocol
authentication to the frame
Call the ApplySecurity function for the frame Multiplexing for VCs
according to the
Multiplexing for MCs
Security Association
Complete the frame
B
TC Protocol Entity
Security Protocol Entity
Synchronization and Channel Coding
(*) Almost-complete transfer frames are frames without the following fields : Frame Error Control Field
A : TC ApplySecurity payload
B : TC ApplySecurity return
Figure 2-4: Security Protocol Support for TC Services
The Security Protocol provides all its functions (authentication, encryption, and
authenticated encryption) for the data in the Transfer Frame Data Field of a TC Transfer
Frame. It therefore provides full protection for the service data of the following TC Services:
the MAP (Multiplexer Access Point) Packet Service, the MAP Access Service, the Virtual
Channel Packet (VCP) Service, and the Virtual Channel Access (VCA) Service.
The Security Protocol provides authentication for some fields in the Transfer Frame Primary
Header in a TC Transfer Frame. It does not provide encryption for these fields.
There are no auxiliary data fields in a TC Transfer Frame. The Security Protocol provides no
protection for the control frames generated for the COP (Communications Operation
Procedure) Management Service. The Security Protocol also provides no protection for the
frames supplied to the TC Protocol by external sources on the following services: the Virtual
Channel Frame (VC Frame) Service and the Master Channel Frame (MC Frame) Service.
CCSDS 355.0-B-1 Page 2-4 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2.2.5 SECURITY SERVICE FOR AOS
The relationship of the Security Protocol’s functions to the AOS Protocol is shown in
figure 2-5. The figure shows the sending end of a physical channel.
NOTE: AOS services not supported by the security protocol are shown greyed-out and italicized
VC Packet Service
Bitstream Service VC_OCF Service VC Frame Service
VC Access Service Insert Service MC Frame Service
Data for the Data for auxiliary data fields Almost-complete frames
Transfer Frame Data Field in the frame from external sources (*)
ApplySecurity Function
Select data for Transfer Frame Data Field
Construct a partial Transfer Frame
The AOS Protocol also contains:
Apply encryption and
A
Multiplexing for VCs
authentication to the frame
Call the ApplySecurity function for the frame
Multiplexing for MCs
according to the
Security Association
Complete the frame
B
Security Protocol Entity AOS Protocol Entity
Synchronization and Channel Coding
(*) Almost-complete transfer frames are frames without the following fields : Operational Control Field, Frame Error Control Field
A : AOS ApplySecurity payload
B : AOS ApplySecurity return
Figure 2-5: Security Protocol Support for AOS Services
The Security Protocol provides all its functions (authentication, encryption, and
authenticated encryption) for the data in the Transfer Frame Data Field of an AOS Transfer
Frame. It therefore provides full protection for the service data of the following AOS
Services: the Virtual Channel Packet (VCP) Service, the Bitstream Service, and the Virtual
Channel Access (VCA) Service.
The Security Protocol provides authentication for some fields in the Transfer Frame Primary
Header in an AOS Transfer Frame. It does not provide encryption for these fields.
The Security Protocol provides no protection for data of the AOS Services that use auxiliary
data fields in an AOS Transfer Frame: the Virtual Channel Operational Control Field
(VC_OCF) Service and the Insert Service. The Security Protocol also provides no protection
for the frames supplied to the AOS Protocol by external sources on the following services:
the Virtual Channel Frame (VC Frame) Service and the Master Channel Frame (MC Frame)
Service.
CCSDS 355.0-B-1 Page 2-5 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
2.3 SERVICE FUNCTIONS
2.3.1 SECURITY ASSOCIATIONS
2.3.1.1 General
The Security Protocol provides security associations for defining the cryptographic
communications parameters to be used by both the sending and receiving ends of a
communications session, and for maintaining state information for the duration of the session.
A Security Association (SA) defines a simplex (one-way), stateful cryptographic session for
providing authentication, data integrity, replay protection, and/or data confidentiality.
2.3.1.2 Security Association Context
All Transfer Frames that share the same SA on a physical channel constitute a Secure
Channel. A Secure Channel consists of one or more Global Virtual Channels or Global MAP
IDs (TC only) assigned to an SA at the time of its creation.
The Security Parameter Index (SPI) is a transmitted value that uniquely identifies the SA
applicable to a Transfer Frame. All Transfer Frames having the same SPI on a physical
channel share a single SA. The SPI can be considered as a table index key to an SA data base
that stores all of the managed information required by each of the SAs on a physical channel.
2.3.1.3 Security Association Service Types
When an SA is created, one of the following cryptographic functions is selected to be applied
on specified fields for all Transfer Frames using that SA:
a) authentication;
b) encryption;
c) authenticated encryption.
Once an SA is created, the authentication and/or encryption algorithms specified, along with
their modes of operation, are fixed and cannot be changed for the duration of the SA.
2.3.1.4 Security Header and Trailer
All Transfer Frames using an SA on a physical channel include a Security Header and Trailer
surrounding the Frame Data area of the Transfer Frame. The Security Header carries the SPI,
initialization vector, anti-replay sequence number, length of any block padding used (where
necessary); the Security Trailer carries a Message Authentication Code (MAC).
CCSDS 355.0-B-1 Page 2-6 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
The detailed structure of the TM, TC, and AOS Transfer Frames with the Security Protocol is
given in references [1], [2], and [3], respectively, and repeated below in figures 5-1, 5-2, and
5-3 for reference.
Once an SA is created, the lengths of the managed fields in the Security Header and Trailer
are fixed for the duration of that SA.
2.3.1.5 Security Association Management
Both the sender and the receiver must create an SA, associate it with cryptographic key(s),
and activate it before the SA may be used to secure Transfer Frames on a channel.
SAs may be statically preloaded prior to the start of a mission. SAs may also be created
dynamically as needed, even while other existing SAs are active. The mechanism for
switching from one active SA to another is an Application Layer function.
NOTE – Over-the-air negotiation of SA parameters is a (currently undefined) Application
Layer function.
2.3.2 AUTHENTICATION
2.3.2.1 General
The Security Protocol provides for the use of authentication algorithms to ensure the
integrity of transmitted data and the authenticity of the data source. The Security Protocol
also provides for the use of sequence numbering to detect the unauthorized replay of
previously transmitted data.
2.3.2.2 Message Authentication and Integrity
When the Security Protocol is used for authentication, a MAC is computed over the specified
Transfer Frame fields, which are the Frame Header, the optional Frame Secondary Header
(TM only), the optional Segment Header (TC only), the Security Header (as part of this
security protocol), and the Frame Data Field. An SA providing authentication also manages
an authentication bit mask for that SA, enabling the sender and receiver to ‘mask out’ (i.e.,
substitute zeros in place of) certain bit fields within the headers from the input to the MAC
computation. Transfer Frame fields always excluded from MAC computation are the
optional Insert Zone (AOS only), optional Operational Control Field (OCF), optional Error
Control Field (ECF), and the MAC field itself within the Security Trailer. Transfer Frame
fields always included for MAC computation are the Virtual Channel ID, Segment Header
(TC only), Security Header (except for the Initialization Vector), and Frame Data Field.
CCSDS 355.0-B-1 Page 2-7 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
NOTE – The channel coding synchronization marker prepended to a Transfer Frame prior
to transmission—the Attached Sync Mark (ASM) in TM and AOS, or the
Communications Link Transmission Unit (CLTU) Start Sequence in TC—is
always excluded from MAC computation.
2.3.2.3 Replay Protection
2.3.2.3.1 General
When the Security Protocol is used for authentication, a sequence number is also transmitted
in the Transfer Frame. As part of an SA providing authentication, both the sender and
receiver manage the following information:
a) a sequence number value (current value for the sender, expected value for the
receiver);
b) a sequence number window for comparison by the receiver;
c) the location within the Transfer Frame of the sequence number.
2.3.2.3.2 Sequence Number
The sender increments its managed sequence number by one with each transmitted frame
belonging to that SA. With each valid received frame belonging to that SA, the receiver will
replace its stored sequence number with the received value on the condition that the received
sequence number is higher than the stored sequence number. Additionally, if the received
Sequence Number differs from the expected value by more than a defined positive value
called the Sequence Number Window, the receiver discards the frame and neither replaces
nor increments its stored sequence number.
NOTE – The interpretation of a sequence number rollover (to zero) is mission-specific.
Possible interpretations and problems linked with this rollover are discussed in
reference [D3].
2.3.2.3.3 Sequence Number Window
The sequence number window is a fixed positive delta value, specified in the SA, for the
receiver to use in comparing the sequence number received to the expected value. A
received frame whose sequence number falls outside this window is discarded. The size of
the selected window accounts for predicted delays and gaps in RF transmission.
2.3.2.3.4 Sequence Number Location
The location of the transmitted Sequence Number in the Transfer Frame is specified in the
SA. Two options are provided:
CCSDS 355.0-B-1 Page 2-8 September 2015
CCSDS RECOMMENDED STANDARD FOR SPACE DATA LINK SECURITY
a) The Sequence Number can be located in the Sequence Number field of the Security
Header. In this case, its length is a managed SA parameter.
b) For systems that implement authenticated encryption using a simple incrementing
counter as an initialization vector (i.e., as in counter-mode cryptographic algorithms),
the Initialization Vector field of the Security Header can serve also as the Sequence
Number. In this case, the Sequence Number field in the Security Header is zero
octets in length.
2.3.3 ENCRYPTION
The Security Protocol provides for the use of encryption algorithms to ensure the
confidentiality of transmitted data.
When the Security Protocol is used for encryption, the data area of the frame (the ‘plaintext’)
is replaced with an encrypted version of the same data (the ‘ciphertext’). An initialization
vector is often used as an input to the encryption process. Depending upon the cryptographic
algorithm and mode used, additional fill data may be needed to pad any undersized blocks.
NOTE – Encryption used without authentication can provide a false sense of security,
depending upon the specific implementation. Selection of security services
should be done carefully after considering a mission-specific threat and risk
analysis.
2.3.4 AUTHENTICATED ENCRYPTION
The Security Protocol provides for the use of authentication and encryption as one combined
(‘encrypt-then-MAC’) procedure.
When the Security Protocol is used for authenticated encryption, the frame data supplied by
the user is first encrypted as described in 2.3.3, a current anti-replay sequence number is
applied to the Transfer Frame, and lastly a MAC is computed over the resultant Transfer
Frame as described in 2.3.2.
CCSDS 355.0-B-1 Page 2-9 September 2015
...
