ISO 20207:2015

Space data and information transfer systems — CCSDS Space Link Protocols over ETSI DVB-S2 Standard

The DVB-S2 standard (reference [1]) proposes advanced modulation techniques (QPSK, 8PSK, 16APSK, and 32APSK) and a wide range of coding rates (from 1/4 to 9/10) with near-Shannon coding schemes (LDPC codes). This high number of modulation and coding schemes allows a wide range of possibilities to satisfy specific mission constraints. Moreover, to maximize the telemetry system throughput, it appears possible to adapt the transmitted waveform (and the useful data rate) to the variable conditions of the link. The DVB-S2 standard can actually implement Variable Coding and Modulation (VCM) mode, which adapts the transmission scheme to the channel conditions following a predetermined schedule (for example, following a dynamic link budget). When a channel is available to provide feedback (e.g., via a telecommand link), the transmission scheme can be dynamically adjusted using the Adaptive Coding and Modulation (ACM) mode. The use of the DVB-S2 standard for telemetry makes possible the use of generic Very High Scale Integrated Circuits (VHSIC) Hardware Description Language (VHDL) Intellectual Property (IP) modules for developments. The use of a widely implemented standard simplifies finding transmitting or receiving equipment to check compatibility. Finally, for the ground part, some telecom DVB-S2 receivers or Application Specific Integrated Circuits (ASICs) developed for the telecom market could be reused. ISO 20207:2015 is an adaptation profile describing how to use the DVB-S2 standard to transmit CCSDS Transfer Frames for telemetry purpose. The interface between CCSDS and DVB-S2 is based on the Attached Synchronization Marker (ASM) and Channel Access Data Unit (CADU) already introduced in reference [2]. DVB-S2 is used in this adaptation profile as a complete and self-sufficient standard, and definitions and specifications taken from DVB-S2 are applicable only in the context of this Recommended Standard. However, individual DVB-S2 functions or components (e.g., VCM/ACM, 8-PSK, and higher-order modulations) might be reused, redefined, and/or respecified by CCSDS in future Recommended Standards.

Systèmes de transfert des informations et données spatiales — Protocole pour liaisons spatiales CCSDS utilisant la Norme ETSI DVB-S2

General Information

• Status: Published
• Publication Date: 10-Aug-2015
• ICS: 49.140 - Space systems and operations
• Technical Committee: ISO/TC 20/SC 13 - Space data and information transfer systems
• Drafting Committee: ISO/TC 20/SC 13 - Space data and information transfer systems
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 14-Nov-2023

Standards Content (Sample)

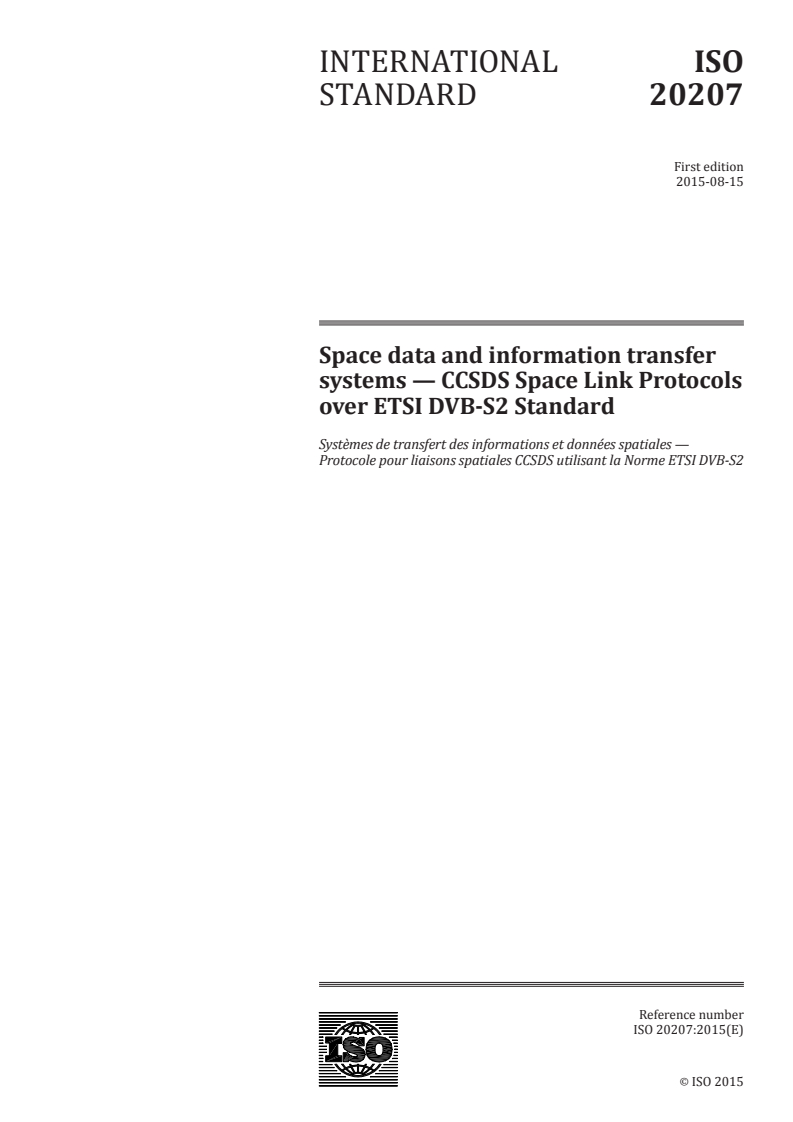

INTERNATIONAL ISO
STANDARD 20207
First edition
2015-08-15
Space data and information transfer
systems — CCSDS Space Link Protocols
over ETSI DVB-S2 Standard
Systèmes de transfert des informations et données spatiales —
Protocole pour liaisons spatiales CCSDS utilisant la Norme ETSI DVB-S2
Reference number
ISO 20207:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 20207:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 20207:2015(E)

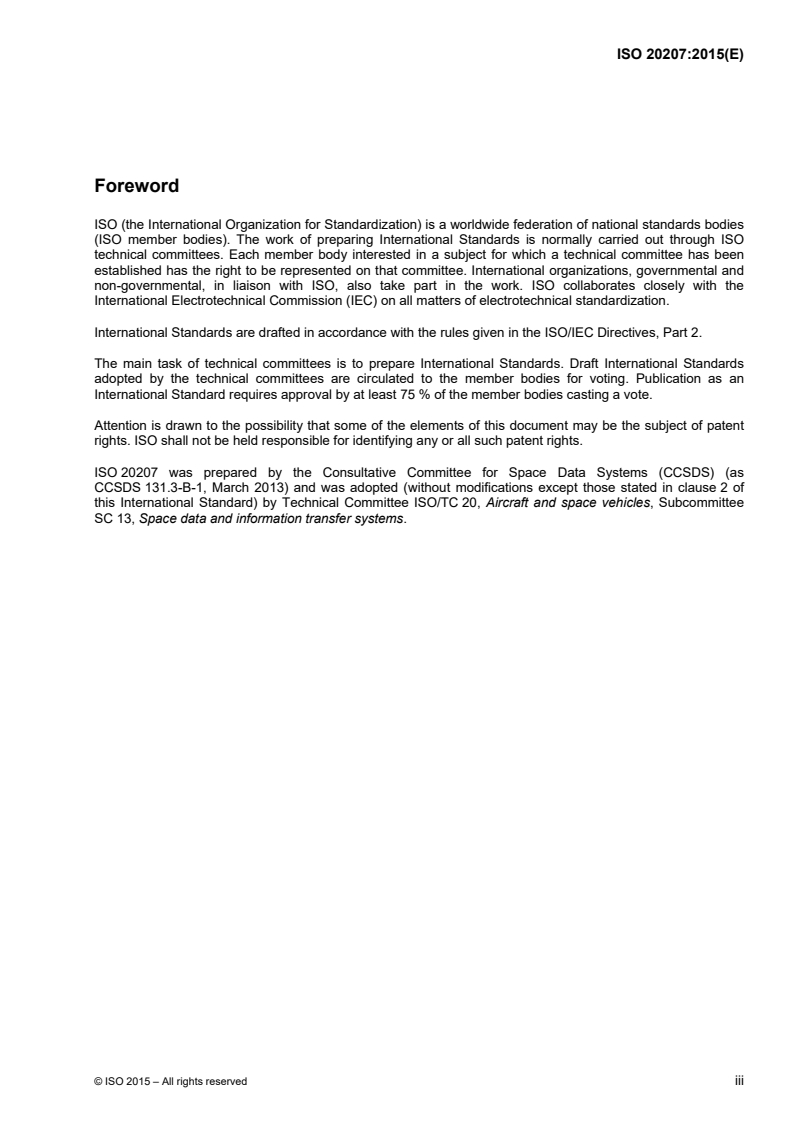

Foreword
