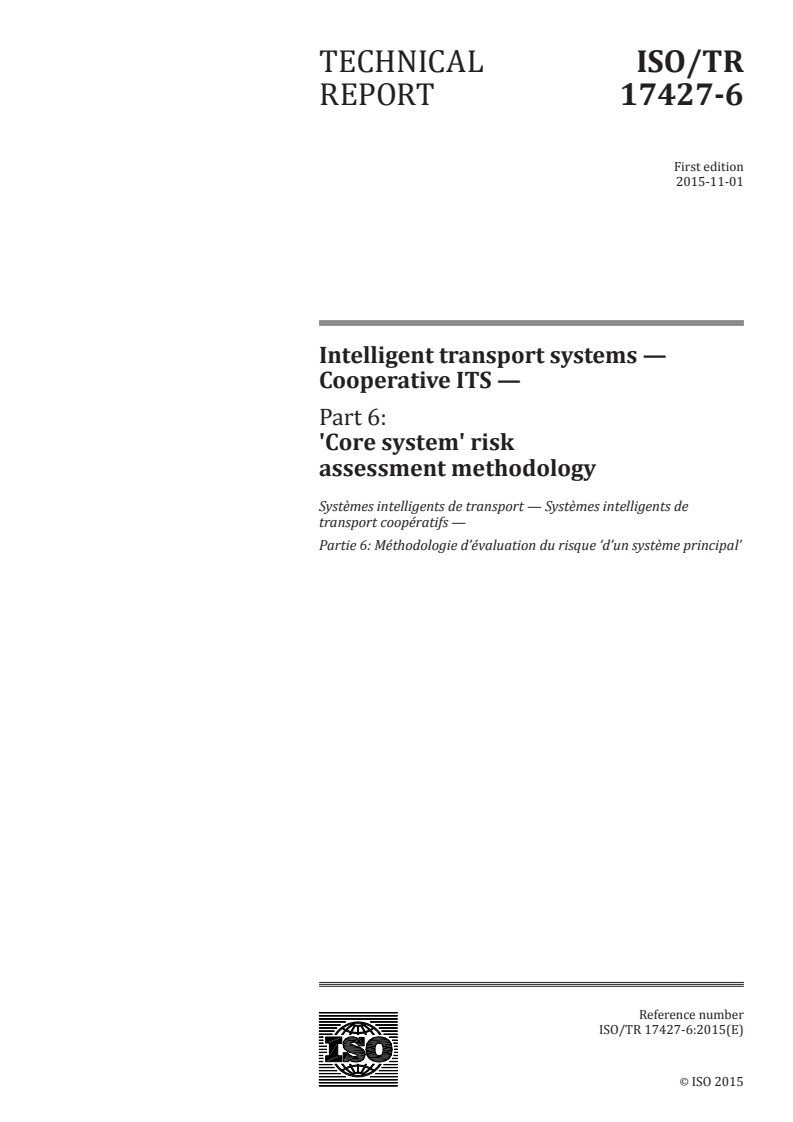

TECHNICAL ISO/TR
REPORT 17427-6
First edition
2015-11-01
Intelligent transport systems —
Cooperative ITS —
Part 6:
'Core system' risk
assessment methodology
Systèmes intelligents de transport — Systèmes intelligents de
transport coopératifs —
Partie 6: Méthodologie d’évaluation du risque ‘d’un système principal’
Reference number
ISO/TR 17427-6:2015(E)
©
ISO 2015
---------------------- Page: 1 ----------------------
ISO/TR 17427-6:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 17427-6:2015(E)

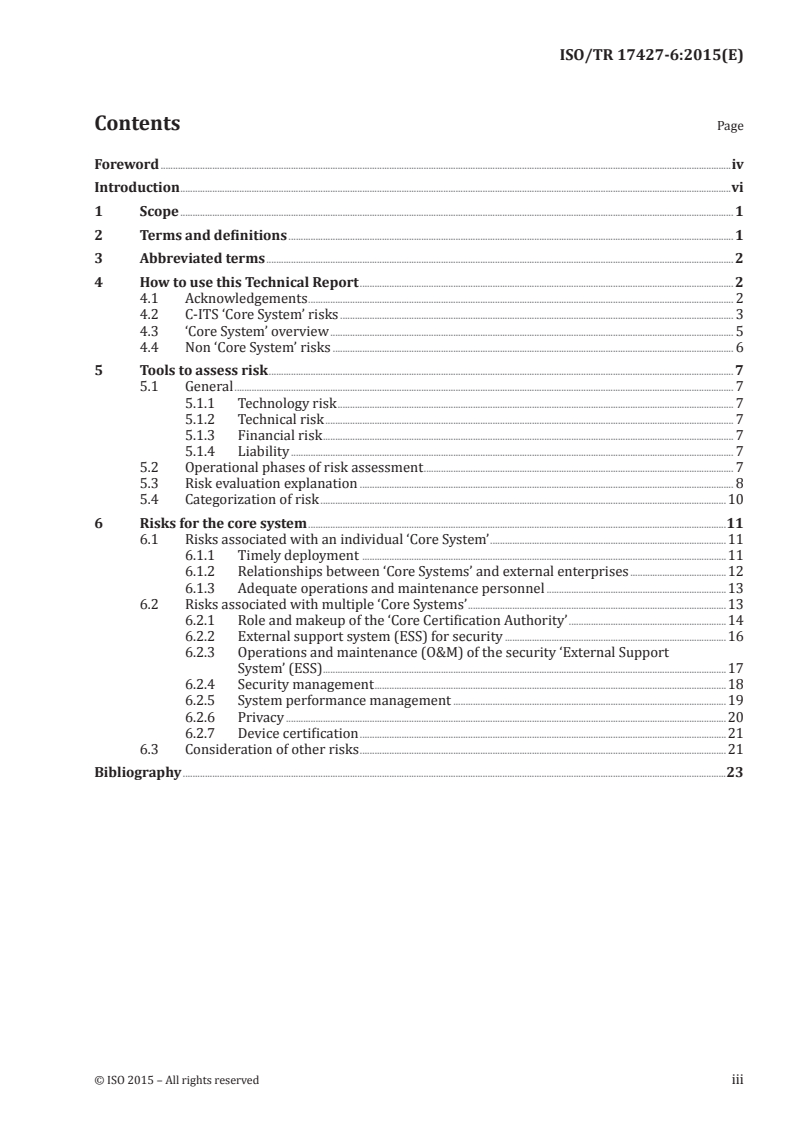

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Terms and definitions . 1
3 Abbreviated terms . 2
4 How to use this Technical Report . 2
4.1 Acknowledgements . 2
4.2 C-ITS ‘Core System’ risks . 3
4.3 ‘Core System’ overview . 5
4.4 Non ‘Core System’ risks . 6
5 Tools to assess risk . 7
5.1 General . 7
5.1.1 Technology risk . 7
5.1.2 Technical risk . 7
5.1.3 Financial risk . 7
5.1.4 Liability . 7
5.2 Operational phases of risk assessment . 7
5.3 Risk evaluation explanation . 8
5.4 Categorization of risk .10
6 Risks for the core system .11
6.1 Risks associated with an individual ‘Core System’ .11
6.1.1 Timely deployment . .11
6.1.2 Relationships between ‘Core Systems’ and external enterprises .12
6.1.3 Adequate operations and maintenance personnel .13
6.2 Risks associated with multiple ‘Core Systems’ .13
6.2.1 Role and makeup of the ‘Core Certification Authority’ .14
6.2.2 External support system (ESS) for security .16
6.2.3 Operations and maintenance (O&M) of the security ‘External Support
System’ (ESS) .17
6.2.4 Security management .18
6.2.5 System performance management .19
6.2.6 Privacy .20
6.2.7 Device certification .21
6.3 Consideration of other risks .21
Bibliography .23
© ISO 2015 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 17427-6:2015(E)

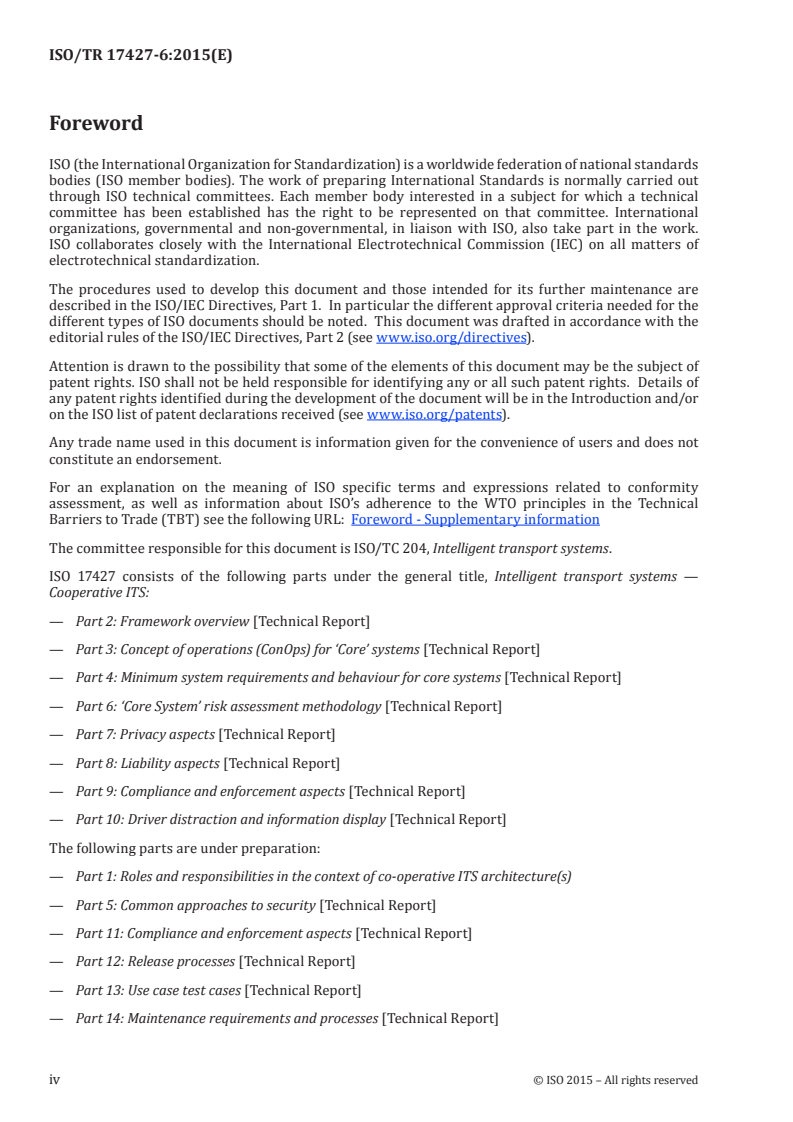

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 204, Intelligent transport systems.
ISO 17427 consists of the following parts under the general title, Intelligent transport systems —
Cooperative ITS:
— Part 2: Framework overview [Technical Report]
— Part 3: Concept of operations (ConOps) for ‘Core’ systems [Technical Report]
— Part 4: Minimum system requirements and behaviour for core systems [Technical Report]
— Part 6: ‘Core System’ risk assessment methodology [Technical Report]
— Part 7: Privacy aspects [Technical Report]
— Part 8: Liability aspects [Technical Report]
— Part 9: Compliance and enforcement aspects [Technical Report]
— Part 10: Driver distraction and information display [Technical Report]
The following parts are under preparation:
— Part 1: Roles and responsibilities in the context of co-operative ITS architecture(s)
— Part 5: Common approaches to security [Technical Report]
— Part 11: Compliance and enforcement aspects [Technical Report]
— Part 12: Release processes [Technical Report]
— Part 13: Use case test cases [Technical Report]
— Part 14: Maintenance requirements and processes [Technical Report]
iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 17427-6:2015(E)
This Technical Report provides an informative ‘C-ITS Core System Risk Assessment Methodology’
for Cooperative Intelligent Transport Systems (C-ITS). It should be studied alongside ISO 17427-1,
ISO/TR 17465-1, and other parts of the ISO/TR 17465 series and ISO 21217. Detailed specifications for
the application context will be provided by other ISO, CEN and SAE deliverables, and communications
specifications will be provided by ISO, IEEE and ETSI.
© ISO 2015 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 17427-6:2015(E)
Introduction
Intelligent transport systems (ITS) are transport systems in which advanced information, communication,
sensor and control technologies, including the Internet, are applied to increase safety, sustainability,
efficiency, and comfort.
A distinguishing feature of ‘ITS’ is its communication with outside entities.
Some ITS systems operate autonomously, for example, ‘adaptive cruise control’ uses radar/lidar/and/or
video to characterize the behaviour of the vehicle in front and adjust its vehicle speed accordingly.
Some ITS systems are informative, for example, ‘Variable Message Signs’ at the roadside, or transmitted
into the vehicle, provide information and advice to the driver. Some ITS systems are semi-autonomous,
in that, they are largely autonomous, but rely on ‘static’ or ‘broadcast’ data, for example, GNSS based
‘SatNav’ systems operate autonomously within a vehicle but are dependent on receiving data broadcast
from satellites in order to calculate the location of the vehicle.
Cooperative Intelligent transport systems (C-ITS) are a group of ITS technologies where service provision
is enabled by, or enhanced by, the use of ‘live’, present situation related, dynamic data/information from
other entities of similar functionality [for example, from one vehicle to other vehicle(s)], and/or between
different elements of the transport network, including vehicles and infrastructure [for example,
from the vehicle to an infrastructure managed system or from an infrastructure managed system to
vehicle(s)]. Effectively, these systems allow vehicles to ‘talk’ to each other and to the infrastructure.
These systems have significant potential to improve the transport network.
A distinguishing feature of ‘C-ITS, is that, data is used across application/service boundaries.
It is important to understand that C-ITS is not an end in itself, but a combination of techniques, protocols,
systems and sub-systems to enable ‘cooperative’/collaborative service provision.
The purpose of this ‘C-ITS Risk Assessment Methodology’ Technical Report is to identify critical technical
and cost risks that can impact C-ITS vehicle and highway systems service provision deployment, and
to provide means to evaluate such risks. Risk varies according to the complexity, size, commercial
paradigm, and political paradigm prevalent in each jurisdiction where C-ITS are supported.
While the principle causes of risks, both technical and cost risks, will be generally similar in each
jurisdiction which encourages and supports C-ITS vehicle and highway systems, the quantifiable or
assessable risk will vary to some extent in each case, and each jurisdiction, the core system operator,
and application service provider, will need to make their own risk assessment. This Technical Report,
therefore, does not provide a calculated ‘global’ risk assessment for C-ITS, but identifies the principal
causes of risk, and provides a consistent way for a jurisdiction, core system operator, or application
service provider, to assess the risks that they face.
Some see the evolution of C-ITS as possible on a V2V basis, without the need for ‘Core Systems’ and such
casual encounter C-ITS is indeed possible and the technology proven. The subject of risks associated
with In-vehicle systems is outside of the scope of this Technical Report, which is focused on risk
assessment for core system deployments.
The principle environment that this ‘Risk Assessment Technical Report’ is designed to embrace are
C-ITS vehicle and highway systems where there is some institutional involvement and support, by the
direct or indirect provision of core system support, and it is the risks associated with the deployment of
‘Core Systems’ that provide the focus of this Technical Report.
This Technical Report is a ‘living document’, and as our experience with C-ITS develops, it is intended that
it will be updated from time to time, as and when we see opportunities to improve this Technical Report.
vi © ISO 2015 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 17427-6:2015(E)
Intelligent transport systems — Cooperative ITS
Part 6:
'Core system' risk assessment methodology
1 Scope
The scope of this Technical Report is to identify critical technical and financial risks that can impact the
core system deployment supporting C-ITS vehicle and highway systems service provision and to provide
means to evaluate such risks.
This Technical Report is designed to embrace C-ITS vehicle and highway systems where there is some
institutional involvement and support, by the direct or indirect provision of core system support, and it is
the risks associated with the deployment of ‘Core Systems’ that provide the focus of this Technical Report.
This Technical Report does not provide a calculated ‘global’ risk assessment for C-ITS, but identifies the
principal causes of risk, and provides a consistent methodology for a jurisdiction, core system operator,
or application service provider, to assess the risks that they face. The objective of this Technical Report
is to raise awareness of and consideration of such issues and to give pointers, where appropriate, to
standards deliverables existing that provide specifications for all or some of these aspects. This
Technical Report does not provide specifications for solutions of these issues.
2 Terms and definitions
2.1
application
software application
2.2
application service
service provided by a service provider accessing data from the IVS vehicle in the case of C-ITS,
through a wireless communications network, or provided on-board the vehicle as the result of
software (and potentially also hardware and firmware) installed by a service provider or to a service
provider’s instruction
2.3
cooperative ITS
C-ITS
group of ITS technologies where service provision is enabled, or enhanced by, the use of ‘live’, present
situation related, data/information from other entities of similar functionality [for example, from one
vehicle to other vehicle(s)], and/or between different elements of the transport network, including
vehicles and infrastructure (for example, from the vehicle to an infrastructure managed system or
from an infrastructure managed system to vehicle(s)]
2.4
‘core’ system
combination of enabling technologies and services that provides the foundation for the support of a
distributed, diverse set of applications (2.1)/application transactions which works in conjunction with
‘external support systems’ such as ‘Certificate Authorities’
Note 1 to entry: The system boundary for the core system is not defined in terms of devices or agencies or
vendors, but by the open, standardized interface specifications that govern the behaviour of all interactions
between core system users.
© ISO 2015 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 17427-6:2015(E)
2.5
global navigation satellite system
GNSS
several networks of satellites that transmit radio signals containing time and distance data that can be
picked up by a receiver, allowing the user to identify the location of its receiver anywhere around the globe
2.6
in-vehicle system
hardware, firmware and software on board a vehicle that provides a platform to support C-ITS service
provision, including that of the ITS-station (ISO 21217), the facilities layer, data pantry and on-board ‘apps’
2.7
intelligent transport systems
ITS
transport systems in which advanced information, communication, sensor and control technologies,
including the Internet, are applied to increase safety, sustainability, efficiency, and comfort
2.8
ITS-station
ITS-S
entity in a communication network [comprised of application (2.1), facilities, networking and access
layer components] that is capable of executing ITS-S application processes, comprised of an ITS-S
facilities layer, ITS-S networking & transport layer, ITS-S access layer, ITS-S management entity and
ITS-S security entity, which adheres to a minimum set of security principles and procedures so as to
establish a level of trust between itself and other similar ITS stations with which it communicates
3 Abbreviated terms
CA Certificate Authority
CCA Core Certification Authority
C-ITS cooperative intelligent transport systems, cooperative ITS
CRL Certificate Revocation List
ESS External System Support
ITS intelligent transport systems (2.7)
IVS in-vehicle system (2.6)
RA Registration Authority
V2I vehicle to/from infrastructure
V2V vehicle to vehicle
4 How to use this Technical Report
4.1 Acknowledgements
The contribution of the following sources are acknowledged as the prime sources of material for this
Technical Report, and thanked for their contribution:
http://www.cvisproject.org/
www.its.dot.gov/research/systems_engineering.htm
2 © ISO 2015 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 17427-6:2015(E)
Cooperative ITS Regulatory Policy Issues and Cooperative Intelligent Transport Systems Policy Paper,
National Transport Commission, Australia.
4.2 C-ITS ‘Core System’ risks
The purpose of this Technical Report is to identify critical technical and cost risks that can impact
a ‘Core System’ for C-ITS vehicle and highway systems service provision deployment, and to provide
means to evaluate such risks.
The risks that are faced by any jurisdiction or deployer of a C-ITS vehicle and highway system varies
according to a number of factors:
— the predominant political paradigm of the jurisdiction in which the deployment is instantiated;
— the predominant commercial paradigm within the jurisdiction in which the deployment is
instantiated;
— the size of the transport network covered by the deployment;
— the complexity of the transport network covered by the deployment;
— the extent of service provision covered by the instantiation.
The political paradigm probably has the greatest impact. Some jurisdictions are very centralized, while
others are, in some way or the other decentralized and/or federated. Some countries organize as a single
monolithic jurisdiction, others are organized as a federation of jurisdictions (states), others somewhere
in-between. Some countries are associated into political groups of countries where the member states
are the paramount jurisdictions and the central jurisdiction is controlled by the will of unanimity or
majority, sometimes both.
The practical effect of this on the management of the transport network is significant. A monolithic
jurisdiction (for example, Great Britain, France, China), while they may have regional Departments
of Transport (DoT), have a centralized controlling DoT which determines policy and strategy. In
some jurisdictions, this may be one of centralized control with management of all core strategic
policies, including transport, managed by the central government [for example, China which has one
‘super’ ‘Ministry of Transportation of the People’s Republic of China’ including the former ‘Ministry
of Communications’, ‘Civil Aviation Administration’, ‘State Post Bureau’, ‘China Maritime Safety
Administration’ and (since 2013) the ‘Ministry of Railways’]. Federated states (for example, USA,
Australia) that have their own DoTs and central policy, in some cases, may be determined centrally and
imposed locally [by a combination of regulations for consistency across the country, and by control of
the allotment of financial resources to implement central policies/strategies (for example, USA)], or may
be determined locally and brought to the central DoT for agreement by consensus where achievable (for
example, Australia, Switzerland).
In combination with the constraints and opportunities of the political paradigm is the commercial
paradigm that it fosters. In nearly all countries, the transport environment, and especially the road
network, is ‘state’ funded and controlled. Highways may be totally state funded from taxation,
or outsourced to commercial or pseudo-commercial organizations to fund the development of
autoroutes/highways/and infrastructures such as tunnels and bridges, increasingly a combination of
both, but the paradigm is almost globally managed by the ‘jurisdiction’. However, whether this is the
local jurisdictional ‘state’ or the National DoT varies considerably, and in cases such as Europe, while
there may be a European “Directorate General” MOVE (Mobility and Transport), it is the National
Member States whose DoTs are paramount, and whose policies vary from one member state to another.
Some jurisdictions are sympathetic to the provision of commercial services (including C-ITS service
provisions), while others are hostile and consider commercialisation to be potentially a safety risk.
Most will live with some compromise that suits the local community, but those compromises will vary
from jurisdiction to jurisdiction.
The other factors that are most important in shaping the shape of C-ITS deployment are the size and
complexity of the transport network, and in particular, the road network. In countries such as USA,
© ISO 2015 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 17427-6:2015(E)
the network is so complex, with many different layers of governance, and many different local political
and commercial environments, and the size, both in terms of road pavement kilometres/miles and in
the number of road users, so vast, that would make a monolithic ‘Core System’ impracticable. However,
other countries, such as Australia, although the size of the territory is 80 % the size of USA, because
the road network is only 12 % of the size of that in USA and serves a population of 7 % of that of USA,
a single monolithic ‘National’ core system may seem to be the only viable arrangement to support C-ITS
service provision.
The principle causes of risks, both technical and cost risks, will be generally similar in each jurisdiction
which encourages and supports C-ITS vehicle and highway systems, but the quantifiable or assessable
risk will vary to some extent in each case, and each jurisdiction, core system operator, and application
service (2.2) provider, will need to make their own risk assessment. This Technical Report, therefore,
does not provide a calculated ‘global’ risk assessment for C-ITS, but identifies the principal causes of risk,
and provides a consistent way for a jurisdiction, core system operator, or application service provider, to
assess the risks that they face.
While this Technical Report can provide tools for deployers and enablers of C-ITS service provision to
assess the general risks that face any implementers of a core system to support C-ITS, there can also
be specific risks specialized to a jurisdiction or implementation that are very location or instantiation
specific that are not covered in this Technical Report (for example, the communications and
environmental issues in the Australian outback or Siberia), so there is a general section towards the
end of this report which reminds the deployer/enabler to consider additional local aspects, (but does
not provide specific tools for their assessment). Generally, however, the principal causes of risk inherent
in most C-ITS instantiations have been included and tools identified to consistently assess them.
Another alternative for consideration is to rely on autonomous safety systems coupled with whatever
the commercial sector develops in terms of C-ITS vehicle-highway systems (perhaps funded by
advertising). In these circumstances, it is the tools available to ‘application service providers’ to assess
their risk exposure that are relevant, and the principle risk to the jurisdiction/administration in these
circumstances are the risks of ‘doing nothing’.
The evolution of C-ITS on a V2V basis, without the need for ‘Core Systems’ as casual encounter C-ITS
presents different issues of risk. While these ‘casual’ or ‘commercial’ C-ITS options clearly bring
additional benefits over a current, non C-ITS service environment, their utility will be limited in scope
and the client system will be limited. In any event, the roll out will most probably be significantly
slower and many of the life-saving, injury mitigation benefits significantly deferred or even lost
altogether. However, in some jurisdictions, such routes, can provide the only feasible, or best, option. In
these circumstances, it will be important for the jurisdiction, even if not funding or getting involved in
deployment, to at least ensure that such solutions are not proprietarily locked to the extent that safety
of life and interoperability and transport system efficiency benefits are impaired, and such jurisdictions
would be wise to consider how they will achieve this goal. (Requiring adherence to International
Standards is recommended as a first step.)
This Technical Report does not address issues of risk that do not involve ‘Core Systems’.
The principle environment that this ‘Risk Assessment Technical Report’ is designed to embrace are
C-ITS vehicle and highway systems where there is some institutional involvement and support, probably
often by the direct or indirect provision of core system support, and it is the risks associated with the
deployment of ‘Core Systems’ that provide the focus of this Technical Report.
A common definition of a risk is the probability that a decision or action will result in a negative or un-
wanted consequence, where the probability of each possible outcome is known or can be estimated.
In this Technical Report, risks will be identified along with a discussion of their potential impact
on deployment. Each risk will have a qualitative discussion of its impact (e.g. high, medium, or low
impact) and its likelihood (e.g. high, medium or low likelihood) that the risk will materialize. For each
deployment/proposed deployment, actions or mitigation measures will then need to be listed as a part
of the assessment.
Table 1 summarizes the high core system risks based on the combination of impact and likelihood. More
detail on these and all other identified risks are provided in Clause 6.
4 © ISO 2015 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 17427-6:2015(E)
Table 1 — High core system risks
Subclause Subject
6.1.1 Timely deployment
6.1.2 Relationships between ‘Core Systems’ and external enterprises
6.2.1 Role and makeup of a ‘Core Certification Aut
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
