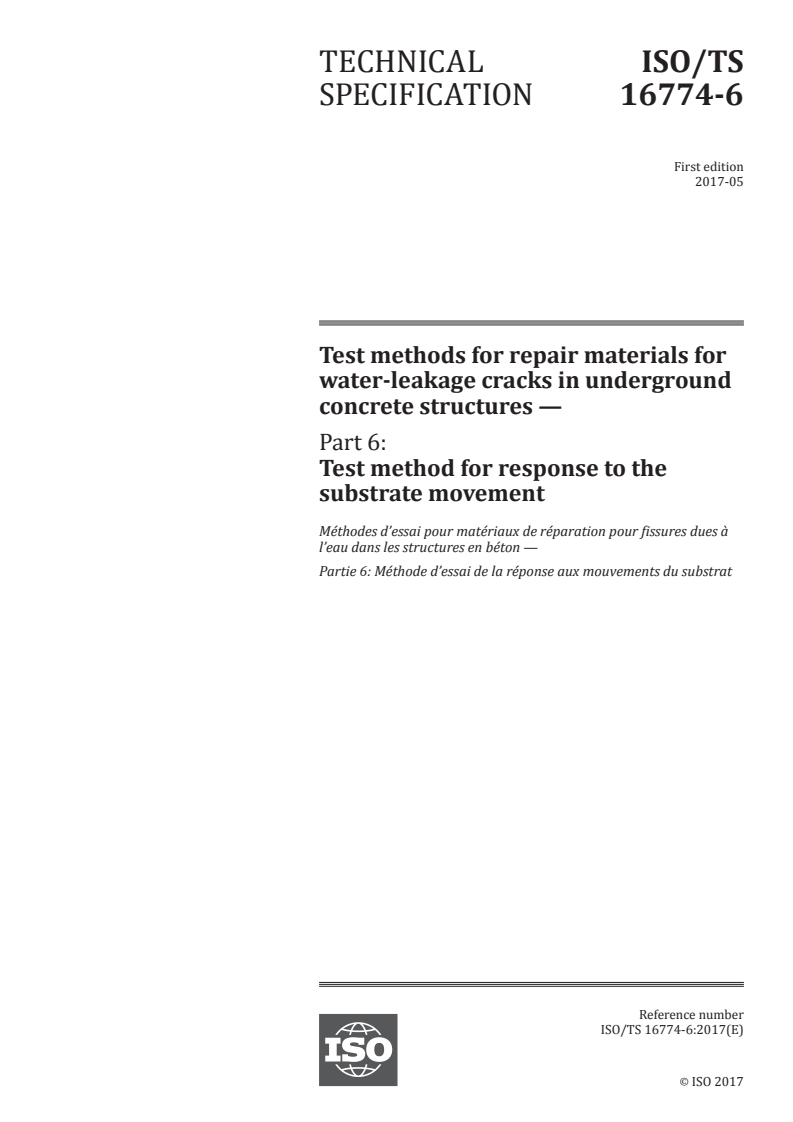

TECHNICAL ISO/TS
SPECIFICATION 16774-6
First edition
2017-05
Test methods for repair materials for
water-leakage cracks in underground
concrete structures —
Part 6:
Test method for response to the
substrate movement
Méthodes d’essai pour matériaux de réparation pour fissures dues à
l’eau dans les structures en béton —
Partie 6: Méthode d’essai de la réponse aux mouvements du substrat
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

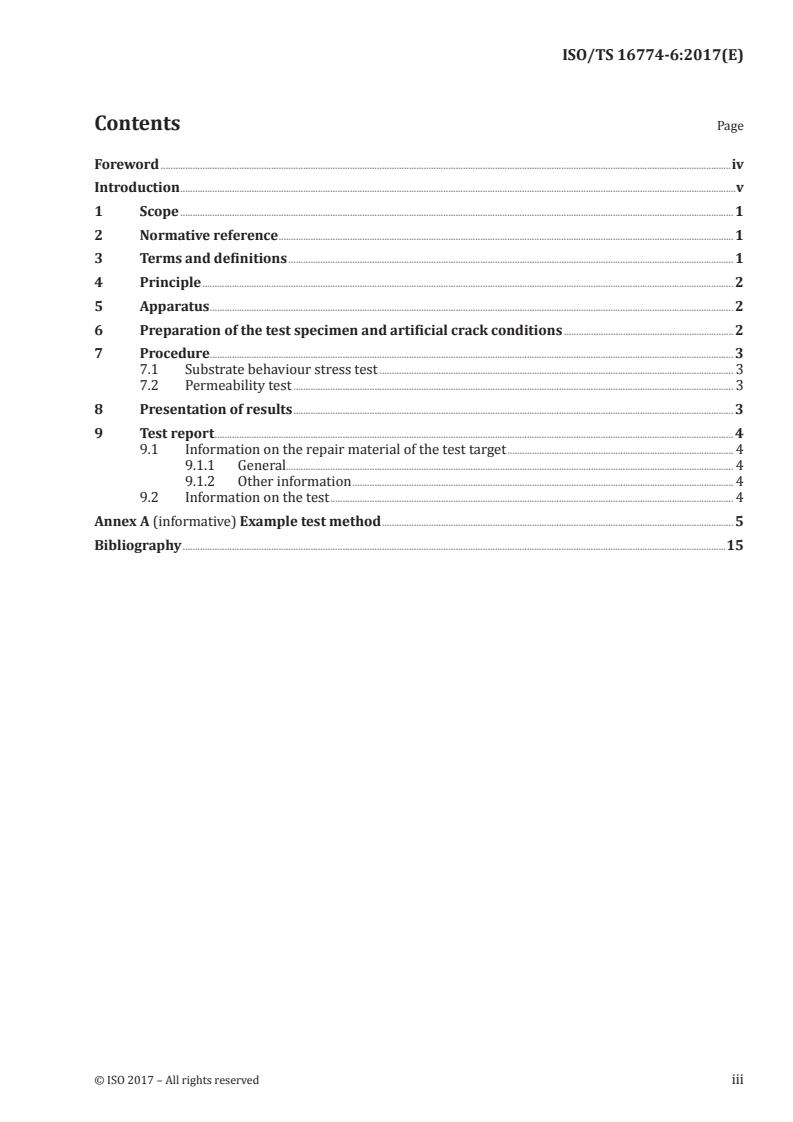

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative reference . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus . 2
6 Preparation of the test specimen and artificial crack conditions .2
7 Procedure. 3
7.1 Substrate behaviour stress test . 3
7.2 Permeability test . 3
8 Presentation of results . 3
9 Test report . 4
9.1 Information on the repair material of the test target . 4
9.1.1 General. 4
9.1.2 Other information . 4
9.2 Information on the test . 4
Annex A (informative) Example test method . 5
Bibliography .15

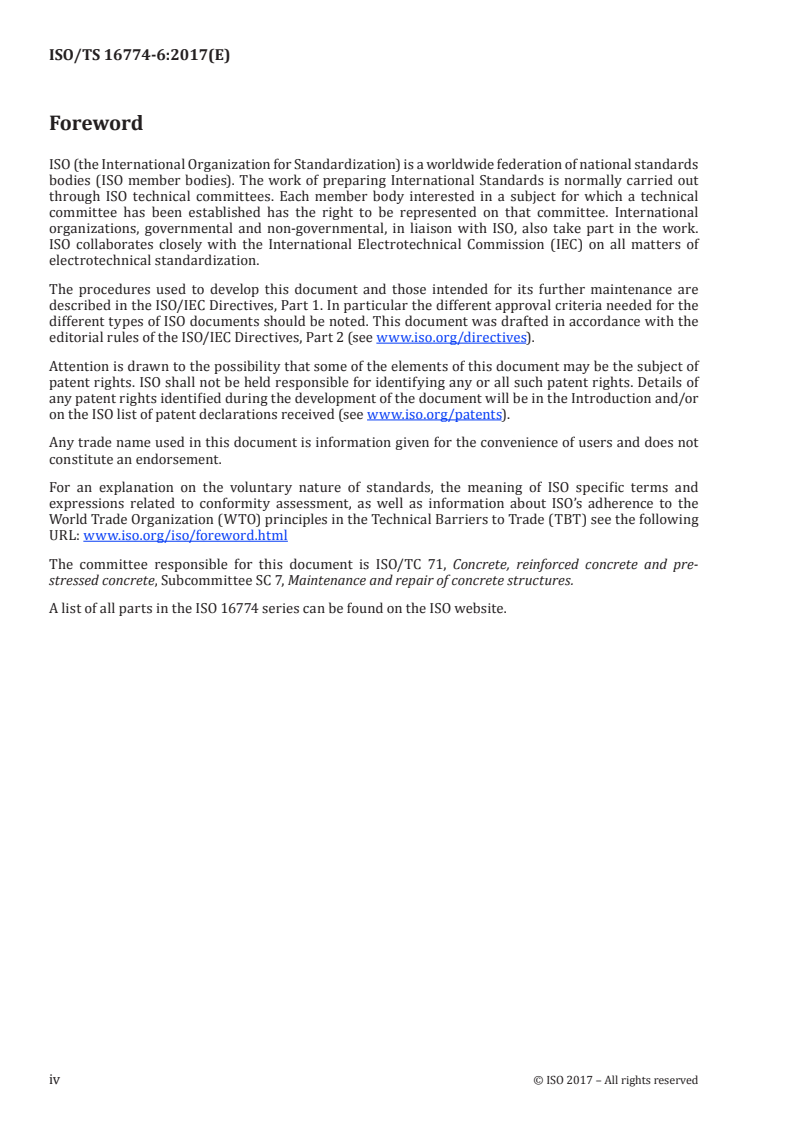

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html
The committee responsible for this document is ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 7, Maintenance and repair of concrete structures.
A list of all parts in the ISO 16774 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
Introduction
ISO/TR 16475 outlines six basic properties and the required performance levels of water-leakage repair
materials, and ISO/TS 16774-1 through ISO/TS 16774-6 provide test methods designed to evaluate the
respective properties of these repair materials.
These test methods are intended to serve as references for nations that have not yet developed a test
method on the six proposed required performance properties of water leakage repair materials. If other
forms of test methods that are simpler, more accurate or more organized are available, such methods
are recommended for use instead.
Many of the dependent variables outlined in the ISO 16774 series of reference test methods are subject
to change in accordance with the environmental conditions (temperature; chemical substance and
concentration; relative humidity; width of movement activity; water pressure or water flow velocity,
etc.) outlined in the standards and testing parameters used in respective countries.
In ISO/TS 16774-1, ISO/TS 16774-5 and ISO/TS 16774-6, for the purpose of objectively comparing the
performance of injected repair materials, artificial cracks of same volume were used to control the
usage of repair materials for each testing cycle and enable repetition of the same test methods under
the same conditions.
TECHNICAL SPECIFICATION ISO/TS 16774-6:2017(E)
Test methods for repair materials for water-leakage cracks
in underground concrete structures —
Part 6:
Test method for response to the substrate movement
1 Scope
This document specifies a laboratory test method for evaluating the substrate (crack) movement
response of water-leakage crack repair materials through permeability testing.
The repair material injected into a test specimen with an artificial crack undergoes simulated
movements normally caused by thermal expansion, settlement and vibrations in leakage cracks found
in concrete structures under the applied conditions outlined in different national testing parameters
that reflect different environmental conditions. As such, the results are only intended to provide a
comparative performance evaluation of the waterproofing repair materials between different products
of the same type of repair material.
This document outlines general guidelines and procedures for the test method. Specific variables that
control the quantifiable parameters of the testing are filled in using relevant national standardizations
and/or testing parameters.
NOTE 1 This test method classifies and categorizes materials that are tested into families of similar properties
for the purpose of making relative comparisons with the data results.
NOTE 2 Each individual repair material can be further tested in an actual construction site application for a
complete assessment.
2 Normative reference
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/TR 16475, Guidelines for the repair of water-leakage cracks in concrete structures
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/TR 16475 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org .obp
3.1
repair material
material used for preventing the escape of water at cracks in concrete
EXAMPLE Injection type grouts, such as synthetic rubberized asphalt, mastic, urethane, poly-urea, etc.
Note 1 to entry: In this document, target ingredients are limited to injection materials outlined in ISO/TR 16475.
4 Principle
Response to loss, deterioration and other physical changes by the behavioral movement of leakage crack
(such as crack movements caused by thermal shrinkage and expansions, differential settlement, and/or
vibrations) is one of the fundamental properties that water leakage repair materials should possess. To
evaluate the leakage crack repair material’s responsiveness to substrate movement, this test method
uses two separate procedures: 1) a substrate movement test method and 2) a permeability test method.
The test specimen with an artificial crack is injected with repair material, and the specimen goes
through an induced tensile/compressive stress test for a specified number of cycles using a substrate
movement simulating apparatus, such as a Universal Testing Machine (UTM). To evaluate whether the
repair material loses its waterproofing property due to tensile/compressive stress (substrate/crack
movement), the specimen goes through water permeability test for the last stage of the test method.
5 Apparatus
5.1 Substrate movement apparatus, which must be able to exert a cycle of predetermined width of
compressive and tensile force per one minute.
NOTE A Universal Testing Machine (UTM) is recommended for this testing method.
5.2 Air compressor, which should be able to handle minimum air pressure value of 0,1 N/mm to
0,3 N/mm .
5.3 Permeability test chamber, which should be able to handle minimum water pressure value of
2 2
0,1 N/mm to 0,3 N/mm (output method).
NOTE Conditions outlined in 5.2 and 5.3 are subject to change in accordance to different national testing
parameters and requirements.
6 Preparation of the test specimen and artificial crack conditions
1) Two separate concrete or mortar substrate parts should be cured to form a water-leakage crack
test specimen. The parts consist of upper and bottom parts, and they should be flat and cylindrical
in shape and made using concrete or mortar.
NOTE The mix proportion is (water: cement: fine aggregate = 1: 2: 6, mass ratio). The curing period for
the mortar or concrete substrate parts is approximately 72 hours, but subject to change in accordance to
different national testing parameters and requirements.
2) The bottom substrate is drilled with evenly spaced holes (Ø2,5 mm) near the centre of the substrate.
The pinholes shall be drilled all the way through from one surface of the substrate part to the other.
NOTE The purpose of these pinholes is to check for signs of leakage during repair material injection and
during permeability testing.
3. Spacers are placed on one surface of the bottom substrate part without covering the pinholes, and
the upper substrate part is placed on top of the spacers. The substrate parts, now having formed
the test specimen with the artificial crack, is held together with tape, silicone sealants or other
applicable materials along the exterior side. The spacer height represents the width of the crack
and can vary depending on the different national testing parameters and requirements.
NOTE Any material can be used to hold the two substrate parts together with a crack space in between,
but should leave an inlet in one side for material injection.
4. The injection space should be flu
...
