ISO 9556:2025
(Main)Steel and iron — Determination of total carbon content — Infrared absorption method after combustion in an induction furnace
Steel and iron — Determination of total carbon content — Infrared absorption method after combustion in an induction furnace
This document specifies an infrared absorption method after combustion in an induction furnace for the determination of the total carbon content in steel and iron. The method is applicable to carbon contents between 0,003 % (mass fraction) and 4,5 % (mass fraction).
Aciers et fontes — Détermination du carbone total — Méthode par absorption dans l'infrarouge après combustion dans un four à induction
Le présent document spécifie une méthode par absorption dans l'infrarouge après combustion dans un four à induction pour la détermination du carbone total dans les aciers et les fontes. La méthode est applicable aux teneurs en carbone comprises entre 0,003 % (en masse) et 4,5 % (en masse).
General Information
Relations
Buy Standard
Standards Content (Sample)

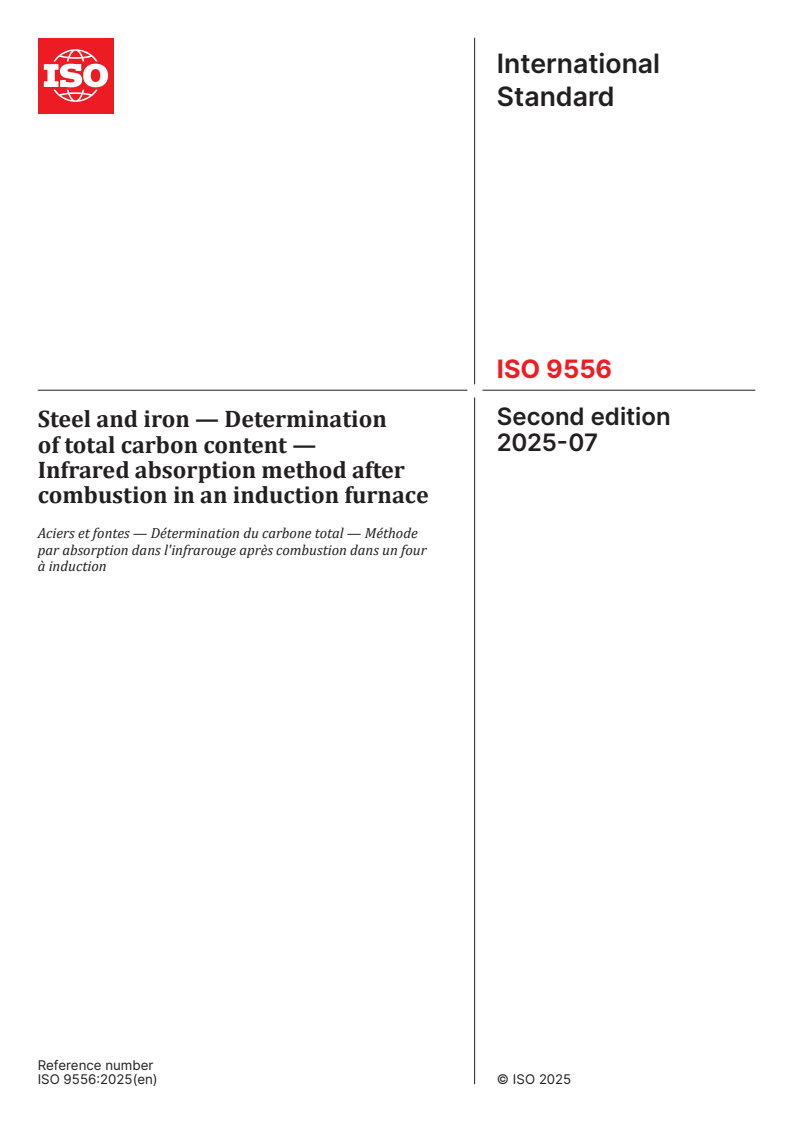

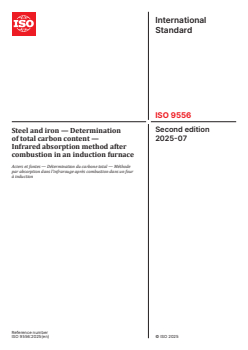

International
Standard
ISO 9556
Second edition
Steel and iron — Determination
2025-07
of total carbon content —
Infrared absorption method after
combustion in an induction furnace
Aciers et fontes — Détermination du carbone total — Méthode
par absorption dans l'infrarouge après combustion dans un four
à induction
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

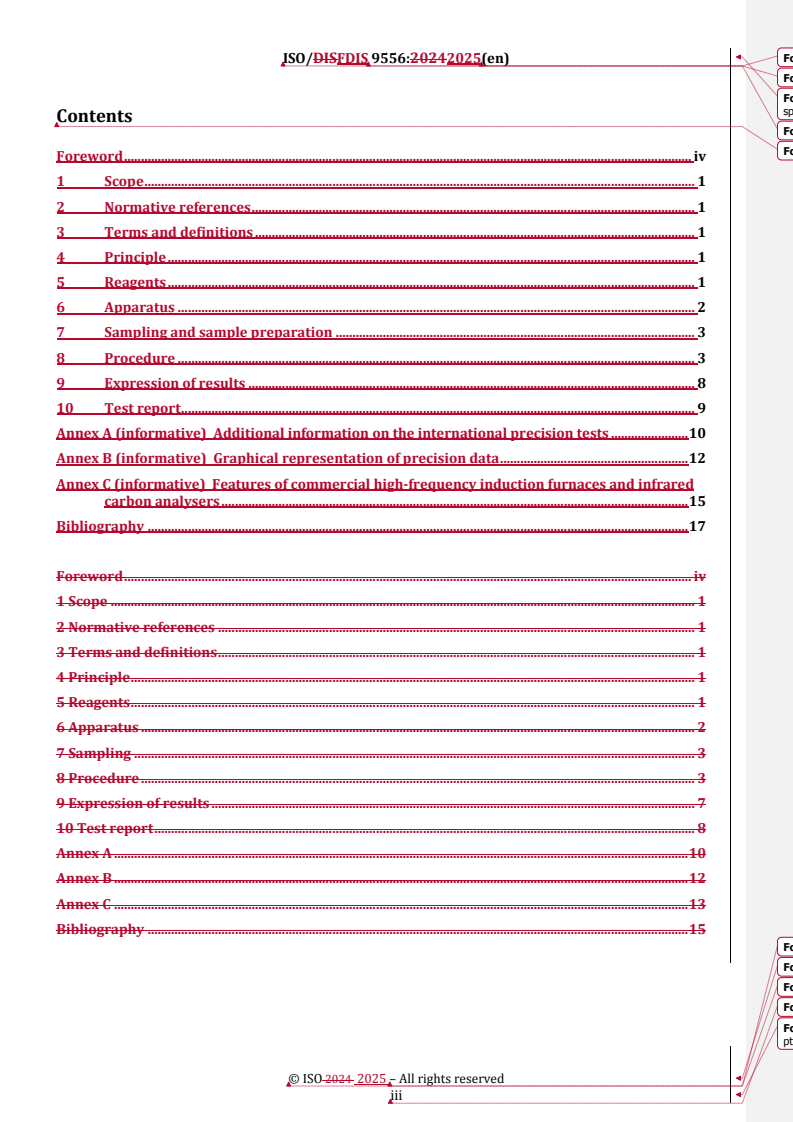

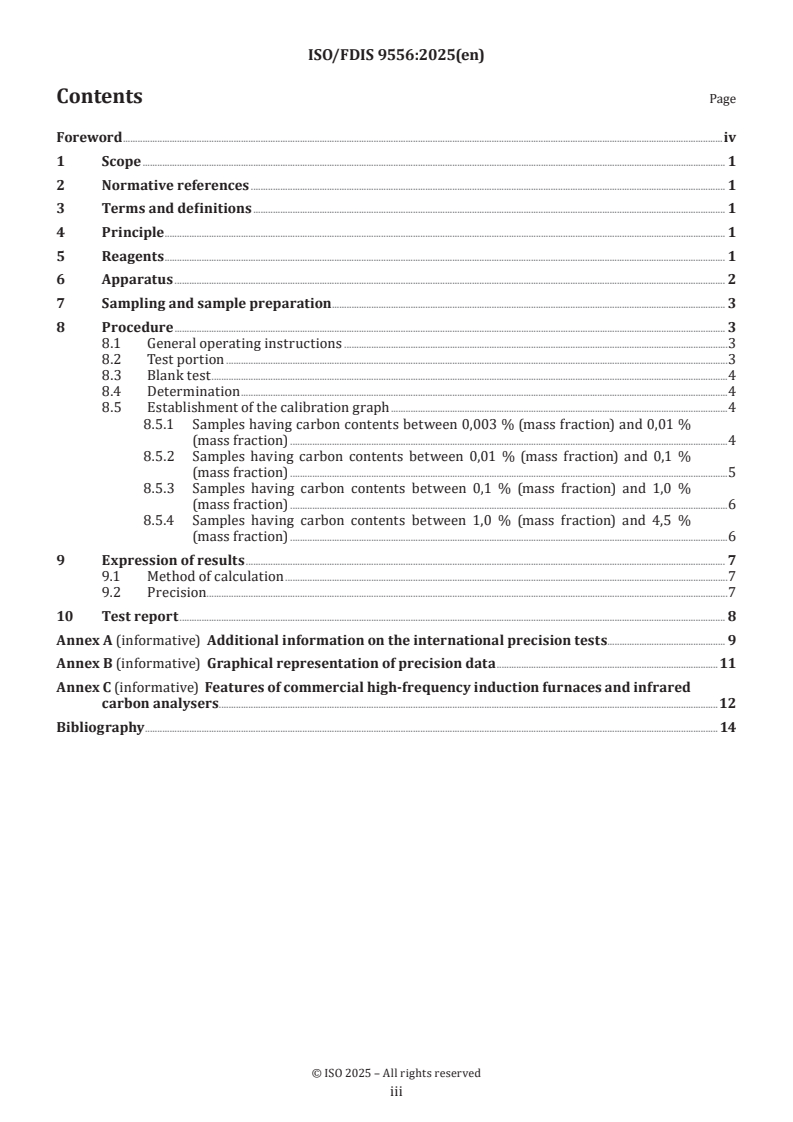

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling and sample preparation . 3
8 Procedure . 3
8.1 General operating instructions .3
8.2 Test portion .3
8.3 Blank test .4
8.4 Determination .4
8.5 Establishment of the calibration curve .4
8.5.1 Samples having carbon contents between 0,003 % (mass fraction) and 0,01 %
(mass fraction) .4
8.5.2 Samples having carbon contents between 0,01 % (mass fraction) and 0,1 %
(mass fraction) .5
8.5.3 Samples having carbon contents between 0,1 % (mass fraction) and 1,0 %
(mass fraction) .6
8.5.4 Samples having carbon contents between 1,0 % (mass fraction) and 4,5 %
(mass fraction) .6
9 Expression of results . 7
9.1 Method of calculation .7
9.2 Precision . . .7
10 Test report . 8
Annex A (informative) Additional information on the international precision tests. 9
Annex B (informative) Graphical representation of precision data .11
Annex C (informative) Features of commercial high-frequency induction furnaces and infrared
carbon analysers . . .12
Bibliography . 14
iii

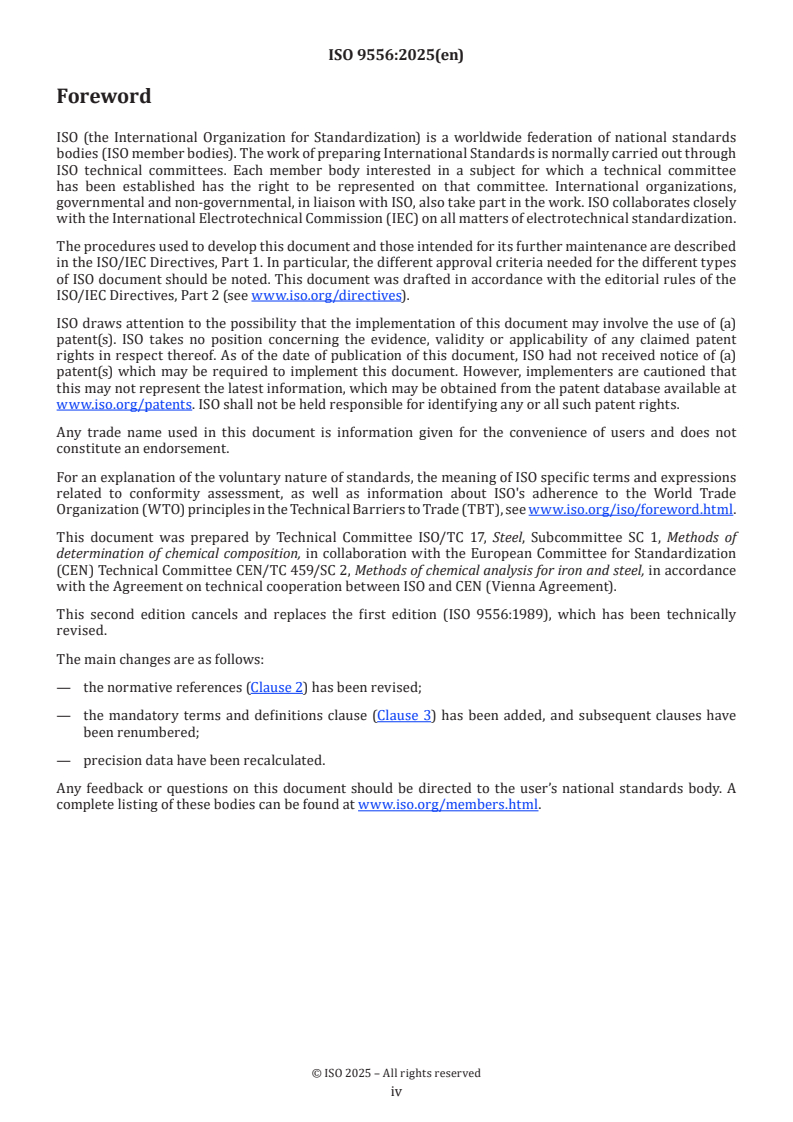

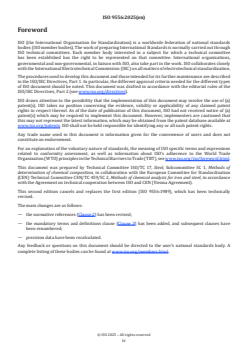

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 1, Methods of
determination of chemical composition, in collaboration with the European Committee for Standardization
(CEN) Technical Committee CEN/TC 459/SC 2, Methods of chemical analysis for iron and steel, in accordance
with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 9556:1989), which has been technically
revised.
The main changes are as follows:
— the normative references (Clause 2) has been revised;
— the mandatory terms and definitions clause (Clause 3) has been added, and subsequent clauses have
been renumbered;
— precision data have been recalculated.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
International Standard ISO 9556:2025(en)
Steel and iron — Determination of total carbon content
— Infrared absorption method after combustion in an
induction furnace
1 Scope
This document specifies an infrared absorption method after combustion in an induction furnace for the
determination of the total carbon content in steel and iron.
The method is applicable to carbon contents between 0,003 % (mass fraction) and 4,5 % (mass fraction).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical composition
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
Combustion of a test portion in presence of an accelerator at a high temperature in a high-frequency
induction furnace in a current of pure oxygen. Transformation of carbon into carbon dioxide and/or carbon
monoxide.
Measurement by infrared absorption of the carbon dioxide and/or carbon monoxide carried by a current
of oxygen.
5 Reagents
During the analysis, unless otherwise stated, use only reagents of recognized analytical grade and only
distilled water or water of equivalent purity.
5.1 Water, free from carbon dioxide.
Boil water for 30 min, cool to room temperature and bubble with oxygen (5.2) for 15 min. Prepare just before use.
5.2 Oxygen, 99,5 % (volume fraction) minimum.
An oxidation catalyst [copper(II) oxide or platinum] tube heated to a temperature above 450 °C shall be used
prior to a purifying unit (see Annex C), when the presence of organic contaminants is suspected in the oxygen.
5.3 Pure iron, of known low carbon content less than 0,001 0 % (mass fraction).
5.4 Solvent, appropriate for cleaning greasy or dirty test samples, for example, acetone.
5.5 Magnesium perchlorate [Mg(ClO ) ], particle size: from 0,7 mm to 1,2 mm.
4 2
5.6 Barium carbonate
Dry barium carbonate (minimum purity: 99,5 %) at 105 °C to 110 °C for 3 h and cool in a desiccator before use.
5.7 Sodium carbonate
Dry anhydrous sodium carbonate (minimum purity: 99,9 %) at 285 °C for 2 h and cool in a desiccator before use.
5.8 Accelerator: copper, tungsten-tin mixture or tungsten of known low carbon content less than
0,001 0 % (mass fraction).
5.9 Sucrose, standard solution, corresponding to 25 g of carbon per litre.
Weigh, to the nearest 1 mg, 14,843 g of sucrose (C H O ) previously dried at 100 °C to 105 °C for 2,5 h and
12 22 11
cooled in a desiccator.
Dissolve in about 100 ml of water (5.1), transfer quantitatively into a 250 ml one-mark volumetric flask,
dilute to the mark with water (5.1) and mix.
1 ml of this standard solution contains 25 mg of carbon.
5.10 Sodium carbonate, standard solution, corresponding to 25 g of carbon per litre.
Weigh, to the nearest 1 mg, 55,152 g of sodium carbonate (5.7), dissolve in about 200 ml of water (5.1),
transfer quantitatively into a 250 ml one-mark volumetric flask, dilute to the mark with water (5.1) and mix.
1 ml of this standard solution contains 25 mg of carbon.
5.11 Inert ceramic (attapulgus clay) impregnated with sodium hydroxide, particle size: from 0,7 mm
to 1,2 mm.
6 Apparatus
During the analysis, unless otherwise stated, use only ordinary laboratory apparatus.
All volumetric glassware shall be class A, in accordance with ISO 648 or ISO 1042, as appropriate.
The apparatus required for combustion in a high-frequency induction furnace and the subsequent
infrared absorption measurement of the evolved carbon dioxide and/or carbon monoxide may be obtained
commercially from a number of manufacturers. Follow the manufacturer’s instructions for the operation of
the instrument.
Features of commercial instruments are given in Annex C.
6.1 Micropipette, 100 μl, limit of error shall be l
...

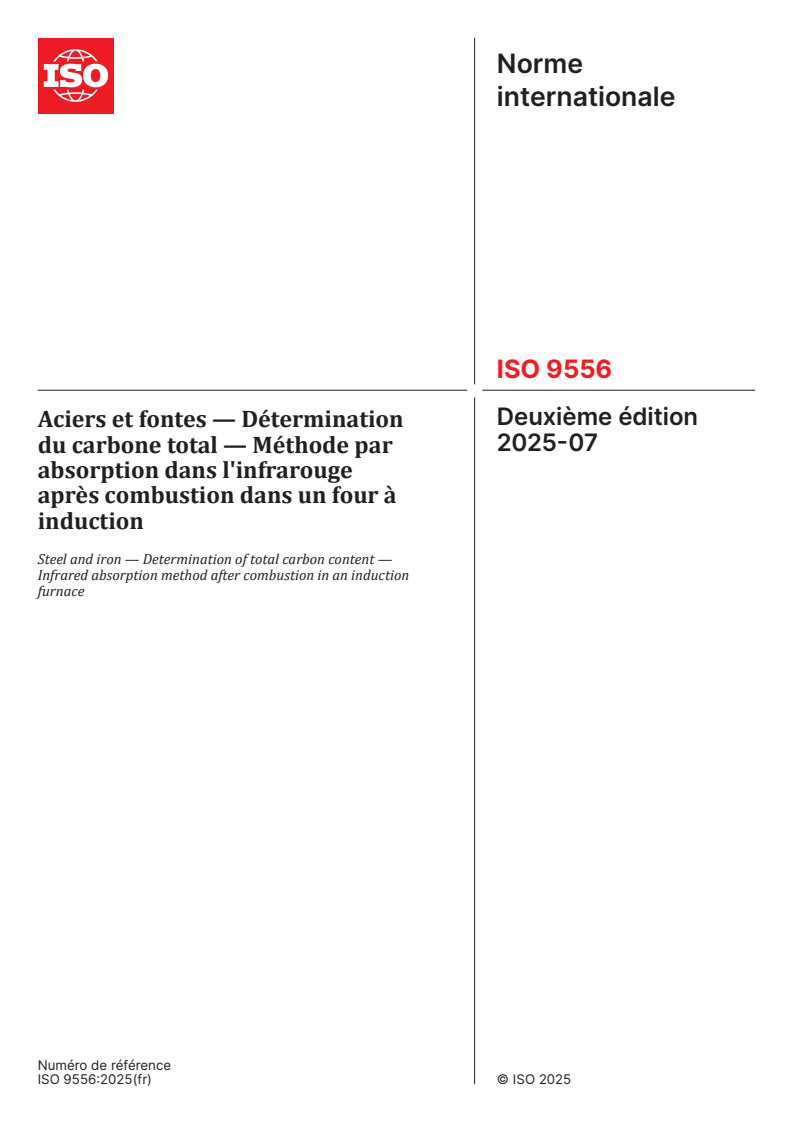

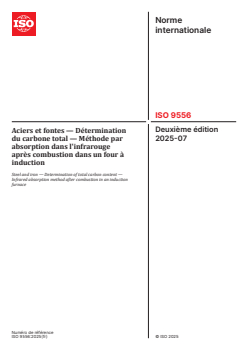

Norme
internationale
ISO 9556
Deuxième édition
Aciers et fontes — Détermination
2025-07
du carbone total — Méthode par
absorption dans l'infrarouge
après combustion dans un four à
induction
Steel and iron — Determination of total carbon content —
Infrared absorption method after combustion in an induction
furnace
Numéro de référence

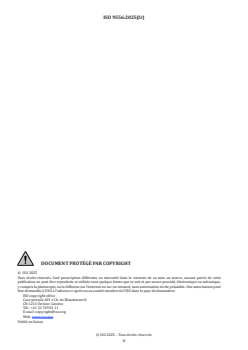

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2025
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii

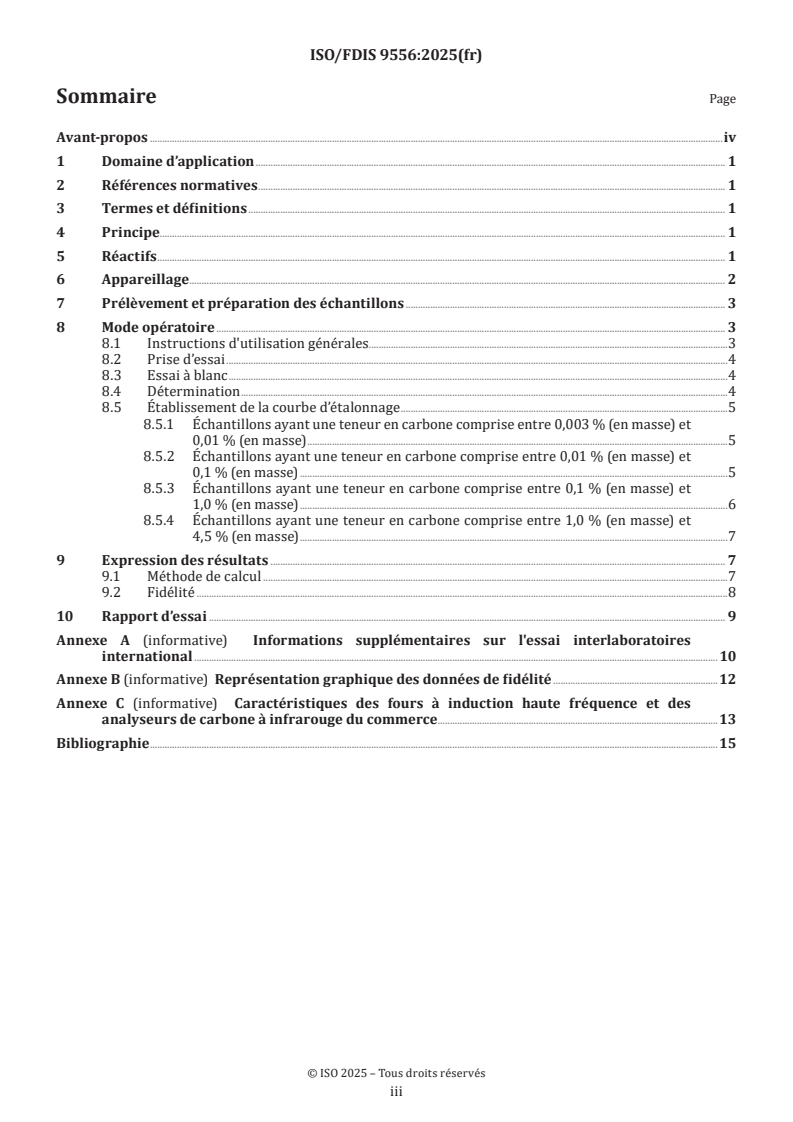

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Principe. 1
5 Réactifs . 1
6 Appareillage . 2
7 Prélèvement et préparation des échantillons . 3
8 Mode opératoire . 3
8.1 Instructions d'utilisation générales.3
8.2 Prise d’essai .4
8.3 Essai à blanc .4
8.4 Détermination .4
8.5 Établissement de la courbe d’étalonnage .5
8.5.1 Échantillons ayant une teneur en carbone comprise entre 0,003 % (en masse) et
0,01 % (en masse) .5
8.5.2 Échantillons ayant une teneur en carbone comprise entre 0,01 % (en masse) et
0,1 % (en masse) .5
8.5.3 Échantillons ayant une teneur en carbone comprise entre 0,1 % (en masse) et
1,0 % (en masse) .6
8.5.4 Échantillons ayant une teneur en carbone comprise entre 1,0 % (en masse) et
4,5 % (en masse) .7
9 Expression des résultats . 7
9.1 Méthode de calcul .7
9.2 Fidélité .8
10 Rapport d’essai . 9
Annexe A (informative) Informations supplémentaires sur l'essai interlaboratoires
international . 10
Annexe B (informative) Représentation graphique des données de fidélité .12
Annexe C (informative) Caractéristiques des fours à induction haute fréquence et des
analyseurs de carbone à infrarouge du commerce .13
Bibliographie .15
iii

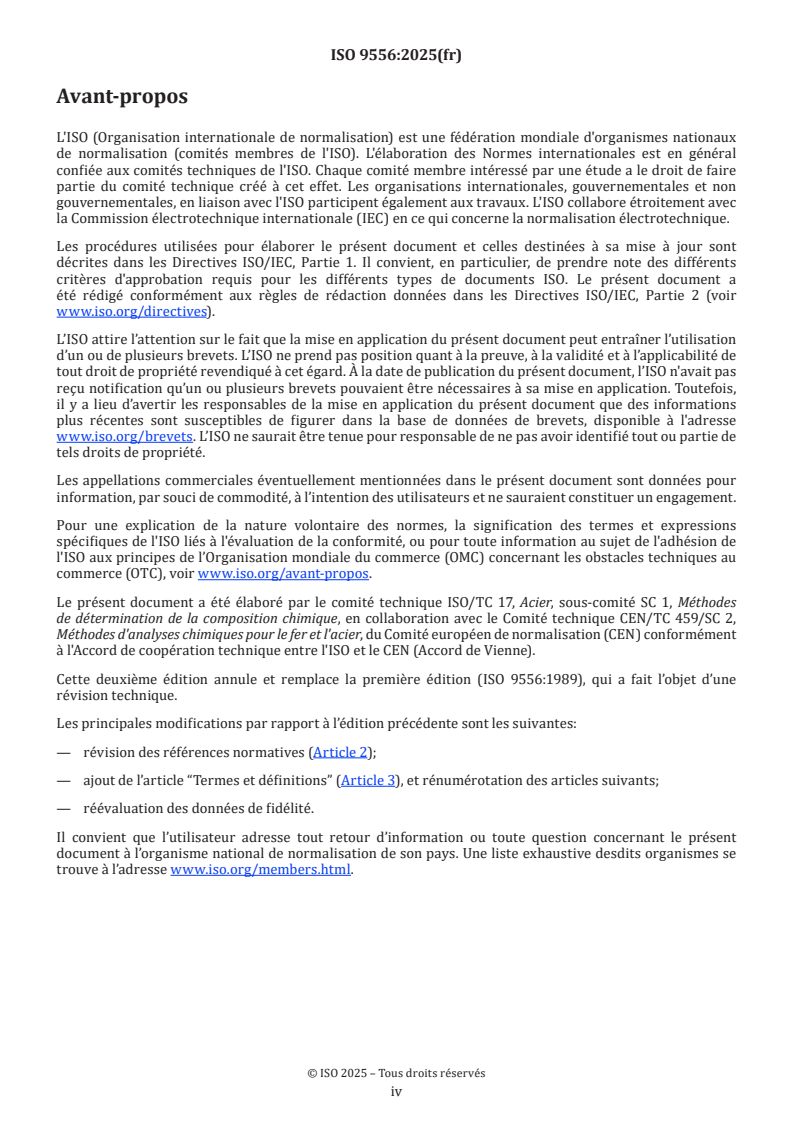

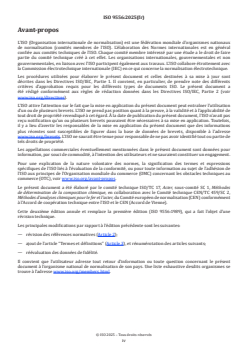

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de propriété revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 17, Acier, sous-comité SC 1, Méthodes
de détermination de la composition chimique, en collaboration avec le Comité technique CEN/TC 459/SC 2,
Méthodes d'analyses chimiques pour le fer et l'acier, du Comité européen de normalisation (CEN) conformément
à l'Accord de coopération technique entre l'ISO et le CEN (Accord de Vienne).
Cette deuxième édition annule et remplace la première édition (ISO 9556:1989), qui a fait l’objet d’une
révision technique.
Les principales modifications par rapport à l’édition précédente sont les suivantes:
— révision des références normatives (Article 2);
— ajout de l’article “Termes et définitions” (Article 3), et rénumérotation des articles suivants;
— réévaluation des données de fidélité.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/members.html.
iv
Norme internationale ISO 9556:2025(fr)
Aciers et fontes — Détermination du carbone total —
Méthode par absorption dans l'infrarouge après combustion
dans un four à induction
1 Domaine d’application
Le présent document spécifie une méthode par absorption dans l'infrarouge après combustion dans un four
à induction pour la détermination du carbone total dans les aciers et les fontes.
La méthode est applicable aux teneurs en carbone comprises entre 0,003 % (en masse) et 4,5 % (en masse).
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s'applique (y compris les éventuels
amendements.
ISO 648, Verrerie de laboratoire — Pipettes à un volume
ISO 1042, Verrerie de laboratoire — Fioles jaugées à un trait
ISO 14284, Aciers et fontes — Prélèvement et préparation des échantillons pour la détermination de la
composition chimique
3 Termes et définitions
Le présent document ne contient pas de liste de termes et définitions.
L'ISO et l'IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l'adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l'adresse https:// www .electropedia .org/
4 Principe
Combustion d'une prise d'essai, en présence d'un accélérateur, sous un courant d'oxygène pur dans un four à
induction haute fréquence porté à haute température. Transformation du carbone en dioxyde de carbone et/
ou monoxyde de carbone.
Mesurage par absorption dans l'infrarouge du dioxyde de carbone et/ou monoxyde de carbone transporté(s)
par un courant d'oxygène.
5 Réactifs
Au cours de l'analyse, sauf indication contraire, utiliser uniquement des réactifs de qualité analytique
reconnue et de l'eau distillée ou de pureté équivalente.
5.1 Eau, exempte de dioxyde de carbone.
Faire bouillir de l'eau pendant 30 min, refroidir à température ambiante et faire barboter de l'oxygène (5.2)
pendant 15 min. Préparer juste avant l'emploi.
5.2 Oxygène, 99,5 % (volume) minimum.
Si l'on soupçonne l'oxygène de contenir des polluants organiques, on peut, avant de l'envoyer dans le
dispositif de purification (voir Annexe C), le faire passer dans un tube à catalyseur d'oxydation [oxyde de
cuivre(ll) ou platine] chauffé à une température supérieure à 450 °C.
5.3 Fer pur, à teneur en carbone faible et connue, inférieure à 0,001 0 % (en masse).
5.4 Solvant, approprié pour nettoyer les échantillons pour essai gras ou sales, par exemple, l'acétone.
5.5 Perchlorate de magnésium [Mg(ClO ) ], granulométrie comprise entre 0,7 mm et 1,2 mm.
4 2
5.6 Carbonate de baryum
Sécher le carbonate de baryum (pureté minimale: 99,5 %) à une température comprise entre 105 °C et
110 °C pendant 3 h et refroidir dans un dessiccateur avant l'emploi.
5.7 Carbonate de sodium
Sécher le carbonate de sodium anhydre (pureté minimale: 99,9 %) à 285 °C pendant 2 h et refroidir dans un
dessiccateur avant l'emploi.
5.8 Accélérateur: cuivre, mélange tungstène-étain ou tungstène à faible teneur en carbone connue,
inférieure à 0,001 0 % (en masse).
5.9 Saccharose, solution étalon, correspondant à 25 g de carbone par litre.
Peser, à 1 mg près, 14,843 g de saccharose (C H O ) préalablement séché à une température comprise
12 22 11
entre 100 °C et 105 °C pendant 2,5 h et refroidir dans un dessiccateur.
Dissoudre dans 100 ml d'eau environ (5.1), transvaser quantitativement dans une fiole jaugée de 250 ml,
diluer au volume avec de l'eau (5.1) et homogénéiser.
1 ml de cette solution étalon contient 25 mg de carbone.
5.10 Carbonate de sodium, solution étalon, c
...

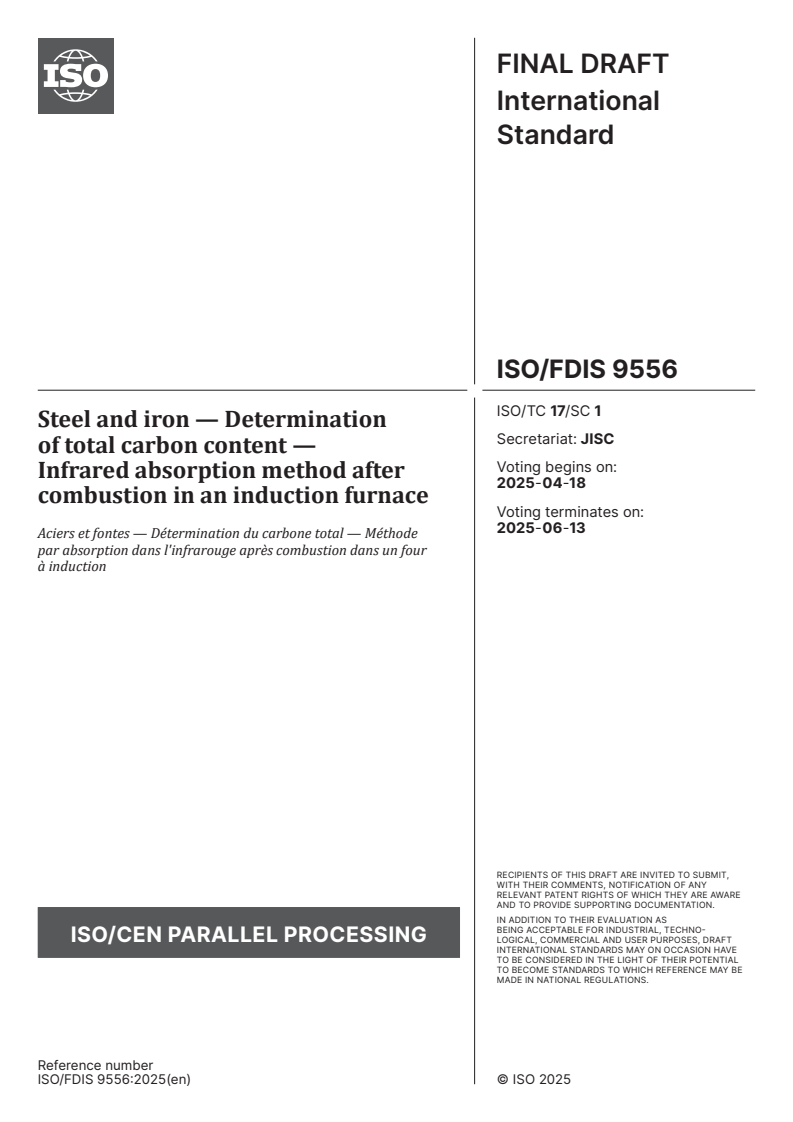

FINAL DRAFT
International
Standard
ISO/FDIS 9556
ISO/TC 17/SC 1
Steel and iron — Determination
Secretariat: JISC
of total carbon content —
Voting begins on:
Infrared absorption method after
2025-04-18
combustion in an induction furnace
Voting terminates on:
2025-06-13
Aciers et fontes — Détermination du carbone total — Méthode
par absorption dans l'infrarouge après combustion dans un four
à induction
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 9556:2025(en) © ISO 2025
FINAL DRAFT
ISO/FDIS 9556:2025(en)
International
Standard
ISO/FDIS 9556
ISO/TC 17/SC 1
Steel and iron — Determination
Secretariat: JISC
of total carbon content —
Voting begins on:
Infrared absorption method after
combustion in an induction furnace
Voting terminates on:
Aciers et fontes — Détermination du carbone total — Méthode
par absorption dans l'infrarouge après combustion dans un four
à induction
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 9556:2025(en) © ISO 2025
ii
ISO/FDIS 9556:2025(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling and sample preparation . 3
8 Procedure . 3
8.1 General operating instructions .3
8.2 Test portion .3
8.3 Blank test .4
8.4 Determination .4
8.5 Establishment of the calibration graph .4
8.5.1 Samples having carbon contents between 0,003 % (mass fraction) and 0,01 %
(mass fraction) .4
8.5.2 Samples having carbon contents between 0,01 % (mass fraction) and 0,1 %
(mass fraction) .5
8.5.3 Samples having carbon contents between 0,1 % (mass fraction) and 1,0 %
(mass fraction) .6
8.5.4 Samples having carbon contents between 1,0 % (mass fraction) and 4,5 %
(mass fraction) .6
9 Expression of results . 7
9.1 Method of calculation .7
9.2 Precision . . .7
10 Test report . 8
Annex A (informative) Additional information on the international precision tests. 9
Annex B (informative) Graphical representation of precision data .11
Annex C (informative) Features of commercial high-frequency induction furnaces and infrared
carbon analysers . . .12
Bibliography . 14
iii
ISO/FDIS 9556:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 1, Methods of
determination of chemical composition, in collaboration with the European Committee for Standardization
(CEN) Technical Committee CEN/TC 459/SC 2, Methods of chemical analysis for iron and steel, in accordance
with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 9556:1989), which has been technically
revised.
The main changes are as follows:
— the normative references (Clause 2) has been revised;
— the mandatory terms and definitions clause (Clause 3) has been added, and subsequent clauses have
been renumbered;
— precision data have been recalculated.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
FINAL DRAFT International Standard ISO/FDIS 9556:2025(en)
Steel and iron — Determination of total carbon content
— Infrared absorption method after combustion in an
induction furnace
1 Scope
This document specifies an infrared absorption method after combustion in an induction furnace for the
determination of the total carbon content in steel and iron.
The method is applicable to carbon contents between 0,003 % (mass fraction) and 4,5 % (mass fraction).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical composition
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
Combustion of a test portion in presence of an accelerator at a high temperature in a high-frequency
induction furnace in a current of pure oxygen. Transformation of carbon into carbon dioxide and/or carbon
monoxide.
Measurement by infrared absorption of the carbon dioxide and/or carbon monoxide carried by a current
of oxygen.
5 Reagents
During the analysis, unless otherwise stated, use only reagents of recognized analytical grade and only
distilled water or water of equivalent purity.
5.1 Water, free from carbon dioxide.
Boil water for 30 min, cool to room temperature and bubble with oxygen (5.2) for 15 min. Prepare just before use.
ISO/FDIS 9556:2025(en)
5.2 Oxygen, 99,5 % (volume fraction) minimum.
An oxidation catalyst [copper(II) oxide or platinum] tube heated to a temperature above 450 °C shall be used
prior to a purifying unit (see Annex C), when the presence of organic contaminants is suspected in the oxygen.
5.3 Pure iron, of known low carbon content less than 0,001 0 % (mass fraction).
5.4 Solvent, appropriate for cleaning greasy or dirty test samples, for example, acetone.
5.5 Magnesium perchlorate [Mg(ClO ) ], particle size: from 0,7 mm to 1,2 mm.
4 2
5.6 Barium carbonate
Dry barium carbonate (minimum purity: 99,5 %) at 105 °C to 110 °C for 3 h and cool in a desiccator before use.
5.7 Sodium carbonate
Dry anhydrous sodium carbonate (minimum purity: 99,9 %) at 285 °C for 2 h and cool in a desiccator before use.
5.8 Accelerator: copper, tungsten-tin mixture or tun
...
Style Definition
...
ISO/DIS FDIS 9556:2024(en)
Formatted: Font color: Auto
ISO /TC 17/SC 1
Formatted: Left: 1.5 cm, Right: 1.5 cm, Section start: New
page, Header distance from edge: 1.27 cm, Footer distance
from edge: 1.27 cm
Date: 2025-03-10
Formatted
...
Secretariat: JISC
Formatted: zzCover large
Formatted
...
Date: 2025-04-04
Formatted
...
Formatted: Font color: Auto

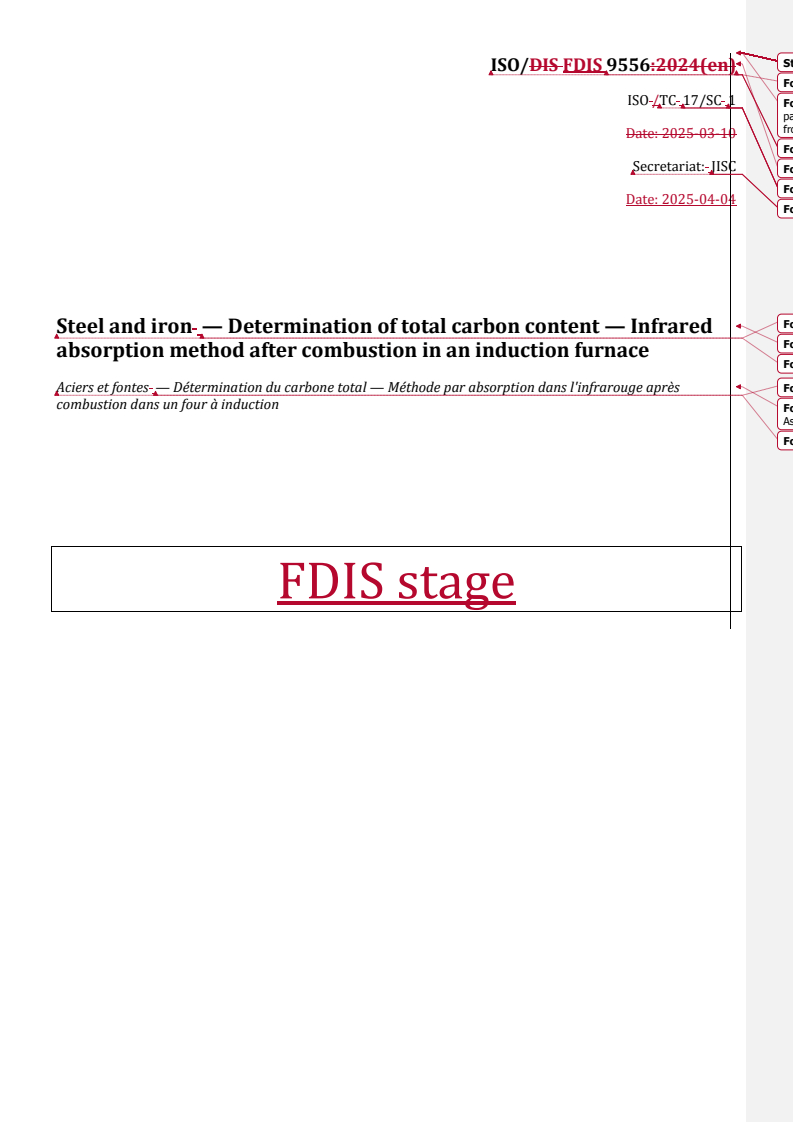

Steel and iron — Determination of total carbon content — Infrared
Formatted: Cover Title_A1
absorption method after combustion in an induction furnace
Formatted: Font color: Auto
Aciers et fontes — Détermination du carbone total — Méthode par absorption dans l'infrarouge après Formatted: Font color: Auto, French (France)
combustion dans un four à induction
Formatted: Cover Title_B, Adjust space between Latin and
Asian text, Adjust space between Asian text and numbers
Formatted: Font color: Auto, French (France)
FDIS stage
ISO/FDIS 9556:2025(en) Formatted: HeaderCentered
Formatted: Font: Bold
Formatted: Font color: Auto
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
Formatted: Font color: Auto, English (United Kingdom)
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO'sISO’s member body in the country of the requester.
Formatted: Font color: Auto, English (United Kingdom)
Formatted: Font color: Auto
ISO Copyright Office copyright office
Formatted: Font color: Auto, English (United Kingdom)
CP 401 • Ch. de Blandonnet 8
Formatted: zzCopyright address
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
Formatted: Font color: Auto
Formatted: Font color: Auto, English (United Kingdom)
Email: copyright@iso.org
Formatted: Font color: Auto, English (United Kingdom)
E-mail: copyright@iso.org
Formatted: zzCopyright address
Website: www.iso.orgwww.iso.org
Formatted: Font color: Auto
Published in Switzerland.
Formatted: Font color: Auto, French (Switzerland)
Formatted: Font color: Auto, French (Switzerland)
Formatted: Font color: Auto
Formatted: zzCopyright address
Formatted: Font color: Auto
Formatted: Font color: Auto, English (United Kingdom)
Formatted: Font color: Auto, English (United Kingdom)
Formatted: Font color: Auto
Formatted: FooterPageRomanNumber
ii
ISO/DISFDIS 9556:20242025(en) Formatted: Font: 11 pt
Formatted: Font: 11 pt
Formatted: HeaderCentered, Left, Space After: 0 pt, Line
spacing: single
Contents
Formatted: Font: 11 pt
Formatted: Font color: Auto
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling and sample preparation . 3
8 Procedure . 3
9 Expression of results . 8
10 Test report . 9
Annex A (informative) Additional information on the international precision tests . 10
Annex B (informative) Graphical representation of precision data . 12
Annex C (informative) Features of commercial high-frequency induction furnaces and infrared
carbon analysers . 15
Bibliography . 17
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling . 3
8 Procedure . 3
9 Expression of results . 7
10 Test report . 8
Annex A . 10
Annex B . 12
Annex C . 13
Bibliography . 15
Formatted: Font: 10 pt
Formatted: FooterCentered, Left, Space Before: 0 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Left, Space After: 0
pt
iii
ISO/FDIS 9556:2025(en) Formatted: HeaderCentered
Formatted: Font: Bold
Formatted: Font color: Auto
Foreword
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization. Formatted: Font color: Auto
The procedures used to develop this document and those intended for its further maintenance are described
Formatted: Font color: Auto, English (United Kingdom)
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the Formatted: Font color: Auto
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Formatted: Font: Not Italic, Font color: Auto
Formatted: Font color: Auto
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
Formatted: Font color: Auto
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
Formatted: Font color: Auto
in respect thereof. As of the date of publication of this document, ISO [had/had not] received notice of (a)
Formatted: Font color: Auto, English (United Kingdom)
patent(s) which may be required to implement this document. However, implementers are cautioned that this
may not represent the latest information, which may be obtained from the patent database available at
Formatted: Font color: Auto
www.iso.org/patents.www.iso.org/patents. ISO shall not be held responsible for identifying any or all such
Formatted: Font: Not Italic, Font color: Auto
patent rights.
Formatted: Font color: Auto
Formatted: Font: Not Italic, Font color: Auto
Any trade name used in this document is information given for the convenience of users and does not
Formatted: Font color: Auto
constitute an endorsement.
Formatted: Font: Not Italic, Font color: Auto
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
Formatted: Font color: Auto
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Formatted: Adjust space between Latin and Asian text,
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
Adjust space between Asian text and numbers
www.iso.org/iso/foreword.htmlwww.iso.org/iso/foreword.html.
Formatted: Default Paragraph Font, Font color: Auto
Formatted: Font color: Auto
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 1, Methods of
Formatted: Default Paragraph Font, Font color: Auto
determination of chemical composition, in collaboration with the European Committee for Standardization
Formatted: Font color: Auto
(CEN) Technical Committee CEN/TC 459/SC 2, Methods of chemical analysis for iron and steel, in accordance
with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
Formatted: Default Paragraph Font, Font color: Auto
Formatted: Font color: Auto
This second edition cancels and replaces the first edition (ISO 9556:1989), which has been technically revised.
Formatted: Font color: Auto
Formatted: Adjust space between Latin and Asian text,
The main changes are as follows:
Adjust space between Asian text and numbers, Tab stops: Not
at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm + 3.5 cm + 4.2
— — Normativethe normative references clause(2) has been revised;
cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
Formatted: Font color: Auto
— — Termsthe mandatory terms and definitions clause (3) has been added, and subsequent clauses have
Formatted: Font color: Auto
been renumbered;
Formatted: Font color: Auto
Formatted: Font color: Auto
— — Precisionprecision data have been recalculated.
Formatted: Font color: Auto, English (United Kingdom)
Any feedback or questions on this document should be directed to the user’s national standards body. A
Formatted: Font color: Auto
complete listing of these bodies can be found at www.iso.org/members.html.
Formatted: Font color: Auto
Formatted: Font color: Auto, English (United Kingdom)
Formatted: Font color: Auto
Formatted: Font color: Auto, English (United Kingdom)
Field Code Changed
Formatted: Font color: Auto, English (United Kingdom)
Formatted: FooterPageRomanNumber
iv
DRAFT International Standard ISO/DIS 9556:2024(en)
Formatted: Font color: Auto
Steel and iron — Determination of total carbon content — Infrared
Formatted: Main Title 1
absorption method after combustion in an induction furnace
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
1 Scope
Formatted: Default Paragraph Font, Font color: Auto
Formatted: Font color: Auto
This document specifies an infrared absorption method after combustion in an induction furnace for the
Formatted: Default Paragraph Font, Font color: Auto
determination of the total carbon content in steel and iron.
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers, Tab stops: Not
The method is applicable to carbon contents between 0,003 % (mass fraction) and 4,5 % (mass fraction).
at 0.7 cm + 1.4 cm + 2.1 cm + 2.8 cm + 3.5 cm + 4.2
cm + 4.9 cm + 5.6 cm + 6.3 cm + 7 cm
2 Normative references
Formatted: Font color: Auto
Formatted: Default Paragraph Font, Font: Italic, Font color:
The following documents are referred to in the text in such a way that some or all of their content constitutes
Auto
requirements of this document. For dated references, only the edition cited applies. For undated references,
Formatted: Font color: Auto
the latest edition of the referenced document (including any amendments) applies.
Formatted: Default Paragraph Font, Font color: Auto
Formatted: Font color: Auto
ISO 648, Laboratory glassware — Single-volume pipettes
Formatted: Default Paragraph Font, Font color: Auto
ISO 1042, Laboratory glassw
...

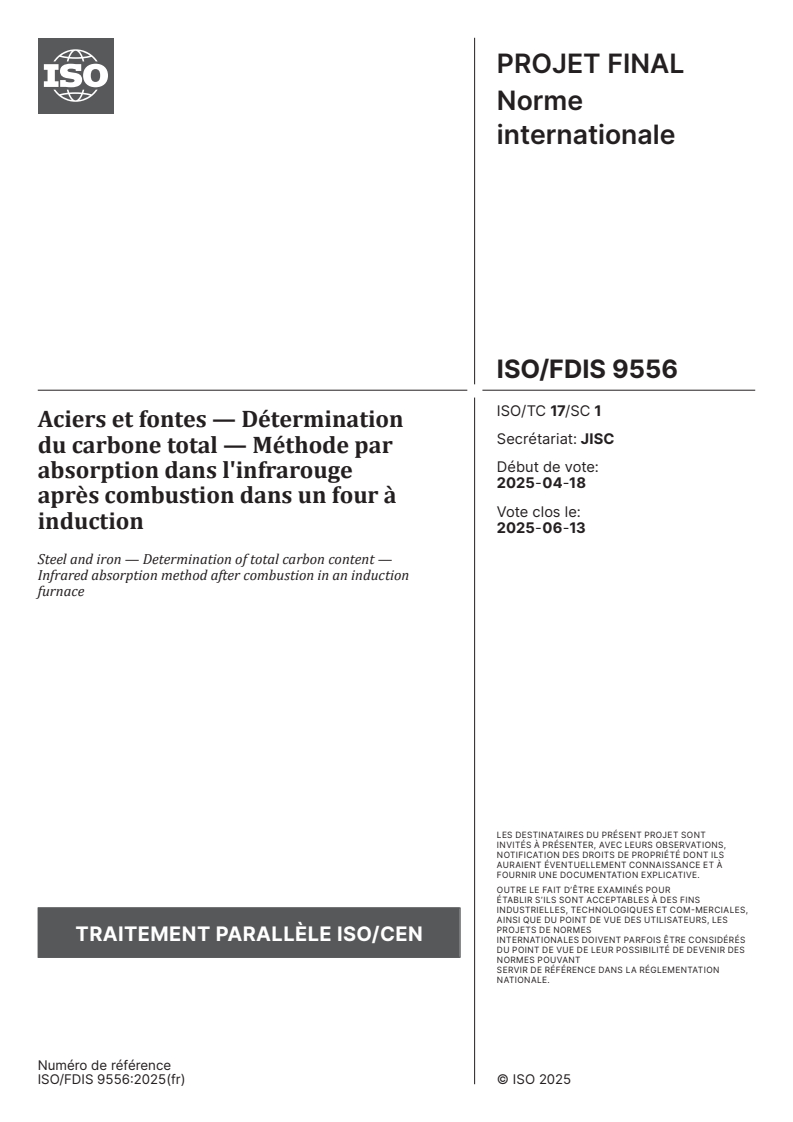

PROJET FINAL
Norme
internationale
ISO/FDIS 9556
ISO/TC 17/SC 1
Aciers et fontes — Détermination
Secrétariat: JISC
du carbone total — Méthode par
Début de vote:
absorption dans l'infrarouge
2025-04-18
après combustion dans un four à
Vote clos le:
induction
2025-06-13
Steel and iron — Determination of total carbon content —
Infrared absorption method after combustion in an induction
furnace
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
NORMES POUVANT
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
Numéro de référence
ISO/FDIS 9556:2025(fr) © ISO 2025
PROJET FINAL
ISO/FDIS 9556:2025(fr)
Norme
internationale
ISO/FDIS 9556
ISO/TC 17/SC 1
Aciers et fontes — Détermination
Secrétariat: JISC
du carbone total — Méthode par
Début de vote:
absorption dans l'infrarouge
2025-04-18
après combustion dans un four à
Vote clos le:
induction
2025-06-13
Steel and iron — Determination of total carbon content —
Infrared absorption method after combustion in an induction
furnace
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
DOCUMENT PROTÉGÉ PAR COPYRIGHT
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
© ISO 2025 INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
NORMES POUVANT
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse Numéro de référence
ISO/FDIS 9556:2025(fr) © ISO 2025
ii
ISO/FDIS 9556:2025(fr)
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Principe. 1
5 Réactifs . 1
6 Appareillage . 2
7 Prélèvement et préparation des échantillons . 3
8 Mode opératoire . 3
8.1 Instructions d'utilisation générales.3
8.2 Prise d’essai .4
8.3 Essai à blanc .4
8.4 Détermination .4
8.5 Établissement de la courbe d’étalonnage .5
8.5.1 Échantillons ayant une teneur en carbone comprise entre 0,003 % (en masse) et
0,01 % (en masse) .5
8.5.2 Échantillons ayant une teneur en carbone comprise entre 0,01 % (en masse) et
0,1 % (en masse) .5
8.5.3 Échantillons ayant une teneur en carbone comprise entre 0,1 % (en masse) et
1,0 % (en masse) .6
8.5.4 Échantillons ayant une teneur en carbone comprise entre 1,0 % (en masse) et
4,5 % (en masse) .7
9 Expression des résultats . 7
9.1 Méthode de calcul .7
9.2 Fidélité .8
10 Rapport d’essai . 9
Annexe A (informative) Informations supplémentaires sur l'essai interlaboratoires
international . 10
Annexe B (informative) Représentation graphique des données de fidélité .12
Annexe C (informative) Caractéristiques des fours à induction haute fréquence et des
analyseurs de carbone à infrarouge du commerce .13
Bibliographie .15
iii
ISO/FDIS 9556:2025(fr)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de propriété revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 17, Acier, sous-comité SC 1, Méthodes
de détermination de la composition chimique, en collaboration avec le Comité technique CEN/TC 459/SC 2,
Méthodes d'analyses chimiques pour le fer et l'acier, du Comité européen de normalisation (CEN) conformément
à l'Accord de coopération technique entre l'ISO et le CEN (Accord de Vienne).
Cette deuxième édition annule et remplace la première édition (ISO 9556:1989), qui a fait l’objet d’une
révision technique.
Les principales modifications par rapport à l’édition précédente sont les suivantes:
— révision des références normatives (2);
— ajout de l’article “Termes et définitions” (3), et rénumérotation des articles suivants;
— réévaluation des données de fidélité.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/members.html.
iv
PROJET FINAL Norme internationale ISO/FDIS 9556:2025(fr)
Aciers et fontes — Détermination du carbone total —
Méthode par absorption dans l'infrarouge après combustion
dans un four à induction
1 Domaine d’application
Le présent document spécifie une méthode par absorption dans l'infrarouge après combustion dans un four
à induction pour la détermination du carbone total dans les aciers et les fontes.
La méthode est applicable aux teneurs en carbone comprises entre 0,003 % (en masse) et 4,5 % (en masse).
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s'applique (y compris les éventuels
amendements.
ISO 648, Verrerie de laboratoire — Pipettes à un volume
ISO 1042, Verrerie de laboratoire — Fioles jaugées à un trait
ISO 14284, Aciers et fontes — Prélèvement et préparation des échantillons pour la détermination de la
composition chimique
3 Termes et définitions
Le présent document ne contient pas de liste de termes et définitions.
L'ISO et l'IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l'adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l'adresse https:// www .electropedia .org/
4 Principe
Combustion d'une prise d'essai, en présence d'un accélérateur, sous un courant d'oxygène pur dans un four à
induction haute fréquence porté à haute température. Transformation du carbone en dioxyde de carbone et/
ou monoxyde de carbone.
Mesurage par absorption dans l'infrarouge du dioxyde de carbone et/ou monoxyde de carbone transporté(s)
par un courant d'oxygène.
5 Réactifs
Au cours de l'analyse, sauf indication contraire, utiliser uniquement des réactifs de qualité analytique
reconnue et de l'eau distillée ou de pureté équivalente.
ISO/FDIS 9556:2025(fr)
5.
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
