Standards Content (Sample)

INTERNATIONAL ISO

STANDARD 28401

First edition
2010-12-01
Light metals and their alloys — Titanium
and titanium alloys — Classification and
terminology
Métaux légers et leurs alliages — Titane et alliages de titane —
Classification et terminologie





Reference number
ISO 28401:2010(E)
©
 ISO 2010

---------------------- Page: 1 ----------------------
ISO 28401:2010(E)

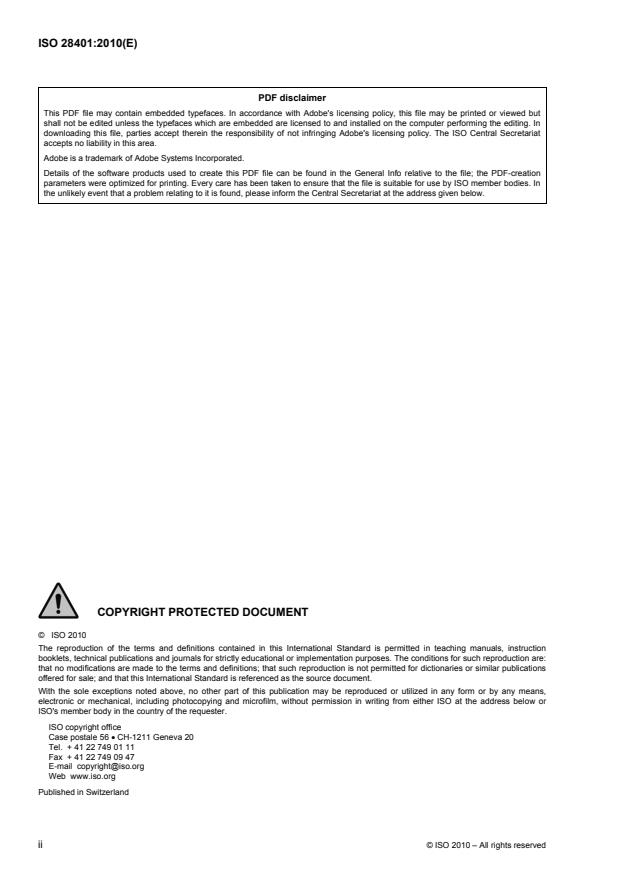

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2010
The reproduction of the terms and definitions contained in this International Standard is permitted in teaching manuals, instruction
booklets, technical publications and journals for strictly educational or implementation purposes. The conditions for such reproduction are:
that no modifications are made to the terms and definitions; that such reproduction is not permitted for dictionaries or similar publications
offered for sale; and that this International Standard is referenced as the source document.
With the sole exceptions noted above, no other part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2010 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 28401:2010(E)
Contents Page
Foreword .iv
1 Scope.1
2 Material.1
3 Specific terms and definitions .2
4 Unwrought products.2
5 Wrought products .2
6 Castings .5
7 Methods of processing and treatment.6
8 Surface condition.8
9 Applications.8
10 Abbreviations for titanium melting methods .9
11 Classification of titanium and titanium alloys.9
11.1 General.9
11.2 Unalloyed titanium.9
11.3 Titanium alloys.9
12 Titanium grades and compounds.10
12.1 Commercially pure titanium (CP titanium).10
12.2 Corrosion-resistance-enhanced grades of CP titanium.10
12.3 Titanium-base intermetallic compounds.10
Annex A (normative) Dividing line between titanium and titanium alloys.11
Annex B (normative) Explanatory notes concerning the definitions of wrought products.12
Alphabetical index.13

© ISO 2010 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 28401:2010(E)

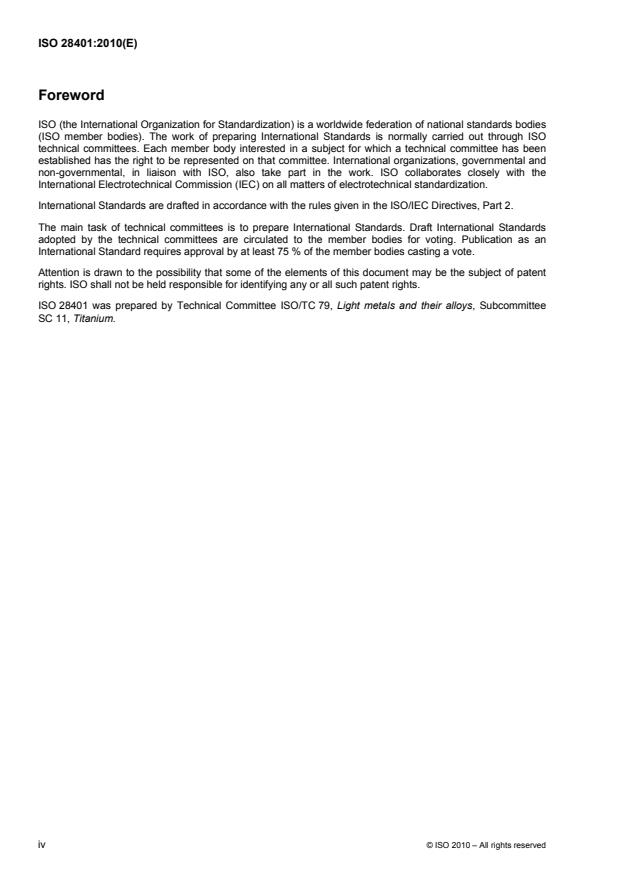

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 28401 was prepared by Technical Committee ISO/TC 79, Light metals and their alloys, Subcommittee
SC 11, Titanium.

iv © ISO 2010 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 28401:2010(E)

Light metals and their alloys — Titanium and titanium alloys —
Classification and terminology

1 Scope
This International Standard gives a classification of titanium and titanium alloys. It also gives terms and
definitions in the field of titanium and its alloys.
2 Material
2.1
titanium sponge
products of metallic titanium in porous and sponge-like form, which is applied as titanium metal melting stock
NOTE The oxidized titanium ore is first chlorinated to tetrachloride and is condensed and purified and then reduced with
magnesium or sodium under the inert atmosphere to produce titanium sponge.
2.2
alloy
metallic substance consisting of a mixture of the basic metallic element (the element predomination by mass)
and other elements, such as alloying elements and impurities
2.3
alloying element
metallic or non-metallic elements intentionally added to, or retained by, basic metal for the purpose of giving
that metal certain special properties
2.4
impurity
metallic or non-metallic elements present but which are not intentionally added to, or retained by, a metal
2.5
wrought alloy
alloy primarily intended for the production of wrought products by hot and/or cold plastic forming
2.6
casting alloy
alloy primarily intended for the production of castings
2.7
master alloy
alloy intended only for addition to a melt to adjust composition or to control impurities
2.8
heat-treatable alloy
alloy capable of being strengthened by a suitable thermal treatment
2.9
non-heat-treatable alloy
alloy strengthened by cold working only and incapable of being substantially strengthened by thermal treatment
© ISO 2010 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 28401:2010(E)
3 Specific terms and definitions
3.1
intermediate-strength alloys
alloys with improved properties due to a limited percentage of alloying elements enhancing mechanical
resistance and, from case to case, also corrosion resistance
3.2
high-strength standard alloys
alloys with properties similar to the alloy work-horse Ti-6Al-4V (Al ≈ 6 %, V ≈ 4 %), well defined and used with
experience
3.3
special alloy grades
high-strength and highly alloyed grades for special use, for example, in military and space equipment
4 Unwrought products
4.1
unwrought product
general term for products obtained by melting or casting processes
EXAMPLES Ingots for rolling, ingots for extruding, ingots for forging and ingots for remelting.
4.2
electrode for remelting
formed from titanium sponge and alloying elements or consolidated from recycled and processed scrap,
normally to be remelted finally at least once under a vacuum or in argon
4.3
ingot for rolling
titanium ingot in a form suitable for rolling, melted by EB, VAR, VASM or PM methods applied for at least the
final cycle under a vacuum or in argon
4.4
ingot for extruding
titanium ingot in a form suitable for extrusion of bars, tubes and slaps melted by EB, VAR, VASM or PM
methods applied for at least the final cycle under a vacuum or in argon
4.5
ingot for forging
titanium ingot in a form suitable for forging, melted by EB, VAR, VASM or PM methods applied for at least the
final cycle under a vacuum or in argon
4.6
ingot for remelting
titanium ingot in a form suitable for remelting after having been processed metallurgically for composition,
melted by EB, VAR, VASM or PM methods applied for at least the final cycle under a vacuum or in argon
5 Wrought products
5.1
wrought product
general term for products obtained by hot and/or cold plastic deformation processes, such as extruding,
forging, hot rolling, cold rolling or drawing, either solely or in combination
2 © ISO 2010 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 28401:2010(E)
EXAMPLES Rod/bar, billets, wire, tube, shape/profile, sheet, plate, strip, foils, die forgings, open die forgings.
NOTE For the classification principles of wrought products, see Annex B.
5.2
billets
2
solid wrought product of uniform cross-section that is above 10 000 mm along its whole length, supplied in
straight lengths
NOTE The cross-sections are in the shape of circles, ovals, squares, rectangles, equilateral triangles or regular
polygons. Products with a square, rectangular, triangular or polygonal cross-section may have corners rounded along their
whole length.
5.3
rod/bar
2
solid wrought product of uniform cross-section that is under 10 000 mm along its whole length, supplied in
straight lengths
NOTE 1 The cross-sections are in the shape of circles, ovals, squares, rectangles, equilateral triangles or regular
polygons. Products with a square, rectangular, triangular or polygonal cross-section may have corners rounded along their
whole length.
NOTE 2 For rectangular bars:
— the thickness exceeds one-third of the width;
— the term “rectangular bar” includes “flattened circles” and “modified rectangles”, of which two opposite sides are
convex arcs, the other two sides being straight, of equal length and parallel.
5.4
wire
solid wrought product of uniform cross-section along its whole length, supplied in coiled form
NOTE 1 The cross-sections are in the shape of circles, ovals, squares, rectangles, equilateral triangles or regular
polygons. Products with a square, rectangular, triangular, or polygonal cross-section may have corners rounded along
their whole length.
NOTE 2 For rectangular wires:
— the thickness exceeds one-third of the width;
— the term “rectangular wire” includes “flattened circles” and “modified rectangles”, of which two opposite sides are
convex arcs, the other two sides being straight, of equal length and parallel.
5.5
drawing stock
intermediate solid wrought product of uniform cross-section along its whole length supplied in coils
NOTE The cross-sections are approximately round, triangular or regular polygonal with dimensions usually exceeding
5 mm.
5.6
tube
hollow wrought product of uniform cross-section with only one enclosed hollow space along its whole length,
and with a uniform wall thickness, supplied in straight lengths or in coiled form
NOTE 1 The cross-sections are in the shape of circles, ovals, squares, rectangles, equilateral triangles or regular
polygons. Hollow products with square, rectangular, equilateral triangular or regular polygonal cross-sections, which may
have corners rounded along their whole length, are also to be considered as tubes, provided the inner and outer
peripheries are concentric and have the same form and orientation.
NOTE 2 Tubes can also be formed by piercing trespassing and by forming and joining sheet or strip.
NOTE 3 Bent, threaded, drilled, waisted, expanded and cone-shaped hollow products in this form, when derived from
tubes as defined above, are classified as tubes.
© ISO 2010 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 28401:2010(E)
5.7
profile/shape
wrought product of uniform cross-section along its whole length, with a cross-section other than rod/bar, wire,
tube, sheet, plate or strip, supplied in straight lengths or in coiled form
NOTE According to the form of its cross-section, it is called hollow profile or non-hollow profile.
a) Hollow profile
The cross-section includes:
— either one enclosed hollow space, provided that the cross-section is for other than a tube, or
— more than one enclosed hollow space.
b) Non-hollow profile
The cross-section does not include any enclosed hollow space.
5.8
plate
flat-rolled product of rectangular cross-section with uniform thickness over 5 mm, supplied in straight lengths
(i.e. flat) usually with sheared, sawn or flame-cut/plasma-cut edges or water-jet cutting
NOTE The thickness does not exceed one-tenth of the width.
5.9
sheet
flat-rolled product of rectangular cross-section with uniform thickness over 0,20 mm and up to and including
5 mm, supplied in straight lengths (i.e. flat) usually with sheared or sawn edges or water jet cutting
NOTE The thickness does not exceed one-tenth of the width.
5.10
strip
flat-rolled product of rectangular cross-section with uniform thickness over 0,20 mm, supplied in coils usually
with slit edges
NOTE 1 The thickness does not exceed one-tenth of the width.
NOTE 2 Corrugated, embossed (with patterns, for example, grooves, ribs, checkers, tears, buttons, lozenges), coated,
edge conditioned and perforated products in this general form when derived from strip as defined above are classified as
strip.
NOTE 3 In some English-speaking countries, “strip” is called “coiled sheet”.
5.11
foil
flat-rolled product of rectangular cross-section with uniform thickness equal to or less than 0,20 mm
NOTE In some countries, the term “foil” covers two different products:
— foil: products with lesser thickness;
— thin strip: products with greater thickness.
The dimensional limitations between these two products may vary from country to country.
5.12
forging stock
hot-worked intermediate solid wrought product, for example rod/bar or billets, or any other cross-section,
suitable for forging
NOTE Forging stock may also be a cast product, for example, ingot for forging (see 4.5).
4 © ISO 2010 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 28401:2010(E)
5.13
casting stock
cast or hot-worked intermediate solid wrought product, for example, rod/bar or billets, or any other cross-
section, suitable for casting
5.14
forging
wrought product formed by hammering or pressing, usually when hot, between open dies (hand f
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
