ISO 14245:2021/Amd 1:2025
(Amendment)Gas cylinders — Specifications and testing of LPG cylinder valves — Self-closing — Amendment 1
Gas cylinders — Specifications and testing of LPG cylinder valves — Self-closing — Amendment 1
Bouteilles à gaz — Spécifications et essais pour valves de bouteilles de GPL — Fermeture automatique — Amendement 1
General Information
Relations
Standards Content (Sample)

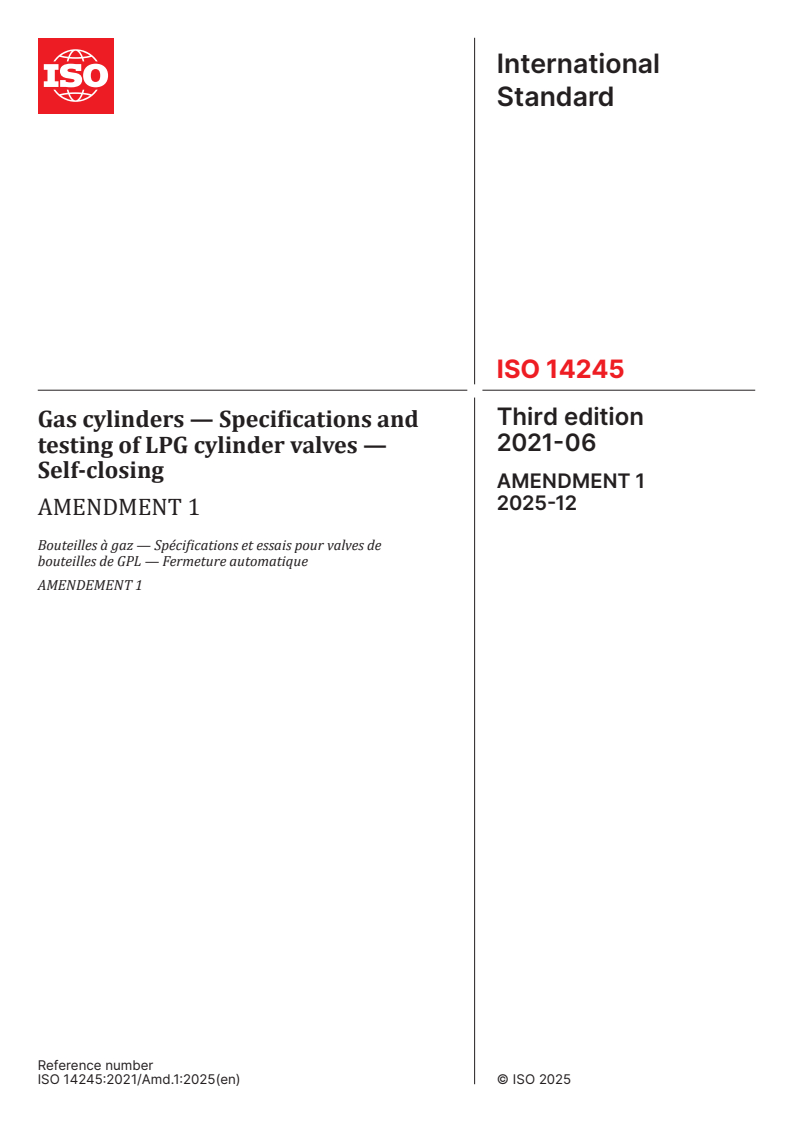

International
Standard
ISO 14245
Third edition
Gas cylinders — Specifications and
2021-06
testing of LPG cylinder valves —
Self-closing
AMENDMENT 1
2025-12
AMENDMENT 1
Bouteilles à gaz — Spécifications et essais pour valves de
bouteilles de GPL — Fermeture automatique
AMENDEMENT 1
Reference number
ISO 14245:2021/Amd.1:2025(en) © ISO 2025
ISO 14245:2021/Amd.1:2025(en)
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 14245:2021/Amd.1:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 58, Gas cylinders, Subcommittee SC 2, Cylinder
fittings, in collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/
TC 286, Liquefied petroleum gas equipment and accessories,in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iii
ISO 14245:2021/Amd.1:2025(en)
Gas cylinders — Specifications and testing of LPG cylinder
valves — Self-closing
AMENDMENT 1
Clause 2, Normative references
Add the following normative reference:
MIL-STD-810G:2008, Department of Defence Test Method Standard, Environmental Engineering Considerations
and Laboratory Tests
3.13
Delete term and definition and re-number the following terms and definitions.
4.2
Add the following new subclause:
4.2.5 Adhesives
Where used, adhesives shall be proven compatible with LPG in accordance with recognized international,
regional or national standards.
4.3.3, first sentence
Replace sentence with the following:
Valve inlet connections shall conform to an international, regional or national standard or proprietary
designs that have been qualified to an acceptable industry standard.
4.3.3, NOTE
Replace NOTE with the following:
NOTE 1 Valve inlet connection standards are, for example, ISO 11363-1 and ISO 15245-1.
NOTE 2 Qualification procedures for proprietary valve inlet connection designs are, for example, given in
ISO 10692-2.
4.3.3, third paragraph
Replace the reference "Table 3" with "Table 4".
ISO 14245:2021/Amd.1:2025(en)
4.3.4, first sentence
Replace sentence with the following:
Valve outlet connections shall conform to an international, regional or national standard or proprietary
designs that have been qualified to an acceptable industry standard.
4.3.4, NOTE
Replace NOTE with the following:
NOTE 1 Valve outlet connection standards are, for example, ISO 5145 and EN 15202.
NOTE 2 Qualification procedures for proprietary valve outlet connection designs are, for example, given in CGA V-1.
4.4.1
Add the following paragraph at the end of the subclause:
Where threaded joints are used within the valve, an anaerobic sealant may be used if proven compatible
with LPG in accordance with recognized international, regional (e.g. EN 751-1) or national standards.
4.4.4
Add the following indents and the example to the end of the list:
d) There shall be sufficient thread engagement between the vent screw and the fixed liquid level gauge to
allow metal to metal contact in the event of absence of the seal.
e) The dip tube shall be securely fitted to the valve to ensure that it does not disassemble during installation
or operation.
EXAMPLE Using adhesive, press fitting or any other mechanical means.
4.4.9
Add the following paragraph and example at the end of the subclause:
The sediment tube shall be securely fitted to the valve to ensure that it does not disassemble during
installation or operation.
EXAMPLE Using adhesive, press fitting or any other mechanical means.
5.1
Delete subclause numbering "5.1.1" and retain text as normal style.
5.1, third paragraph
Replace the reference "Table 1" with "Table 2".
5.1, fourth paragraph
ISO 14245:2021/Amd.1:2025(en)
Replace fourth paragraph with “For valves designed to incorporate pressure relief valves, their ports shall
be plugged or sealed, or their setting shall be adjusted to allow applying the test pressure without activating
the pressure relief valve.”.
5.1.2
Delete subclause numbering "5.1.2" and replace paragraph and list with the following text and Table 1:
Changes or variations to the valve configuration which can adversely affect valve performance shall require
additional inspection and tests in accordance with Table 1, using the number of test samples quoted in
Table 2.
ISO 14245:2021/Amd.1:2025(en)
Vibration includ-
ing subsequent
external and
internal leak
tightness
Non-return valve
Excess flow valve
Examination of
disassembled
valves
External and
internal leak
tightness at low,
high and room
temperature
Endurance – Part
Endurance – Part
External and
internal leak
tightness at room
temperature
Impact including
subsequent inter-
nal leak tightness
Valve stem includ-
ing subsequent
external and
internal leak
tightness
Operation
Hydraulic pres-
sure including
subsequent exter-
nal and internal
leak tightness
Inspection
Table 1 — Inspections and tests required after changes or variations to the valve configuration
Repetition of any tests to be decided on a case by case basis depending on changes of chemical
Changes of the material of the valve body
composition and mechanical properties.
Changes of the basic design dimensions of the internal valve compo-
Repetition of a test to be decided on a case by case basis depending on the change.
nents [e.g. seat diameter, dimension of o-ring(s)]
Changes of metallic material of the valve operating mechanism compo-
Repetition of a test to be decided on a case by case basis depending on the change.
nents (e.g. springs)
Change of non-metallic material with regard to composition or hard-
x x x x x x x
ness of internal valve components [e.g. seals, o-ring(s) and lubricants]
Changes of the thread and/or any dimensions of the valve inlet connec-
a a a
x x x
tion
Changes of the thread and/or any dimension of the valve outlet connec-
b a a a a
x x x x x
tion
Design changes of previously tested option
...
