Iron ores — Determination of tin — Flame atomic absorption spectrometric method

ISO 11534:2006 specifies a flame atomic absorption spectrometric method for the determination of the mass fraction of tin in iron ores. This method is applicable to mass fractions of tin between 0,001 % and 0,015 % in natural iron ores, iron ore concentrates and agglomerates, including sinter products.

Minerais de fer — Dosage de l'étain — Méthode par spectrométrie d'absorption atomique dans la flamme

General Information

Status
Published
Publication Date
13-Nov-2006
Current Stage
9093 - International Standard confirmed
Start Date
18-Dec-2014
Completion Date
24-Jun-2022
Ref Project

RELATIONS

Buy Standard

Standard
ISO 11534:2006 - Iron ores -- Determination of tin -- Flame atomic absorption spectrometric method
English language
12 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 11534
Second edition
2006-11-15
Iron ores — Determination of tin — Flame
atomic absorption spectrometric method
Minerais de fer — Dosage de l'étain — Méthode par spectrométrie
d'absorption atomique dans la flamme
Reference number
ISO 11534:2006(E)
ISO 2006
---------------------- Page: 1 ----------------------
ISO 11534:2006(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2006

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 11534:2006(E)
Contents Page

Foreword............................................................................................................................................................ iv

1 Scope..................................................................................................................................................... 1

2 Normative references........................................................................................................................... 1

3 Principle................................................................................................................................................. 1

4 Reagents................................................................................................................................................ 2

5 Apparatus.............................................................................................................................................. 3

6 Sampling and samples......................................................................................................................... 3

6.1 Laboratory sample................................................................................................................................ 3

6.2 Preparation of predried test samples ................................................................................................. 4

7 Procedure.............................................................................................................................................. 4

7.1 Number of determinations ................................................................................................................... 4

7.2 Test portion ........................................................................................................................................... 4

7.3 Blank test and check test..................................................................................................................... 4

7.4 Determination........................................................................................................................................ 4

7.4.1 Decomposition of the test portion ...................................................................................................... 4

7.4.2 Treatment of the test solution ............................................................................................................. 5

7.4.3 Adjustment of atomic absorption spectrometer ............................................................................... 5

7.4.4 Atomic absorption measurements...................................................................................................... 5

7.4.5 Preparation of calibration solutions ................................................................................................... 6

8 Expression of results........................................................................................................................... 6

8.1 Calculation of mass fraction of tin...................................................................................................... 6

8.2 General treatment of results................................................................................................................ 6

8.2.1 Repeatability and permissible tolerances.......................................................................................... 6

8.2.2 Determination of the analytical result................................................................................................. 7

8.2.3 Between-laboratories precision.......................................................................................................... 7

8.2.4 Check for trueness ............................................................................................................................... 8

8.2.5 Calculation of final result..................................................................................................................... 8

8.3 Oxide factor........................................................................................................................................... 9

9 Test report............................................................................................................................................. 9

Annex A (normative) Flowsheet of the procedure for the acceptance of analytical values for test

samples................................................................................................................................................ 10

Annex B (informative) Derivation of repeatability and permissible tolerance equations ......................... 11

Annex C (informative) Precision data obtained by international analytical trials ..................................... 12

© ISO 2006 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 11534:2006(E)

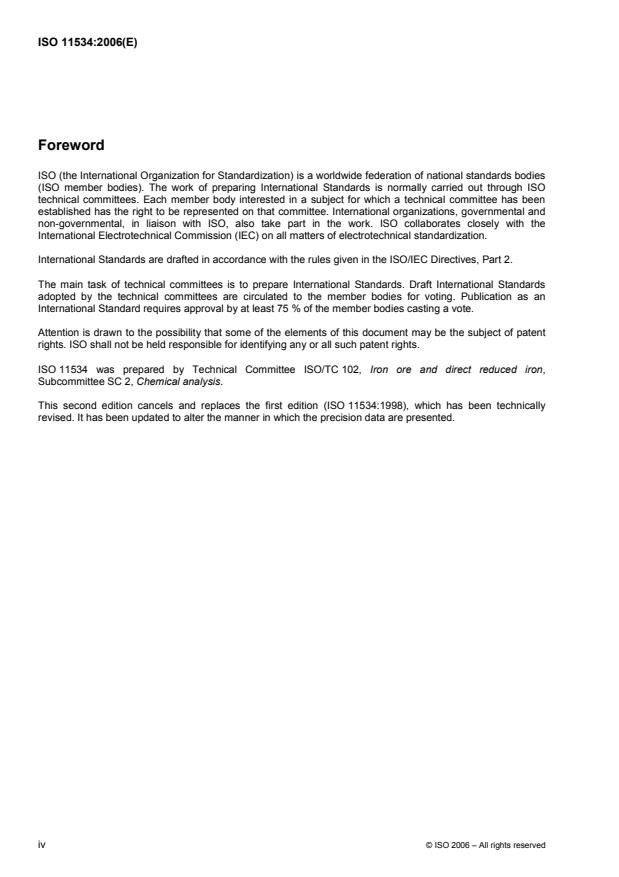

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 11534 was prepared by Technical Committee ISO/TC 102, Iron ore and direct reduced iron,

Subcommittee SC 2, Chemical analysis.

This second edition cancels and replaces the first edition (ISO 11534:1998), which has been technically

revised. It has been updated to alter the manner in which the precision data are presented.

iv © ISO 2006 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 11534:2006(E)
Iron ores — Determination of tin — Flame atomic absorption
spectrometric method

WARNING — This International Standard may involve hazardous materials, operations and equipment.

This International Standard does not purport to address all of the safety problems associated with its

use. It is the responsibility of the user of this International Standard to establish appropriate health

and safety practices and determine the applicability of regulatory limitations prior to use.

1 Scope

This International Standard specifies a flame atomic absorption spectrometric method for the determination of

the mass fraction of tin in iron ores.

This method is applicable to mass fractions of tin between 0,001 % and 0,015 % in natural iron ores, iron ore

concentrates and agglomerates, including sinter products.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.
ISO 648: Laboratory glassware — One-mark pipettes
ISO 1042: Laboratory glassware — One-mark volumetric flasks
ISO 3082: Iron ores —Sampling and sample preparation procedures
ISO 3696: Water for analytical laboratory use — Specification and test methods
ISO 7764: Iron ores — Preparation of predried test samples for chemical analysis
3 Principle

The test portion is treated with sulfuric acid and hydrofluoric acid in a platinum crucible. The silica is removed

by heating and evaporation. The residue is fused in sodium carbonate/sodium tetraborate flux, and the cooled

melt is dissolved in hydrochloric acid.

Iron is reduced by ascorbic acid and potassium iodide, followed by extraction of tin with tri-n-octyl phosphine

oxide (TOPO) in 4-methyl-2-pentanone (MIBK) solvent.

The tin TOPO/MIBK extract is aspirated into a dinitrogen oxide/acetylene flame and the absorbance of tin is

measured at a 286,3 nm resonance line using a tin hollow-cathode lamp. The absorbance values obtained are

compared with those obtained from calibration solutions.
© ISO 2006 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 11534:2006(E)
4 Reagents

During the analysis, use only reagents of recognized analytical reagent grade, and only water that complies

with grade 2 of ISO 3696.
4.1 Sodium carbonate (Na CO ), anhydrous.
2 3
4.2 Sodium tetraborate (Na B O ), anhydrous.
2 4 7

4.3 Iron oxide (Fe O ), of minimum purity 99,9 % (mass fraction) and mass fraction of tin < 0,000 2 %.

2 3
4.4 Hydrochloric acid, ρ 1,16 g/ml to ρ 1,19 g/ml.
4.5 Hydrochloric acid, ρ 1,16 g/ml to ρ 1,19 g/ml, diluted 1 + 1.
4.6 Hydrochloric acid, ρ 1,16 g/ml to ρ 1,19 g/ml, diluted 2 + 3.
Add 200 ml of hydrochloric acid (4.4) to 300 ml of water and mix.

4.7 Hydrofluoric acid, ρ 1,13 g/ml, 40 % (mass fraction) or ρ 1,19 g/ml, 48 % (mass fraction).

4.8 Sulfuric acid, ρ 1,84 g/ml.
4.9 Sulfuric acid, ρ 1,84 g/ml, diluted 1 + 1.
4.10 Ascorbic acid solution, 200 g/l.
This solution shall be prepared freshly on the day of use.
4.11 Potassium iodide/ascorbic acid solution.

Dissolve 90 g of potassium iodide in water, add 30 g of ascorbic acid and 30 ml of hydrochloric acid (4.4), and

dilute with water to 200 ml. This solution shall be freshly prepared just prior to use.

4.12 Tri-n-octyl phosphine oxide (TOPO)/4-methyl-2 pentanone (MIBK) solution.
Dissolve 1 g of TOPO in 100 ml of MIBK.
4.13 Tin standard solution, 200 µg Sn/ml.

Dissolve 0,1 000 g of tin metal [purity > 99,5 % (mass fraction)] in a platinum crucible (with cover) with 5 ml of

hydrochloric acid (4.4). After cooling, transfer the solution to a 500 ml one-mark volumetric flask, add 200 ml

of hydrochloric acid (4.5), and dilute to volume with hydrochloric acid (4.5).
4.14 Tin standard solution, 40 µg Sn/ml.

Transfer 20 ml of tin standard solution (4.13) to a 100 ml one-mark volumetric flask, dilute to volume with

hydrochloric acid (4.5) and mix.
4.15 Tin standard solution, 10 µg Sn/ml.

Transfer 5,0 ml of tin standard solution (4.13) to a 100 ml one-mark volumetric flask, dilute to volume with

hydrochloric acid (4.5) and mix.
2 © ISO 2006 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 11534:2006(E)
5 Apparatus

Ordinary laboratory apparatus, including one-mark pipettes and one-mark volumetric flasks complying with the

specifications of ISO 648 and ISO 1042 respectively, and the following.
5.1 Platinum crucible, of capacity 25 ml to 30 ml.
5.2 Platinum rod.
5.3 Muffle furnace, suitable for heating at 1 000 °C to 1 020 °C.

5.4 Atomic absorption spectrometer, equipped with a dinitrogen oxide/acetylene burner.

WARNING — To avoid possible explosion hazards, follow the manufacturer's instructions for igniting

and extinguishing the dinitrogen oxide/acetylene flame. Wear tinted safety glasses whenever the

flame is burning.

The atomic absorption spectrometer used in this method shall meet the following criteria.

a) Minimum sensitivity: the absorbance of the most concentrated calibration solution (see 7.4.5) shall be at

least 0,13.

b) Graph linearity: the slope of the calibration graph covering the top 20 % of the concentration range

(expressed as a change in absorbance) shall not be less than 0,7 of the value of the slope for the bottom

20 % of the concentration range determined in the same way.

c) Minimum stability: the standard deviation of the absorbance of the most concentrated calibration solution

and that of the zero calibration solution, each being calculated from a sufficient number of repetitive

measurements, shall be less than 1,5 % and 0,5 %, respectively, of the mean value of the absorbance of

the most concentrated calibration solution.

The use of a strip chart recorder and/or digital readout device is recommended to evaluate criteria a), b) and

c) for all subsequent measurements.

NOTE Instrument parameters may vary with each instrument. The following parameters were successfully used in

several laboratories and they can be used as guidelines. A dinitrogen oxide/acetylene flame was used.

Hollow cathode lamp, mA 12,5
Wavelength, nm 286,3
Dinitrogen oxide flow rate, l/min 6,6
Acetylene flow rate, l/min 4,5

In systems where the values shown above for gas flow rates do not apply, the ratio of the gas flow rates may still be a

useful guideline.
6 Sampling and samples
6.1 Laboratory sample

For analysis, use a laboratory sample of minus 100 µm particle size which has been taken and prepared in

accordance with ISO 3082. In the case of ores having significant contents of combined water or oxidizable

compounds, use a particle size of minus 160 µm.
NOTE A guideline on significant contents of combined
...
