ISO 18566-2:2017

Building environment design — Design, test methods and control of hydronic radiant heating and cooling panel systems — Part 2: Determination of heating and cooling capacity of ceiling mounted radiant panels

ISO 18566-2:2017 dry cooling only surfaces with an air gap between construction and the emitter (not embedded) with or without an insulation fed with water at temperatures below 120 °C connected with a centralized heating and/or cooling supply source intended to be installed in buildings. Ceiling mounted radiant panels covered by this document are limited to a width from 0,3 m up to 1,5 m. ISO 18566-2:2017 also defines the additional common data that the manufacturer provides to the trade, in order to ensure the correct application of the products.

Conception de l'environnement des bâtiments — Conception, méthodes d'essai et contrôle des systèmes de panneaux hydroniques radiants de chauffage et de refroidissement — Partie 2: Détermination de la capacité de chauffage et refroidissement des panneaux radiants montés au plafond

General Information

• Status: Published
• Publication Date: 12-Jul-2017
• ICS: 91.040.01 - Buildings in general
• Technical Committee: ISO/TC 205 - Building environment design
• Drafting Committee: ISO/TC 205/WG 8 - Radiant heating and cooling systems
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 07-Mar-2023

Standards Content (Sample)

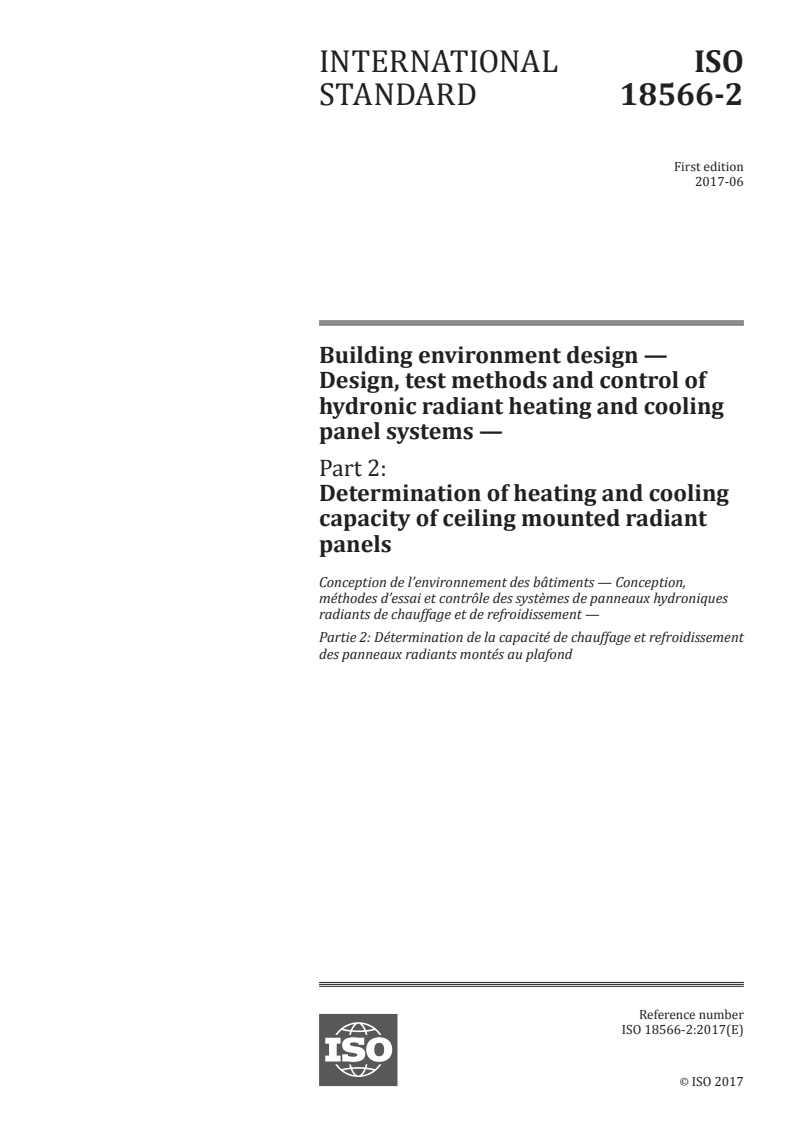

INTERNATIONAL ISO
STANDARD 18566-2
First edition
2017-06
Building environment design —
Design, test methods and control of
hydronic radiant heating and cooling
panel systems —
Part 2:
Determination of heating and cooling
capacity of ceiling mounted radiant
panels
Conception de l’environnement des bâtiments — Conception,
méthodes d’essai et contrôle des systèmes de panneaux hydroniques
radiants de chauffage et de refroidissement —
Partie 2: Détermination de la capacité de chauffage et refroidissement
des panneaux radiants montés au plafond
Reference number
ISO 18566-2:2017(E)
©
ISO 2017

---------------------- Page: 1 ----------------------
ISO 18566-2:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 18566-2:2017(E)

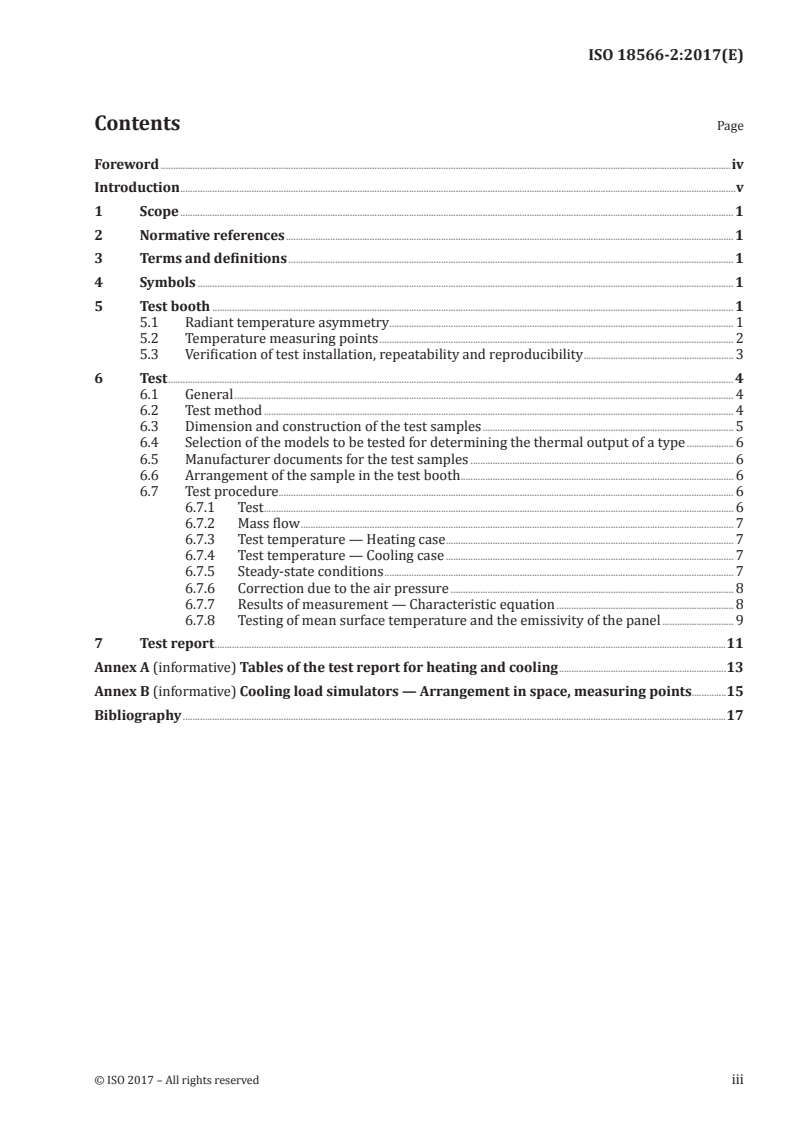

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 1
5 Test booth . 1
5.1 Radiant temperature asymmetry . 1
5.2 Temperature measuring points . 2
5.3 Verification of test installation, repeatability and reproducibility . 3
6 Test . 4
6.1 General . 4
6.2 Test method . 4
6.3 Dimension and construction of the test samples . 5
6.4 Selection of the models to be tested for determining the thermal output of a type . 6
6.5 Manufacturer documents for the test samples . 6
6.6 Arrangement of the sample in the test booth . 6
6.7 Test procedure . 6
6.7.1 Test . 6
6.7.2 Mass flow . 7
6.7.3 Test temperature — Heating case . 7
6.7.4 Test temperature — Cooling case . 7
6.7.5 Steady-state conditions . 7
6.7.6 Correction due to the air pressure . 8
6.7.7 Results of measurement — Characteristic equation . 8
6.7.8 Testing of mean surface temperature and the emissivity of the panel . 9
7 Test report .11
Annex A (informative) Tables of the test report for heating and cooling .13
Annex B (informative) Cooling load simulators — Arrangement in space, measuring points.15
Bibliography .17
© ISO 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 18566-2:2017(E)

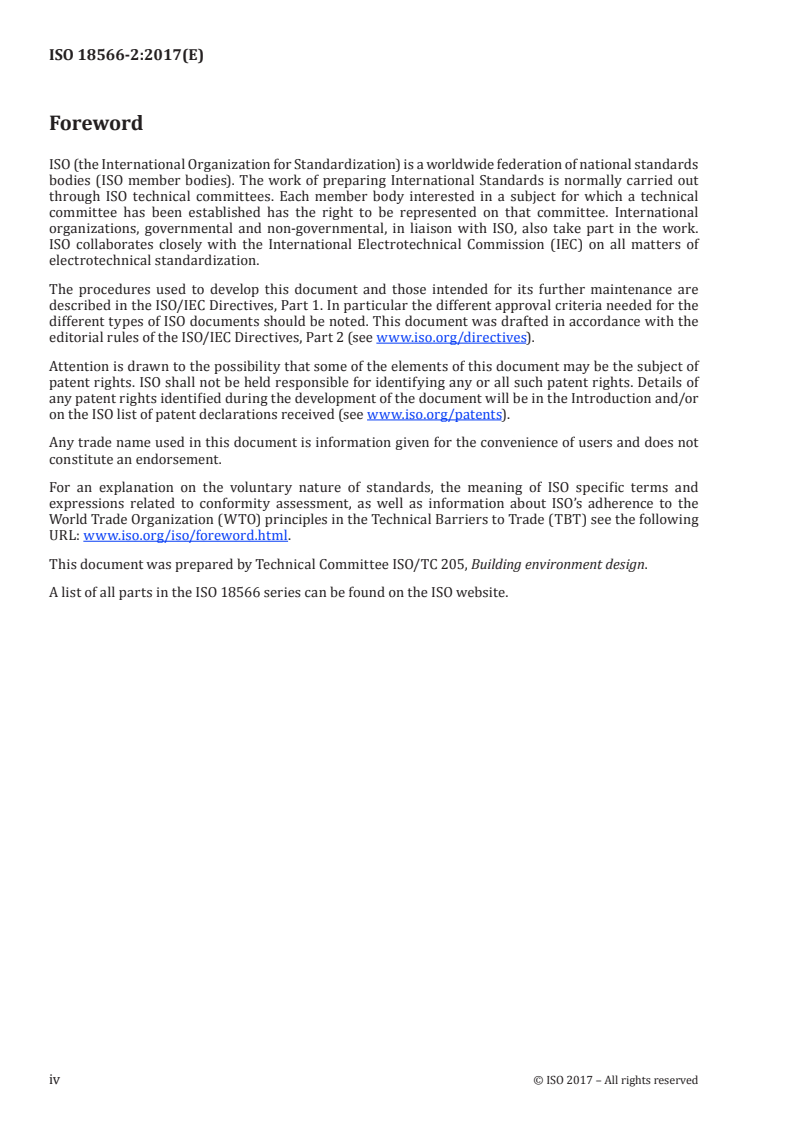

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 205, Building environment design.
A list of all parts in the ISO 18566 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 18566-2:2017(E)

Introduction
The radiant heating and cooling system consists of heat emitting/absorbing, heat supply, distribution,
and control systems. Typical applications are low temperature radiant heating and high temperature
radiant cooling. They are classified as embedded radiant heating and cooling systems and prefabricated
radiant heating and cooling panel systems.
While ISO 11855 is for embedded radiant heating and cooling systems without an open air gap,
ISO 18566 is for radiant heating and cooling panel systems with an open air gap. Because the system
specifications for ISO 18566 are different from those of ISO 11855, it was necessary to develop separate
ISO standards regarding the design and test methods of the cooling and heating capacity and control.
ISO 18566-1 specifies the comfort criteria, technical specifications and requirements which should be
considered in the manufacturing and installation of radiant heating and cooling systems. ISO 18566-2
provides the test facility and test method for heating and cooling capacity of ceiling mounted radiant
panels. ISO 18566-3 specifies the design considerations and design processes of ceiling mounted radiant
panels. ISO 18566-4 addresses the control of ceiling mounted radiant heating and cooling panels to
ensure the maximum performance which was intended in the design stage when the system is actually
being operated in a building.
ISO 18566 does not cover the panels that are embedded into the ceiling, wall or floor structure.
This document deals with the determination of heating and cooling capacity of ceiling mounted radiant
panels. In Clause 5, the boundary conditions for the heating and cooling capacity test are described. In
Clause 6, the test chamber and the output from the test are defined.
This document is partly based on EN 14240, EN 14037 and ASNI/ASHRAE Standard 138.
© ISO 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 18566-2:2017(E)
Building environment design — Design, test methods and
control of hydronic radiant heating and cooling panel
systems —
Part 2:
Determination of heating and cooling capacity of ceiling
mounted radiant panels
1 Scope
This document defines technical specifications and requirements of free hanging (suspended) heating
and dry cooling only surfaces with an air gap between construction and the emitter (not embedded)
with or without an insulation fed with water at temperatures below 120 °C connected with a centralized
heating and/or cooling supply source intended to be installed in buildings.
Ceiling mounted radiant panels covered by this document are limited to a width from 0,3 m up to 1,5 m.
This document also defines the additional common data that the manufacturer provides to the trade, in
order to ensure the correct application of the products.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 18566-1, Building environment design — Design, test methods and control of hydronic radiant
heating and cooling panel systems — Part 1: Definition, symbols, technical specifications and requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 18566-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Symbols
For the purposes of this document, the symbols in ISO 18566-1 apply.
5 Test booth
5.1 Radiant temperature asymmetry
The booth for testing ceiling mounted radiant panels shall be constructed in a way that all six
surrounding surfaces can be chilled.
© ISO 2017 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 18566-2:2017(E)

Walls, ceiling and floor shall have smooth inside surfaces covered with a coat of mat paint, having a
degree of emissivity of minimum 0,9.
The test booth construction shall be sufficiently tight to prevent air infiltration.
Heating case
The cooling system is to be carried out in order that the temperature difference between the six
surrounding inside surfaces of the test booth is not higher than 0,5 K. The temperature difference
between inlet and outlet shall not be higher than 0,5 K. That condition shall be maintained at the tests
for the determination of the characteristic equation.
Cooling case
For covering the cooling capacity, the test booth will be heated with a number of electrical heated
cooling load simulators (see Annex B) which are positioned on the floor of the test booth (see Figures B.1
and B.2).
Differing from these definitions, the surfaces, floor and ceiling of the test booth shall be insulated in the
2
way that the average heat flow in those surfaces is lower than 0,40 W/m during the test. This heat flow
shall be determined by preliminary calibration tests of the booth or by calculations.
The reference temperature during the measurement shall be 32 °C ± 0,5 K in the steady condition for a
minimum of 30 min. The temperature(s) of inner surfaces of walls, floor and ceiling of the test booth (under
the insulation) shall be controlled and be kept on a value, which is necessary to guarantee a maximum
temperature difference between these surfaces and the reference temperature of less than 1,0 K.
The test booth will be heated with six electrical heated cooling load simulators, which are positioned on
the floor of the test booth. The output of each simulator shall not exceed 180 W and shall be continuously
adjustable, e.g. with an adjustable transformer or a thyristor. Each simulator shall have an identical
heat output and the same number of bulbs.
The housing of the simulators consists of painted steel sheet. The emissivity of the inside and outside
surface shall be at least 0,9. The active power of the simulators shall be measured with a measuring
instrument of the accuracy class 1,0 % or better.
5.2 Temperature measuring points
Reference room temperature
The reference room temperature is measured at a height of 0,75 m above the floor of the test booth by
means of a globe thermometer. The measuring point is situated on the vertical axis through the central
point of the ceiling mounted radiant panel. A temperature sensor with blackened light metal sphere
(diameter 150 mm, emissivity 0,9) is used. The measuring point is arranged in the centre of the sphere.
The penetration of the temperature sensor through the surface of the sphere runs horizontally and is
air tight. The hollow sphere is attached to the temperature sensor.
Air temperature
The air temperature is measured with sensors protected against radiation. The measuring points are
situated on two vertical axes at three different heights as shown in Figure 1.
2 © ISO 2017 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 18566-2:2017(E)

Key
1 air temperature measuring points
2 reference room temperature measuring point
3 ceiling mounted radiant panel
4 axes of air temperature measuring points
The dimension of the reference room should follow Figure 1, but national requirements should be also taken into
account.
Figure 1 — Arrangement of measuring points for the reference room temperature and for air
temperature
Surface temperature of the inside surfaces
The surface temperatures of the inside walls are calculated as average value of the inlet and outlet
water temperature of each single surface wall.
5.3 Verification of test installation, repeatability and reproducibility
All test installations shall be verified for:
— constructional conformity: any statement concerning thermal outputs shall be accompanied by a
statement indicating the test conditions in which the stated outputs have been obtained;
— repeatability: the repeatability precision shall be within an allowed tolerance s when testing a
0
single master panel in the same test installation at short or long intervals. The testing laboratory
will use its own master panel (secondary set) to determine the repeatability tolerance s of the
0
test installation. Using this master panel, heat output tests shall be carried out. The latest test for
repeatability shall not have taken place longer than 6 months before a thermal heat output test.
The repeatability shall be tested every 12 months in minimum. To prove the repeatability precision
of a test laboratory, the results of five consecutive tests at the start of the test installation shall be
within a tolerance range s = 20 W;
0
© ISO 2017 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 18566-2:2017(E)

— reproducibility: the reproducibility shall be proved by using the primary set of master panels. The
test results shall be within the tolerance s = ±20 W of the Φ value of each master panel.
m M,s
The test laboratories have to prove the reproducibility in periodical tests.
6 Test
6.1 General
The aim of the thermal output test is to establish the standard characteristic equation of a ceiling
mounted radiant panel by determining the related values of thermal output and cooling capacity and
temperature difference. Neither of these quantities can be measured directly, but shall be calculated
using the values of other measurable quantities, either directly or with additional information
(calibration test, material properties table), by using mathematical relationships.
6.2 Test method
The thermal output Φ is calculated based on the water flow rate q and the measured temperatures
me m
h and h as shown in Formula (1). These temperatures are used to calculate the specific enthalpies as
1 2
determined by the international steam tables at a reference water pressure of 120 kPa:
Φ =−qh()h (1)
me m1 2
The water flow rate is measured directly by a calibrated flow-meter in a closed water circuit or calculated
using the mass of the water m, collected in a measuring vessel, and the relevant time interval τ.
4 © ISO 2017 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 18566-2:2017(E)

Key
1 panel in the test booth 9 control unit for flow temperature
2 water circuit for measurement 10 container with overflow for calibration device
3 connection of the calibration device to the 11 recording and evaluating instruments
measuring circuit
4 circulating pump in the measuring circuit 12 collecting and draining installation for
(controlled) calibrating measurement
5 electric heating element in the measuring 13 heating device for calibrating measurement
circuit for flow temperature control
...
