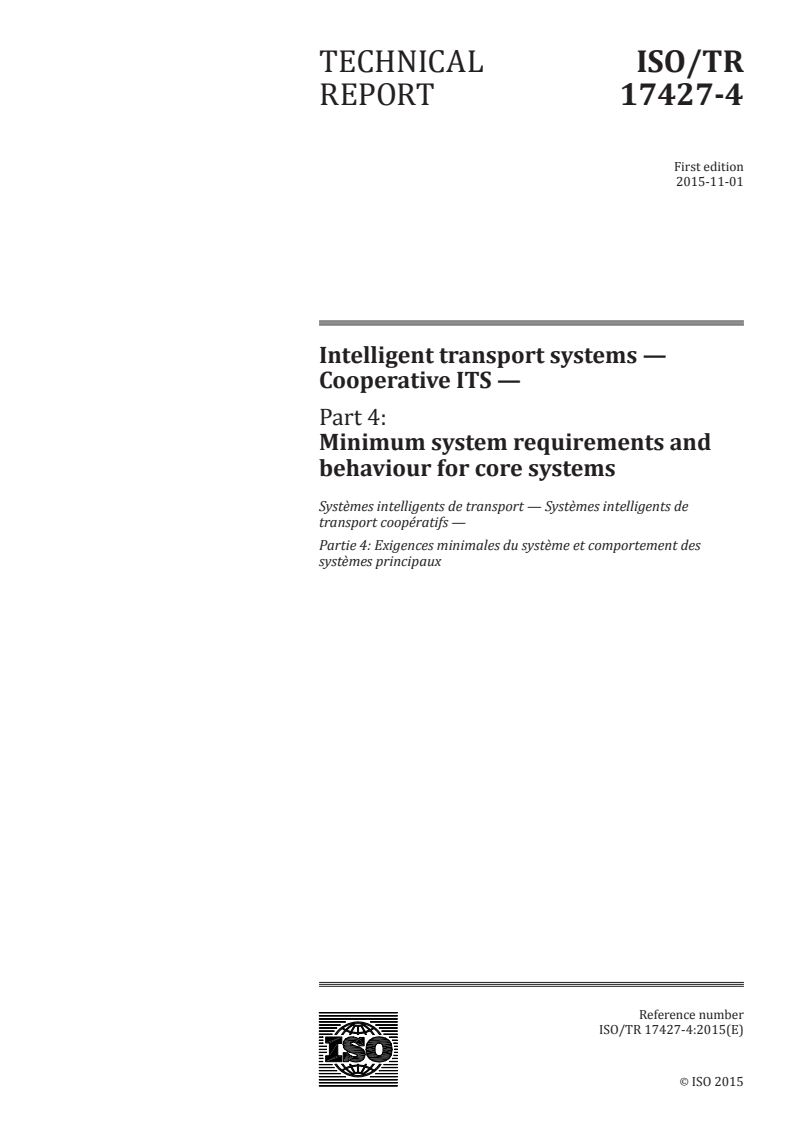

TECHNICAL ISO/TR
REPORT 17427-4
First edition
2015-11-01
Intelligent transport systems —
Cooperative ITS —
Part 4:
Minimum system requirements and
behaviour for core systems
Systèmes intelligents de transport — Systèmes intelligents de
transport coopératifs —
Partie 4: Exigences minimales du système et comportement des
systèmes principaux
Reference number
ISO/TR 17427-4:2015(E)
©
ISO 2015
---------------------- Page: 1 ----------------------
ISO/TR 17427-4:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 17427-4:2015(E)

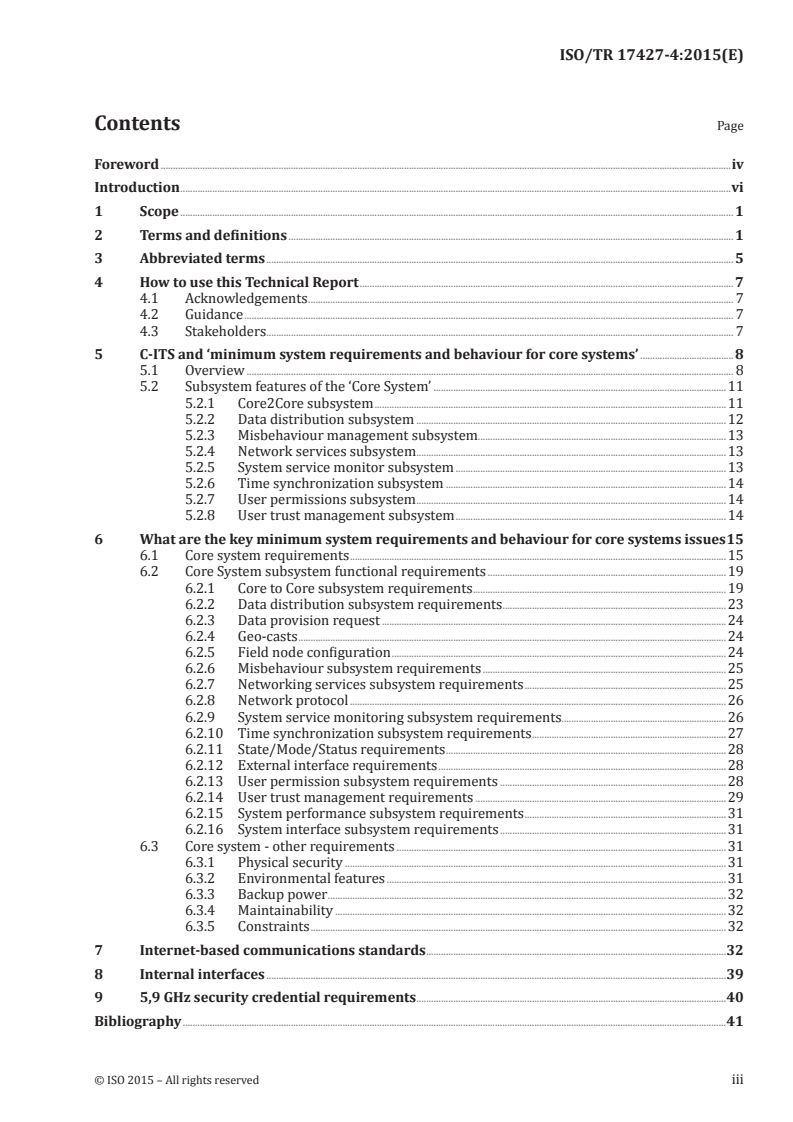

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Terms and definitions . 1
3 Abbreviated terms . 5
4 How to use this Technical Report . 7
4.1 Acknowledgements . 7
4.2 Guidance . 7
4.3 Stakeholders . 7
5 C-ITS and ‘minimum system requirements and behaviour for core systems’ .8
5.1 Overview . 8
5.2 Subsystem features of the ‘Core System’ .11
5.2.1 Core2Core subsystem .11
5.2.2 Data distribution subsystem .12
5.2.3 Misbehaviour management subsystem.13
5.2.4 Network services subsystem .13
5.2.5 System service monitor subsystem .13
5.2.6 Time synchronization subsystem .14
5.2.7 User permissions subsystem .14
5.2.8 User trust management subsystem .14
6 What are the key minimum system requirements and behaviour for core systems issues 15
6.1 Core system requirements .15
6.2 Core System subsystem functional requirements .19
6.2.1 Core to Core subsystem requirements .19
6.2.2 Data distribution subsystem requirements .23
6.2.3 Data provision request .24
6.2.4 Geo-casts .24
6.2.5 Field node configuration .24
6.2.6 Misbehaviour subsystem requirements .25
6.2.7 Networking services subsystem requirements .25
6.2.8 Network protocol .26
6.2.9 System service monitoring subsystem requirements.26
6.2.10 Time synchronization subsystem requirements .27
6.2.11 State/Mode/Status requirements .28
6.2.12 External interface requirements .28
6.2.13 User permission subsystem requirements .28
6.2.14 User trust management requirements .29
6.2.15 System performance subsystem requirements .31
6.2.16 System interface subsystem requirements .31
6.3 Core system - other requirements .31
6.3.1 Physical security .31
6.3.2 Environmental features .31
6.3.3 Backup power .32
6.3.4 Maintainability .32
6.3.5 Constraints .32
7 Internet-based communications standards .32
8 Internal interfaces .39
9 5,9 GHz security credential requirements .40
Bibliography .41
© ISO 2015 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 17427-4:2015(E)

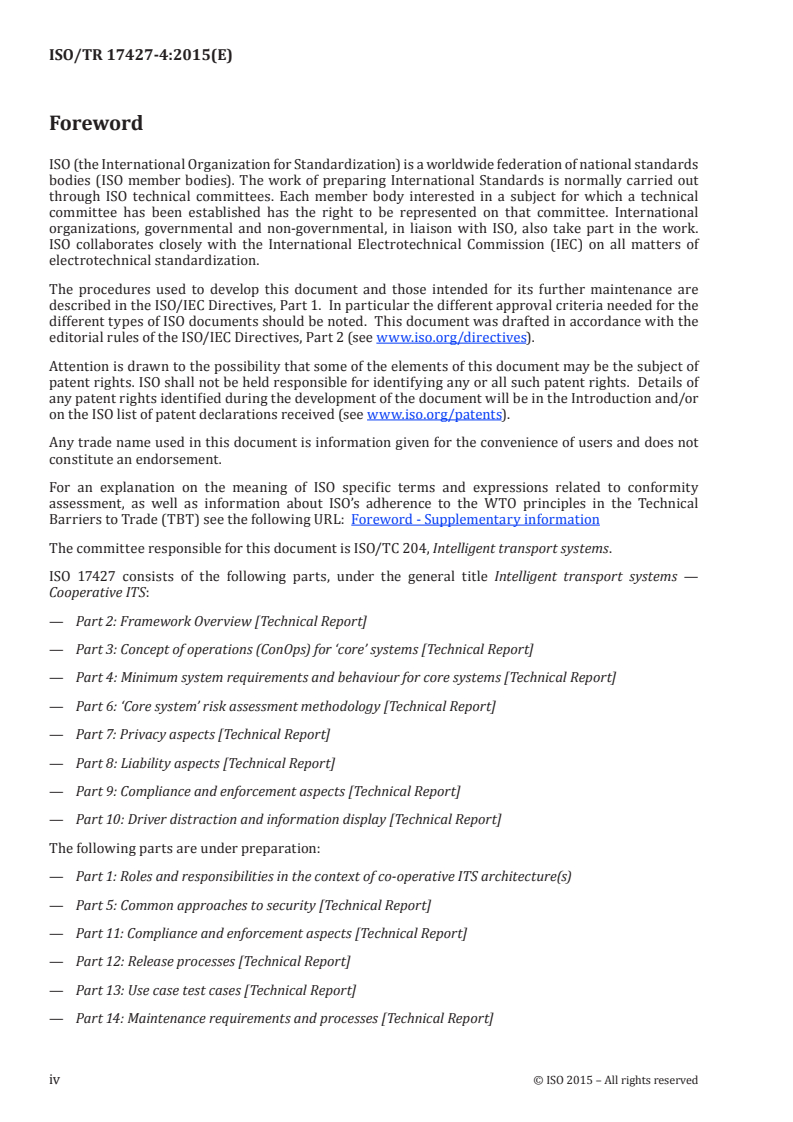

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 204, Intelligent transport systems.
ISO 17427 consists of the following parts, under the general title Intelligent transport systems —
Cooperative ITS:
— Part 2: Framework Overview [Technical Report]
— Part 3: Concept of operations (ConOps) for ‘core’ systems [Technical Report]
— Part 4: Minimum system requirements and behaviour for core systems [Technical Report]
— Part 6: ‘Core system’ risk assessment methodology [Technical Report]
— Part 7: Privacy aspects [Technical Report]
— Part 8: Liability aspects [Technical Report]
— Part 9: Compliance and enforcement aspects [Technical Report]
— Part 10: Driver distraction and information display [Technical Report]
The following parts are under preparation:
— Part 1: Roles and responsibilities in the context of co-operative ITS architecture(s)
— Part 5: Common approaches to security [Technical Report]
— Part 11: Compliance and enforcement aspects [Technical Report]
— Part 12: Release processes [Technical Report]
— Part 13: Use case test cases [Technical Report]
— Part 14: Maintenance requirements and processes [Technical Report]
iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 17427-4:2015(E)
This Technical Report provides an informative ‘minimum system requirements and behaviour for
core systems’ for Cooperative Intelligent Transport Systems (C-ITS). It is intended to be used alongside
ISO 17427-1, ISO/TR 17465-1 and other parts of ISO 17465, and ISO 21217. Detailed specifications for
the application context will be provided by other ISO, CEN and SAE deliverables, and communications
specifications will be provided by ISO, IEEE and ETSI.
© ISO 2015 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 17427-4:2015(E)
Introduction
Intelligent transport systems (ITS) are transport systems in which advanced information, communication,
sensor and control technologies, including the Internet, are applied to increase safety, sustainability,
efficiency, and comfort.
A distinguishing feature of ‘ITS’ is its communication with outside entities.
Some ITS systems operate autonomously, for example, ‘adaptive cruise control’ uses radar/lidar and/or
video to characterize the behaviour of the vehicle in front and adjust its vehicle speed accordingly. Some
ITS systems are informative, for example, ‘variable message signs’ at the roadside or transmitted into
the vehicle, provide information and advice to the driver. Some ITS systems are semi-autonomous in
that they are largely autonomous but rely on ‘static’ or ‘broadcast’ data, for example, GNSS (2.22) based
‘SatNav’ systems operate autonomously within a vehicle but are dependent on receiving data broadcast
from satellites in order to calculate the location of the vehicle.
Cooperative Intelligent transport systems (C-ITS) are a group of ITS technologies where service provision
is enabled by, or enhanced by, the use of ‘live’, present situation related, dynamic data/information from
other entities of similar functionality [for example, from one vehicle to other vehicle(s)], and/or between
different elements of the transport network, including vehicles and infrastructure [for example,
from the vehicle to an infrastructure managed system or from an infrastructure managed system to
vehicle(s)]. Effectively, these systems allow vehicles to ‘talk’ to each other and to the infrastructure.
These systems have significant potential to improve the transport network.
A distinguishing feature of ‘C-ITS’ is that data is used across application/service boundaries.
This Technical Report is a ‘living document’ and as our experience with C-ITS develops, it is intended that
it will be updated from time to time, as and when we see opportunities to improve this Technical Report.
vi © ISO 2015 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 17427-4:2015(E)
Intelligent transport systems — Cooperative ITS —
Part 4:
Minimum system requirements and behaviour for core
systems
1 Scope
The scope of this Technical Report is, as an informative document, to identify potential critical
minimum system requirements and behaviour for core systems issues that C-ITS service provision may
face or introduce, to consider strategies for how to identify, control, limit or mitigate such issues. The
objective of this Technical Report is to raise awareness of and consideration of such issues and to give
pointers, where appropriate, to subject areas and, where available, to existing standards deliverables
that provide specifications for all or some of these aspects. This Technical Report does not provide
specifications for solutions of these issues.
2 Terms and definitions
2.1
anonymity
lacking individuality, distinction, and recognizability within message exchanges
2.2
anonymous certificates
certificate which contains a pseudonym of the system user instead of their real identity in the subject
of the certificate and thus preventing other system service recipients from identifying the certificate
owner when the certificate is used to sign or encrypt a message in the connected vehicle/highway
system (C-ITS, connected vehicle)
Note 1 to entry: The real identity of the anonymous certificates can be traced by authorized system operators by
using the services of a registration authority and/or certification authority.
2.3
application
‘app’
software application
2.4
application service
service provided, for example, by a service provider accessing data from the IVS within the vehicle
in the case of C-ITS, via a wireless communications network, or provided on-board the vehicle as the
result of software (and potentially also hardware and firmware) installed by a service provider or to a
service provider’s instruction
2.5
authenticity
property of being of undisputed origin and not a copy, authenticated, and having the origin supported
by unquestionable evidence
Note 1 to entry: Something that has had its authenticity confirmed could be described as “authenticated” or
“verified”.
© ISO 2015 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 17427-4:2015(E)
2.6
authorization
process of determining what types of activities or access are permitted on a network
Note 1 to entry: This is usually used in the context of authentication: once you have authenticated a user, they
may be authorized to have access to a specific service.
2.7
bad actor
role played by a user or another system that provides false or misleading data, operates in such a fashion
as to impede other service recipients, and/or operates outside of its authorized scope
2.8
C-ITS
Cooperative ITS
group of ITS technologies where service provision is enabled, or enhanced by, the use of ‘live’, present
situation related, data/information from other entities of similar functionality [(for example, from one
vehicle to other vehicle(s)], and/or between different elements of the transport network, including
vehicles and infrastructure (for example from the vehicle to an infrastructure managed system or from
an infrastructure managed system to vehicle(s)
2.9
catalogue
repository used by the ‘Data Distribution subsystem’ for maintaining data publishers information
including the type of data they are transmitting, frequency of that data, address, data source, etc.
2.10
centre
entity that provides application, management, administrative, and support functions from a fixed
location (the terms “back office” and “centre” are used interchangeably)
Note 1 to entry: Centre is, traditionally, a transportation-focused term, evoking management centres to support
transportation needs, while back office generally refers to commercial applications; from the perspective of this
Technical Report, these are considered the same.
2.11
core services
set of functions within the ‘Core System’ subsystems that interact with system service recipients
2.12
core system personnel
staff that operate and maintain the ‘Core System’
Note 1 to entry: In addition to network managers and operations personnel, ‘Core System’ personnel includes the
administrators, operators, maintainers, developers, deployers and testers.
2.13
coverage area
geographic jurisdiction within which a ‘Core System’ provides core services (2.11)
2.14
data provision
act of providing data to a core system
2.15
delta
updates
records
data that is new since the last block of data that was downloaded
2 © ISO 2015 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 17427-4:2015(E)
2.16
digital certificate
electronic “identification card” that establishes user credentials when doing business or other transactions
Note 1 to entry: This is issued by a certification authority: contains name, a serial number, expiration dates, a
copy of the certificate holder’s public key (2.40) (used for encrypting messages and digital signatures), and the
digital signature of the certificate-issuing authority so that a recipient can verify that the certificate is real.
Note 2 to entry: From the SysAdmin, Audit, Network, Security Institute - www.sans.org
2.17
environment
circumstances, objects, and conditions that surround a system to be built
Note 1 to entry: It includes technical, political, commercial, cultural, organizational, and physical influences, as
well as standards and policies that govern what a system shall do or how it will do it.
2.18
error message
message that indicates issues with cross-jurisdictional compatibility, scope coverage service or
service availability
2.19
facility
building or group of buildings with access restrictions housing a ‘Core System’
2.20
functionality
capabilities of the various computational, user interfaces, input, output, data management, and other
features provided by a product
2.21
geo-cast
delivery of a message to a group of network destinations identified by their geographic locations
2.22
global navigation satellite system
GNSS
comprises several networks of satellites that transmit radio signals containing time and distance data
that can be picked up by a receiver, allowing the user to identify the location of its receiver anywhere
around the globe
EXAMPLE GPS, GLONASS, Galileo.
2.23
integrity
internal consistency or lack of corruption in electronic data
EXAMPLE A system that is secure, complete and conforming to an acceptable conduct without being
vulnerable and corruptible.
2.24
intelligent transport systems
ITS
transport systems in which advanced information, communication, sensor and control technologies,
including the Internet, are applied to increase safety, sustainability, efficiency, and comfort
© ISO 2015 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 17427-4:2015(E)
2.25
link
locus of relations among nodes
Note 1 to entry: It provides interconnections between nodes for communication and coordination; may be
implemented by a wired connection or with some radio frequency (RF) or optical communications media; links
implement the primary function of transporting data; links connect to nodes at a port (2.38).
2.26
maintainability
keep in an existing operational state preserved from failure or decline of services (with minimum
repair, efficiency, or validity)
2.27
misbehaviour
act of providing false or misleading data, operating in such a fashion as to impede other service
recipients, or to operate outside of their authorized scope
Note 1 to entry: This includes suspicious behaviour as in wrong message types or frequencies, invalid logins and
unauthorized access, or incorrect signed or encrypted messages, etc., either purposeful or unintended.
2.28
misbehaviour information
misbehaviour (2.27) reports from system service recipients, as well as other improper system user acts,
such as sending wrong message types, invalid logins, unauthorized access, incorrectly signed messages
and other inappropriate system user behaviour
2.29
misbehaviour report
information from a system user identifying suspicious behaviour from another system user that can be
characterized as misbehaviour (2.27)
2.30
mobile
vehicle types (private/personal, trucks, transit, emergency, commercial, maintenance, and construction
vehicles) as well as non-vehicle-based platforms including portable personal devices (smartphones,
PDAs, tablets, etc.) used by travellers (vehicle operators, passengers, cyclists, pedestrians, etc.) to
provide and receive transportation information
2.31
mode
phase within a state (degraded mode occurs automatically due to certain conditions), such as, when
in operational state (2.33), there is an automatic transition to degraded mode because of a detected
hardware failure
Note 1 to entry: Modes are normal, degraded, restricted and degraded/restricted.
2.32
node
physical hardware engineering object that is a run-time computational resource and generally has at
least memory and processing capability
Note 1 to entry: Run-time software engineering objects reside on nodes; node has some well-understood, possibly
rapidly moving, location [a node may be composed of two or more (sub) nodes].
2.33
operational state
all activities during the normal conduct of operations and also needs to be able to handle support for
services from other ‘Cores Systems’ including fail-over and/or degraded services
4 © ISO 2015 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 17427-4:2015(E)
2.34
operator
day-to-day providers of the ‘Core System’ that monitor the health of the system components, adjust
parameters to improve performance, and collect and report statistics of the overall system
2.35
parsing
analysing (a string, text or data) into logical syntactic components
2.36
permission
authorization (2.6) granted to do something (to the ‘Core System’), permissions are granted to system
service recipients and operators (2.34) determining what actions they are allowed to take when
interacting with the ‘Core System’
2.37
physical security
safeguards to deny access to unauthorized personnel (including attackers or even accidental intruders)
from physically accessing a building, facility (2.19), resource, or stored information (this can include
simply a locked door, badge access controls, or armed security guards)
2.38
port
physical element of a node (2.32) where a link (2.25) is connected; nodes may have one or more ports;each
port may connect to one or more physical ports on (sub) nodes that are contained within the node
2.39
private network
network belonging to a person, company or organization that uses a public network (usually the
Internet) to connect its remote sites or service recipients together
2.40
public key
cryptographic key that can be obtained and used by anyone to encrypt messages intended for a
particular recipient, such that the encrypted messages can be deciphered only by using a second key
that is known only to the recipient (the private key)
2.41
registry
repository for maintaining data requester’s information including the type of data they are subscribing
to, their address, etc.
2.42
states
distinct system setting in which the same user input will produce different results than it would in
other settings
Note 1 to entry: The ‘Core System’ as a whole is always in one state [a state is typically commanded or placed in
that state by an operator (2.34); states are installation, operational, maintenance, training, and standby].
3 Abbreviated terms
C-ITS cooperative intelligent transport systems, cooperative ITS
ITS intelligent transport systems (2.24)
IVS in-vehicle system (2.6)
TR technical report
© ISO 2015 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TR 17427-4:2015(E)
ANSI American National Standards Institute
CA certification authority
CALM Communications Access for Land Mobile Standards
CAMP Crash Avoidance Metrics Partnership
ConOps concept of operations
CRL certification revocation lists
CVIS Cooperative Vehicle Infrastructure System (Project)
DNS domain name system
EC European Commission
ESS external support system
ETSI European Telecommunications Standards Institute
FCC Federal Communications Commission
GHz gigahertz
IEEE Institute for Electrical and Electronics Engineers
IETF Internet Engineering Task Force
IP Internet protocol
LTE long term evolution
NIST National Institute of Standards and Technology
PKI public key infrastructure
PKIX public key infrastructure based on X.509 certificates
RA registration authority
RFC request for comments
RITA Research and Innovative Technology Administration
RSE roadside equipment
SAP service access point
SyRS system requirements specification
USDOT US Department of Transportation
UTC coordinated universal time
VII vehicle infrastructure integration
6 © ISO 2015 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/TR 17427-4:2015(E)
4 How to use this Technical Report
4.1 Acknowledgements
Inspiration for the technical content identification and consideration of this Technical Report has been
largely obtained from various documents generated and publicized by US DoT RITA, especially “‘Core
System’ Requirements Specification (SyRS)”.
Conceptual input from the EC project CVIS is also acknowledged.
Contribution from the Australian National Transport Commission, Cooperative Intelligent Transport
Systems Policy Paper (A Report prepared by: National Transport Commission) ISBN: 978-1-921604-47-
8) is also acknowledged.
See Bibliography for further details of contributions.
4.2 Guidance
This Technical Report is designed to provide guidance and a direction for considering the issues
concerning minimum system requirements and behaviour for core systems associated with the
deployment of C-ITS service provision. It does not purport to be a list of all potential minimum system
requirements and behaviour for core systems factors, which will vary according to the scope of the core
system being provided, the regime of the jurisdiction, the location of the instantiation and to the form
of the instantiation, nor does it provide definitive specification. Rather, this Technical Report discusses
and raises awareness of the major minimum system requirements and behaviour for core
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
