ISO 4579:2021

Aerospace - Drives, internal, TORX® PARALOBE® drive - Geometrical definition, gaging and technical requirements

This document specifies basic dimensions, characteristics and engineering requirements for TORX® PARALOBE® recesses in aerospace fasteners.

Aéronautique et espace — Empreintes, TORX® PARALOBE® entraînement — Définition géométrique, calibrage et exigences techniques

General Information

• Status: Published
• Publication Date: 04-Nov-2021
• ICS: 49.030.01 - Fasteners in general
• Technical Committee: ISO/TC 20/SC 4 - Aerospace fastener systems
• Drafting Committee: ISO/TC 20/SC 4/WG 3 - Supporting documents
• Current Stage: 6060 - International Standard published
• Start Date: 05-Nov-2021
• Due Date: 16-May-2023
• Completion Date: 05-Nov-2021

Overview - ISO 4579:2021 (TORX® PARALOBE® drive for aerospace)

ISO 4579:2021 specifies the geometrical definition, gaging and technical requirements for TORX® PARALOBE® recesses used in aerospace fasteners. The standard defines basic recess configuration, metric and inch recess dimensions, inspection/gaging methods and a fastener recess torque test procedure. It is intended for designers, manufacturers and quality personnel working with aerospace fastener drive systems. Note: TORX® PARALOBE® is a trademark and the standard notes possible patent licensing considerations.

Key topics and technical requirements

• Scope and terminology: Definitions for recess, driver bit, configuration and optimum recess torque.
• Recess geometry and dimensions: Detailed tables of recess diameters and inscribed diameters for drive sizes (drive codes 001–110 SI) given in both metric and inch units.
• Gaging and inspection:
  • Uses a penetration-type go/no‑go gage assembly (go and no‑go elements) to check recess depth and fit.
  • Gage identification, zero check on a flat surface, insertion and depth measurement procedures are specified.
  • Element diameters for each drive size are listed (see Table 2 in the standard).
• Fastener recess torque testing:
  • Test fixture requirements: alignment with fastener axis, non-rotation of fastener, and ability to apply specified end load while not preventing cam-out.
  • Torque device requirements: hand torque wrenches or torsion machines per applicable requirements.
  • Driver bits must conform to ISO 4580.
  • Test procedure: fixture the fastener, align driver bit within 1° of axis, apply end load per NASM1312-25, apply torque in install and removal directions and record results.
  • Optimum recess torque values: Table 3 provides minimum torsional strength/optimum torque values by drive size.

Practical applications and users

Who uses ISO 4579:2021:

• Aerospace fastener designers and engineers specifying internal drive recesses.
• Fastener manufacturers and tooling suppliers ensuring dimensional and functional conformity to TORX® PARALOBE® geometry.
• Quality control and inspection teams using go/no‑go penetration gages for acceptance testing.
• Maintenance, assembly and procurement teams selecting appropriate driver bits and torque requirements for installation/removal operations.

Practical benefits:

• Ensures interchangeability of driver bits and fasteners.
• Provides standardized inspection and torque-test methods to reduce drive failures and cam‑out.
• Supports certification and traceability in aerospace manufacturing and maintenance.

Related standards

• ISO 4580 - driver bit geometry, gaging and technical requirements for TORX® PARALOBE® bits.
• NASM1312-25 - driving recess torque quality conformance test (referenced for end‑load and test details).

Keywords: ISO 4579:2021, TORX PARALOBE, aerospace fasteners, recess dimensions, gaging, go/no‑go gage, torque test, driver bit.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 4579
First edition
2021-11
Aerospace — Drives, internal, TORX®
PARALOBE® drive — Geometrical
definition, gaging and technical
requirements
Aéronautique et espace — Empreintes, TORX® PARALOBE®
entraînement — Définition géométrique, calibrage et exigences
techniques
Reference number
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

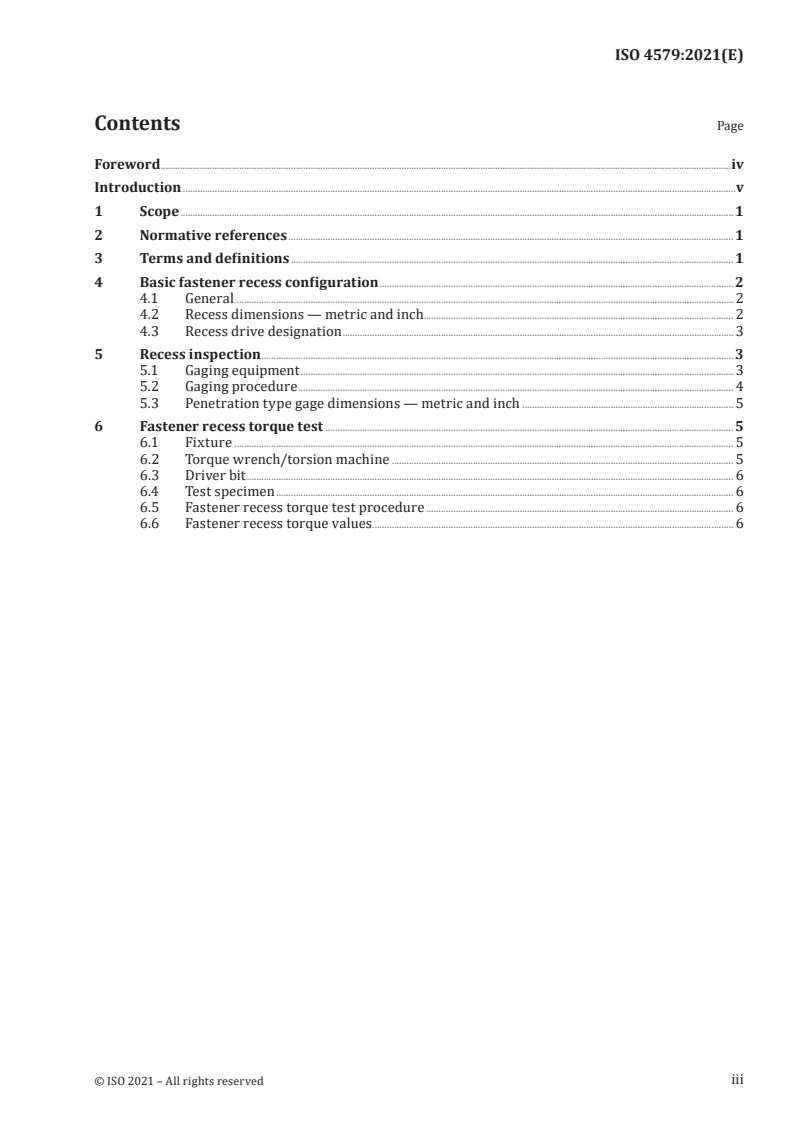

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Basic fastener recess configuration .2
4.1 General . 2
4.2 Recess dimensions — metric and inch . 2
4.3 Recess drive designation . 3
5 Recess inspection .3
5.1 Gaging equipment . 3
5.2 Gaging procedure . 4
5.3 Penetration type gage dimensions — metric and inch . 5
6 Fastener recess torque test . 5
6.1 Fixture . 5
6.2 Torque wrench/torsion machine . 5
6.3 Driver bit . 6
6.4 Test specimen . 6
6.5 Fastener recess torque test procedure . 6
6.6 Fastener recess torque values. 6
iii

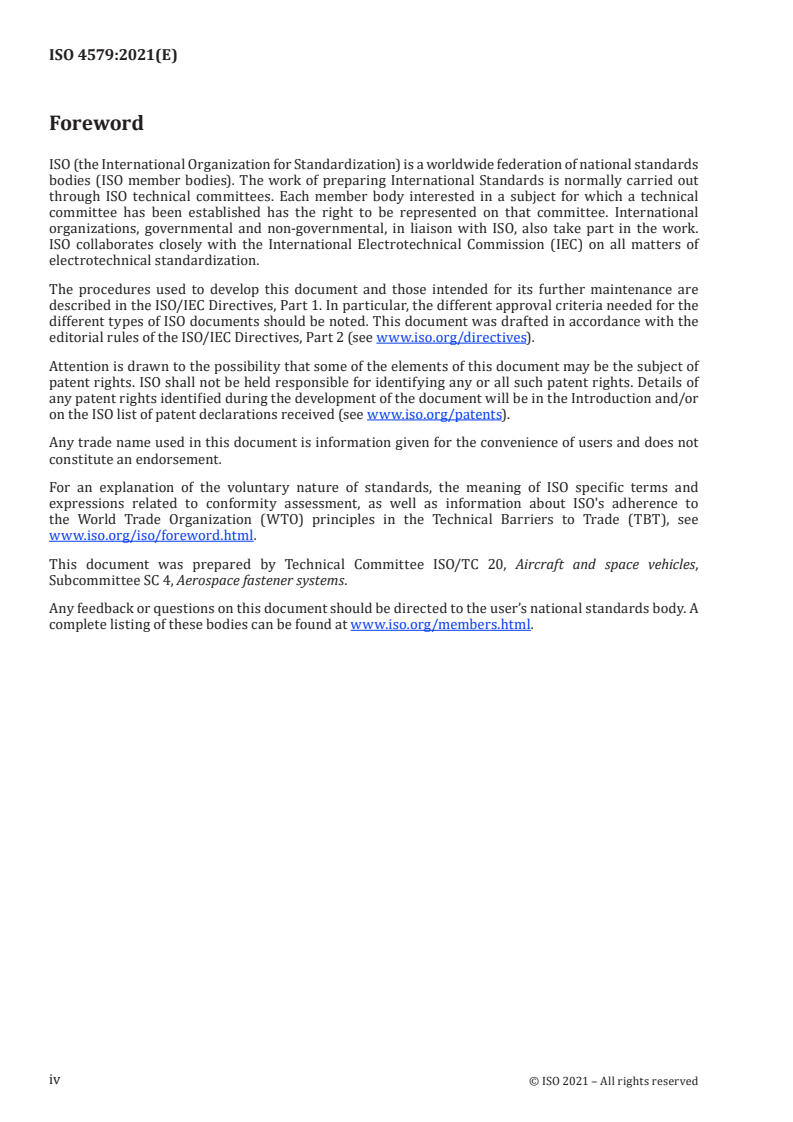

Foreword
