Brown coals and lignites — Determination of moisture — Part 1: Indirect gravimetric method for total moisture

This document specifies two methods for determination of the total moisture of brown coals and lignites using an indirect gravimetric single-stage method and a two-stage method.

Charbons bruns et lignites — Détermination de l'humidité — Partie 1: Méthode gravimétrique indirecte pour l'humidité totale

General Information

Status
Published
Publication Date
01-May-2025
Current Stage
6060 - International Standard published
Start Date
02-May-2025
Due Date
20-May-2026
Completion Date
02-May-2025
Ref Project

Relations

Buy Standard

Standard
ISO 5068-1:2025 - Brown coals and lignites — Determination of moisture — Part 1: Indirect gravimetric method for total moisture Released:2. 05. 2025
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

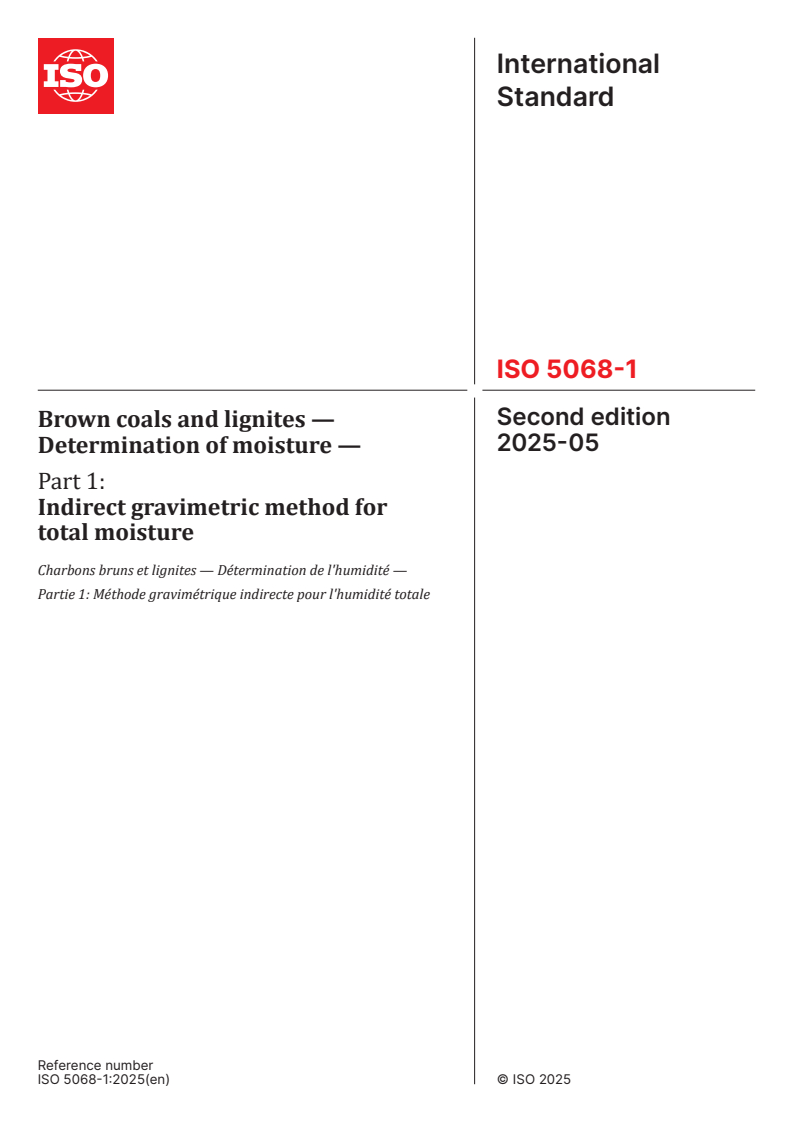

International
Standard
ISO 5068-1
Second edition
Brown coals and lignites —
2025-05
Determination of moisture —
Part 1:
Indirect gravimetric method for
total moisture
Charbons bruns et lignites — Détermination de l'humidité —
Partie 1: Méthode gravimétrique indirecte pour l'humidité totale
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

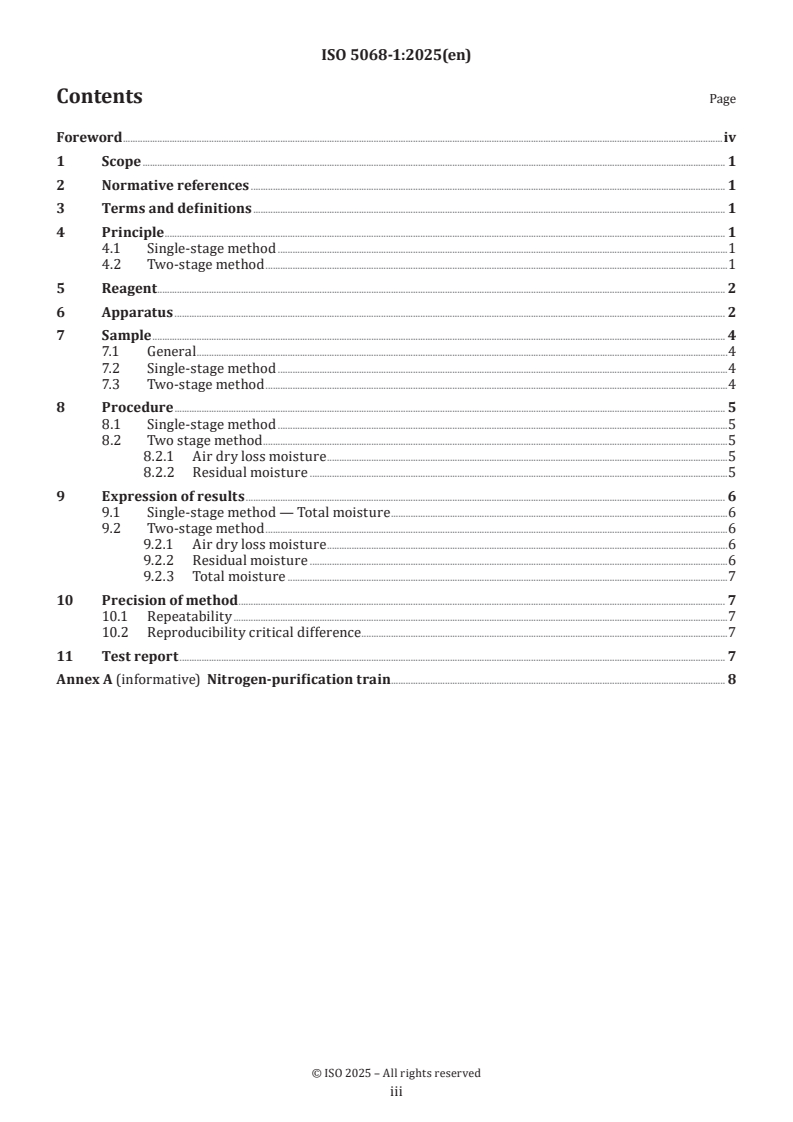

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
4.1 Single-stage method .1
4.2 Two-stage method .1
5 Reagent . 2
6 Apparatus . 2
7 Sample . 4
7.1 General .4
7.2 Single-stage method .4
7.3 Two-stage method .4
8 Procedure . 5
8.1 Single-stage method .5
8.2 Two stage method .5
8.2.1 Air dry loss moisture .5
8.2.2 Residual moisture .5
9 Expression of results . 6
9.1 Single-stage method — Total moisture .6
9.2 Two-stage method .6
9.2.1 Air dry loss moisture .6
9.2.2 Residual moisture .6
9.2.3 Total moisture .7
10 Precision of method . 7
10.1 Repeatability .7
10.2 Reproducibility critical difference .7
11 Test report . 7
Annex A (informative) Nitrogen-purification train . 8

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 27, Coal and coke, Subcommittee SC 5, Methods
of analysis.
This second edition cancels and replaces the first edition (ISO 5068-1:2007), which has been technically
revised.
The main changes are as follows:
— referenced documents have been updated;
— terms and definitions have been updated;
— the test report has been updated.
A list of all parts in the ISO 5068 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 5068-1:2025(en)
Brown coals and lignites — Determination of moisture —
Part 1:
Indirect gravimetric method for total moisture
1 Scope
This document specifies two methods for determination of the total moisture of brown coals and lignites
using an indirect gravimetric single-stage method and a two-stage method.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1213-2, Coal and coke — Vocabulary — Part 2: Terms relating to sampling, testing and analysis
ISO 13909-4, Coal and coke — Mechanical sampling — Part 4: Preparation of test samples of coal
ISO 18283, Coal and coke — Manual sampling
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1213-2 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
4.1 Single-stage method
A sample, prepared using a closed mill, is dried to a constant mass at a temperature of 105 °C to 110 °C in an
atmosphere of nitrogen. The total moisture mass fraction is calculated from the loss in mass of the sample.
4.2 Two-stage method
At the first stage, the coarsely ground sample is dried either at ambient temperature or at a higher
temperature not exceeding 40 °C, to reach equilibrium with the surrounding atmosphere. At the second
stage, the sample dried in an air atmosphere (air-dry sample) is crushed and dried to a constant mass at
a temperature of 105 °C to 110 °C in an atmosphere of nitrogen. The total moisture is calculated from the
losses in mass during the two drying stages.

5 Reagent
5.1 Desiccant, fresh or freshly regenerated and preferably self-indicating.
Suitable desiccants are magnesium perchlorate and silica gel.
WARNING — Magnesium perchlorate is a strong oxidizing agent. Do no attempt to regenerate the
absorbent. Do not permit contact with organic materials or reducing agent.
5.2 Nitrogen, high-purity, dry with a maximum oxygen volume fraction of 30 µl/l.
NOTE Commercial nitrogen of this purity is available. See Annex A for details.
6 Apparatus
6.1 Oven, nitrogen-flushed, capable of being controlled by a temperature of 105 °C to 110 °C and with the
additional provision for passing a current of dry nitrogen through it at a flow rate about 15 times the oven
volume per hour.
Before using a new oven, carry out a temperature profile through the interior and take care to insert samples
only where the temperature is known to be 105 °C to 110 °C.
A suitable oven is illustrated in Figure 1.

Dimensions in millimetres
Key
1 nitrogen outlet
2 space for heating element
3 tube for temperature-measuring device
4 copper gauze, having apertures of nominal size 0,25 mm
5 nitrogen inlet
Figure 1 — Typical nitrogen oven

6.2 Drying cabinet, capable of being controlled at a temperature of 30 °C to 40 °C and with provision for
venting.
6.3 Tray, non-corrodible, of such dimensions that the loading of the sample layer does not exceed 1 g/cm .
6.4 Dish, a shallow dish of silica or glass, with ground edges and fitted with a ground-glass cover, or of a
non-corrodible, heat-resistant material with a well-fitting lid.
The diameter of the dish shall be such that the mass of coal layer does not exceed 0,25 g/cm for 10 g of
the sample.
6.5 Balances, sensitive to 0,01 g and to 0,001 g.
6.6 Flow meter, capable of measuring the rate of flow nitrogen through the oven.
6.7 Drying tower, 500 ml capacity, packed with magnesium perchlorate or silica gel for drying the
nitrogen.
6.8 Cooling vessel, for example, a desiccator without desiccant, containing a metal plate, preferably of
aluminium or copper.
The vessel may be provided with a means to pass nitrogen through it or with desiccant in it during the
cooling period.
7 Sample
7.1
...
